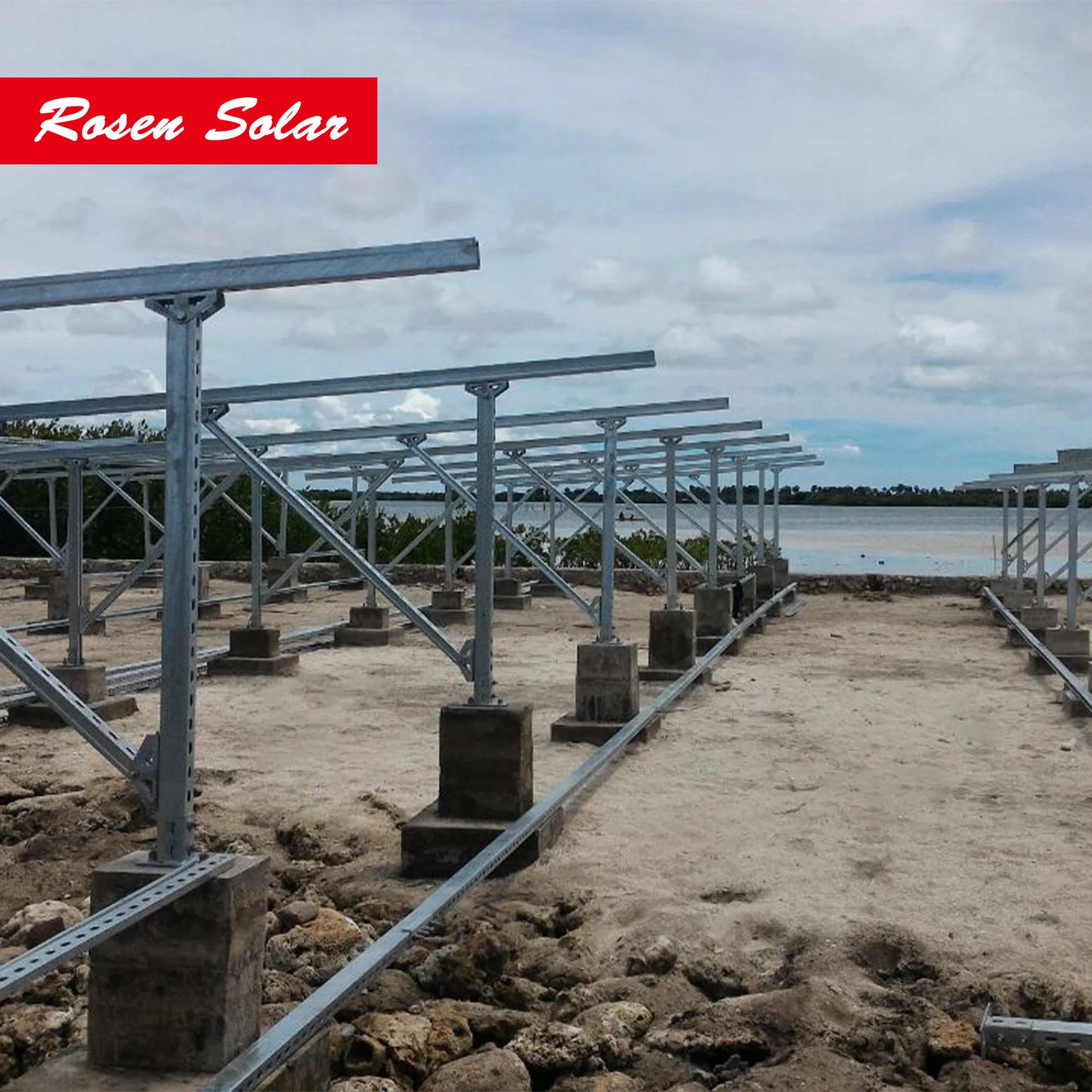

100kw on Grid Tied Solar Energy Power Panel System with Grid Tied Inverter PV Modules Mounting Bracket for 1MW Solar System
100kw on Grid Tied Solar Energy Power Panel System with Grid Tied Inverter PV Modules Mounting Bracket for 1MW Solar System
100kw on Grid Tied Solar Energy Power Panel System with Grid Tied Inverter PV Modules Mounting Bracket for 1MW Solar System
100kw on Grid Tied Solar Energy Power Panel System with Grid Tied Inverter PV Modules Mounting Bracket for 1MW Solar System
100kw on Grid Tied Solar Energy Power Panel System with Grid Tied Inverter PV Modules Mounting Bracket for 1MW Solar System
1 / 5
100kw on Grid Tied Solar Energy Power Panel System with Grid Tied Inverter PV Modules Mounting Bracket for 1MW Solar System
100kw on Grid Tied Solar Energy Power Panel System with Grid Tied Inverter PV Modules Mounting Bracket for 1MW Solar System
100kw on Grid Tied Solar Energy Power Panel System with Grid Tied Inverter PV Modules Mounting Bracket for 1MW Solar System
100kw on Grid Tied Solar Energy Power Panel System with Grid Tied Inverter PV Modules Mounting Bracket for 1MW Solar System
100kw on Grid Tied Solar Energy Power Panel System with Grid Tied Inverter PV Modules Mounting Bracket for 1MW Solar System

100kw on Grid Tied Solar Energy Power Panel System with Grid Tied Inverter PV Modules Mounting Bracket for 1MW Solar System

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

i

Basic Specifications

Model NO.
RS100KW-ON
Condition
New
Certification
ISO, CB, CE, TUV, VDE, IEC61215, IEC617, Pid, Cec, Jet
Application
Home, Industrial, Commercial, Agriculture Irrigation
Specification
Normal, 100KW
Solar Panel Type
Mono / Poly Solar Panel
Load Power
100kw
Output Frequency
50/60Hz
Output Voltage
EU: 380/400/480V Us: 240/480V etc
Monitoring
WiFi/GPRS Device
PV Cable
4/6/10mm^2 etc
Work Time (H)
24hours/Day
Mounting Brackets
Roof/Ground Installation
Inverter
Three Phase, 3L/N/PE
Production Capacity
100000watt/Week
Origin
China
★

Product Description

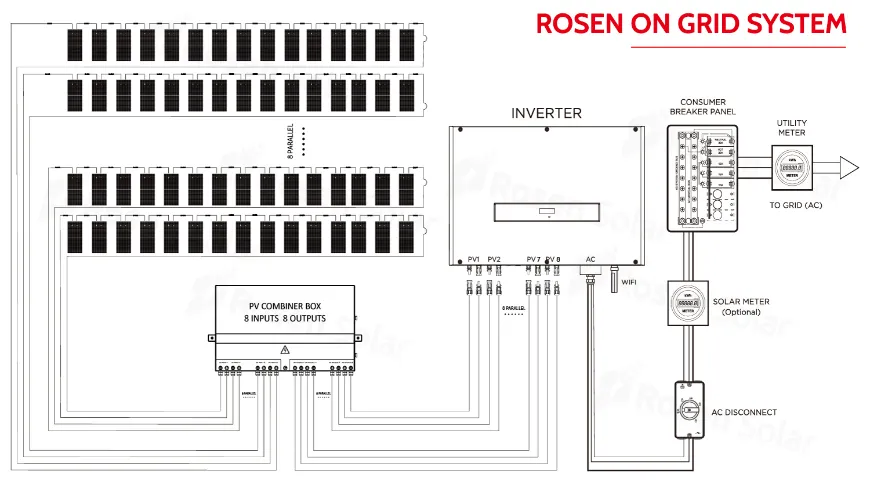

Solar Energy System Overview
⚙

System Configuration

Item 100KW 300KW 500KW
Half Cell Solar Panel 240 pieces 720 pieces 1200 pieces
PV Combiner Box 8inputs 8outputs 8inputs 8outputs 8inputs 8outputs
On Grid Inverter 50kw Each 50kw Each 50kw Each
WIFI Module Monitor 2 sets 6 sets 10 sets
PV Cable 4mm2/6mm2 4mm2/6mm2 4mm2/6mm2
Mounting Bracket Tile Roof/Ground Tile Roof/Ground Tile Roof/Ground
MC-4 Connector 240pcs 720pcs 1200pcs
Installation Tool Box 1set 1set 1set
Zero Export Function Yes Yes Yes
📋

Technical & Projects

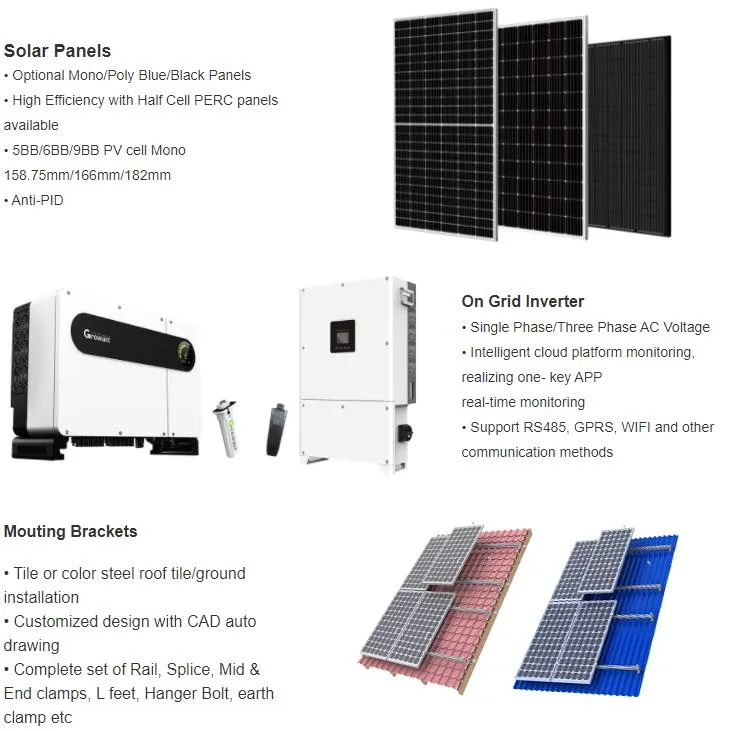

Technical Specification

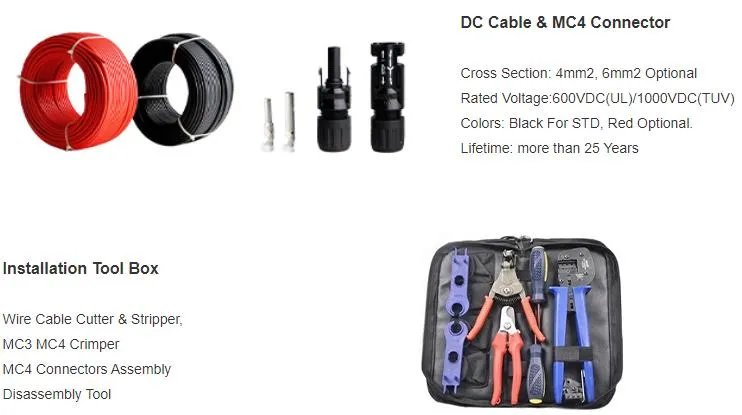

Mounting Details

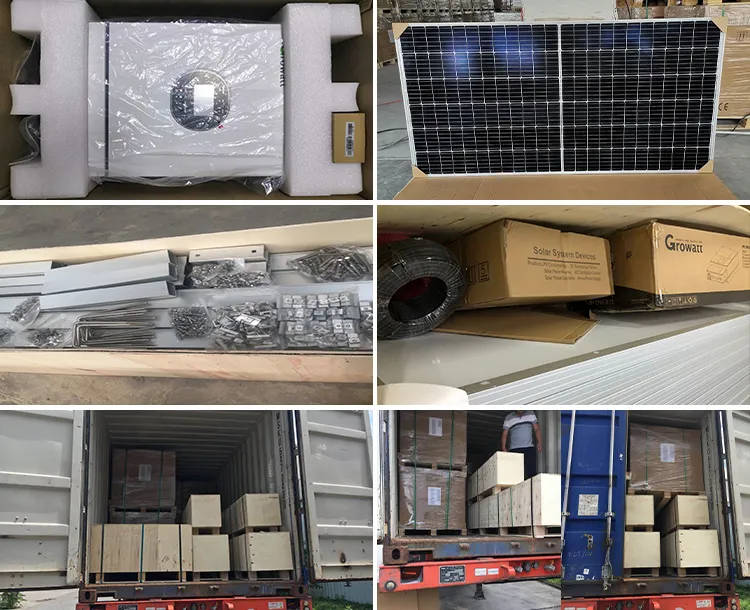

Packing and Delivery

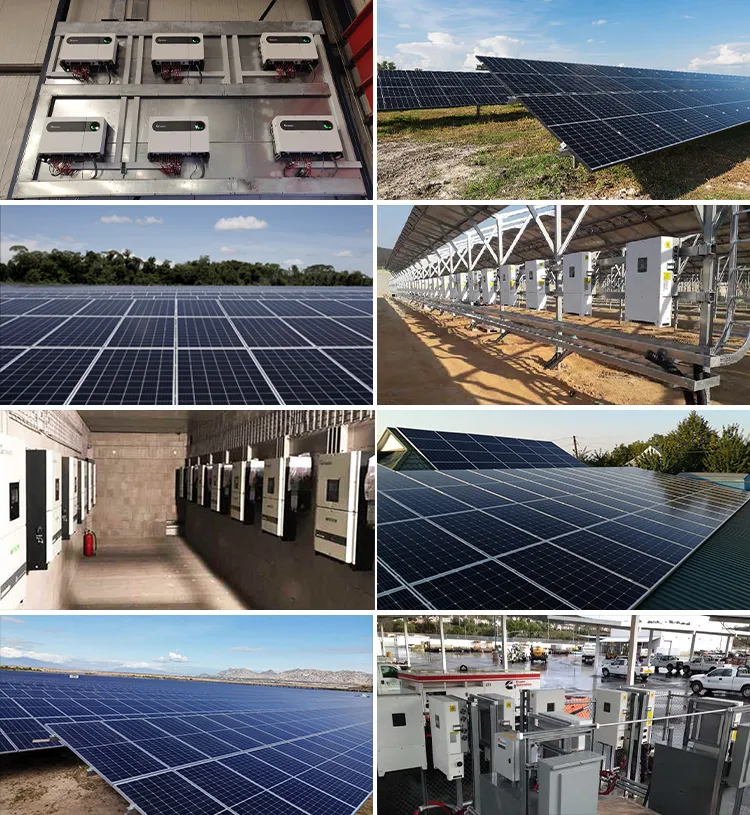

Project Showcase
?

Frequently Asked Questions

What applications is this 100KW solar system suitable for?
The system is designed for a wide range of applications including residential homes, industrial facilities, commercial buildings, and agricultural irrigation.
Does the system include real-time monitoring?
Yes, the system comes equipped with WiFi/GPRS monitoring devices, allowing you to track energy production and system health remotely.
What types of mounting options are provided?
We provide versatile mounting brackets suitable for both tile roof installations and ground-mounted setups.
Is the inverter compatible with local grid voltages?
The system supports multiple output voltages, including EU standards (380V/400V/480V) and US standards (240V/480V), ensuring compatibility with various three-phase grids.
What is the "Zero Export" function?
The Zero Export or Anti-reflux function ensures that no solar power is fed back into the public grid, which is often a requirement for specific local utility regulations.
What certifications do the solar components hold?
All core components are certified by international standards, including ISO, CE, TUV, VDE, and IEC, ensuring high safety and performance levels.
