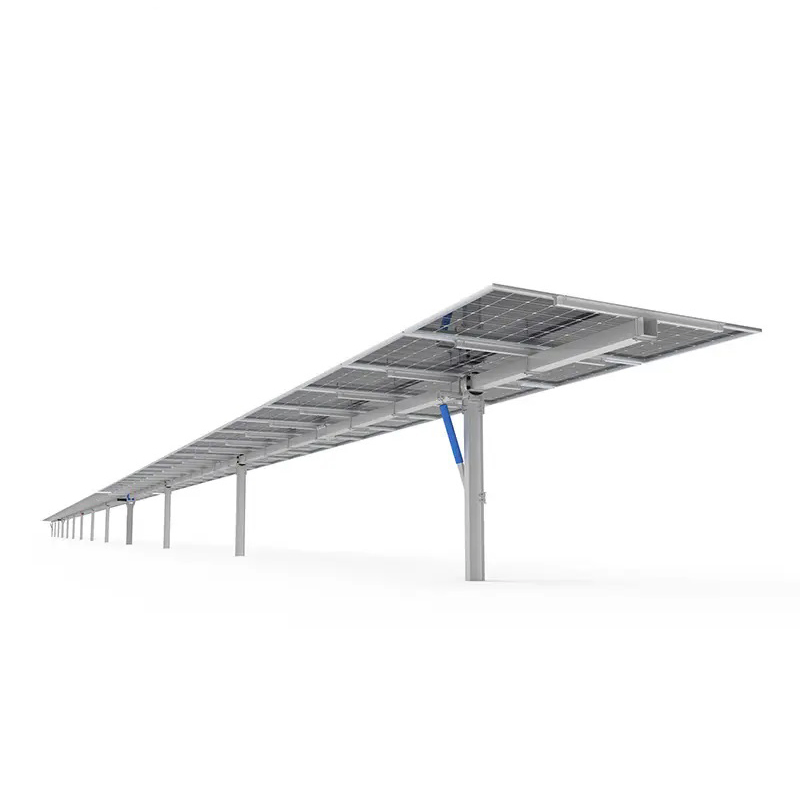

Advanced 2kw to 100kw Horizontal Single Axis Solar Panel Tracking Bracket System
Advanced 2kw to 100kw Horizontal Single Axis Solar Panel Tracking Bracket System
Advanced 2kw to 100kw Horizontal Single Axis Solar Panel Tracking Bracket System
Advanced 2kw to 100kw Horizontal Single Axis Solar Panel Tracking Bracket System
Advanced 2kw to 100kw Horizontal Single Axis Solar Panel Tracking Bracket System
1 / 5
Advanced 2kw to 100kw Horizontal Single Axis Solar Panel Tracking Bracket System
Advanced 2kw to 100kw Horizontal Single Axis Solar Panel Tracking Bracket System
Advanced 2kw to 100kw Horizontal Single Axis Solar Panel Tracking Bracket System
Advanced 2kw to 100kw Horizontal Single Axis Solar Panel Tracking Bracket System
Advanced 2kw to 100kw Horizontal Single Axis Solar Panel Tracking Bracket System

Advanced 2kw to 100kw Horizontal Single Axis Solar Panel Tracking Bracket System

Customization: Available
After-sales Service: Yes
Warranty: 25 Years
Send Inquiry

Product Description

📋 Basic Information
Model NO.
SAST
Certification
ISO, TUV, CE
Application
Industrial
Material
Stainless Steel
Type
Tracking Bracket
Product Name
Single Axis Solar Tracker
Module Size
1650*992*40mm
Weight
1300kg
Scope of Rack
100~200m2
Power Supply
110V / 220V
Protection Level
IP65
Origin
China
⚙ Product Parameters
Tracker Structure Tracking Controller
ModelSAST Controller TypeMCU (32bit)
Solar Panel Type1650*992*35mm (78 Cells) Control AlgorithmAstronomical Algorithm / Closed Loop
Solar Panel ArrangementVertical Arrangement Wind ProtectionEquipped
System Weight≈ 1300 kg/Set Protection LevelIP65
Safe Working Wind Speed17 m/s Tracking Accuracy≤±2°
Survival Wind Speed37m/s (Customizable <60m/s) PositioningGPS
Bracket MaterialHot-Dip Galvanized Steel Working Temperature-30ºC~+70ºC (Customizable)
Azimuth Tracking (X)-45°~+45° Azimuth Tracking (Y)-60°~60°
📷 Detailed Photos

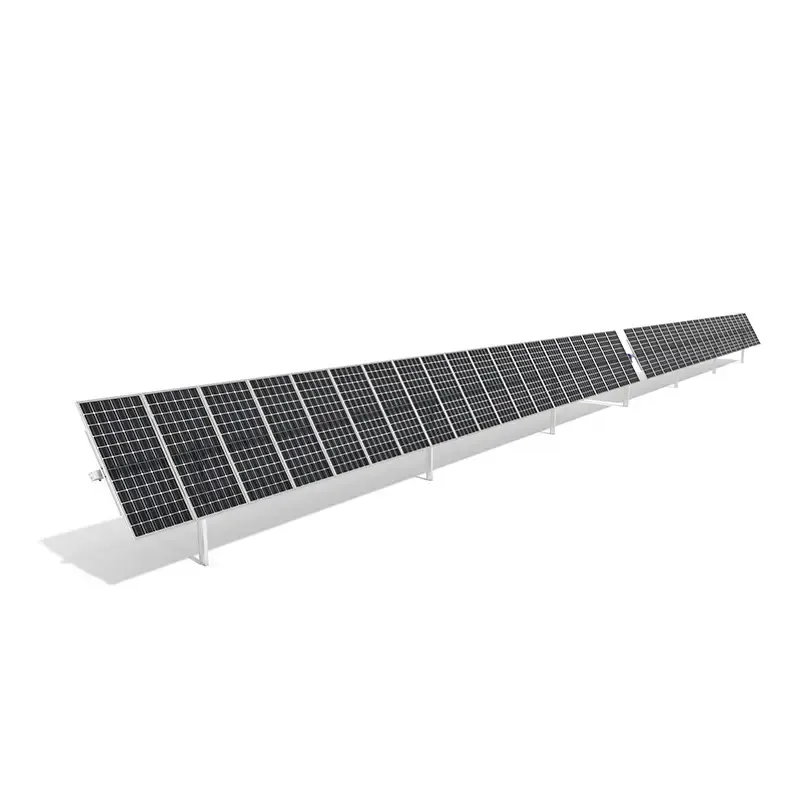

Solar Tracker Detail 1

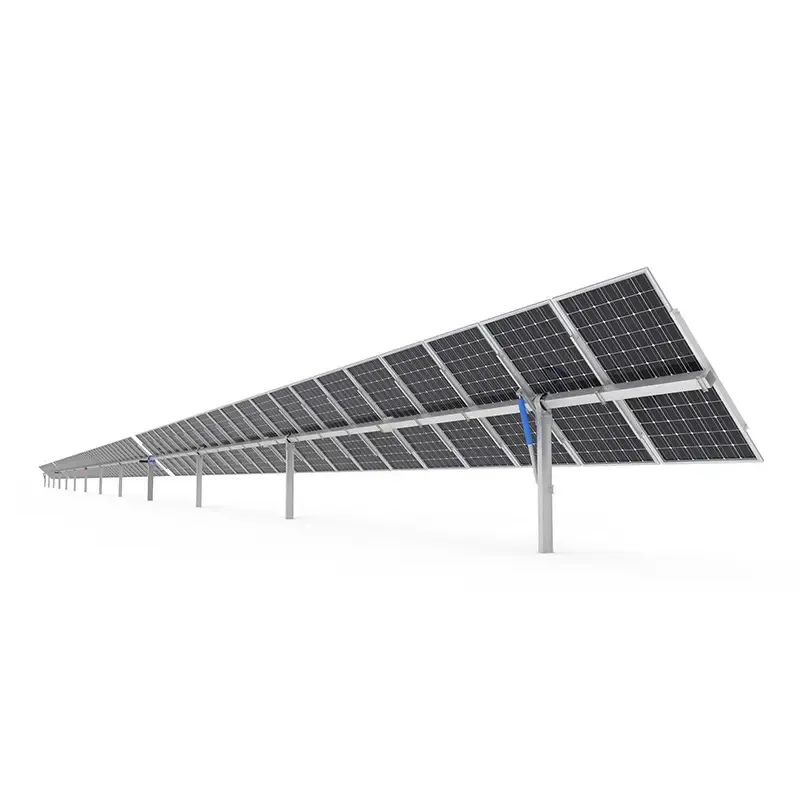

Solar Tracker Detail 2

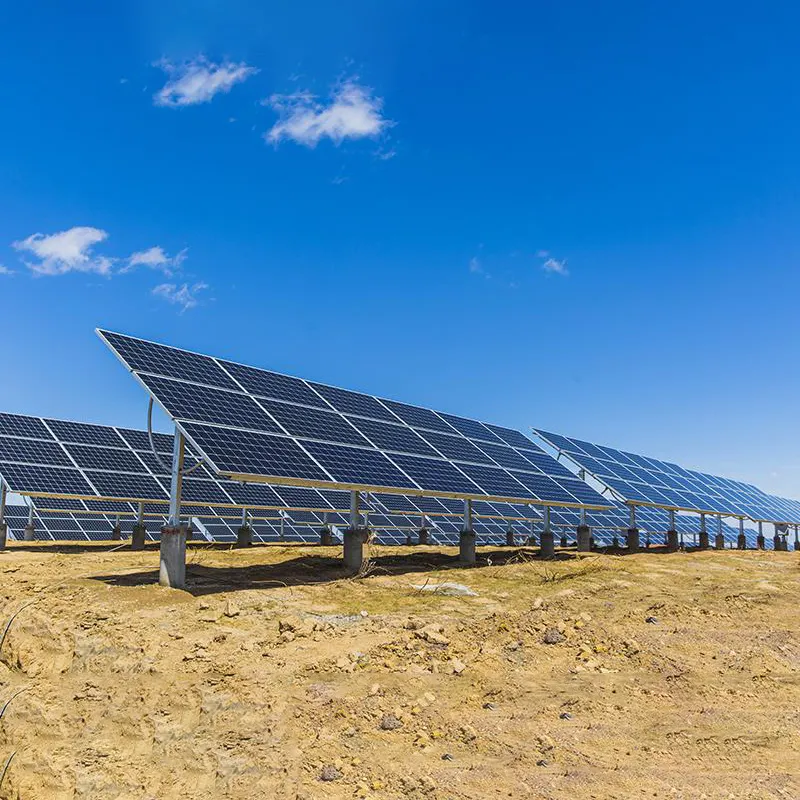

Solar Tracker Detail 3

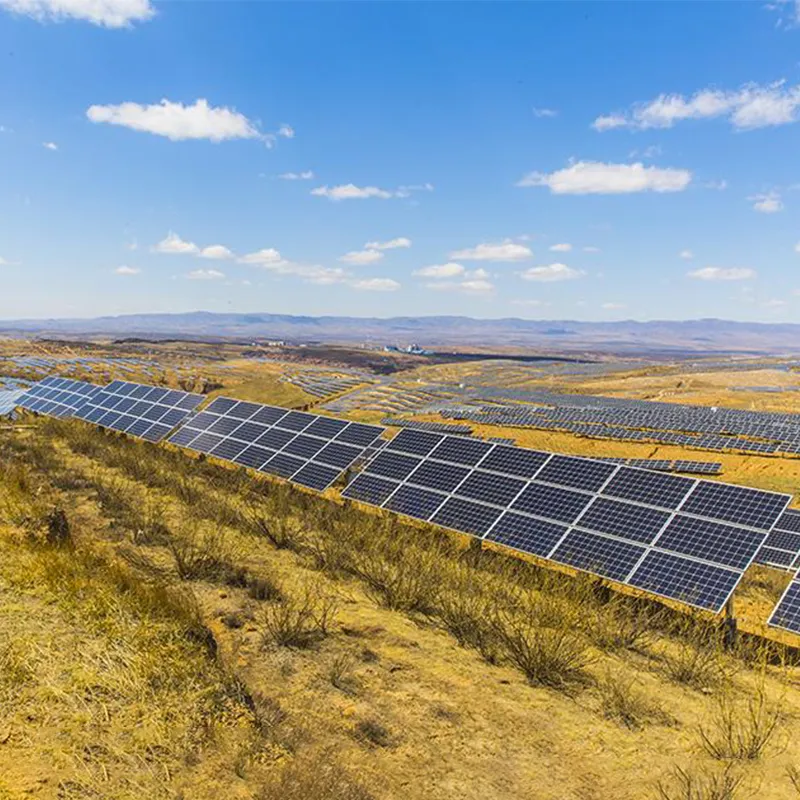

Solar Tracker Detail 4

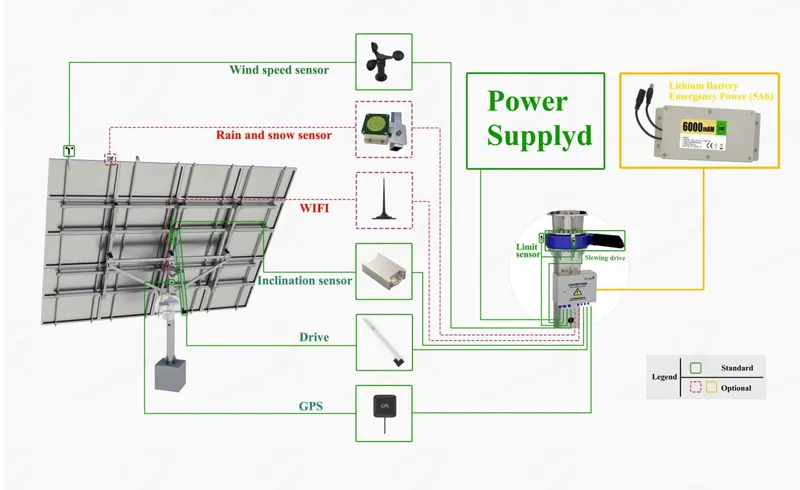

Solar Tracker Detail 5
🌐 Application Areas
Application Area
🏭 Production Capability
Production 1

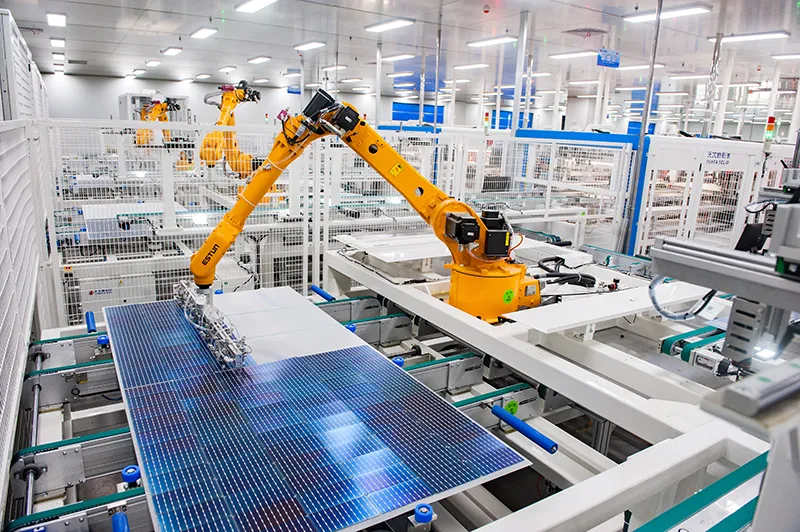

Production 2

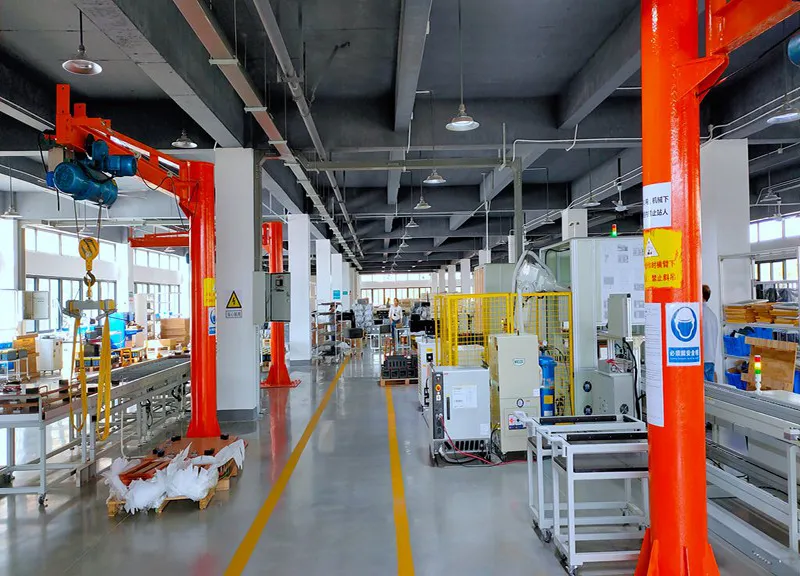

Production 3
💼 Project Cases

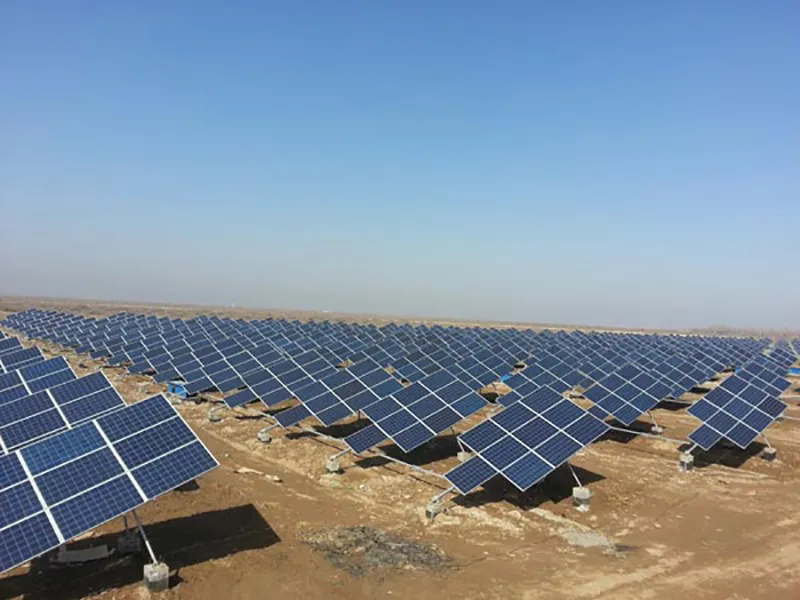

Project Case 1

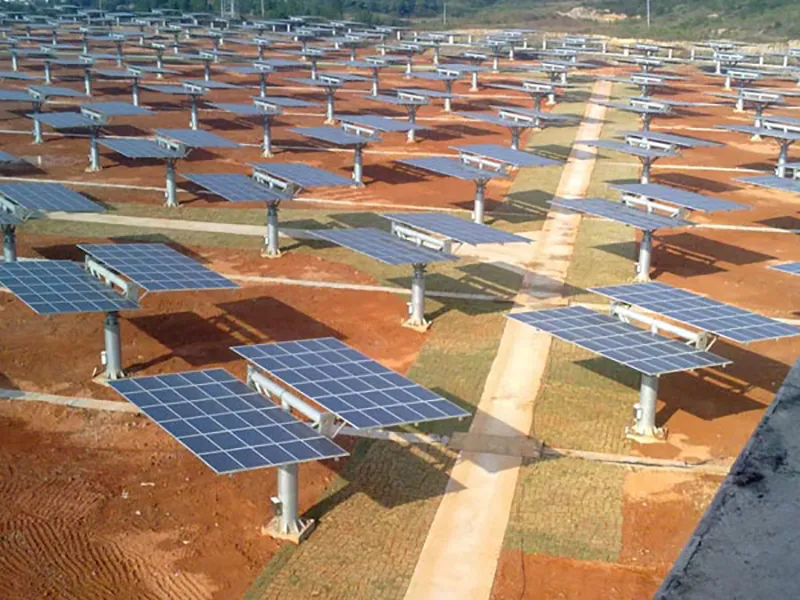

Project Case 2

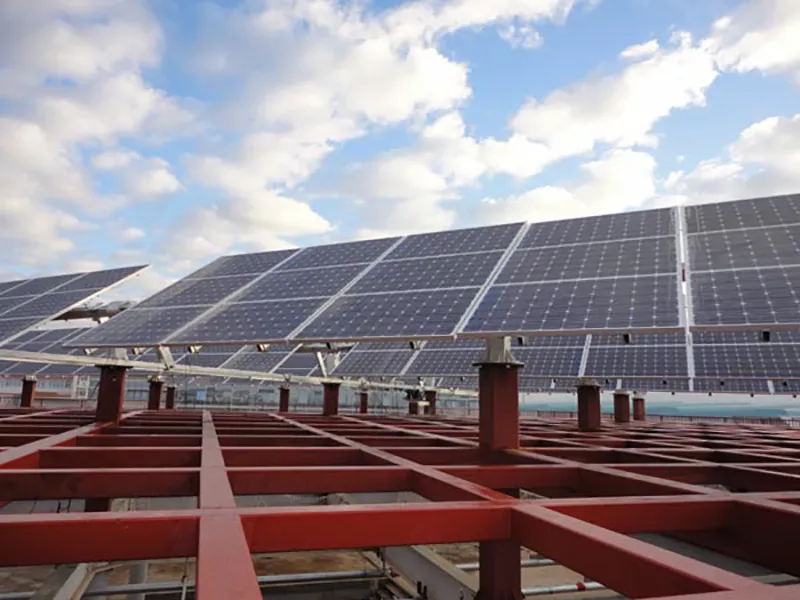

Project Case 3

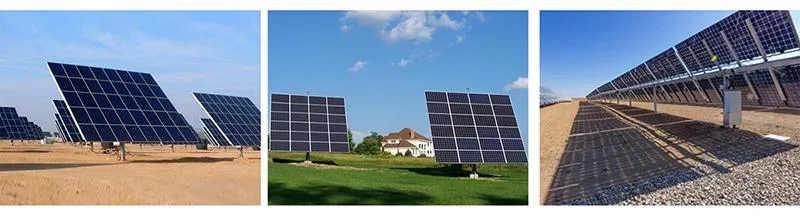

Project Case 4
🎖 Certifications
Certification Documents
❓ Frequently Asked Questions
How long is the delivery time for the solar tracker?
Generally, it is 5-10 working days if the goods are in stock, or 20-35 working days if the goods are not in stock, depending on the order quantity.
What are your accepted payment methods?
Our payment methods vary by region, but we normally accept payment via T/T.
What are your standard terms of payment?
For orders under 1000 USD, 100% in advance. For orders over 1000 USD, 50% T/T in advance, with the balance due before shipment.
What is the tracking accuracy of the system?
The system features high precision with a tracking accuracy of ≤±2°.
What is the protection level for the electronic components?
The system is rated at IP65, providing excellent protection against dust and water for industrial applications.
Can the system withstand extreme weather conditions?
Yes, it has a safe working wind speed of 17 m/s and a survival wind speed of 37 m/s (customizable up to 60 m/s). It also operates in temperatures from -30ºC to +70ºC.
