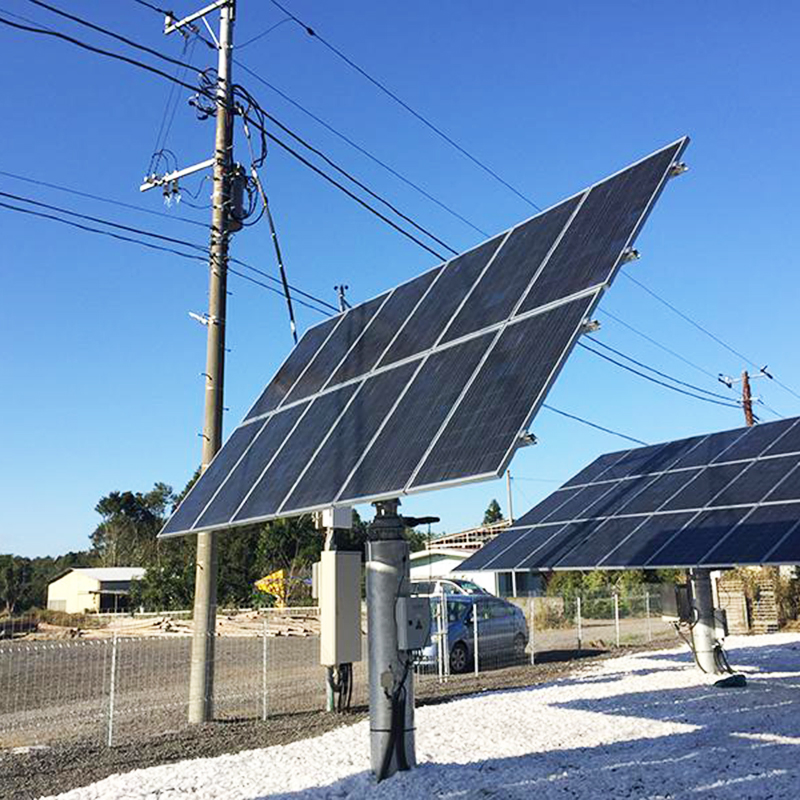

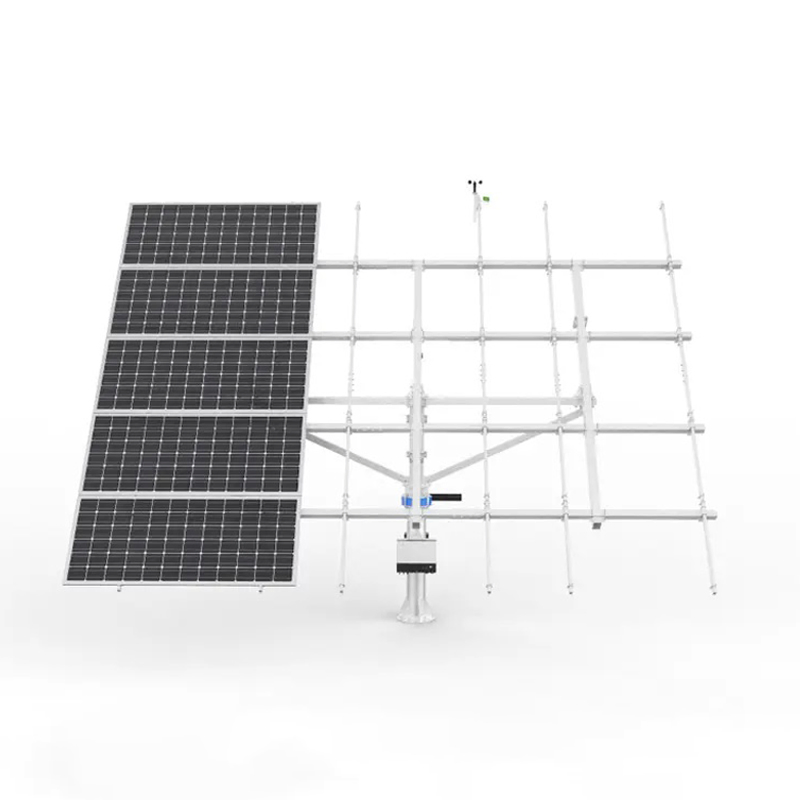

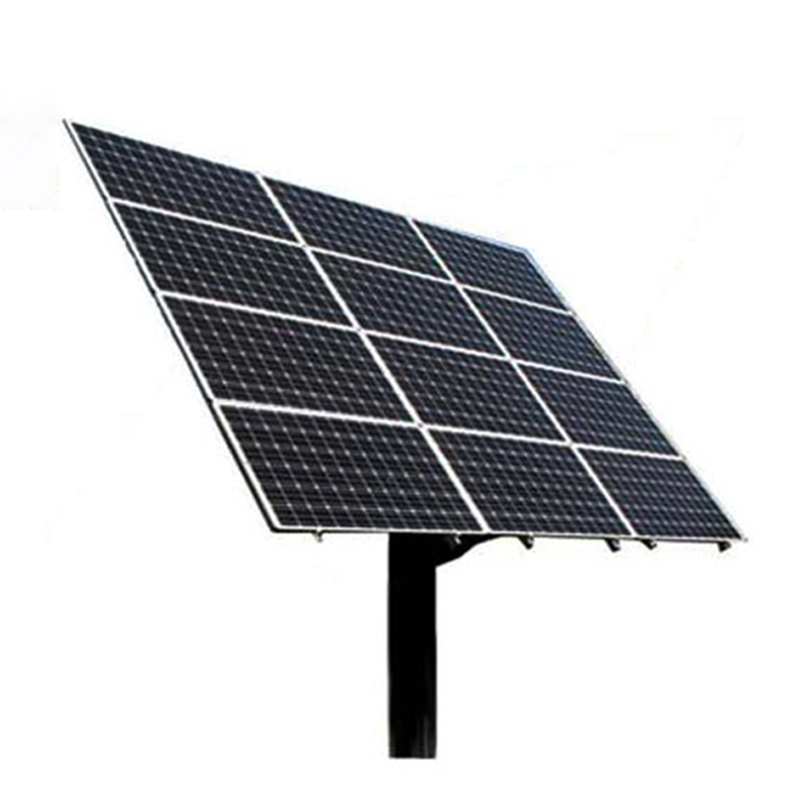

5.5kw Solar Tracking Controller Dual Axis Solar Tracking Bracket System

Customization:	Available
After-sales Service:	Yes
Warranty:	25 Years

1

Basic Information

Model NO.	SPT-5.5K
Certification	ISO, TUV, CE
Application	Industrial
Material	Stainless Steel
Type	Tracking Bracket
Product Name	Solar Tracker
Module Size	195699240mm
Weight	600kg
Scope of Rack	26m2
Power Supply	110V / 220V
Driving Power	300W
Daily Power Consumption	<0.85kwh
Protection Level	IP65
Communication Protocol	RS485

2

Product Parameters

Model	SPT-5.5K
Solar Panel Type	195699235mm
Number Of Solar Panels	15 PCS
Grid Area	≈26 m2
Safe Working Wind Speed	17 m/s
Survival Wind Speed	37m/s (Customizable <60m/s)
Snow Load	0.8-1.6KN/m2
Control Algorithm	Astronomical Algorithm + Position Sensor Closed Loop Control
Working Temperature	-30ºC~+70ºC
Azimuth Tracking (X Axis)	-135°~+135° (Any Range Within ±175°)
Azimuth Tracking (Y Axis)	0°~60° (Customizable Angle)
Drive Power	300W

3

Product Description

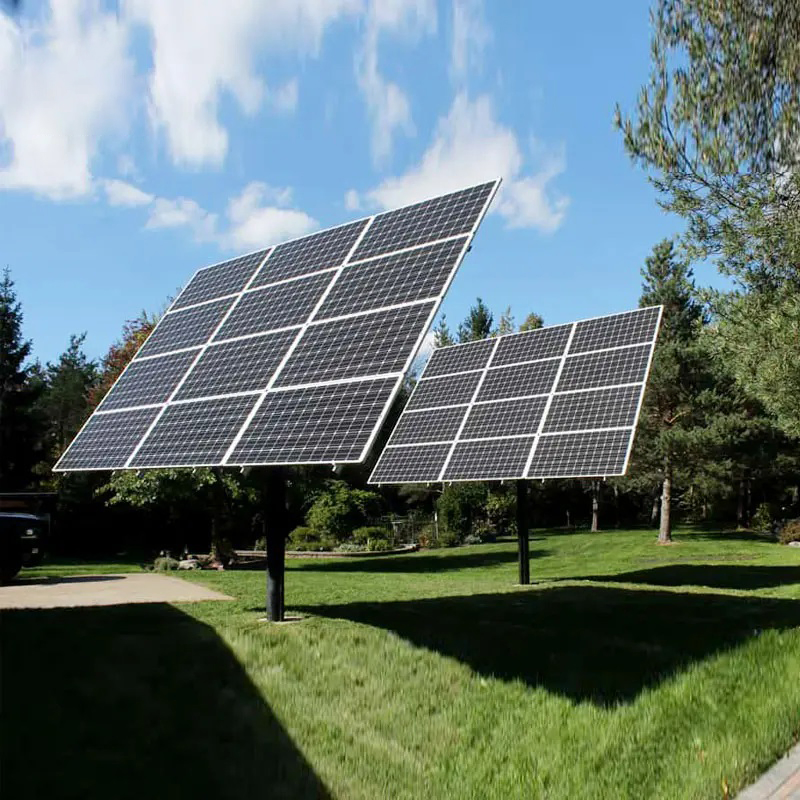

5.5kw Solar Tracking Controller Dual Axis Solar Tracking Bracket System

The control unit adopts inclination sensor feedback + closed-loop control system, which has high tracking accuracy and reliability.
Compared with the stationary type, it can increase the power generation by about 35-50%;
The 5KW dual-axis solar tracking bracket is compatible with 98% of the panel specifications on the market, and the design versatility is better;
The operating power of the system is small, and the daily self-use power of the system is less than 0.85 kwh.

4

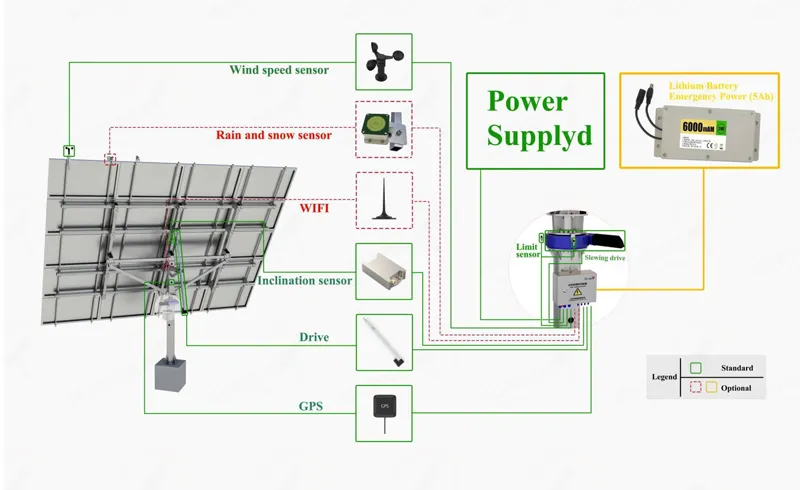

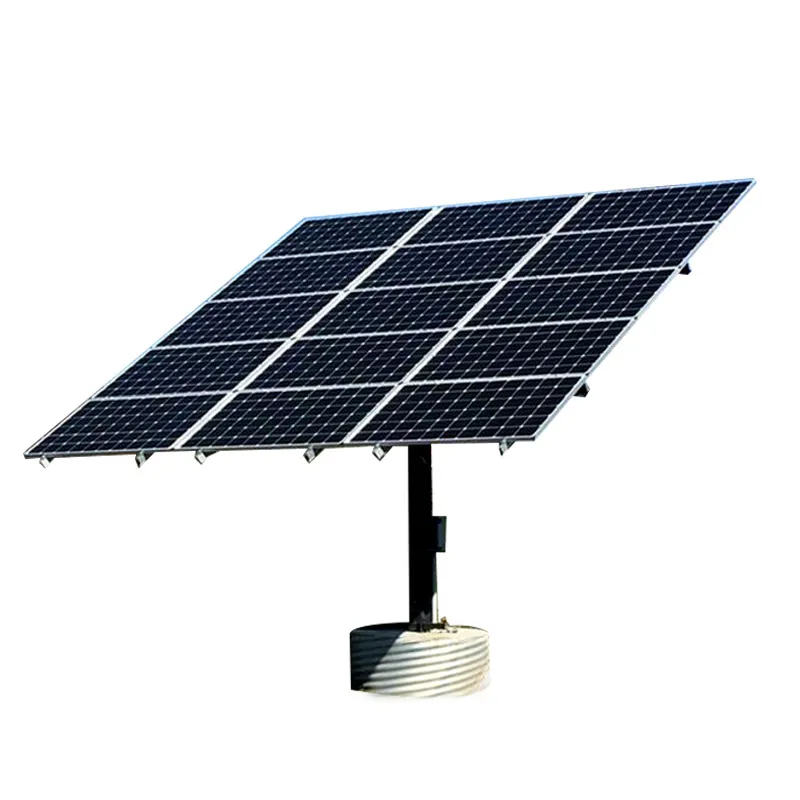

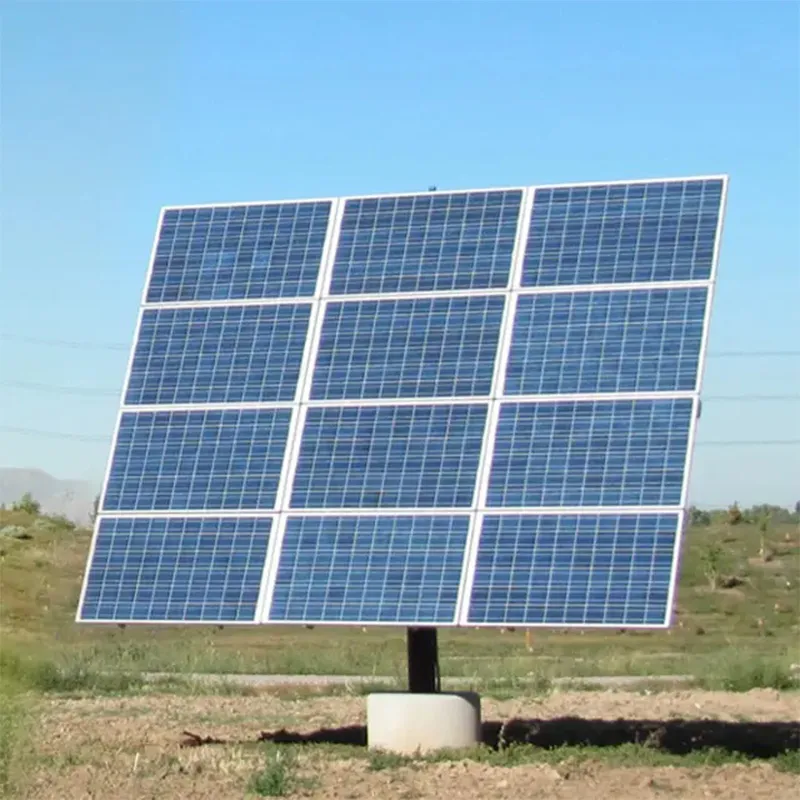

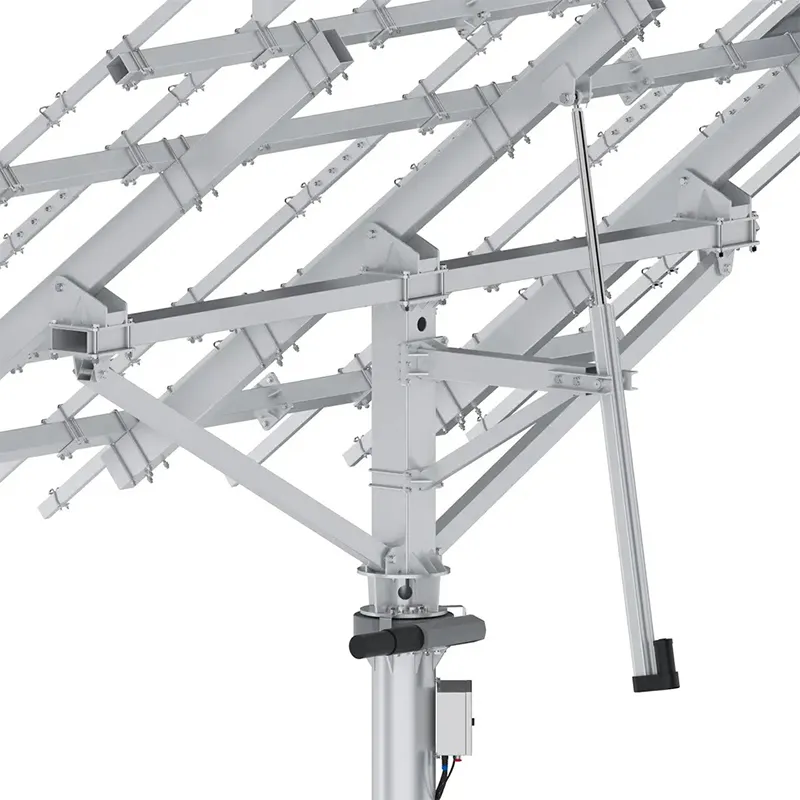

Detailed Photos

5

Application Areas

6

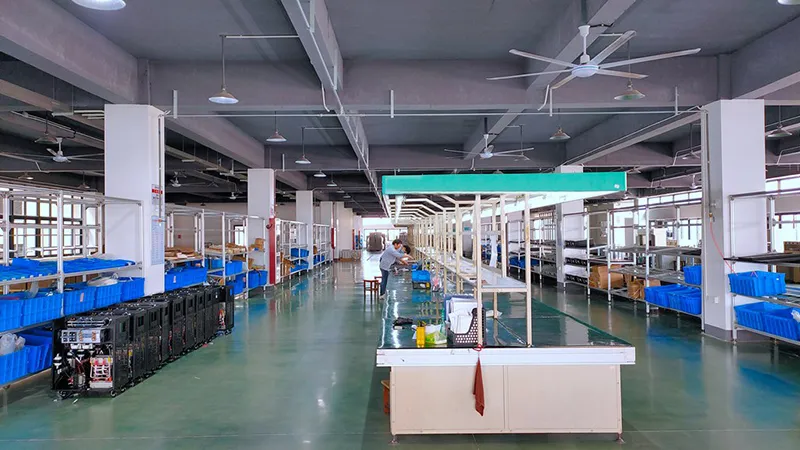

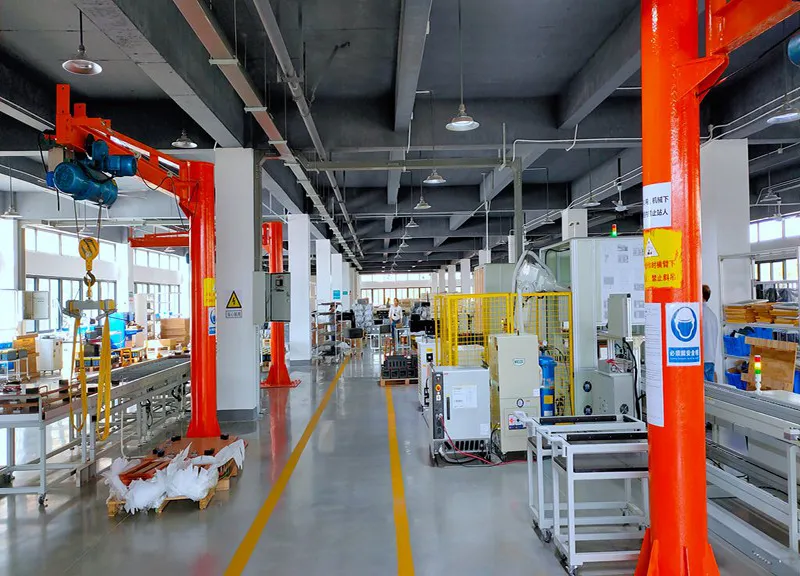

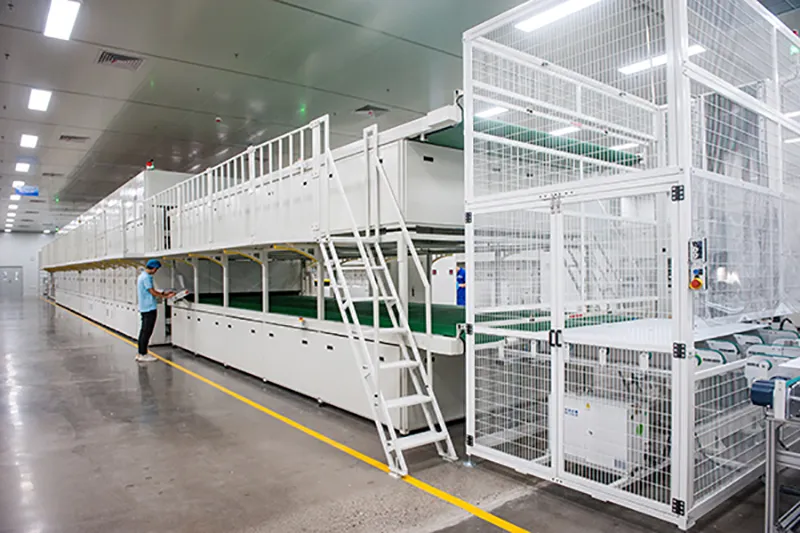

Production Facilities

7

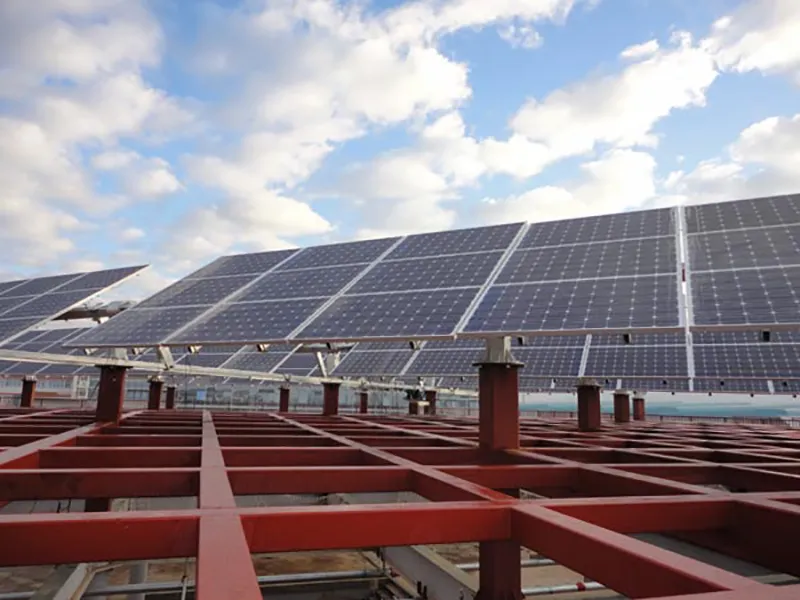

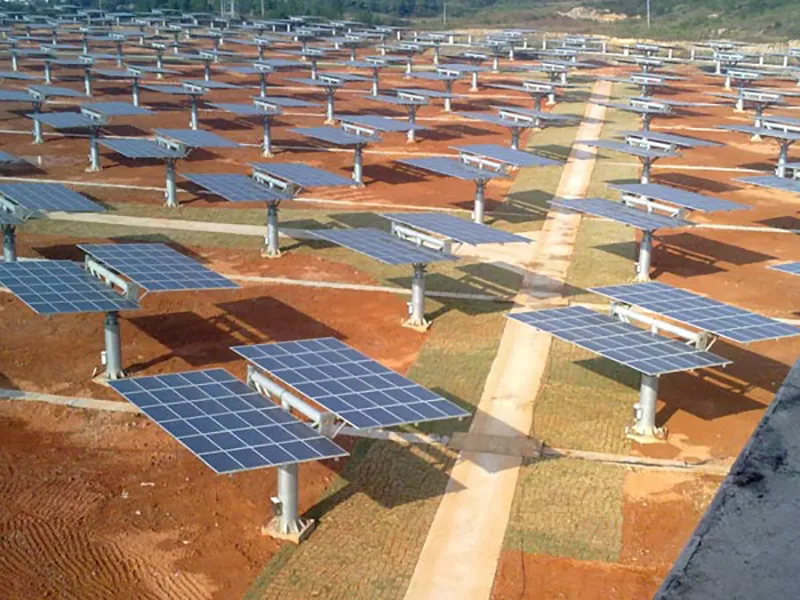

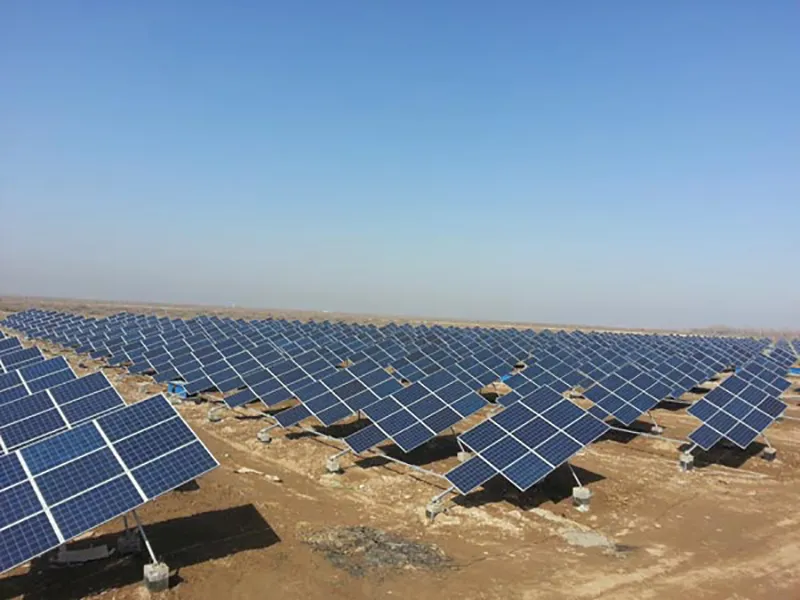

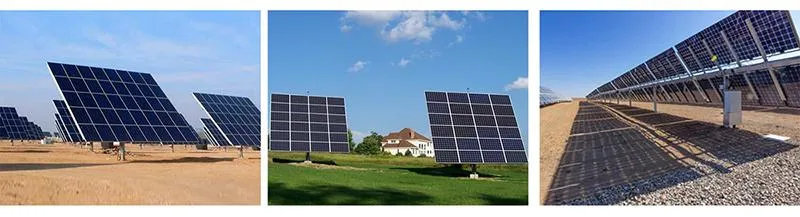

Project Cases

8

Certifications

?

Frequently Asked Questions

Is installation easy?

Yes, very easy. Every customer can do it by themselves. We supply you all the components and the installation manual.

Is our wind enough for a wind generator?

Our wind generator can start running at low wind speed 3m/s, so if your average annual wind speed is more than 5m/s, it can work well.

Which model should I choose?

If you are not sure, please consider: 1. What appliances do you want to run and their wattage? 2. Your average annual wind speed. 3. System type (On-grid or Off-grid).

Can I only buy parts of the whole system?

Yes, you can purchase individual components such as the wind turbine, controller, or inverter separately.

What is the tracking accuracy of the dual-axis system?

The system uses an inclination sensor feedback and closed-loop control system to ensure high tracking accuracy and maximized power generation.

What is the expected lifespan and durability?

Constructed with high-quality stainless steel and rated IP65, the system is designed for industrial-grade durability in temperatures ranging from -30ºC to +70ºC.
