| Model NO. | Ground Installation System 1 |

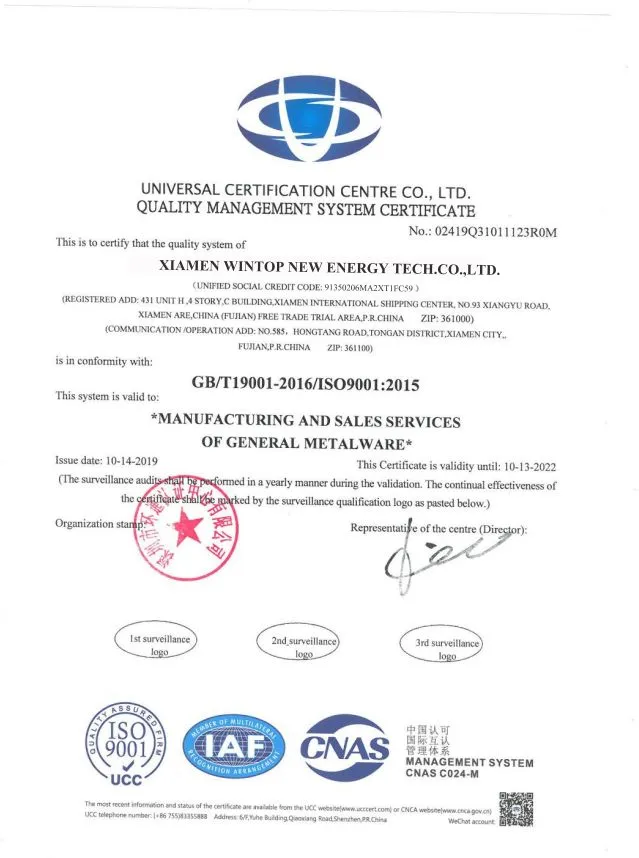

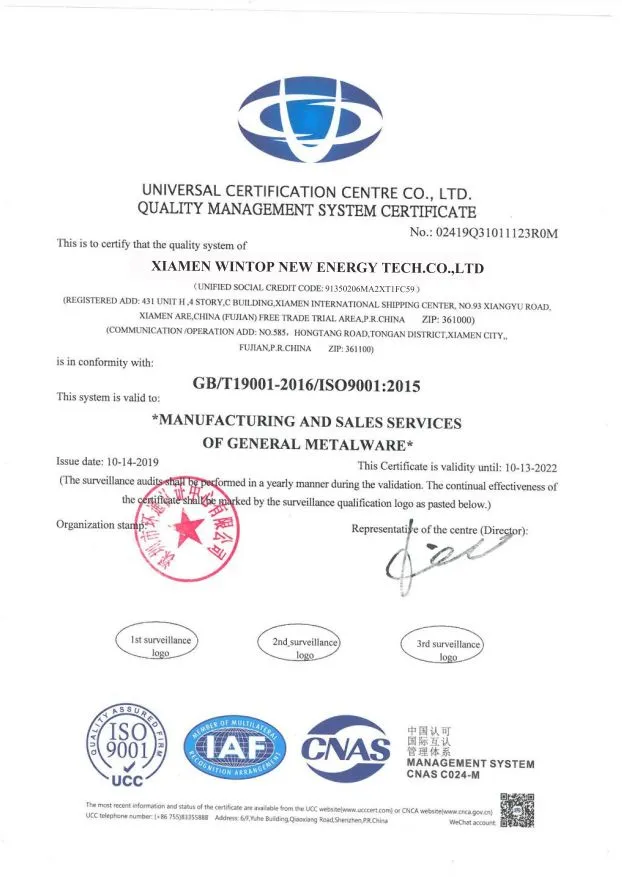

| Certification | ISO, CE |
| Application | Commercial |
| Material | Aluminum Alloy |
| Type | Ground Bracket |
| Install Site | Open Terrain |
| Module Orientation | Landscape, Portrait |
| Anti-Corrosive | Anodized |
| Max Wind Speed | 60m/S |
| Max Snow Load | 1.6kN/M² |
| Duration | More Than 20 Years |
| Transport Package | Carton or Iron Frame |
| Origin | China |
| Production Capacity | 1GW/Year |

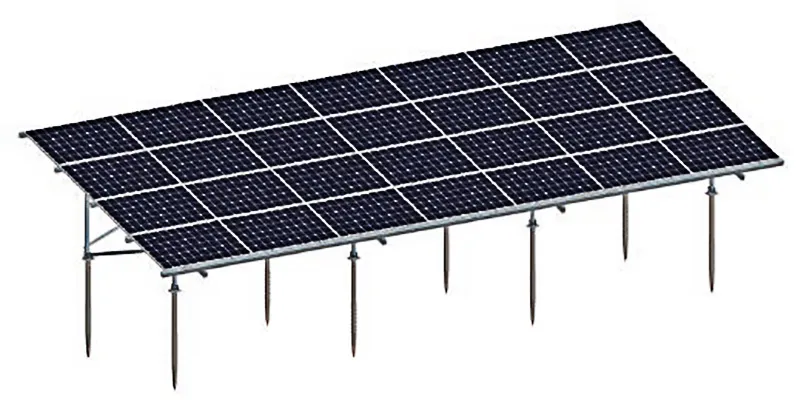

Ground Screw PV Racking System for Small Solar Structure

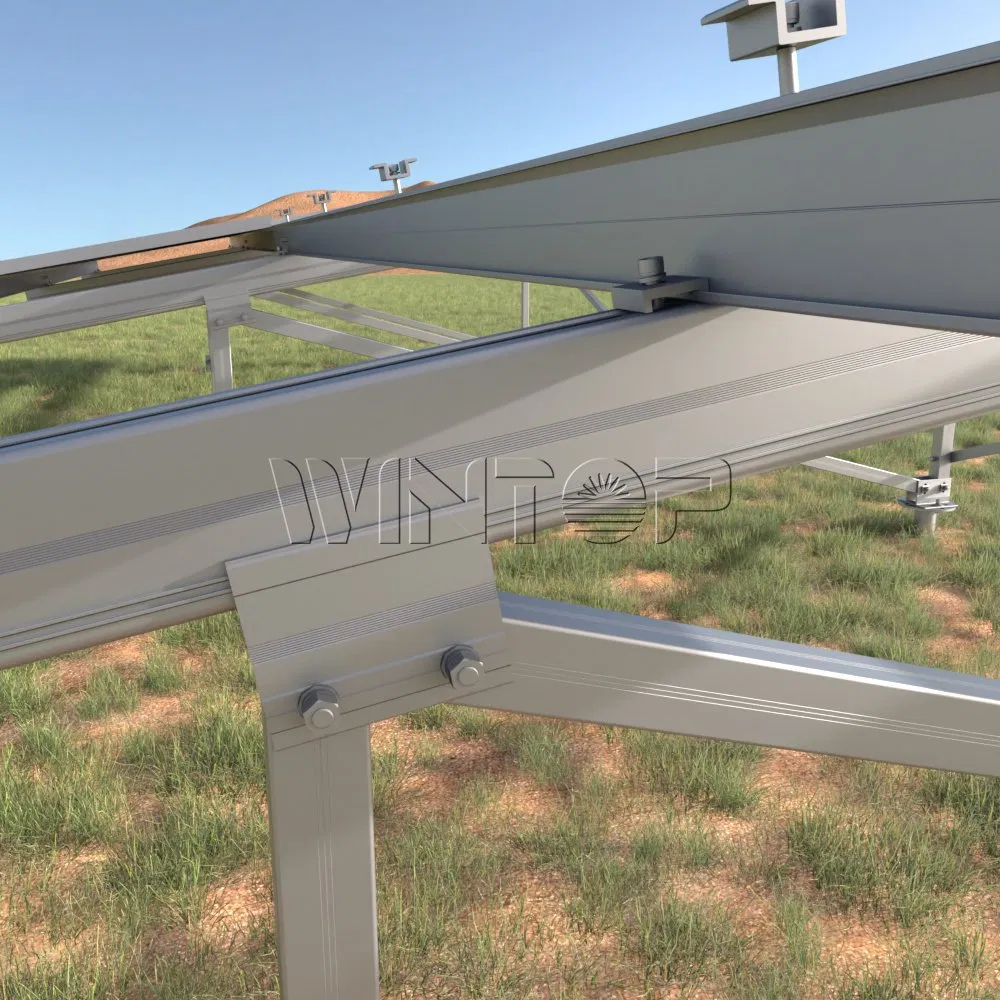

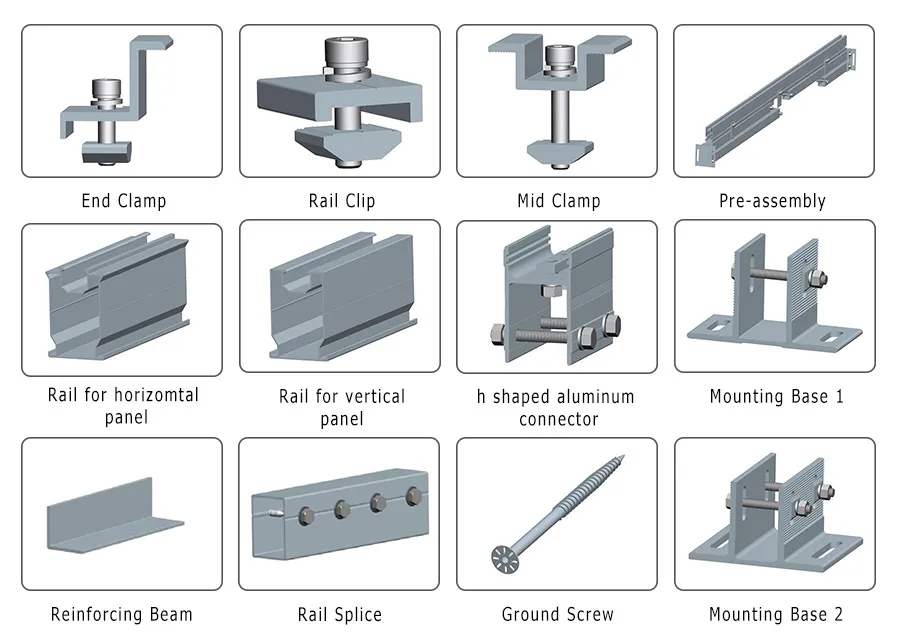

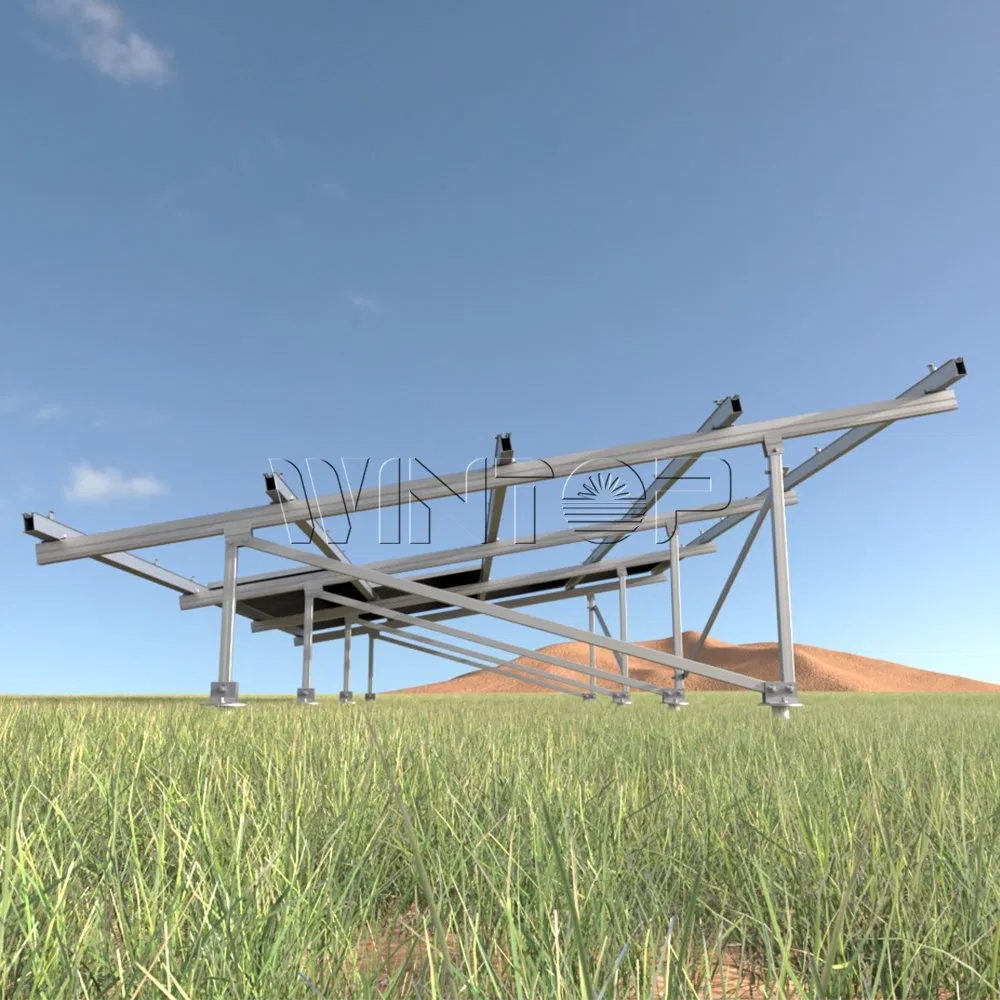

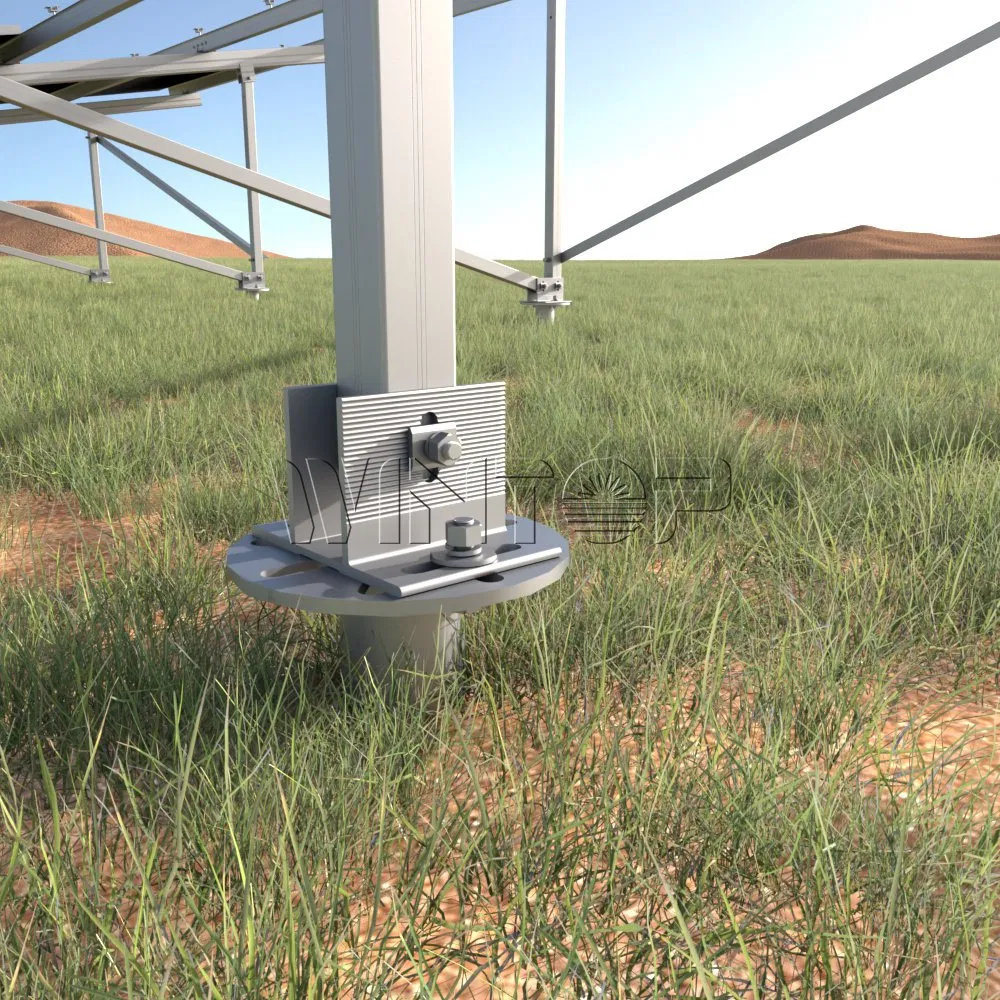

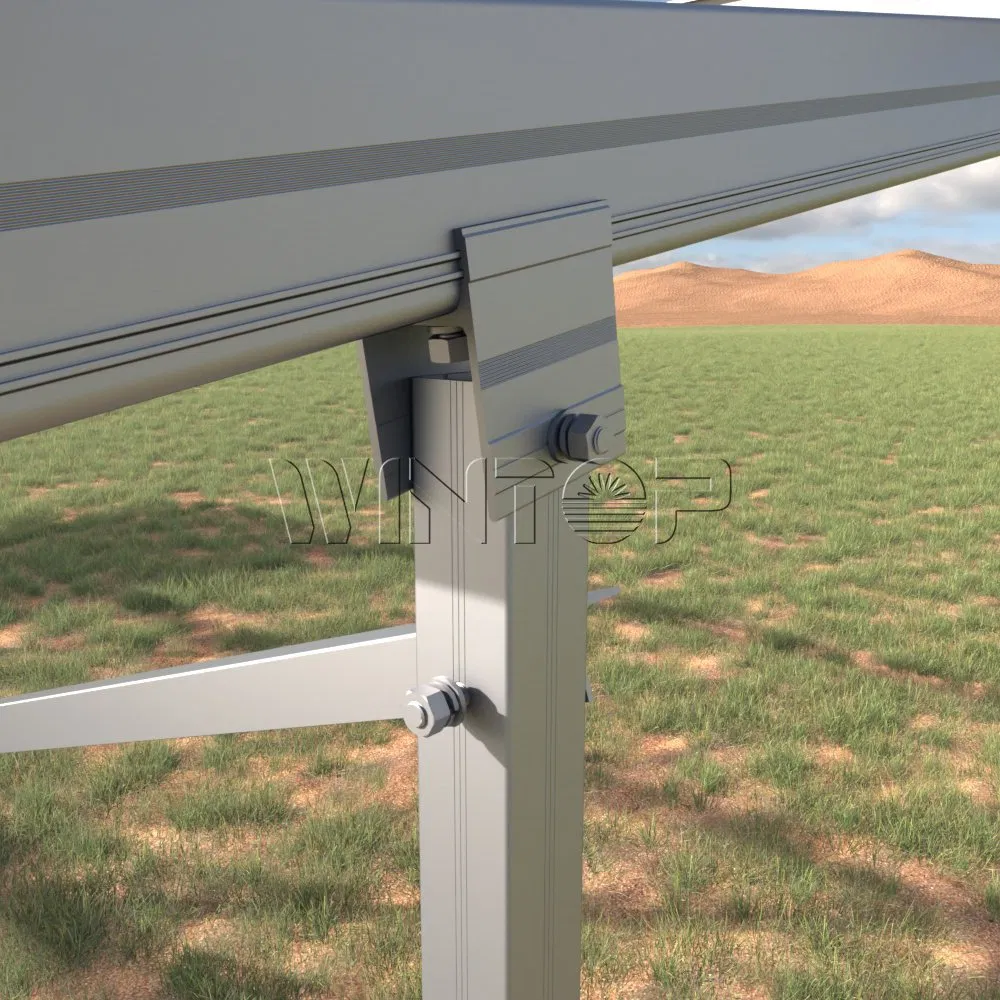

The "A" shaped ground mounting system utilizes components made of anodized aluminum. The solar brackets form the shape of the letter "A" together with the front and rear columns. Depending on ground conditions and specific requirements, the foundation can be ground screw, concrete, or piling.
This solar panel ground mounting system is ideal for installations with a height below 500mm from the ground and is suitable for both commercial and residential power systems.
| Installation Location | Ground |
| Installation Foundation | Depends on ground conditions |
| Installation Angle | Up to request |
| Wind Load | 60m/s (216kmh/133mph) |
| Snow Load | 1.4KN/m² |
| Ground Clearance | <500mm |
| Applicable Module | Mono-crystalline, Poly-crystalline, Double wave and Thin film |
| Module Orientation | Horizontal, Vertical |
| Design Standard | AS/NZS1170, JIS C 8955-2017 |
| Bracket Material | AL6005-T5 (Anodized Oxidation) |
| Fastener Material | Stainless steel SUS304 |
| Warranty & Duration | 10 years & More than 20 years |
Established in 2016, we are a high-tech enterprise that integrates R&D, production, and marketing of Solar Mounting Systems. We provide professional solutions for residential, commercial, and utility-scale customers worldwide, ensuring high-quality structural support for renewable energy projects.
