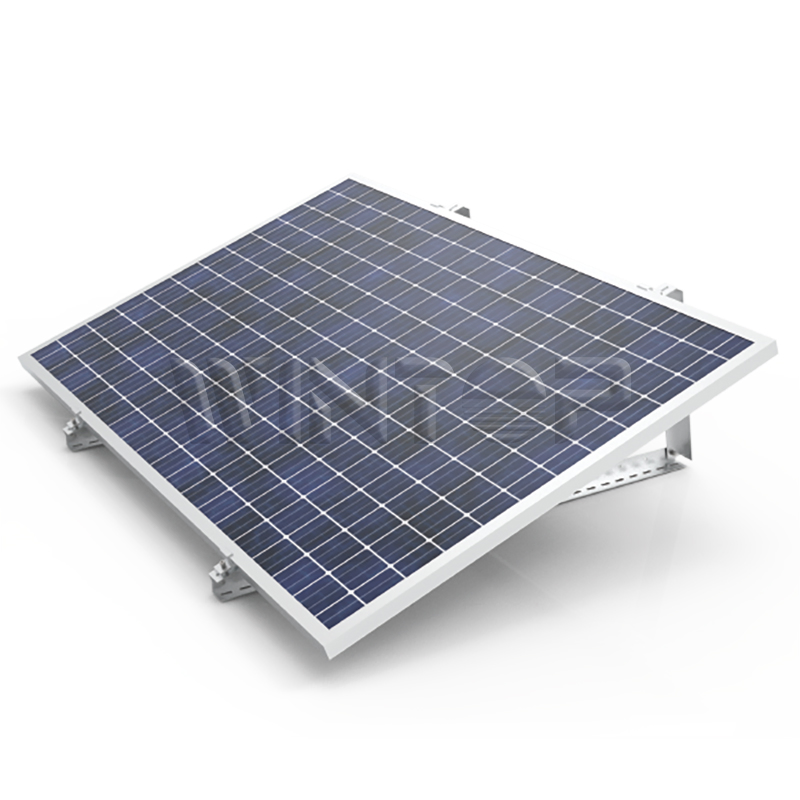

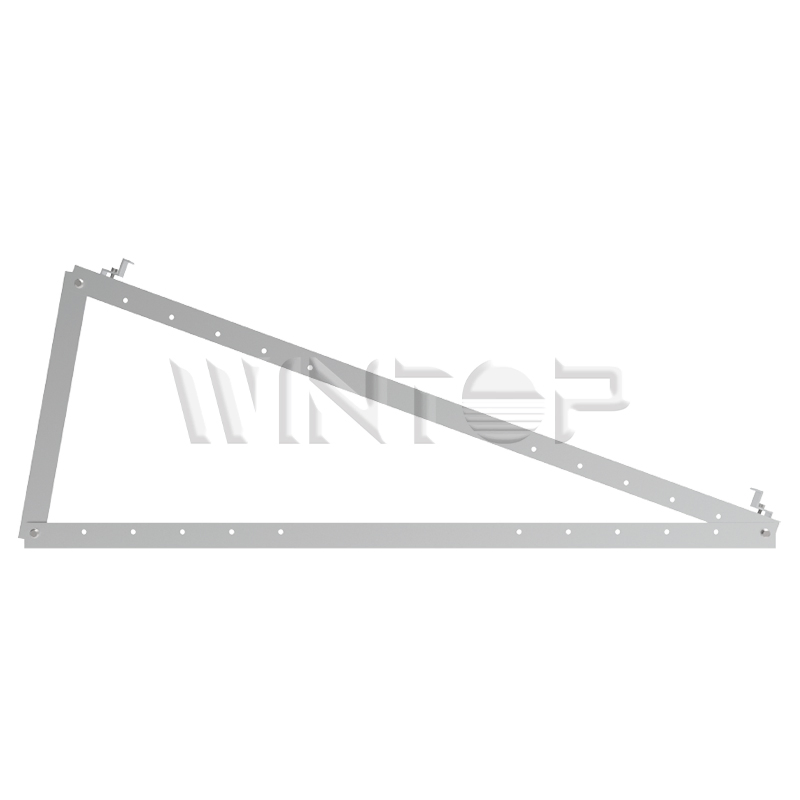

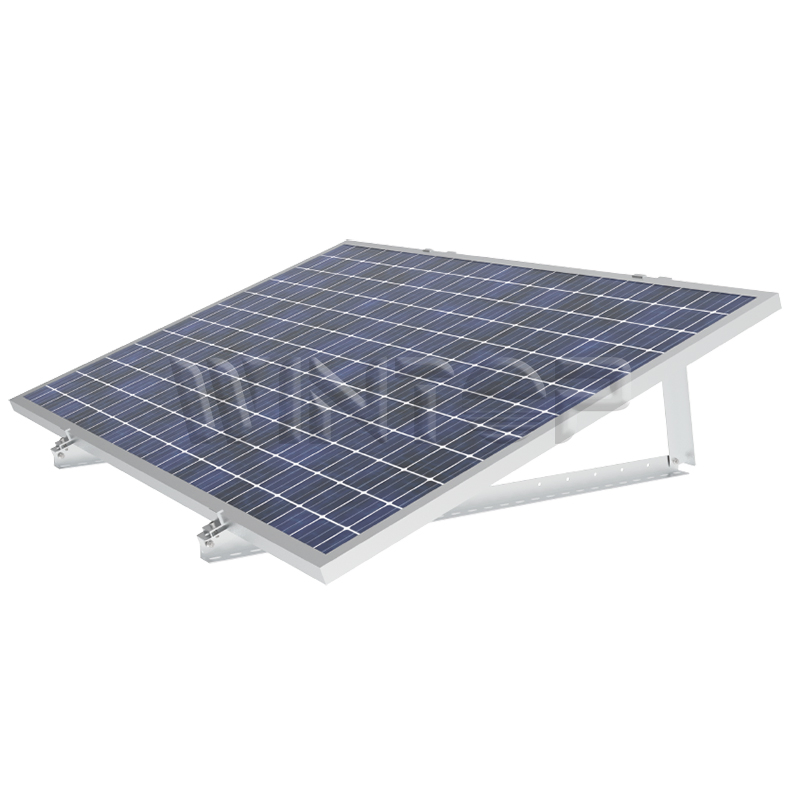

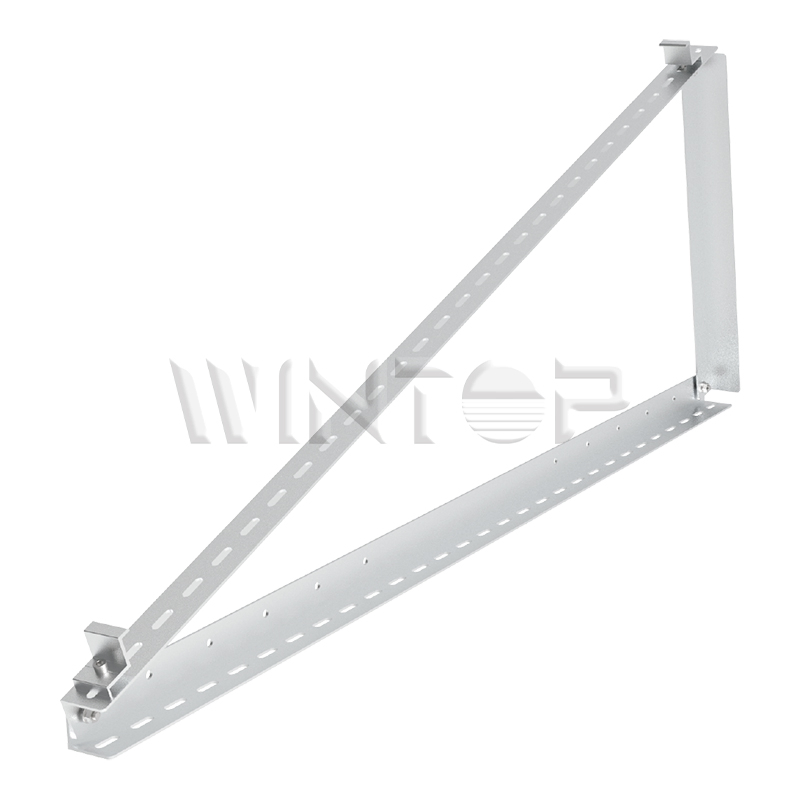

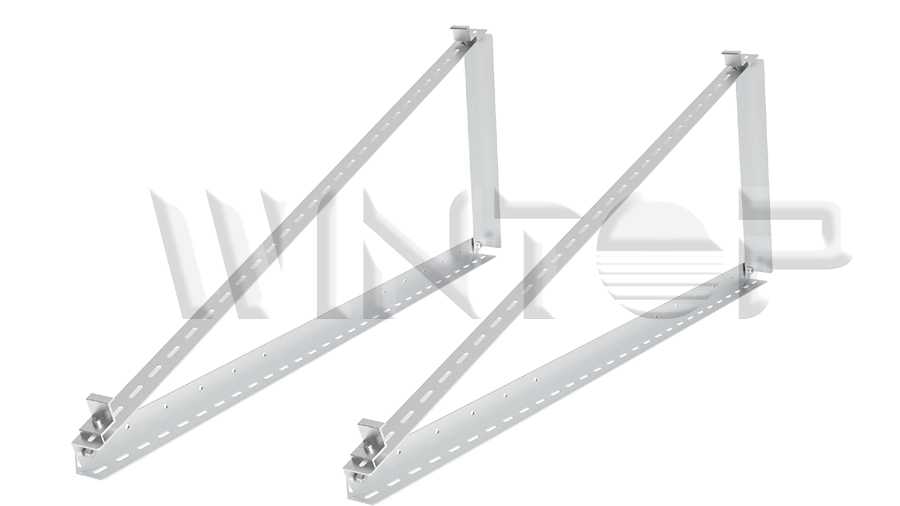

Adjustable Angle Simple Solar Panel Bracket

This easy solar panel mount is specially developed to integrate well with solar kits. It is a highly pre-assembled mounting structure for achieving home energy independence. Simply use it combined with a solar panel and micro inverter, designed for multiple scenarios. The tilt angle can be adjusted according to different installation environments and requirements to obtain maximum power generation.

📊 Basic Information

Model NO.	Easy solar kit 1.0
Certification	ISO, CE
Application	Industrial / Residential
Material	Aluminum Alloy
Type	Ground / Multi-surface Bracket
Install Site	Open Terrain / Balcony / Walls
Module Orientation	Landscape, Portrait
Anti-Corrosive	Anodized
Max Wind Speed	60m/S
Max Snow Load	1.6kn/M²
Duration	More Than 20 Years

⚙️ Product Parameters

Installation location	balcony, railing, walls and etc
Adjustable Angle Range	15°-30°
Material	AL6005-T5, SUS304, EPDM
Gross weight per bracket	≈8 kg
Applicable module type	Framed
Solar module Length	≤2200 mm
Solar module Width	751mm - 1313mm
Solar module Thickness	30-50 mm
Module orientation	Landscape
Warranty	10 years

🌟 Features & Benefits

1

Adapt to multiple scenarios: garden, balcony, railing, walls and etc.

2

Adjustable angle manually to adjust the PV module angle for more energy generation.

3

Modular design with plug and play connection, quick and easy installation.

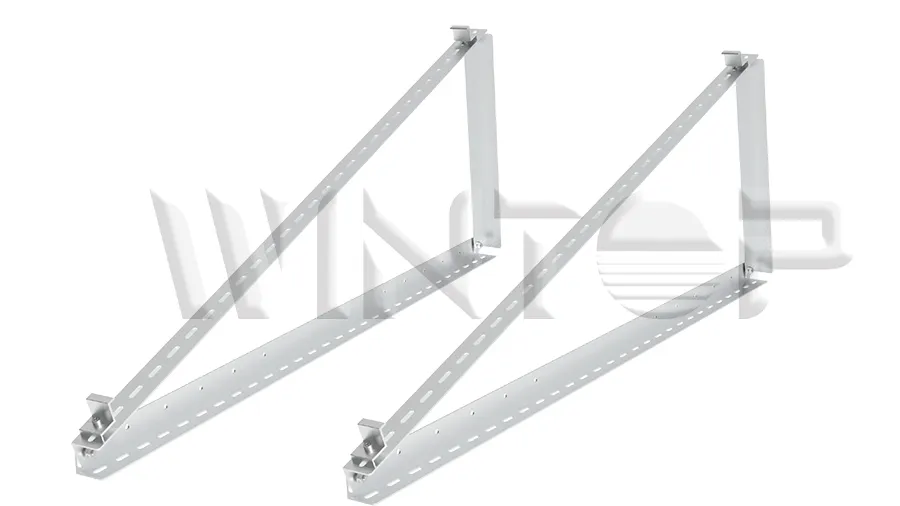

🧩 Product Components

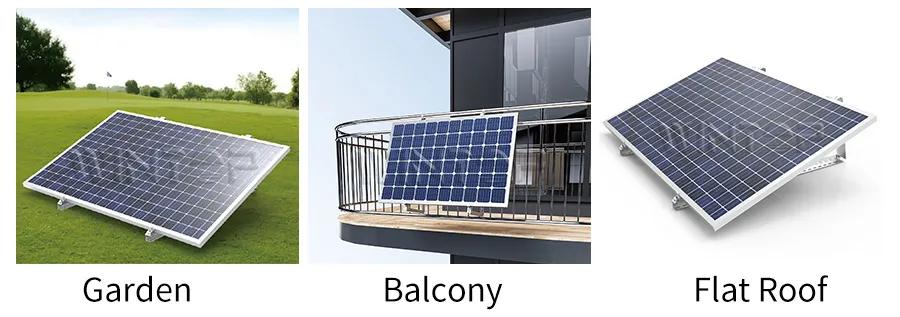

🏗️ Project Display

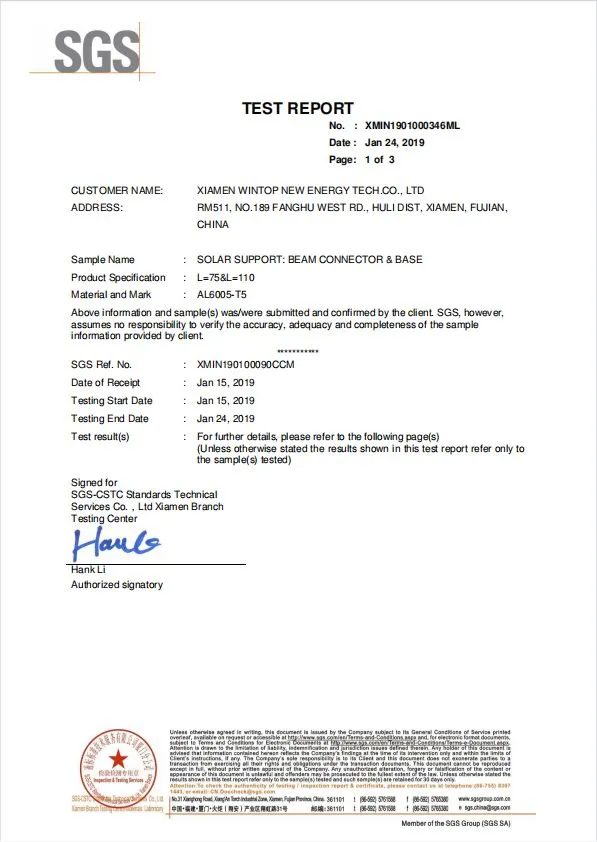

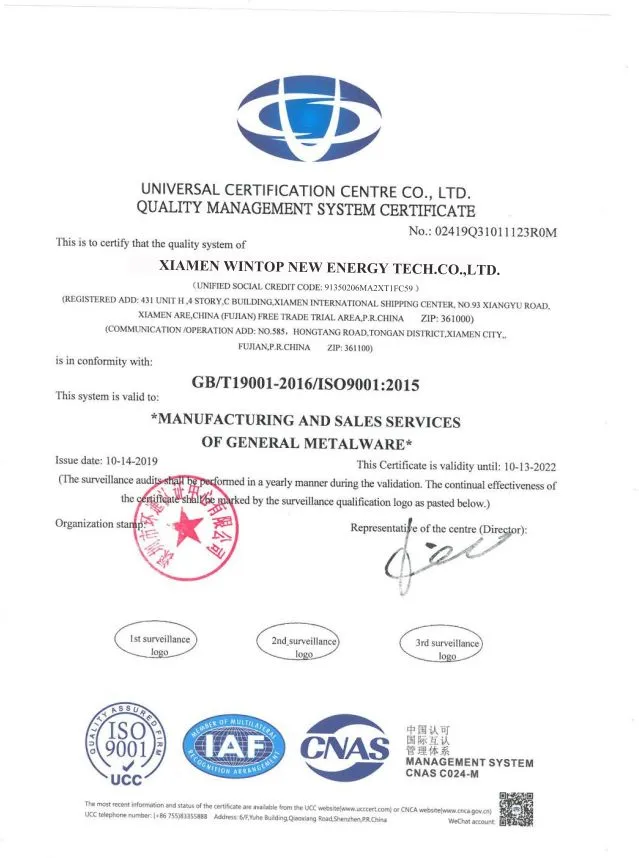

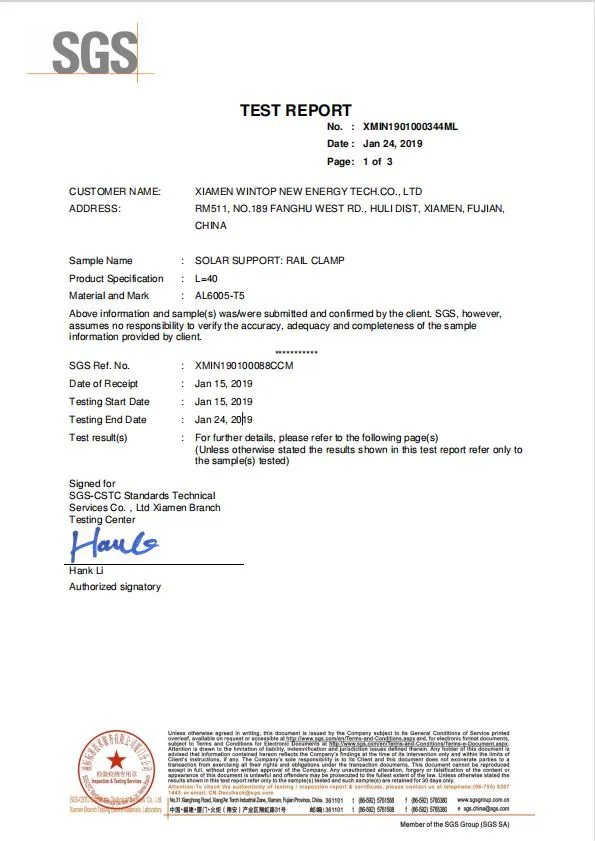

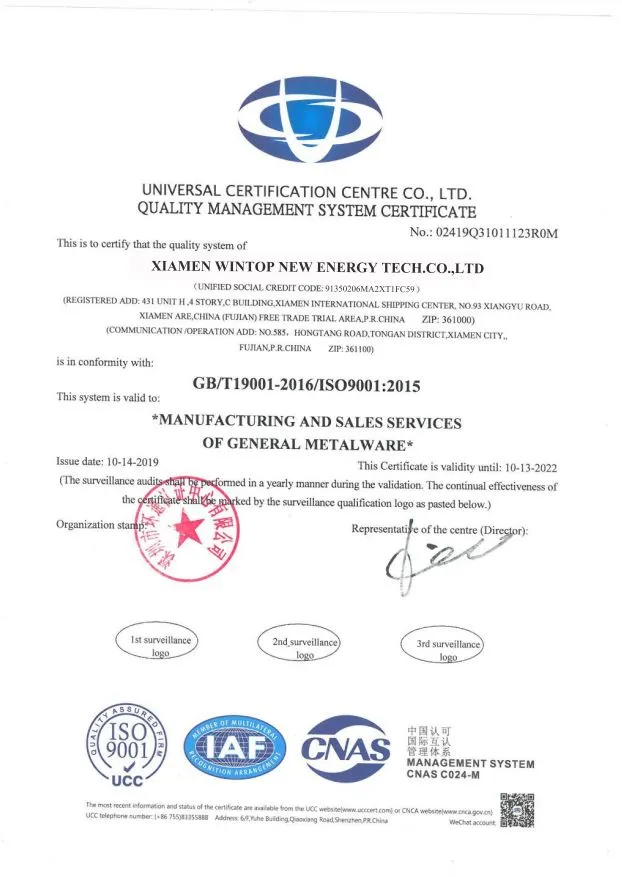

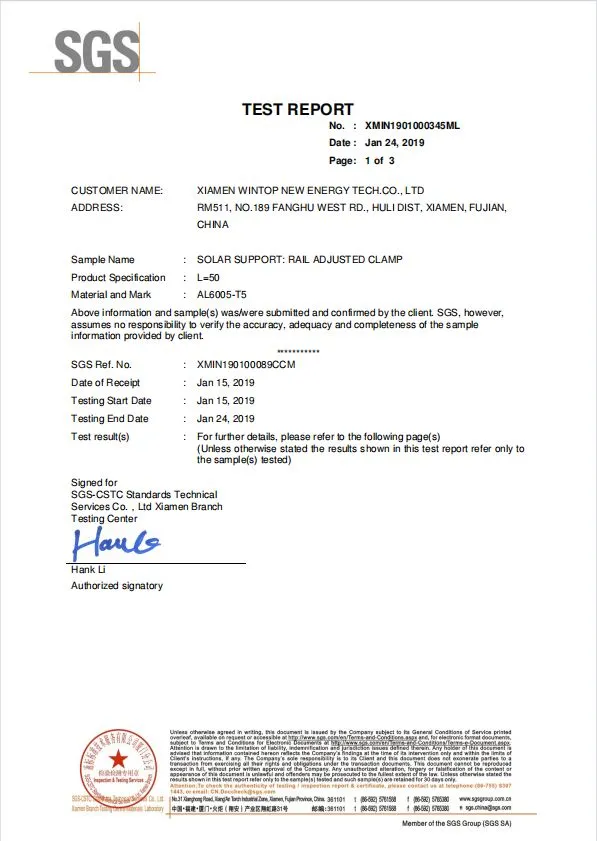

📜 Certifications

🏢 Company Profile

Established in 2016, our high-tech enterprise integrates R&D, production, and marketing of Solar Mounting Systems. We provide solutions for residential, commercial, and utility-scale customers worldwide, focusing on durable and efficient solar energy structures.

❓ Frequently Asked Questions

1. Are you a manufacturer or a trading company? We are a specialized manufacturer of solar mounting systems, established in 2016.

2. What is the minimum order quantity (MOQ) and can I get samples? Our minimum quantity is 1 set. Samples are available upon request; you would only need to cover the shipping costs.

3. Where can this solar bracket kit be installed? The system is designed for multiple scenarios, including balconies, railings, walls, gardens, and open terrain.

4. Is the angle of the solar panel adjustable? Yes, the tilt angle can be adjusted manually within a range of 15° to 30° to maximize power generation.

5. What are the main materials used in the bracket? The bracket is constructed from high-quality Aluminum Alloy (AL6005-T5), Stainless Steel (SUS304), and EPDM for durability.

6. What is the warranty and expected duration of the product? The product comes with a 10-year warranty and is designed for a service life of more than 20 years.
