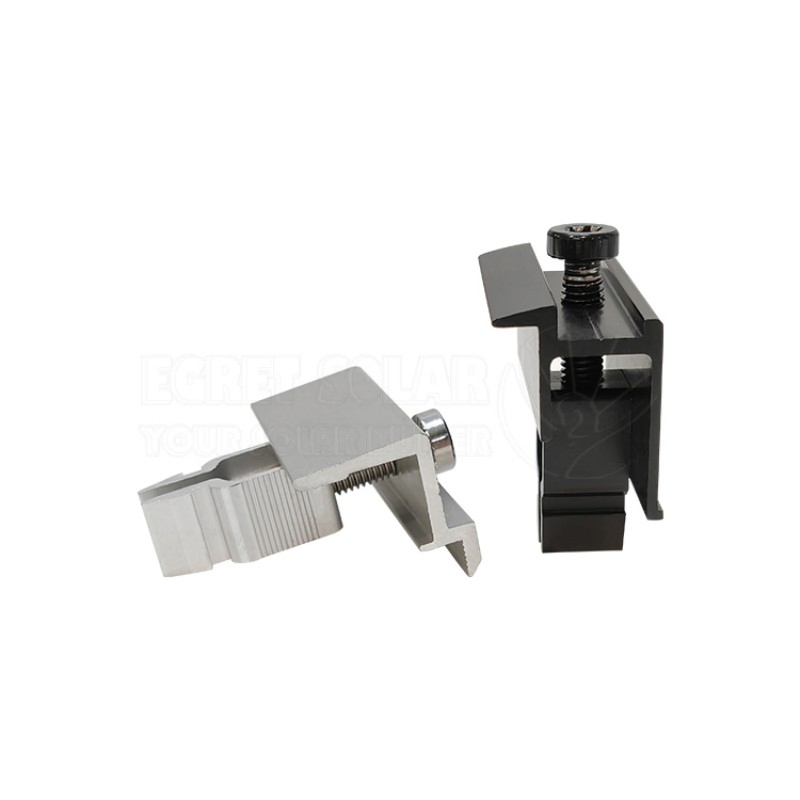

Aluminium Solar Panel Roof and Ground Mounting Rapid End Clamp

Still deciding? Get samples of $ !
Order Sample

Product Description

i

Basic Information

Model NO.
ES-REC02-P
Condition
New
Certification
ISO, CE
Application
Solar Mounting Structure
Specification
Normal, L50mm/70mm
Wind Speed
60m/S
Material
Al6005-T5
Surface
Anodized
Duration
25 Years Life Time
Snow Load
1.4kN/M2

Product Description

Solar Panel Mounting Rapid End Clamp

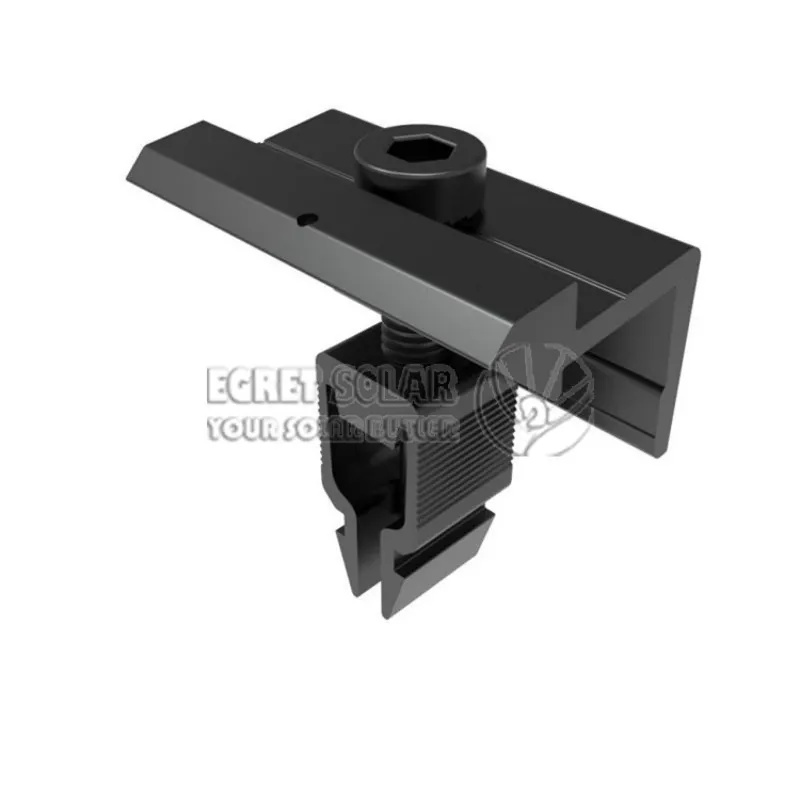

Aluminum End Clamp Detail
Product nameBlack Rapid End Clamp
MaterialAL6005-T5
SurfaceBlack color / Natural color
SpecificationL50mm/70mm, OEM available
Wind Speed60m/s
CertificateCE, SGS Test report

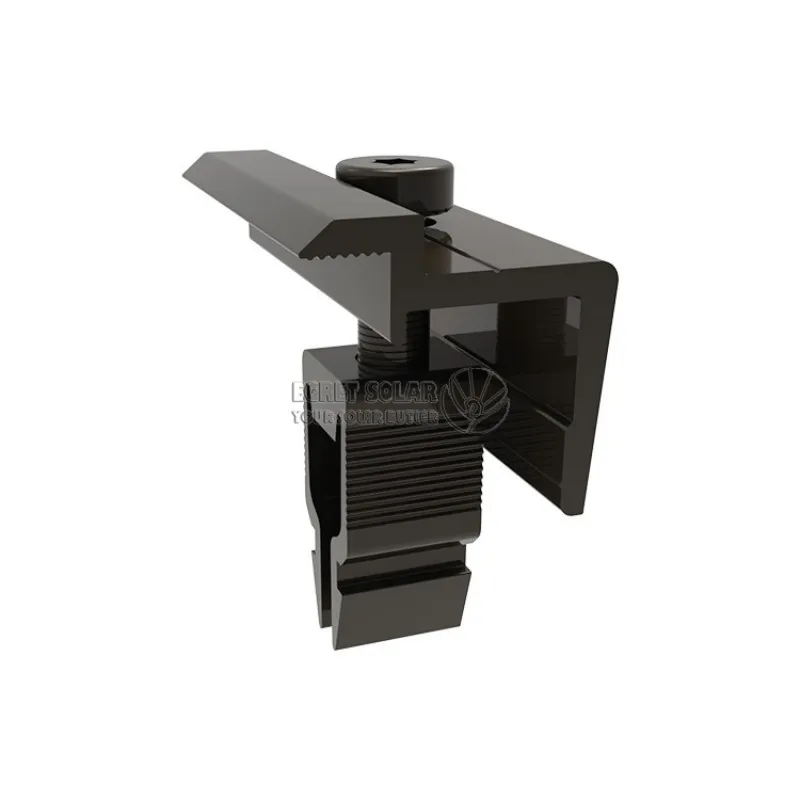

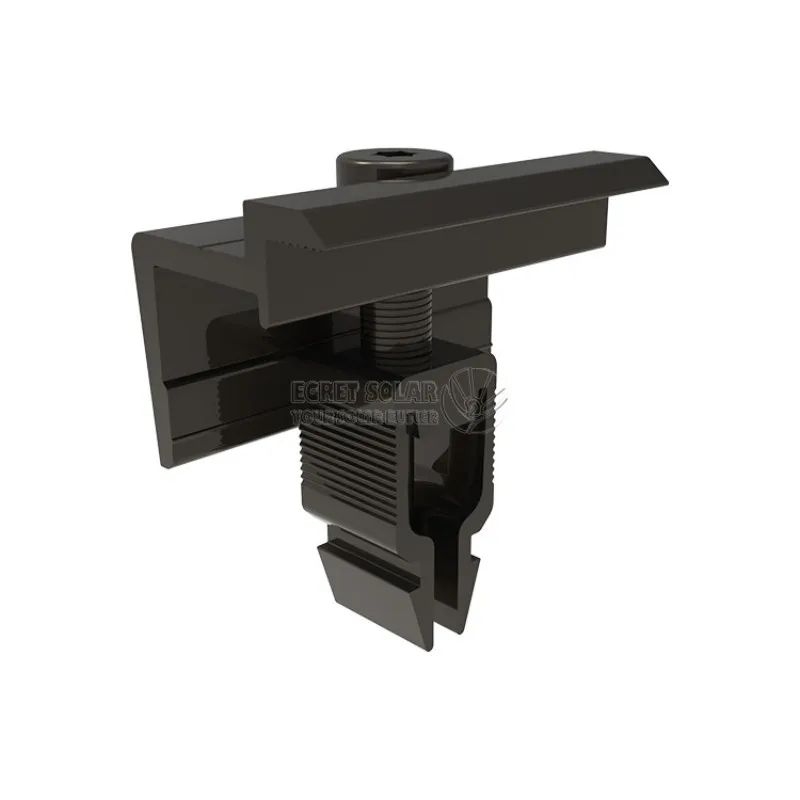

Clamp View 1 Clamp View 2

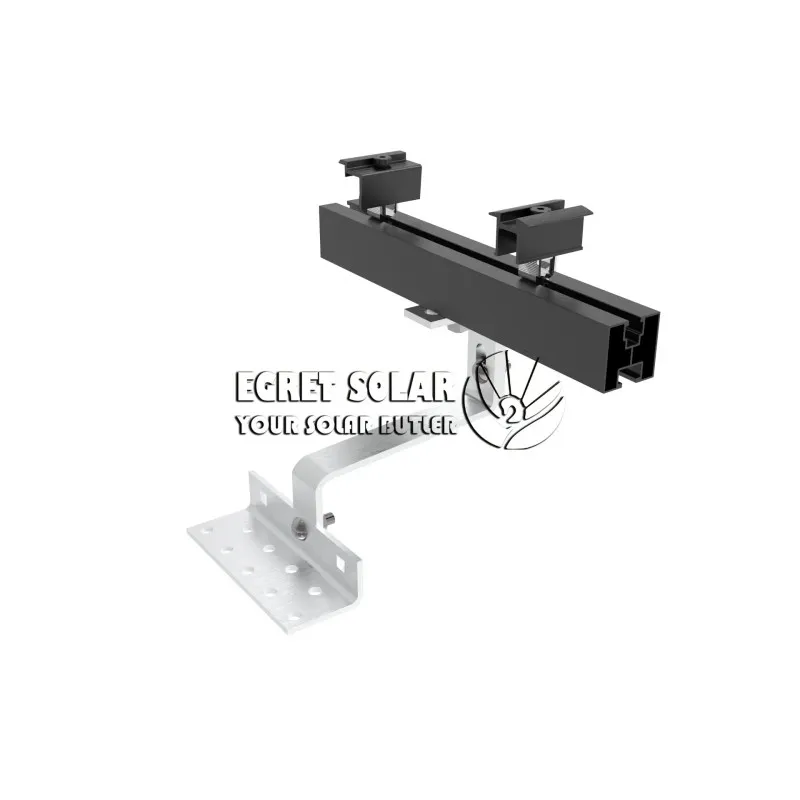

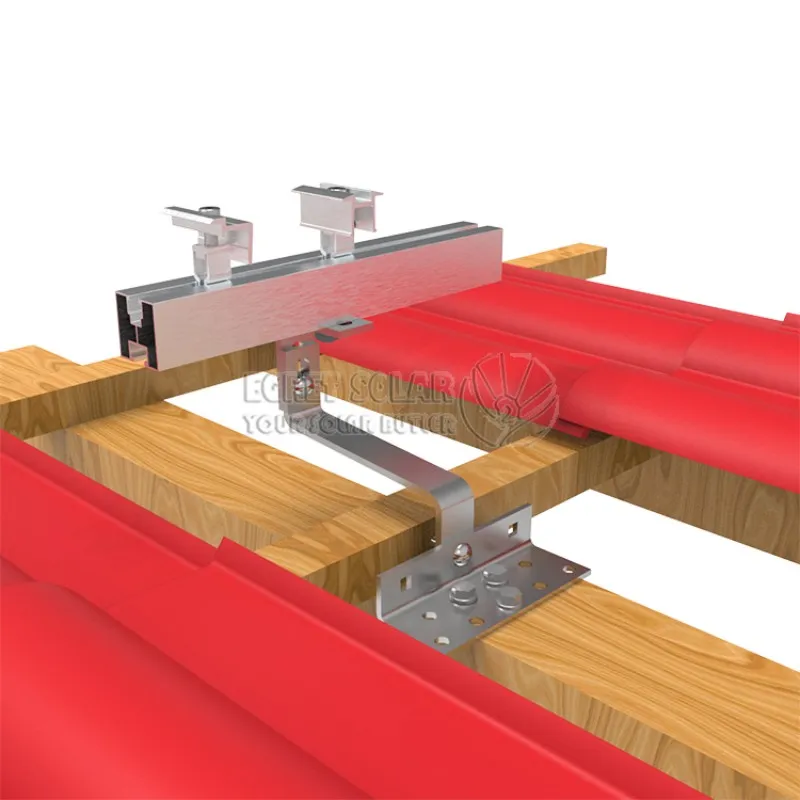

Clamp Installation 1 Clamp Installation 2
Section Divider
Technical Drawing

Aluminum Black Solar Rapid End Clamp

Aluminum Solar middle clamp and solar end clamp for framed modules allow quick and simple mounting by clicking into mounting rails and provide optimal holding force.

AL6005-T5 high-grade material
Available in Natural & Black anodized colors
Suitable for 30-40mm panel thickness
Standard L50mm length (customizable)
Pre-assembled bolt & quick nut for fast installation

Mounting Solutions

A wide variety of mounting structures are available, including Solar Roof Mounting, Ground Mounting, Carport Mounting, and specialized farm structures. Most systems offer a durability warranty of 12 years and a 25-year service life.

Mounting Rails and Components

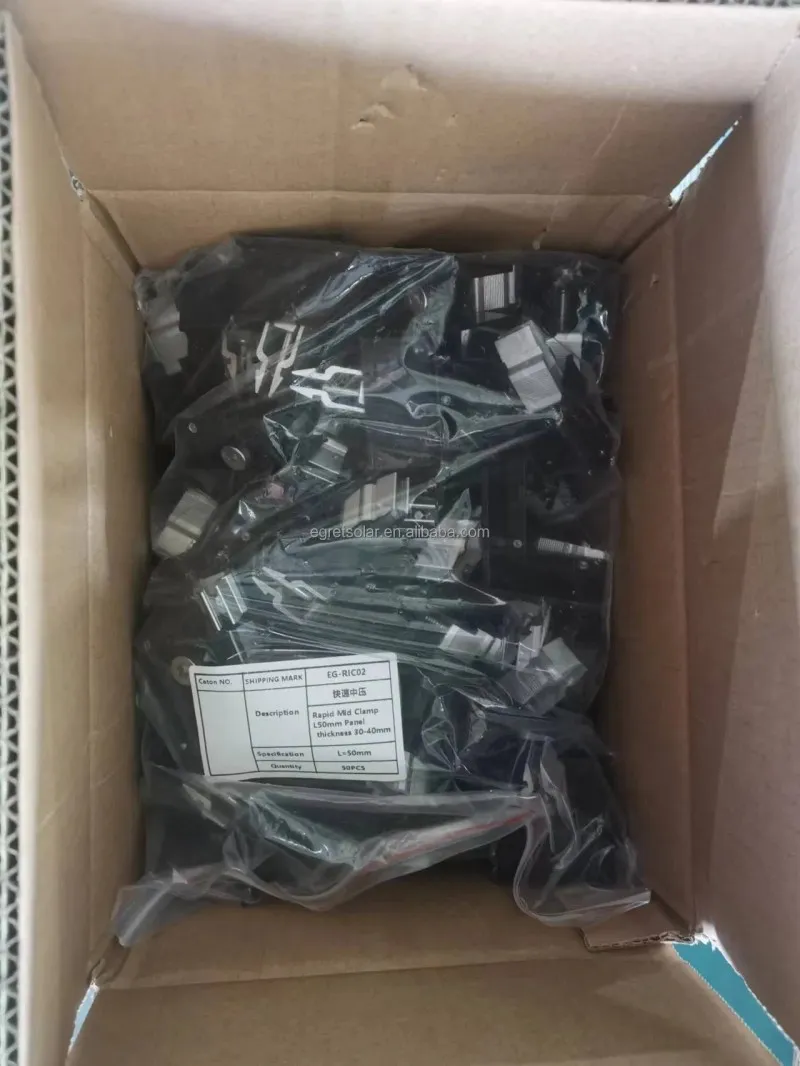

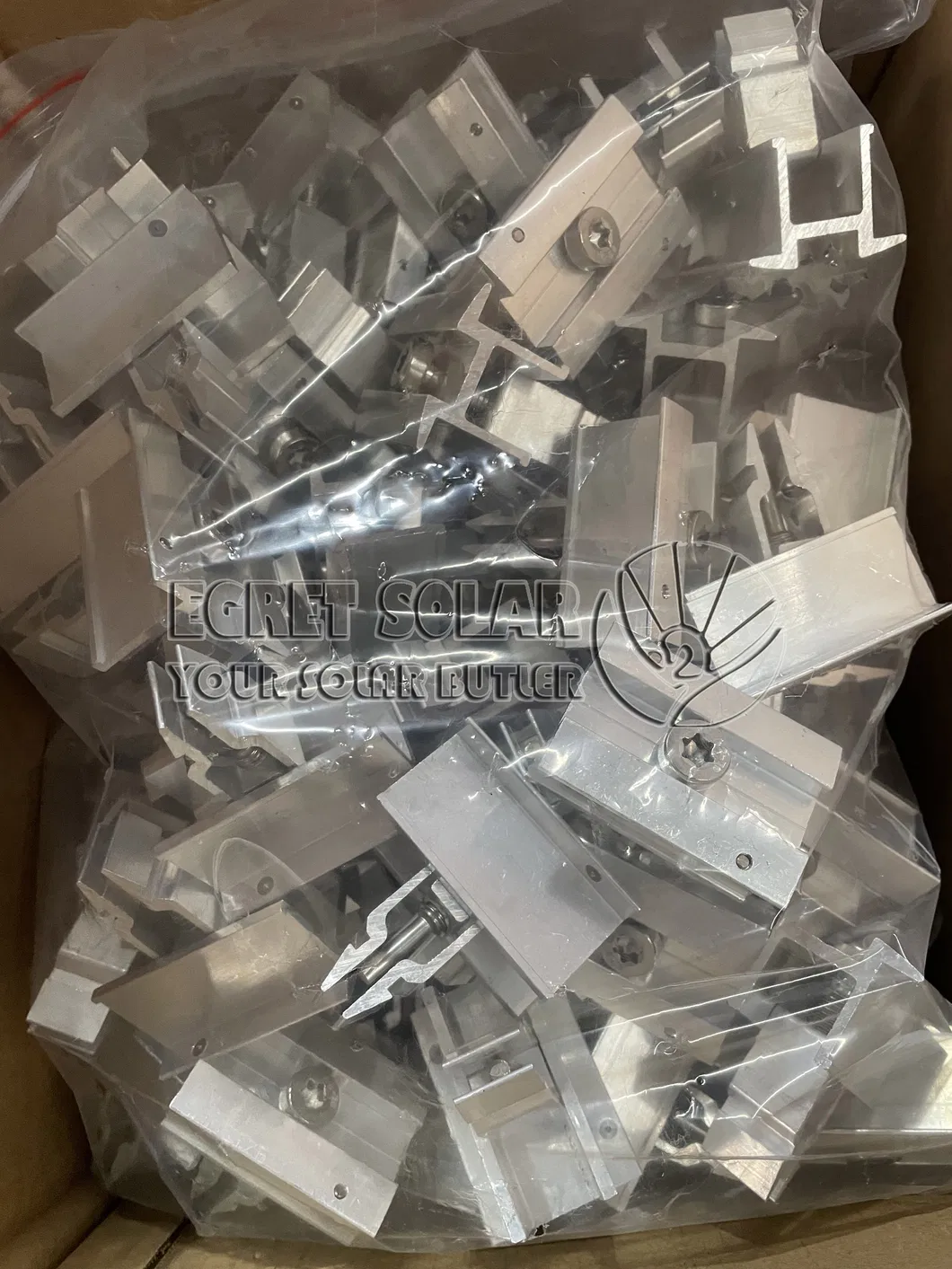

Application View 1 Application View 2

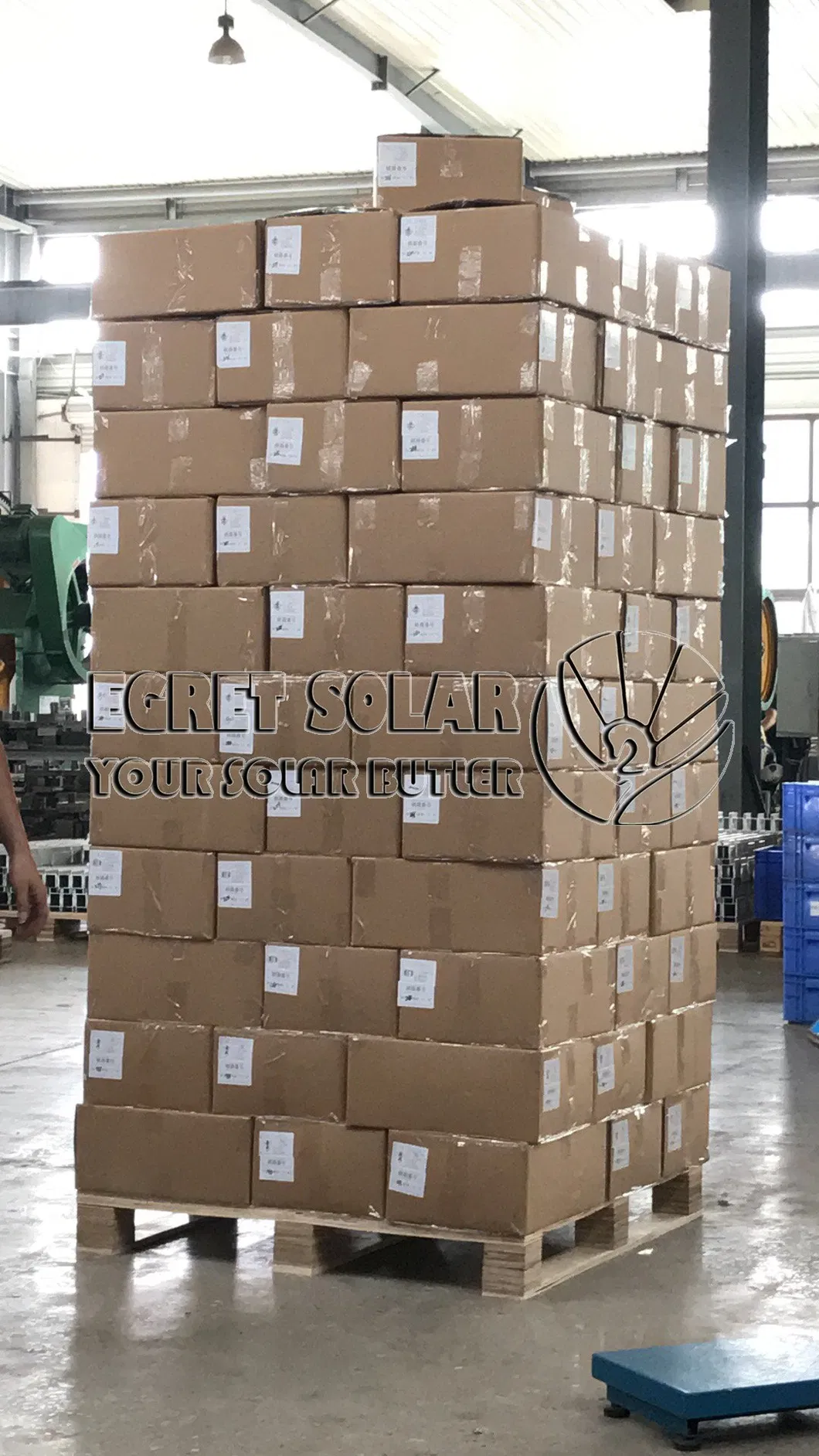

Application View 3 Application View 4
System Overview
📦

Packaging & Delivery

Package Size
19.00cm * 23.00cm * 23.00cm
Gross Weight
1.000kg
Transport Package
Carton/Pallet
?

Frequently Asked Questions

Are you a factory or trading company?
We are a specialized factory producing solar mounting structures in China, including ground, rooftop, carport, and customized OEM solutions.
What materials are used for the clamps?
The clamps are made of high-quality AL6005-T5 aluminum with an anodized surface treatment for maximum durability.
Can I request samples for testing?
Yes, we provide samples upon request to ensure the product meets your requirements.
What information is needed for a detailed quotation?
Please provide panel dimensions (LxWxT), tilt angle, wind/snow load requirements, ground clearance, and your planned layout.
What is the expected lifespan of the mounting system?
Our solar mounting systems are designed for a 25-year life time with high resistance to environmental factors.
Do the clamps support different panel thicknesses?
Yes, the rapid clamps are designed to suit panel thicknesses ranging from 30mm to 40mm, helping to reduce stock costs.
