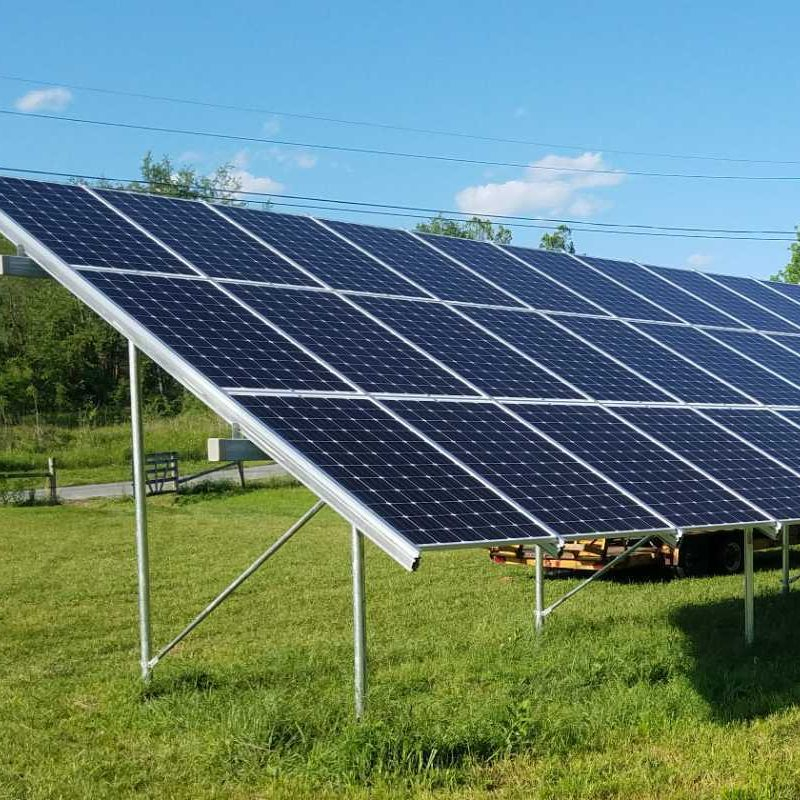

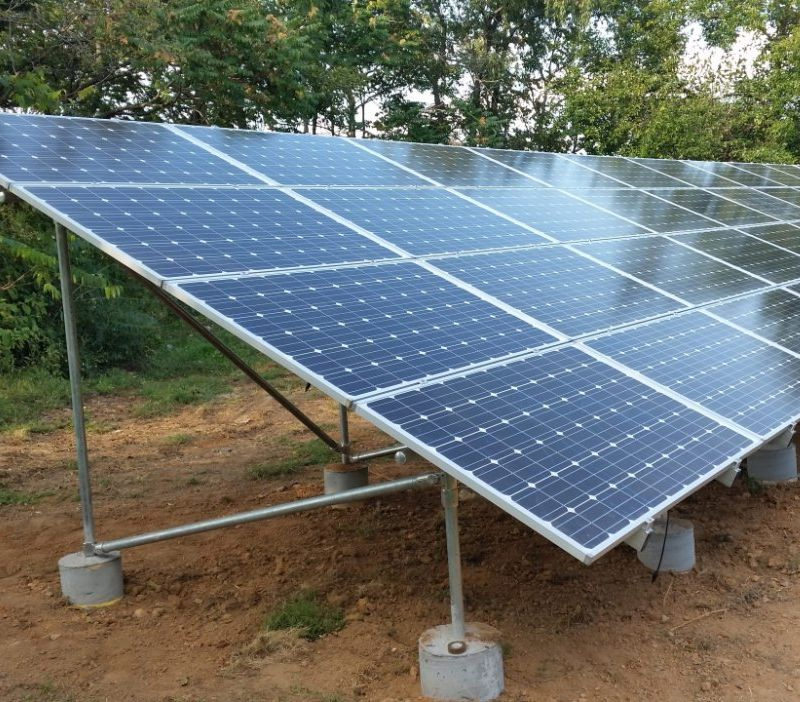

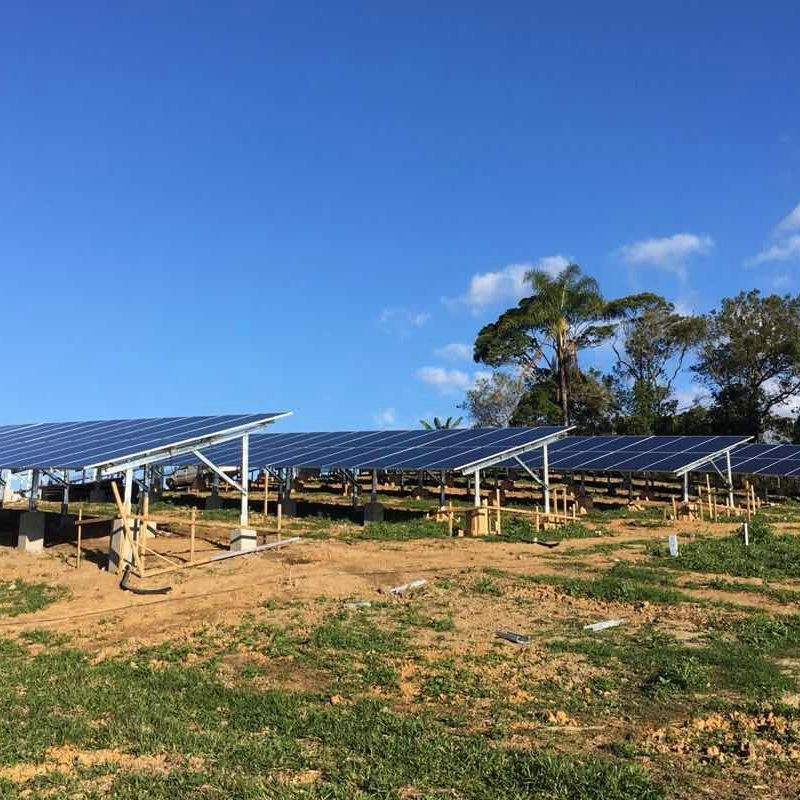

Aluminum Solar Bracket for Solar Panels Ground Mounting System
Aluminum Solar Bracket for Solar Panels Ground Mounting System
Aluminum Solar Bracket for Solar Panels Ground Mounting System
Aluminum Solar Bracket for Solar Panels Ground Mounting System
Aluminum Solar Bracket for Solar Panels Ground Mounting System
1 / 5
Aluminum Solar Bracket for Solar Panels Ground Mounting System
Aluminum Solar Bracket for Solar Panels Ground Mounting System
Aluminum Solar Bracket for Solar Panels Ground Mounting System
Aluminum Solar Bracket for Solar Panels Ground Mounting System
Aluminum Solar Bracket for Solar Panels Ground Mounting System

Aluminum Solar Bracket for Solar Panels Ground Mounting System

Customization: Available
After-sales Service: Yes
Warranty: 10-Year
Send Inquiry

Product Description

📊 Basic Information
Model NO.
ALV-GMA
Certification
ISO
Application
Commercial / Industrial / Residential
Material
Al6005-T5
Type
Ground Bracket
Thickness of Module
30-50 mm
Wind Load
60 M/S
Snow Load
2.5 kN/M2
Adjustable Angle
0-50 Degree
Finishing
Anodized Silver
📝 Product Description
Ground mount solar racking systems are essential structures designed to secure solar panels on various terrains. These systems are ideal for large-scale projects such as commercial PV power stations.
Available Systems:
  • Fixed Tilt System: The most economic and simple solution with minimal maintenance.
  • Single Axis Tracking: Uses electric motors to track the sun's movement in one direction.
  • Dual-Axis Tracking: Maximizes power production by tracking the sun both horizontally and vertically.

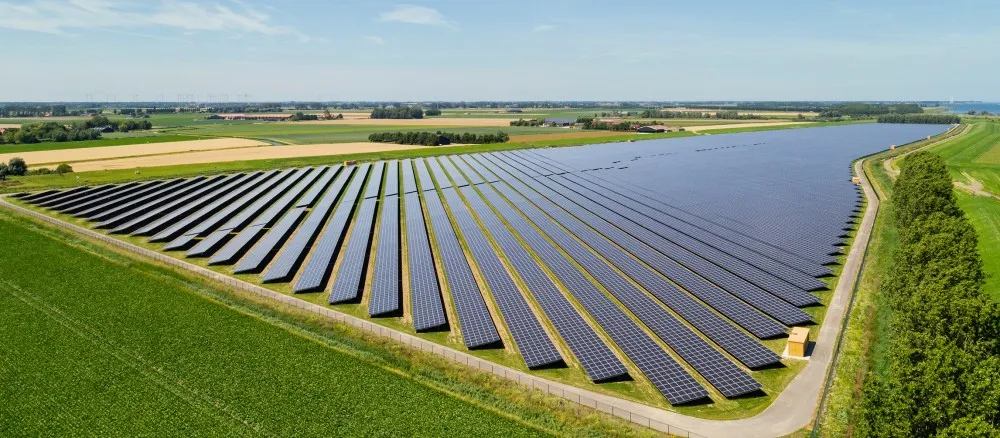

Ground Mounting System Overview
The system consists of three primary components:
  1. The Base: Provides the foundation to withstand extreme wind and snow loads.
  2. The Structure: Tailor-made racks that hold panels at optimal angles.
  3. Clamps: Mid and end clamps that fasten panels securely to the racking.

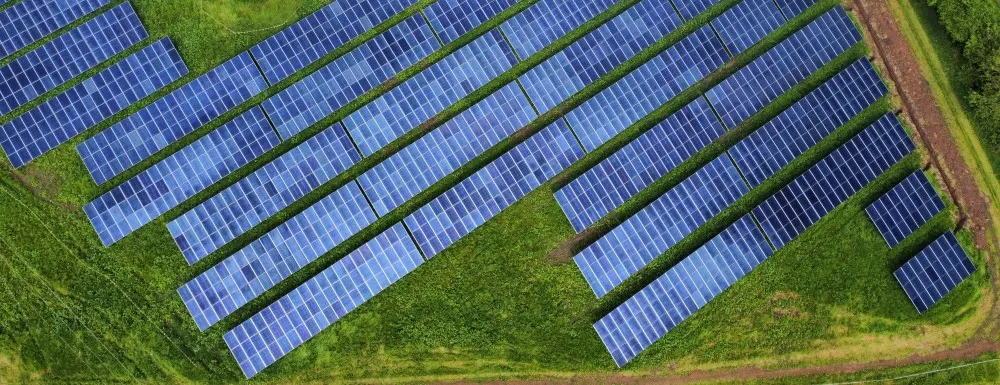

Solar Bracket Components
🌟 Key Advantages
Wide Adaption: Suitable for uneven or sloping surfaces across various terrains.
Durability: Made from 6005-T5 anodized aluminum alloy for harsh weather resistance.
Economic: Lightweight materials reduce labor and installation costs.
Sustainability: Minimizes disruption to existing structures and avoids rooftop limitations.

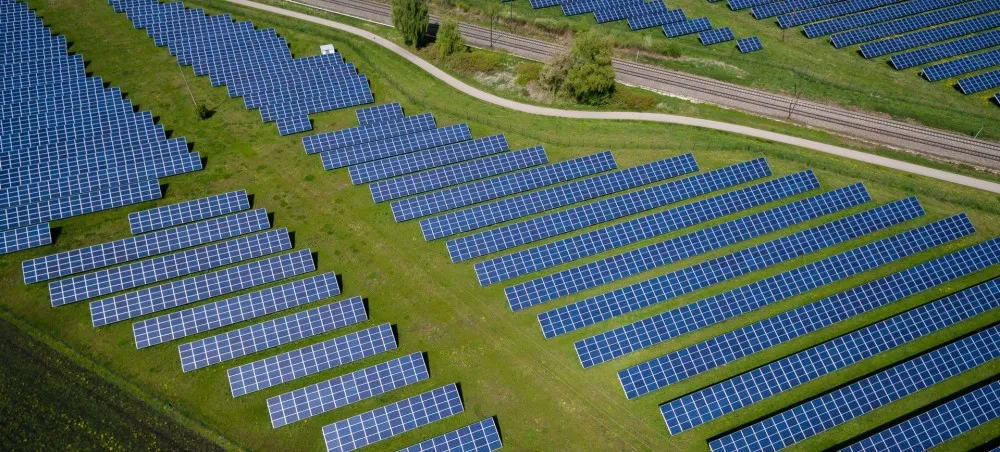

Installation Benefits
📸 Detailed Photos

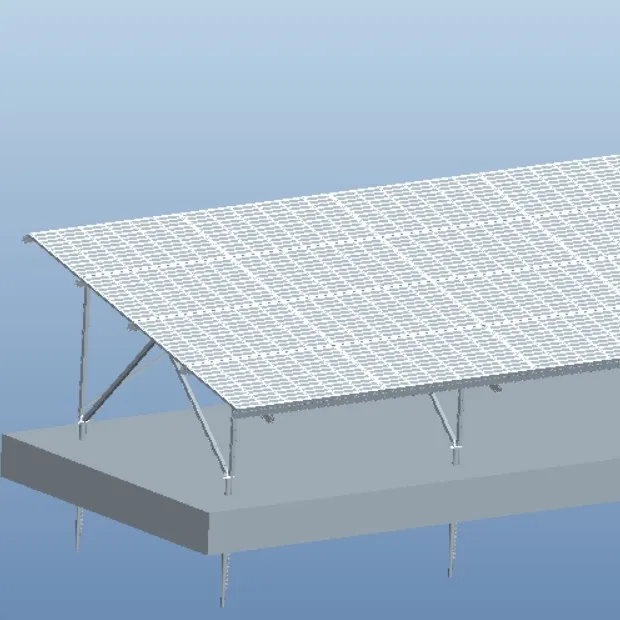

Detail 1

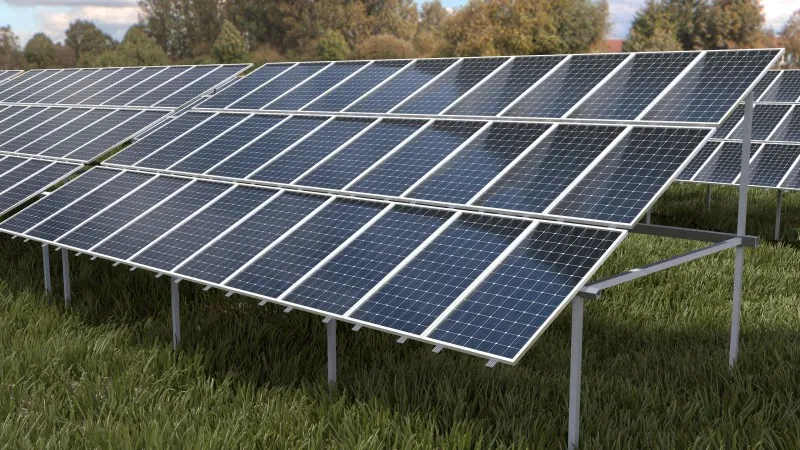

Detail 2

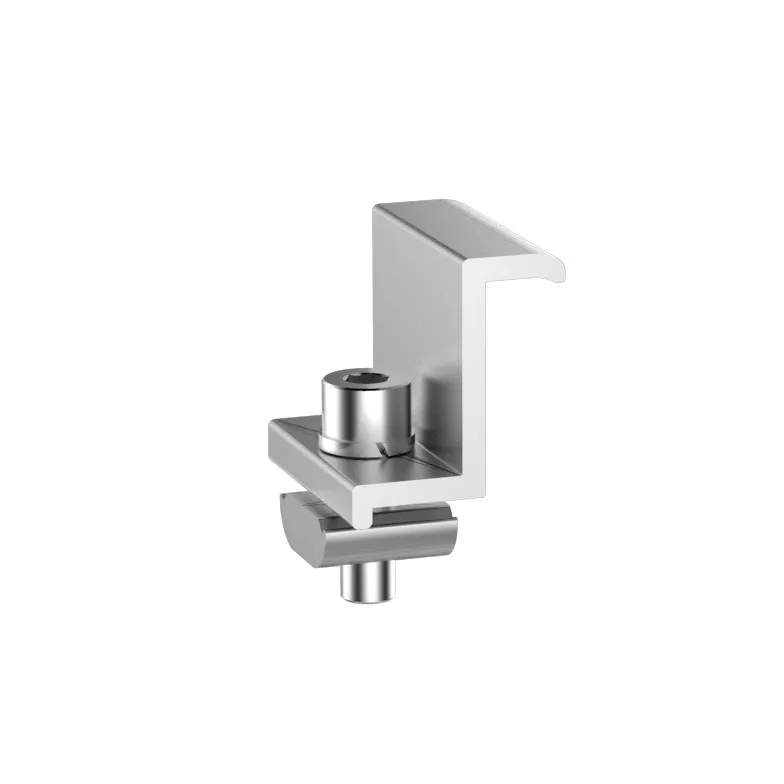

Detail 3

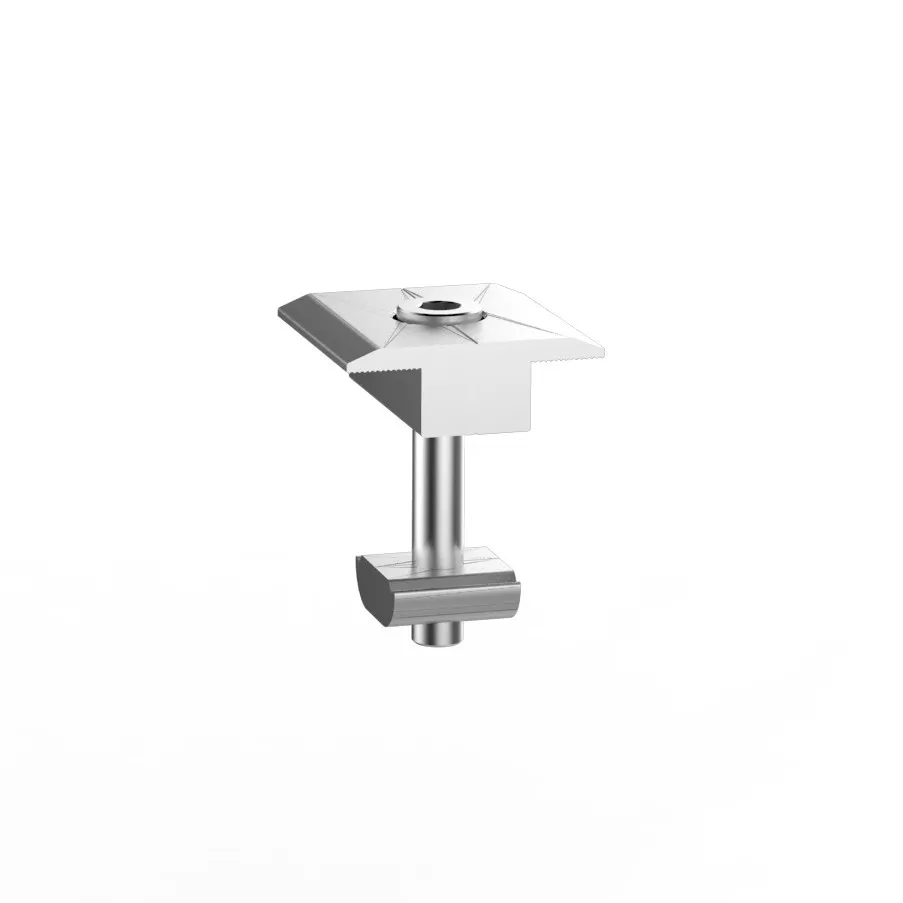

Detail 4
⚙️ Product Parameters
Parameter Specification
Mount TypeAluminum Ground Mounting System
MaterialAL6005-T5
Applicable ModuleFramed Panel
Wind Load60m/s
Snow Load2.5 KN/m2
Module Thickness30-50 mm
Adjustable Angle0~50° Degree
StandardEN 1990&1991.2002 / ASCE7-10/16
Warranty10 years
📦 Packaging & Shipping
Package Size
600.00cm * 108.00cm * 110.00cm
Gross Weight
1500.000kg

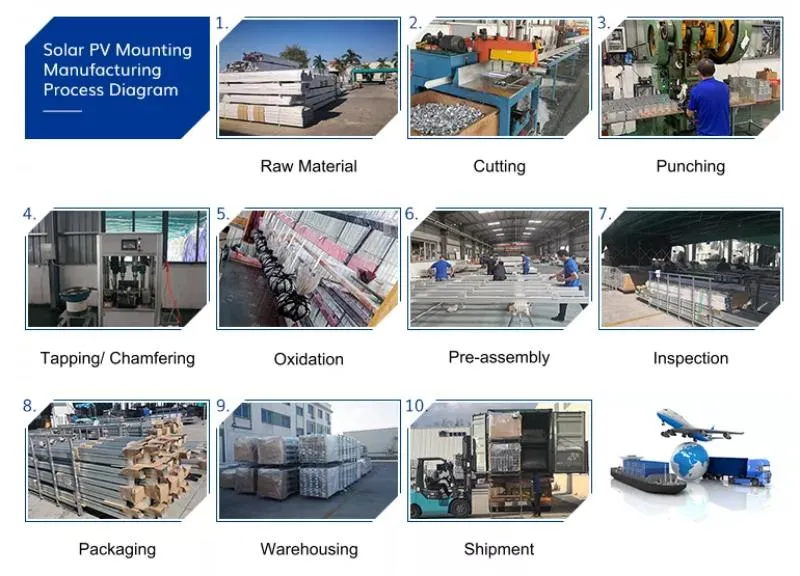

Packaging Details
🏆 Why Choose Our Solution
  • Extensive Experience: Deep understanding of market needs to provide professional guidance.
  • High-Quality Materials: Premium aluminum and stainless steel components for long-term stability.
  • Cost-Effective: Optimized designs that balance quality with competitive pricing.
  • Professional Support: Dedicated technical consultation and installation guidance.
  • Global Reliability: Proven performance in diverse climates across Europe, America, and Asia.

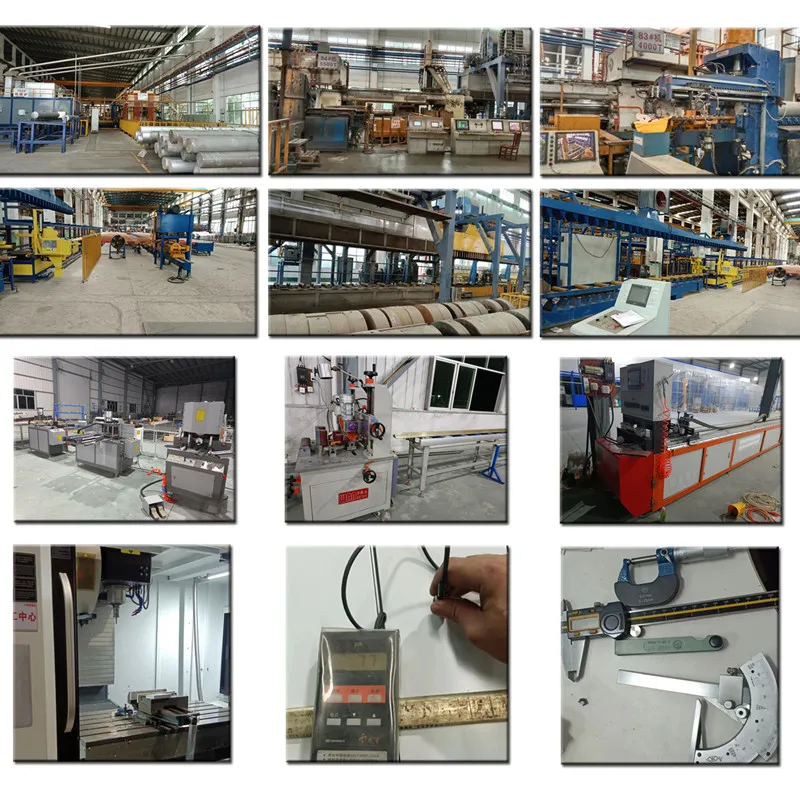

Quality Assurance
❓ Frequently Asked Questions
What materials are used for the ground solar mounting system?
The systems are mainly constructed from AL6005-T5 aluminum alloy, with specific components using carbon steel or zinc-magnesium-aluminum alloys for enhanced durability.
What factors are considered before installation?
Key factors include geographic location, local weather history (wind and snow loads), panel dimensions, weight, and the required tilt angle for optimal energy production.
How long does the installation process take?
The timeline depends on the foundation type. Piling is generally faster, while concrete bases require several days for curing. Typically, cycles range from a few days to a few weeks.
What is the typical warranty for these systems?
Standard systems usually offer a warranty of 15-25 years, depending on the specific materials used and the installation environment.
How much wind and snow load can the brackets withstand?
Our designs are engineered to withstand wind speeds up to 60m/s and snow loads of 2.5 KN/m2, customized based on local environmental data.
What kind of maintenance is required?
Regular maintenance includes cleaning the panels and inspecting bolts, nuts, and fasteners, especially after severe weather events like typhoons or heavy snow.

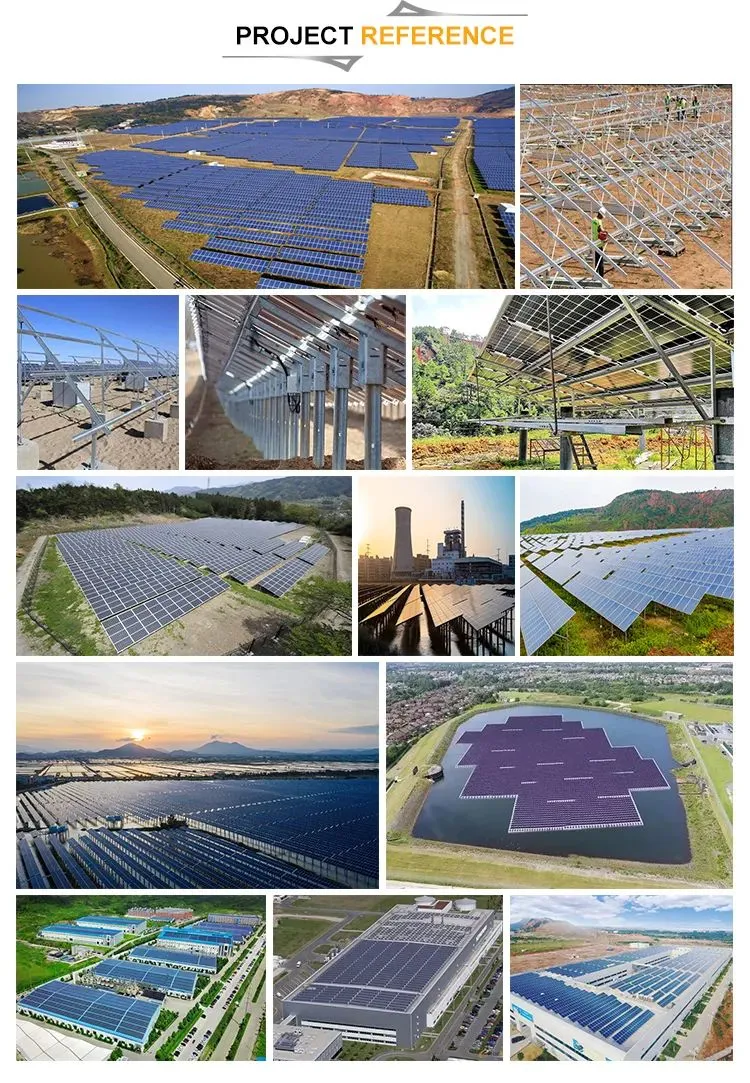

Technical Support
