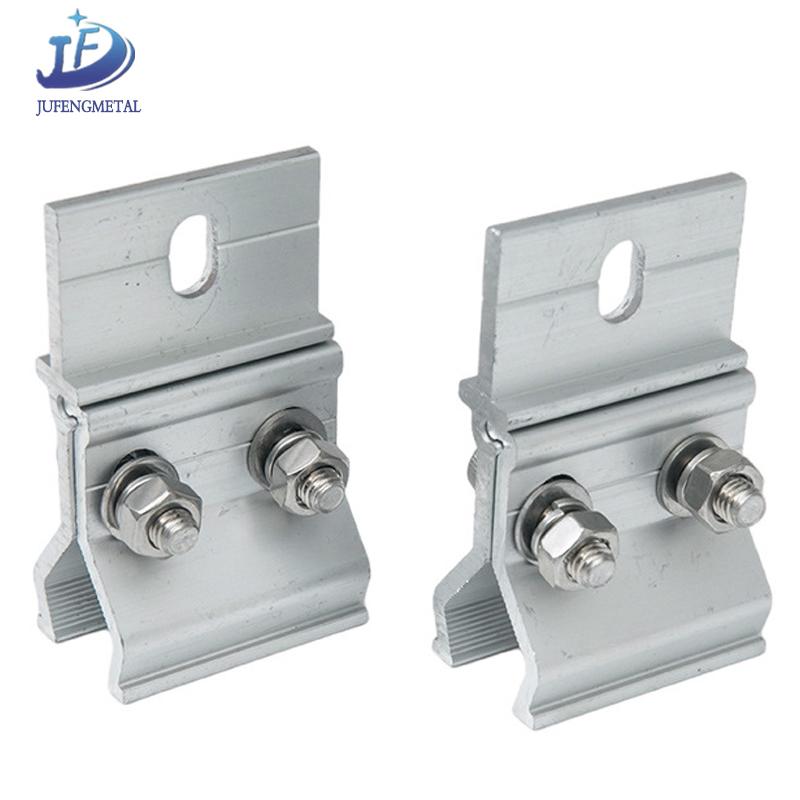

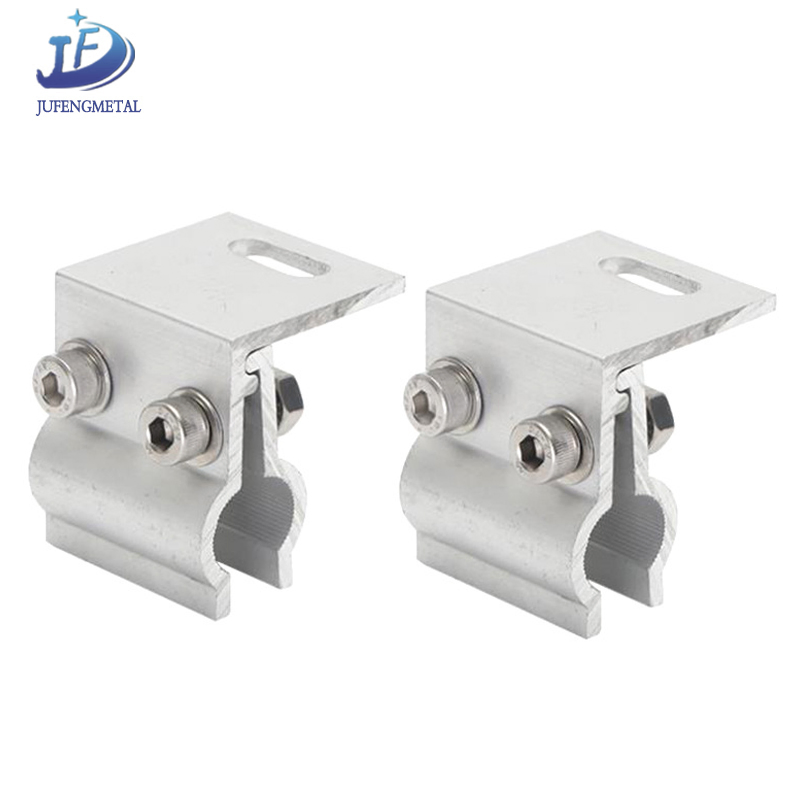

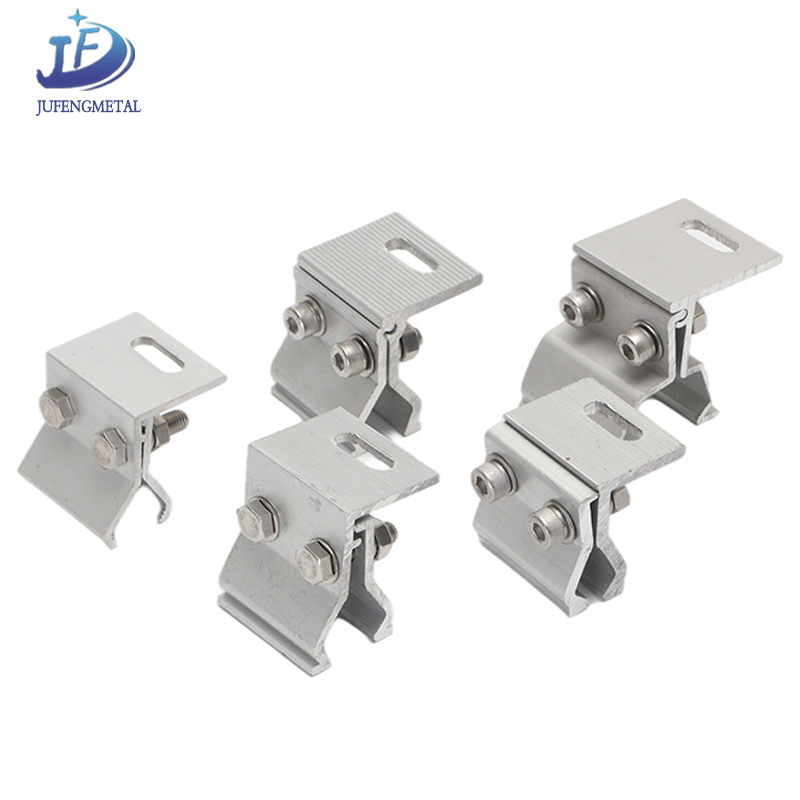

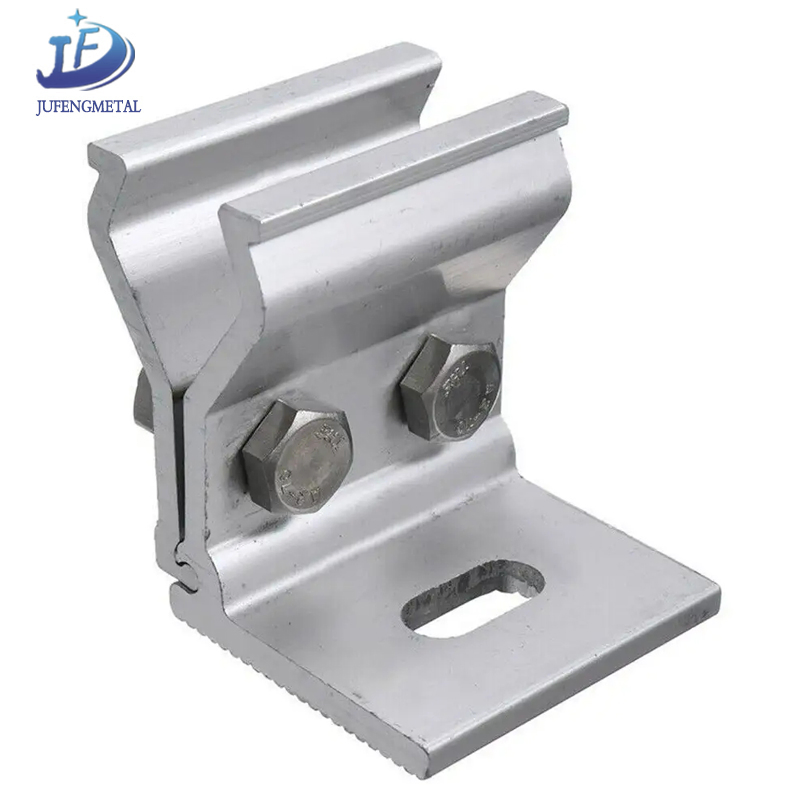

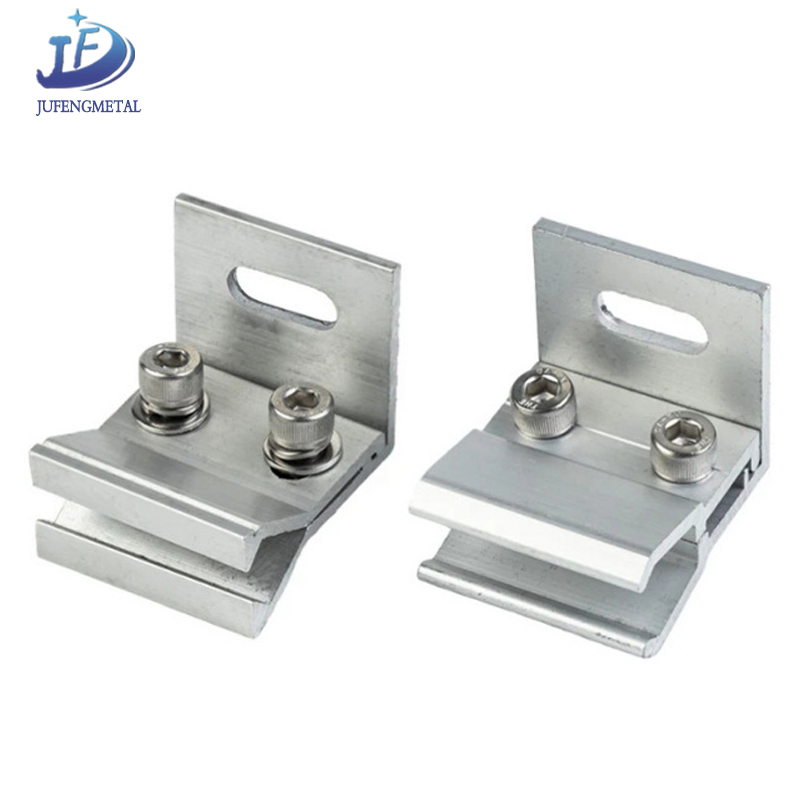

Aluminum Angles Base Clip Solar End Clamp PV Panel Rail Fixing Metal Clamp

1 / 5

Aluminum Angles Base Clip Solar End Clamp PV Panel Rail Fixing Metal Clamp

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

Basic Information

Model NO.:JF-PV

Certification:GB, ISO, TUV, CE

Material:Aluminum Alloy

Type:Roof Bracket

Application:Industrial & Commercial

Part Type:Solar End Clamp

Surface Treatment:Anodized/Polishing/Galvanized

Production Capacity:50000PCS/Month

Product Description

Angles Aluminum Base Clamp End Clamp Solar PV Panel Rail Fixing Metal Clamp

Material	AL6005-T5
Specification	N761200/N761600/N76*2000 or customized
Application	Home, Industrial & Commercial
Warranty	15 years (20+ years service life)
Type	Solar Ground/Roof Mounting

Technical Information

Install site: Pitched Tin Roof
Roof Slope: Up to 60 deg
Building Height: Up to 65ft (20 m)
Max Wind Speed: 60m/s
Snow Load: 1.4KN/m2
Standard: AS/NZS 1170 and international standards
Anticorrosive: Anodized aluminum & stainless steel 304

Manufacturing Excellence

Our Promises:

Offering design and improvement schemes freely.
Providing production videos and photos during manufacturing.
Strict quality control to ensure 0 return rate.
99% of orders guaranteed for on-time delivery.
24-hour online service and rapid inquiry response.

Production Process:

Tooling (Mold) design and Manufacture.

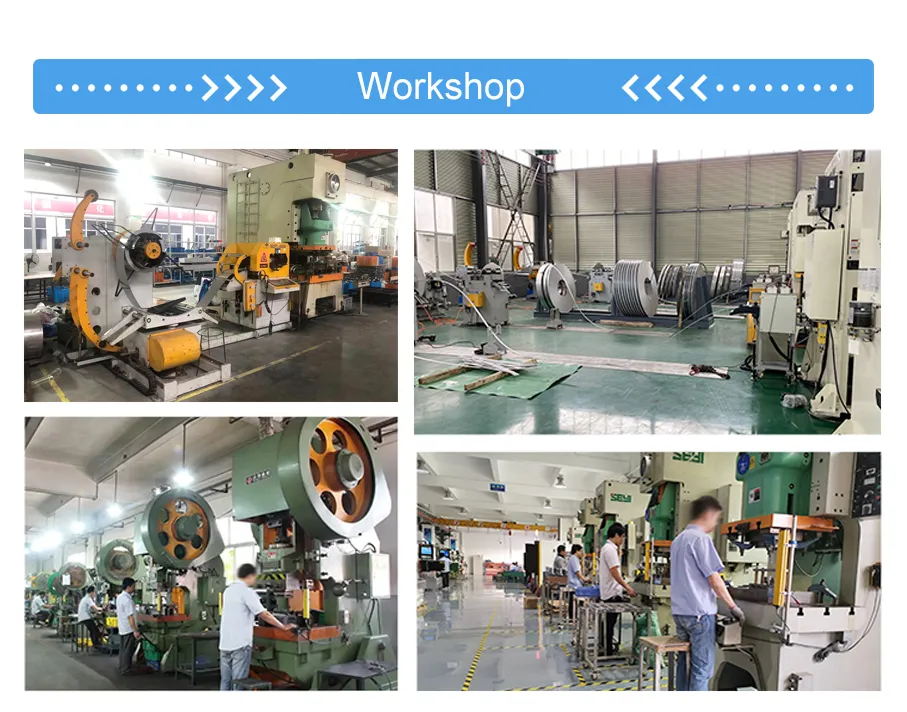

Stamping Machine production.
Riveting, Welding or Screw tapping as required.

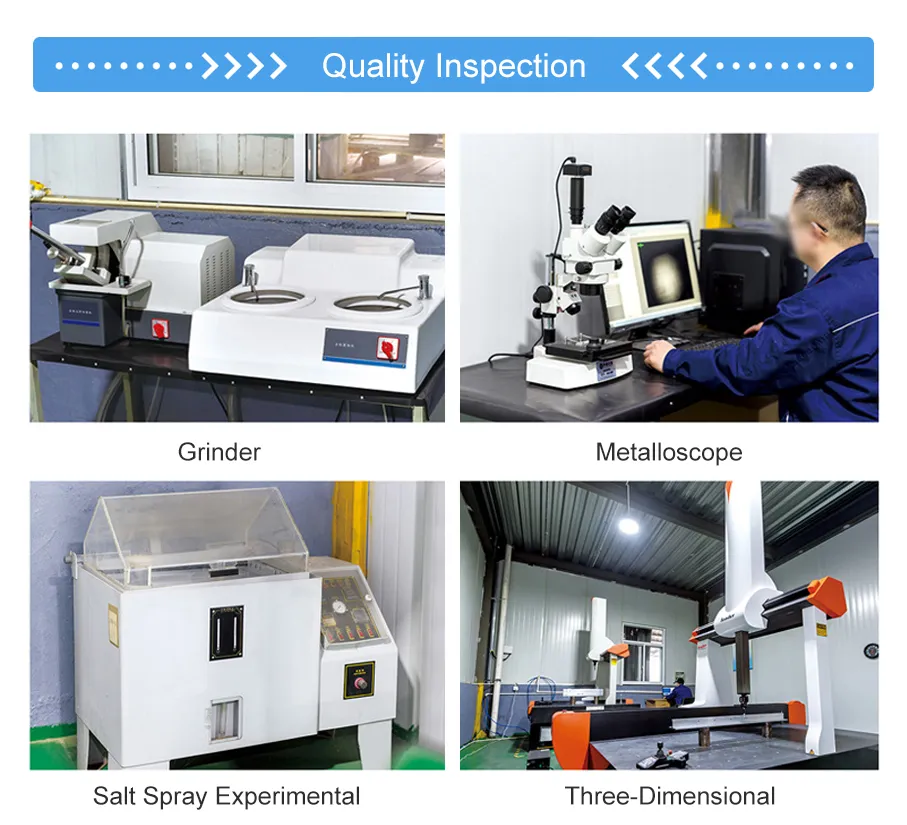

Image measurement and dimension testing.
Surface treatment process.
100% manual quality inspection.
Vacuum packaging for shipping.

Customization Capability

Material selection: Aluminum alloy, stainless steel, galvanized magnesium aluminum.
Structural design: Custom layouts for specific building structures.
Size customization: Adapted to different component sizes and spaces.
Installation methods: Roof mounting, ground mounting, etc.

Packaging & Shipping

Package Size:60.00cm * 50.00cm * 50.00cm

Gross Weight:50.000kg

Packing Method:Plywood Box / Carton

Frequently Asked Questions

Q: What payment methods do you accept? A: We accept TT (Bank Transfer), Western Union, and L/C. For amounts under US$500, 100% in advance; above US$500, 30% advance and balance before shipment.

Q: What is the minimum order quantity (MOQ)? A: MOQ depends on specific client needs. We also welcome trial orders before starting mass production.

Q: What is your typical production cycle? A: It varies depending on product dimensions, technical requirements, and quantity. We adjust workshop schedules to meet customer requirements.

Q: Can I track my order progress without visiting the factory? A: Yes, we provide detailed product schedules and send weekly reports including digital pictures and videos showing the machining progress.

Q: How do you ensure product quality? A: We manufacture strictly according to drawings or samples until 100% satisfaction is reached. We maintain a high standard of quality with rigorous testing at every stage.

Q: What is your fastest delivery time? A: For many orders, our delivery time can be as fast as 7 days after payment is received.
