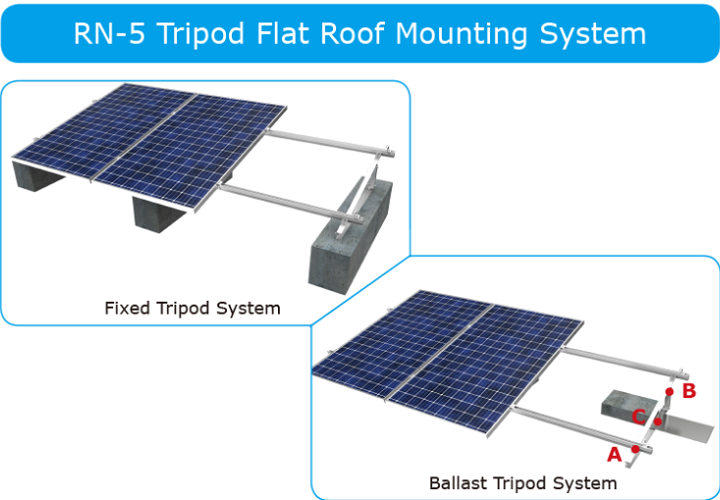

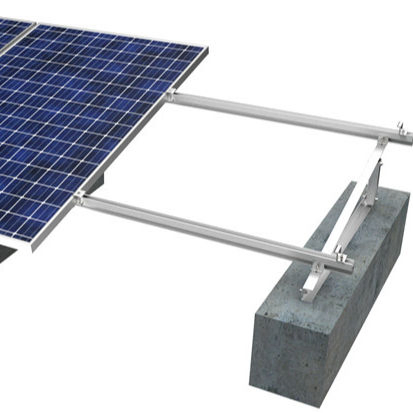

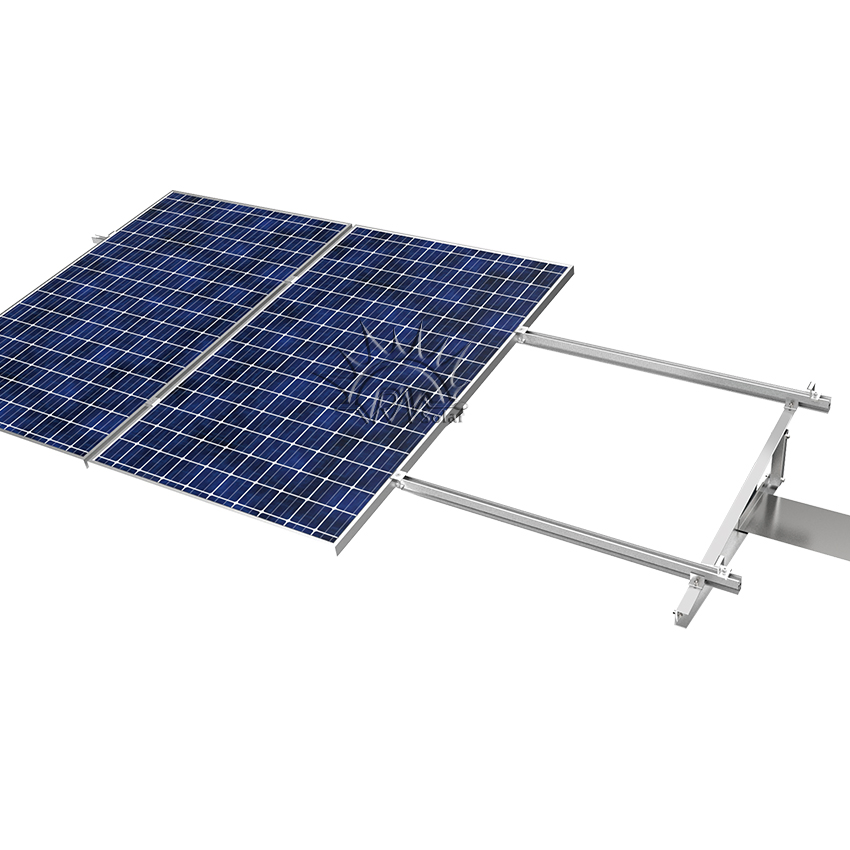

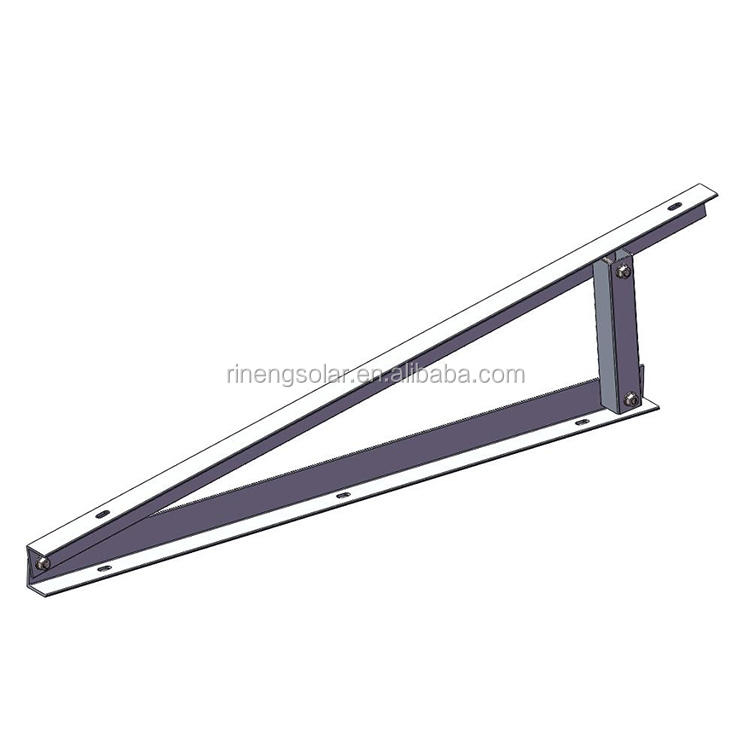

Anodized Aluminum Triangle Adjustable Solar Panel Support of Flat Roof Mounting Bracket

Customization: Available
After-sales Service: 10 Years in Material
Warranty: 1 Year

Product Description

Basic Info.
Model NO.
RN-5A
Certification
ISO, CE
Application
PV System
Material
Aluminum Alloy
Type
Roof Bracket
Color
Silver
Surface Treatment
Anodized
Feature
Cost-Effective Installation
Snow Load
1.5kN/M2
Wind Load
60 M/S
Service Life
20~25 Years
Tile Angle
5~60 Degree
Specification
AL6005-T5
Origin
Fujian, China
Product Description
Aluminum Triangle Solar Panel Support
Wholesale Aluminum Triangle Adjustable Solar Panel Support Frame Mounting Bracket
Solar Mounting Bracket Detail

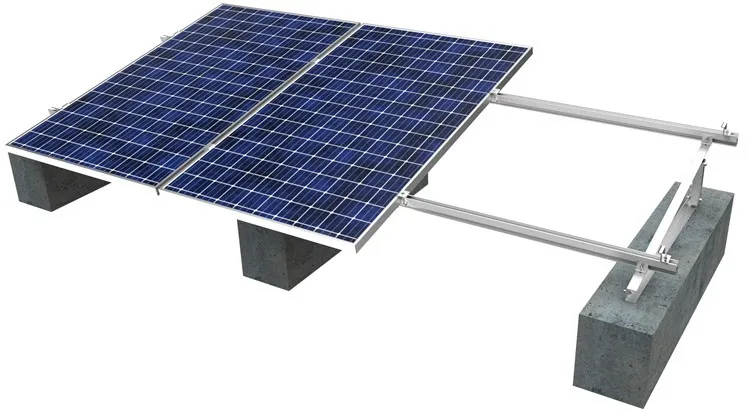

Adjustable Solar Bracket

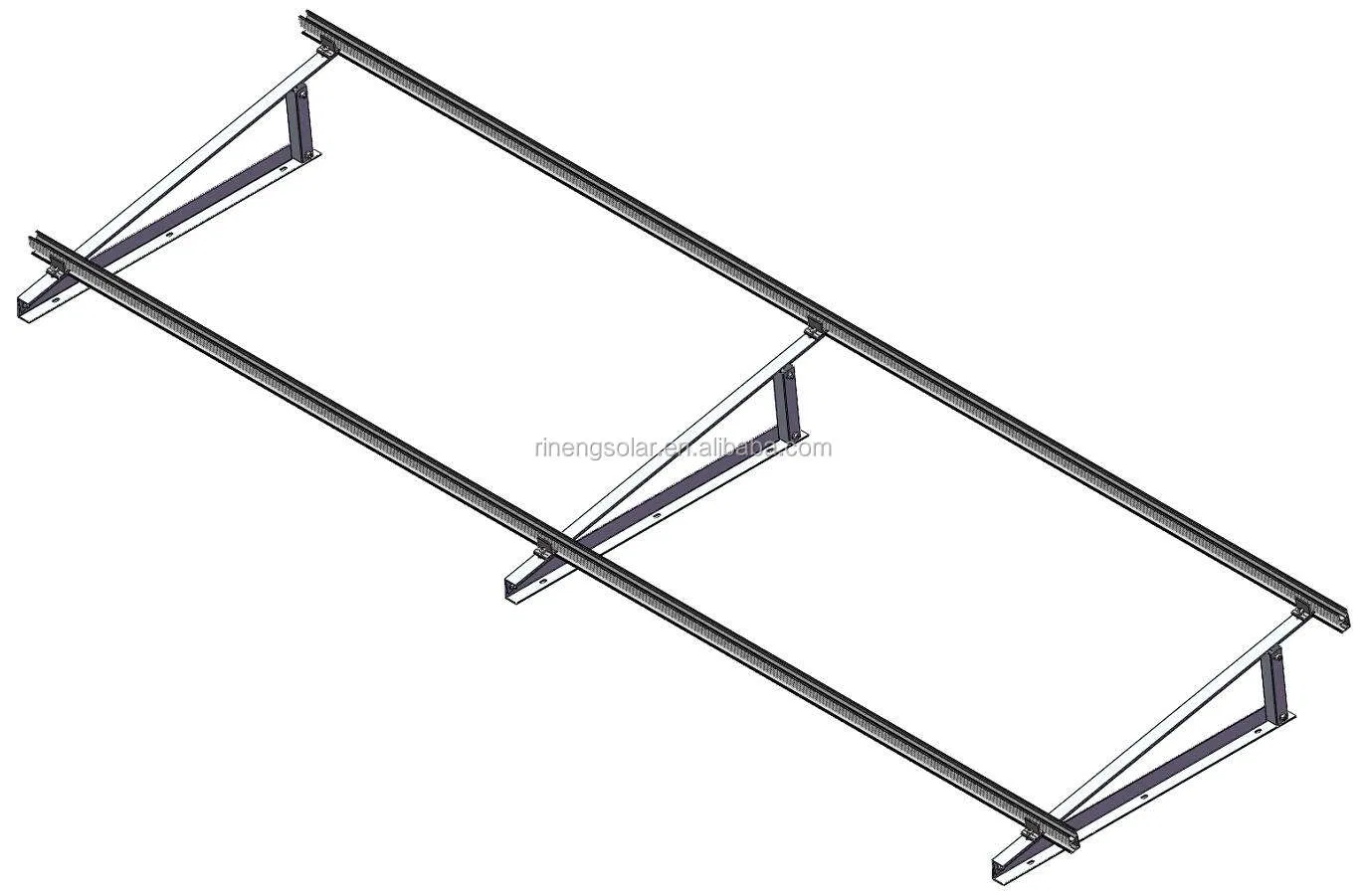

Technical Diagram

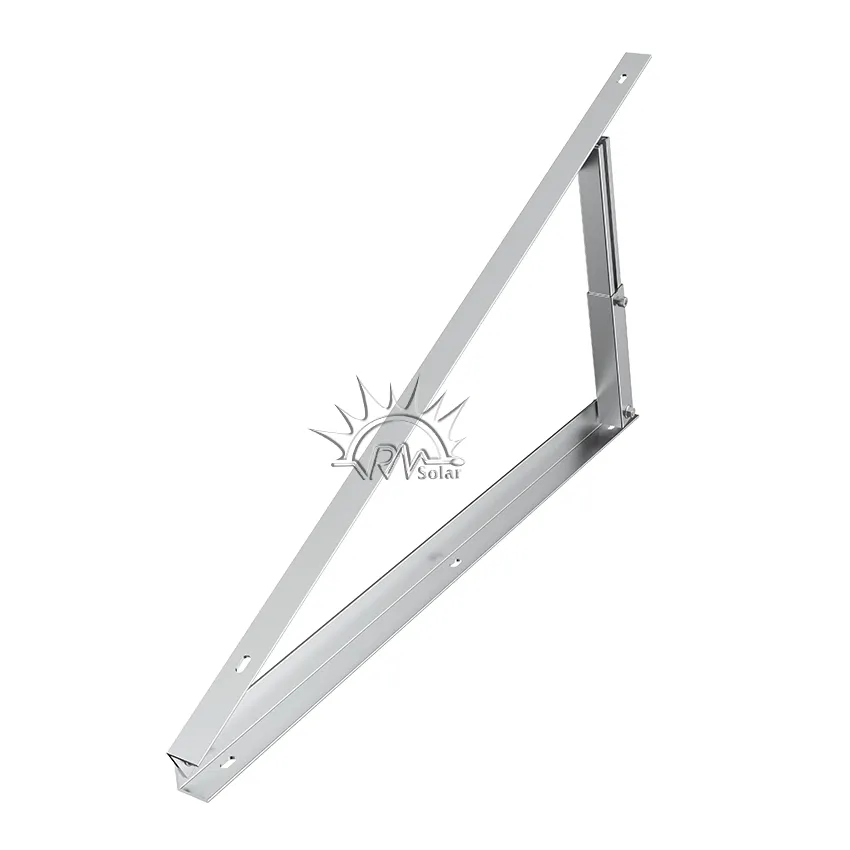

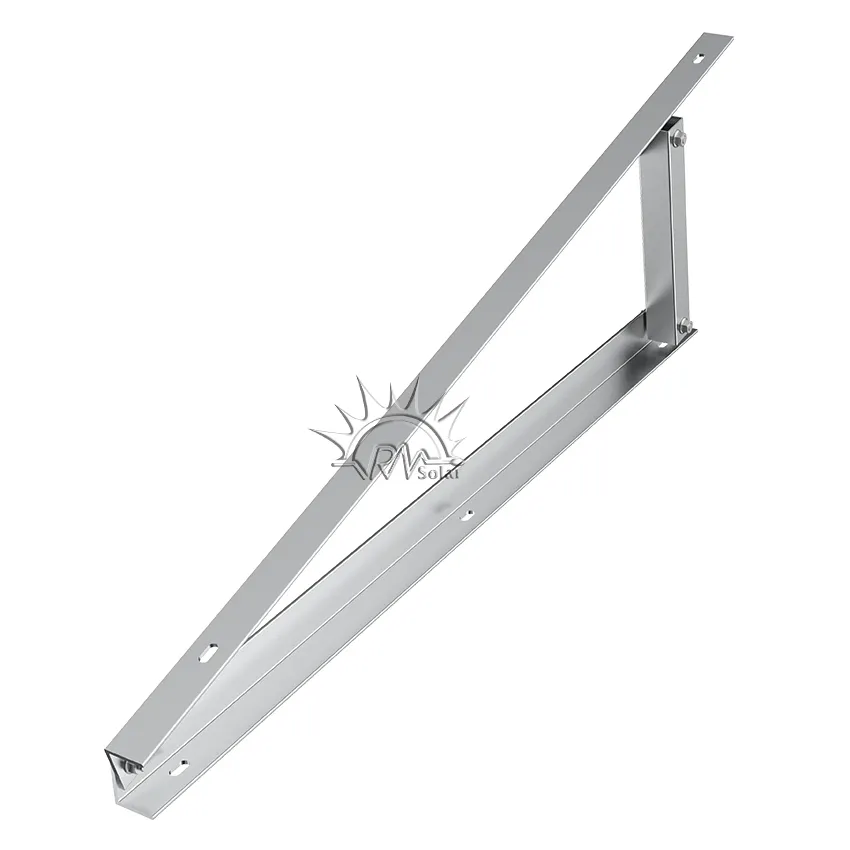

Adjustable Tripod System A1 Fixed Tripod System A1
Adjustable Tripod System A1 (5/60°) Fixed Tripod System A1 (10/15° or 15/30°)

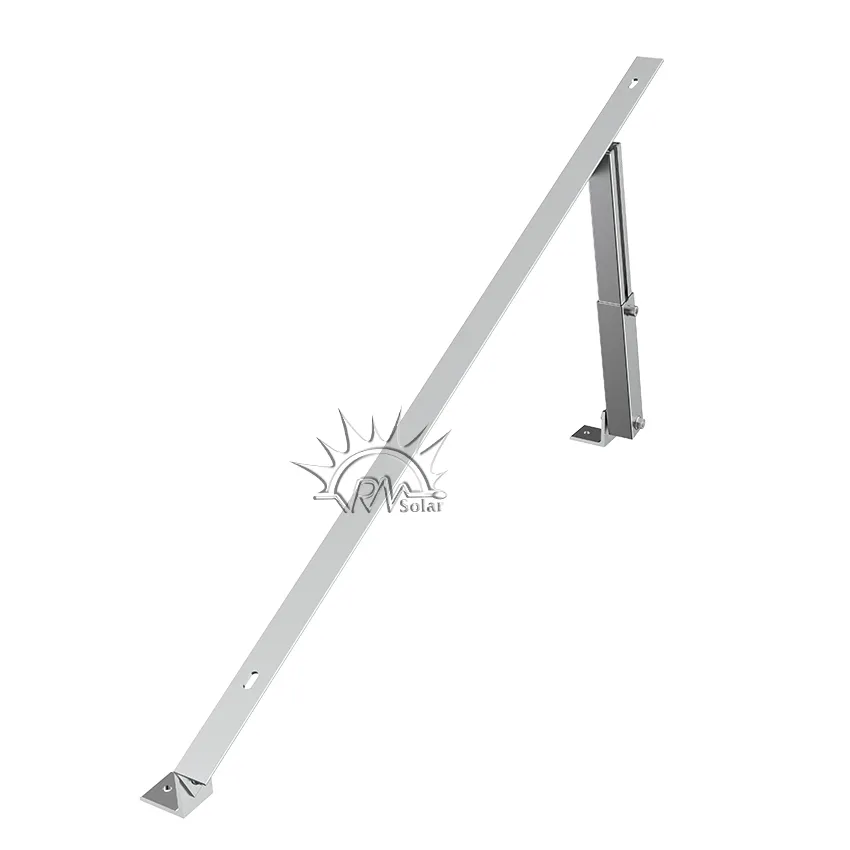

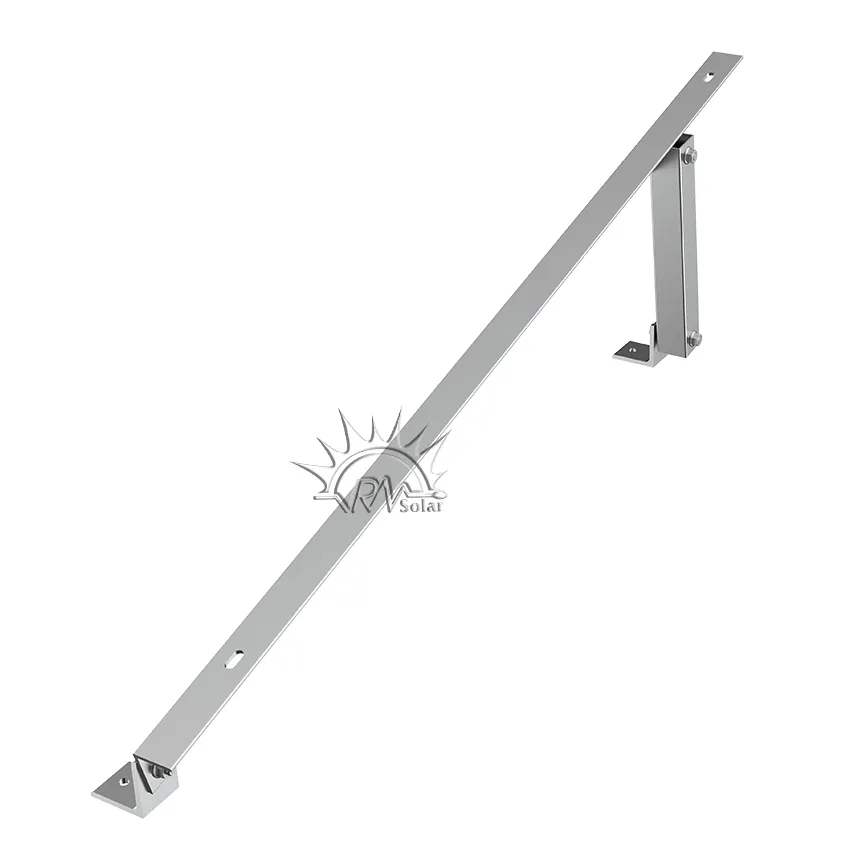

Adjustable Tripod System B1 Fixed Tripod System B1
Adjustable Tripod System B1 (5/60°) Fixed Tripod System B1 (10/15° or 15/30°)

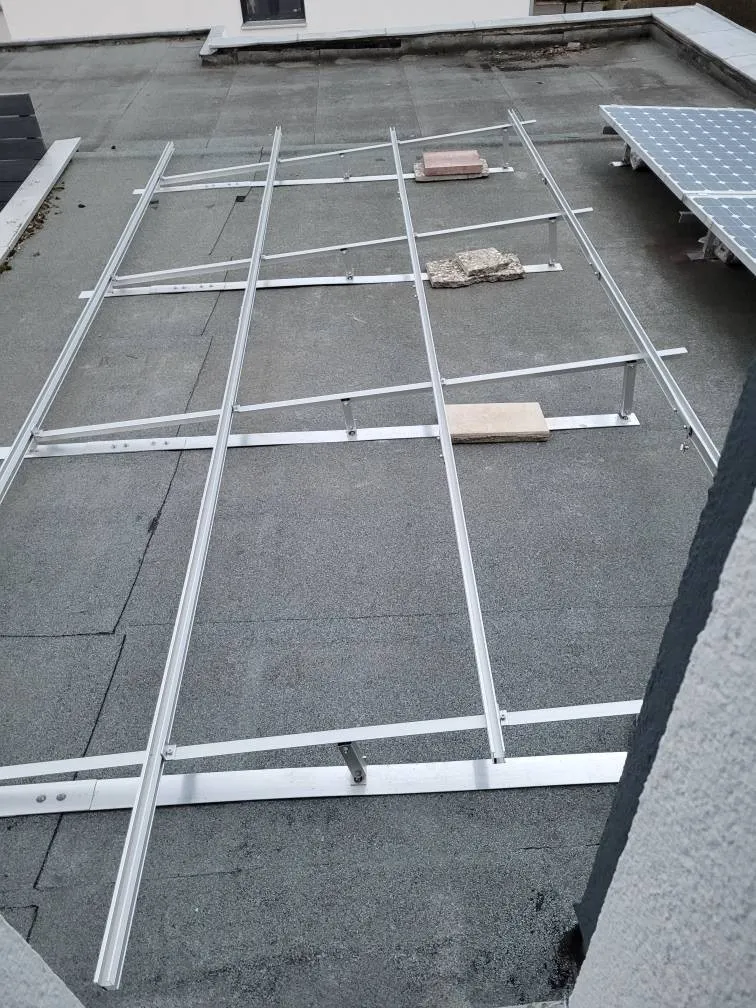

Mounting Bracket Application

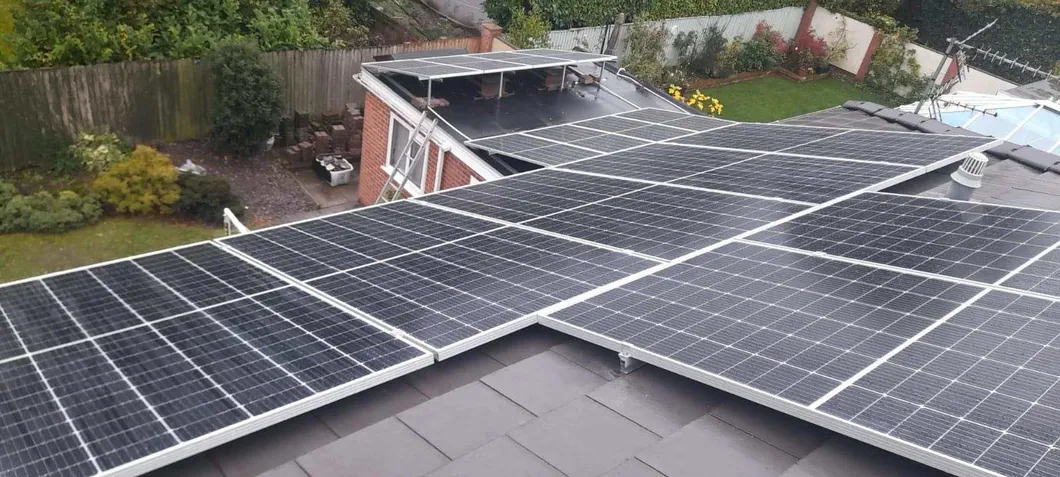

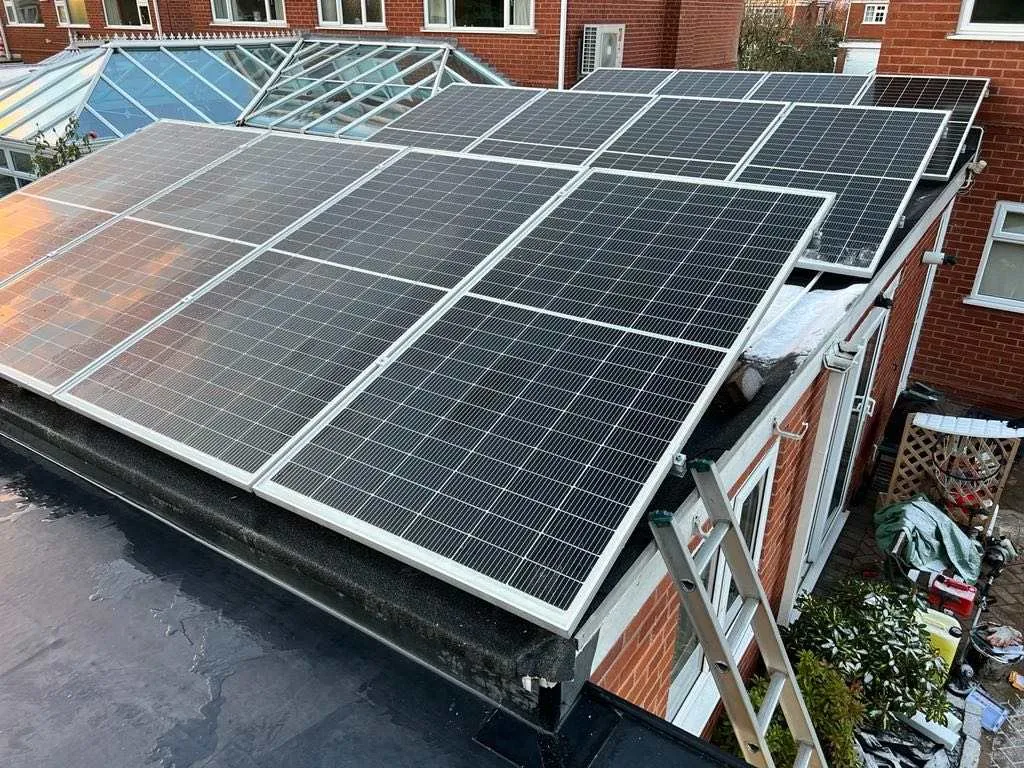

Solar Component 1 Solar Component 2
Roof Installation Diagram
Support Leg Detail 1 Support Leg Detail 2
Structural Layout
Technical Specifications Sheet
Installation Overview
FAQ
Q: Are you a factory or trading company?
A: We are a factory specializing in producing all types of solar mounting systems for residential, commercial, and utility applications.
Q: Can I request samples for testing?
A: Yes, we provide samples for your evaluation to ensure the quality meets your project requirements.
Q: What is the typical service life of your mounting brackets?
A: Our aluminum alloy brackets are designed for a service life of 20 to 25 years, featuring high-quality anodized surface treatment.
Q: Is the tilt angle of the triangle support adjustable?
A: Yes, we offer both fixed and adjustable tripod systems with a tilt range typically between 5 to 60 degrees.
Q: What information is required to receive an accurate quote?
A: Please provide panel dimensions (L*W*T), quantity, tilt angle, wind speed, snow load, installation orientation (horizontal/vertical), and your preferred foundation type (ground screw/concrete).
Q: Are your products certified for international projects?
A: Yes, our solar mounting systems are ISO and CE certified, meeting international standards for safety and durability.
