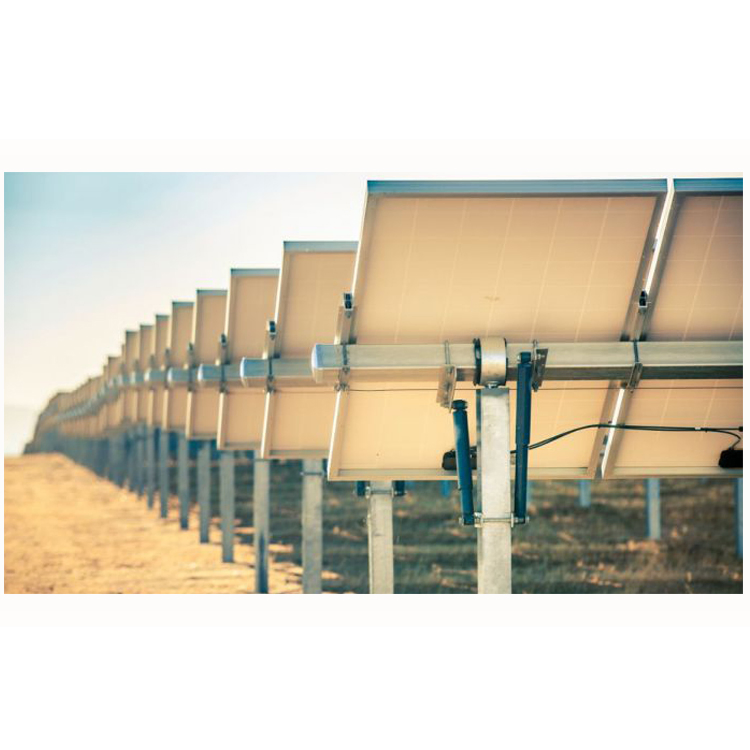

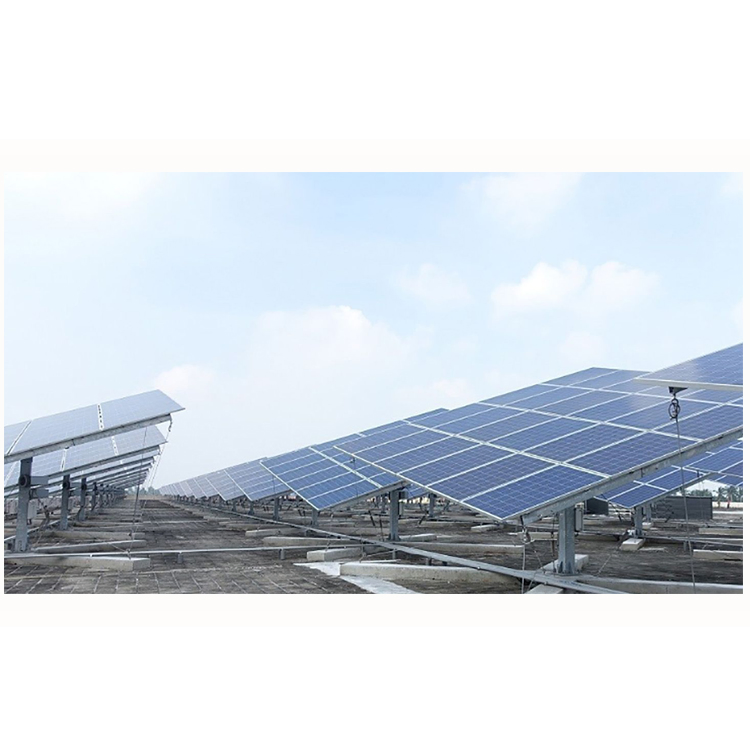

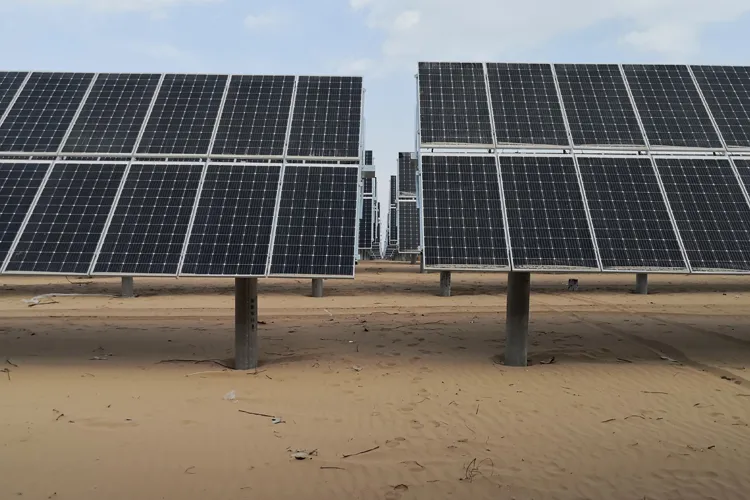

Solar tracking system is one of the most promising product technology trends in solar today, which help users get more power generated. It can boost solar power system production by continuously optimizing the tracking algorithm of each individual row in response to site features and changing weather conditions.
| Tracking Structure System | |||
|---|---|---|---|
| Tracking Technology | Dual Single Axis Tracker | System Voltage | 1000v/1500v |
| Tracking Range | X-Axis ±120°, Y-Axis 0-60° | Working Wind Speed | 18m/s (Customizable) |
| Max Wind Speed | 35m/s (ASCE 7-10) | Modules Per Tracker | ≤40 In Portrait |
| Principal Materials | HDG Q235B/ Q355B/ ZAM | Mean Coating Thickness | ≥65 um |
| Control System | |||
| Tracking Control | MCU | Tracking Mode | Closed Loop Time Control + GPS |
| Tracking Accuracy | <1° | Communication | Wire/Zigbee (Modbus RTU) |
| Power Acquisition | External/Self-Powered | Protection Degree | IP65 |
| Auto Stow (Night/Wind) | Yes | Backtracking | Optimized Yes |

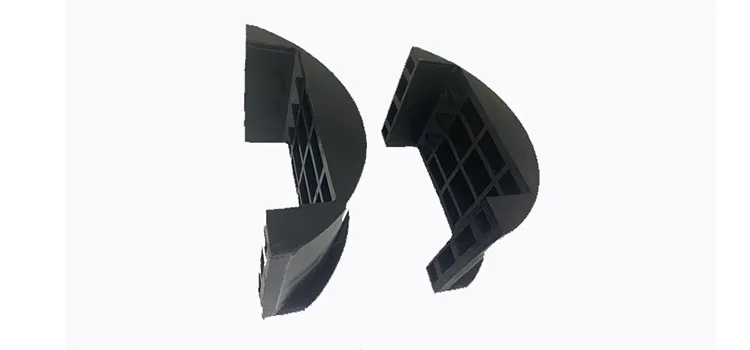

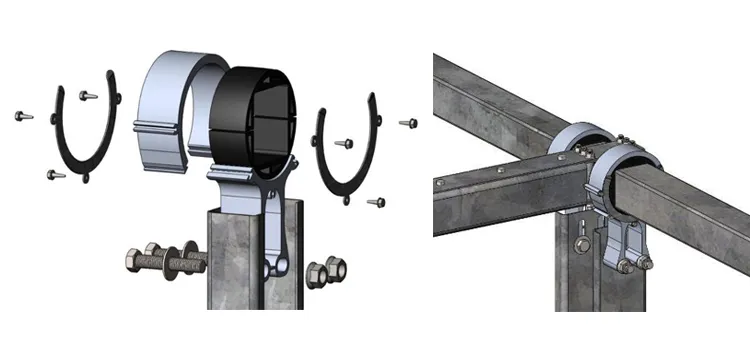

Photovoltaic Bearing & Auxiliary Tube
Packing & Delivery
The company is a new high-tech enterprise dedicated to the research, production, and sale of solar products, including solar mounting systems and solar street lights. With experienced technical engineers, skilled workers, and advanced equipment, a strict quality control system is maintained. The manufacturing facility has passed ISO9001:2000 Quality Assurance System certification, and most products have attained CE, TUV IEC, RoHS, and UL certificates. OEM services are provided to meet diverse customer requirements globally, building successful business relationships across Europe, America, Australia, and Africa.
