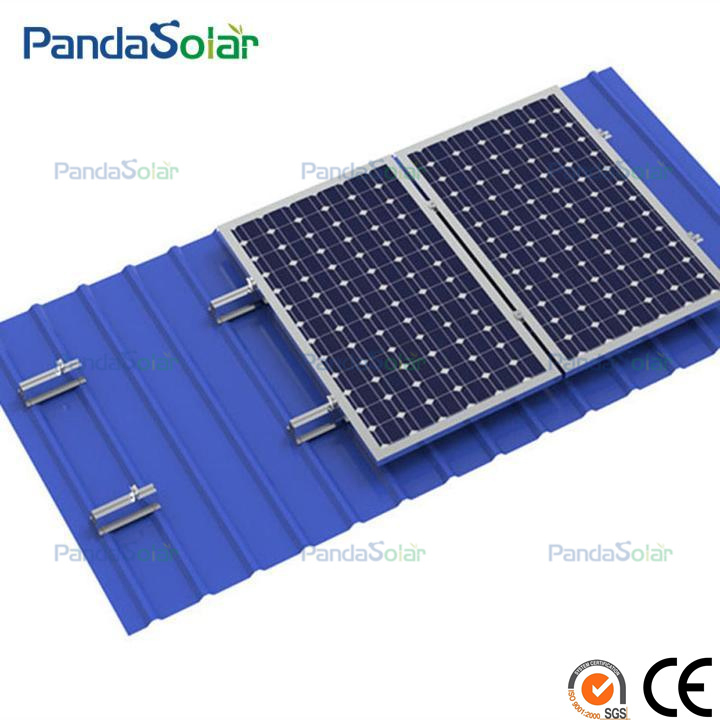

Solar Panel Tin Roof Montage System Anodized Aluminum Alloy Made Solar Short Rail Kit

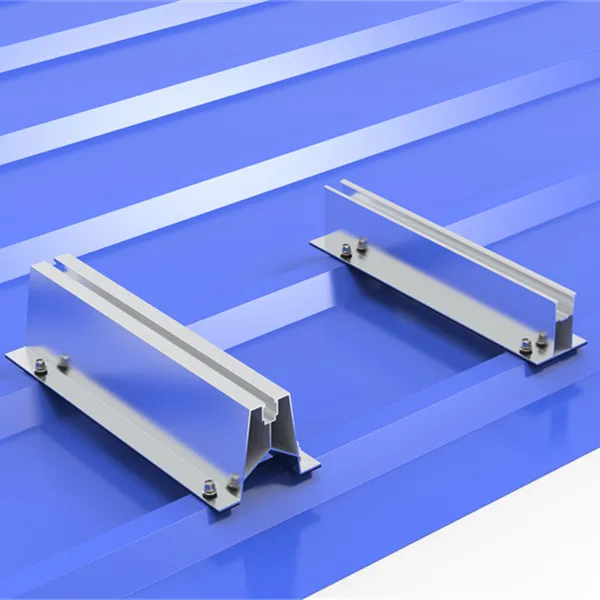

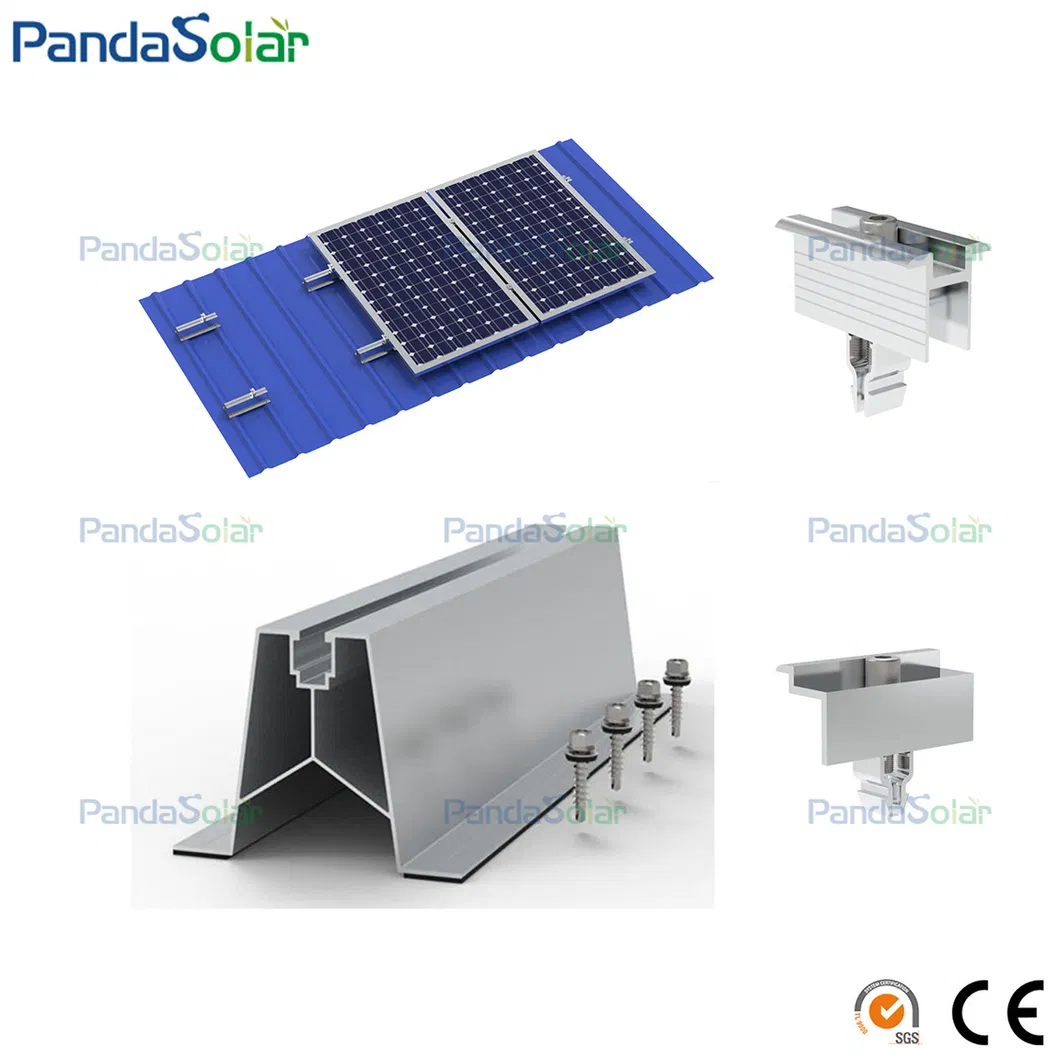

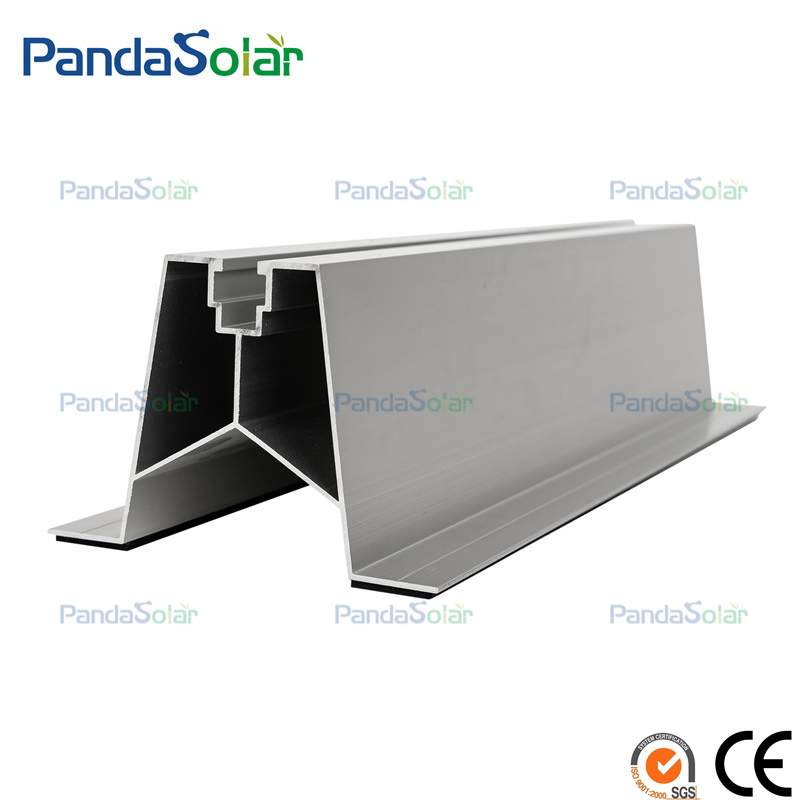

The U70 solar mini rail is made of AL6005-T5 (anodized), which provides excellent performance in corrosion, acid, and alkali resistance. It is the most economical solar solution for solar tin roof mounting. The components include the short rail, EPDM waterproof strip, and self-drilling screws. It is designed for easy installation and high efficiency. Solar panels can be placed both vertically and horizontally.
Typical lengths available: 120mm / 150mm / 200mm / 250mm / 300mm / 350mm. Carton packaging ensures easy and low-cost transportation. For vertical placement, the rail length depends on the roof crest span; for horizontal placement, 120mm is typically sufficient.
| Material | Structure: AL6005-T5 (Anodized); Components: SUS304 & EPDM |
| Application | Solar Roof Mounting |
| Panels Array | Vertical Layout / Horizontal Layout |
| Length | Can be customized |
| Surface Treatment | Mill finish / Silver anodized / Black anodized |
| Wind Speed | 0-45 m/s |
| Snow Load | 0-150cm |
| Design Standard | AS/NZS 1170, DIN 1055, JIS C8955: 2017, IBC 2009 |
| Service Life | Over 30 years |
| Warranty | 12 years |

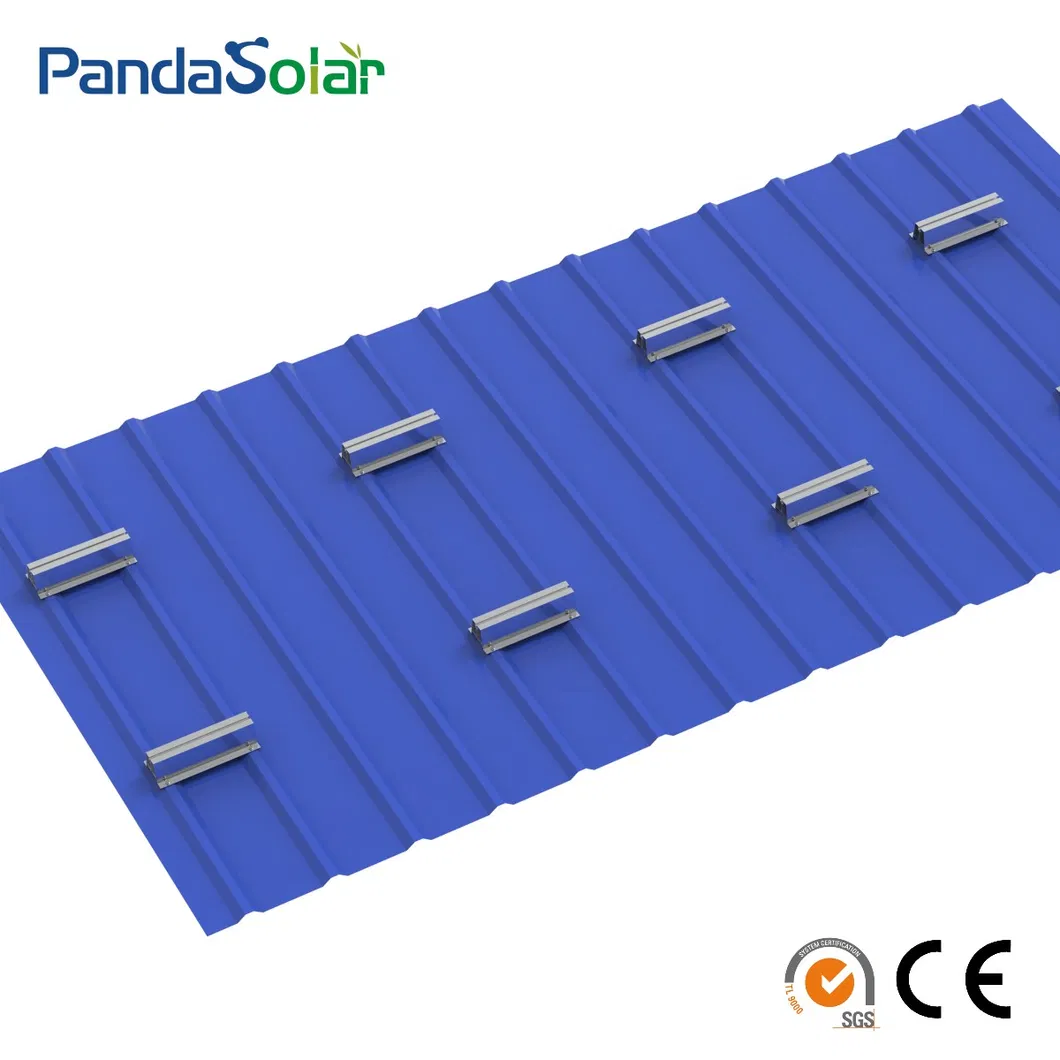

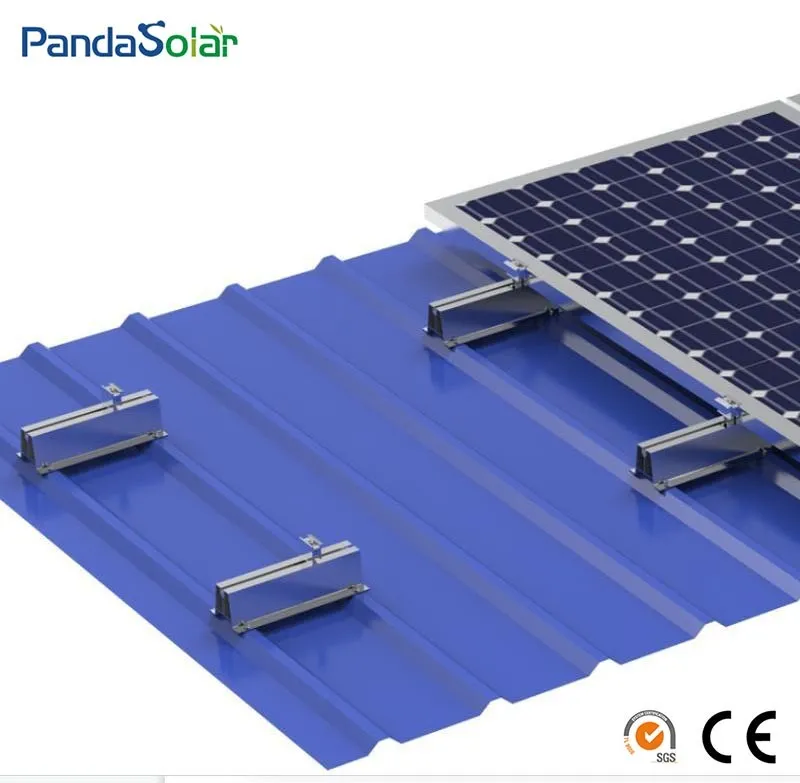

According to the installation drawing, determine the distance between each U70 short rail, then fix the rail on the tin roof using self-tapping screws.

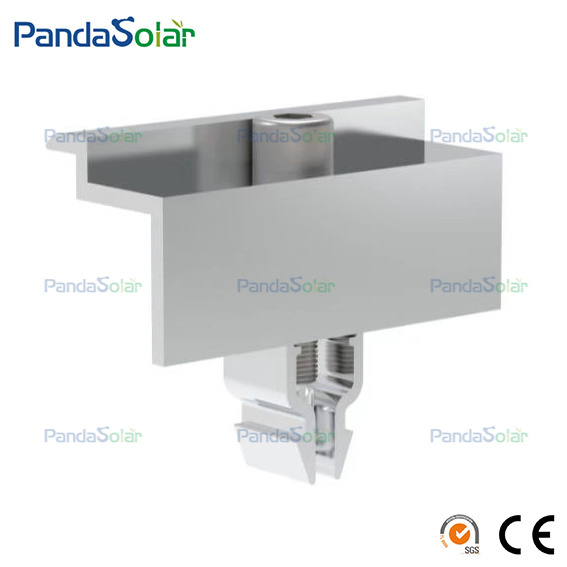

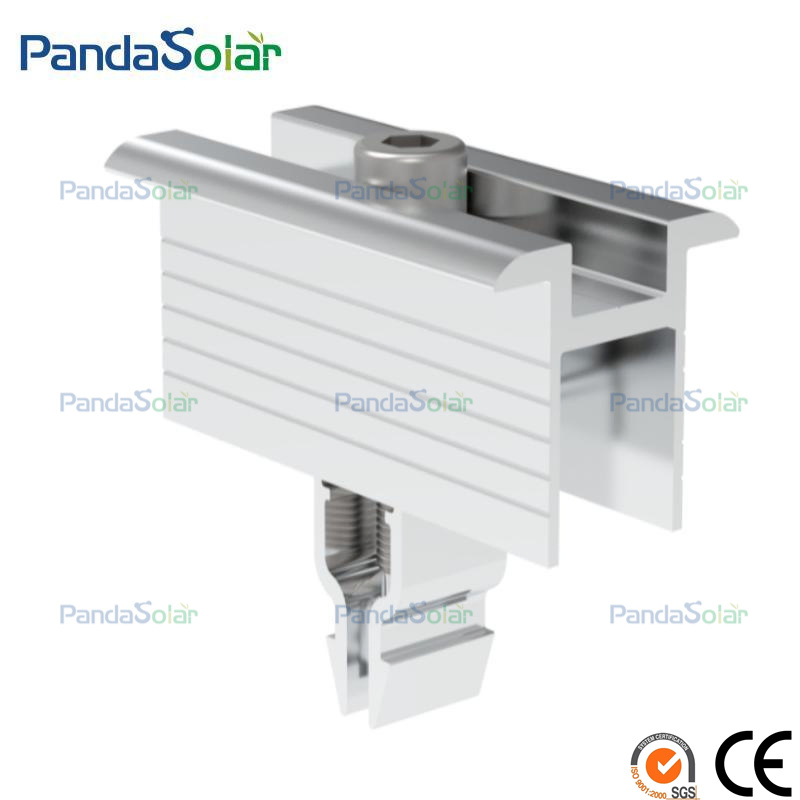

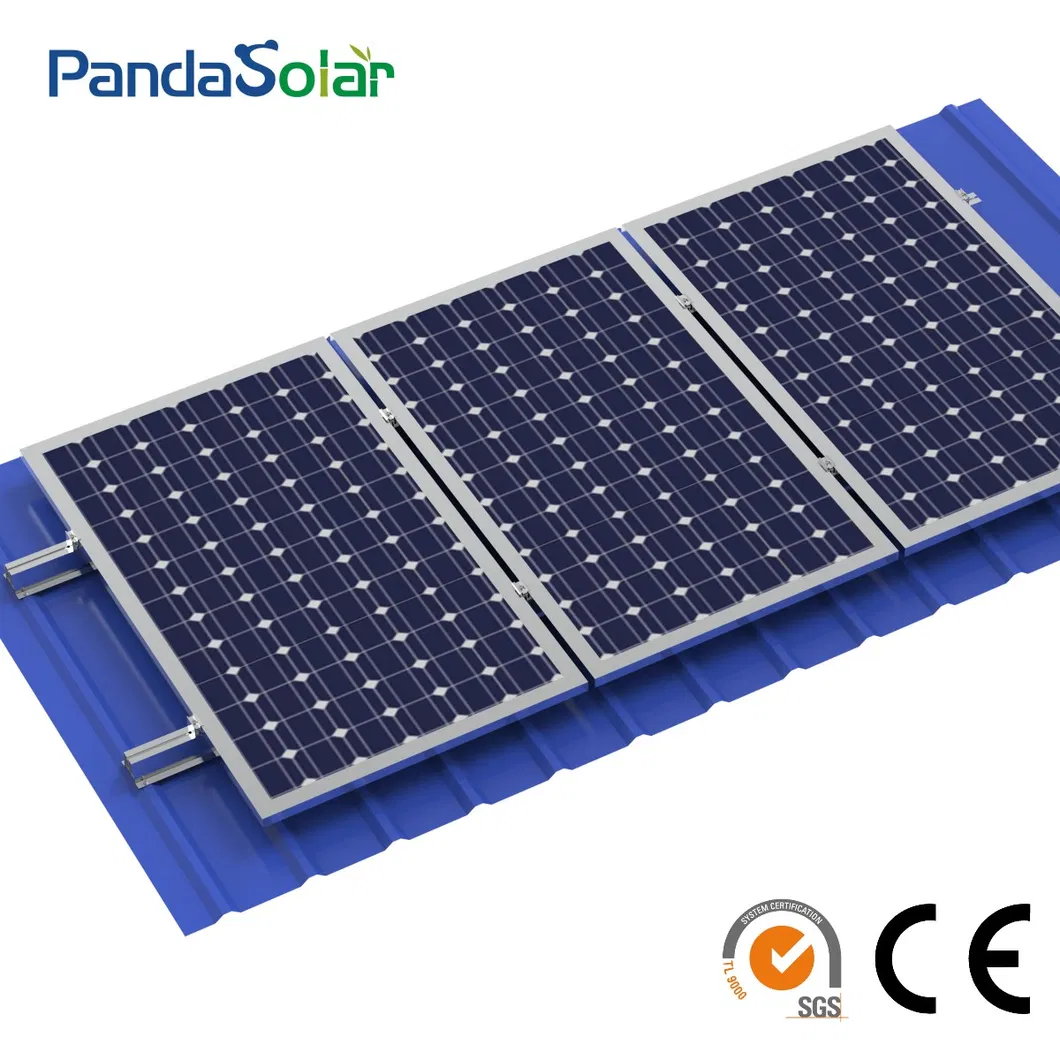

Determine suitable solar panel positions on the U70 short rails, then fix the panels with mid/end clamps. Lock the bolts to secure the panels after adjusting.

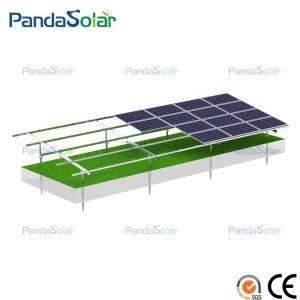

Our products, including solar roof mounting brackets, ground brackets, and carports, meet international standards.

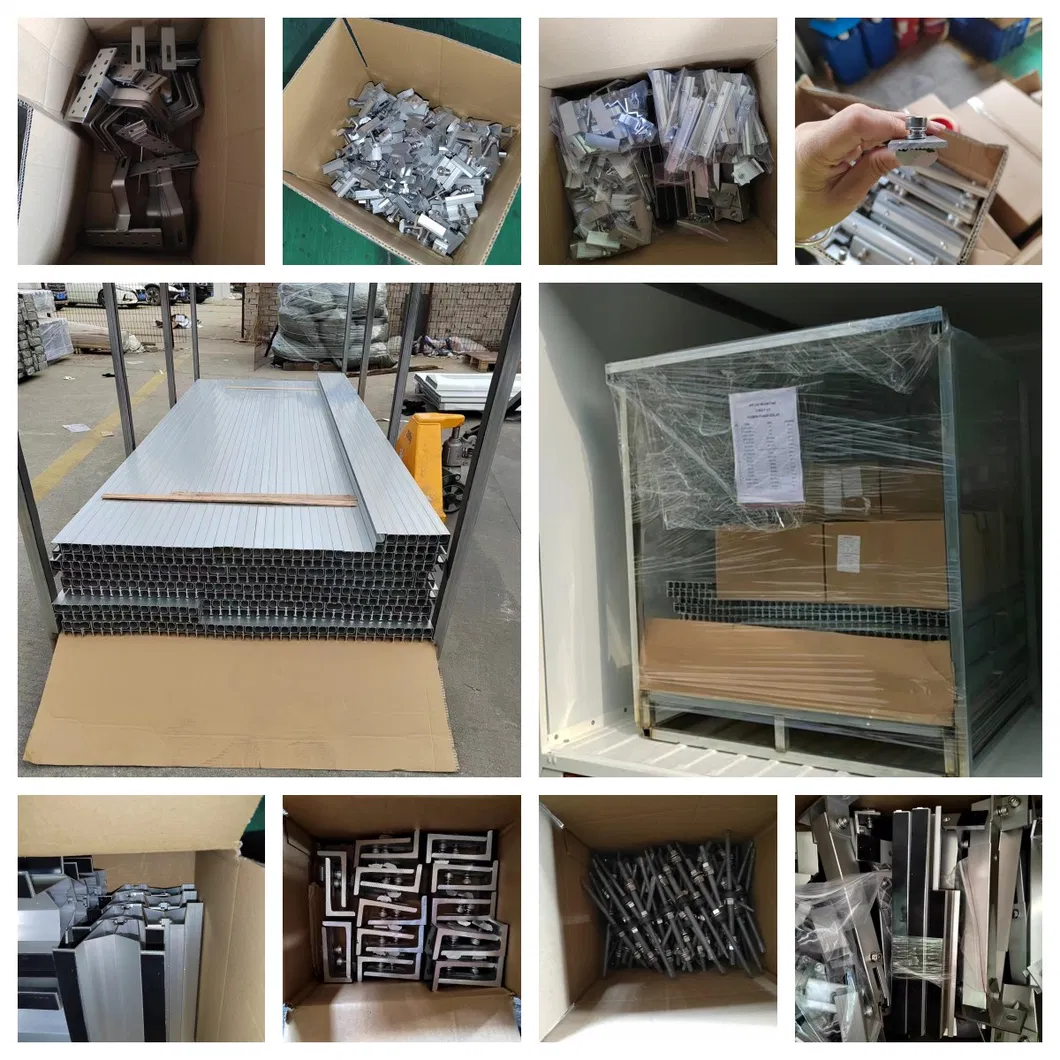

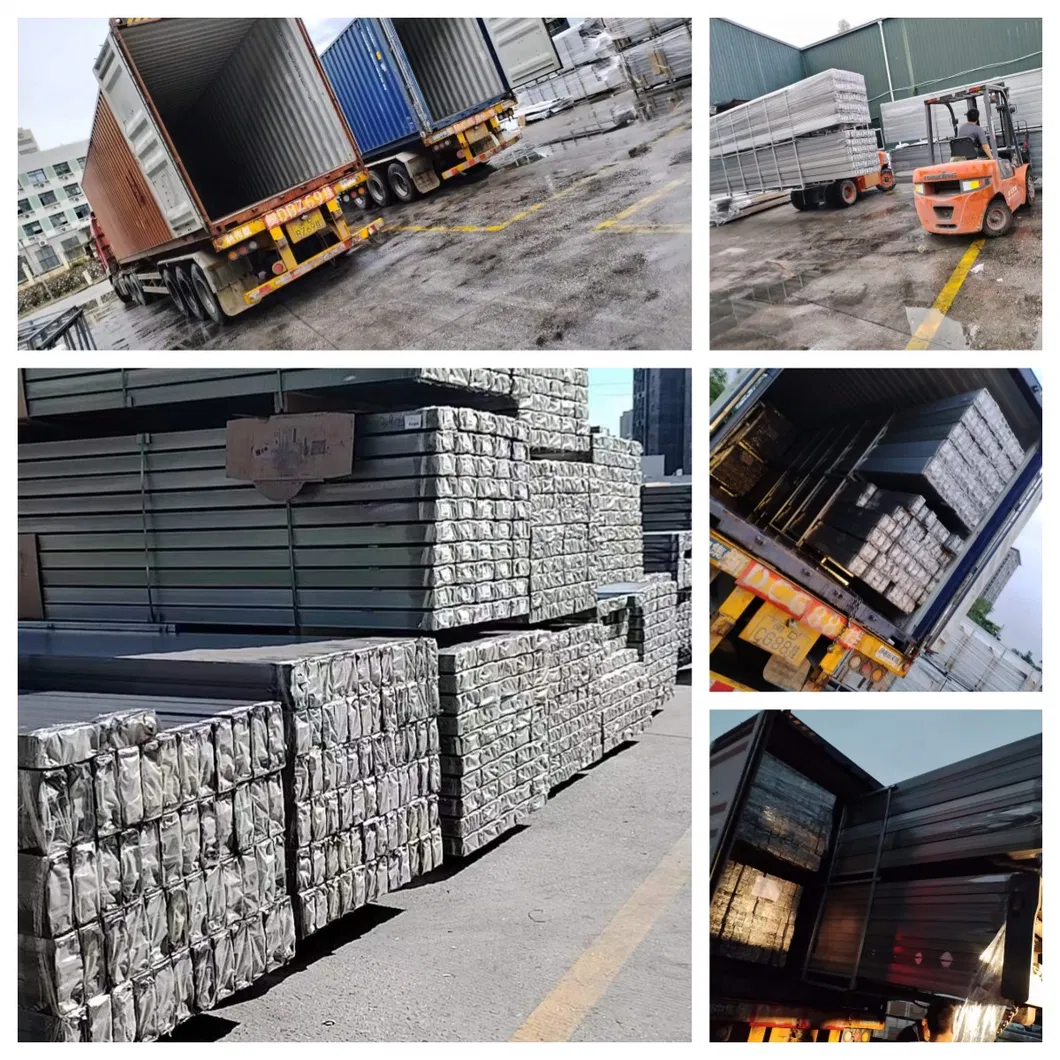

Adequate Protection for International Shipping
Items are packed in cartons and secured on pallets. Our packaging is designed to meet international shipping regulations, ensuring goods arrive safe from damage or contamination during transit.

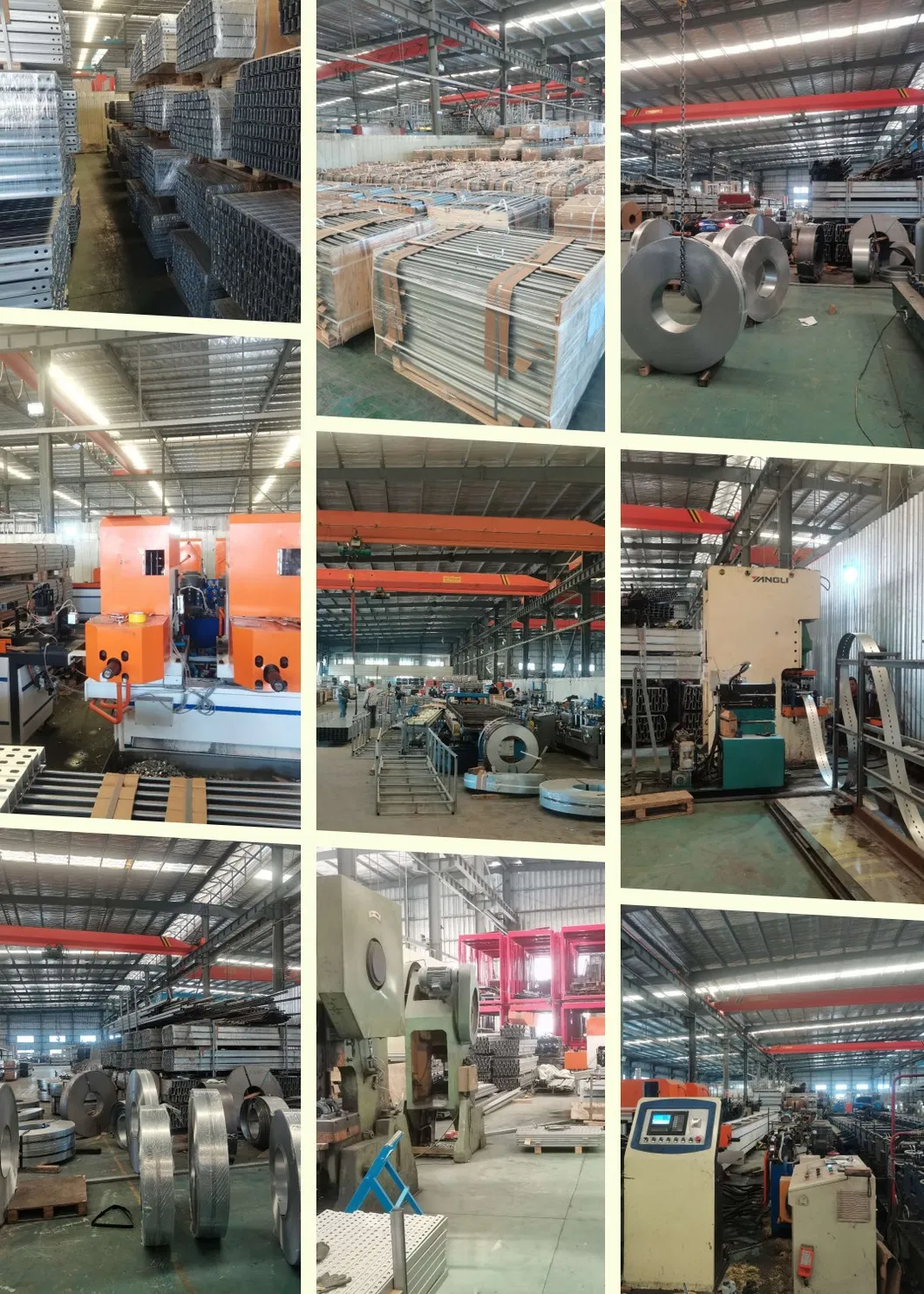

We operate professional workshops for both Aluminum and Steel processing, including cutting, drilling, stamping, and forging. Our steel production lines can output 40-50MW per month.

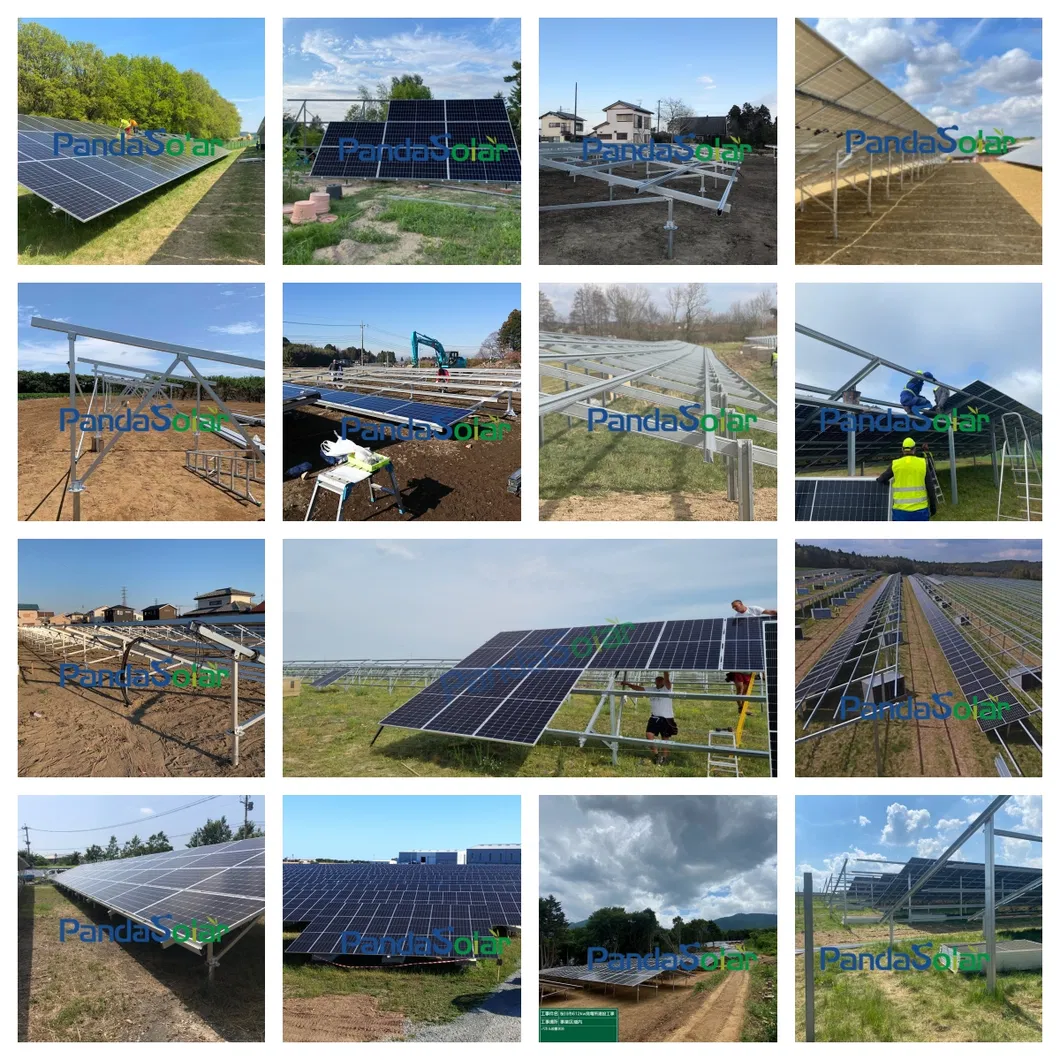

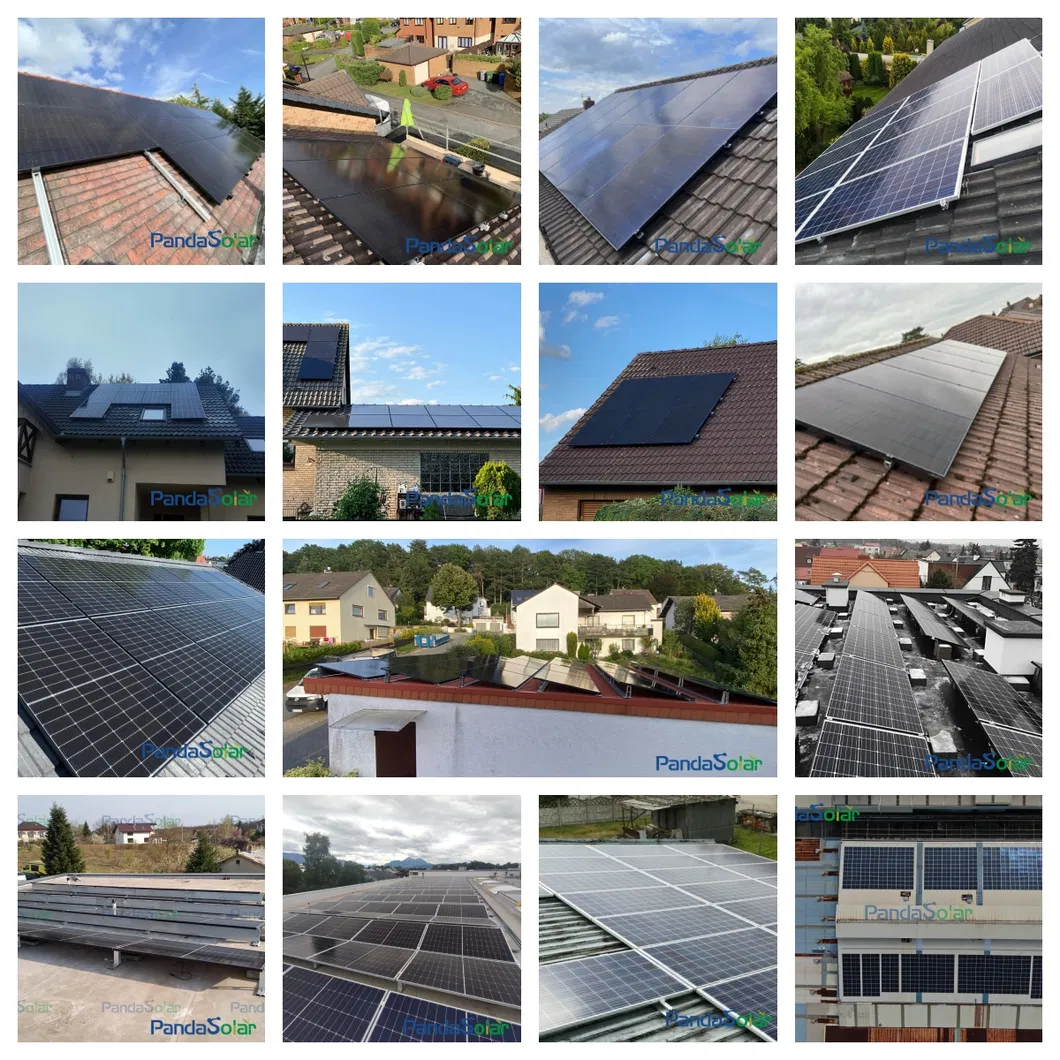

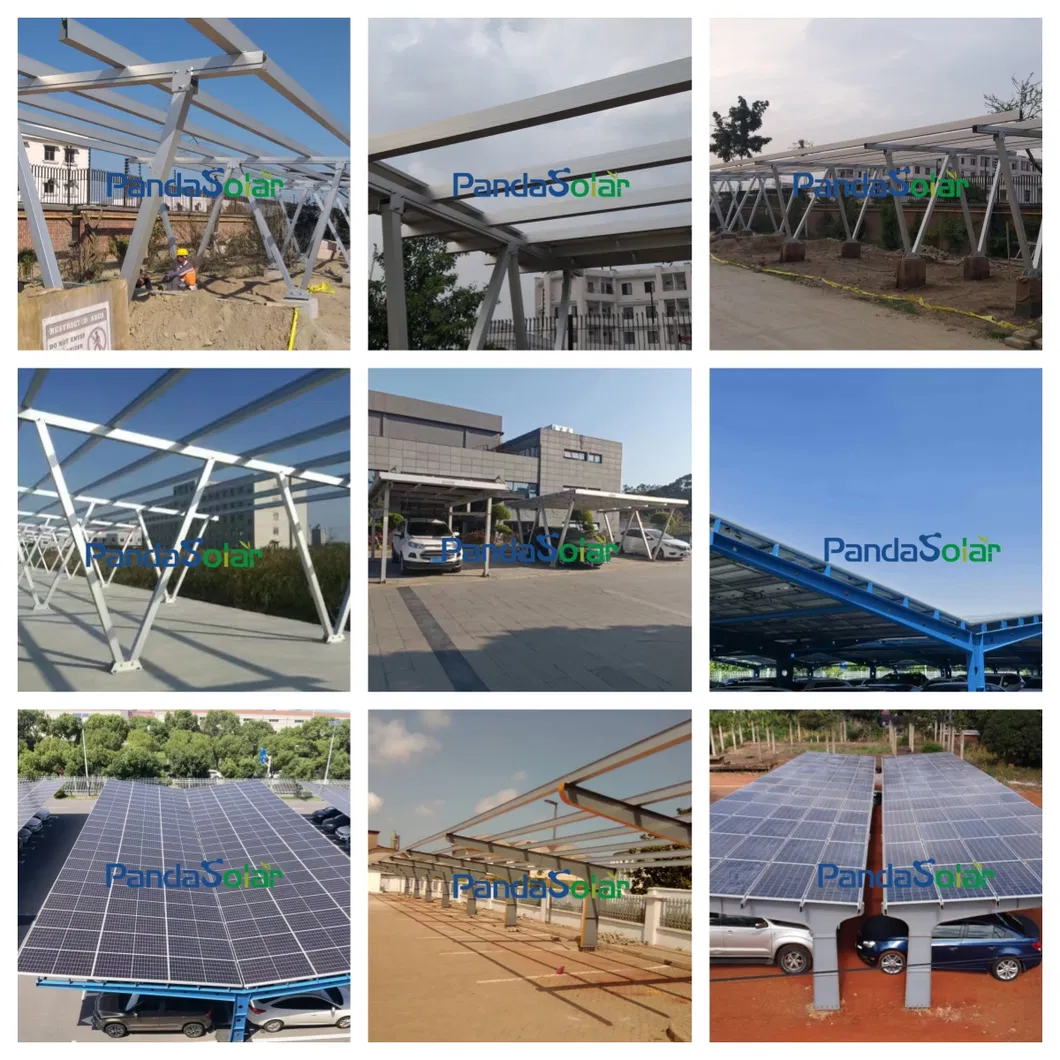

With an annual capacity of over 300MW, we have successfully completed numerous projects worldwide.
