Certificated Workshop Concrete Foundation Flat Roof Fixed Tilt Solar Mounting Triangle Solar Bracket

1 / 5

Certificated Workshop Concrete Foundation Flat Roof Fixed Tilt Solar Mounting Triangle Solar Bracket

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

Product Overview

Model NO.	PD-TRI	Certification	CE
Material	Stainless Steel / AL6005-T5	Application	Flat Roof / Home
Wind Speed	60m/S	Snow Load	1.4kn/M2
Surface Treatment	Anodized	Lead Time	7-15 Days

Adjustable Triangle Solar Mounting System

This system is primarily utilized on cement roofs or as an aluminum alloy triangular solution with cement pier foundations. It offers high corrosion resistance, making it ideal for various environmental conditions including the Middle East and Europe.

Pre-drilled holes tailored to panel specifications.
Highly pre-assembled for rapid installation.
Foldable structure to reduce shipping costs.
Compatible with SUS304 hanger bolts for tin roofs.
Multi-angle adjustable: 10-15° and 15-30°.

Installation Guide

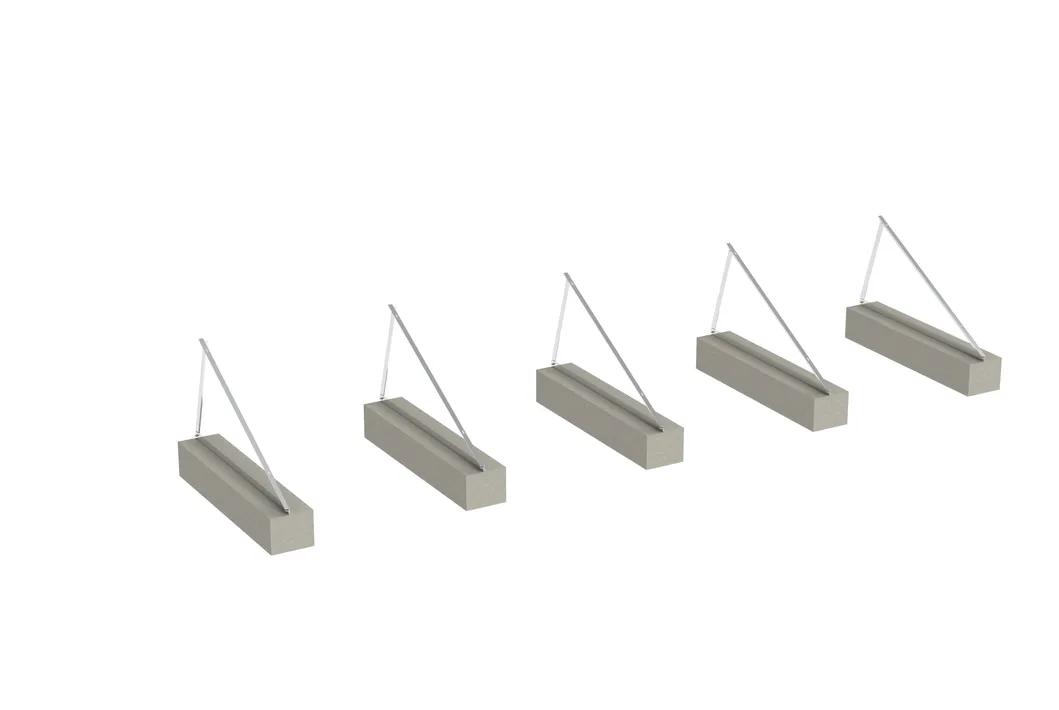

Step 01: The pre-assembled triangle mounting brackets are fitted securely to the concrete piers.

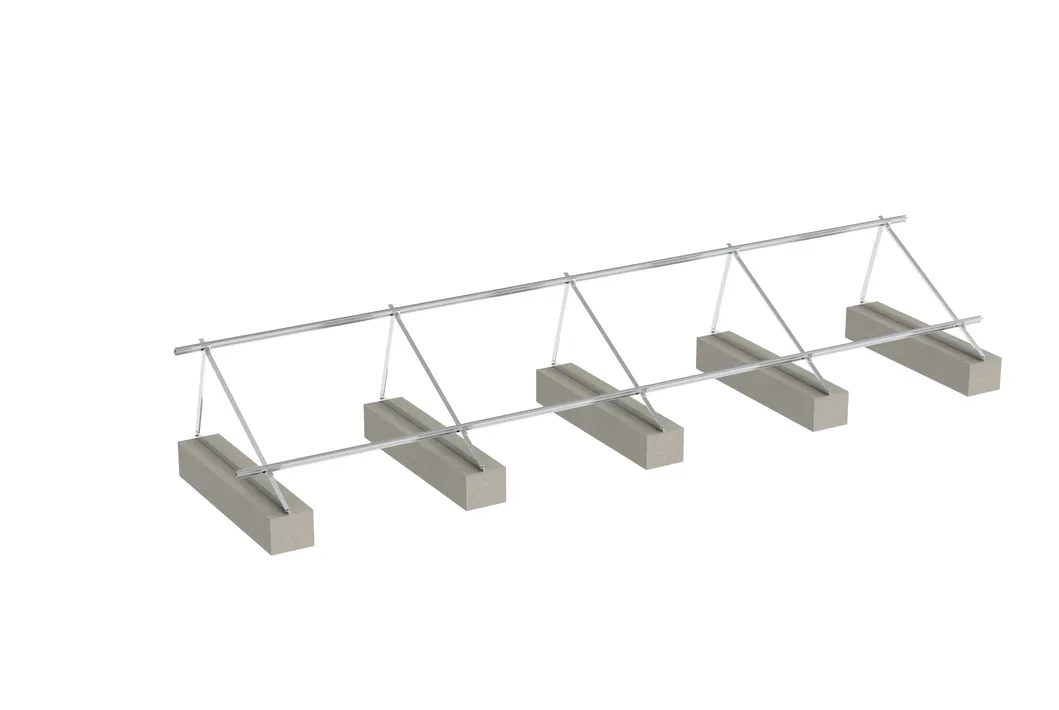

Step 02: High-strength solar aluminum rails are installed onto the pre-assembled brackets.

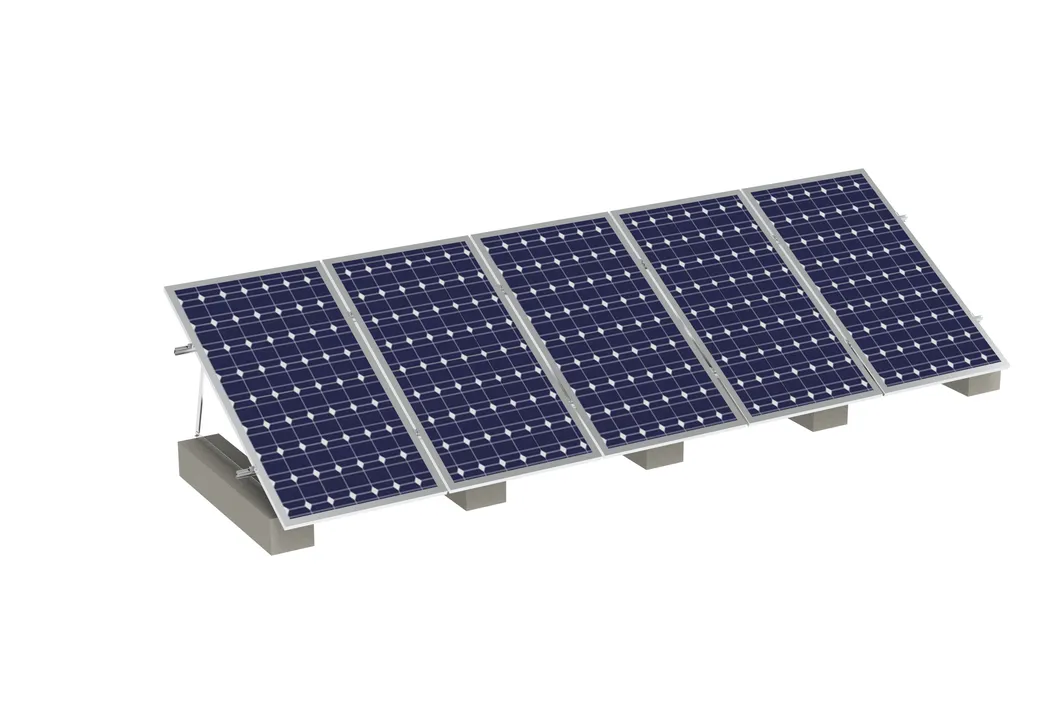

Step 03: Solar panels are fixed to the rails using precision mid clamps and end clamps.

Technical Specifications

Parameter	Details
Material	Structure: AL6005-T5(Anodized) \| Components: AL6005-T5 / SUS304
Design Standard	AS/NZS 1170, DIN 1055, JIS C8955: 2017, IBC 2009
Warranty	12 Years
Application	Solar Flat Roof Mounting

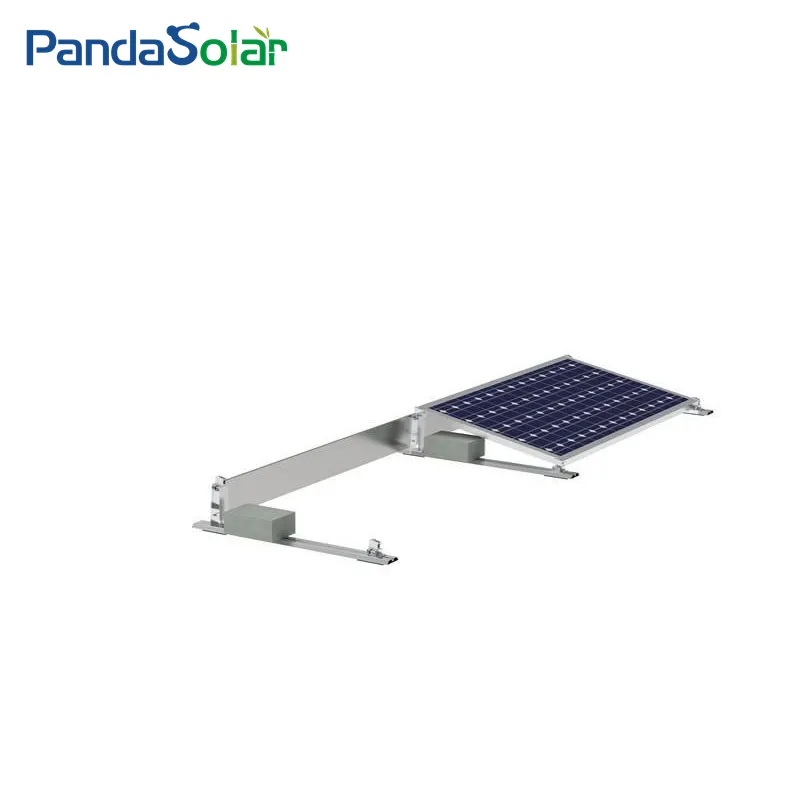

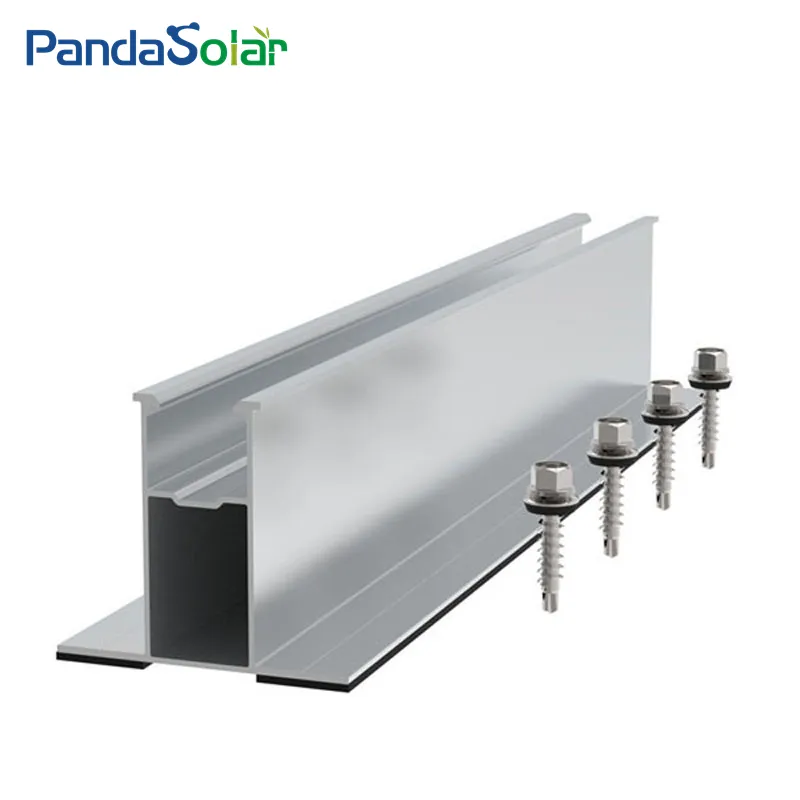

Other Products & Components

Manufacturing Excellence

A professional design and sales team dedicated to clean energy mounting systems. Product range includes ground, greenhouse, tile roof, metal roof, and carport mounting solutions.

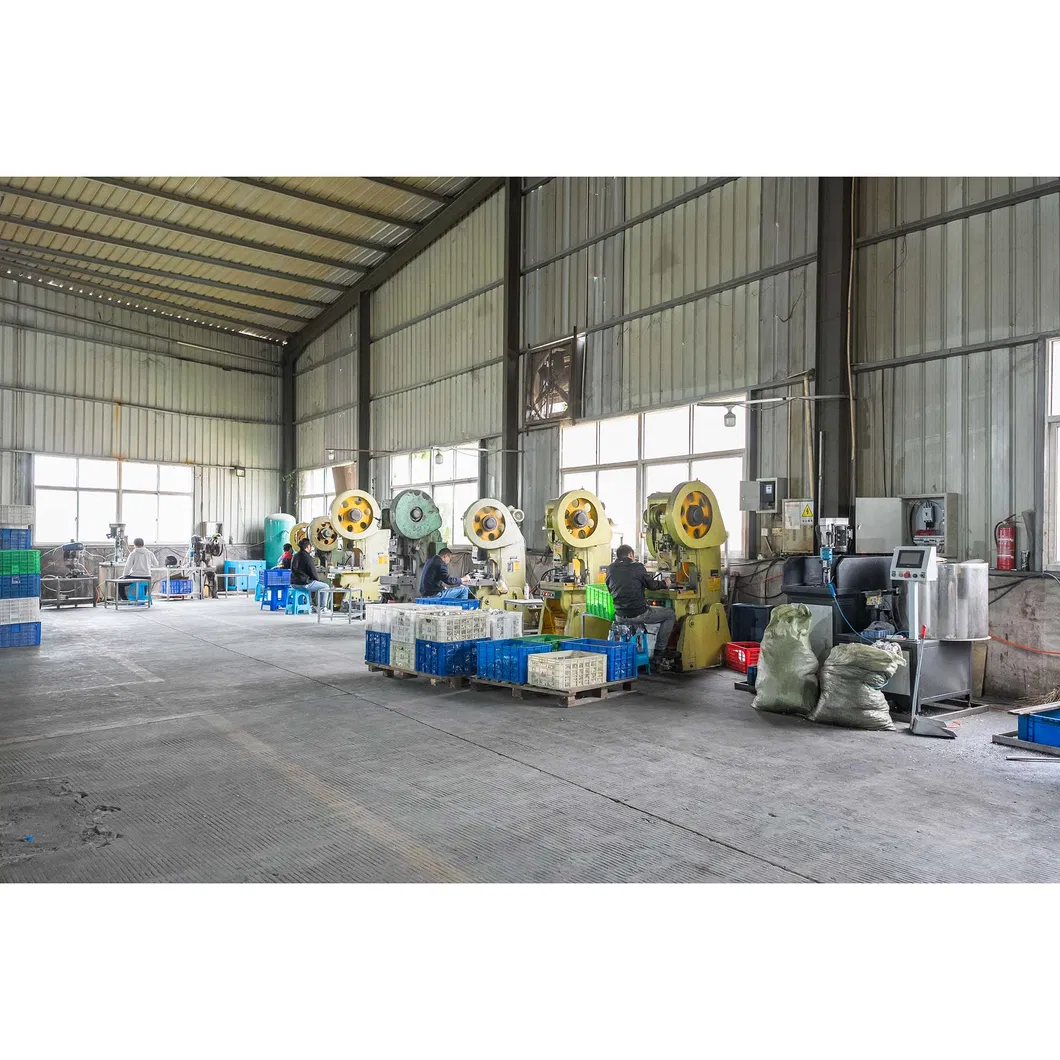

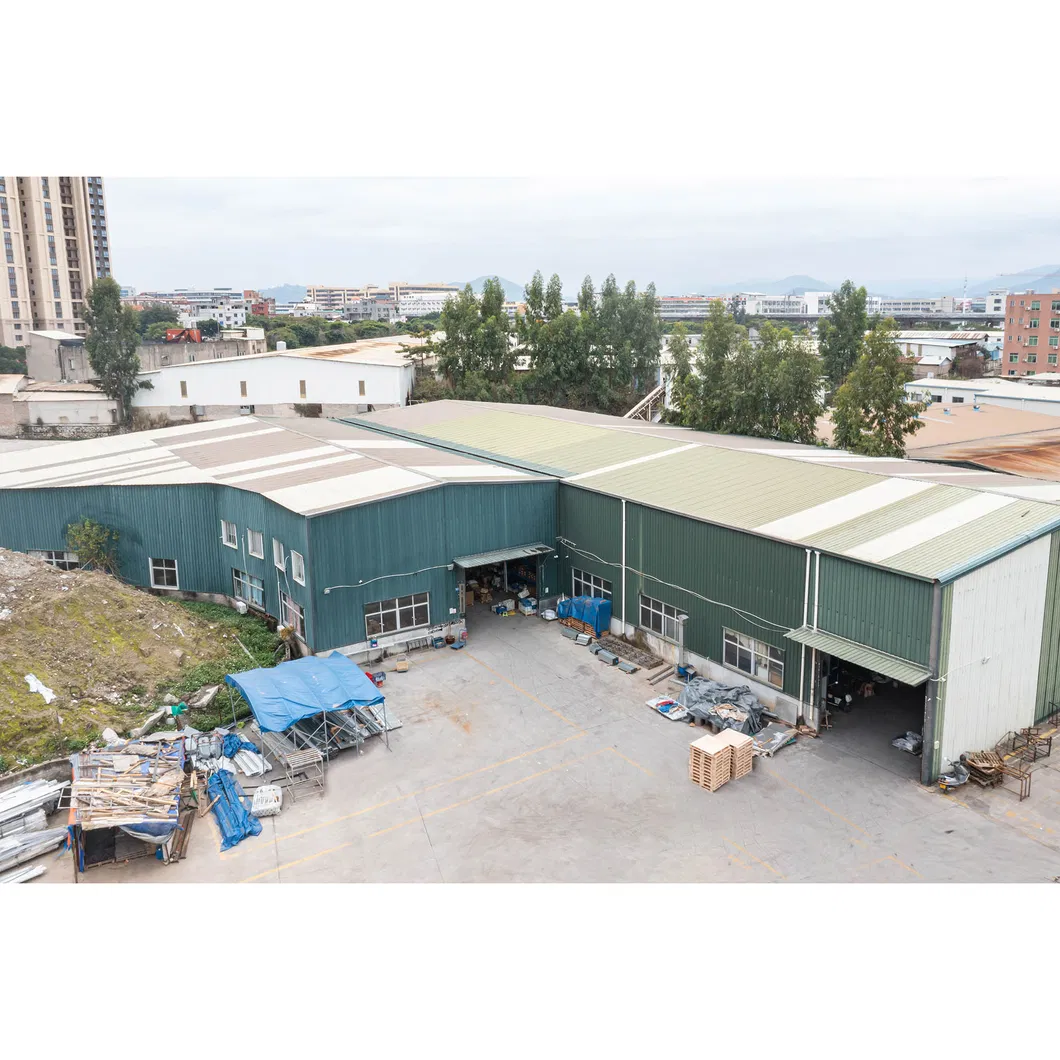

Aluminum Material Workshop: Features independent cutting, drilling, stamping, and forging. Capable of high customization and precision.

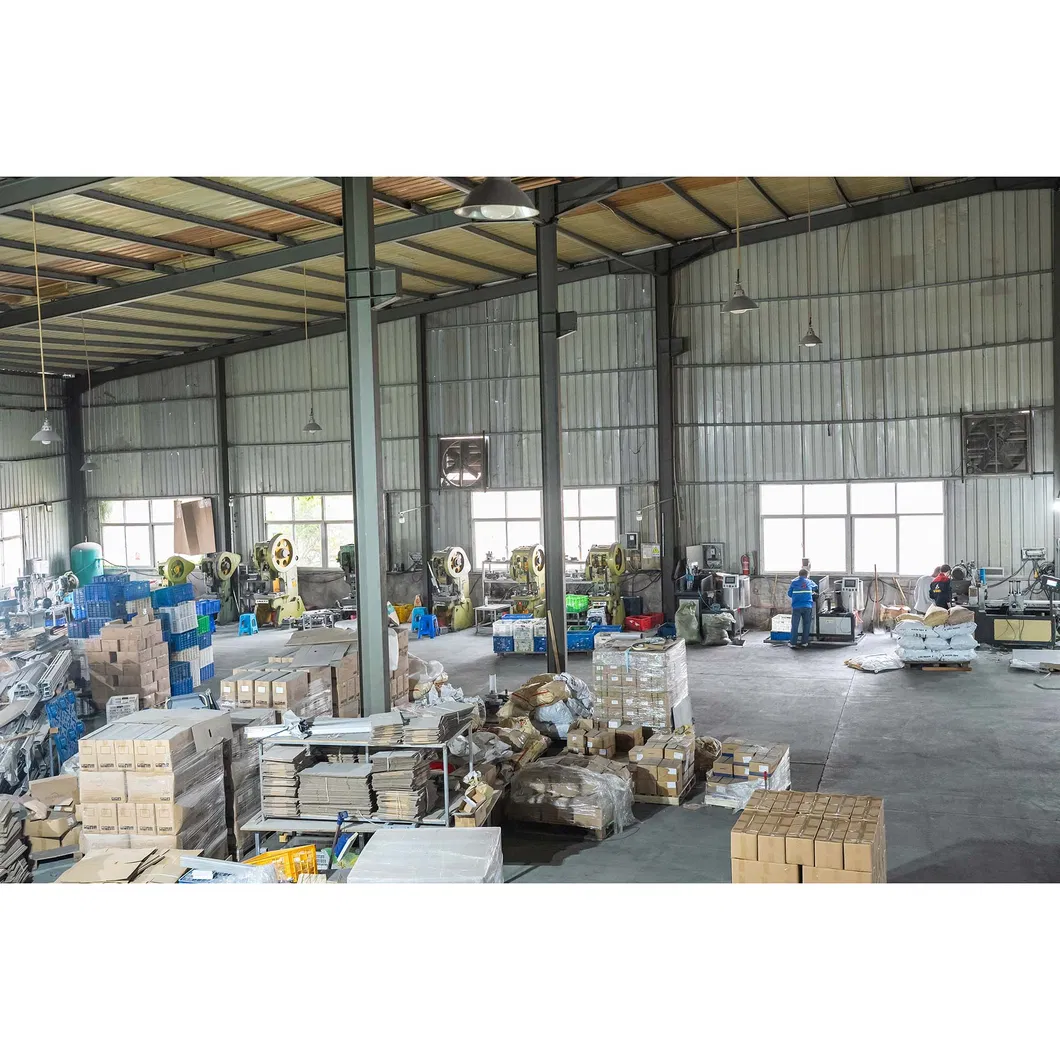

Steel Material Workshop: Equipped with 6 production lines for steel, Magnesium aluminum zinc, and S350GD/S450GD processing, with a monthly productivity of 40-50MW.

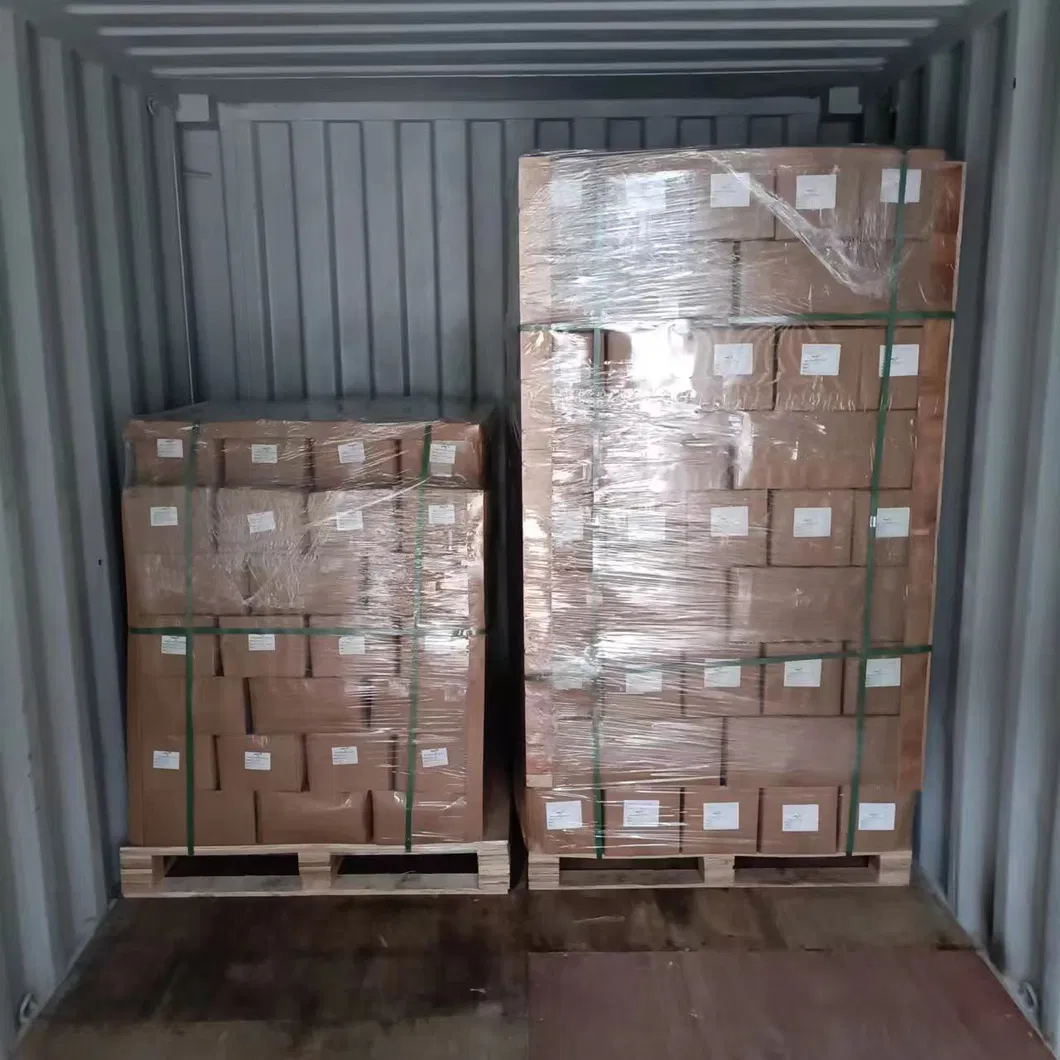

Packaging & Shipping

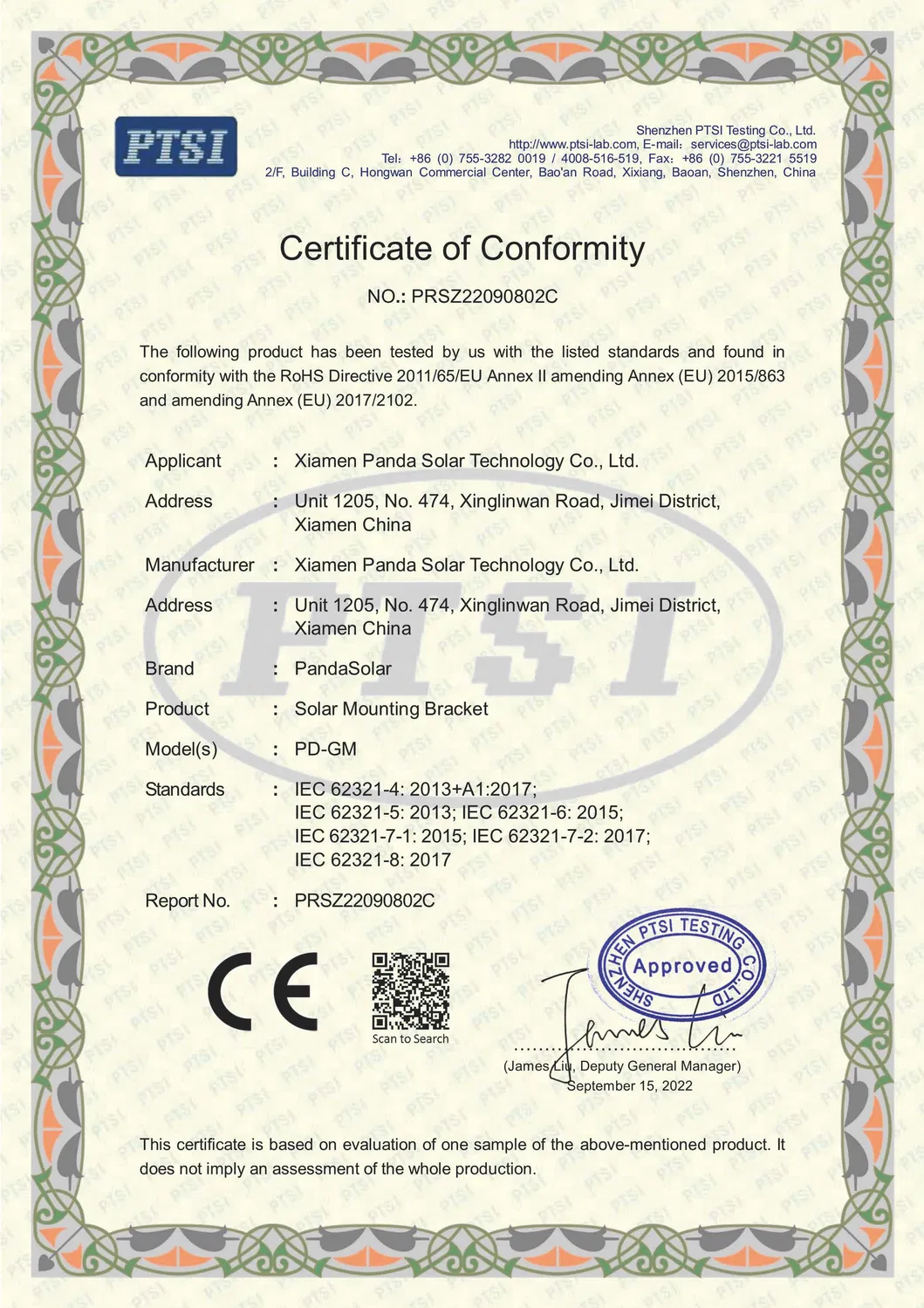

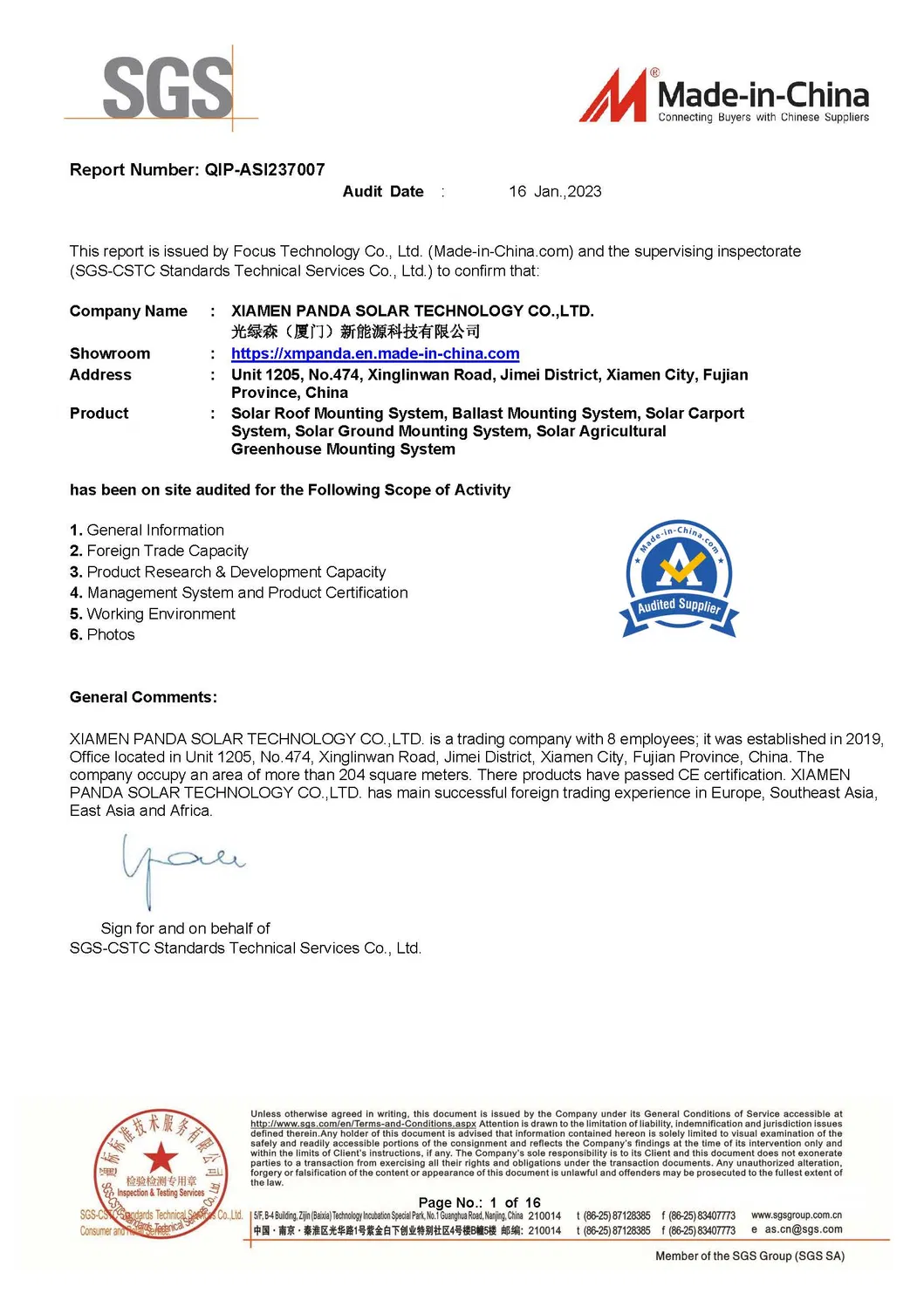

Certifications

Frequently Asked Questions

What is the standard delivery time?

The typical lead time is approximately 7-15 days depending on the order volume.

Are free samples available?

Yes, we provide free samples for your testing and quality verification.

Are you a direct manufacturer?

Yes, we have over 12 years of production experience in the solar mounting industry.

Do you offer OEM services?

Yes, we accept OEM services and can customize products to meet high-precision requirements.

What is the warranty period for the mounting system?

We offer a 12-year warranty on our adjustable triangle solar mounting systems.

What design standards do your products follow?

Our products comply with international standards including AS/NZS 1170, DIN 1055, and JIS C8955:2017.
