Concrete Foundation Flat Roof Solar Mounting System Aluminum Alloy Structure

1 / 5

Concrete Foundation Flat Roof Solar Mounting System Aluminum Alloy Structure

Customization:	Available
Certification:	GB, ISO, TUV, CE
Application:	Commercial

Send Inquiry

Product Description

Basic Information

Model NO.

SF-FR-02

Material

Aluminum Alloy

Type

Roof Ballast Bracket

Wind Speed

60m/S

Snow Load

1.4kn/Square Mater

Warranty

10 Years

Service Life

25 Years

HS Code

8503009090

Capacity

2000000W/ Month

Product Description

Concrete and flat roof mounting structure accessories designed for high durability and efficiency.

Product Type	Solar Roof Mounting System
Mounting System Arrangement	Columns / Rows
Panel Size	Customized
Panel Framing	Framed / Unframes
Panel Orientation	Landscape / Portrait
Panel Tilt Angle	Customized
Wind Load	60m/s
Snow Load	1.4KN/M2
Supporting Structure Materials	Galvanized Steel
Small Parts Materials	Aluminum / Galvanized Steel / Polyethylene / SUS
Standards	GB50009 / UL2703 / DIN1055
Warranty	10 years warranty, 25 years service life

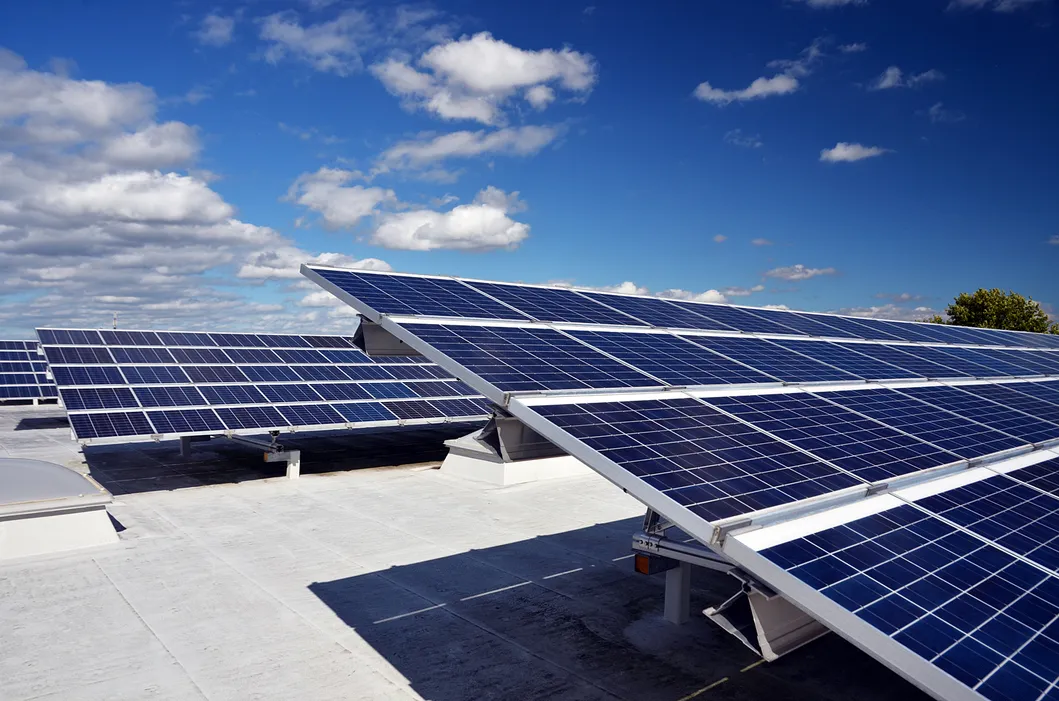

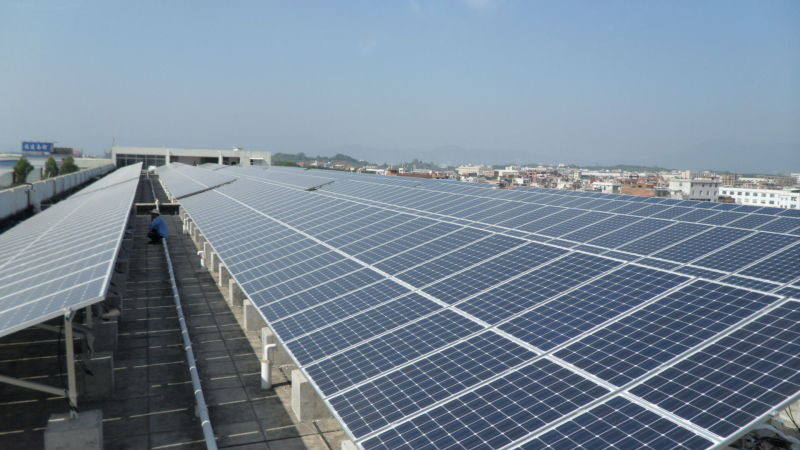

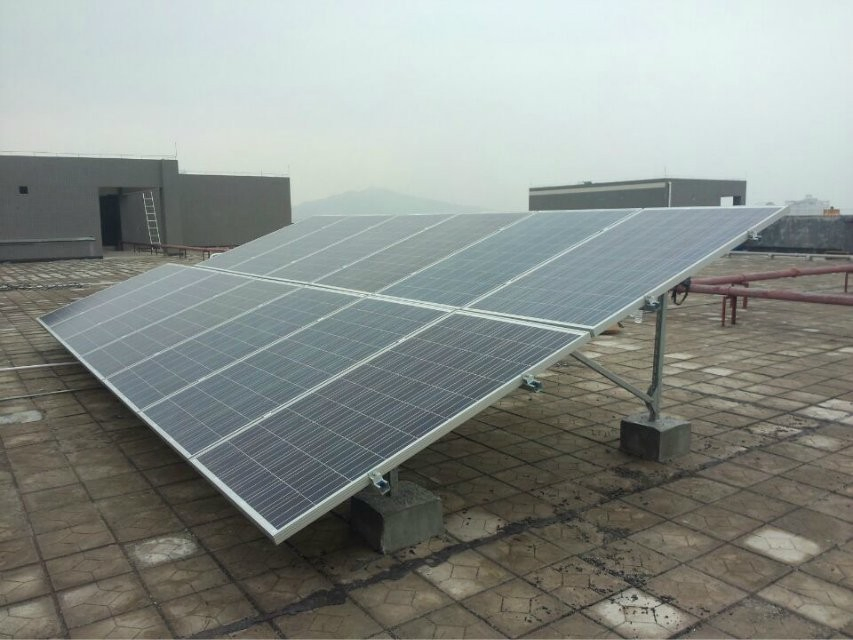

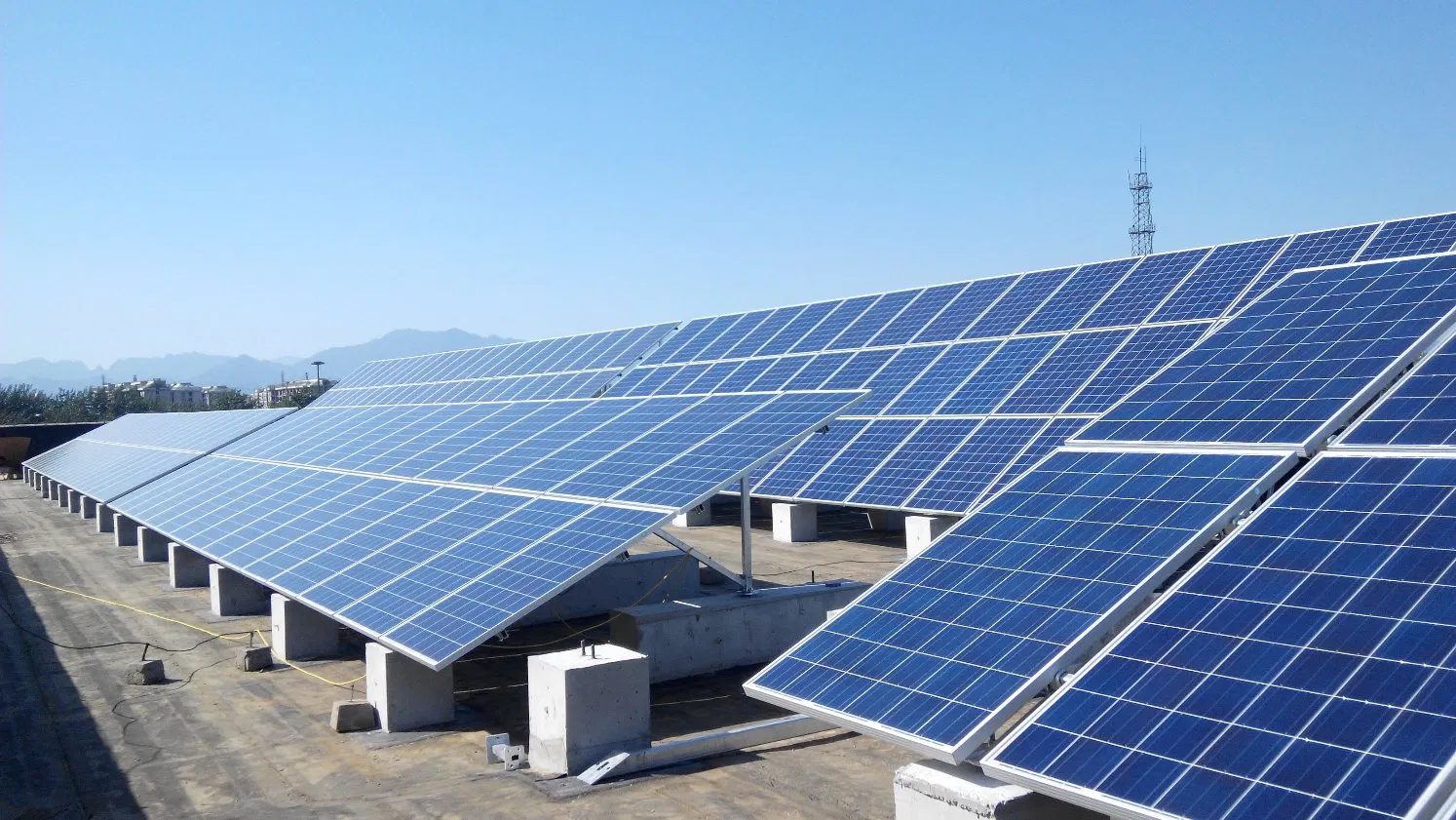

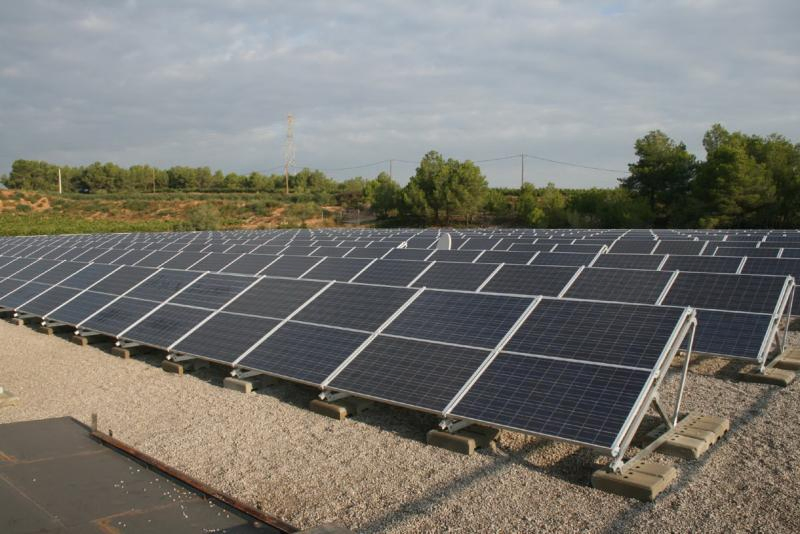

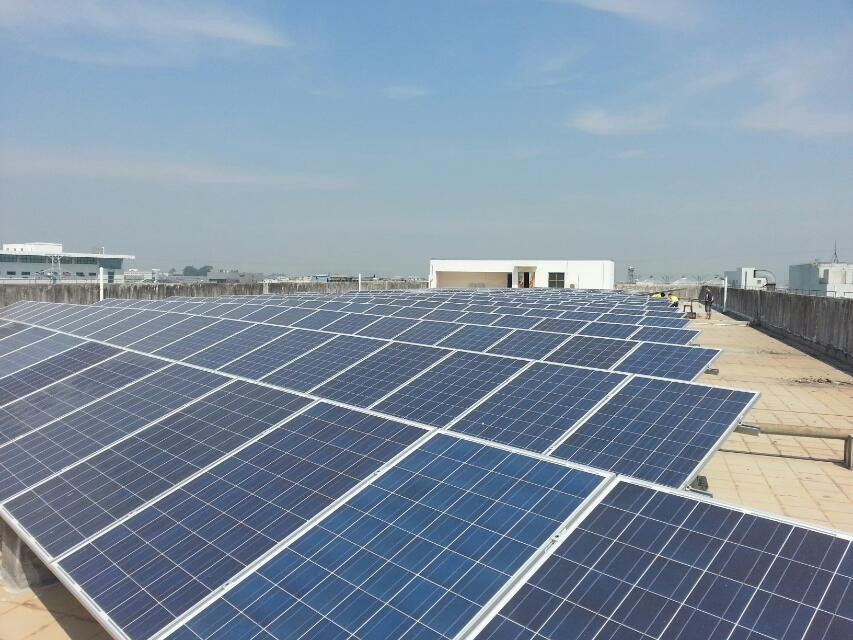

Structure Reference Photos

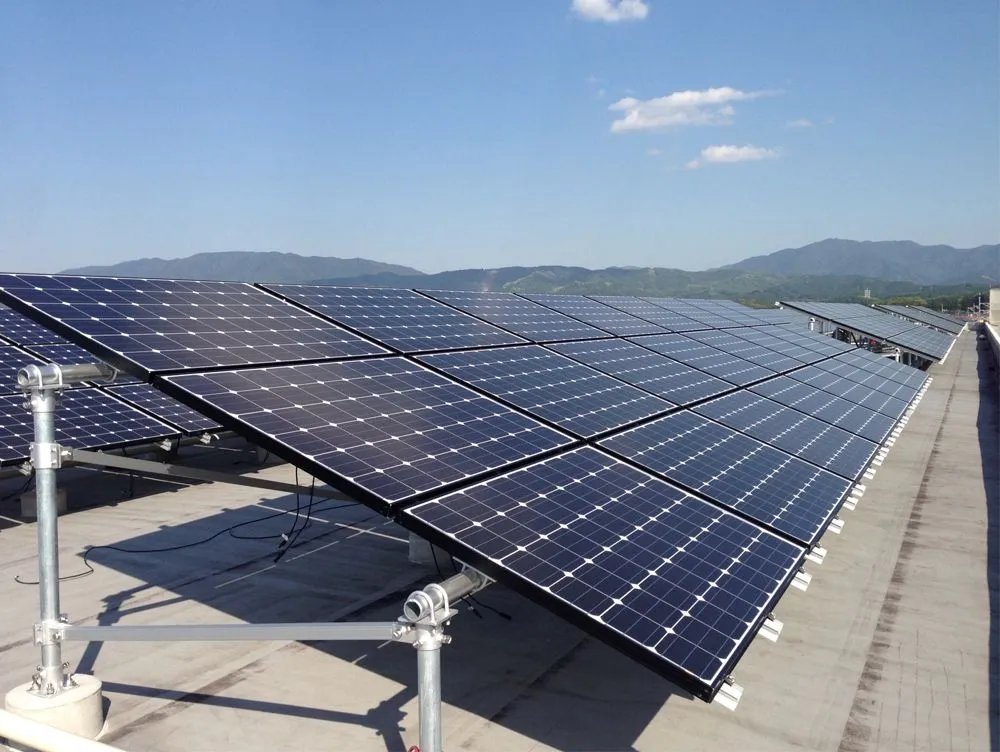

Concrete Foundation Flat Roof Solar Mounting System

Certifications

Packaging Details

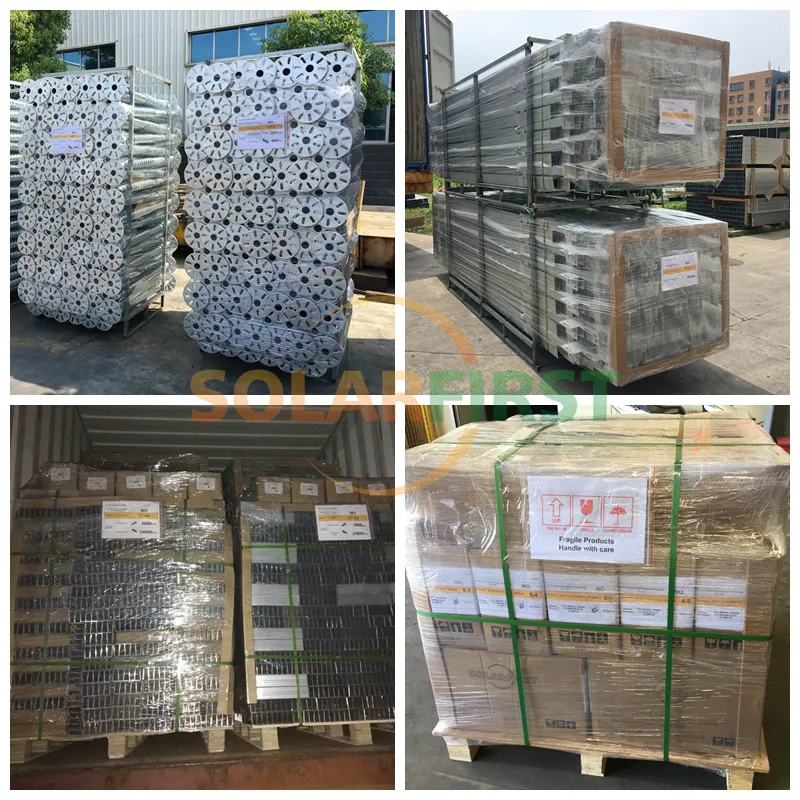

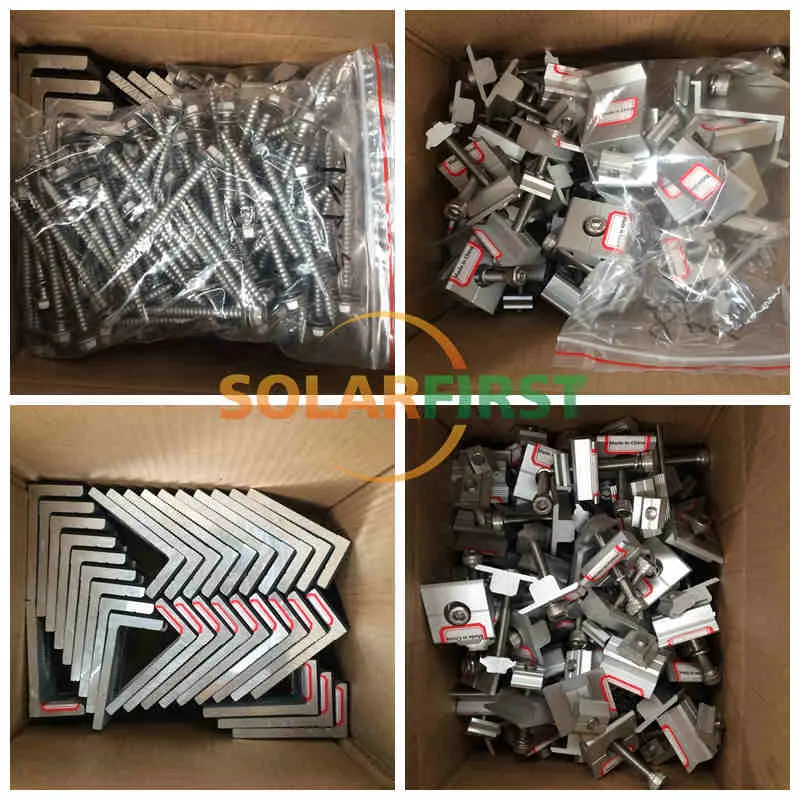

About package: Small components are packaged by cartons; Rail and beam are packaged by the Iron pallet.

Frequently Asked Questions

What is the maximum wind and snow load capacity?

The system is engineered to withstand a maximum wind speed of 60m/s and a snow load of 1.4KN/M2.

What materials are used for the mounting structure?

The main supporting structures are made of Galvanized Steel and Aluminum Alloy, with small parts utilizing Aluminum, Galvanized Steel, Polyethylene, and SUS.

What is the expected service life of this system?

The system comes with a 10-year warranty and is designed for a service life of up to 25 years.

Can the panel orientation and tilt angle be customized?

Yes, both the panel orientation (Landscape or Portrait) and the tilt angle can be customized according to specific project requirements.

Which international standards does the system comply with?

The mounting system meets GB50009, UL2703, and DIN1055 standards.

How is the product packaged for transport?

Small components are securely packed in cartons, while rails and beams are packed using iron pallets to ensure safety during transit.
