| Basic Info. | |
|---|---|
| Model NO. | Solar Panel End Clamps |
| Material | Steel / Aluminum |
| Type | Roof Angle Bracket |
| Product Name | PV Solar Mounting Clamp |
| Keywords | Solar Panel Mounting Clamp |
| Color | Silver/Black/White |
| Feature | Quick Installation/Adjustable/Easy Installation |
| Bracket Material | Aluminum/Galvanized Steel/Carbon Steel/Metal |
| Finishing | Plain, Sand Blasting, Polishing |
| Standard | DIN, ASTM/ANSI, JIS, En, ISO, as, GB |
| Surface Treatment | Anodized/Aluminum Anodized/Hot-DIP Galvanized |
| Processing Service | Welding or Customized |
| Product Application | Solar Panel Mounting/Ground/Tile Roof/Flat Roof |
| Technique | Cold Rolled Hot Rolled |
| Product Type | Solar Aluminium Clamp |
| Installation Angle | 5-60° |
| Installation Site | Open Field and Ground |
| MOQ | 100 Pieces |
| Production Capacity | 200000PCS/Month |
| Packaging & Delivery | |
|---|---|
| Package Size | 40.00cm * 30.00cm * 25.00cm |
| Package Gross Weight | 15.000kg |
| Transport Package | Standard Shipping Packaging or Customized |
PV solar mounting fixtures are special fixtures used to fix solar panels. Made of weather-resistant materials, these fixtures withstand harsh environments like sun and rain, ensuring solar panels remain firmly fixed on brackets or roofs.
These fixtures feature adjustment functions to optimize the angle of solar panels based on installation location, maximizing sunlight absorption. They are designed for easy installation and removal, playing a vital role in the safe and stable operation of solar power systems.
Advanced mounting fixtures may also include anti-theft functions and intelligent control systems for remote monitoring, enhancing system security and operational efficiency. They provide comprehensive support for stable operation and intelligent management.
| PV SOLAR MOUNTING CLAMP SPECIFICATIONS | |
|---|---|
| Product Name | PV Solar Mounting Clamp |
| Keywords | Solar Panel Mounting Clamp |
| Color | Silver/Black/White |
| Feature | Quick Installation/Adjustable/Easy Installation |
| Bracket Material | Aluminum/Galvanized Steel/Carbon Steel/Metal |
| Finishing | Plain, Sand Blasting, Polishing |
| Standard | DIN, ASTM/ANSI, JIS, EN, ISO, AS, GB |
| Surface Treatment | Anodized/Aluminum Anodized/Hot-dip Galvanized |
| Processing Service | Welding or Customized |
| Product Application | Solar Panel Mounting/Ground/Tile Roof/Flat Roof |
| Technique | Cold Rolled Hot Rolled |
| Product Type | Solar Aluminium Clamp |
| Installation Angle | 5-60° |
| Installation Site | Open Field and Ground |
| MOQ | 100 Pieces |
Our solar mounting brackets are engineered with precision and made from high-quality anodized 6005-T5 aluminum alloy, offering excellent corrosion resistance. These components work seamlessly with all 30-50mm framed solar panels.

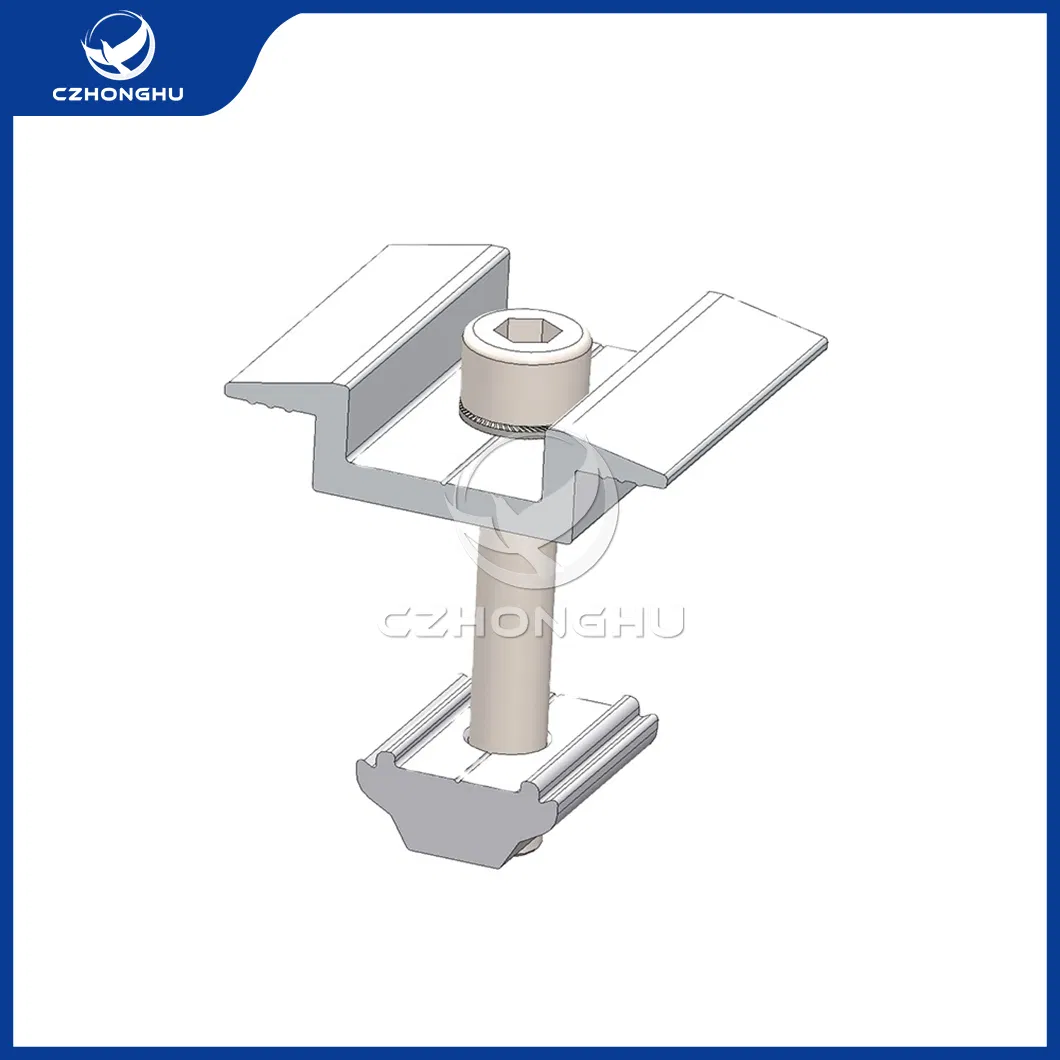

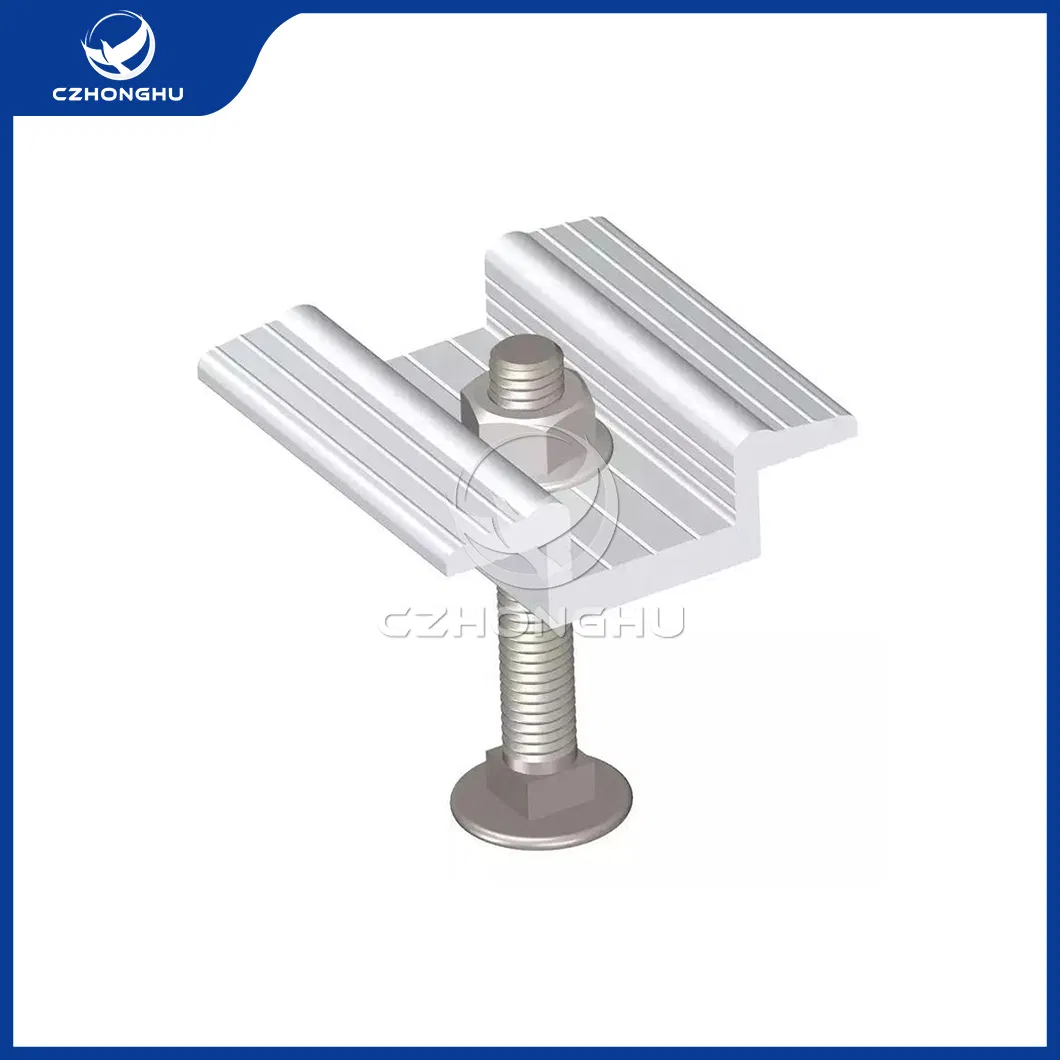

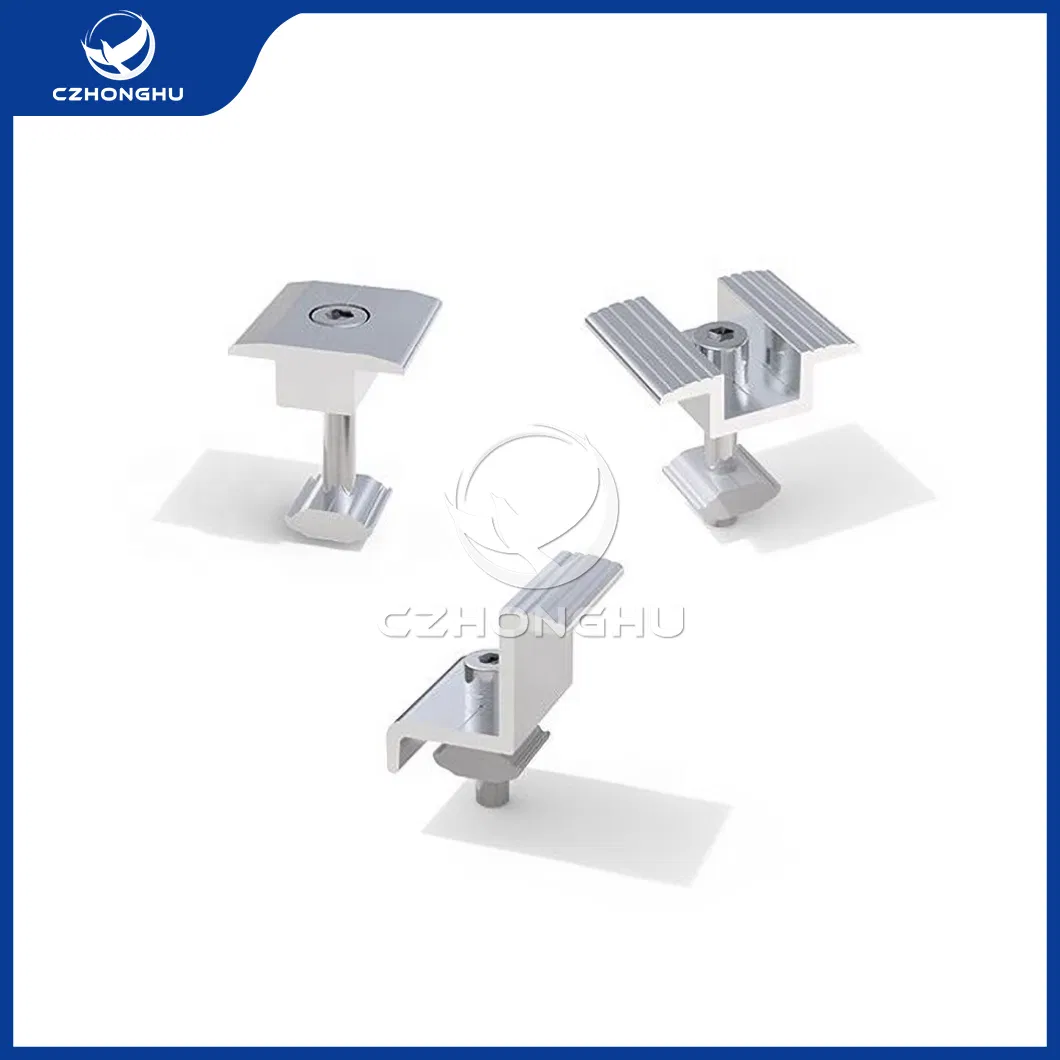

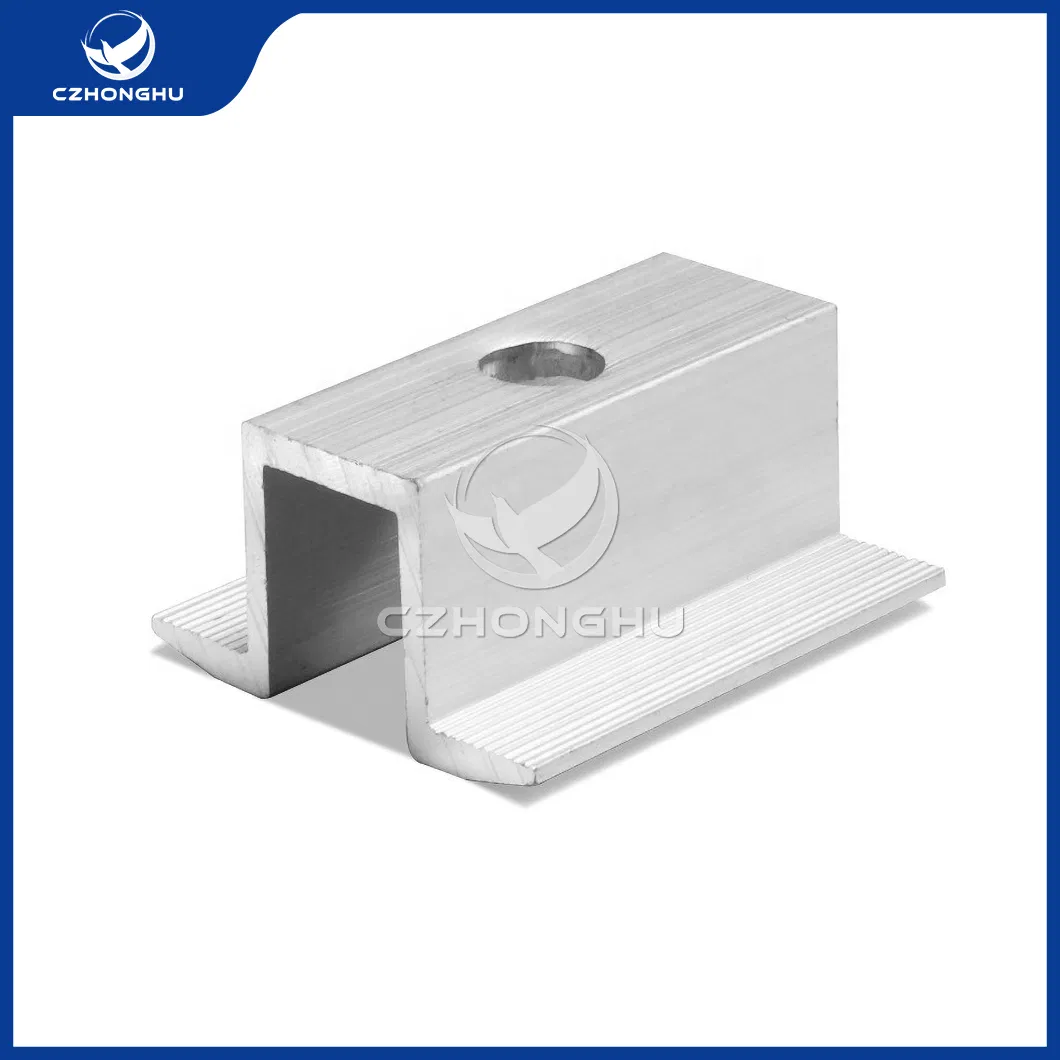

Solar Panel Mid Clamps
Placed between adjacent solar panels to hold them firmly and prevent movement caused by wind or snow. Adjustable for various panel thicknesses.

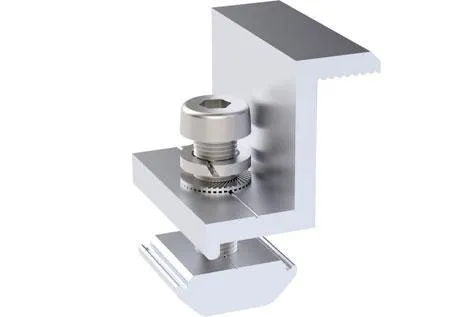

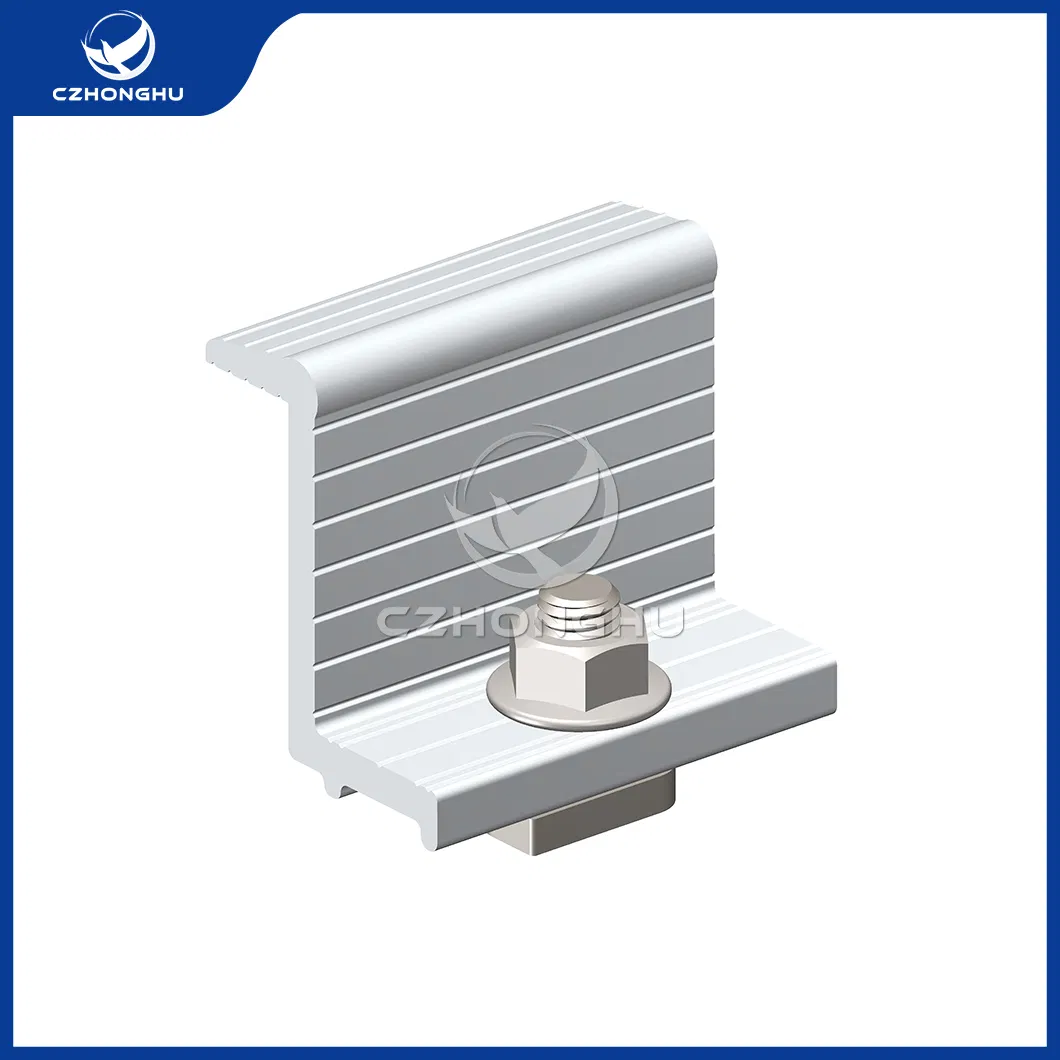

Solar Panel End Clamps
Used to fasten panels at the outermost ends of the mounting structure, ensuring the edges are securely held in place.

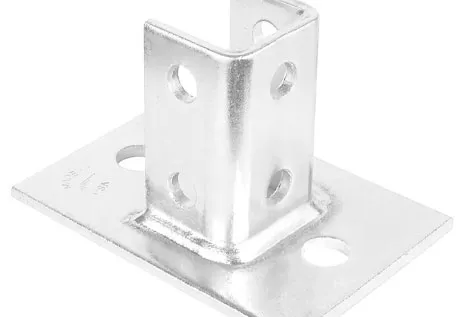

Strut Channel Post Bases
Structural components used to provide a stable foundation for vertical strut channels in equipment, piping, or electrical conduit support systems.

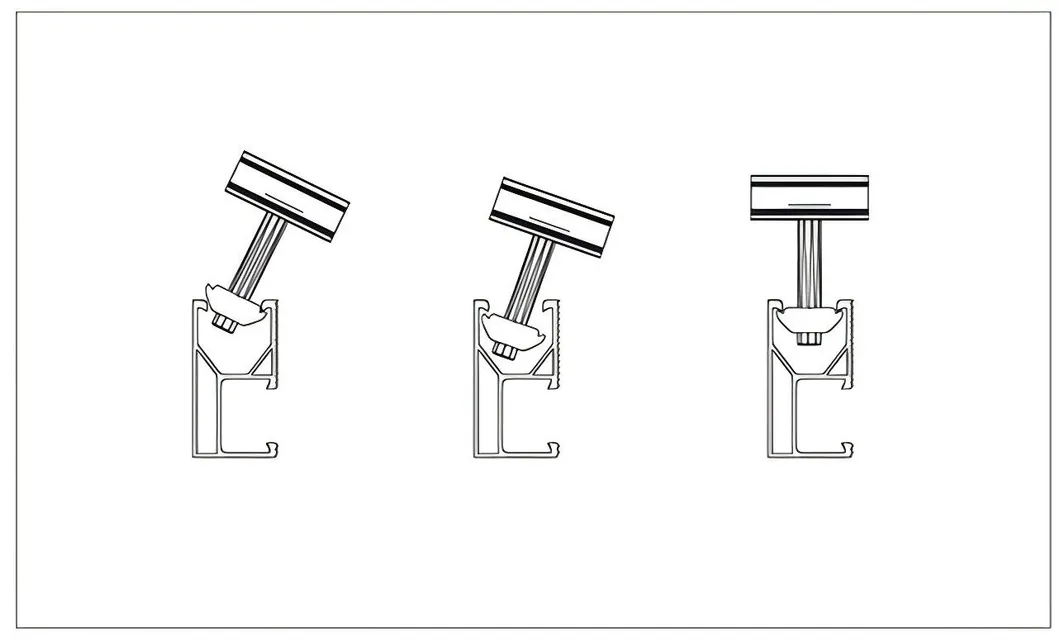

To facilitate the use of the MA rail nut, ensure the thread of the hexagonal socket bolt does not pass through the bottom of the nut's hole. Position the nut in the rail's groove and gently screw in the bolt for 2-3 turns.

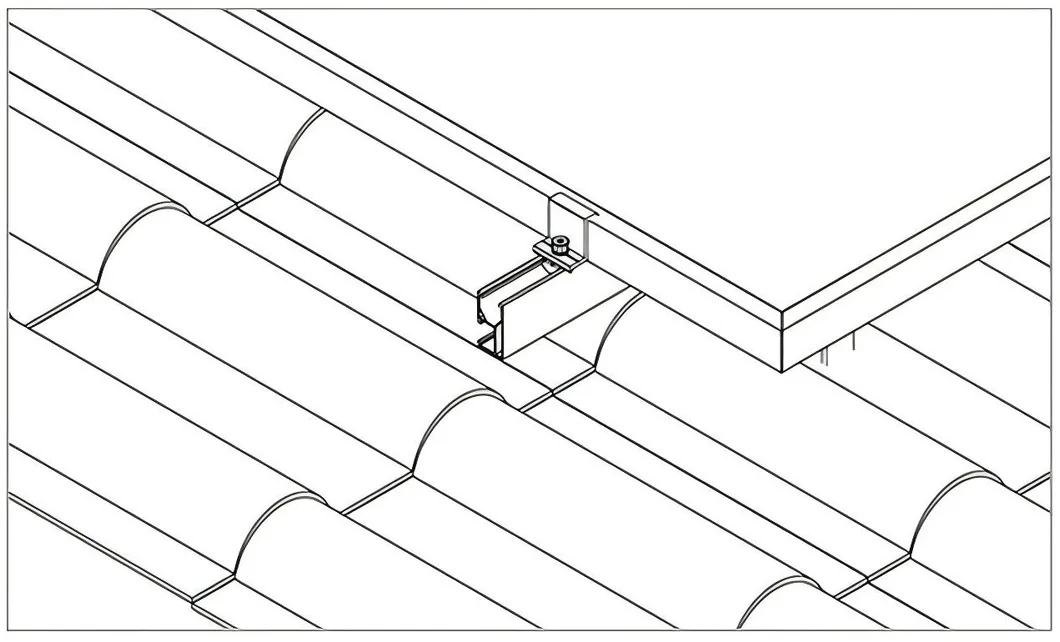

Place the panel flat on the rail, slide the end clamp kit into position ensuring it firmly sticks to the panel, and tightly lock the bolt (recommended torque: 8N·m).
