| Model NO. | Solar Panel Mid Clamps |
| Material | Aluminum Alloy |
| Type | Roof Angle Bracket |
| Product Name | PV Solar Mounting Clamp |
| Keywords | Solar Panel Mounting Clamp |
| Color | Silver/Black/White |
| Feature | Quick Installation/Adjustable/Easy/Installation |
| Bracket Material | Aluminum/Galvanized Steel/Carbon Steel/Metal |
| Finishing | Plain, Sand Blasting, Polishing |
| Standard | DIN, ASTM/ANSI, JIS, En, ISO, as, GB |
| Surface Treatment | Anodized/Aluminum Andized/Hot-DIP Galvanized |
| Processing Service | Welding or Customized |
| Product Application | Solar Panel Mounting/Ground/Tile Roof/Flat Roof |
| Installation Angle | 5-60° |
| MOQ | 100 Pieces |
| Production Capacity | 200,000 PCS/Month |
PV solar mounting fixtures are special fixtures used to fix solar panels. This fixture is usually made of weather-resistant materials, which can withstand harsh environments such as sun and rain, ensuring that the solar panel can be firmly fixed on the bracket or roof after installation.
These fixtures usually have adjustment functions, which can adjust the angle of the solar panel according to the installation location and requirements to maximize the absorption of sunlight energy. They are easy to install and remove, and can be adjusted and maintained as needed. PV solar mounting fixtures play a vital role in solar power generation systems and are a key component to ensure the safe and stable operation of the system.
Some advanced PV solar mounting fixtures may also have anti-theft functions, which can effectively prevent nearby people or thieves from stealing solar panels through special designs and materials. Some fixtures may also integrate intelligent control systems, which can realize remote monitoring and management, and improve the intelligence and operation efficiency of the system.

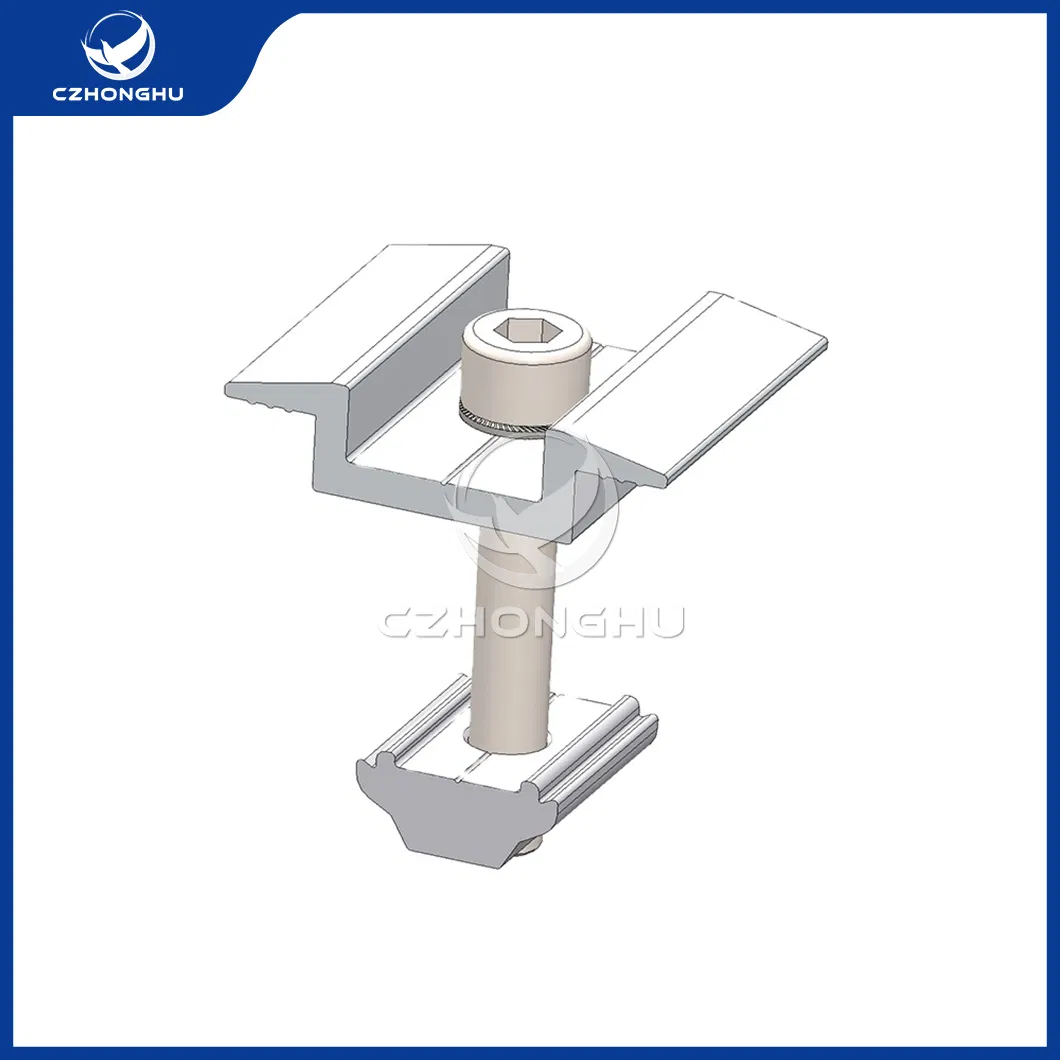

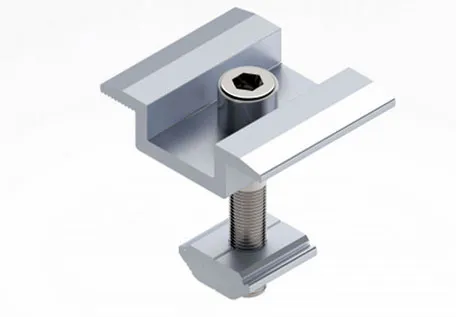

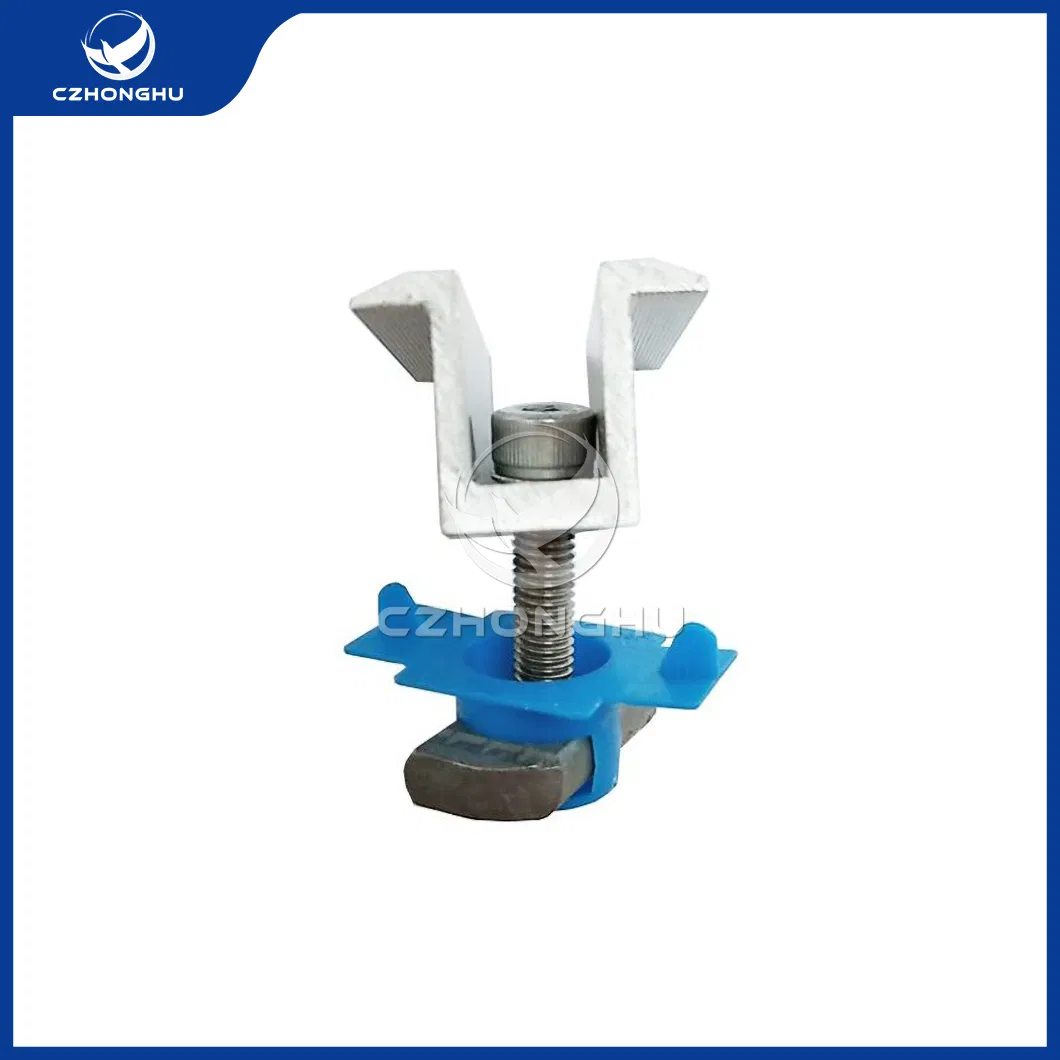

Mid clamps are placed between adjacent solar panels to hold them firmly in place and prevent movement or damage caused by wind, snow, or other environmental factors. They are adjustable to accommodate different panel sizes and thicknesses and are designed to provide a strong and stable connection between the panels and the mounting structure.

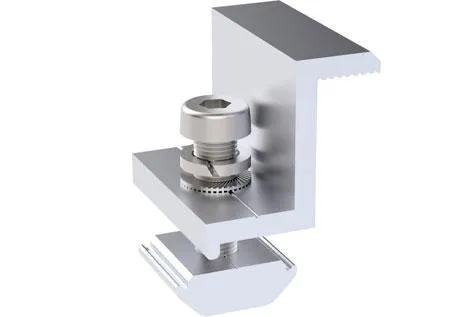

Unlike mid clamps, which secure the panels along the middle section, end clamps are used to fasten the panels at the ends. End clamps are designed to securely hold the edge of the solar panels in place and are typically installed at the outermost ends of the panels.

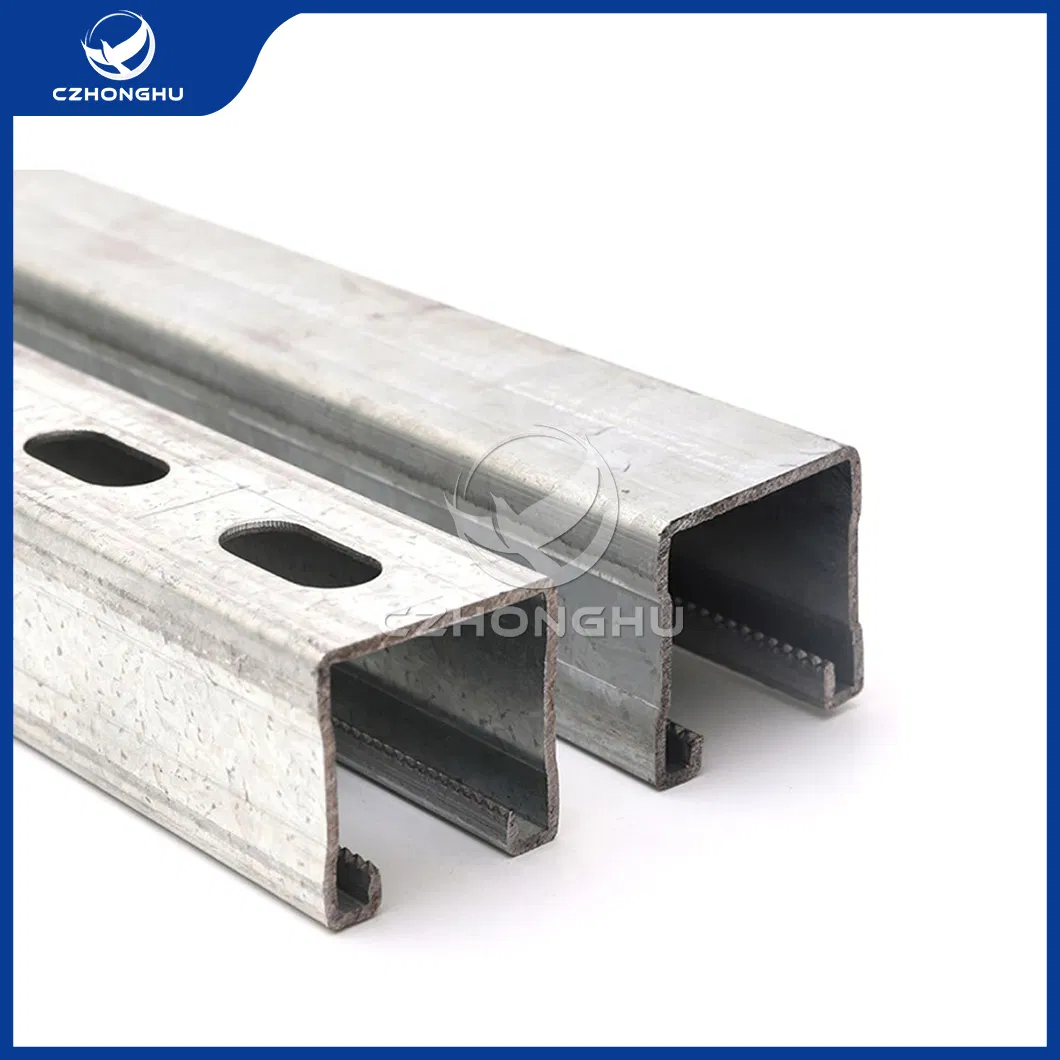

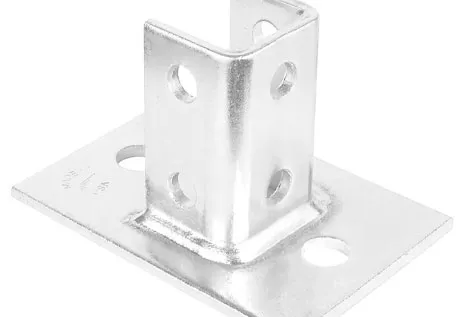

Structural components used in various applications, including constructing support systems for equipment, machinery, piping, or electrical conduits. These post bases are designed to provide a stable and secure foundation for vertical strut channels.
To facilitate the use of the MA rail nut, ensure that the thread of the hexagonal socket bolt does not pass through the bottom of the MA rail nut's hole. Position the MA rail nut in the rail's groove and gently screw in the bolt for 2-3 turns.

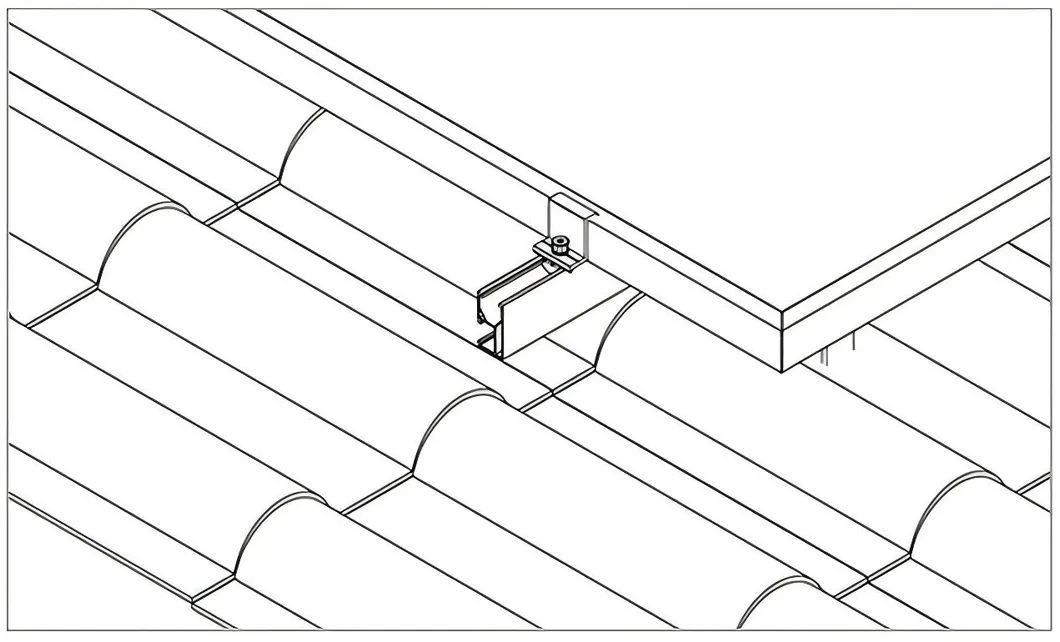

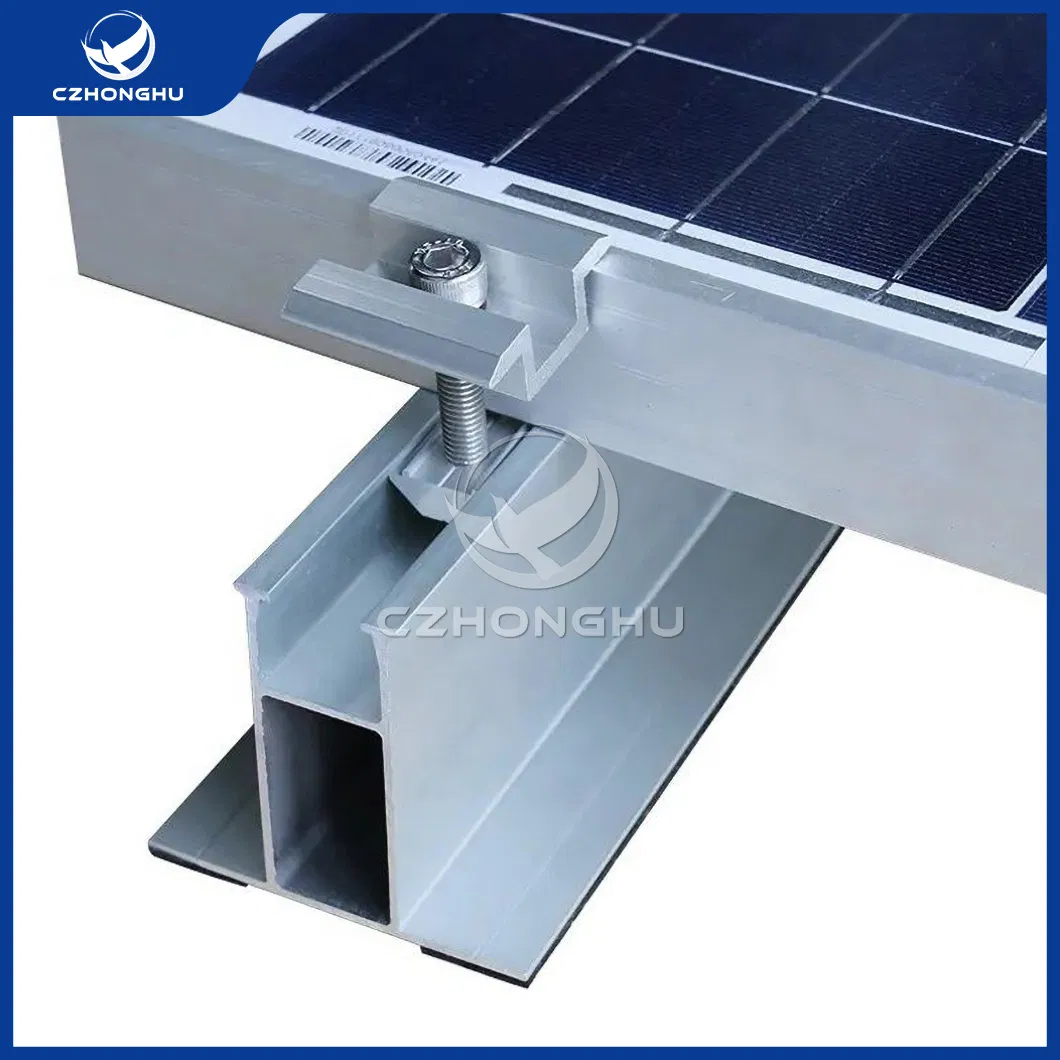

Place the panel flat on the rail, slide the end clamp kit into position, ensuring it firmly sticks to the solar panel, and then tightly lock the bolt (recommended torque: 8N·m) as shown in the figure.
