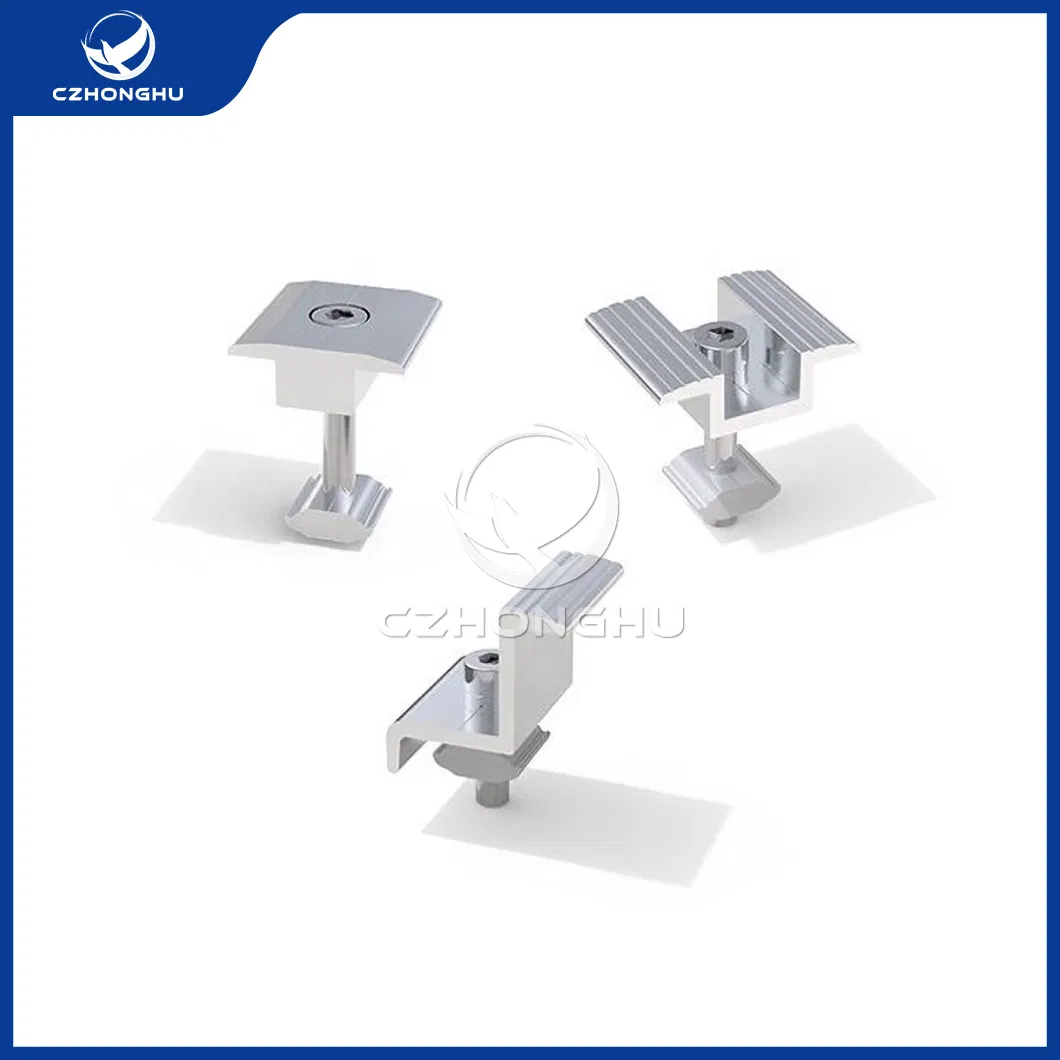

Solar End Clamp Manufacturing Ground Aluminum Solar Roof End Clamp for Solar Panel
PV solar mounting fixtures are special fixtures used to fix solar panels. This fixture is usually made of weather-resistant materials, which can withstand harsh environments such as sun and rain, ensuring that the solar panel can be firmly fixed on the bracket or roof after installation.
PV solar mounting fixtures usually have adjustment functions, which can adjust the angle of the solar panel according to the installation location and requirements to maximize the absorption of sunlight energy.
Some advanced PV solar mounting fixtures may also have anti-theft functions, which can effectively prevent nearby people or thieves from stealing solar panels through special designs and materials. Some fixtures may also integrate intelligent control systems, which can realize remote monitoring and management, and improve the intelligence and operation efficiency of the system.
| PV SOLAR MOUNTING CLAMP SPECIFICATIONS | |
|---|---|
| Product Name | PV Solar Mounting Clamp |
| Keywords | Solar Panel Mounting Clamp |
| Color | Silver/Black/white |
| Feature | Quick Installation/Adjustable/Easy/Installation |
| Bracket Material | Aluminum/Galvanized Steel/Carbon Steel/Metal |
| Finishing | Plain, Sand Blasting, Polishing |
| Standard | DIN, ASTM/ANSI, JIS, EN, ISO, AS, GB |
| Surface Treatment | Anodized/Aluminum Andized/Hot-dip Galvanized |
| Processing Service | Welding or Customized |
| Product Application | Solar Panel Mounting/Ground/Tile Roof/Flat Roof |
| Technique | Cold Rolled Hot Rolled |
| Product Type | Solar Aluminium Clamp |
| Installation Angel | 5-60 |
| Installation Site | Open Field and Ground |
| MOQ | 100 Pieces |

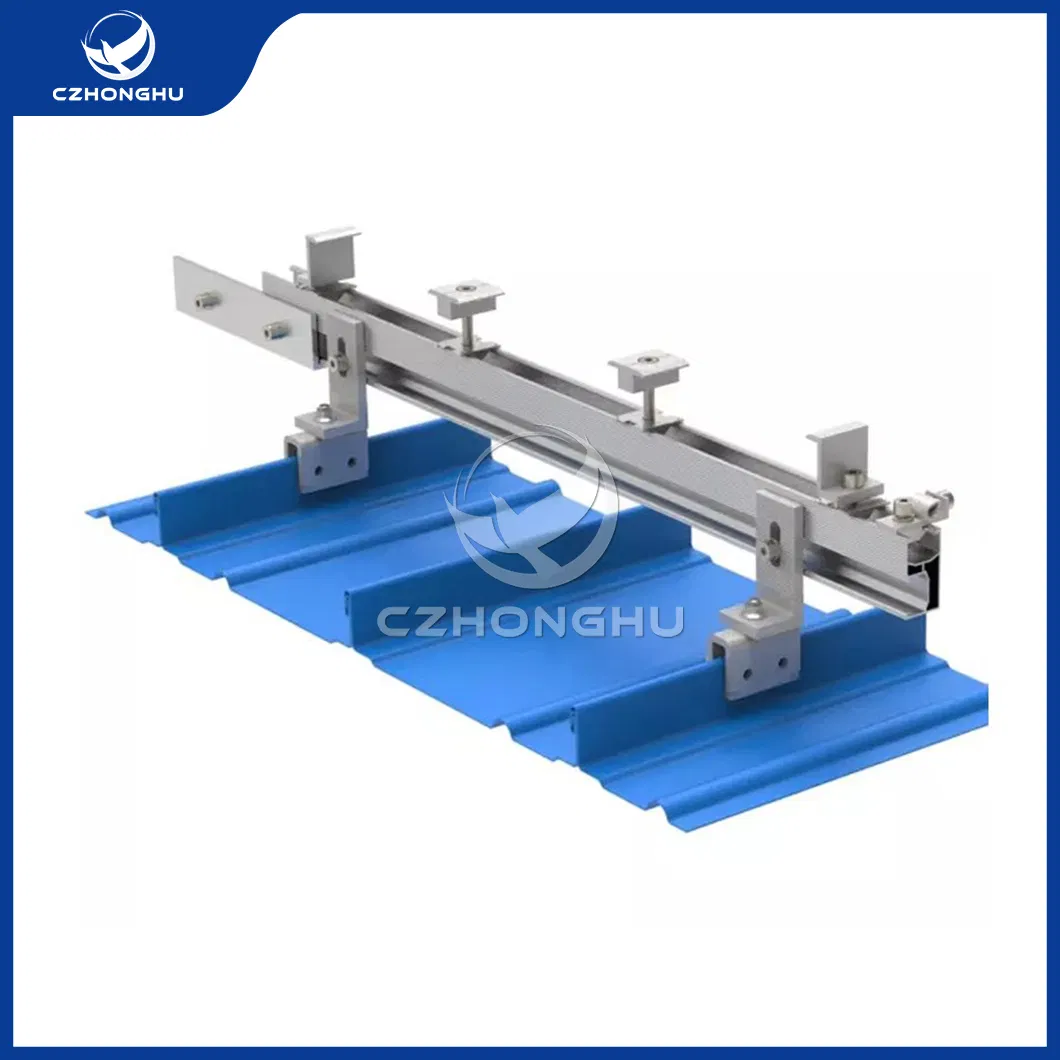

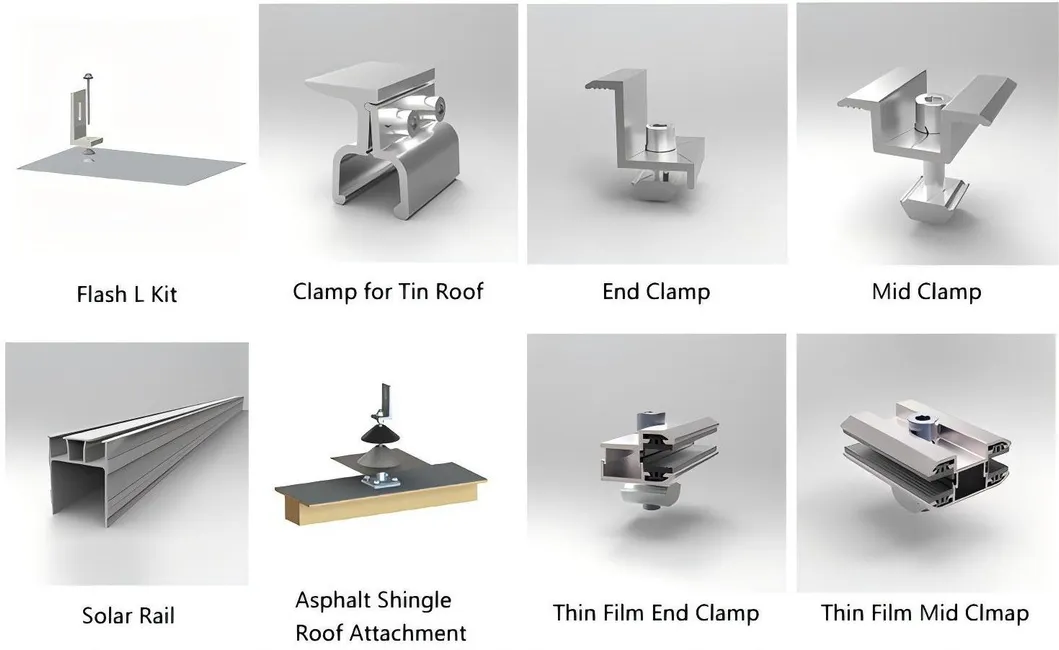

Solar mounting brackets are essential components in solar panel installations, providing the structural support needed to securely attach solar panels to various surfaces. Our brackets are engineered with precision and made from high-quality materials, ensuring durability and optimal performance.

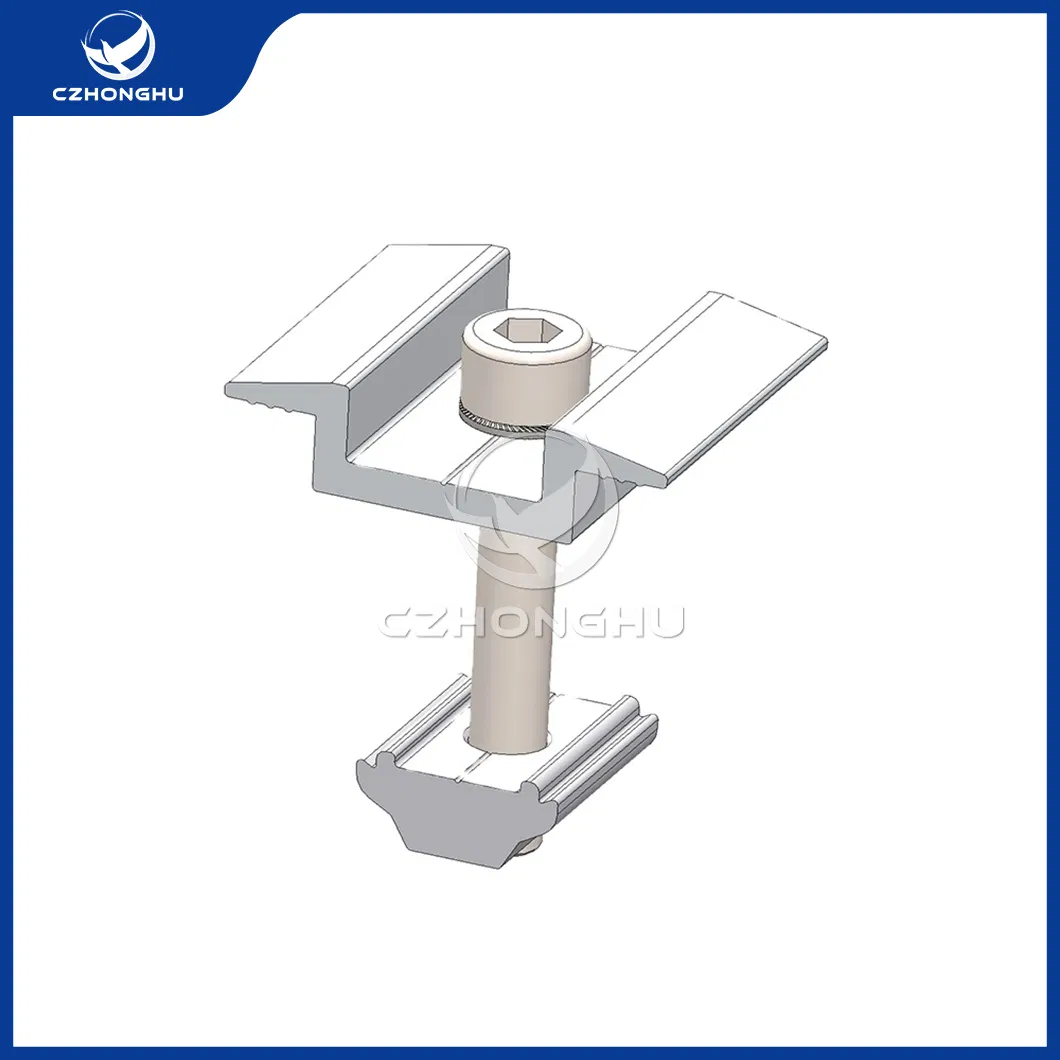

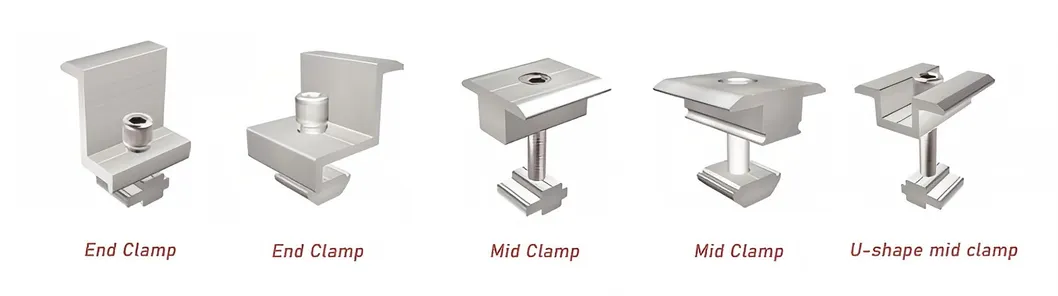

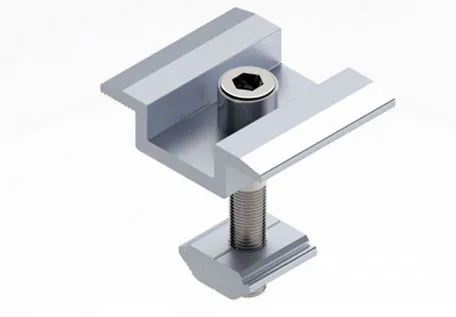

Mid clamps are placed between adjacent solar panels to hold them firmly in place and prevent movement or damage caused by environmental factors. They are adjustable to accommodate different panel sizes.

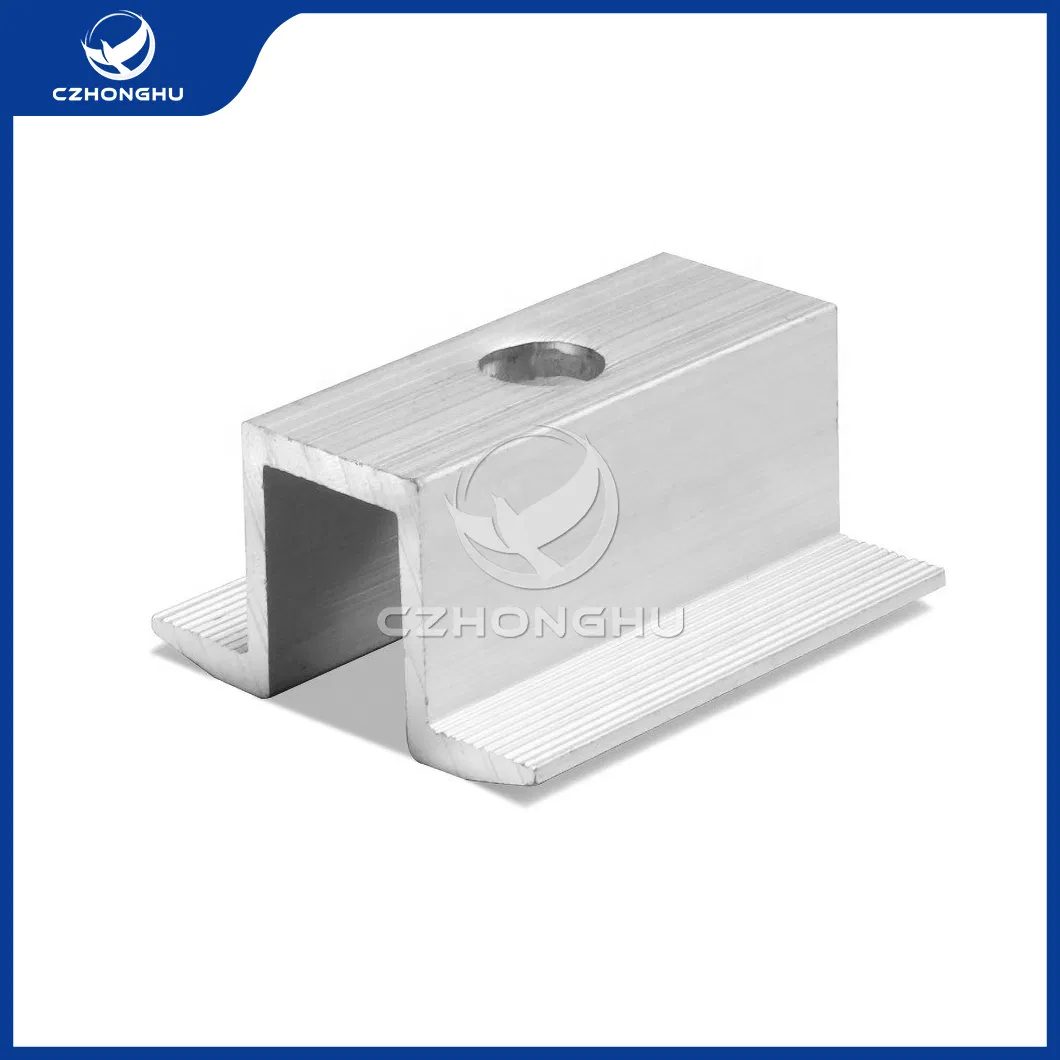

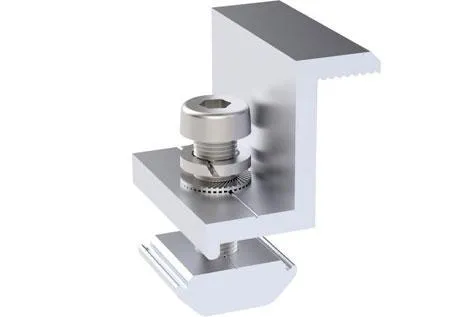

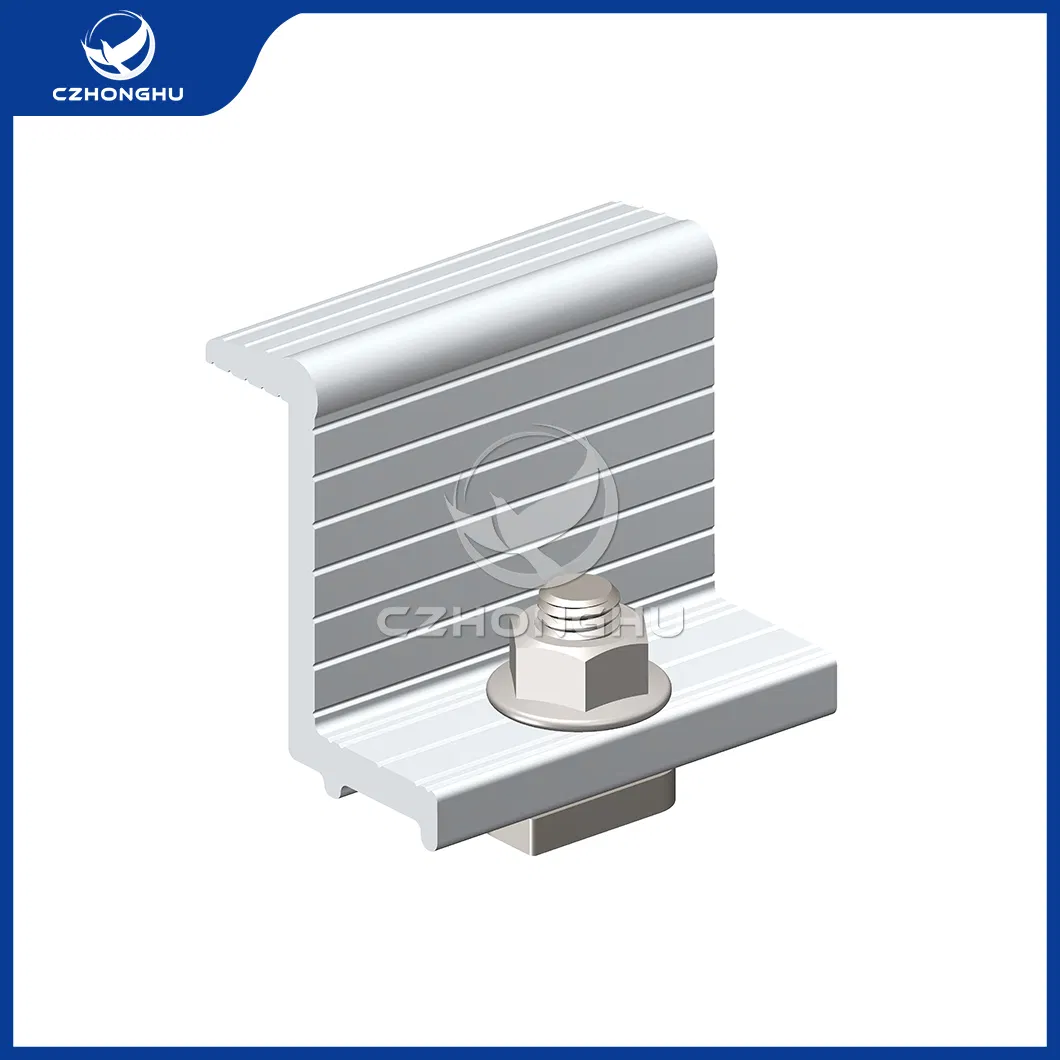

End clamps are used to fasten the panels at the ends. They are designed to securely hold the edge of the solar panels in place and are typically installed at the outermost ends.

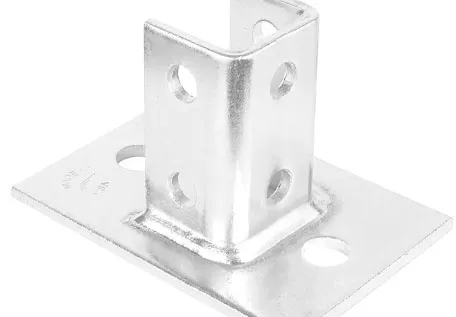

These post bases provide a stable and secure foundation for vertical strut channels, allowing for the creation of sturdy and versatile support structures for equipment and conduits.

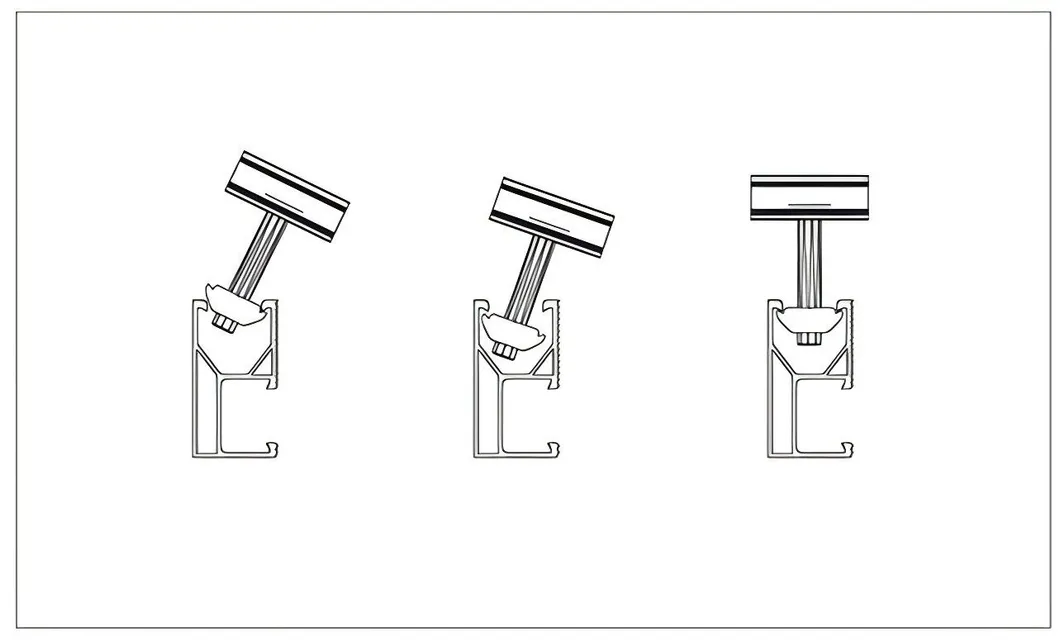

To facilitate the use of the MA rail nut, ensure that the thread of the hexagonal socket bolt does not pass through the bottom of the MA rail nut's hole. Position the MA rail nut in the rail's groove and gently screw in the bolt for 2-3 turns.

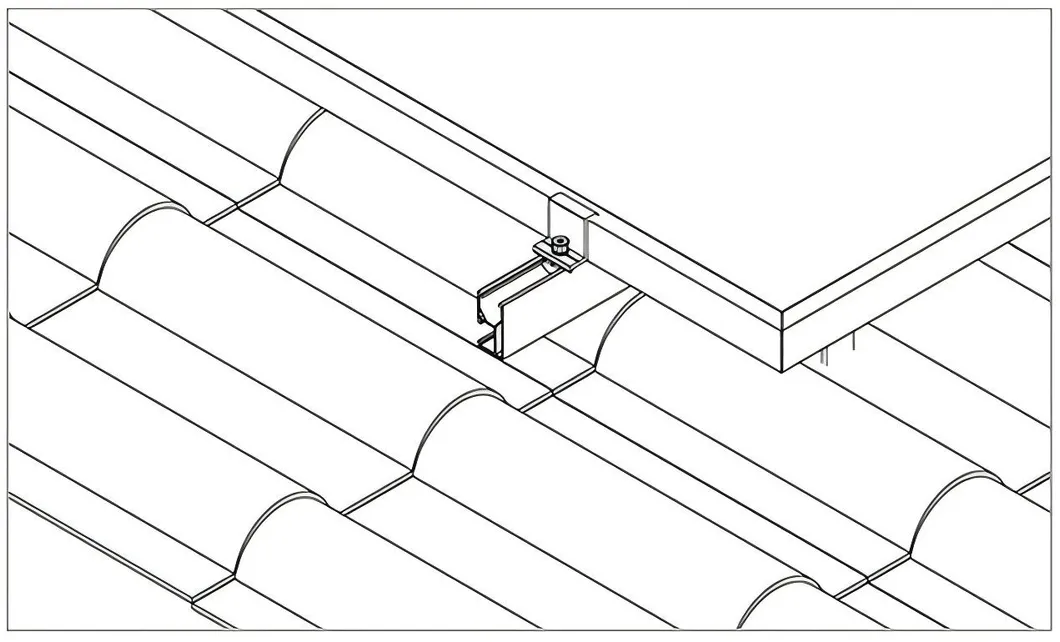

Place the panel flat on the rail, slide the end clamp kit (MA) into position, ensuring it firmly sticks to the solar panel, and then tightly lock the bolt (recommended torque: 8N·m) as shown in the figure.
