| Model NO. | Solar Panel Mounting Brackets |
| Material | Stainless Steel |
| Type | Tracking Bracket |
| Product Name | Solar Panel Mounting Bracket |
| Surface Treatment | Anodized / Hot-DIP Galvanized |
| Bracket Material | Aluminum / Galvanized Steel / Carbon Steel |
| Application | Solar Panel Mounting / Ground / Roof |
| Installation Site | Roof / Rooftop / Open Ground |
| Wind Load | 60m/S, 45m/S or Customized |
| Snow Load | 1.4kN/M2 or Customized |
| Standard | DIN, ASTM/ANSI, JIS, EN, ISO, AS, GB |
| MOQ | 100 Pieces |

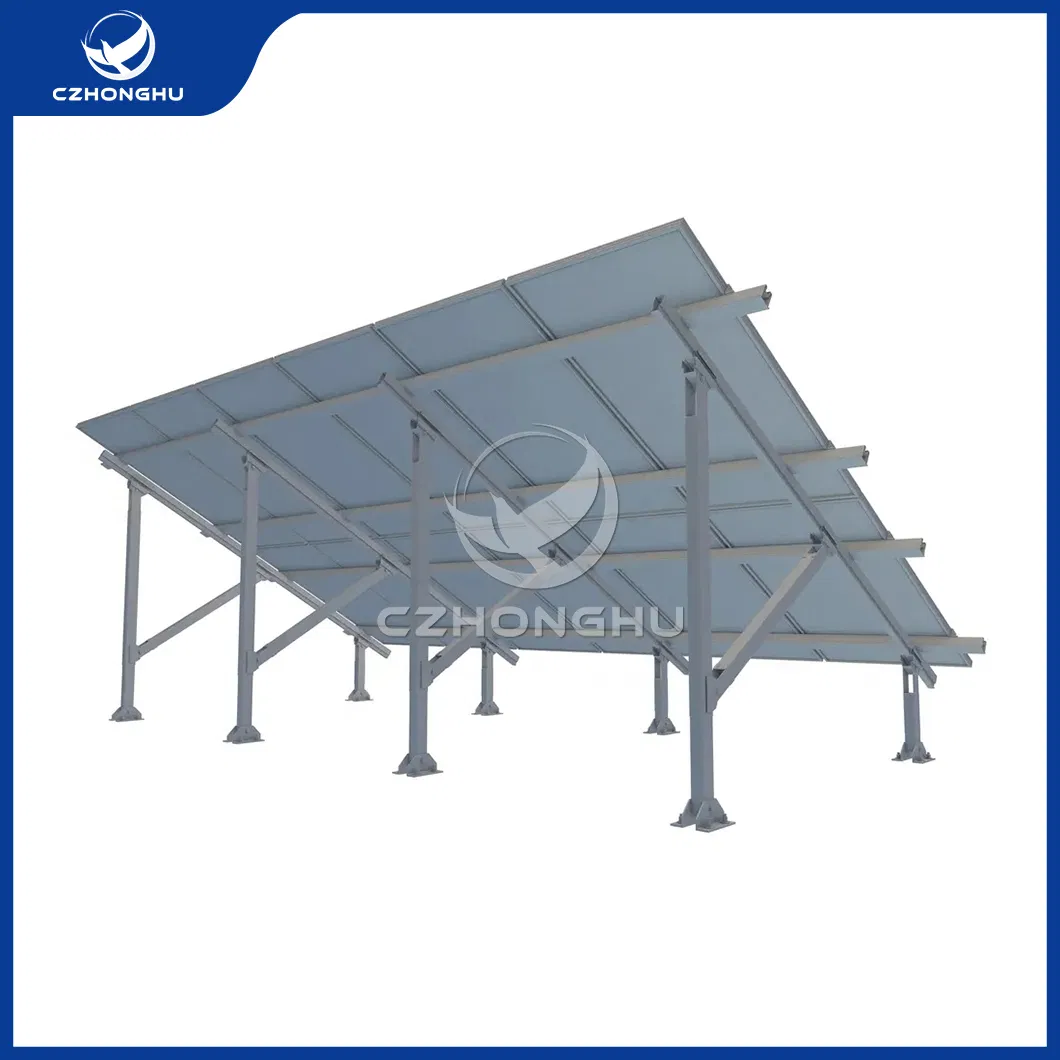

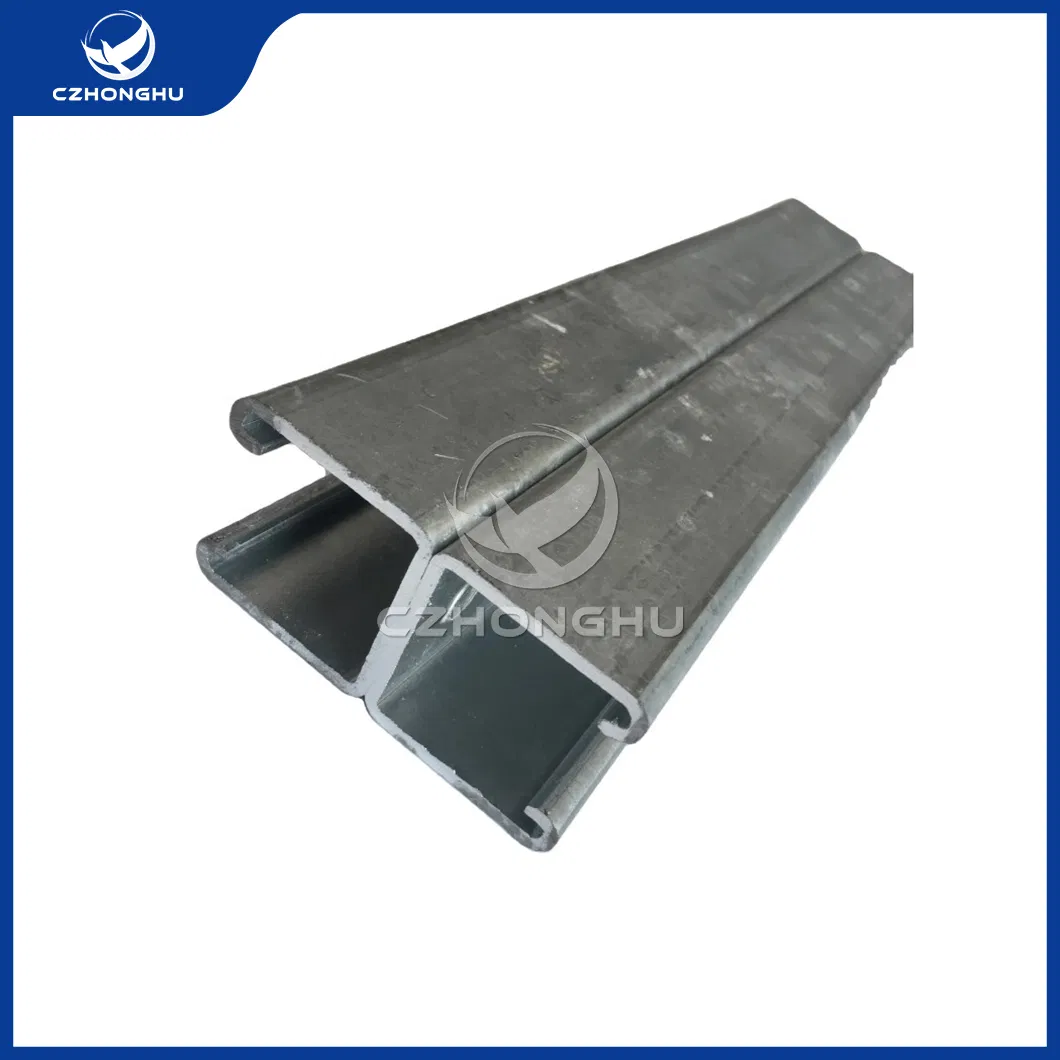

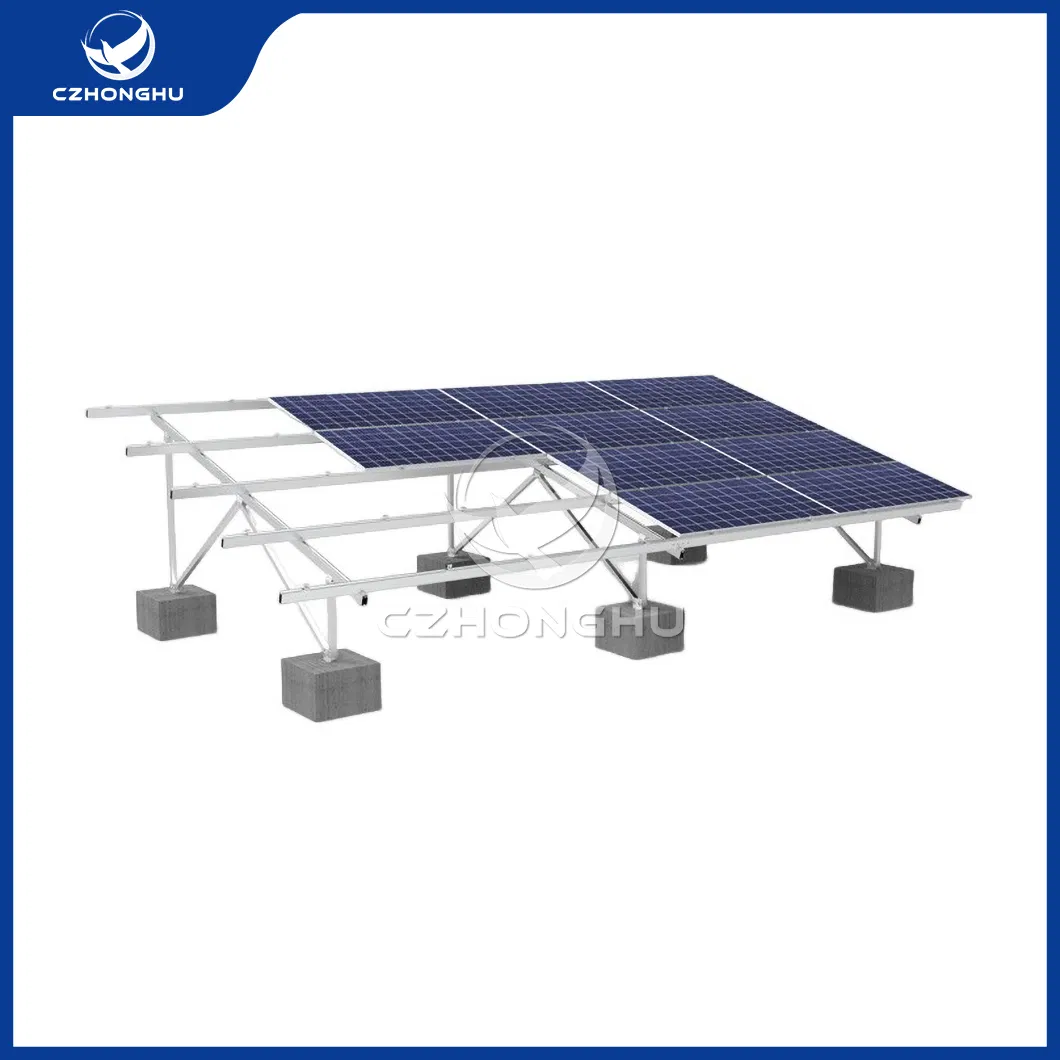

Solar panel mounting brackets are components used to secure solar panels in place and facilitate their installation on various surfaces such as rooftops, ground, or poles. These brackets are designed to support the weight of the solar panels and withstand environmental factors such as wind and weather conditions.
They are adjustable to accommodate different panel sizes and configurations and can be customized to meet the requirements of the installation site. Solar panel mounting brackets play a critical role in the installation and operation of solar energy systems, providing a secure and stable mounting solution that allows the panels to efficiently generate clean and renewable energy.

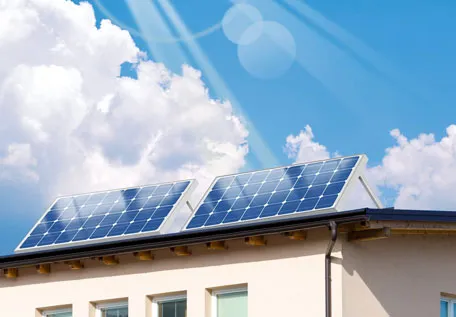

Roof solar panel mounting brackets are a great space-saving solution, especially if you do not have a lot of ground space available.
You can adjust the angle of the panels to face the direction of the sun, which can improve the efficiency of the system.

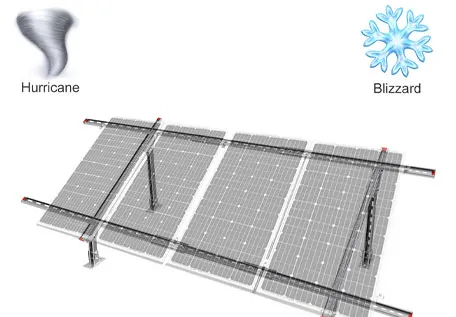

Designed to withstand harsh weather conditions, providing a strong and secure mounting solution over time.

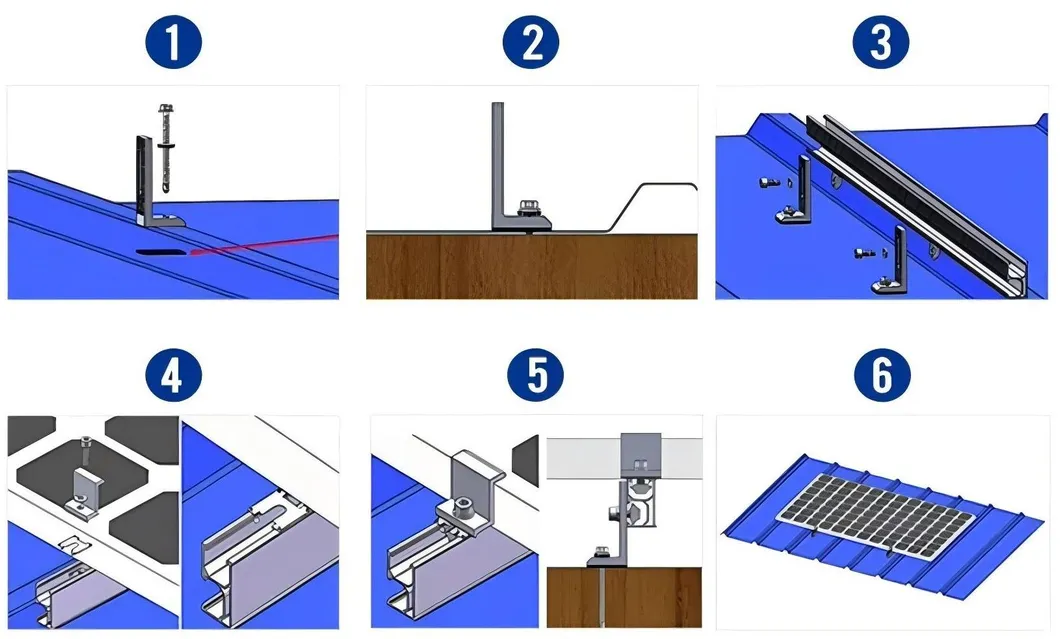

Drill a hole in the right position, install the EPDM rubber and L-bracket, then screw the bolt into the wooden beam. Be careful not to destroy the steel below.

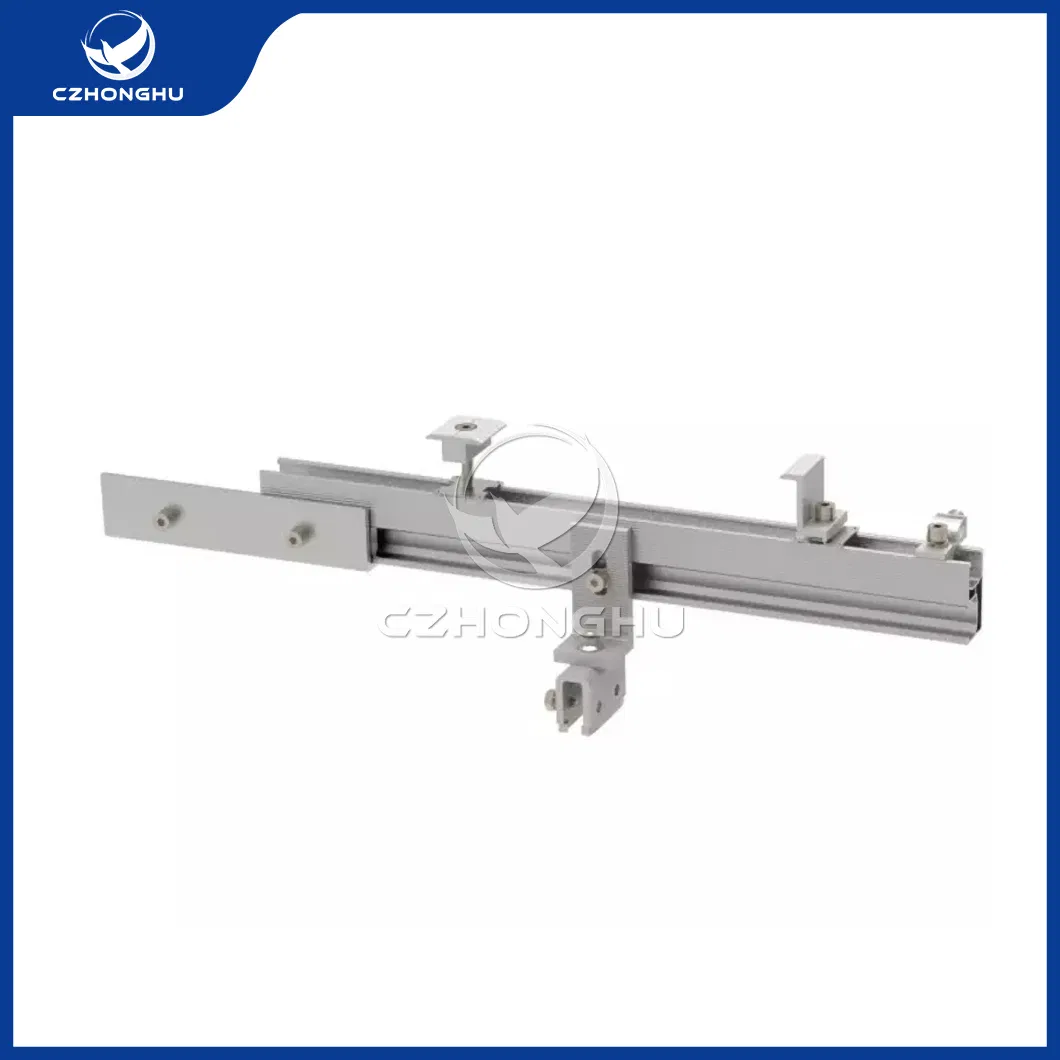

Mount the clamp and L-shaped bracket to the roof rail. Confirm and tighten the belts. Both rails must be on the same level.

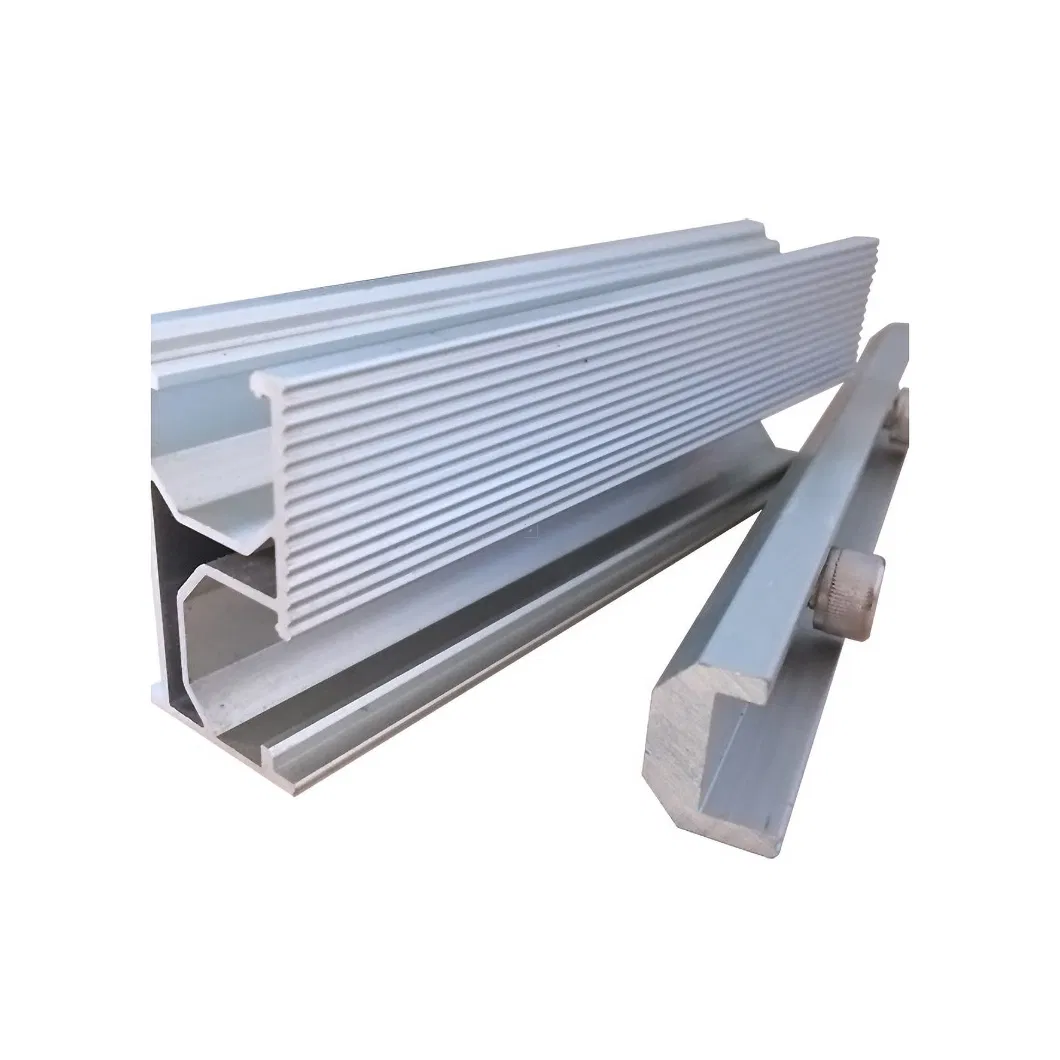

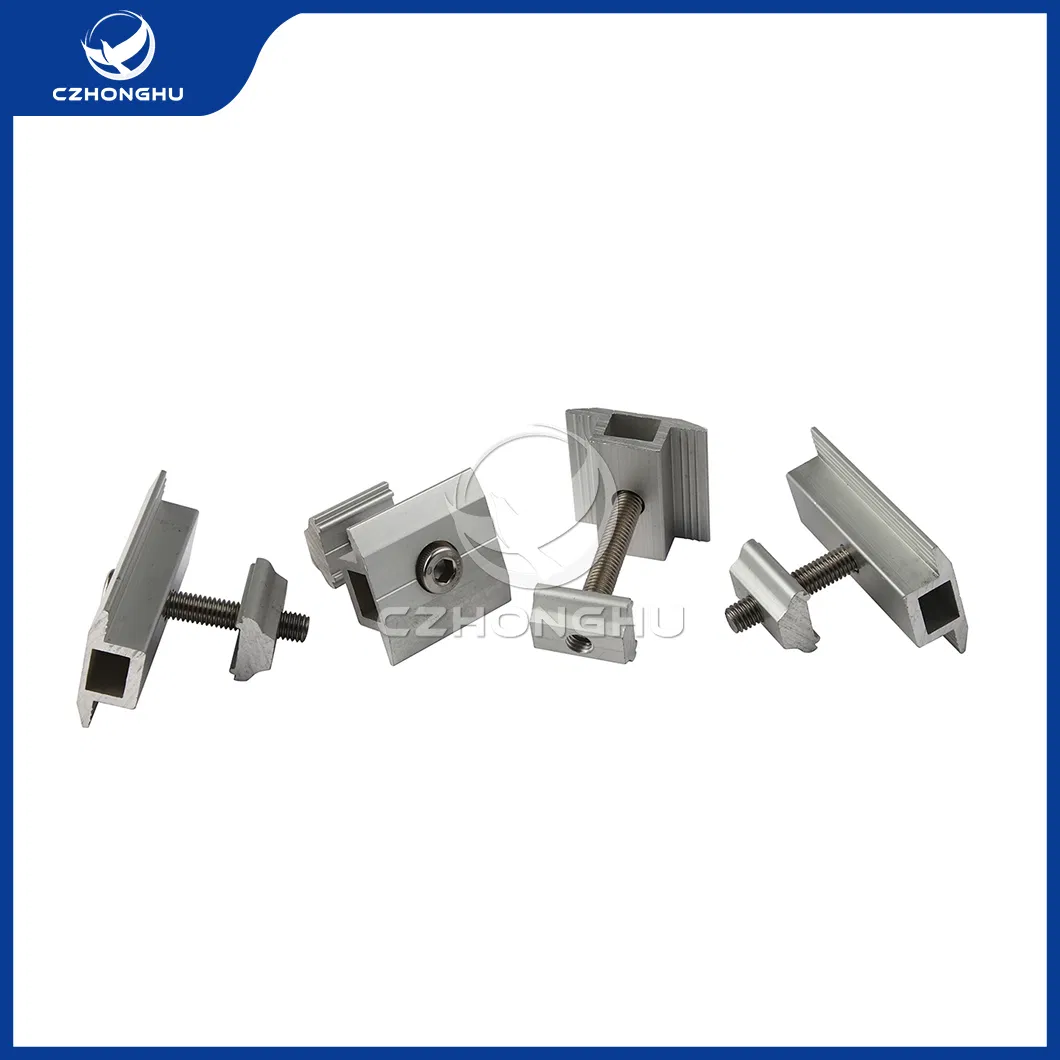

Secure the module to the roof rail by end clamps. Place the panel flat on the rail, snap the rail clip into the slot, and install the end clamp kit.
Confirm spacing: L-bracket horizontal spacing up to 2m. Vertical spacing about 1/2 or 3/4 the length of the solar panel. Spacing between panels: 18mm.
