Product Description

Basic Information

Model NO.
WTT-2P
Certification
ISO, CE
Application
Commercial
Material
Aluminum Alloy
Type
Ground Bracket
Install Site
Open Terrain
Module Orientation
Landscape, Portrait
Max Wind Speed
60m/S
Duration
More Than 20 Years
HS Code
7610900000

Product Description

The solar tracking system is an advanced solution that optimizes the use of sunlight during the solar thermal and photovoltaic power generation process, significantly improving photoelectric conversion efficiency.

This Multi-drive double portrait horizontal single-axis solar tracker adopts a multi-actuator drive mode. The system is designed for quick and easy installation, providing a stable and reliable platform suitable for various large-scale solar power stations.

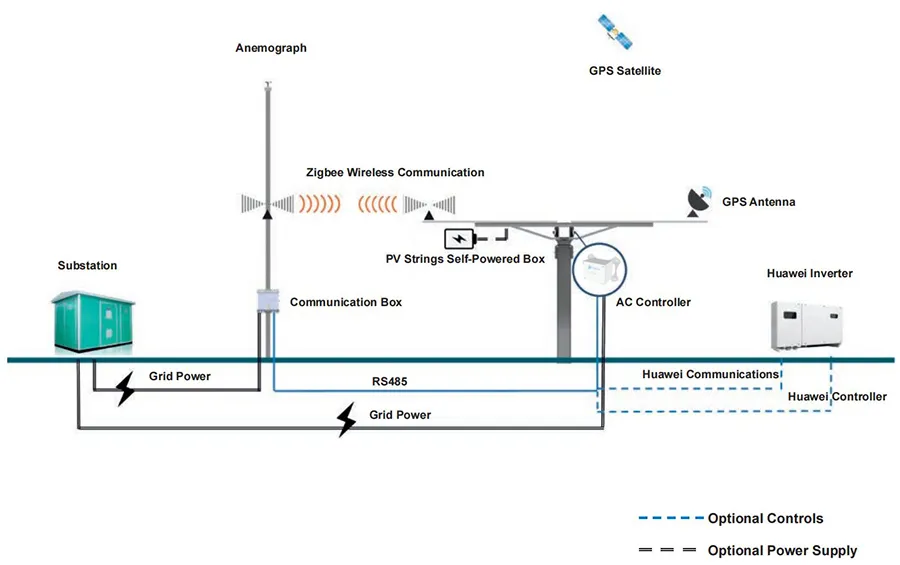

Electrical Principle

Product Parameters

Structure & Performance
System TypeOne portrait horizontal single-axis tracker
Tracking Range±60° (Customized per project)
Tracking Accuracy±1°
Driving MethodSlew Drive / 24V DC Motor
Structural MaterialsHDG Steel, Al-Mg-Zn Coating Steel
Tracking MethodAstronomical algorithm + closed-loop control (AI)
Wind LoadCustomized according to local conditions
Operating Temperature-30°C ~ +60°C
Slope ToleranceNorth-south 10%~20%, East-west no limits

Features & Benefits

Module CompatibilityFully fits 210 modules for maximum versatility.
AI OptimizationIntelligent AI algorithm significantly improves power generation.
Terrain AdaptationSupports north-south slopes up to 20% and unlimited east-west slopes.
Efficiency GainIncreases total power generation by 15-30% compared to fixed structures.
Robust DesignWind tunnel tested (CPP) to ensure stability and resonance resistance.
Easy MaintenanceSimple system structure allows for rapid installation and low upkeep cost.

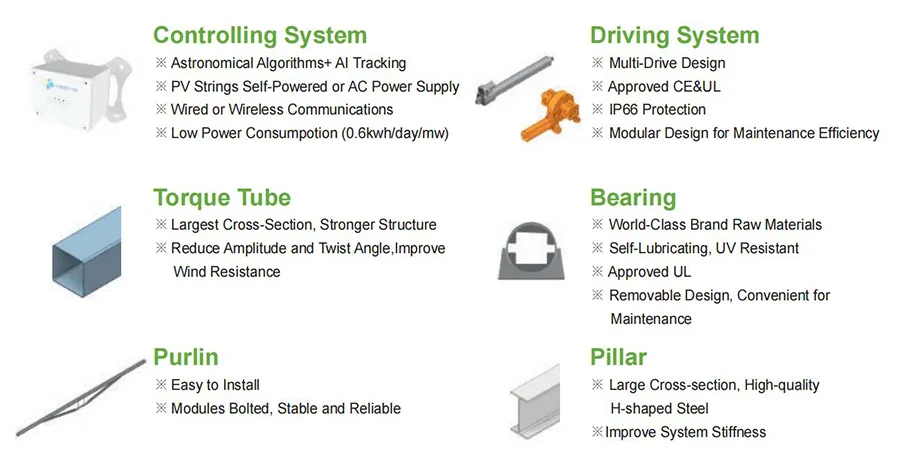

Main Structure

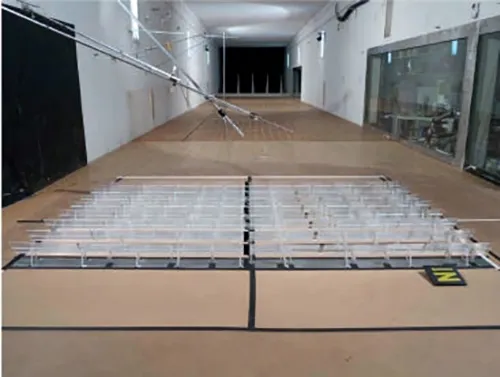

Wind Tunnel Test

Technical Advantages

Compared to traditional single-drive systems, the Multi-drive system offers:

  • System Damping Ratio is significantly greater.
  • Reduces Amplitude on Modules by 50%.
  • Reduces Force on Torque Tube and Driving Pillar by 50%.
  • Optimized Wind Resistance System.

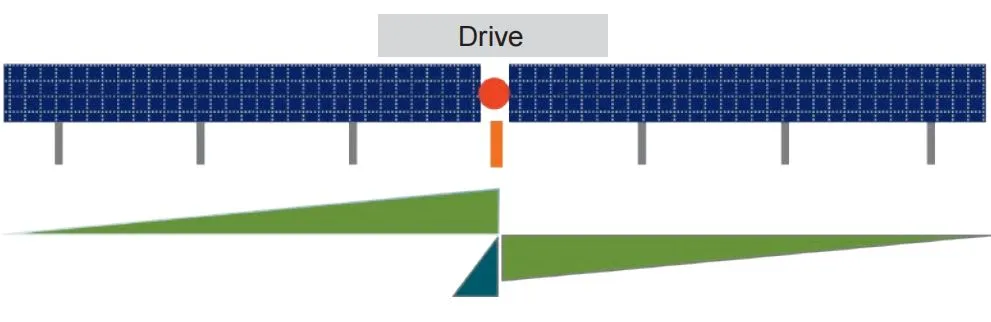

Traditional System

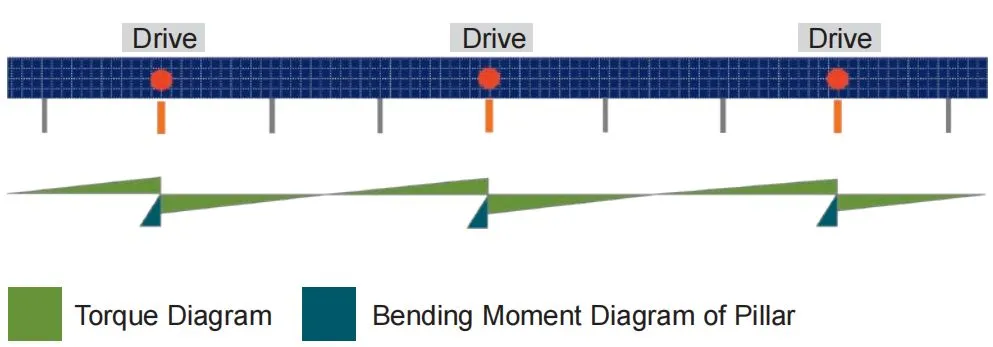

Multi-drive System

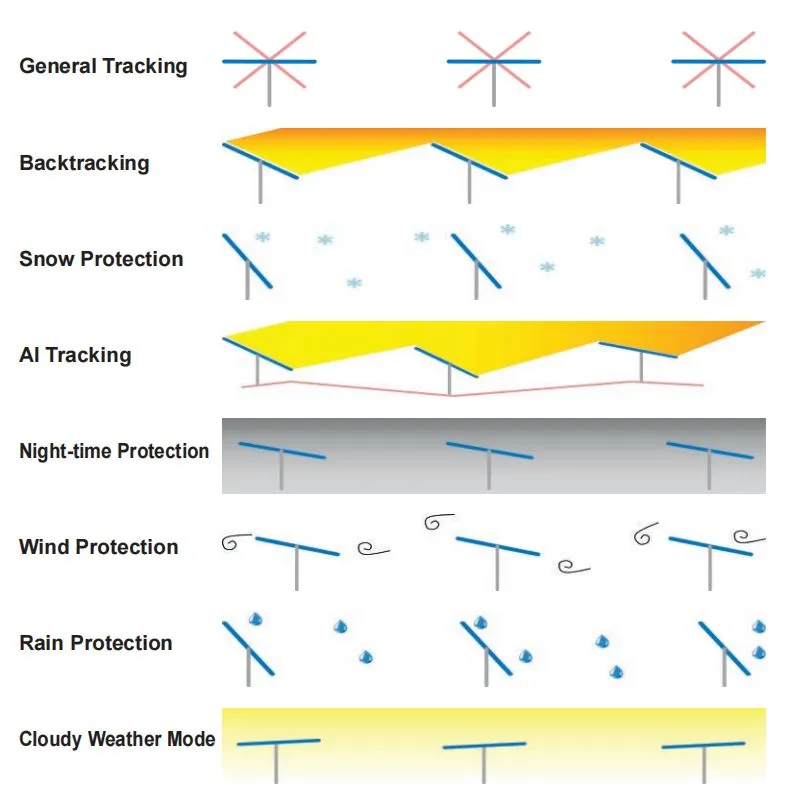

Operating Mode

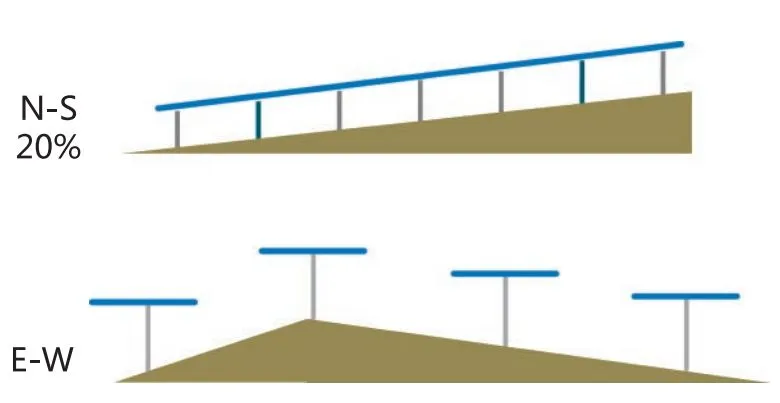

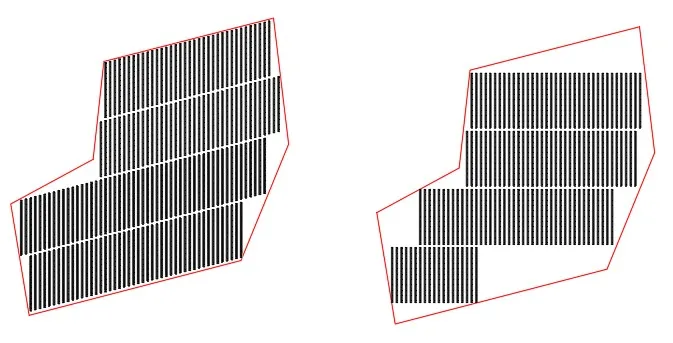

Terrain Adaptation

Foundation & Projects

Foundation Type Application Connection Method
Steel PilesSoft GroundDirect Ramming
Concrete with Steel PilesSoft GroundRamming + Concrete
Poured Concrete PileGravel GroundAnchor Bolt
PHC PilesAgriculture / Fishery PVPile-Top Welding
Layout

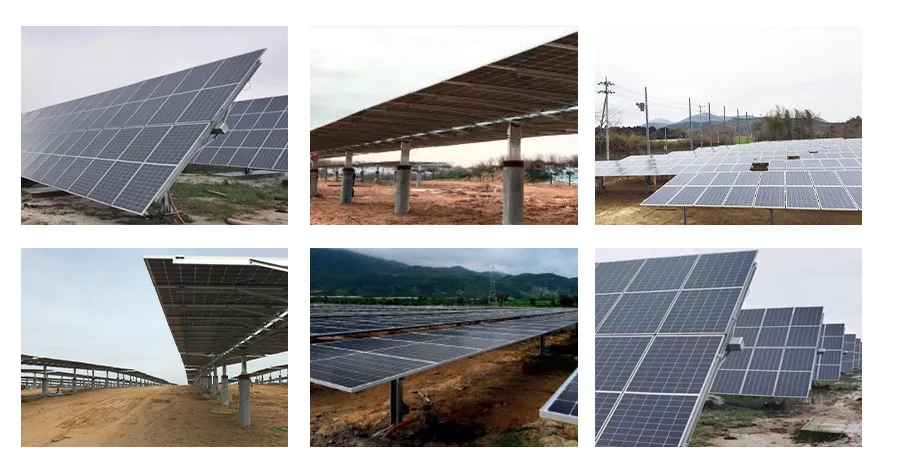

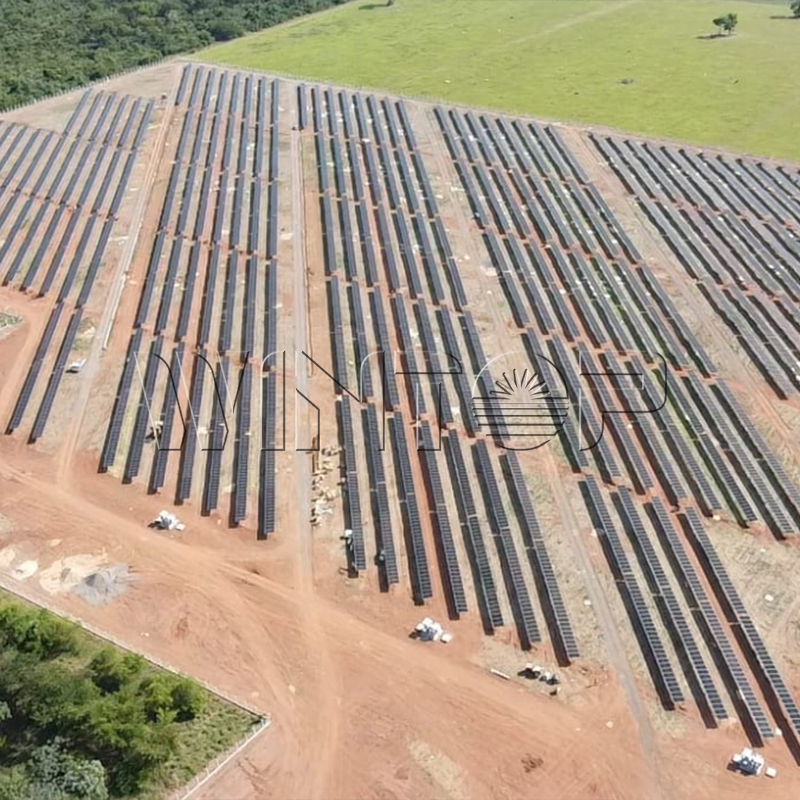

Project Overview

Frequently Asked Questions

How much does the tracker increase power generation?
The single-axis solar tracking system can increase power generation by approximately 15% to 30% compared to traditional fixed-tilt systems, depending on the location and environmental conditions.
What is the maximum wind resistance of this system?
The system is designed to withstand wind speeds up to 60m/s. It features an intelligent wind protection mode that automatically rotates modules to a horizontal safety position when wind speeds exceed 18m/s.
Can this tracker be installed on uneven terrain?
Yes, the system is highly adaptable. It supports north-south slopes of up to 10%-20% and has no limits for east-west slopes, making it ideal for irregular or hilly land.
What tracking technology does the system use?
It utilizes an advanced astronomical algorithm combined with closed-loop AI control to ensure high tracking accuracy of ±1°.
Is the system compatible with the latest high-power modules?
Absolutely. The tracker is fully compatible with large-format 210mm modules and other high-efficiency PV modules currently on the market.
What are the main structural materials?
The structure is primarily made of High-Dip Galvanized (HDG) Steel and Al-Mg-Zn Coating Steel, ensuring high corrosion resistance and a service life of over 20 years.
