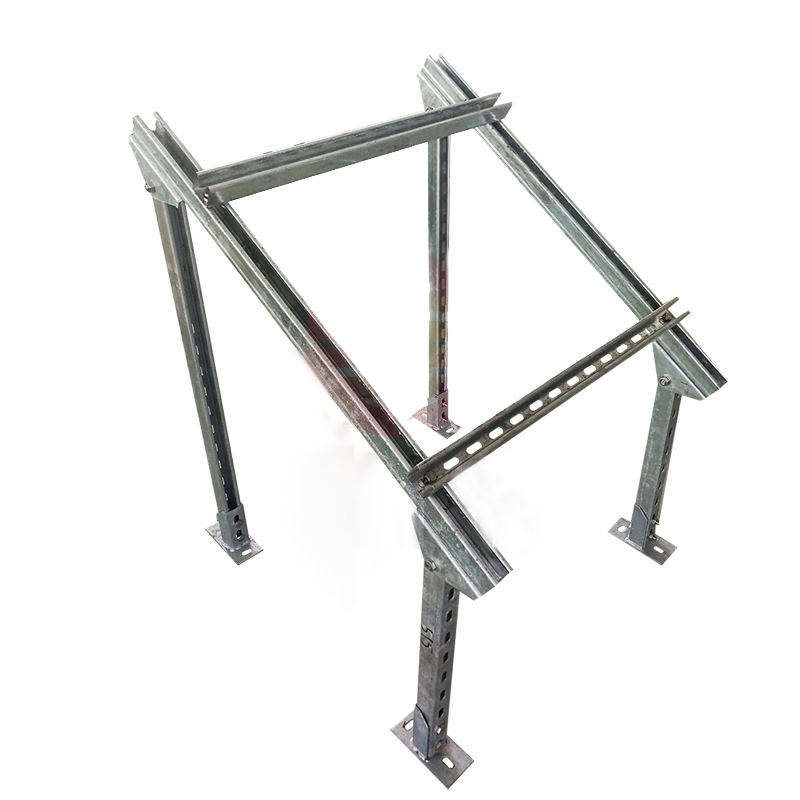

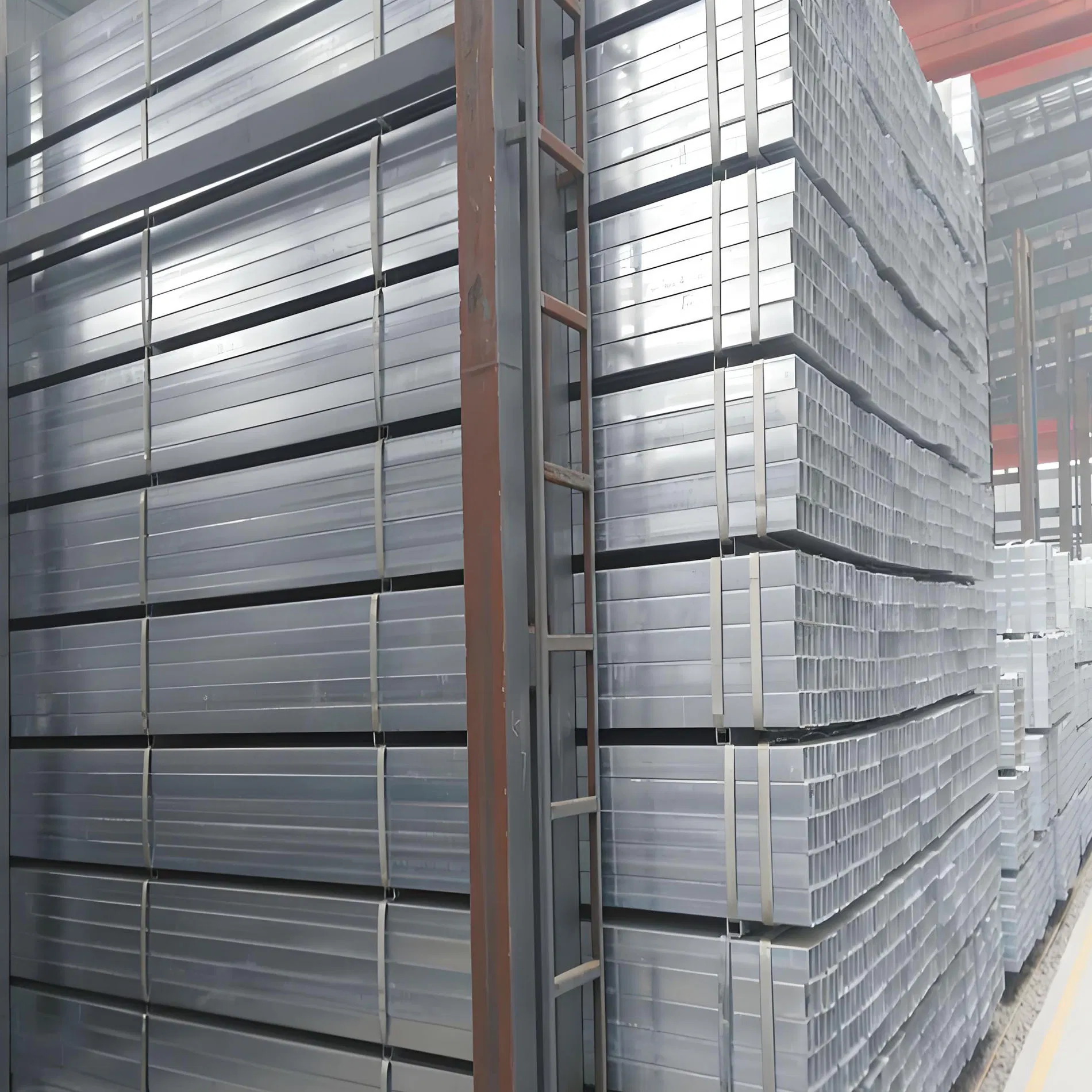

Durable Galvanized Photovoltaic Bracket with Precision Mount Solar Array Bracket Triangle Structure Stainless Steel Industrial Solar Panels

Basic Specifications

Model NO.	steel pipe-Galvanized photovoltaic bracket-033
Material	Aluminum Alloy / HDG Steel
Certification	ISO, CE, TUV, RoHS
Thickness	0.5 - 40 mm
Processing	Laser Cutting, Punching, Stamping, Bending
Max Snow Load	1.4kN/M2
Max Wind Load	216 KM/H
Type	Tracking Bracket / Fixed Rail

Custom Galvanized Photovoltaic Bracket

Our solar mounting solutions are crafted from high-grade steel, stainless steel, and aluminum alloys. Designed for durability and precision, these brackets are ideal for both commercial and industrial solar installations.

Precision Engineering: Thickness ranges from 0.1mm to 12mm, tailored to specific structural needs.
Surface Excellence: Available with Zinc, Nickel, Chrome plating, or Powder coating for superior anti-corrosion.
Reliable Standards: Manufactured according to AS/NZS 1170 and ISO certified quality protocols.

Technical Specifications

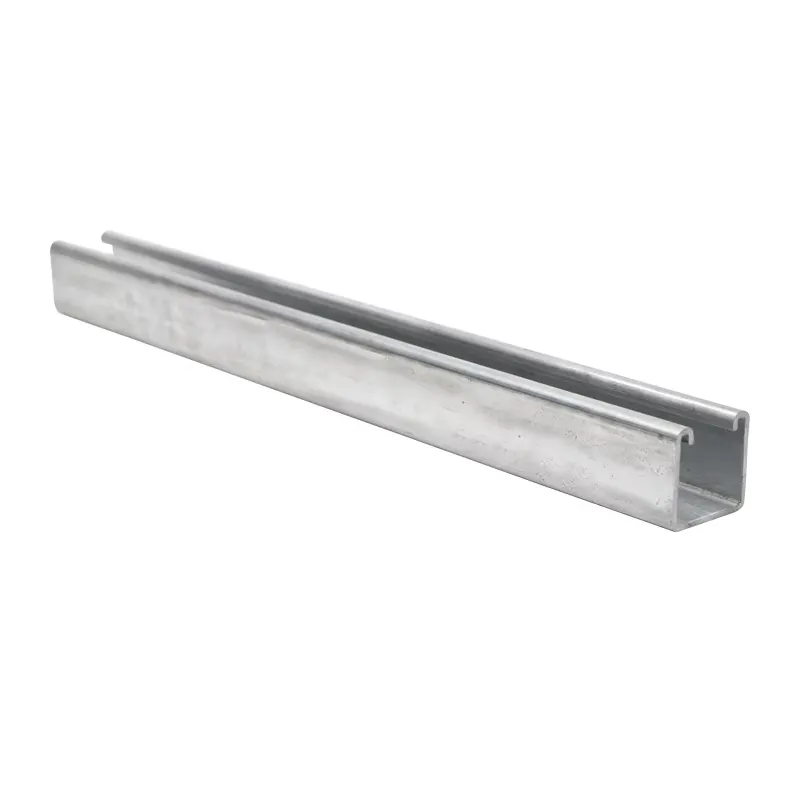

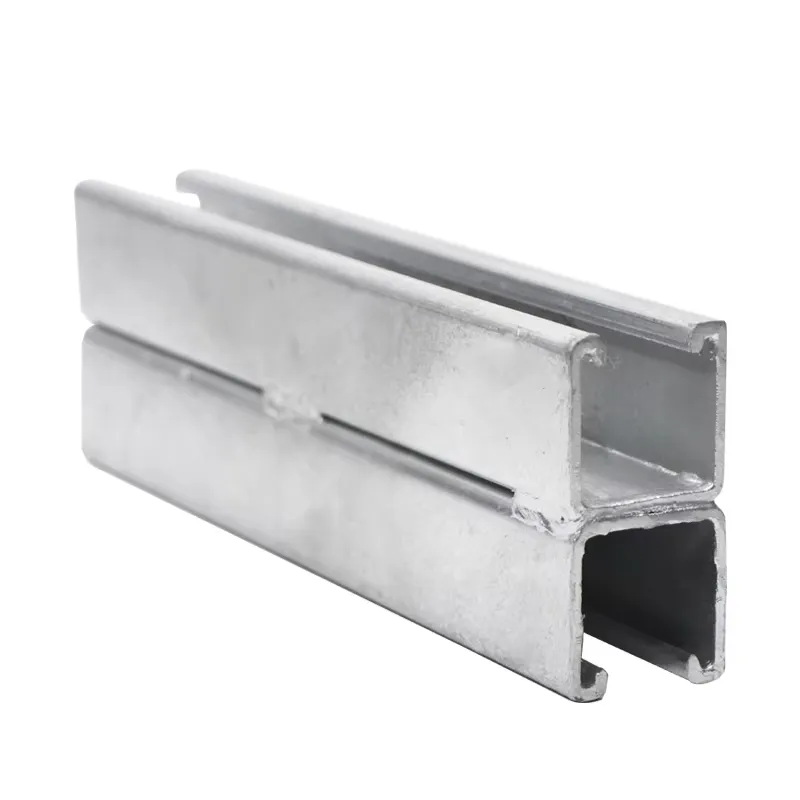

Product Name	Steel Rail for Solar mounting system
Module Orientation	Portrait or Landscape

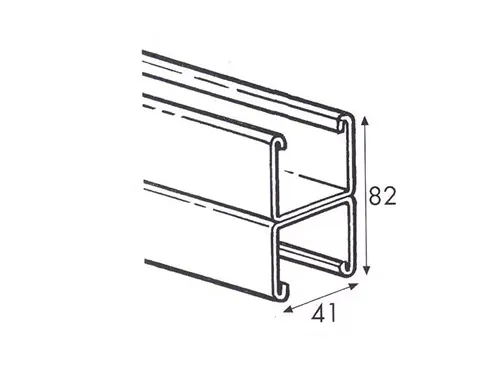

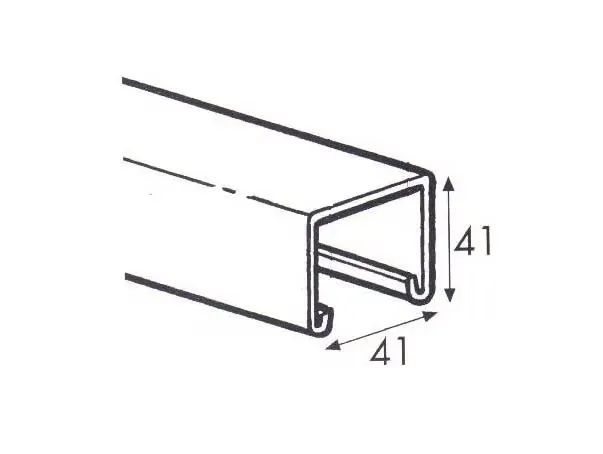

Standard Sizes	4121 / 4141 / 4152 / 4162 / 4172 / 4182 mm

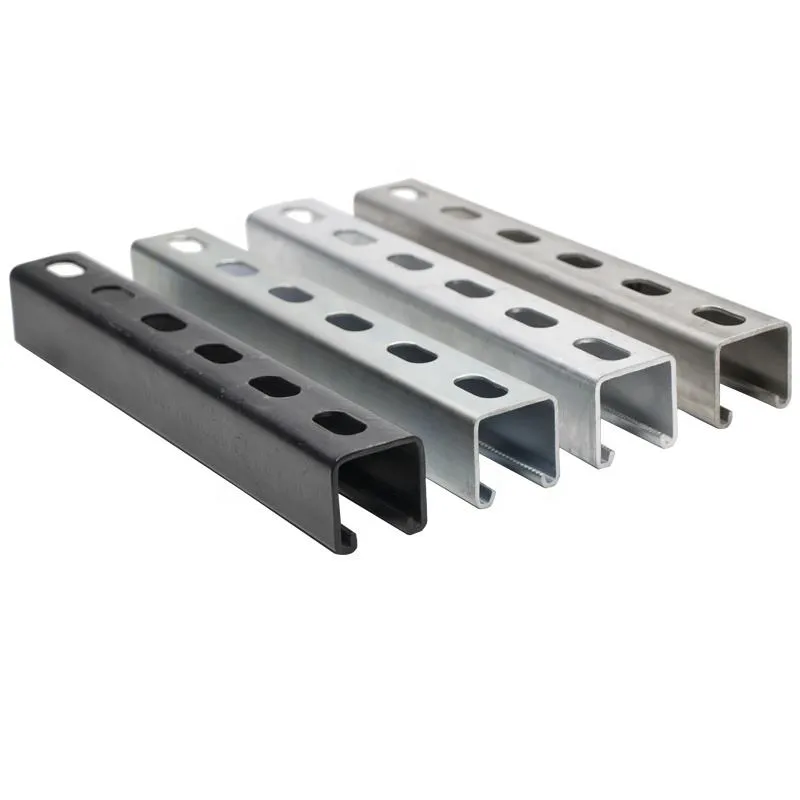

Shape Options	U Shape, C Shape, or Customized Drawings
Installation Site	Ground / Roof
Feature	Anti-corrosion, Safety, Reliability, Easy Installation

Key Advantages

Accurate Tolerance: ±0.03mm precision ensuring perfect fit for complex geometries.
Versatile Metalwork: Expertise in stamping, CNC machining, and custom profile fabrication.
Durability: High-performance parts designed for long service life in harsh environments.
Cost-Effective: Streamlined production and global logistics for competitive pricing.

Industrial Application

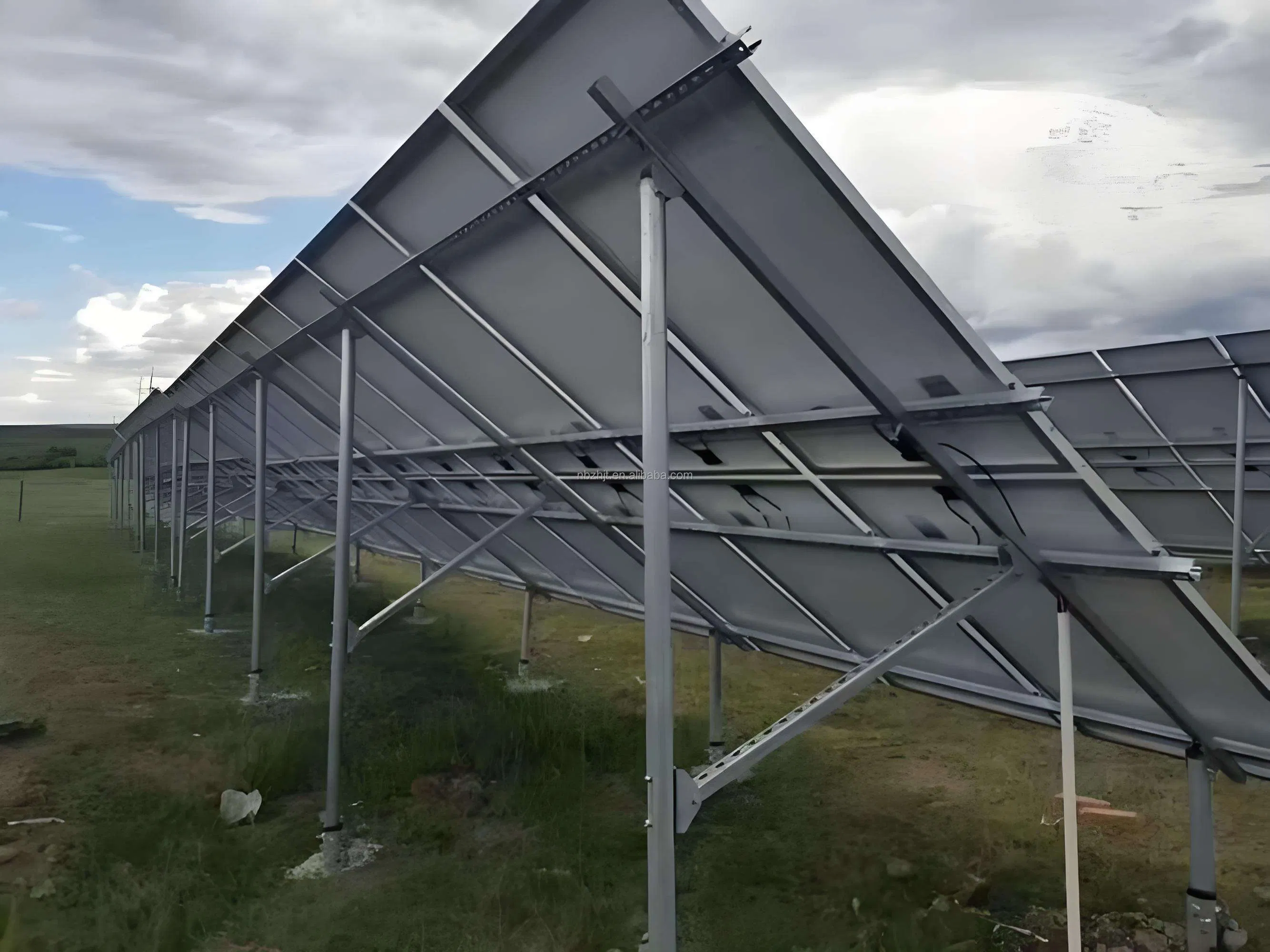

Widely applied in ground-mounted solar plants, rooftop installations, and various industrial construction sectors requiring rigid support systems.

Service & Quality Support

Standard Warranty: 12 months or 2,000 operating hours. Extended options up to 36 months.

Technical Support: 24/7 global support and remote training for maintenance.

Packing & Delivery

Package Size	500.0cm * 400.0cm * 300.0cm
Gross Weight	5.000kg
Lead Time	3 days (1-1000m) / Negotiable (>1000m)
Transport	Secure Wooden Box Packing

Frequently Asked Questions

What information is required for a formal quote?

To provide an accurate quote, please supply your product drawing or sample, including material specifications, surface finish requirements, precision tolerances, and order quantity.

What are the standard payment terms?

We offer flexible terms, typically requiring a 30% TT deposit with the remaining balance due before shipment.

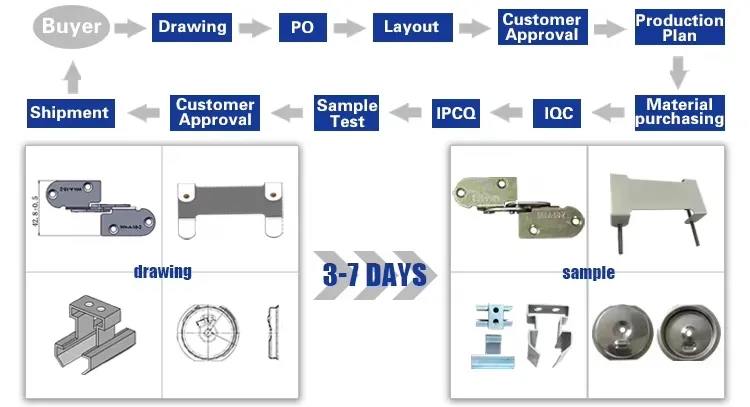

How can I track the production progress?

We provide regular updates, starting from specification confirmation and approval of samples to final 100% quality checks before dispatch.

Do you support custom fabrication?

Yes, we specialize in OEM/ODM services, including custom shapes (U, C, or special profiles), specific lengths, and various finishes like powder coating or anodizing.

What is the typical delivery time?

Standard items usually ship within 3-7 days. For custom or large volume orders, the lead time is approximately 10 days, depending on requirements.

How is after-sales service handled?

We collect feedback post-delivery and our engineering team remains available to address any technical queries or integration issues you may encounter.
