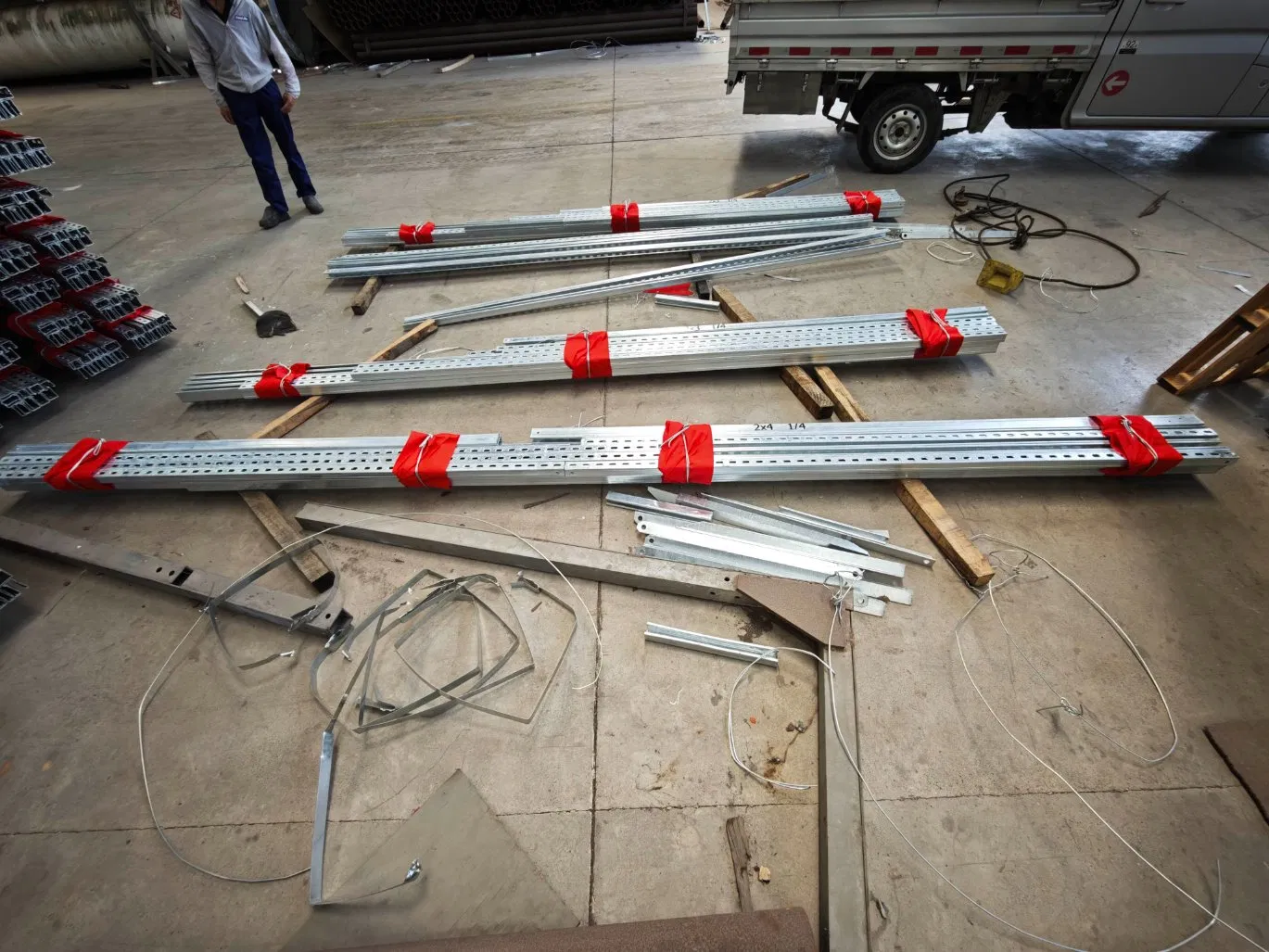

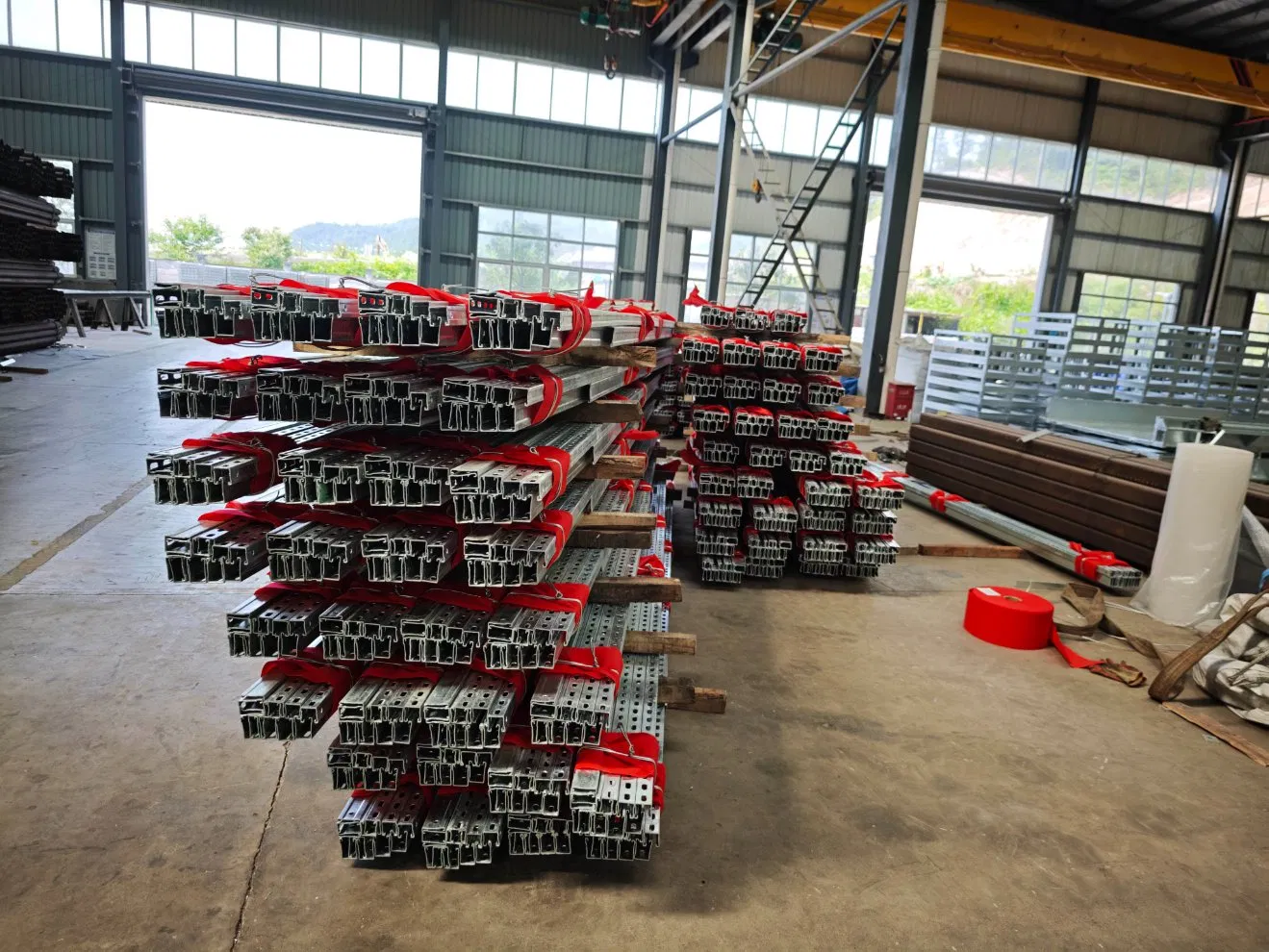

Durable HDG Solar Mount Bracket for 8 Panels, 10° Tilt

1 / 5

Durable HDG Solar Mount Bracket for 8 Panels, 10° Tilt

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

Basic Info.

Model NO.

Solar Panel Bracket

Standard

Material

Steel Structure

Belly Bar Shape

Cross Type

Certification

ISO, CE

Condition

New

Height

10-200m

Lifetime

20-30years

Surface Treatment

Hot-DIP Galvanized

Color

Orange and White

Specification

Material: Q235B & Q355B

Production Capacity

3500tons/Year

Product Description

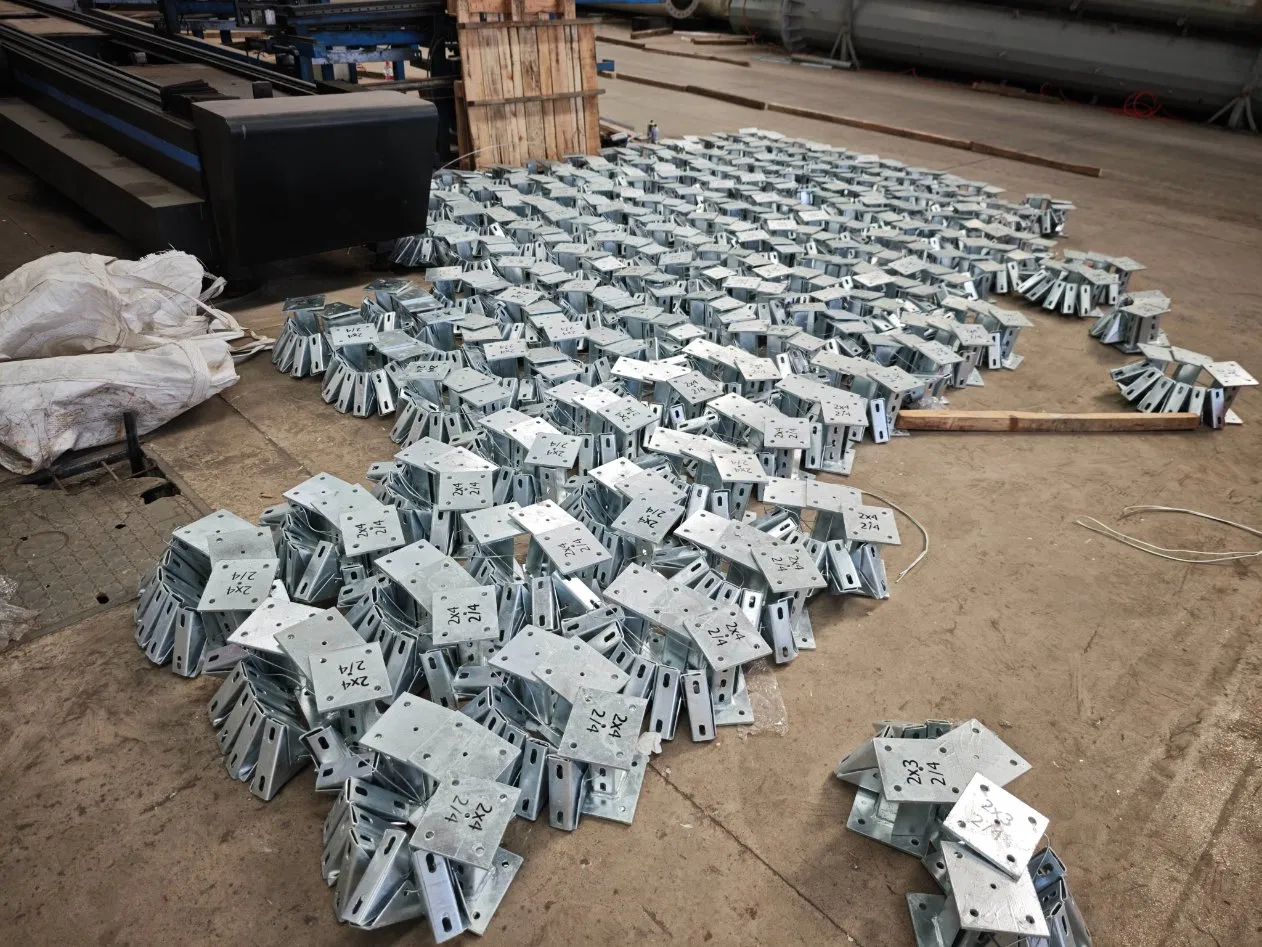

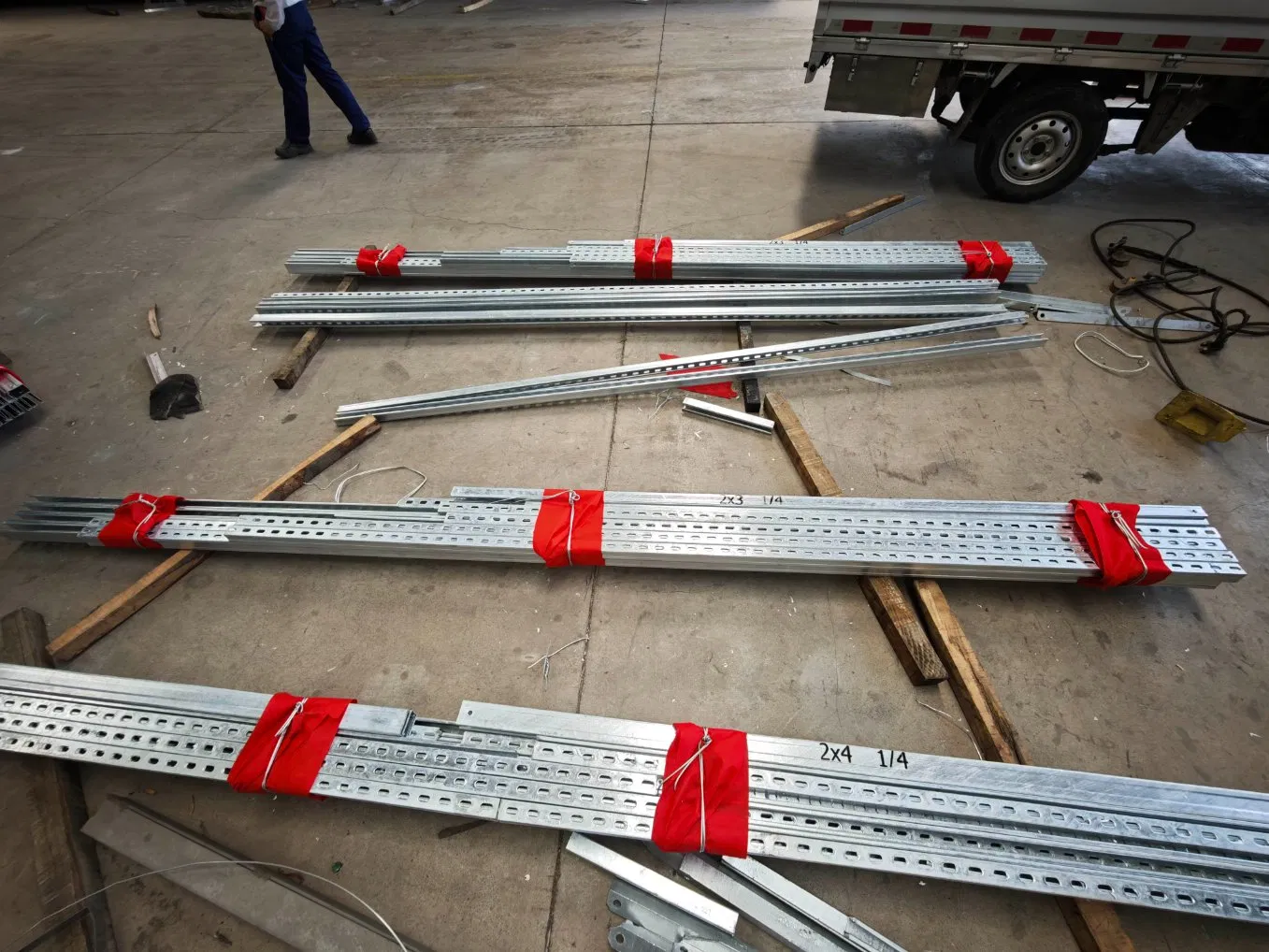

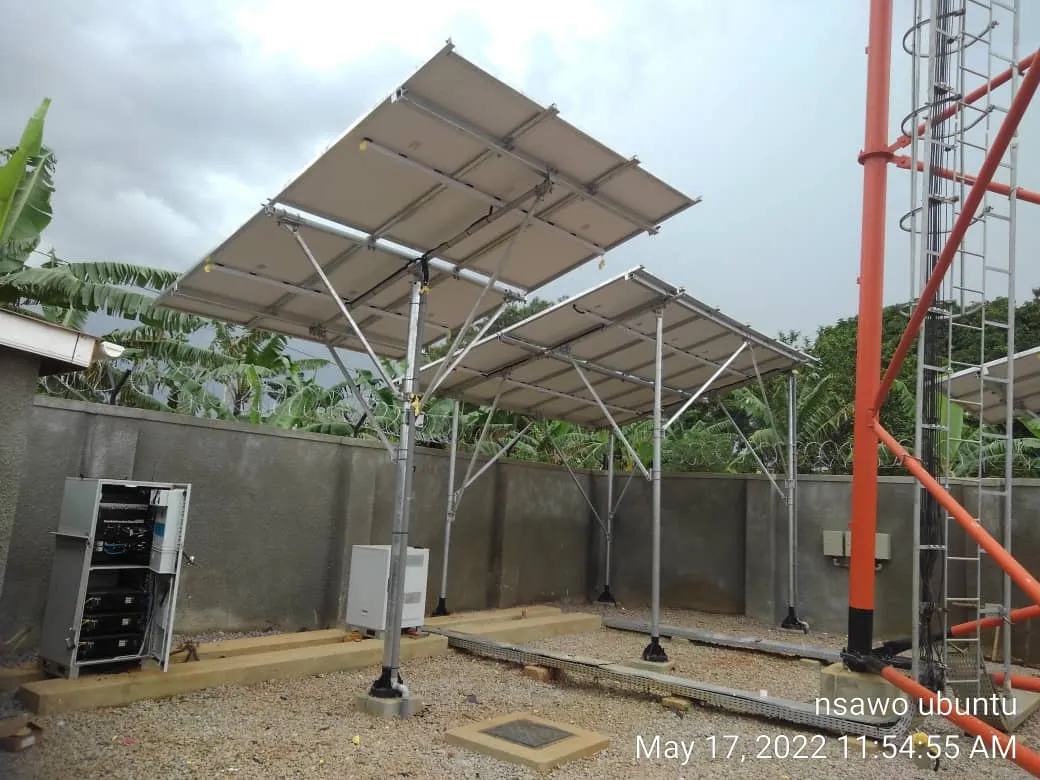

HDG Solar Structure/Mount/Bracket

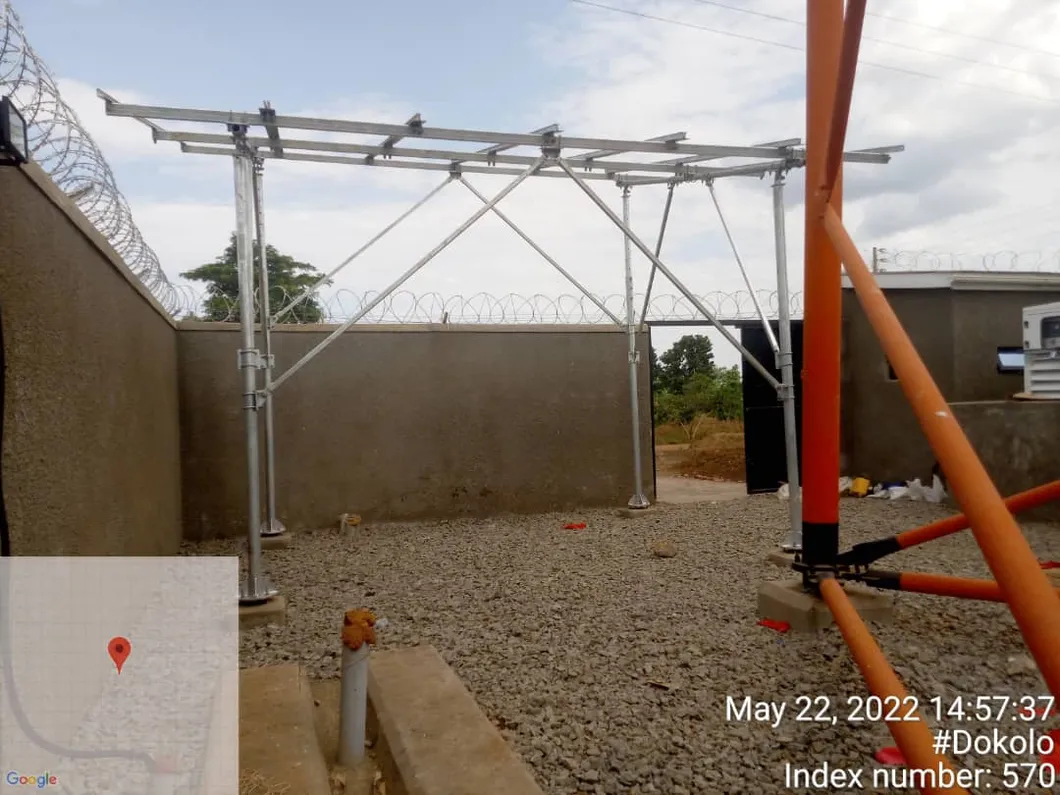

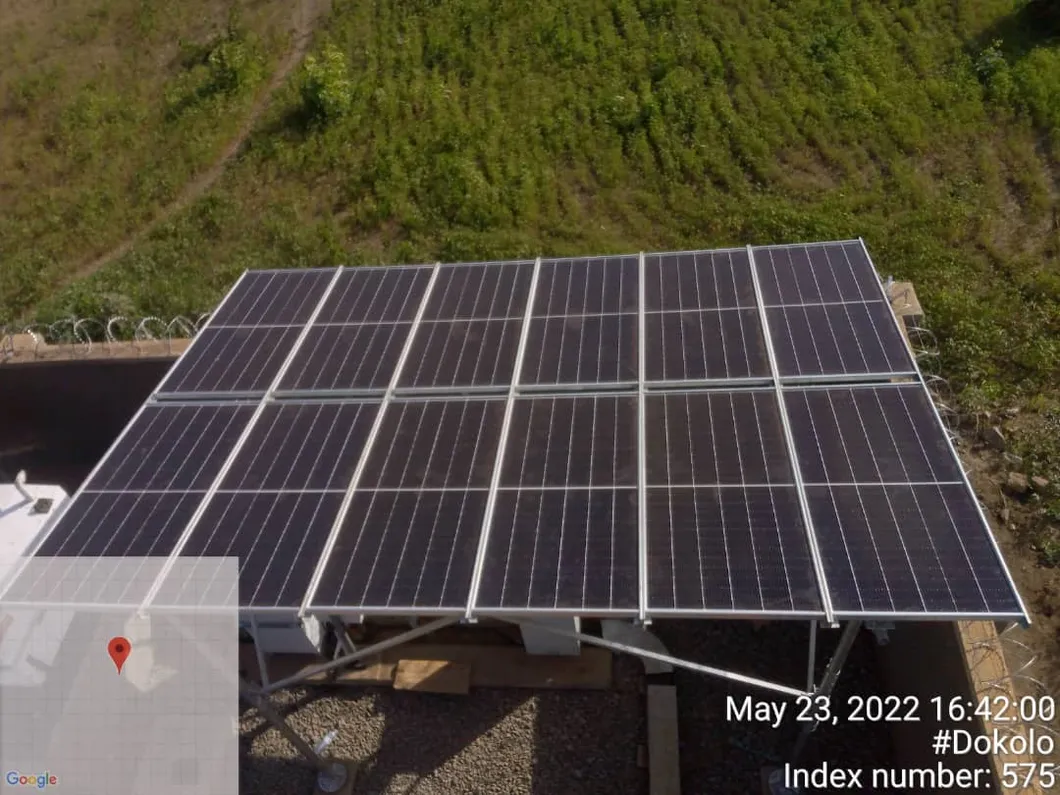

Fits 8 Panels (2x4) with Fixed Tilt Angle: 10 degree. Rated for Wind Speed: 40m/s.

No.	Description	Detailed Specification and Parameters
1	Design Code	ANSI/TIA222G, European Standard and others
2	Design Loading	1. Antenna load area as per specified. 2. Wind speed as per requested. 3. Deflection & Twist Angle as per specified.
4	Structure Classification	II
5	Hot-dip galvanization	ISO 1461 2009, ASTM A123
6	Steel Grade	1. Q420B (ASTM Gr60) 2. Q345B (ASTM Gr50 / S355JR) 3. Q235B (ASTM A36 / S235JR)
7	Bolts and Nuts	ISO 898 grade 6.8 and 8.8
8	Foundation	50KPa, 100KPa, 150KPa bearing capacity
9	Tower Type	Self-supported Angular/Tubular Towers, Guyed Mast, Monopole, Rooftop Towers, Smart Poles
10	Warranty	Tower structures: 10 years; Barks: 10 years; Branches/leaves: 3 years

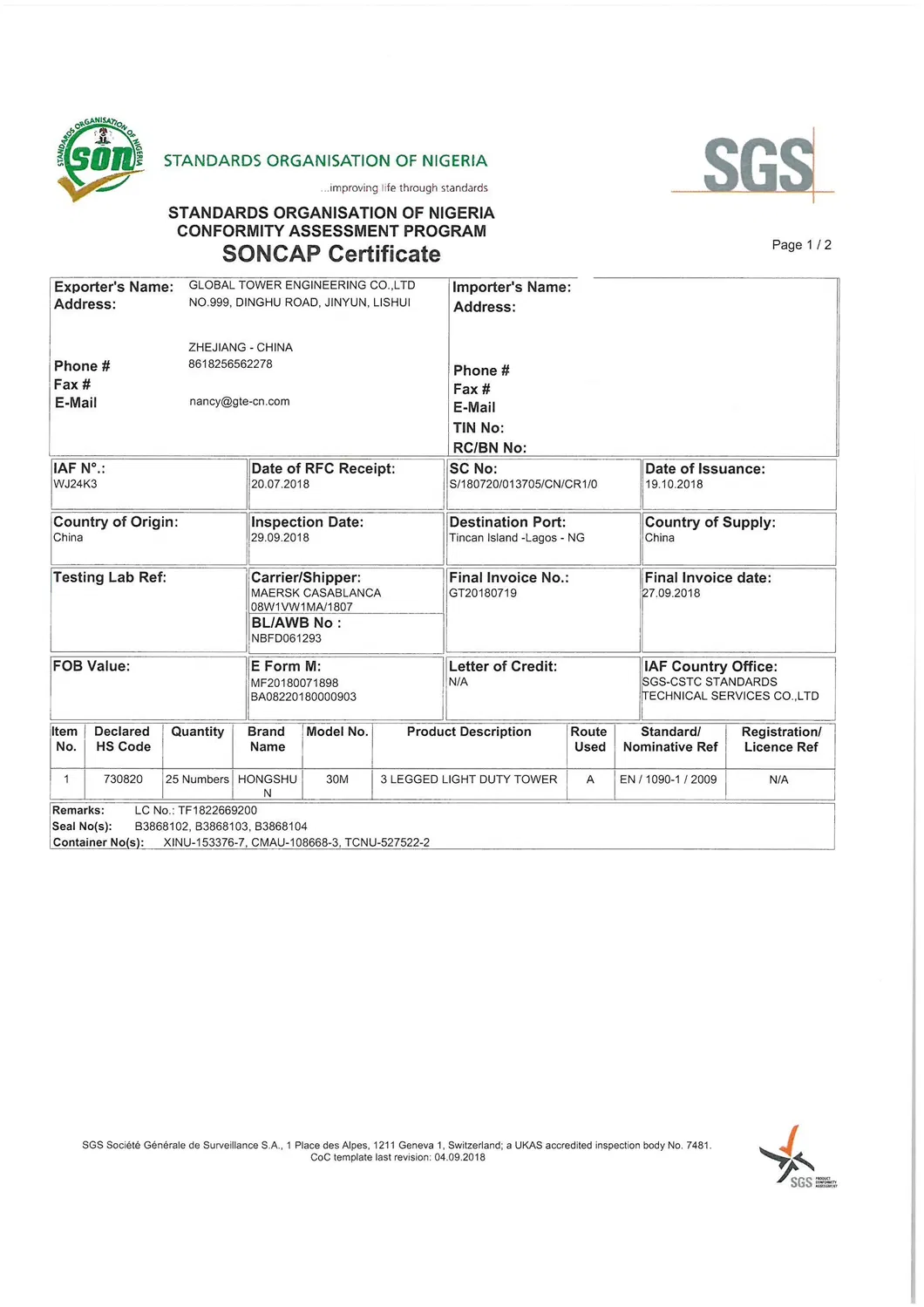

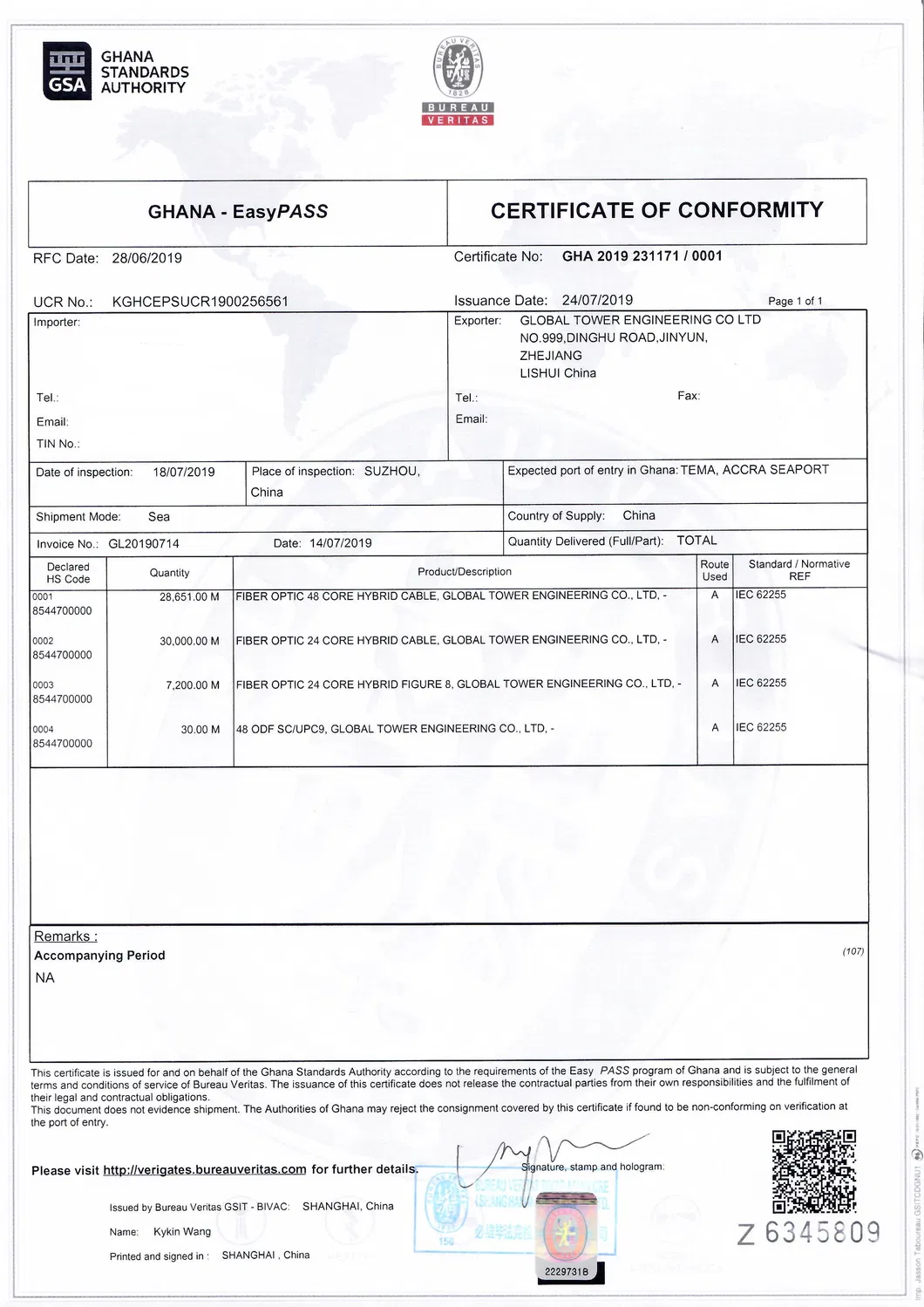

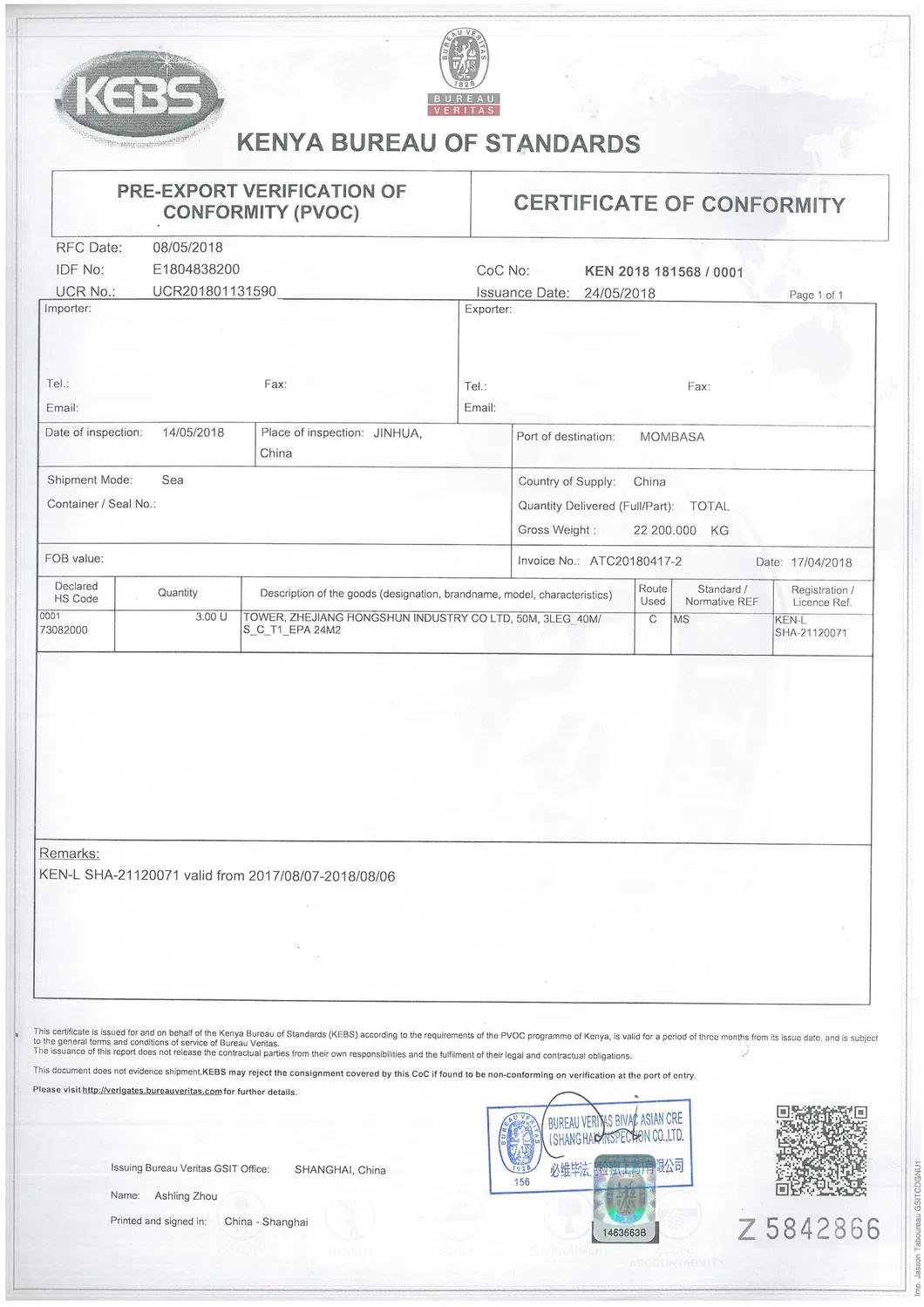

Certifications

Company Qualification

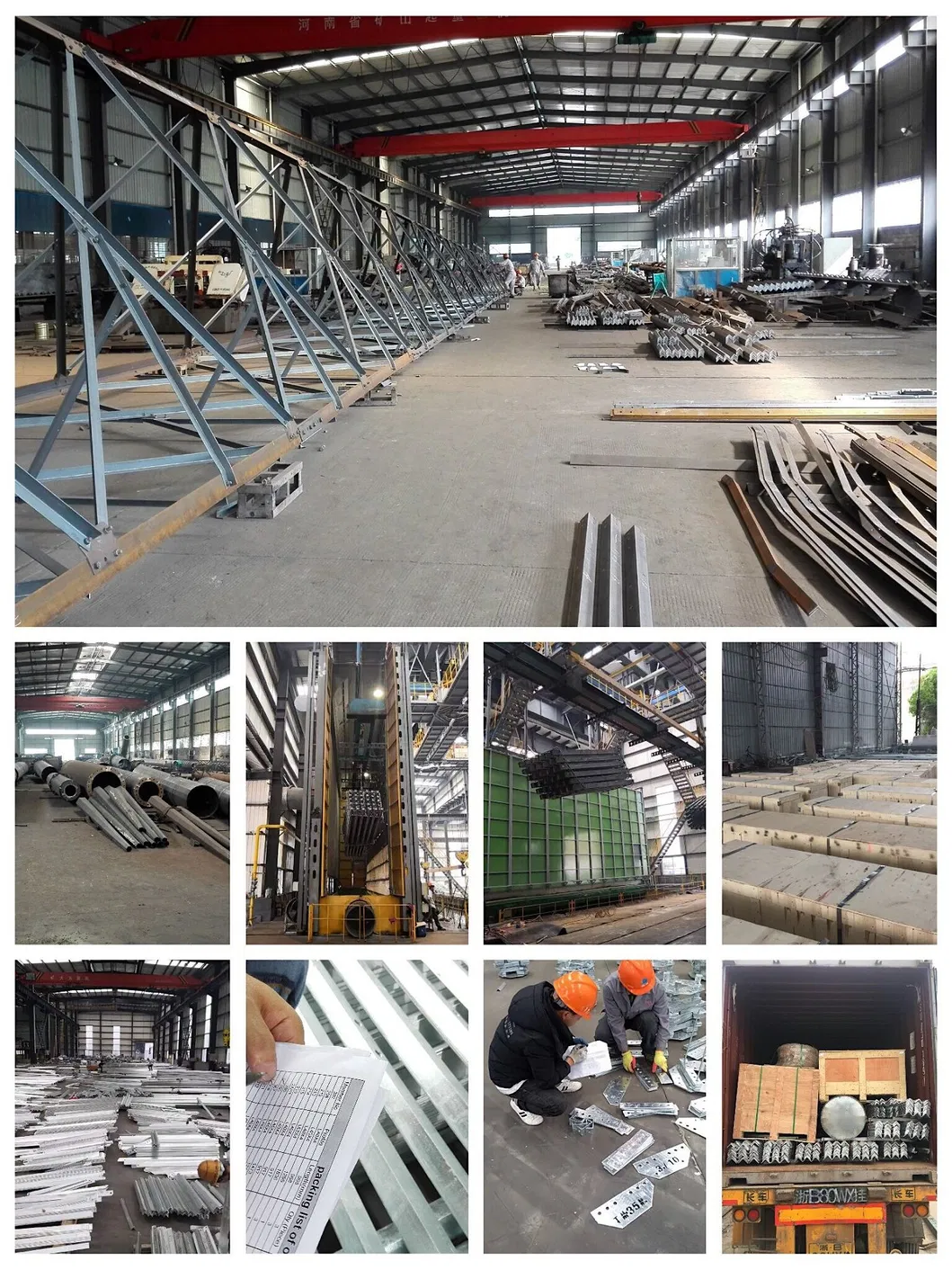

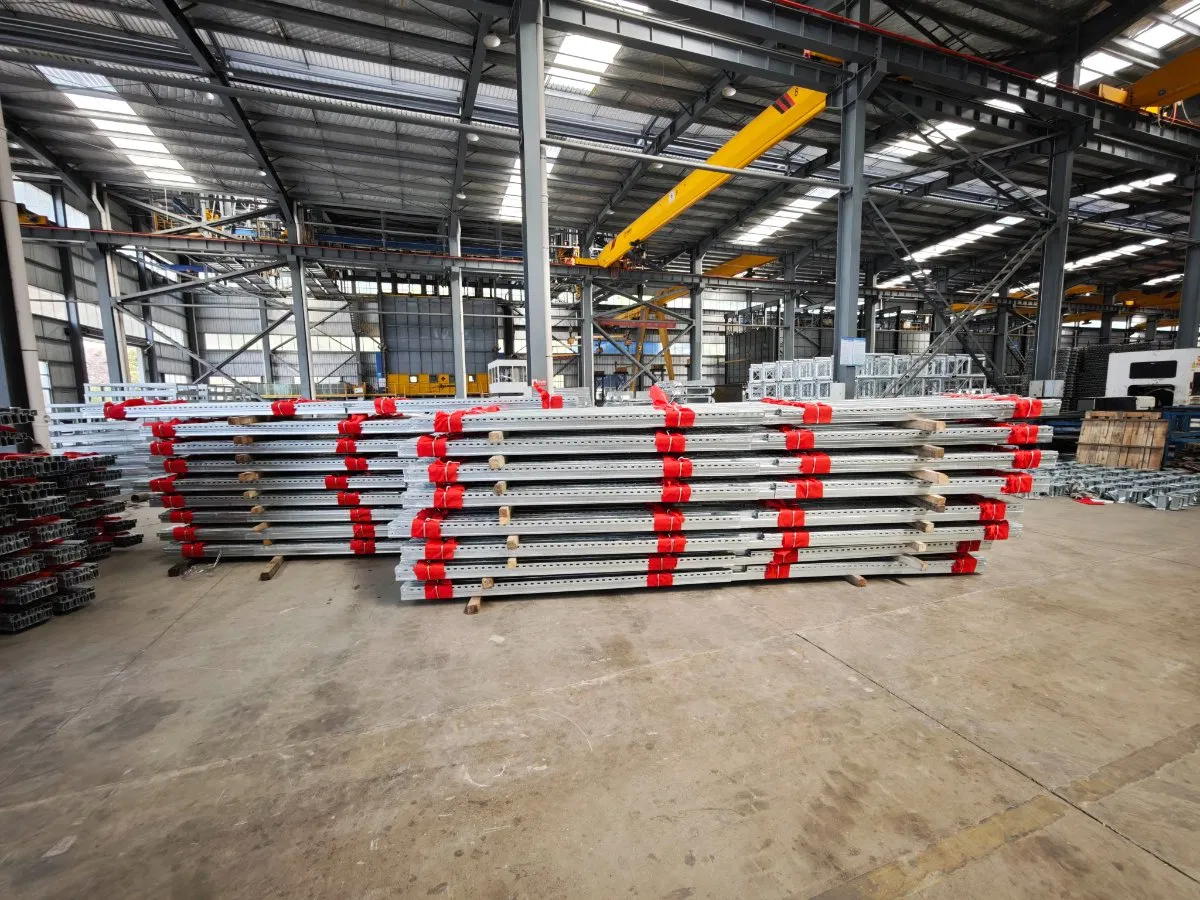

Our Factory

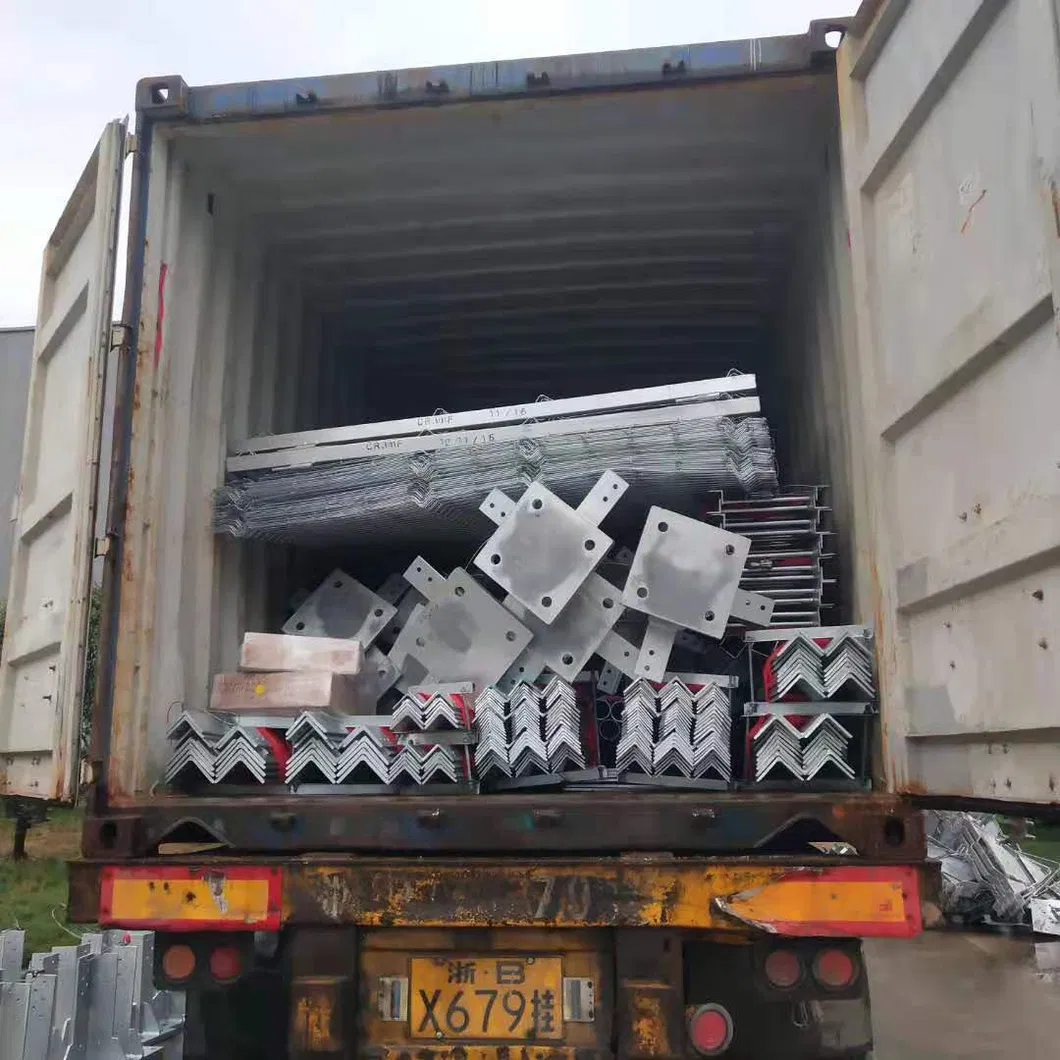

Packaging & Shipping

Our Advantages

Rich Industry Experience: Long-term engagement in production ensures high professionalism, good quality, and a wide category of products to meet various customer needs.

Global Export Expertise: Extensive experience in foreign trade, having exported to over 70 countries worldwide.

Customer Satisfaction Focus: We strive for excellence in every project, gaining the trust of our clients as our primary goal.

Frequently Asked Questions

Q1: What is the expected lifetime of your solar panel brackets? A: Our Hot-DIP Galvanized steel structures are designed for a long service life of 20 to 30 years.

Q2: Which materials are used in the construction of the brackets? A: We primarily use high-quality steel structures, specifically Q235B and Q355B steel grades, which are known for their durability and strength.

Q3: Are these structures resistant to high wind speeds? A: Yes, our solar mounts are engineered to withstand wind speeds of up to 40m/s.

Q4: What kind of surface treatment do you apply for corrosion resistance? A: All components undergo Hot-DIP Galvanization as per ISO 1461 standards to ensure maximum protection against environmental elements.

Q5: What certifications do your products hold? A: Our production processes and products are certified under ISO and CE standards, ensuring international quality compliance.

Q6: Can the design be customized according to specific site requirements? A: Yes, we follow various design codes like ANSI/TIA222G and can adjust parameters like antenna load area and topographic categories as requested.
