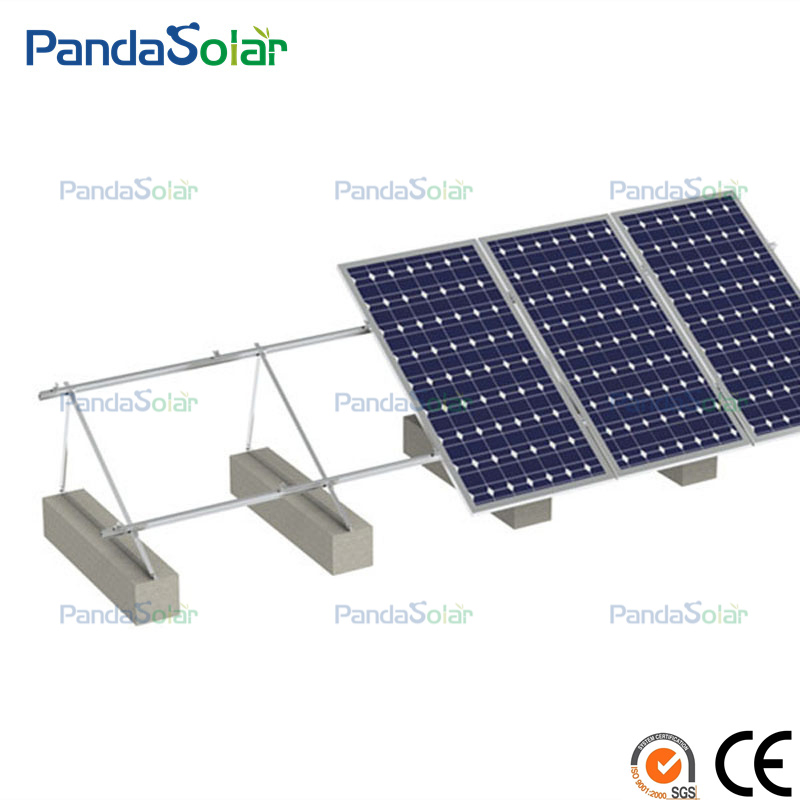

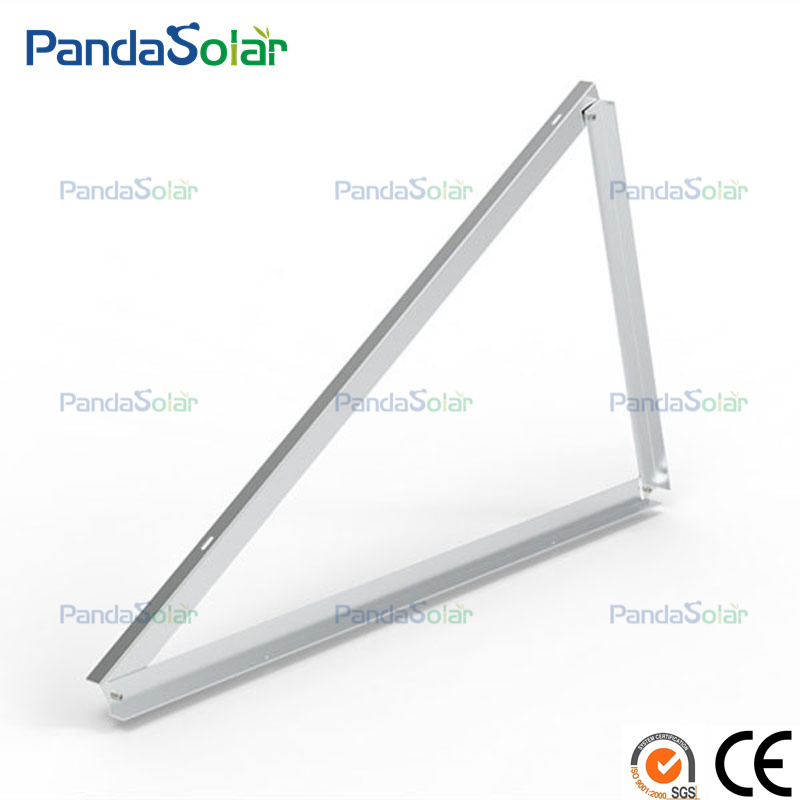

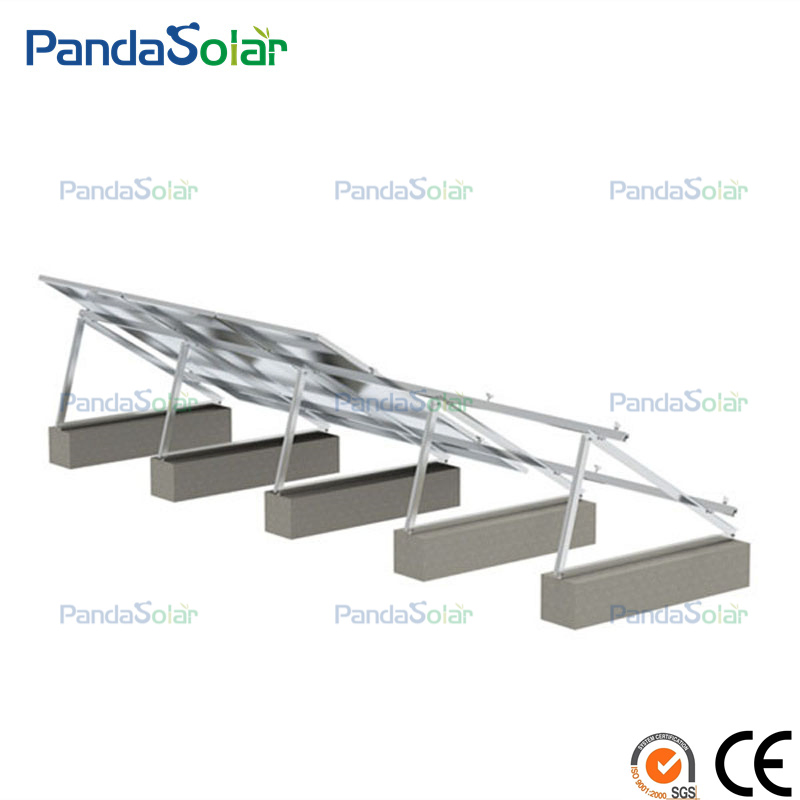

Flat Roof PV Mounting System Structures Aluminum Triangle Solar Brackets Easy Installation

1 / 5

Flat Roof PV Mounting System Structures Aluminum Triangle Solar Brackets Easy Installation

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

Basic Information

Model NO.PD-RM-01

CertificationCE

ApplicationCommercial

MaterialAluminum Alloy

TypeRoof Bracket

ColorSilver/Black

Snow Loadup to 1.4 Kn/M2

Wind Speedup to 60 M/S

Surface TreatmentAnodized

Lead Time7-15 Days

Packaging & Delivery

Package Size2.10cm * 1.10cm * 2.00cm

Package Gross Weight50.000kg

Product Description

The ground mounting system is a universal adjustable angle column installation system. The patented track has good component compatibility and convenient installation, which saves users installation time and costs, and strict quality control to ensure product performance and lifespan, the system can be compatible with most photovoltaic brackets on the market.

Our Advantages

✔

Accept OEM

📐

Great flexibility in different designs. Tailor the perfect solution for clients

🚀

Fast delivery, urgent orders can arrange expedited production

💰

Ex-work Price. High quality and low price products

🏷️

Accept LOGO printing. Increase brand influence

Detailed Photos

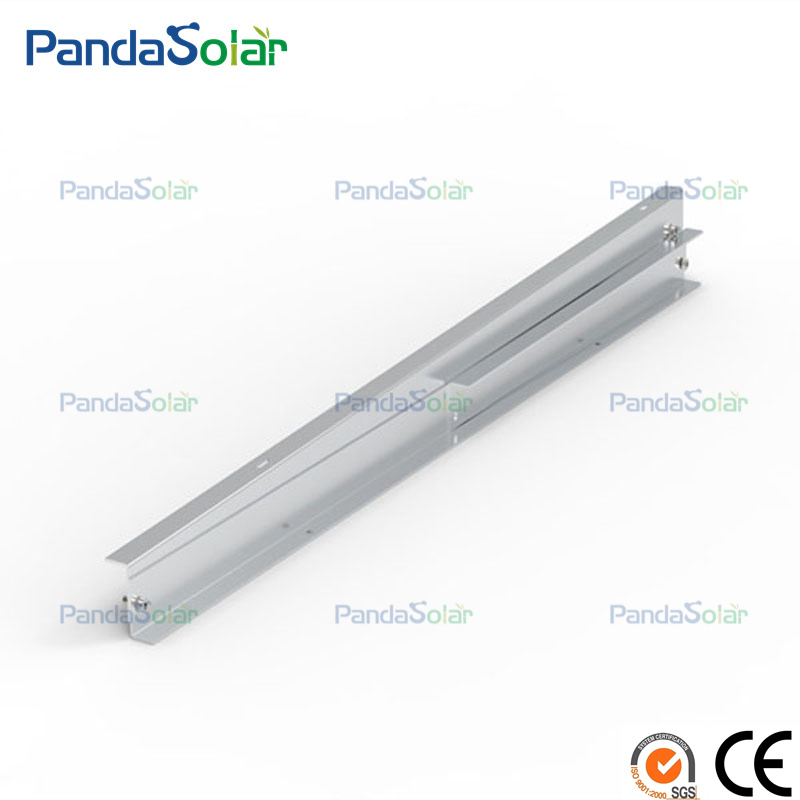

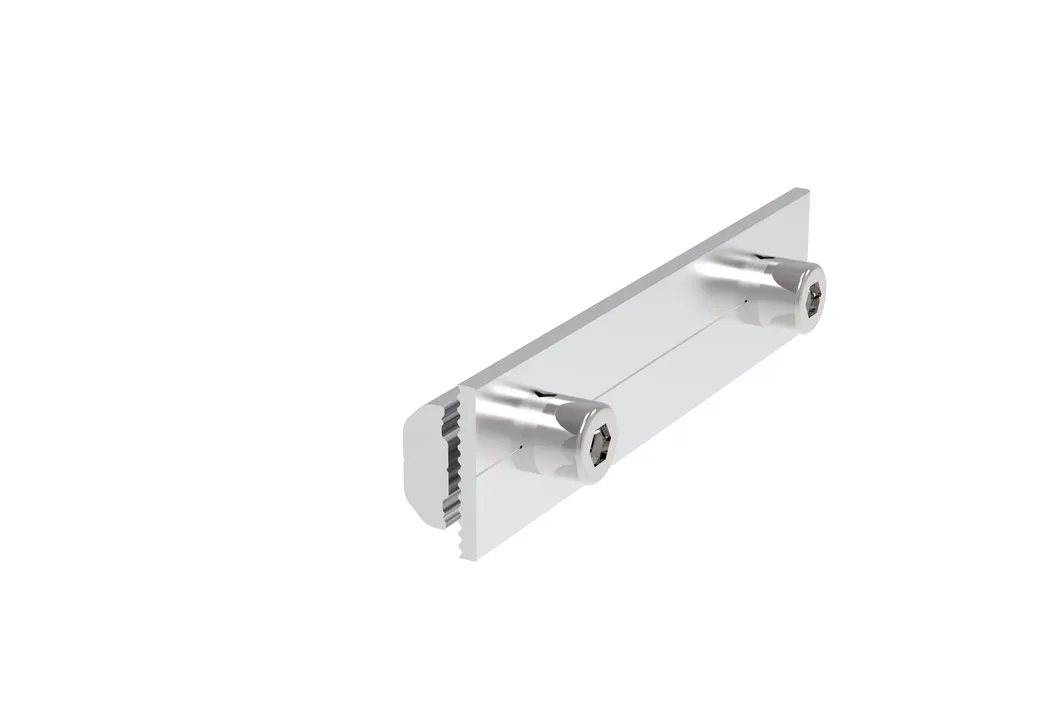

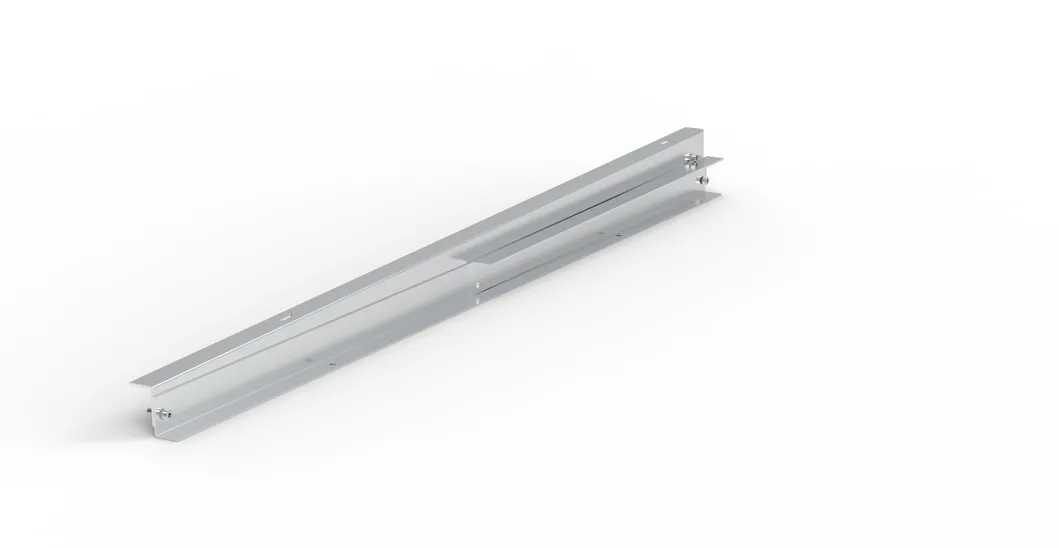

COMPONENTS - HIGHLY PRE-ASSEMBLED

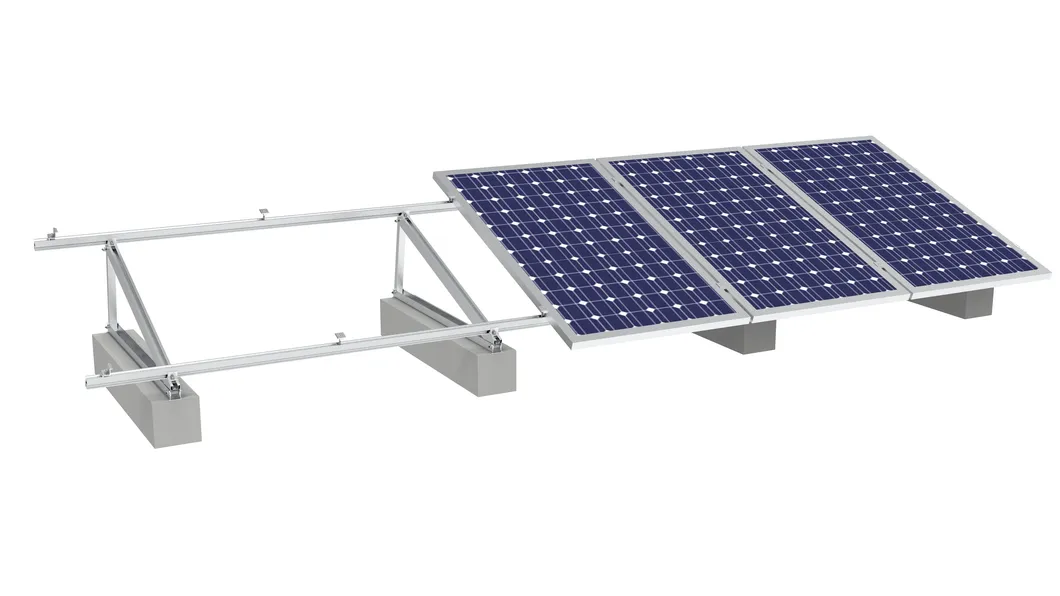

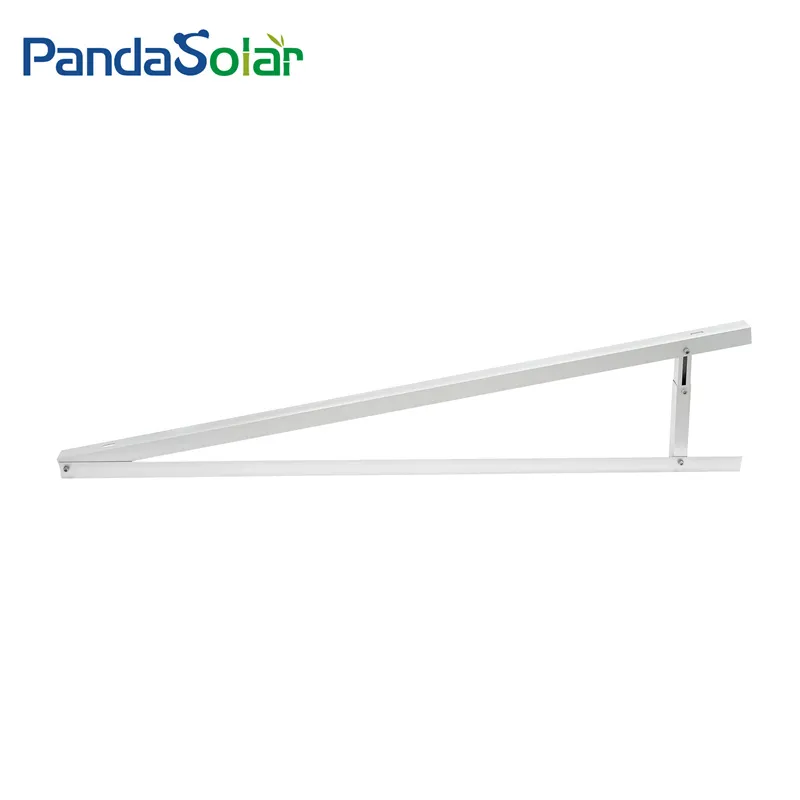

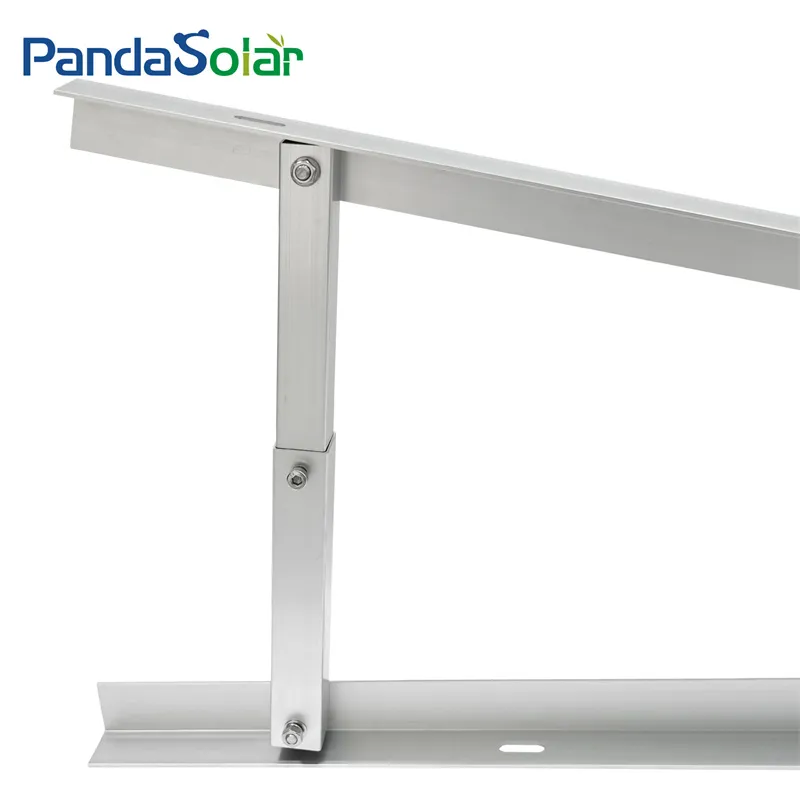

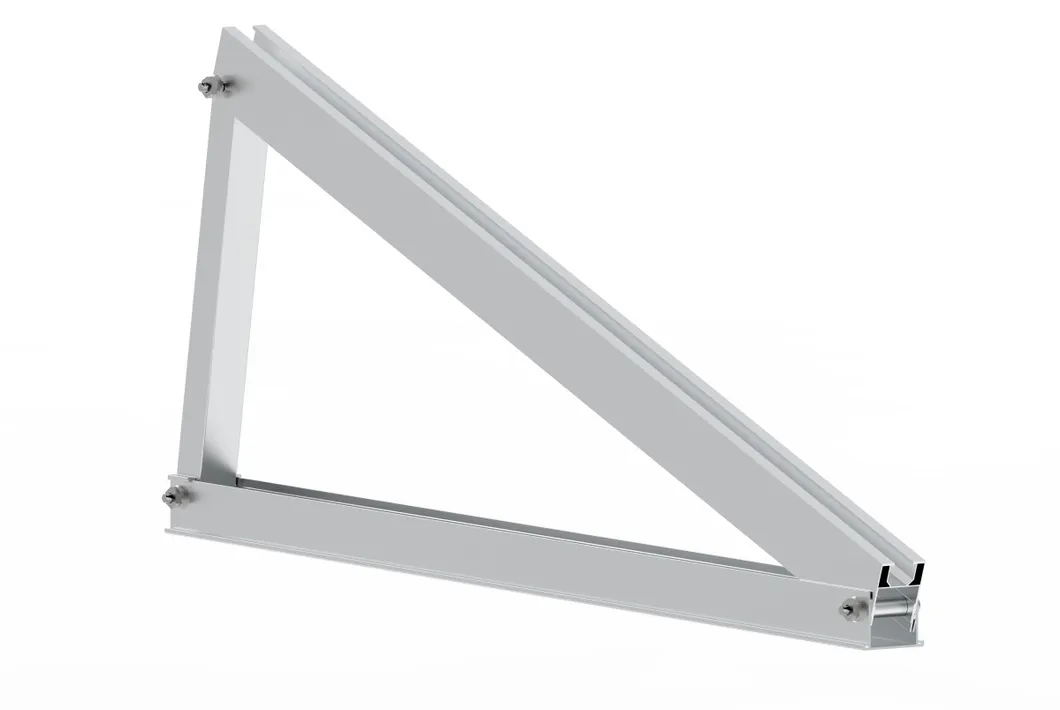

SIMILAR DESIGN FOR REFERENCE

Parameters and Specifications

Feature	Details
Item No.	PD-TM01
Material	Structure: AL6005-T5(Anodized) Components: AL6005-T5 / SUS304 / Q235B
Surface Treatment	Anodized
Application	Solar Flat Roof Mounting
Wind Speed	0-45 m/s
Snow Load	0-150cm
Design Standard	AS/NZS 1170, DIN 1055, JIS C8955: 2017, IBC 2009
Warranty	12 years
Service Life	30 years
Port of Loading	Xiamen Port

Installation Steps

EASY INSTALLED ONLY NEED THREE STEPS:

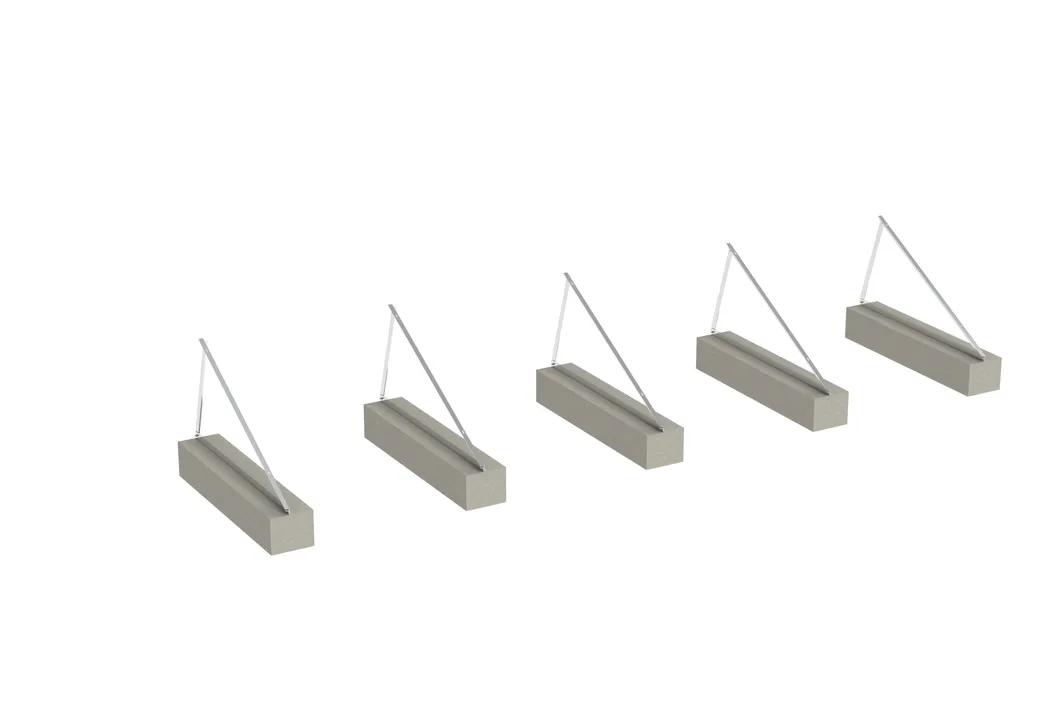

STEP 01

Unfold the pre-assembled triangle structure and then fasten it onto the concrete foundation by right angle screws.

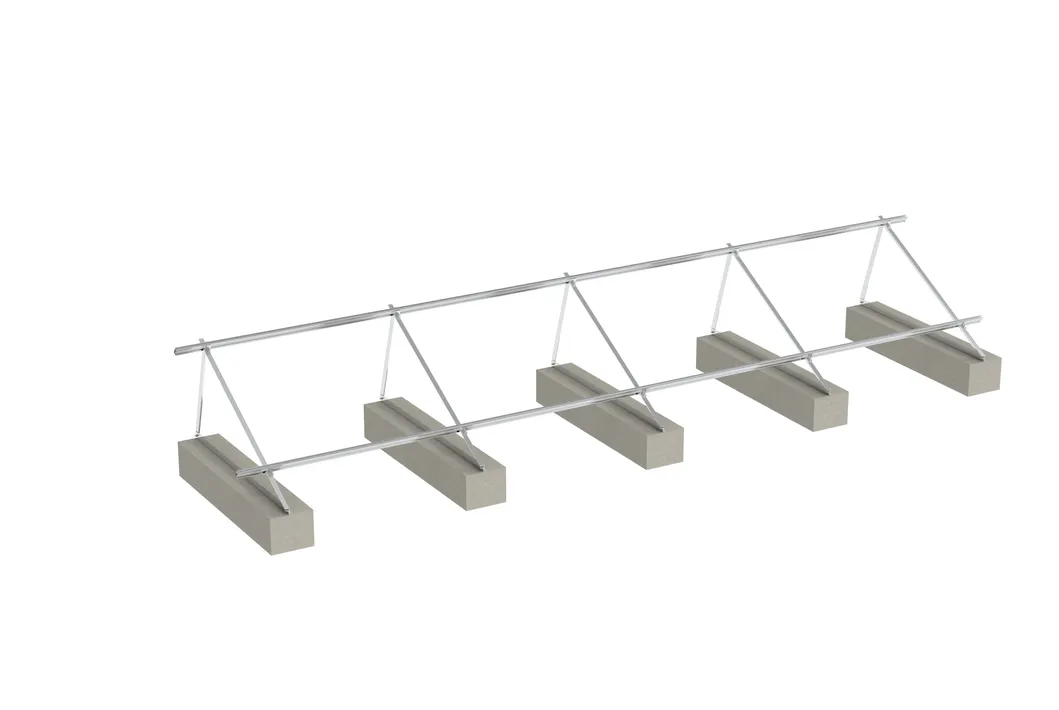

STEP 02

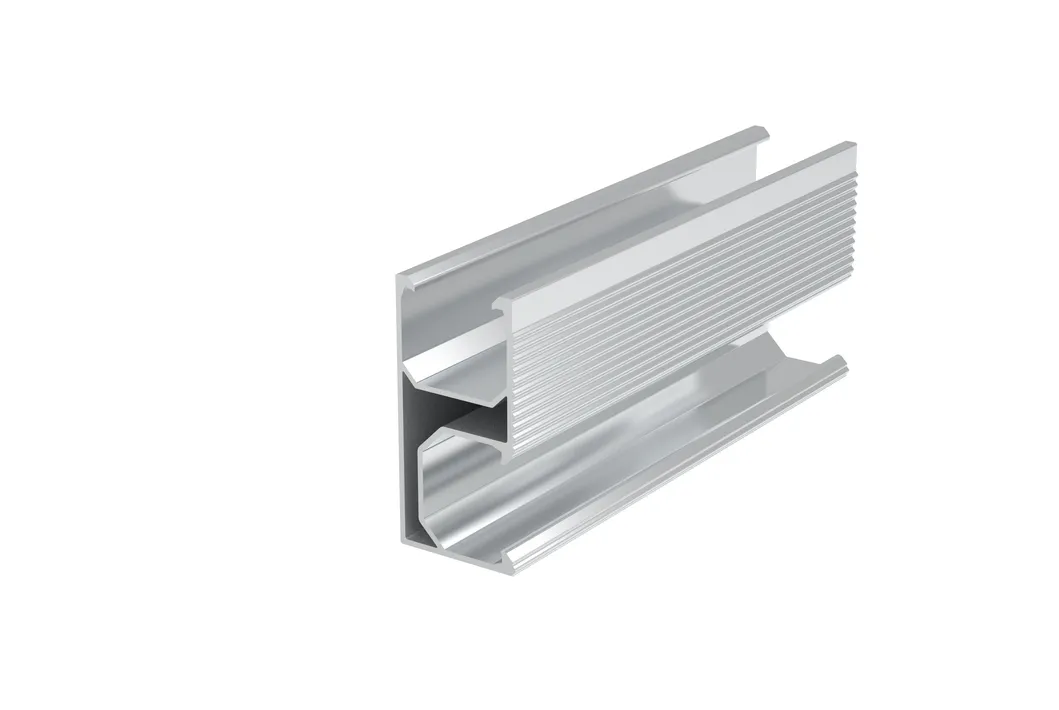

Attach matched R50 rail on the triangle system fixed by solar rail clamp.

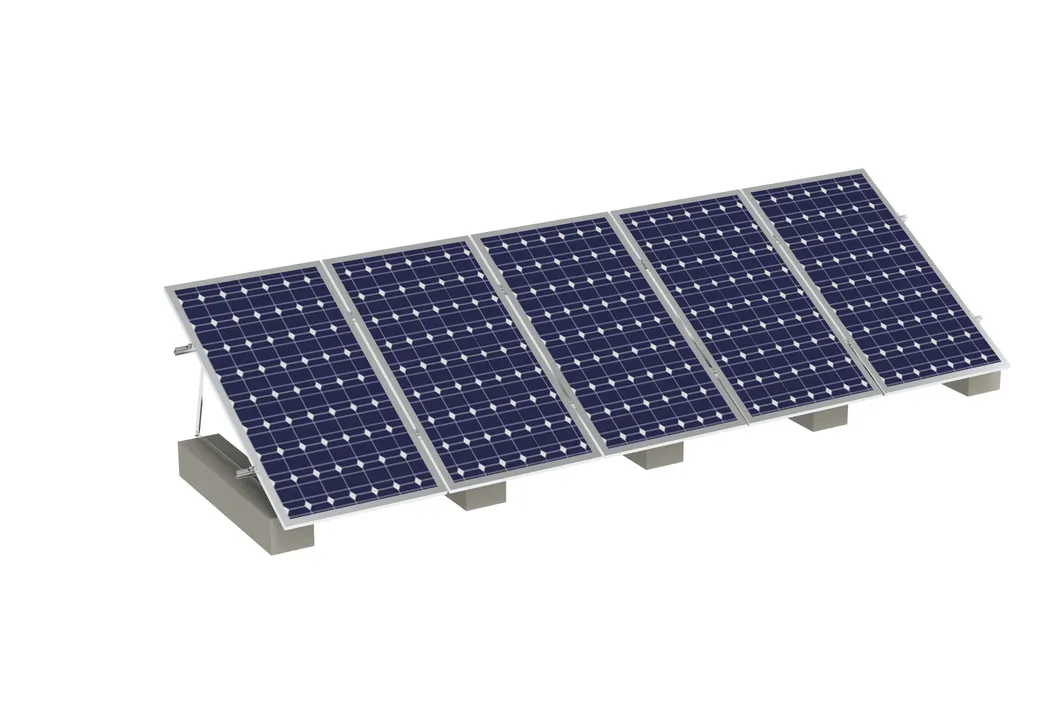

STEP 03

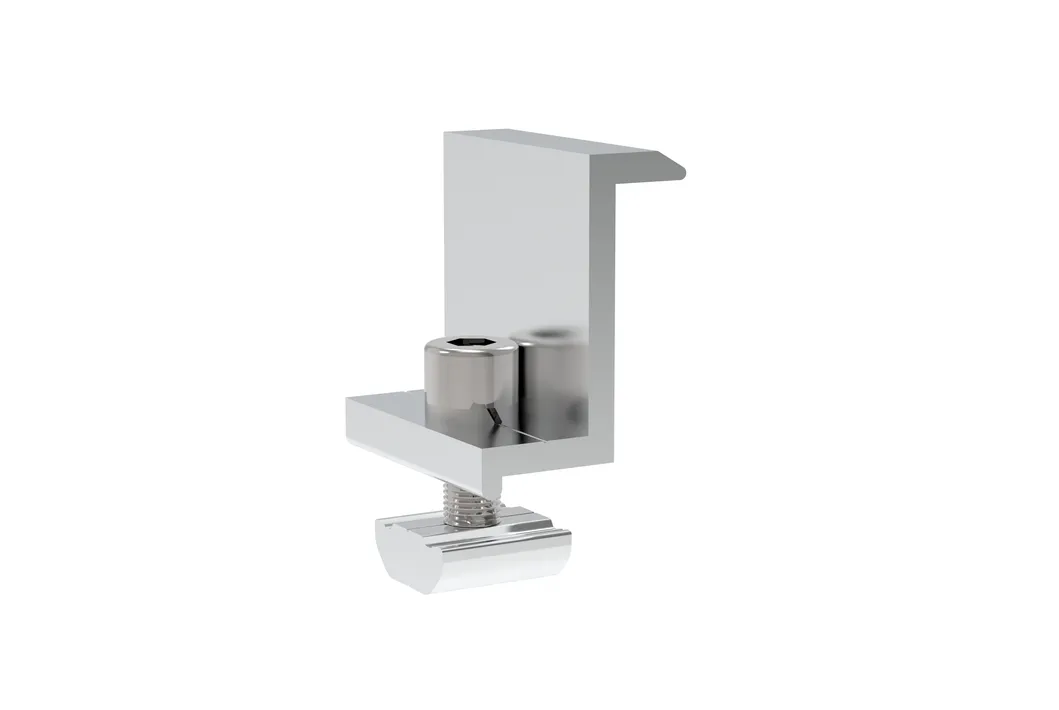

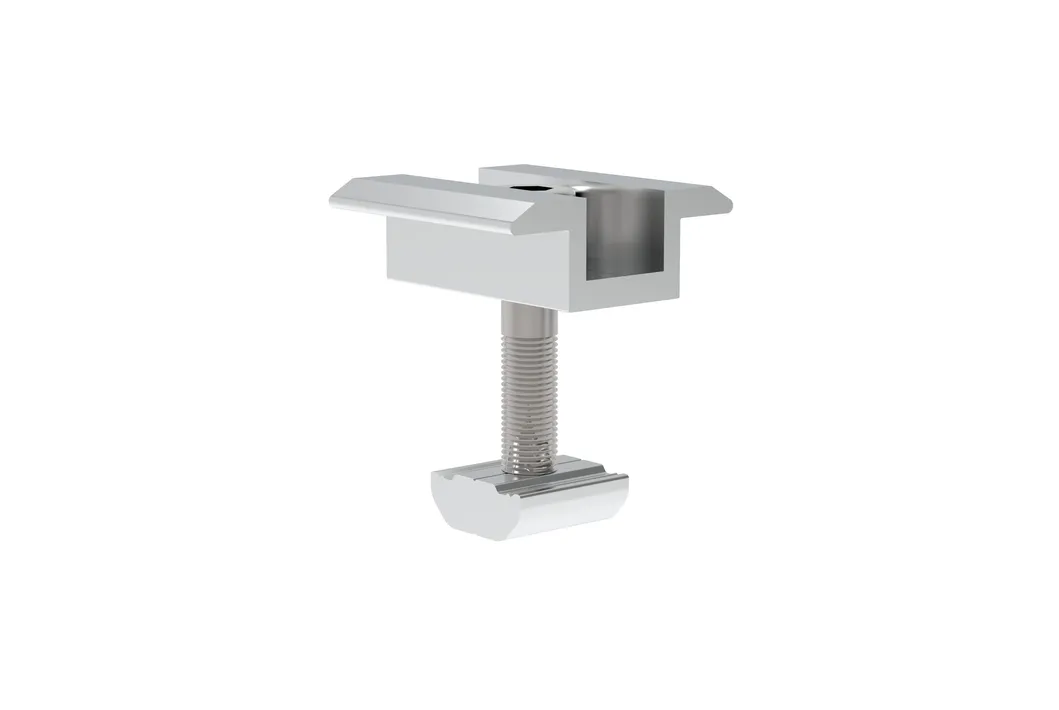

Install solar panels on the solar rails and using solar mid clamp and solar end clamp to lock.

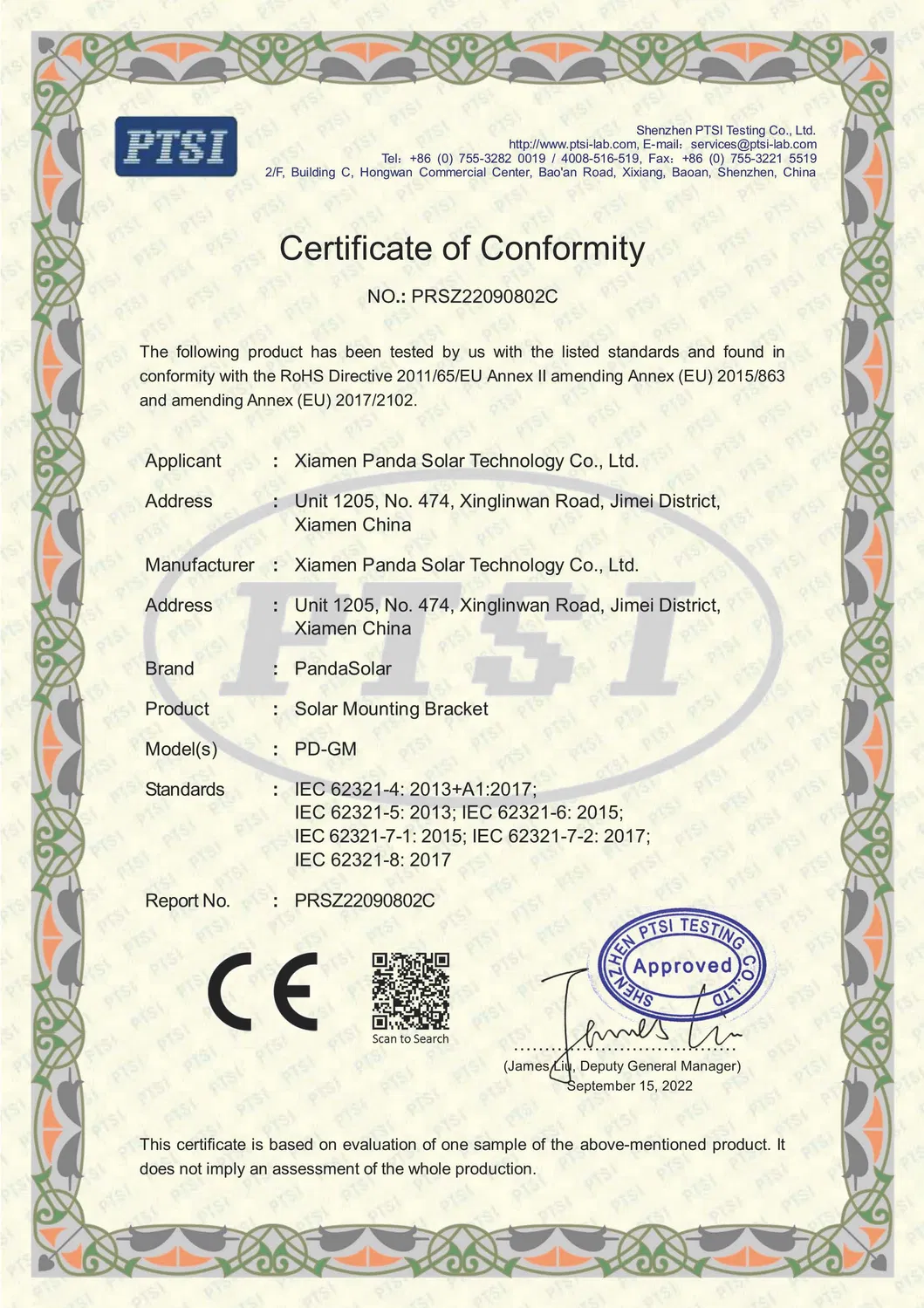

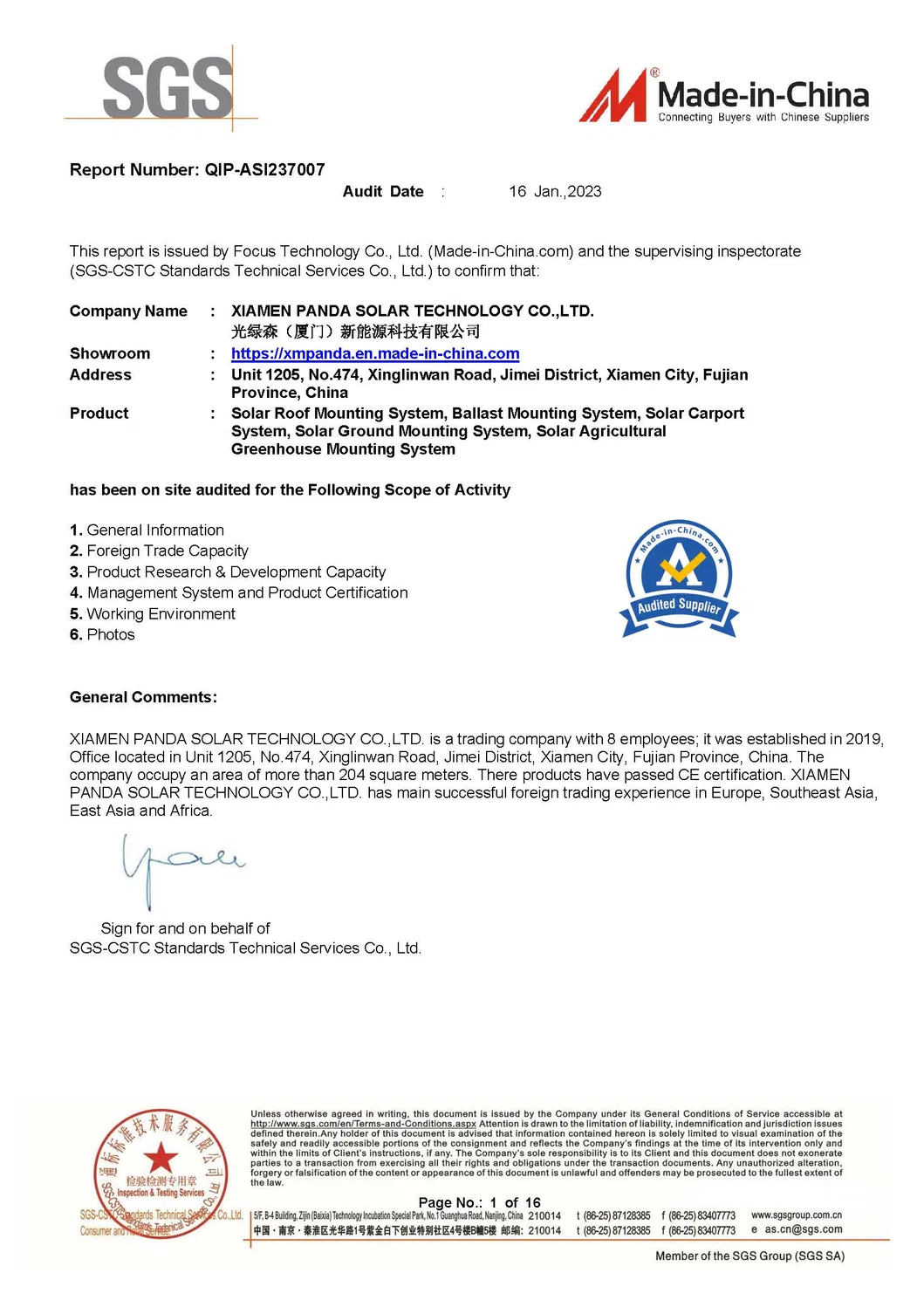

Certifications

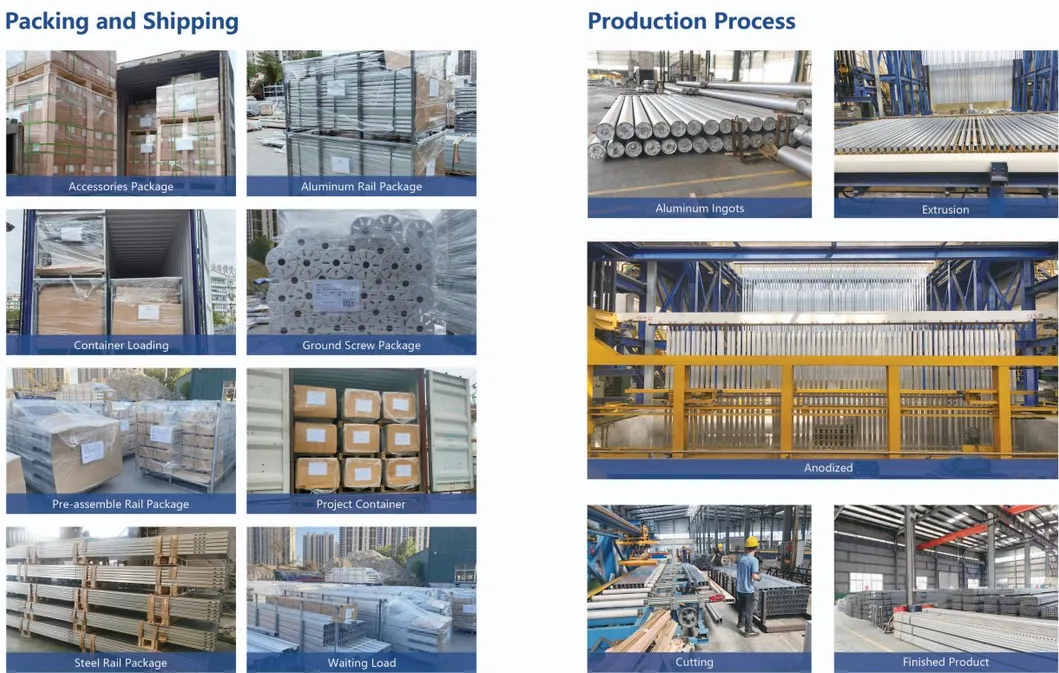

Packing and Factory

Each item is packed in cartons, several cartons are packed on plates to provide adequate protection. Our packages are designed to meet international shipping standards and regulations.

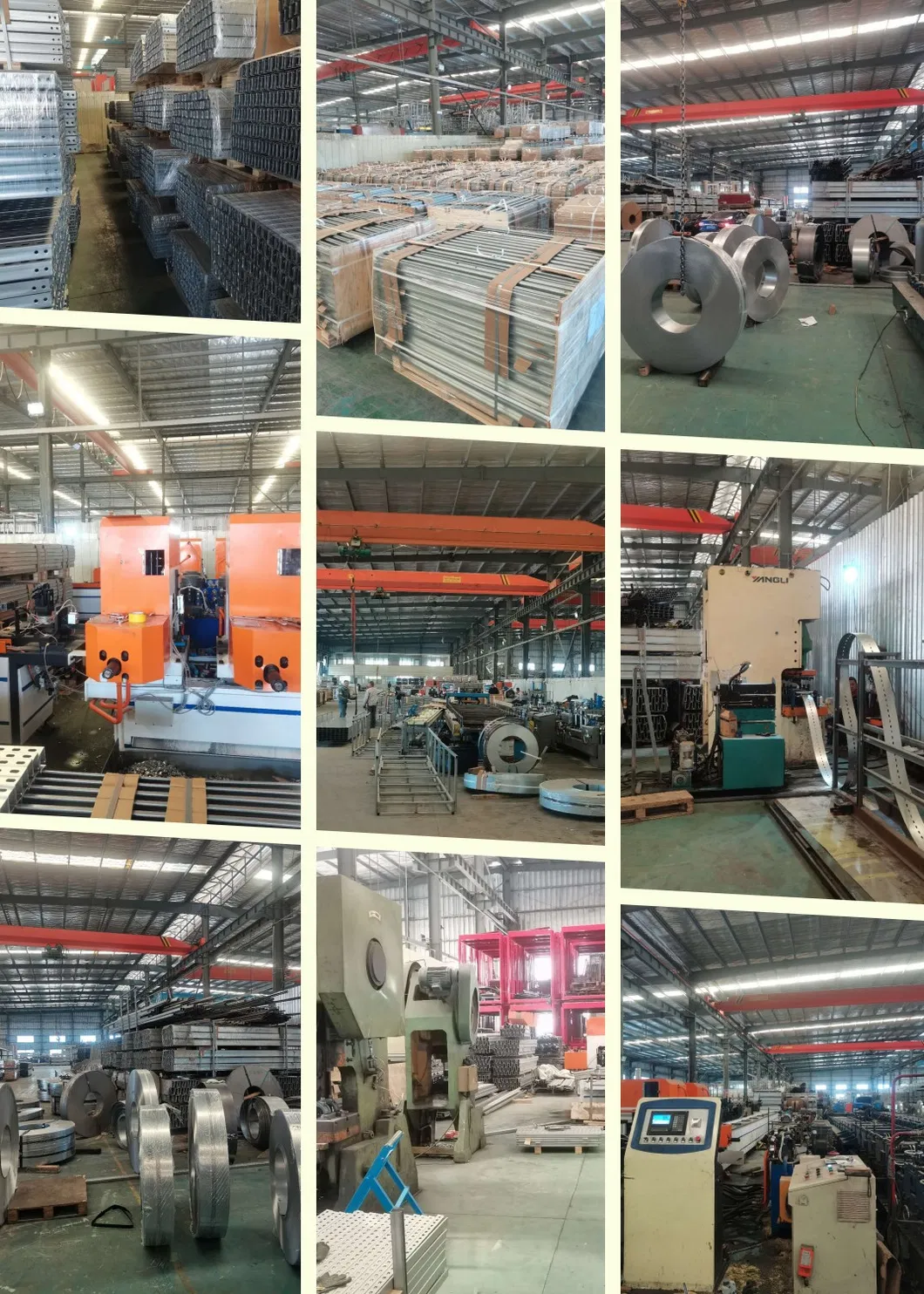

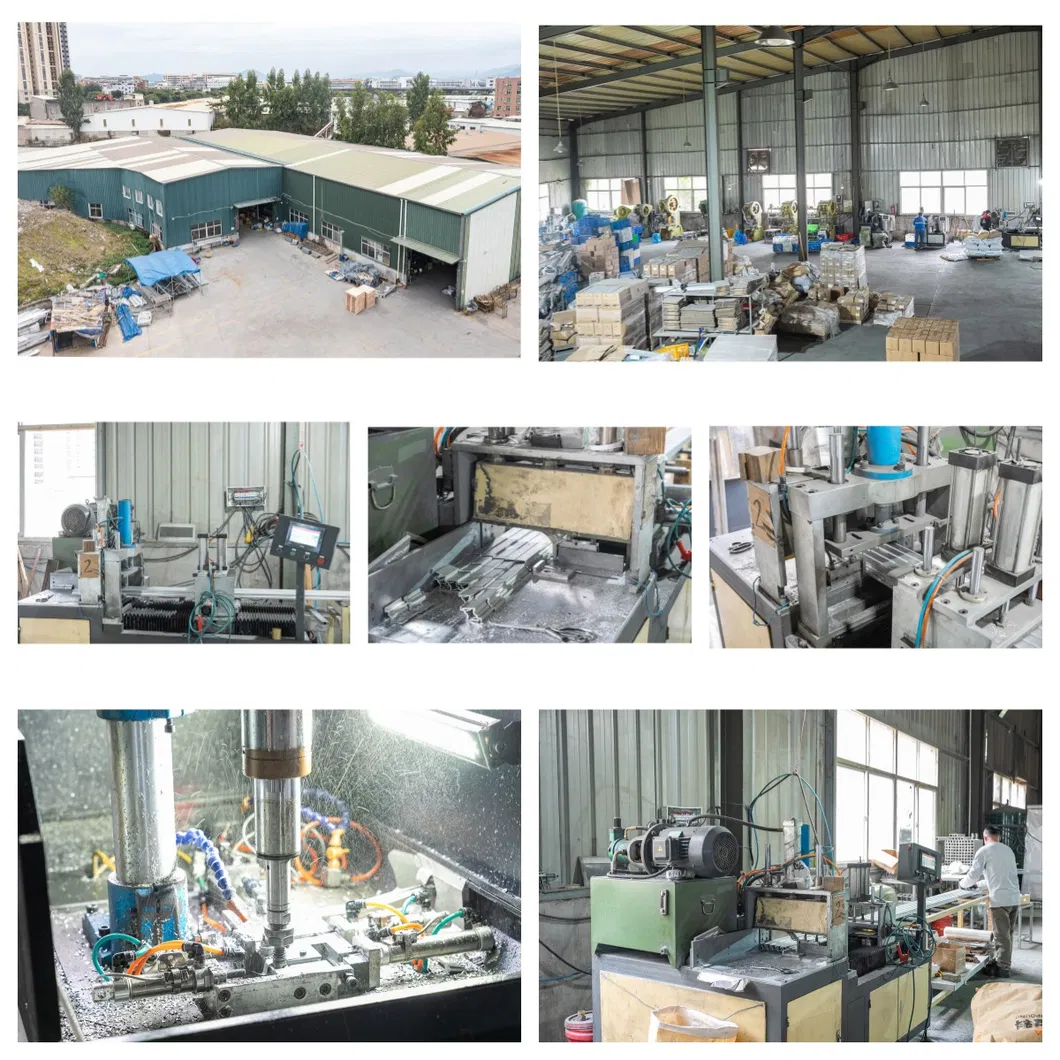

Professional Workshops

We have dedicated aluminum and steel processing workshops including cutting, drilling, stamping, and forging capabilities. Productivity reaches 40-50MW per month.

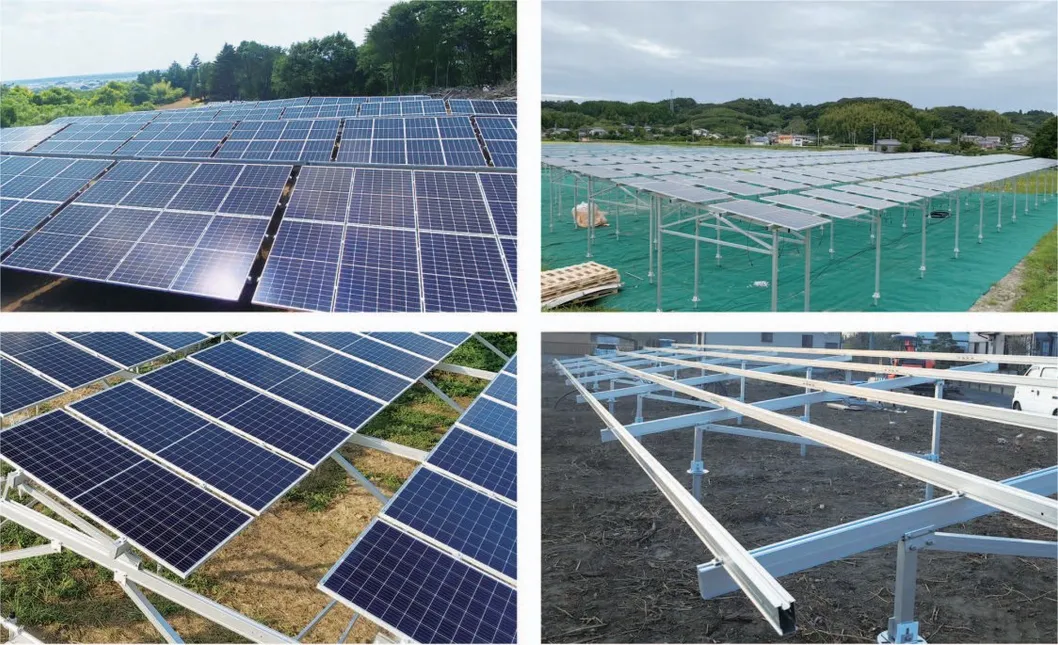

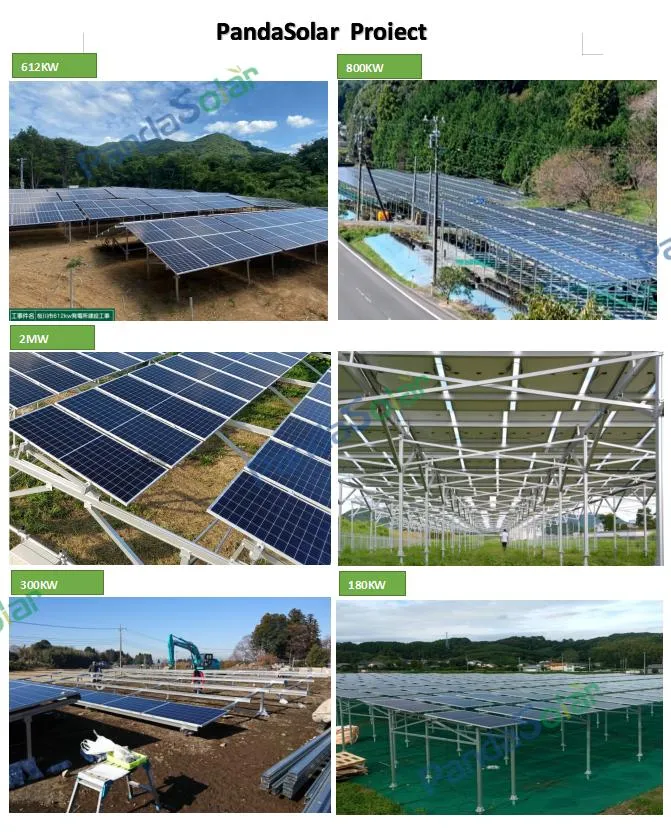

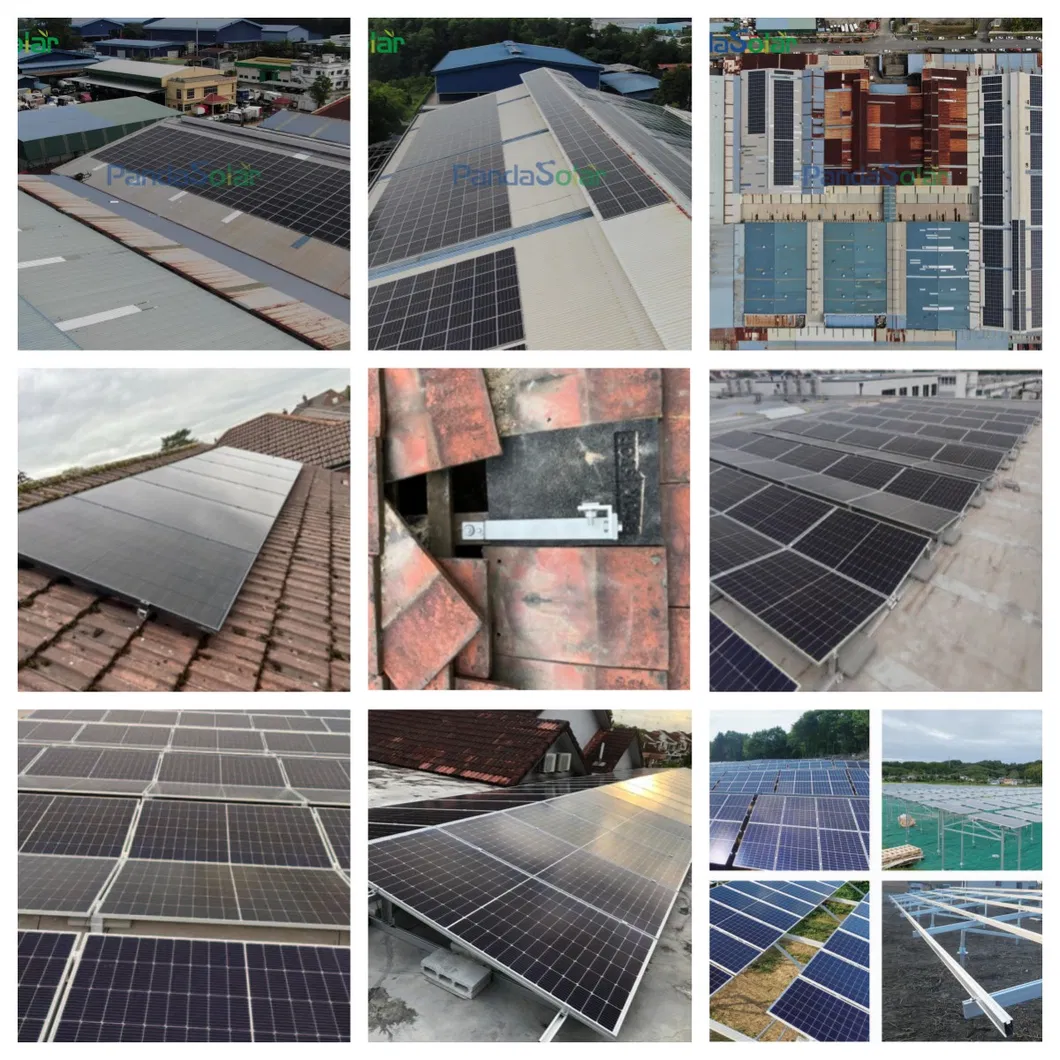

Project Cases

Company Profile

Established in 2019, the company is committed to developing solar clean energy mounting systems, including ground, greenhouse, tile roof, metal roof, and carport systems. As a specialized solar brackets manufacturer and supplier, we provide stringent quality control, customization options, lower direct costs, technical support, and comprehensive warranties.

Frequently Asked Questions

Q: What's your delivery time?

A: Typically 7-15 days. For customized products, the lead time is about 25 days due to new model creation. Urgent orders can be expedited.

Q: Can you send samples?

A: Yes, we provide free samples for your testing and evaluation.

Q: How do you ship the goods and how long does it take to arrive?

A: For samples, we use DHL or FedEx (3-5 days). For large orders, we ship by sea, taking 7-30 days depending on the distance.

Q: Are you a manufacturer?

A: Yes, we have our own factory in China with more than 12 years of production experience in the solar industry.

Q: Do you offer OEM services?

A: Yes, we accept OEM orders and can customize products to meet your specific project requirements.

Q: How about your after-sales service?

A: We respond immediately to any customer concerns (usually within 3 hours) and are dedicated to solving any installation or performance issues.
