| Technical Specifications | |
|---|---|

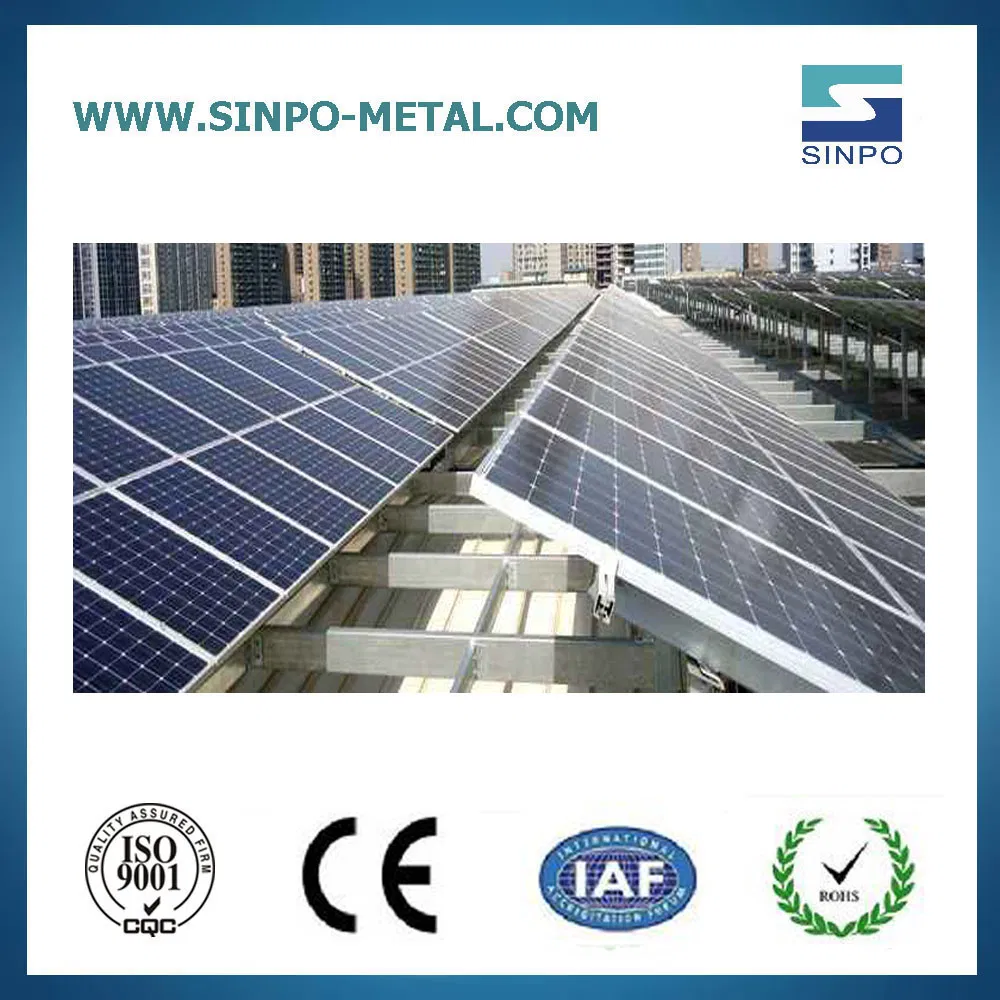

| Type | Ground Solar Energy System Mounting Structure |
| Installation site | According to Roof Type |
| Material | Aluminum 6063 T3-T5; Steel |
| Survival Wind Speed | < 60m/s |
| Design Snow load | Up to 1.4KN/ Square meters |
| Solar panel type | Framed or Frameless |
| Panel Orientation | Transverse or vertical |

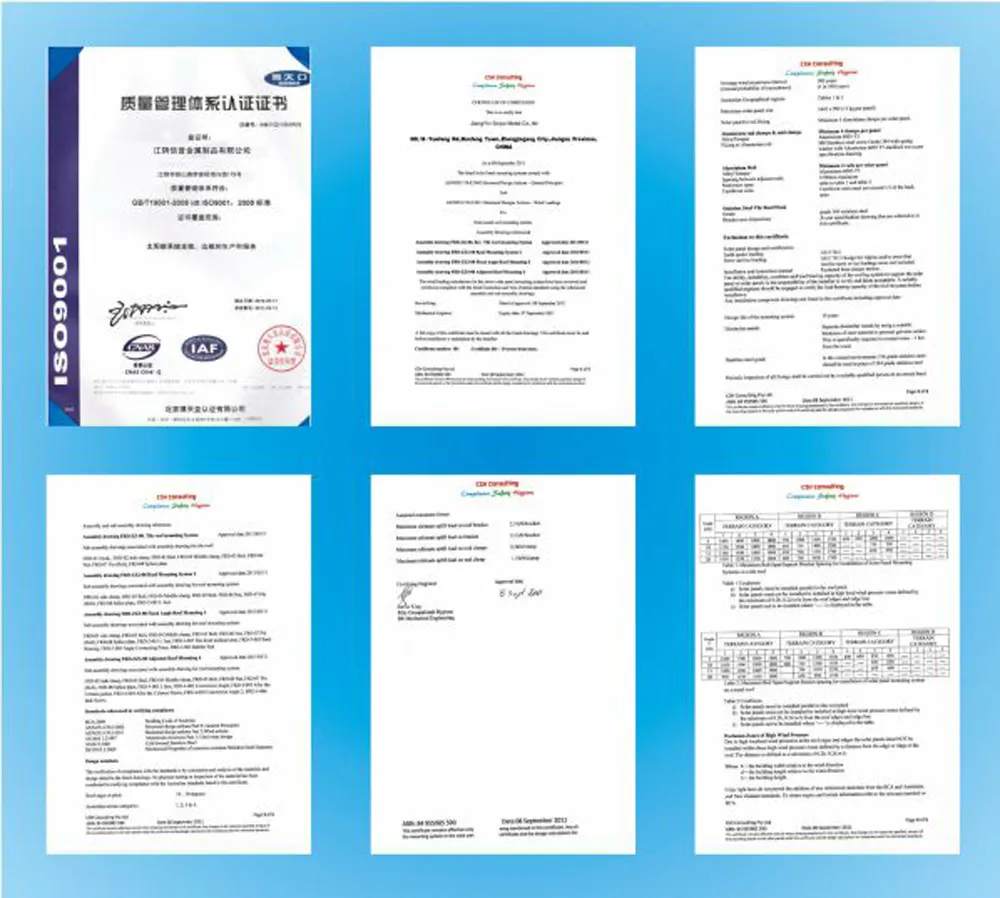

| Design Standard | CE; ISO9001 |
| Quality warranty | 12-25 years |
| Duration | More than 20 years |

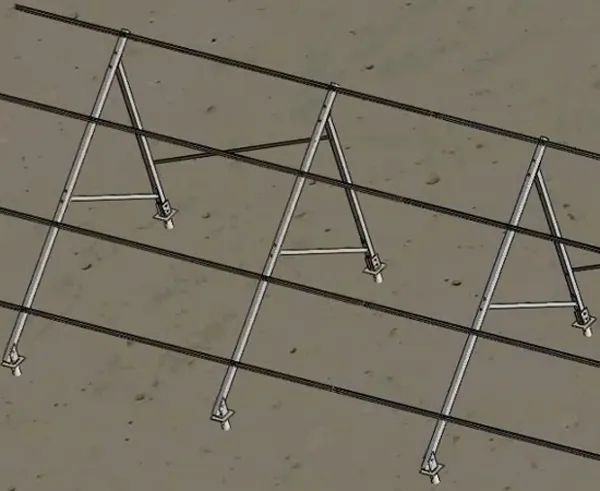

| NO. | NAME | SIZE(mm) | QTY | MATERIAL |
|---|---|---|---|---|

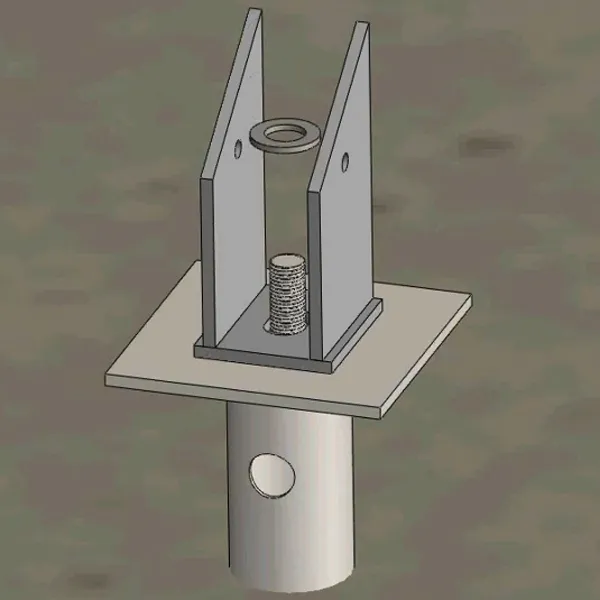

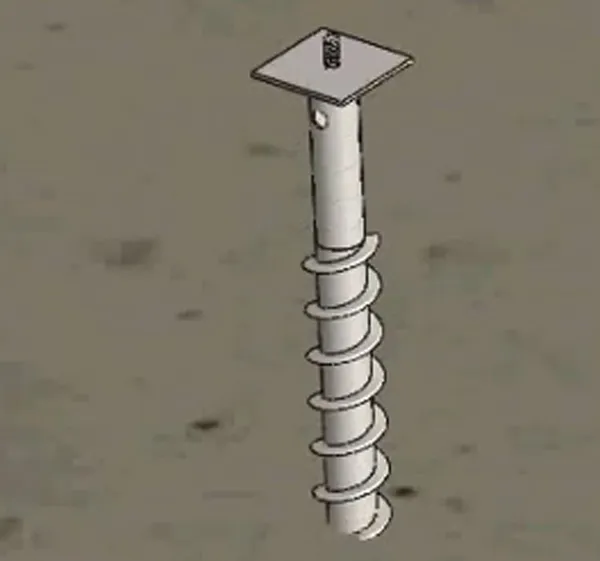

| 1 | Ground Screw | - | 10 | Q235B |
| 2 | Front Column | 41*52*2.5 | 5 | Q235B |
| 3 | Back Column | 41*52*2.5 | 5 | Q235B |
| 4 | Rail | 41*52*2.5 | 10 | Q235B |
| 5 | Beam | 41*52*2.5 | 5 | Q235B |

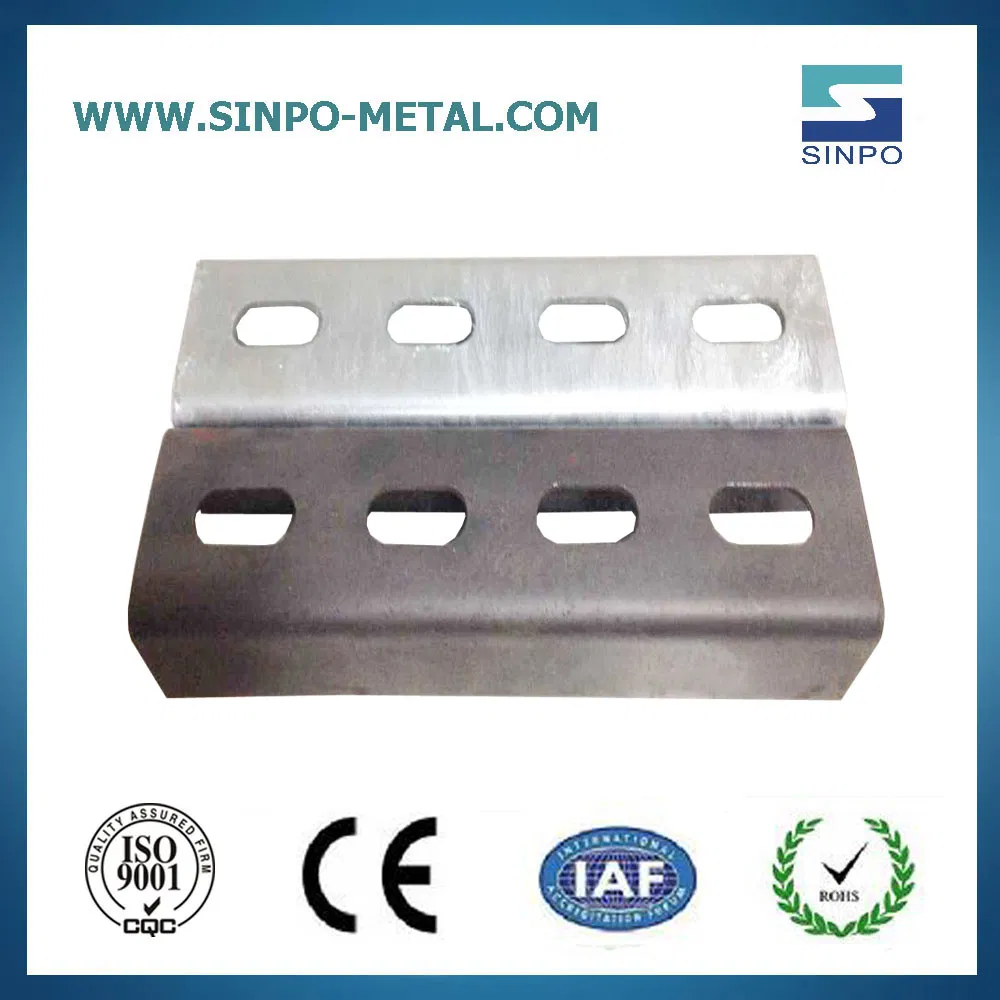

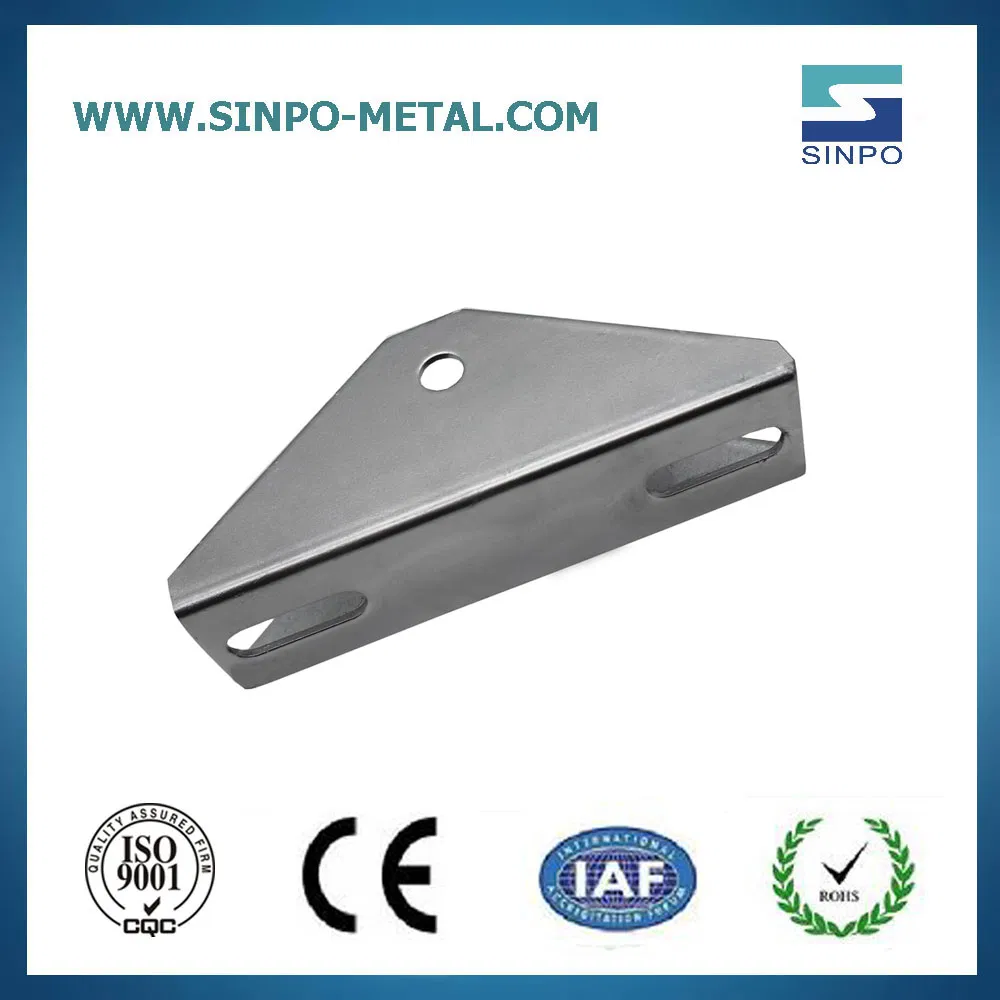

| 6 | Connection | - | 8 | Q235B |
| 7 | Hinge Joint | - | 10 | Q235B |

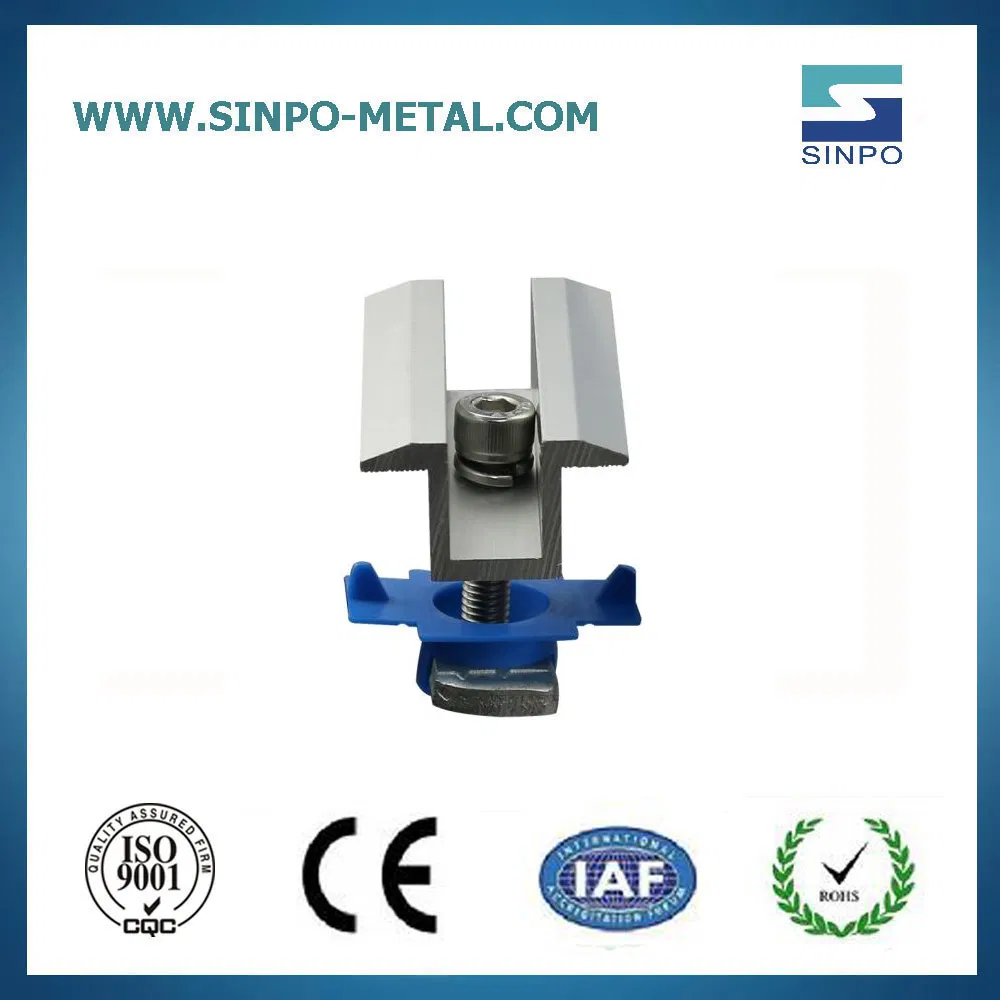

| 8 | Mid Clamp | - | 8 | AL6063-T5 |

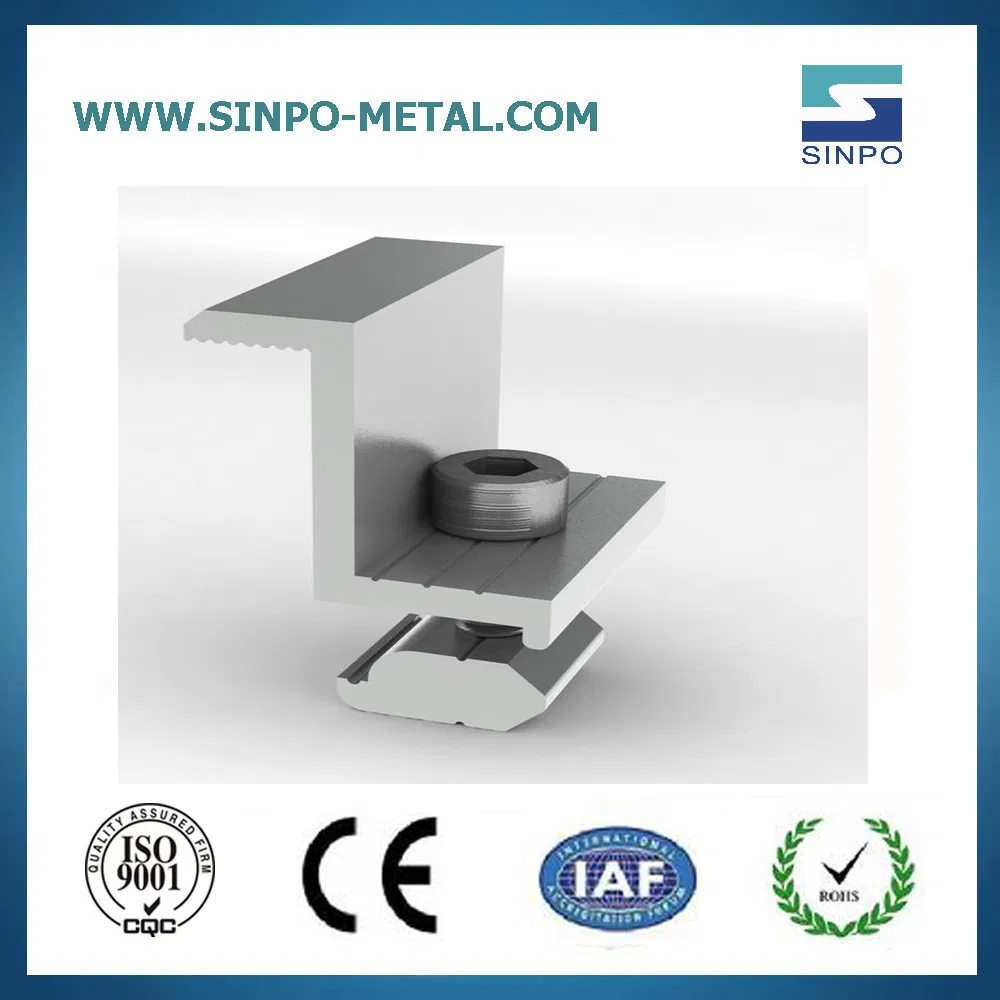

| 9 | End Clamp | - | 4 | AL6063-T5 |

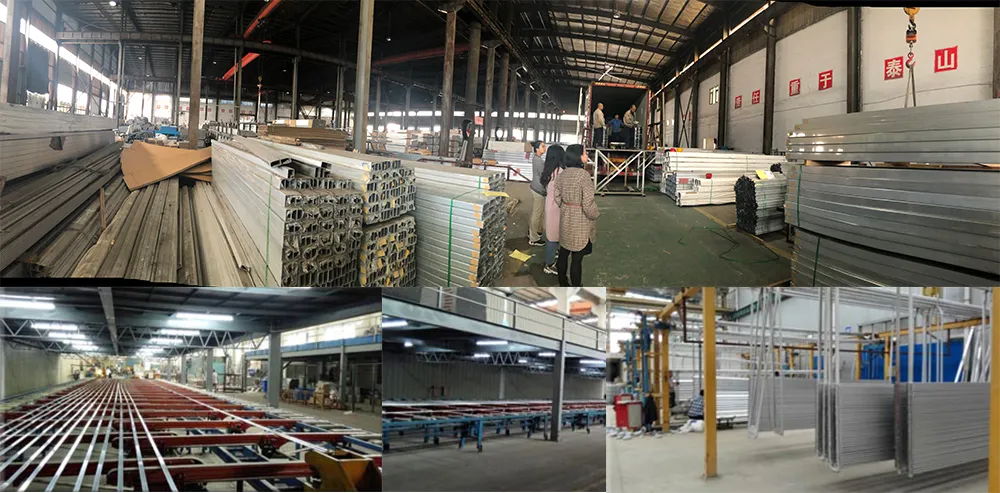

We are one of the professional manufacturer for the Aluminum products with 20 years experience in China. We supply over 15 countries and the United States. We do customer design and we also have a variety of ready-made products that you can choose from.
We have an excellent track record for producing Aluminum products that fit into your market and country. We do research and trends of each country to give you the best possible product that will sell in your country. We have been the gold supplier of International Committee Red Cross since 2012.
