| Model NO. | fixed tilt ground mount solar-1 | Certification | GB, ISO, TUV, CE, RoHS |
| Application | Home | Material | Steel |
| Type | Ground Bracket | Grade | Q235, etc. |
| Wind Load | 60m/S | Snow Load | 1.4kN/M2 |
| Coating | Anodic Oxidation/HDG | Delivery Time | 3-45 Days |
| Package Size | 25.00cm * 27.00cm * 27.00cm | Gross Weight | 500.000kg |
| Material | Aluminum alloy / Galvanized Steel | Grade | Q235B, 6005, etc. |
| Size | 41*41mm or custom | Wall Thickness | 1.8-2.5mm |
| Surface Treatment | Anodic oxidation / Hot dip galvanized | Service Life | Over 25 years |
| Annual Capacity | 1,000,000 Tons per year | Corrosion Resistance | Very strong |

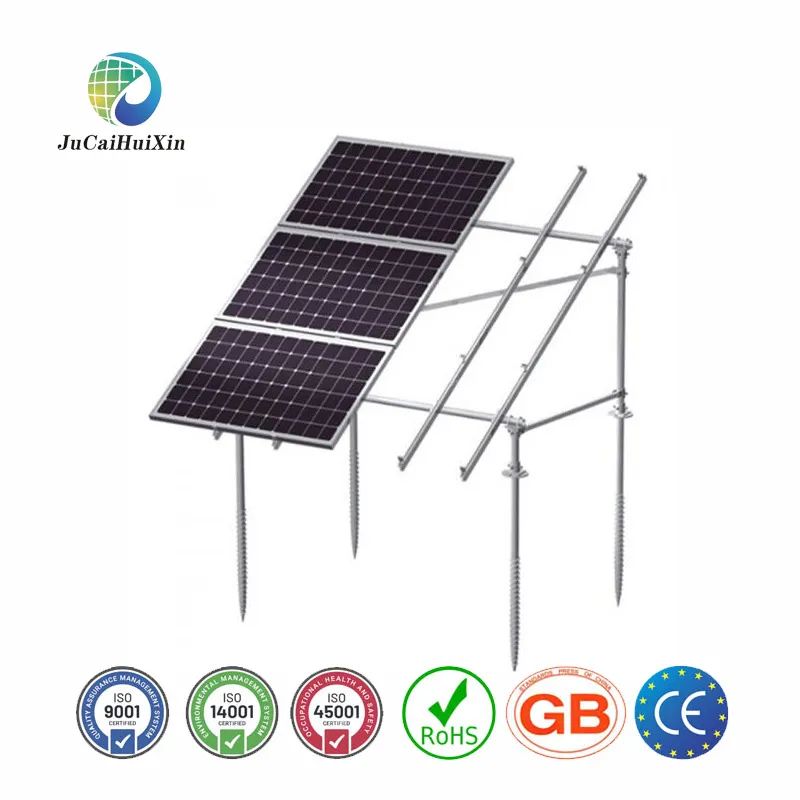

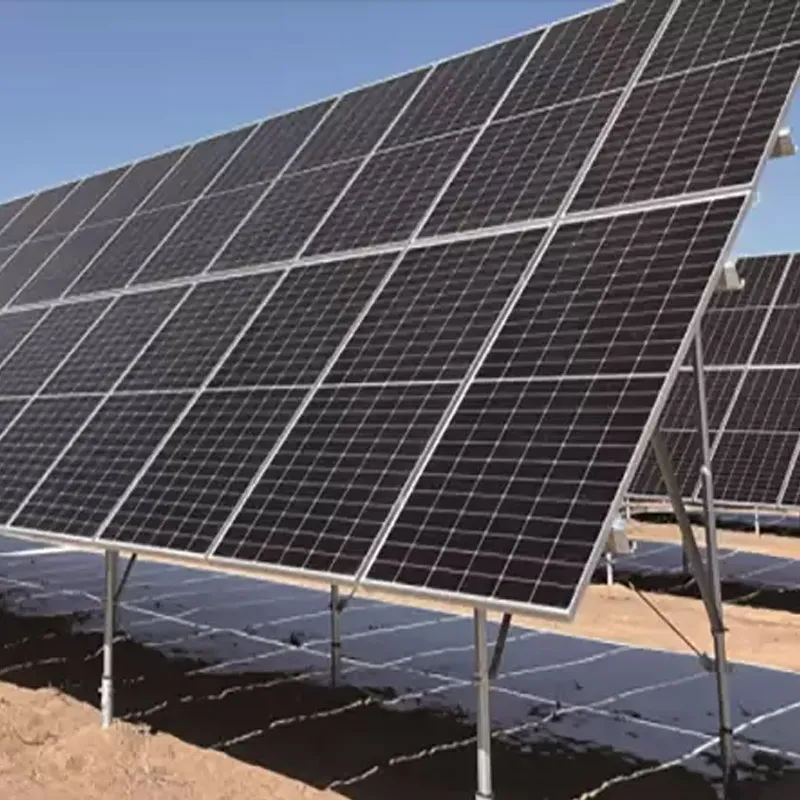

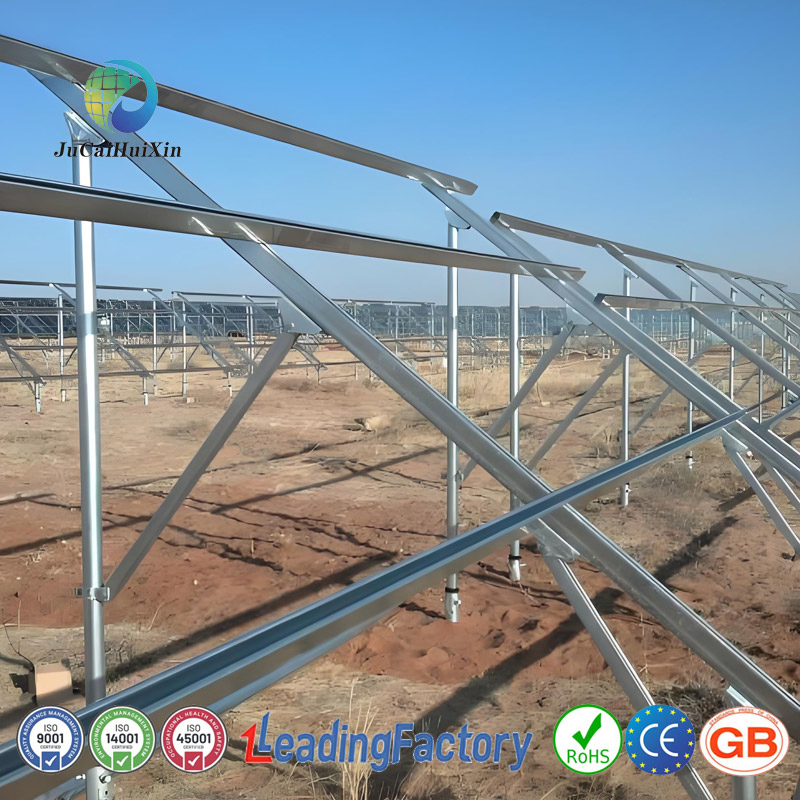

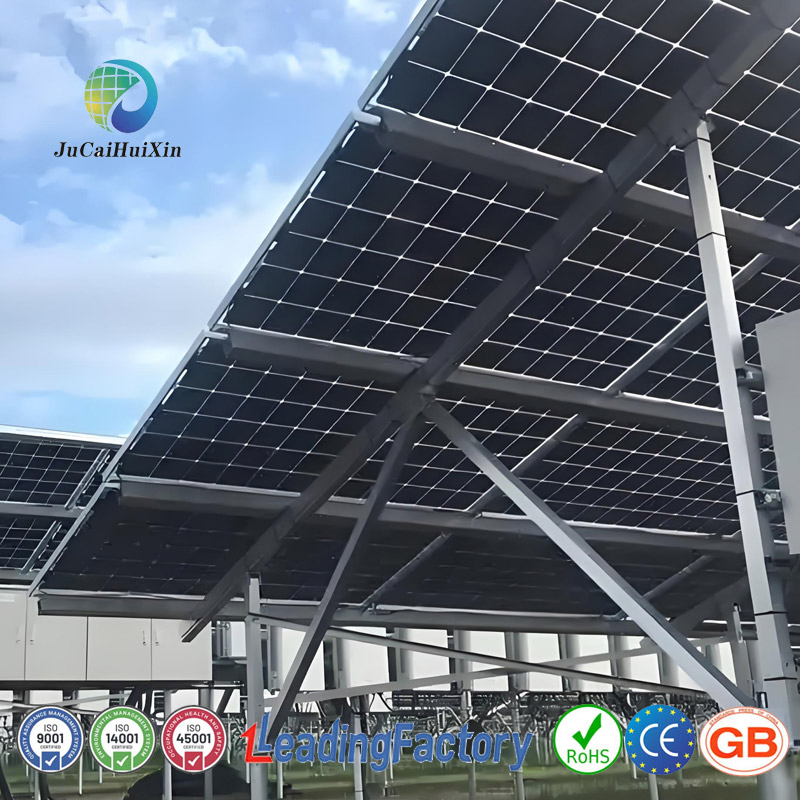

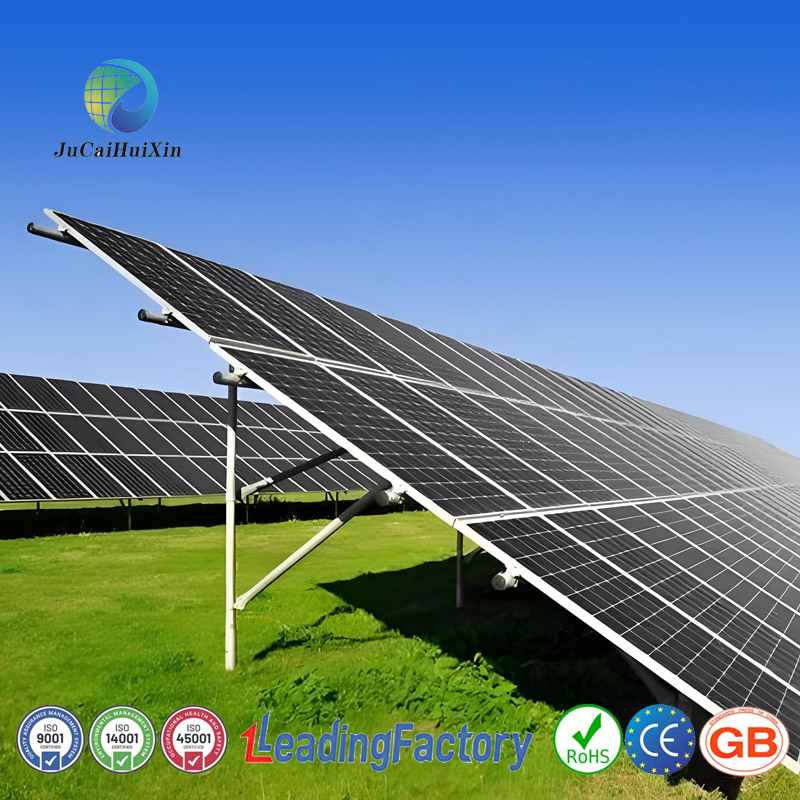

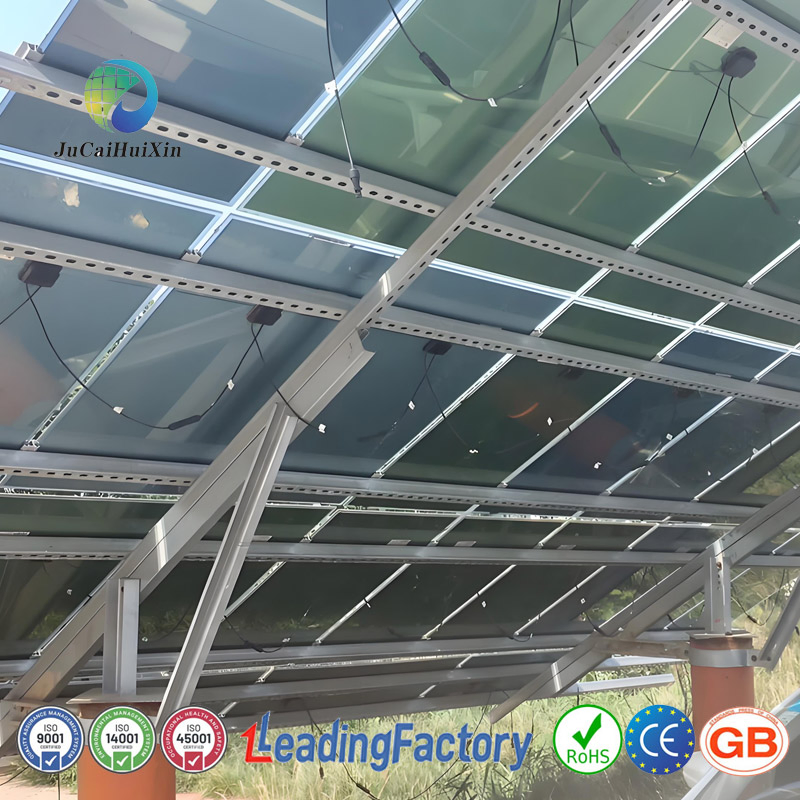

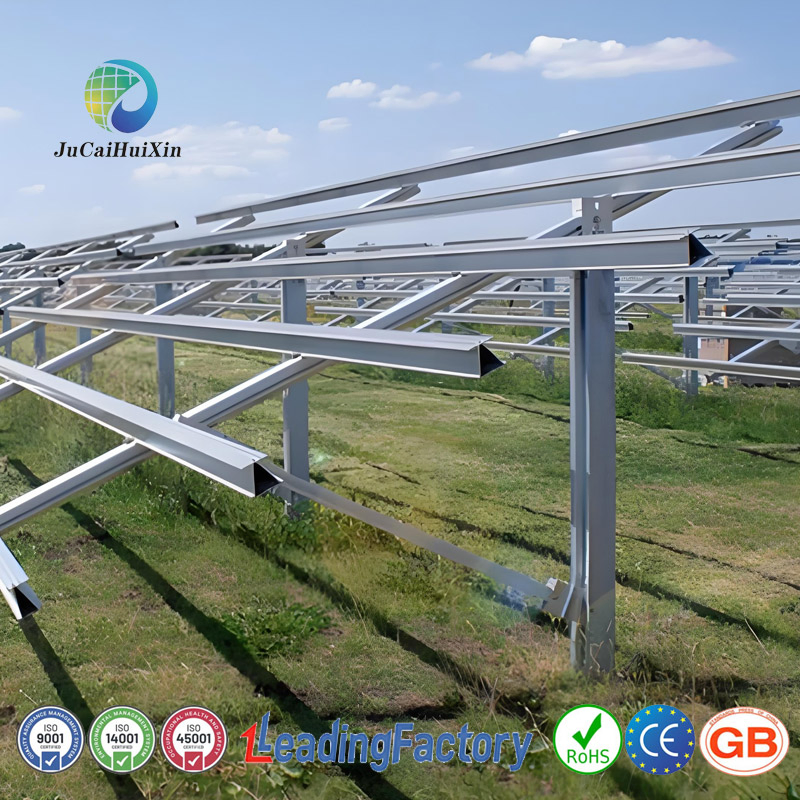

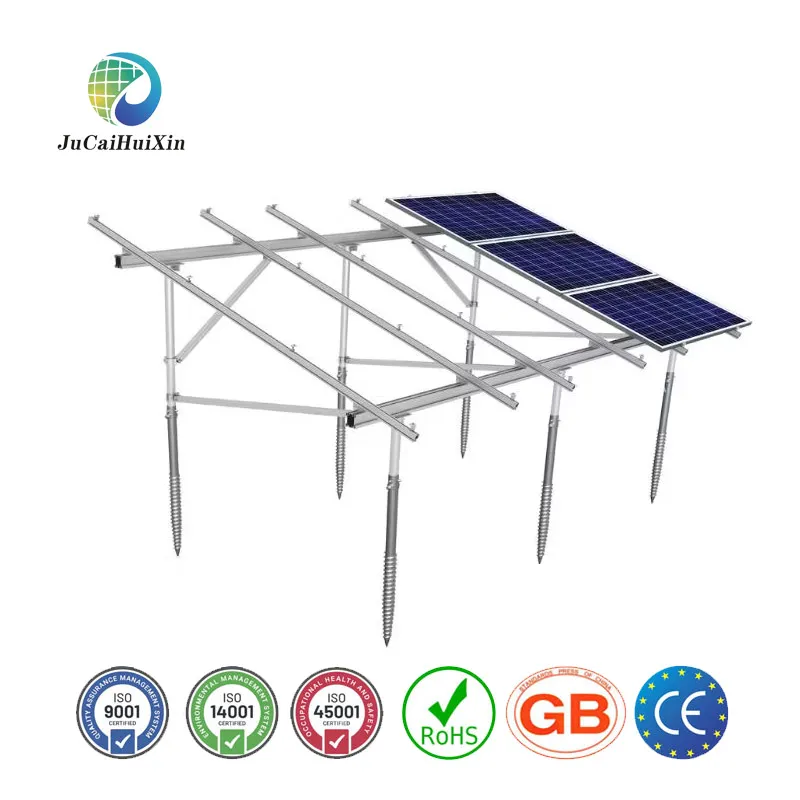

This HDG Fixed Tilt Ground Mount Solar system is designed for roof, ground, carport, and specialized installations. Made from 6063-T5 aluminum alloy, it combines lightweight durability (30% lighter than steel) with high corrosion resistance. The modular design supports quick assembly and customization for diverse terrains and architectural needs.
Ensure roof/ground surfaces are clean and load-bearing compliant (≥1.5 kN/m2). Use non-penetrating clamps for colour steel tile roofs to avoid waterproofing damage.
Tighten bolts to 8-12 N·m torque to prevent glass cracking. Maintain 2-3 mm gaps between panels for thermal expansion.
Verify grounding resistance (≤4 Ω) with copper strips. Avoid installation in rain or winds >12 m/s.
A comprehensive provider of photovoltaic solutions with automated production and rigorous quality testing including IP68 waterproof and salt spray corrosion tests.
