Hot Sale Solar Panel Mount Ground Mounting System PV Solar Bracket

1 / 5

Hot Sale Solar Panel Mount Ground Mounting System PV Solar Bracket

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

📊 Basic Information

Model NO.

SF-M13

Certification

ISO, TUV, CE

Application

Commercial

Material

Concrete

Type

Ground Bracket

Product Name

Solar Panel Ground Mounting Structure

Installation Site

Open Field

Color

Silver

Tilt Angle

0-45deg

Feature

Quick Installation

Surface Treatment

Aluminum Anodized

Mounting Type

Ground Solar Mounting

🛠️ Product Description

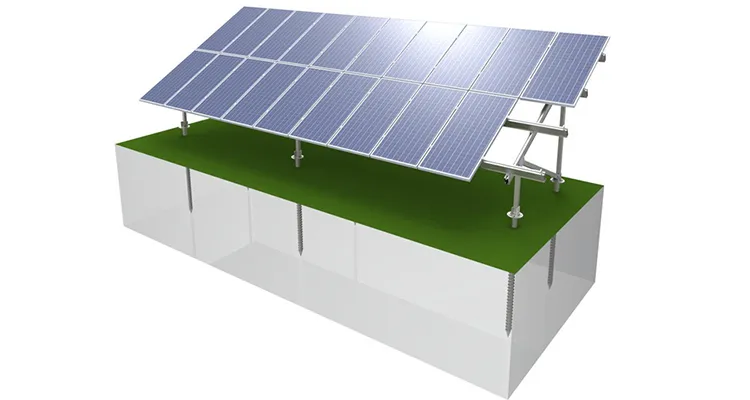

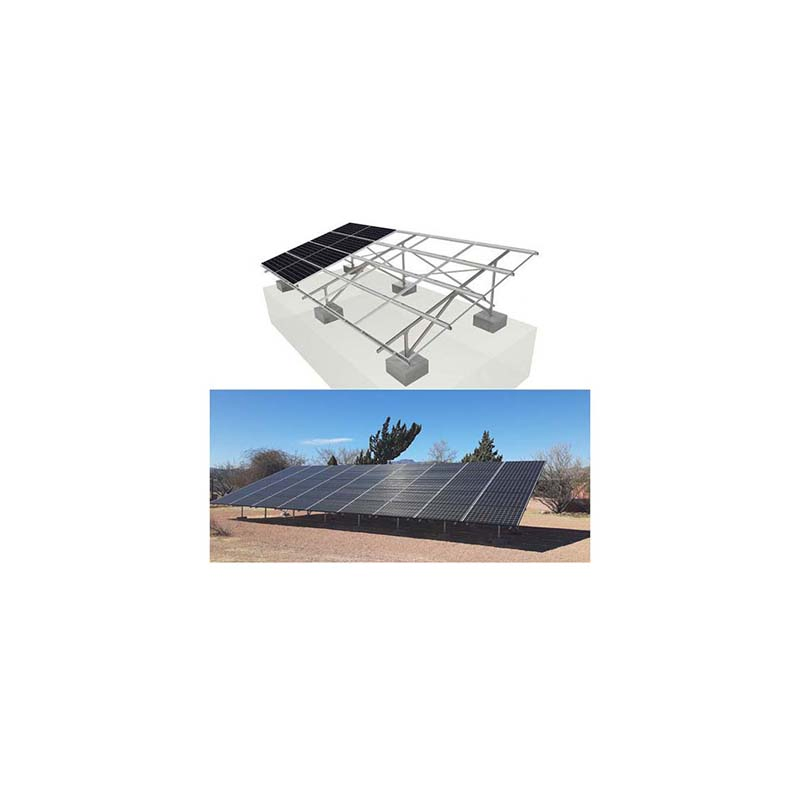

Solar Ground Mounting

The Ground Screw Mounting Structure is widely applied for large solar farms, with fixed ground screw foundations or adjustable screw piles. The unique oblique spiral design greatly ensures the stability of withstanding static loads.

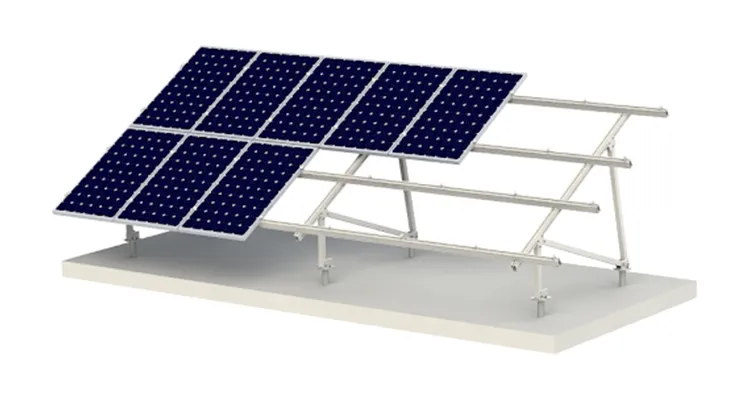

Advantages:

Anti-corrosion and anti-rust properties.
Ensures simple and fast installation.
Significantly reduces labor costs.

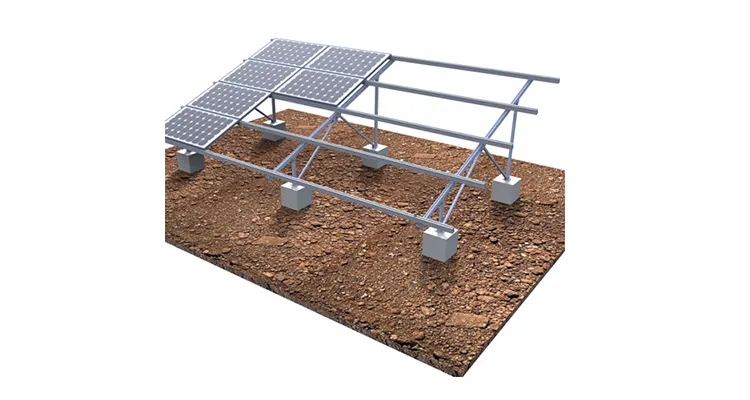

Technical Data:

Installation site: Open field ground mount
Foundation: Ground screw & Concrete
Mount tilt angle: 0-45 Degree
Main components: AL6005-T5
Accessories: Stainless steel fastening
Duration: More than 25 years

📋 Technical Details

Installation Site	Open field
Wind Load	Up to 60m/s
Snow Load	1.4kn/m2
Tile Angle	0-45 deg
Standards	AS/NZS1170, JIS C8955:2017, GB50009-2012, DIN 1055, IBC 2006
Material	Anodized AL6005-T5, HDG steel Q235B, SUS304
Warranty	10 Years Warranty and 25 Years Service Life

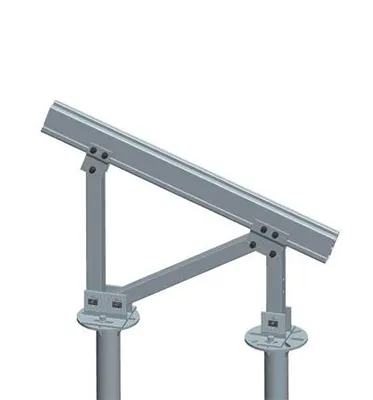

Screw Piles

High traction and pressure values.
Installation by mini-digger machine with rotating head support.

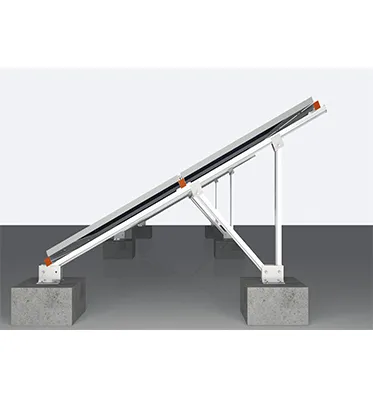

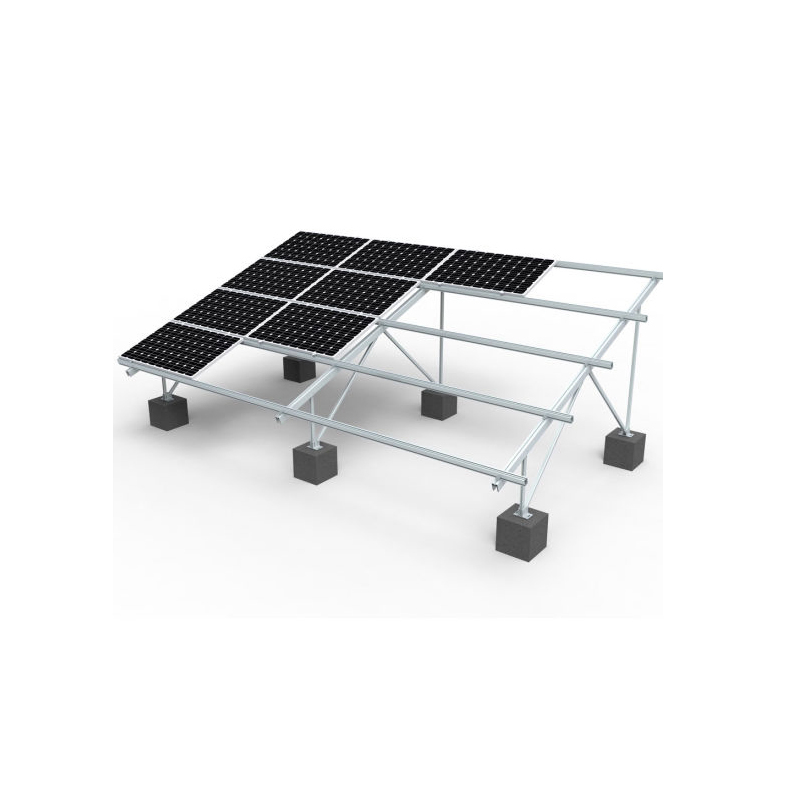

Concrete Base

Best suited where ground excavation is not permitted.
The size is adjusted based on the static requirements and location.

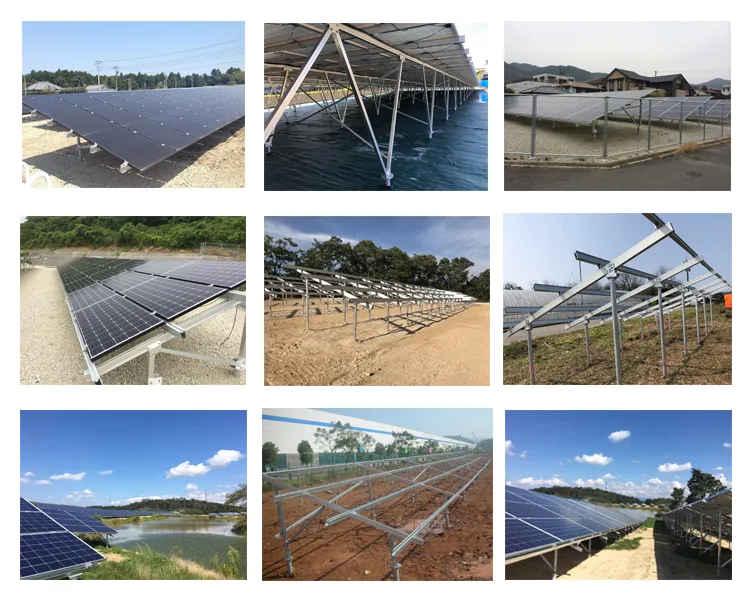

🏗️ Project Showcase

📦 Packaging & Shipping

🌍 Exhibition & Certifications

❓ Frequently Asked Questions

What materials are used in the mounting structure?

The system primarily uses Anodized Aluminum AL6005-T5, Hot-Dip Galvanized steel Q235B, and SUS304 stainless steel for fasteners to ensure maximum durability and corrosion resistance.

What is the expected service life of this system?

The system is designed for a service life of over 25 years, backed by a 10-year warranty on the structure.

Can this be installed on uneven ground?

Yes, the system supports both ground screw and concrete foundations, and the tilt angle can be adjusted between 0-45 degrees to accommodate different field conditions.

What wind and snow loads can the structure withstand?

The structure is engineered to withstand wind loads up to 60m/s and snow loads up to 1.4kn/m2, meeting international standards like AS/NZS1170 and IBC 2006.

Is the installation process complicated?

No, the system is designed for quick installation with pre-assembled components, which helps in reducing labor time and overall project costs.

Are the components resistant to rust?

Yes, the use of anodized aluminum and stainless steel fasteners provides excellent anti-corrosion and anti-rust properties, even in harsh outdoor environments.
