Jchx-Ios Universal U-Type Galvanized Carbon Steel Flat Roof Solar Panel Mounting Brackets

Basic Specifications

Model	Universal U-Type Series	Certification	GB, ISO, CE, RoHS
Material	Carbon Steel / Steel	Coating	Hot DIP Galvanized/Zn-Al-Mg
Wind Load	0-60m/S	Snow Load	0-3kN/M²
Tilt Angle	0-45 deg	Service Life	Over 25 years
Wall Thickness	1.2-5mm	Installation Site	Flat/Sloped Roof

Product Description

Universal U-Type Galvanized Carbon Steel Flat Roof Solar Panel Mounting Brackets provide industry-leading stability and durability for solar installations.

Superior Corrosion Resistance: Made with hot-dip galvanized steel (coating thickness ≥55μm), ensuring a lifespan of 25+ years without rust.
Adaptable Free-Design Flexibility: Adjustable connection plates allow height and angle changes to fit varying roof thicknesses and configurations.
Zero Roof Penetration: Non-invasive clamping or ballasted mounting avoids drilling into waterproof layers, preserving roof integrity.
High Structural Safety: Engineered to withstand 60 m/s wind speeds and 1.5 kN/m² static loads.
Cost Efficiency: Pre-assembled components reduce labor costs by 30% compared to traditional systems.

Installation Steps

1 Positioning & Drilling: Mark the position of roof beams using a template; drill 8mm holes through tiles without cutting.

2 Fixed Base: Insert stainless steel expansion bolts and lock torque to 20N·m with insulating gaskets.

3 Mounting Rail: Snap the connection rail, adjust level, and lock into place.

💡 Pro Tips:

• Ensure wind speed is <10m/s during installation for safety.
• Check bolt tightness annually.
• Recommended fresh water rinsing for salt deposits in coastal areas.

Manufacturing Excellence

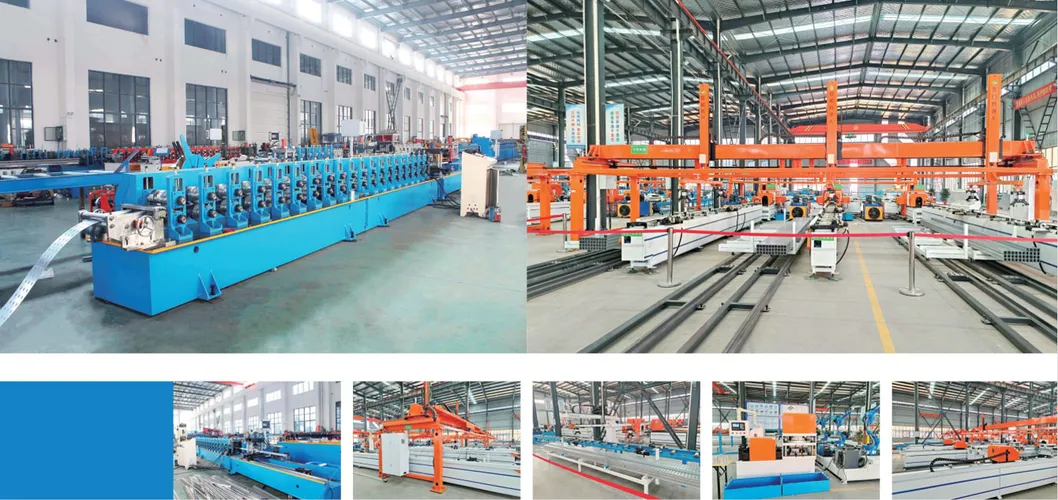

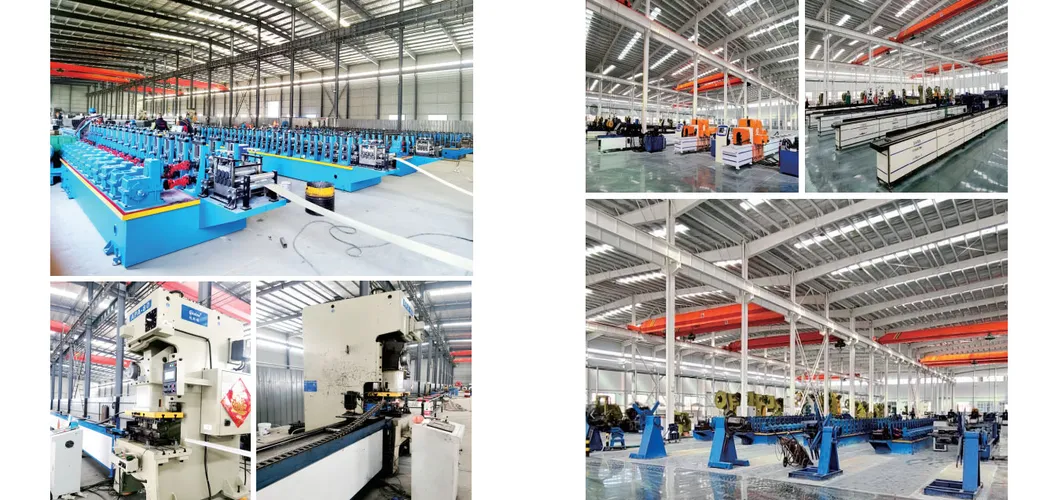

Our intelligent manufacturing base sets a benchmark in photovoltaic production with robust capabilities:

10,000 square meter Intelligent Manufacturing Base.
10 internationally advanced CZU steel automated production lines.
Annual production capacity of 200,000 tons of profiles.
Triple system certification: ISO, CE, and RoHS.

Versatile Applications

Ground Power Stations: Suitable for sand, grass, and complex terrain.

Rooftop Systems: Compatible with concrete, tile, and color steel roofs.

Global Projects

Frequently Asked Questions

Q: Does the mounting system fit curved roof shingles? Yes, we provide 3 types of curved bases with different radii of curvature (15°/30°/45°) to meet specific architectural requirements.

Q: How is the waterproof performance verified? Our systems are verified via professional pressure tests and comply with standards similar to UL2703, ensuring no leaks after installation.

Q: What is the typical lead time for an order? Stock items can be shipped within 48 hours. For customized solutions, the delivery time is usually around 15 days, with expedited services available.

Q: What material is used for maximum corrosion resistance? We offer Hot-dip Galvanized and Zinc-Aluminum-Magnesium series, which provide self-repairing properties and over 25 years of protection in harsh environments.

Q: Can these brackets withstand extreme weather? Yes, the brackets are engineered for wind speeds up to 60m/s and snow loads up to 3kN/M², making them suitable for coastal and high-altitude regions.

Q: Do you offer design assistance for projects? We provide free professional design services, including 3D modeling and load distribution analysis for every project.
