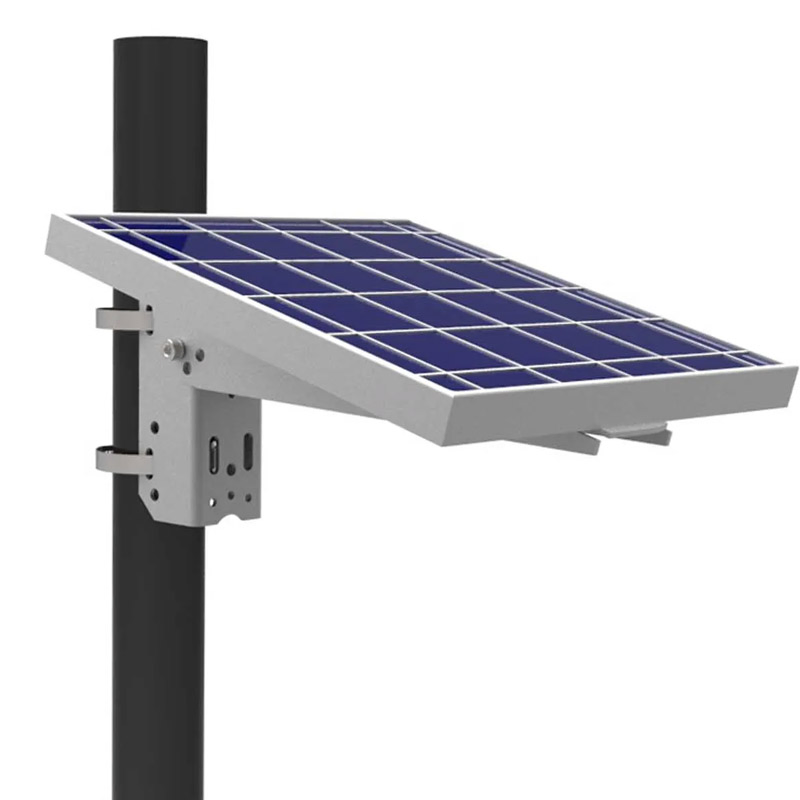

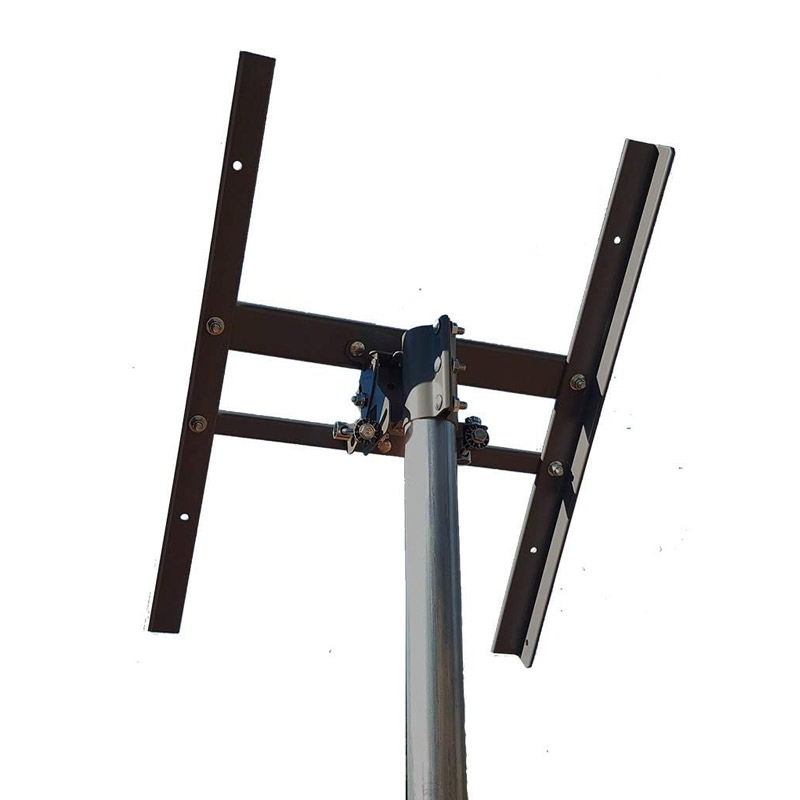

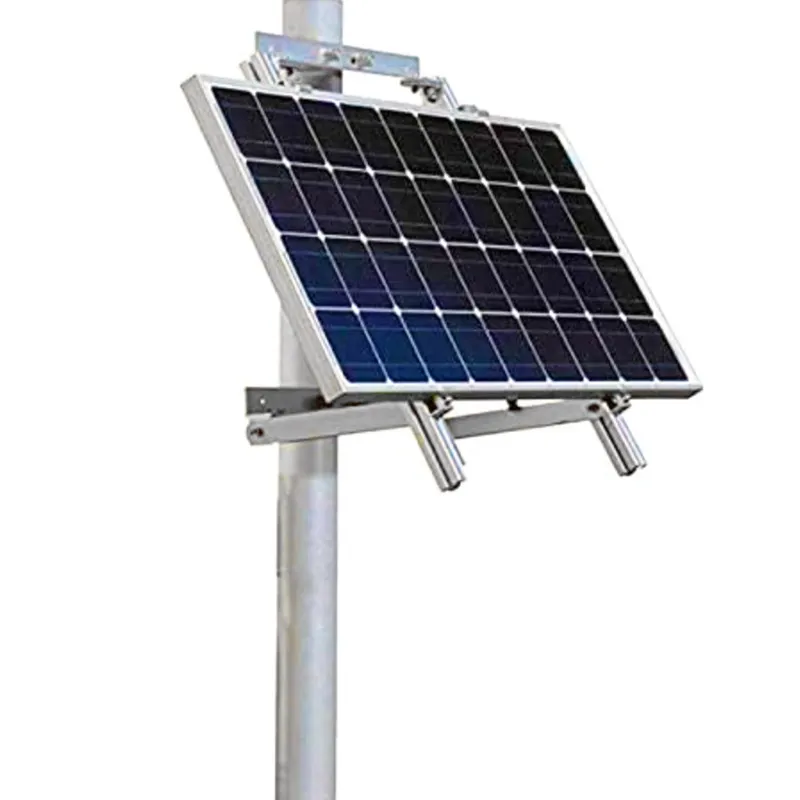

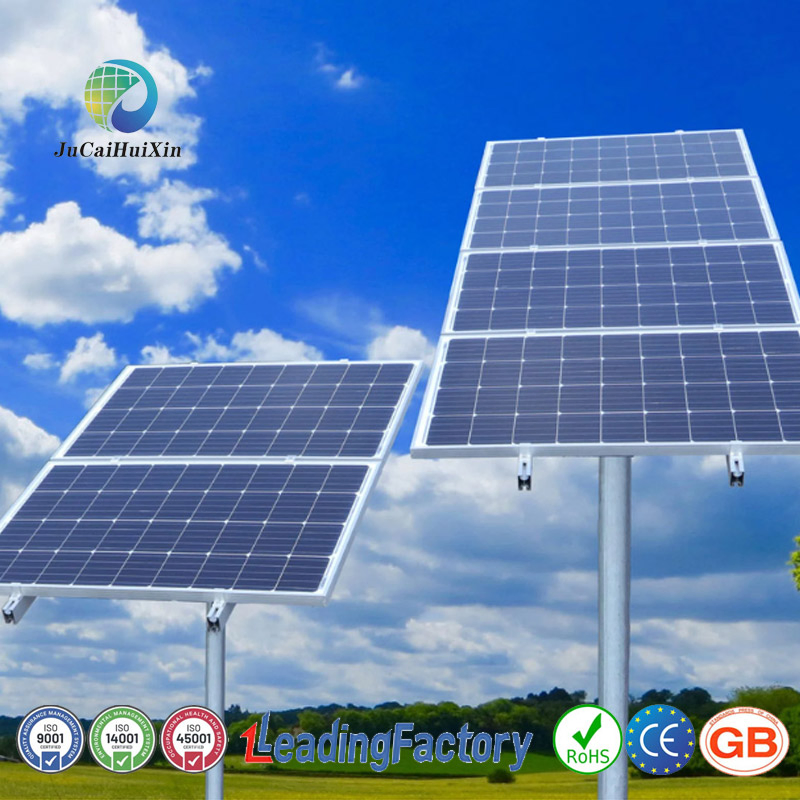

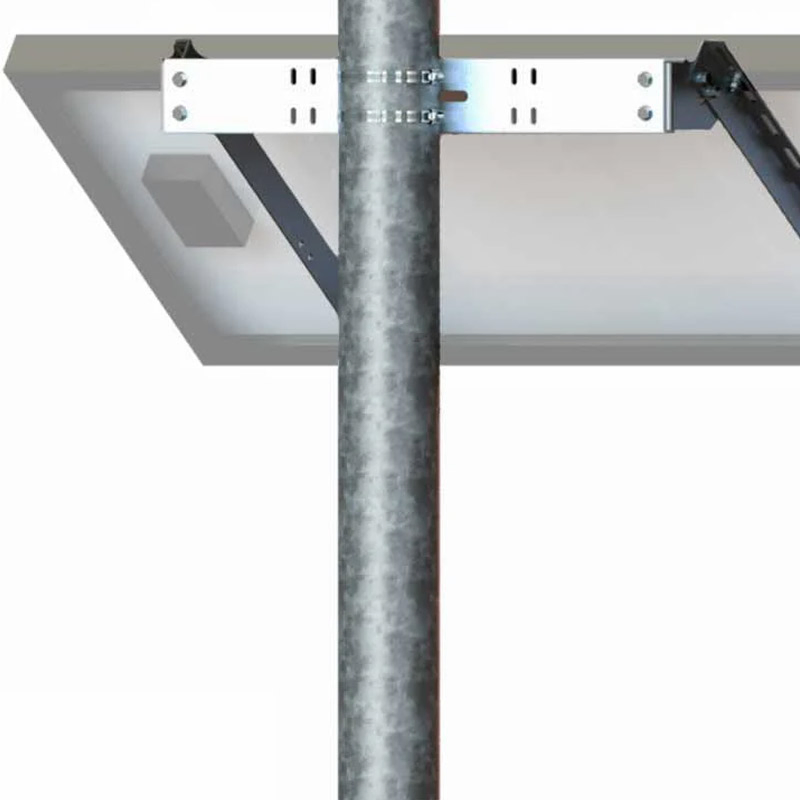

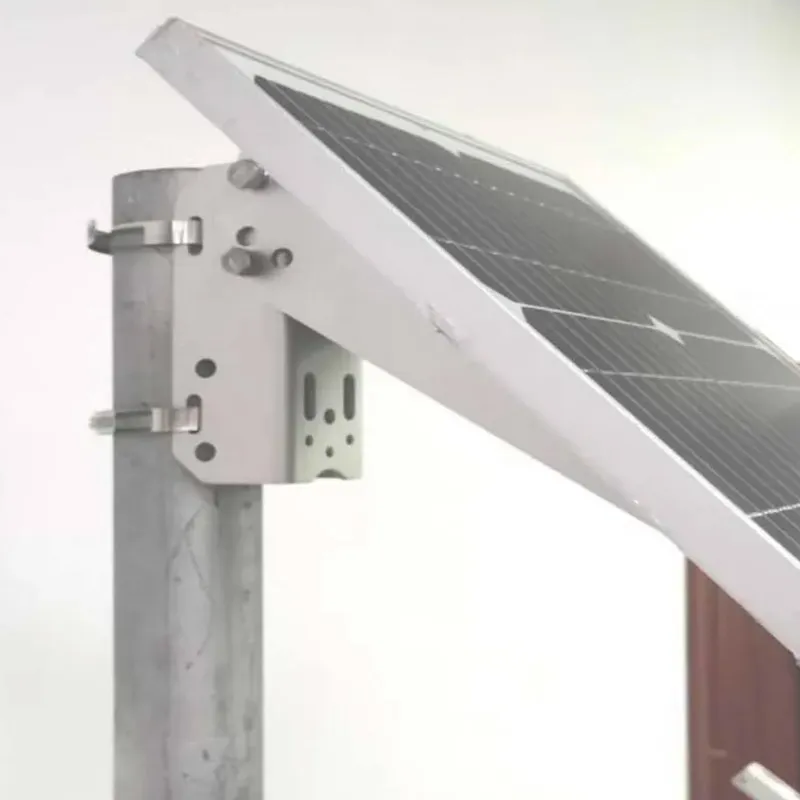

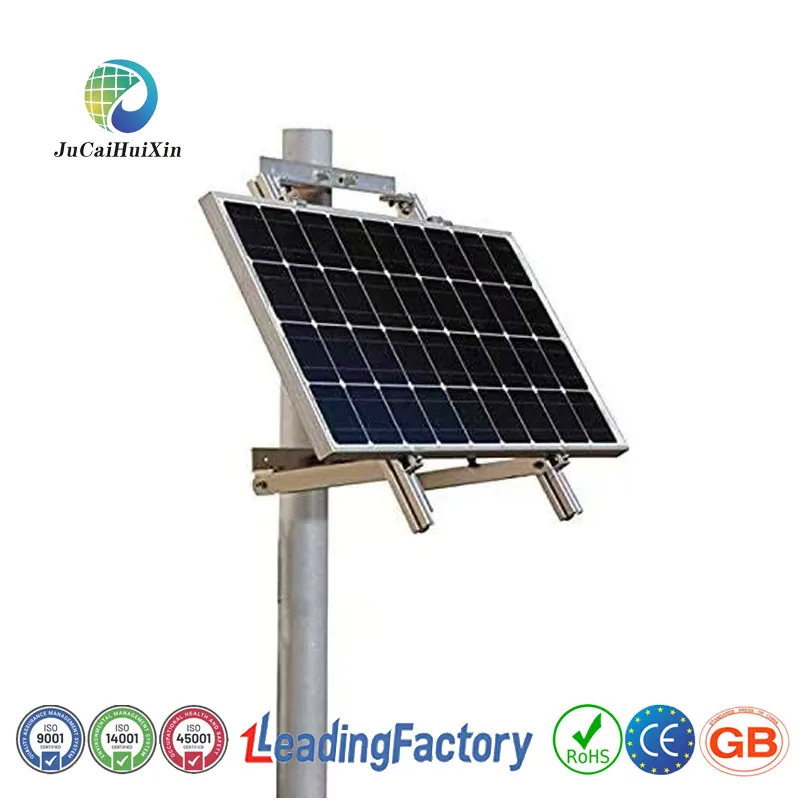

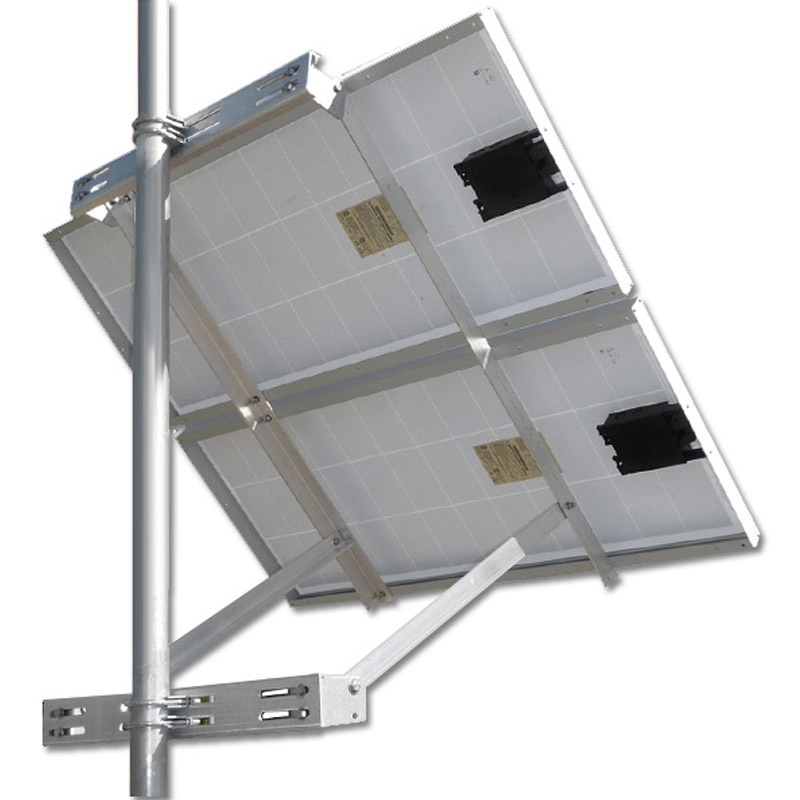

The ISO Certified Solar Panel Pole Tilt Mounting Bracket is a high-performance photovoltaic bracket system designed for ground solar installations. Comprising solar rails, fasteners, aluminum connectors, and galvanized C-steel channels, it offers a robust structure with exceptional bearing capacity.
Main system advantages include: 1) Stable structural integrity for heavy loads; 2) Easy manual installation without heavy lifting equipment; 3) Versatility across various terrains; 4) Cost-efficient reusability.
| Technical Parameters |
| System Name | Solar Ground Mounting System | Certification | CE, RoHS, ISO9001, etc. |
| Installation Site | Ground | Sample | Free |
| Tilt Angle | 5-45° | Design | Free |
| Wind Load | 60m/s | Material | SUS304/AL/HDG Steel |
| Snow Load | 1.4KN/M² | Fastener | SUS304/AL/HDG Steel |
| Solar Module | Framed | Warranty | 10-year warranty |
Value-Added Services
Custom turnkey solar installation solutions
24/7 dedicated account support
Complimentary system design & samples
Full-cycle services from engineering to maintenance
Global client collaboration for optimized solar energy utilization
Hot-dip galvanized solar mounting systems
Zinc-aluminum-magnesium coated PV racks
Aluminum alloy solar structures
Stainless steel PV supports
Solar mounting accessories

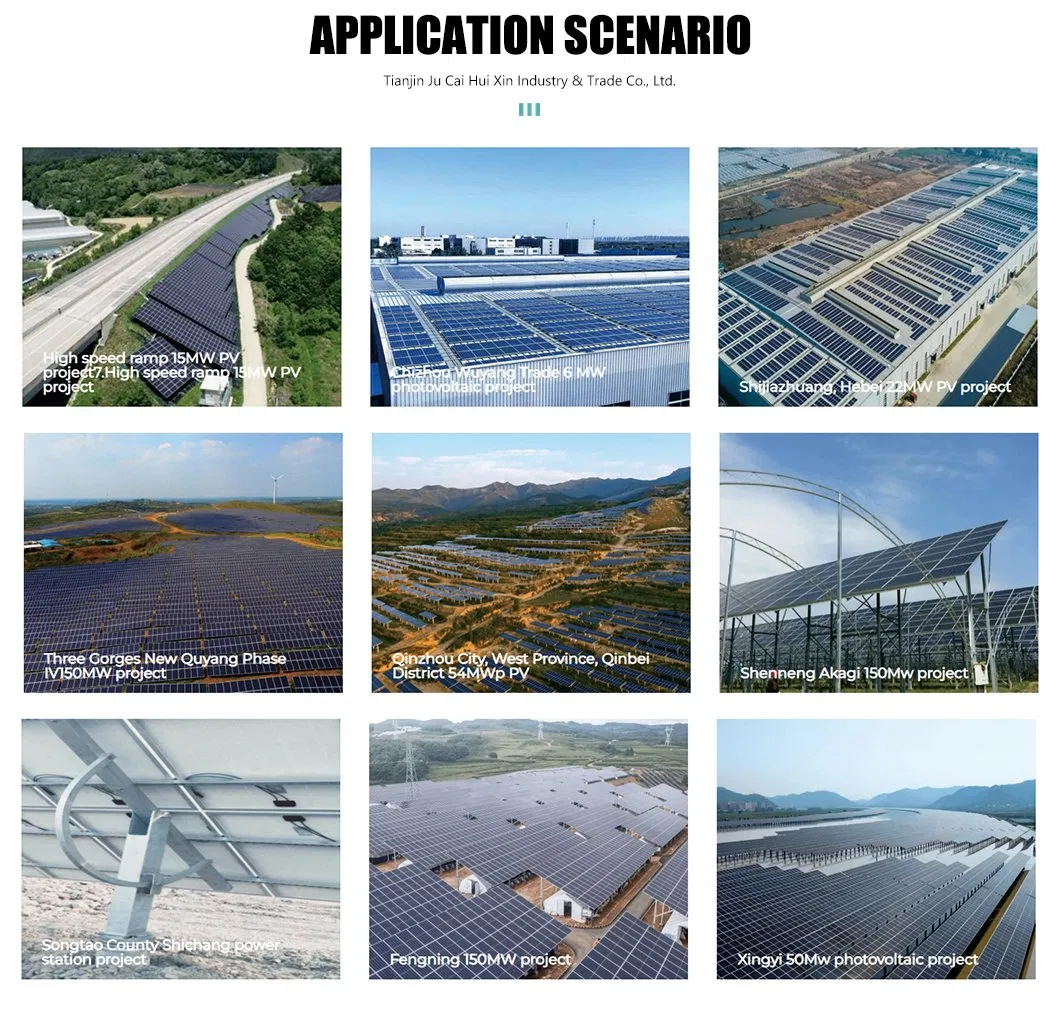

Our solutions cover: BIPV waterproof mounting systems, solar rooftop structures, PV carport systems, and utility-scale ground-mounted installations exported to over 30 countries.
?
Frequently Asked Questions
1. How does this mounting bracket achieve high wind resistance?

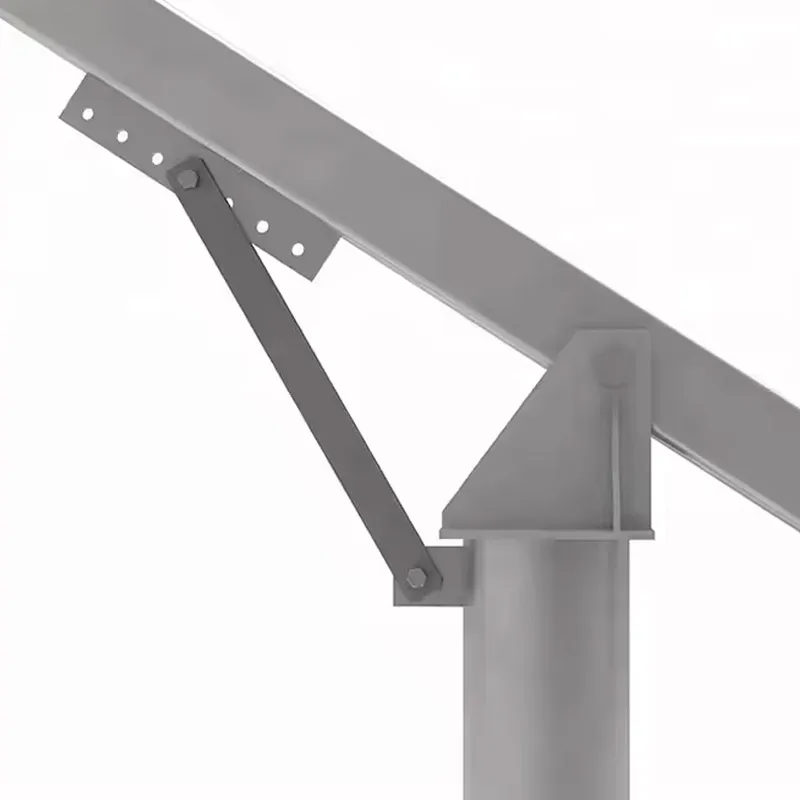

The bracket uses triple-lock clamps designed to grip tile ridges securely, combined with aerodynamic aluminum profiles that reduce wind uplift forces. Its structural stability is enhanced by cross-bracing and corrosion-resistant stainless steel bolts, ensuring resistance to winds up to 60m/s.
2. Will installation damage the ground or roof's waterproofing?
No. For rooftop applications, the system employs non-penetrating hooks that slide under existing tiles without drilling. For ground systems, the structure is designed to be minimally invasive, using various anchoring options that preserve the integrity of the site.
3. What materials are used to ensure long-term durability?
The systems are constructed from high-grade anodized aluminum alloy (AL6005-T5) and AISI 304 stainless steel. Critical steel components feature heavy-duty hot-dip galvanization or Zinc-Aluminum-Magnesium coating (≥85 μm) to provide over 25 years of service life in harsh environments.
4. Can the system adapt to irregular terrains or different solar modules?
Yes. The modular design features adjustable tilt angles (5°-45°) and customizable rail lengths. It is compatible with all standard framed solar modules and can be configured in both portrait and landscape layouts to suit specific project needs.
5. What quality certifications do these solar brackets hold?
Our mounting systems comply with international standards including CE, RoHS, ISO9001, ISO14001, and ISO45001. They undergo rigorous mechanical strength testing and salt spray resistance trials to ensure global reliability.
6. Is technical support available for system design?
We provide free professional system design services and can offer samples for testing. Our engineering team provides full-cycle support from the initial project planning phase through to installation guidance.
