| Specification | Details |
|---|---|
| Model NO. | Metal Roof Solar Panel Structure |
| Material | Aluminum Alloy (6063-T5/6005-T5) |
| Type | Roof Bracket |
| Wind Load | 40m/S or Customized |
| Snow Load | 1.4kN or Customized |
| Surface Treatment | Aluminum Anodized, Black Electrophoresis, Hot-DIP Galvanized |
| Color | Silver, Black |
| Tilt Angle | 0-45 deg |
| International Standard | AS/NZS 1170, JIS4955:2011, ISO9001 |

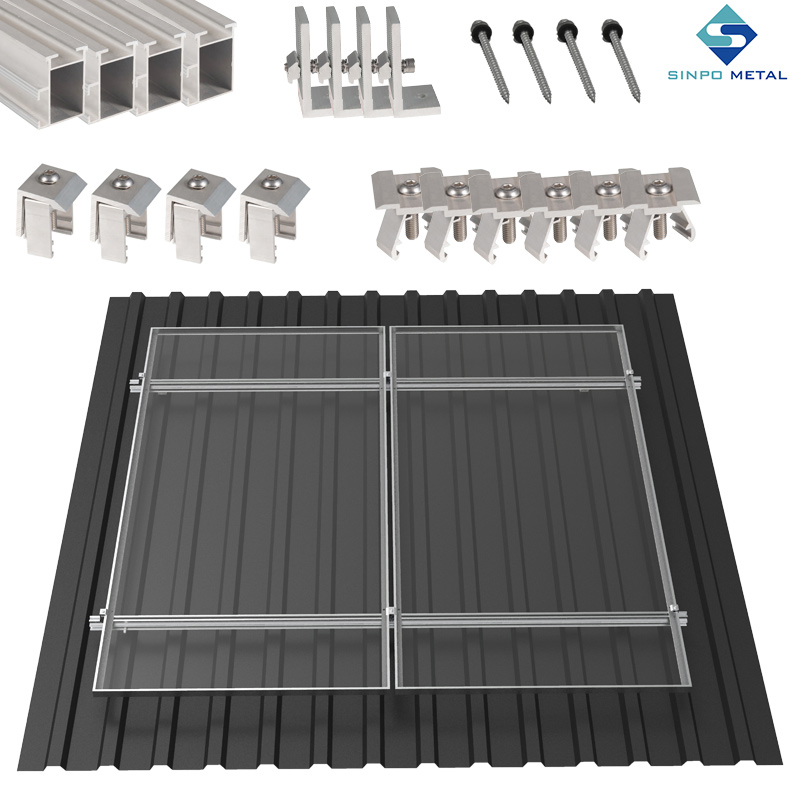

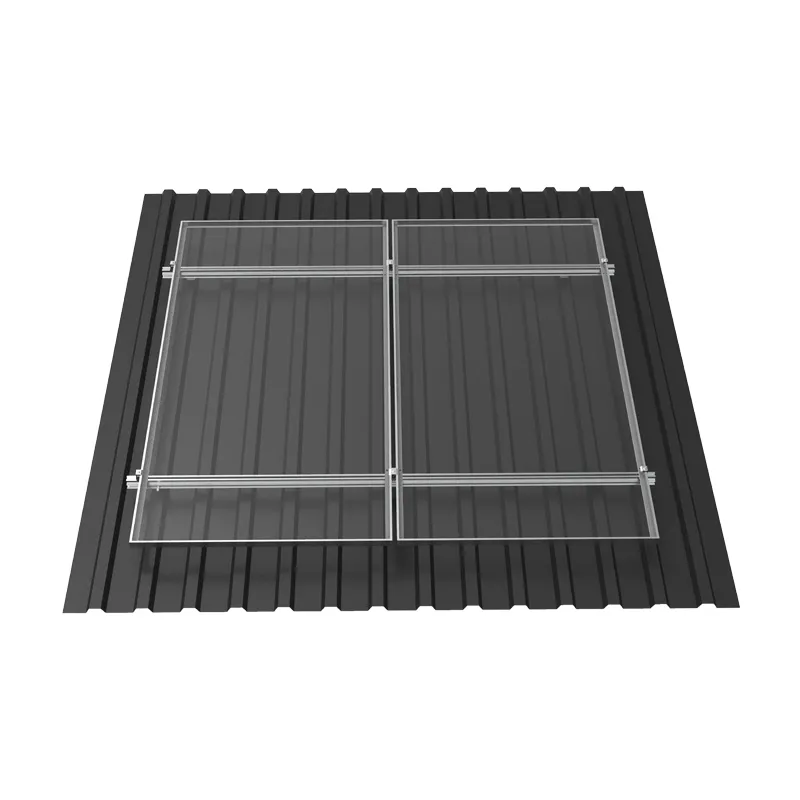

Classic style, fully compatible with most metal roofs in the market, ensuring versatile application and reliable structural support.
| Installation Site | According To Customers' Requirement |
| Solar Panel Type | Framed Or Frameless |

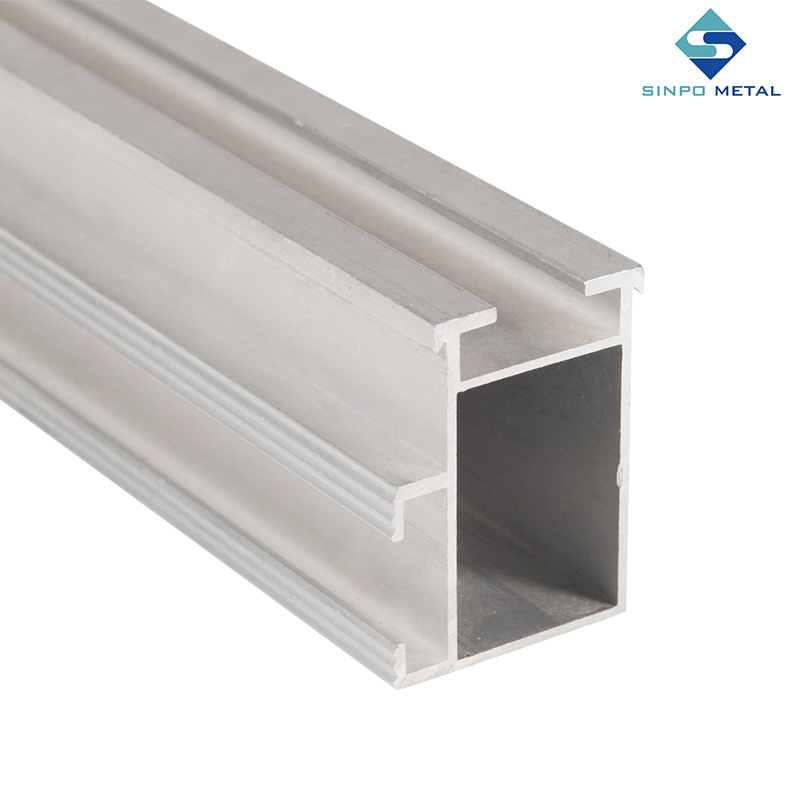

| Rail Material | High-strength Aluminum Alloy |
| Module Array | Horizontal Or Vertical |
| Warranty | Over 25 Years Service Life |
| Package Size | 45.50cm * 26.50cm * 37.50cm |
| Gross Weight | 23.600kg |

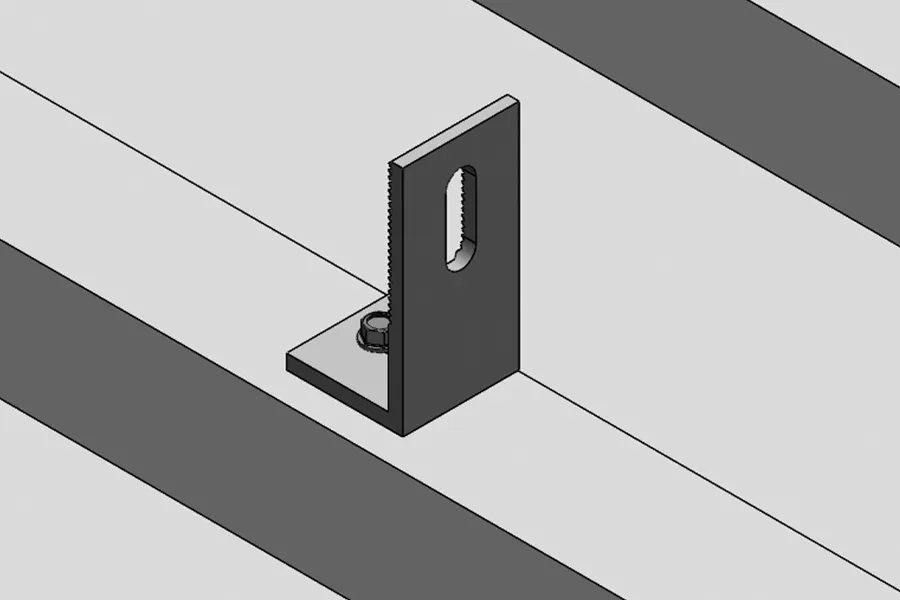

Install L-feet securely onto the metal roof surface.

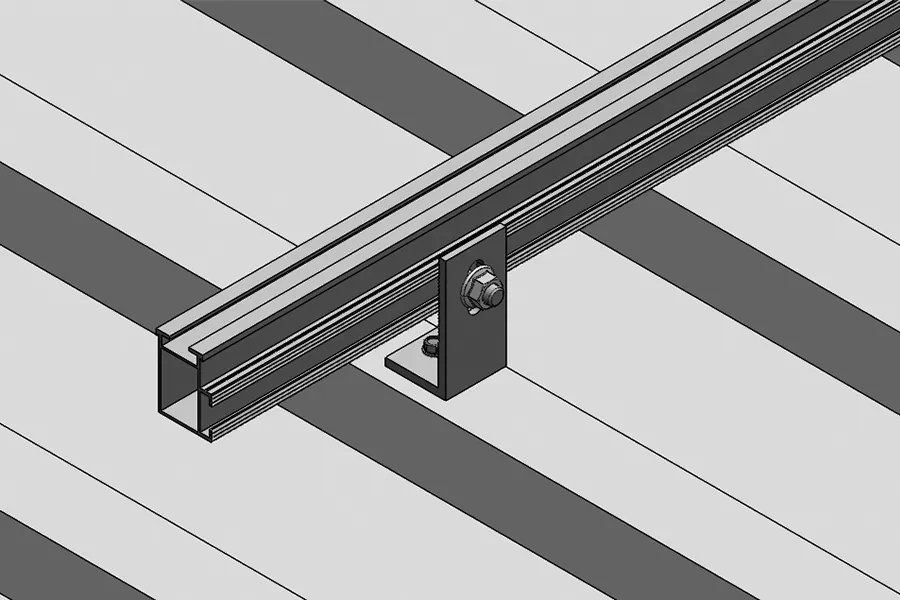

Connect the aluminum rail with L-feet using specialized T-bolts.

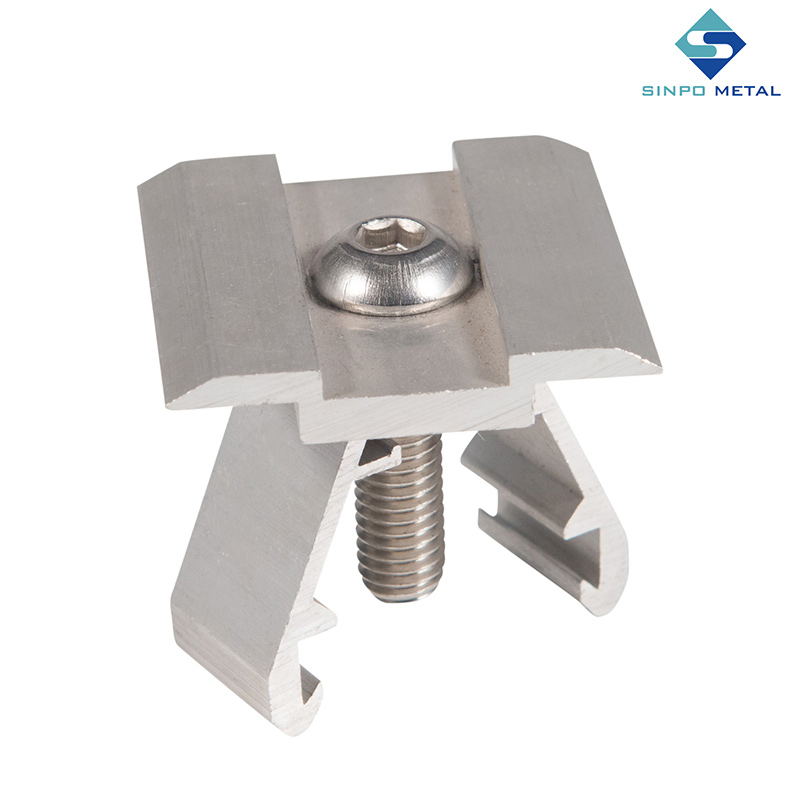

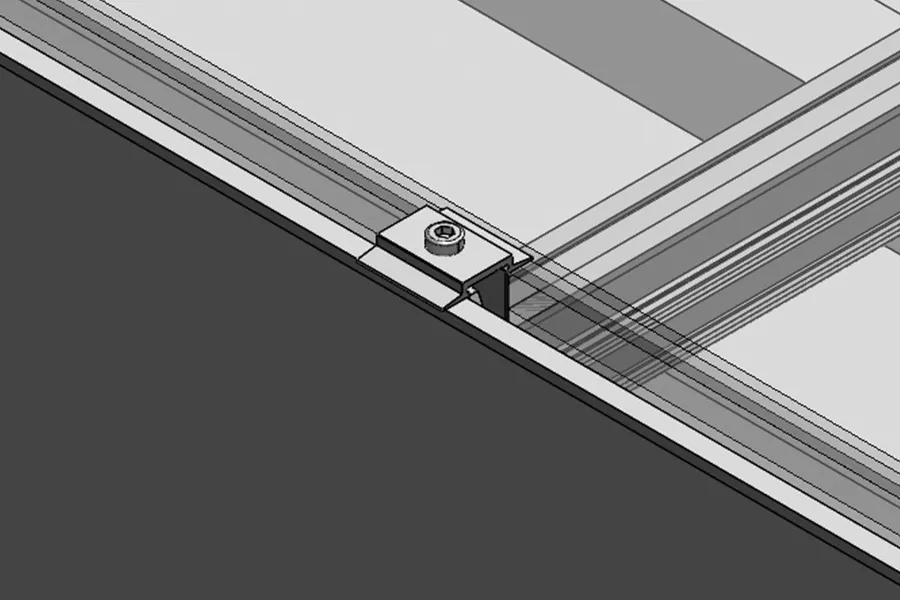

Fix two modules onto the rail using the mid clamp for alignment.

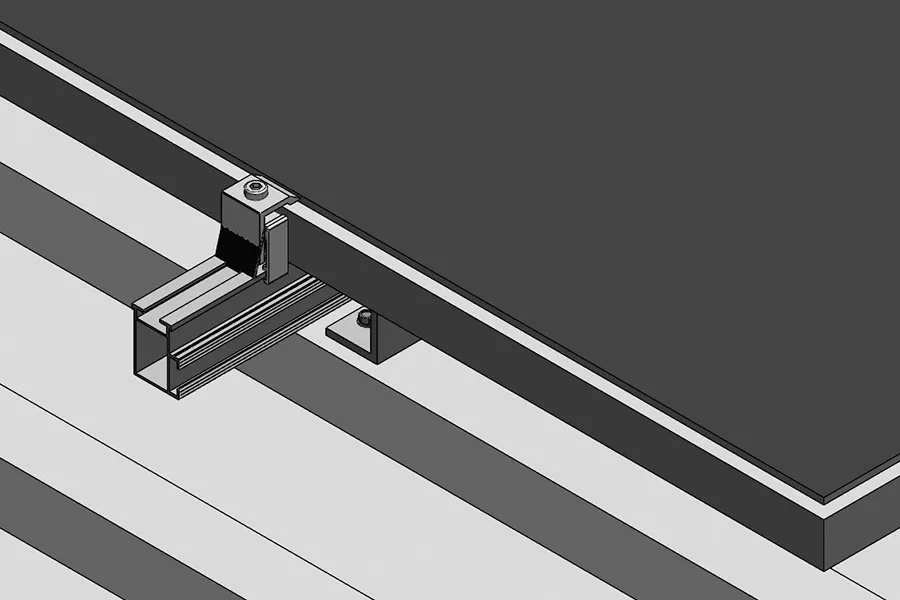

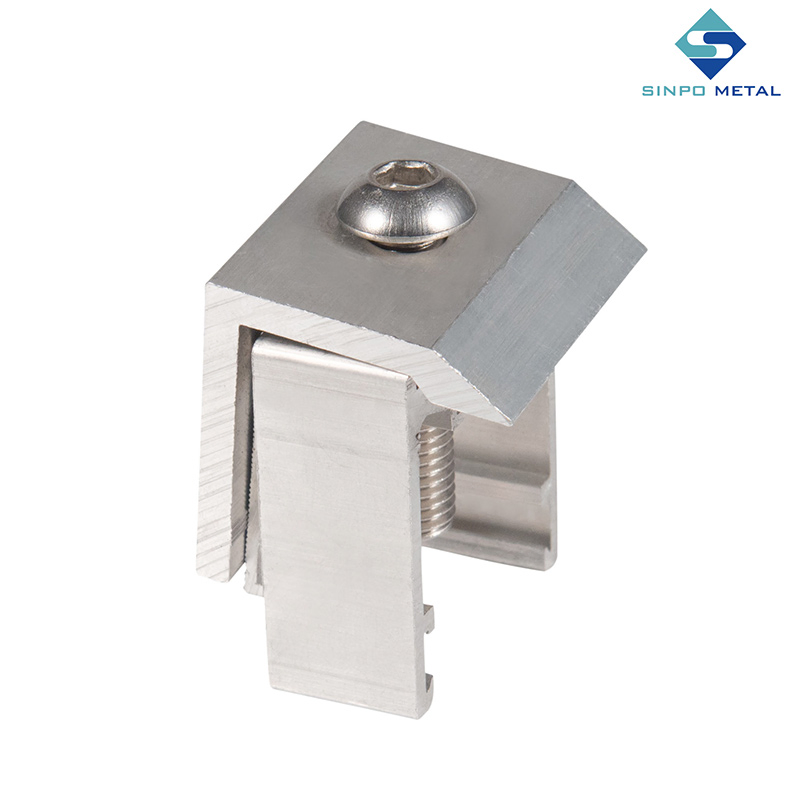

Secure the outer edges of the modules to the rail using end clamps.
