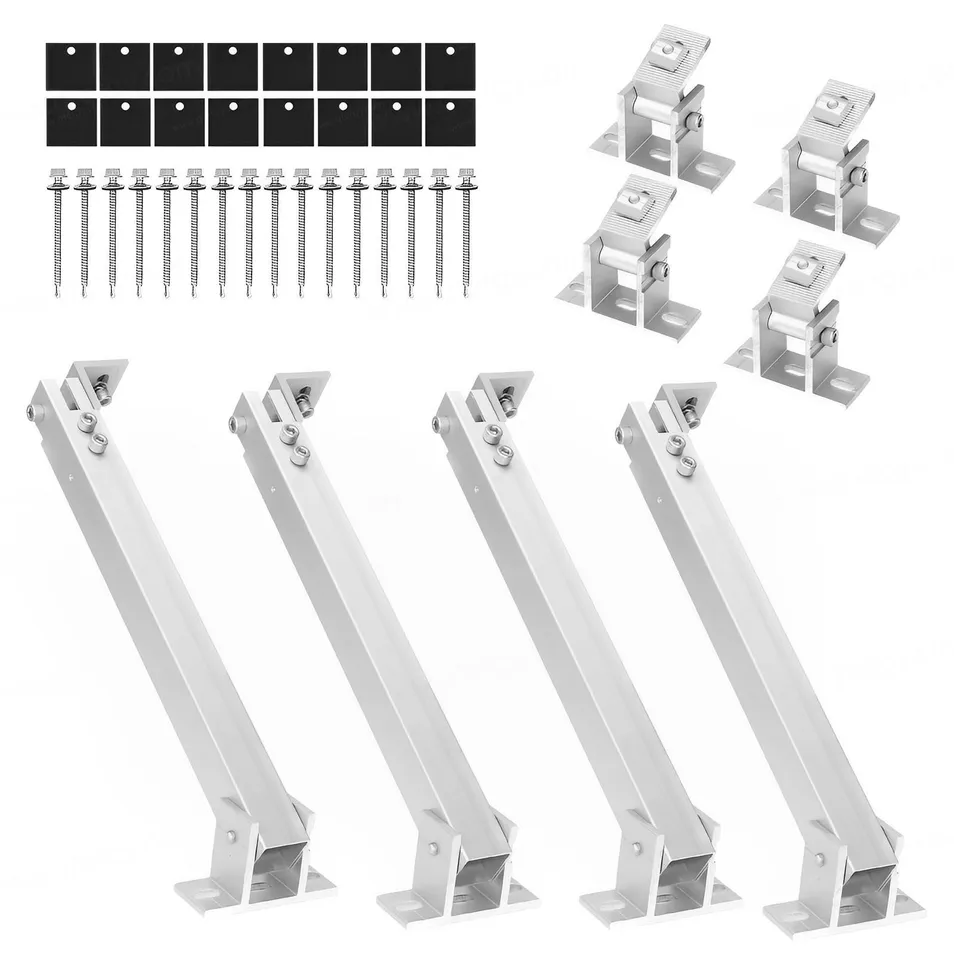

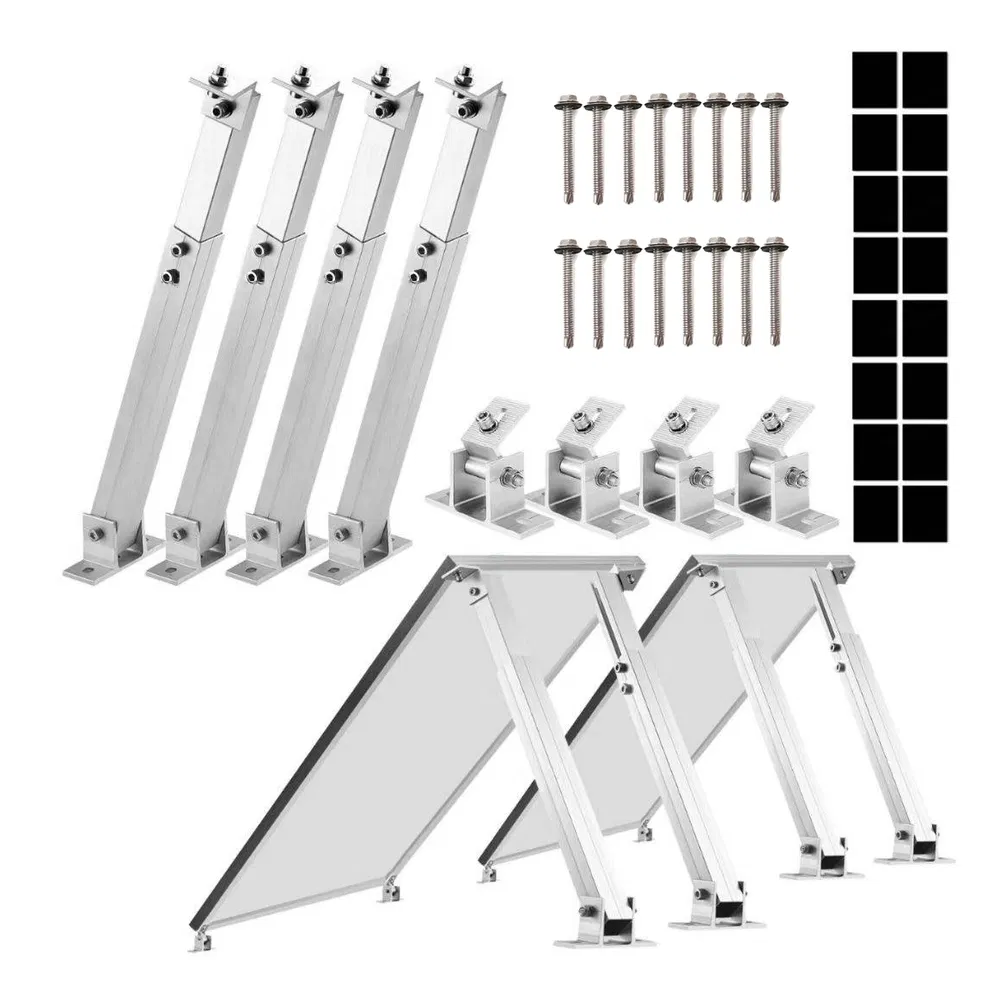

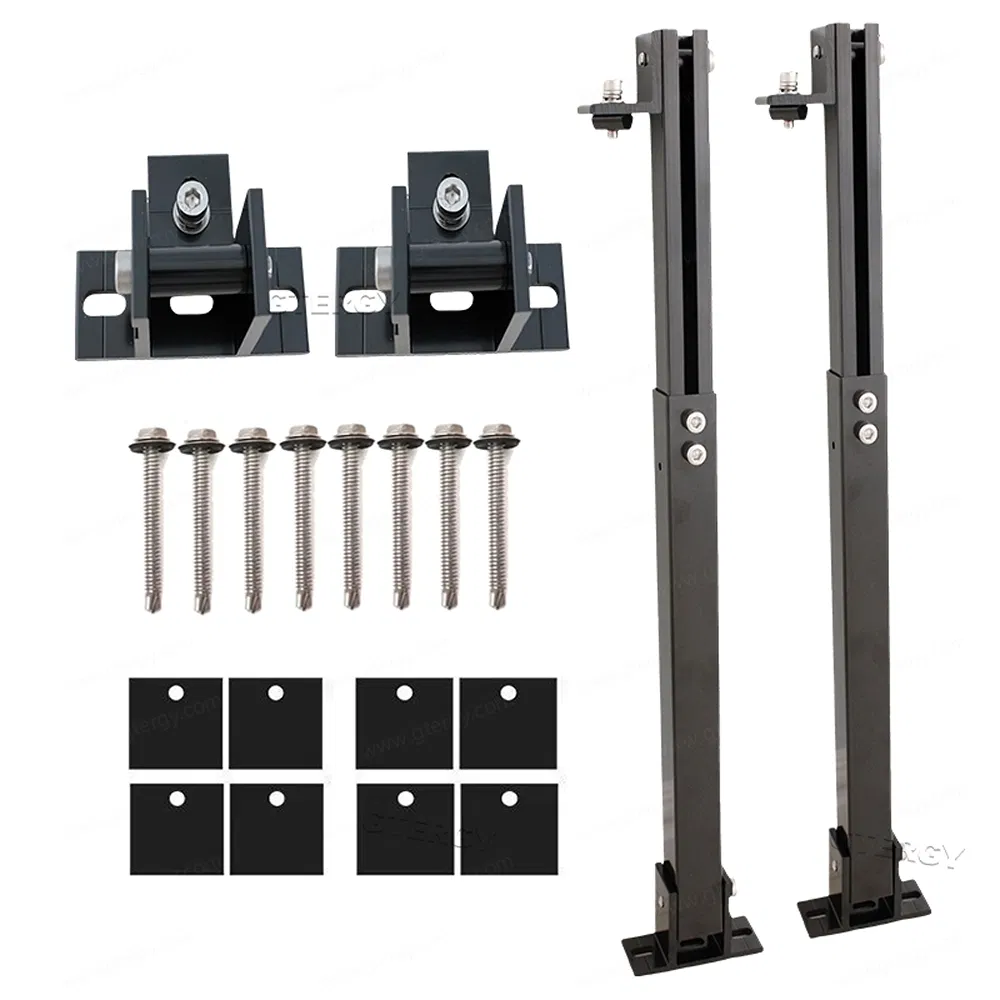

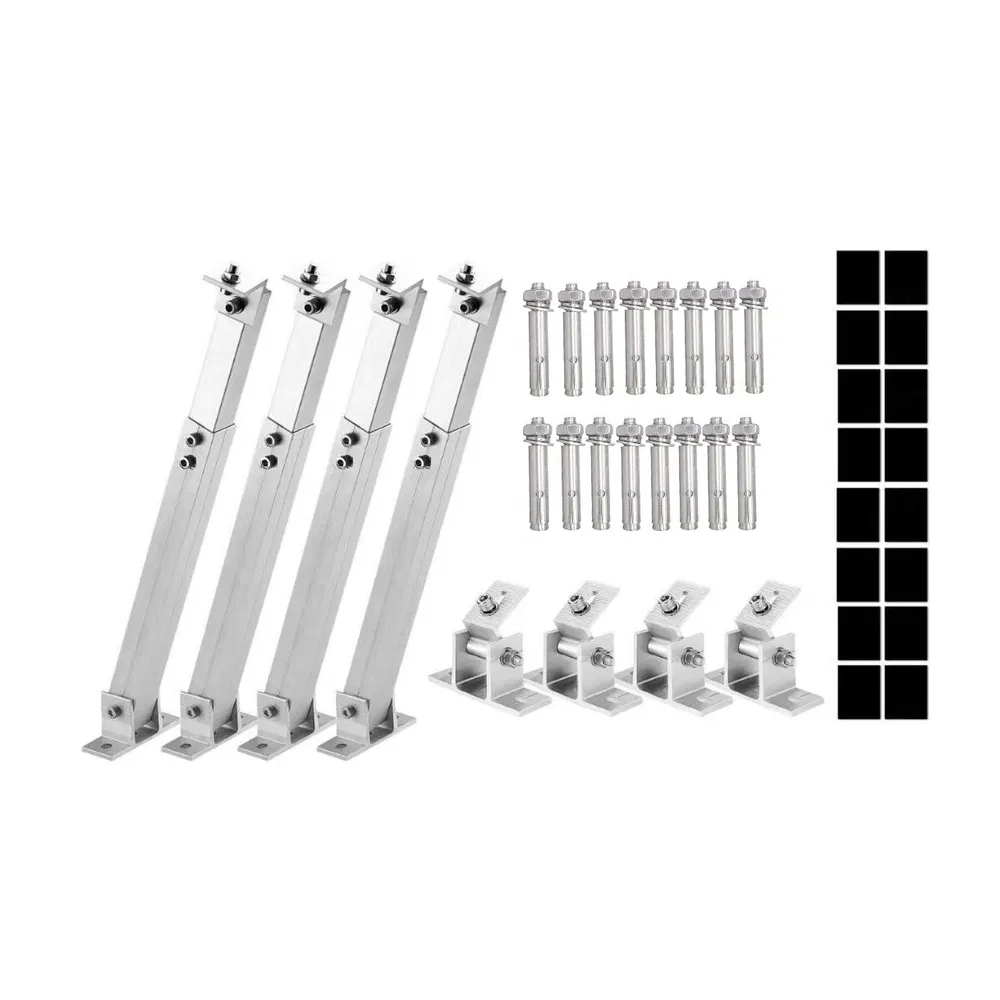

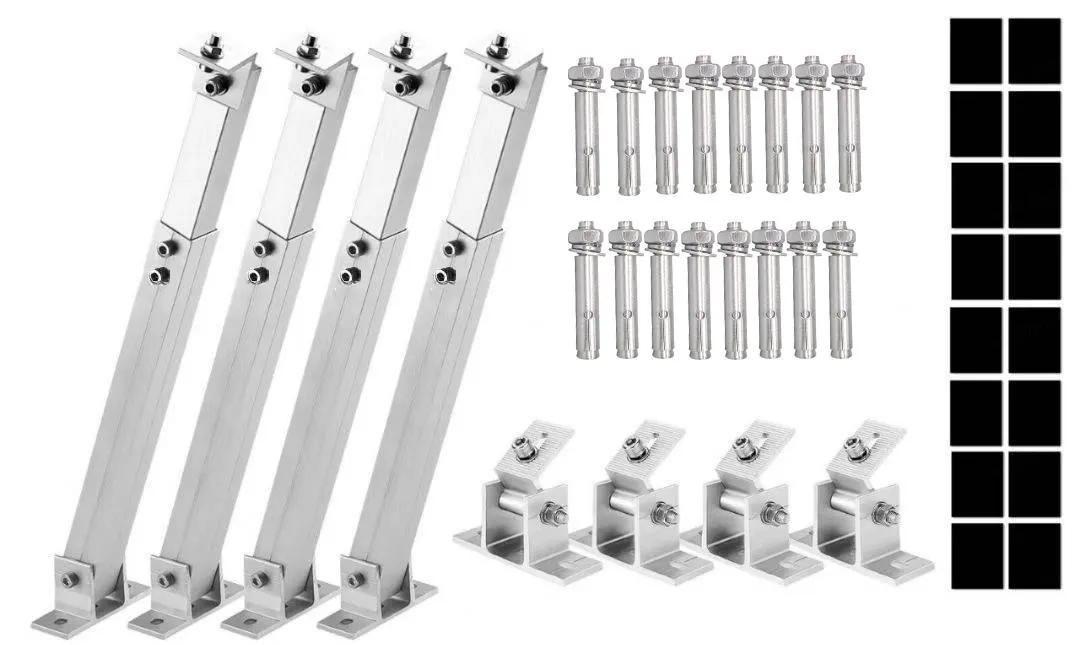

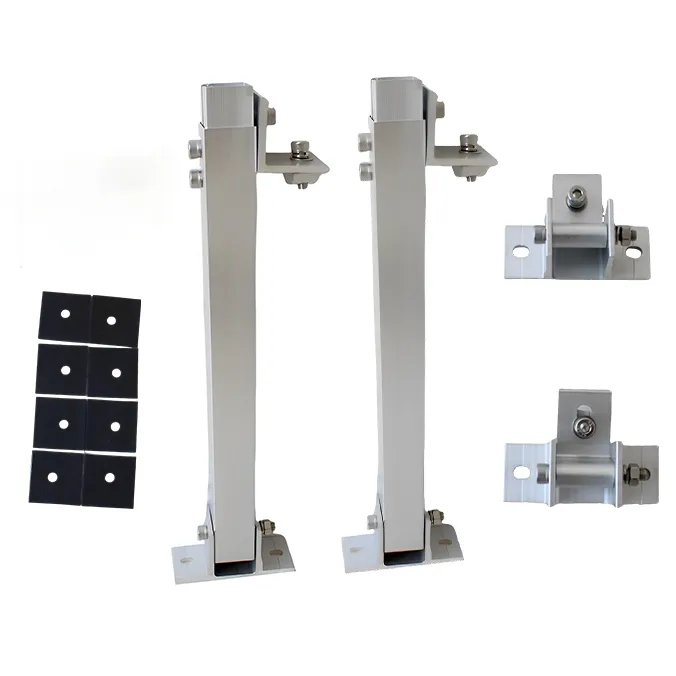

Solar adjustable mounting bracket is made of Al6005-T5 material, lighter weight than carbon steel, high strength & resistance corrosion, easy installation, no harmful waste is generated.
All aluminum profiles feature anodized surfaces that deliver excellent resistance to corrosion, ensuring reliable and long-lasting performance in harsh weather and environmental conditions.

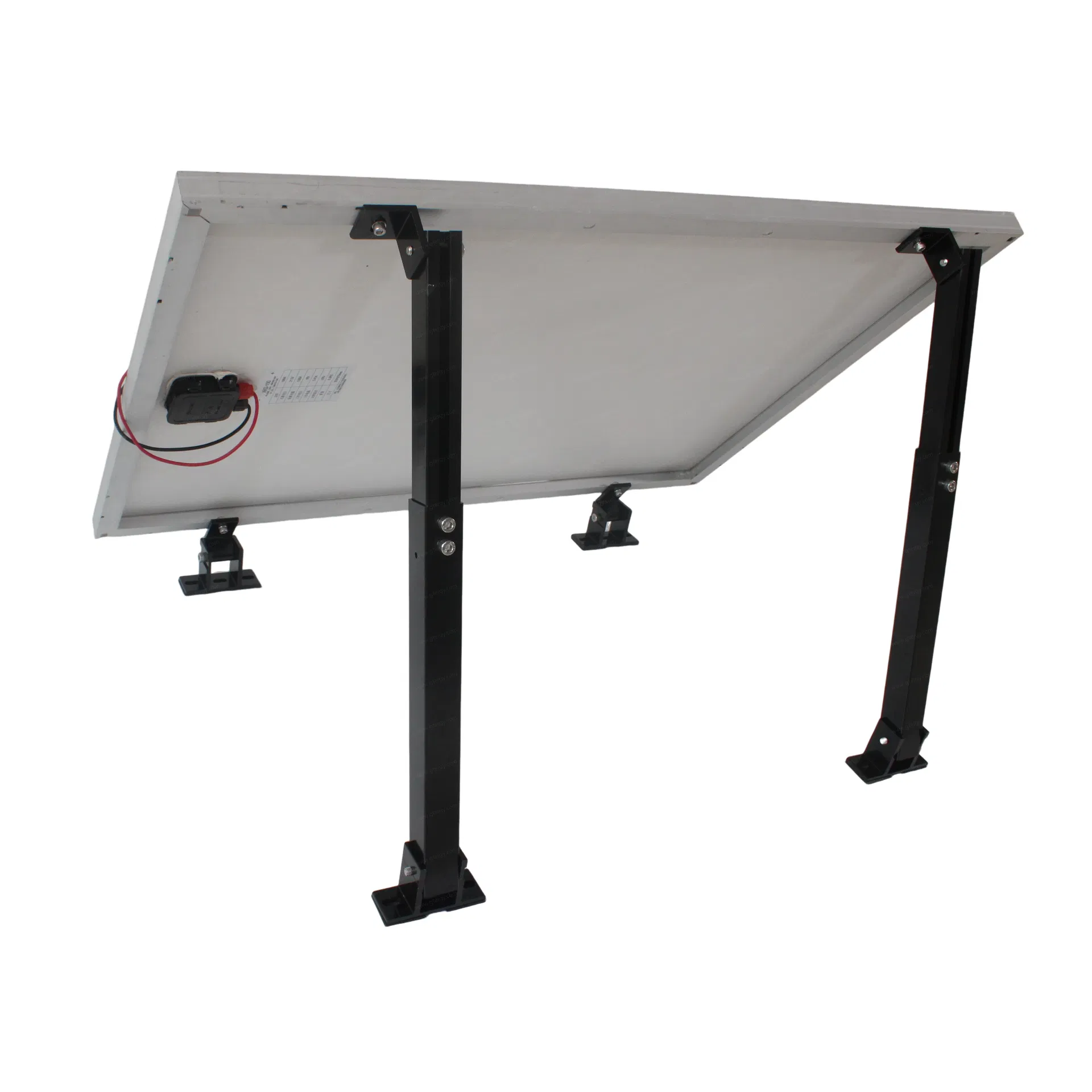

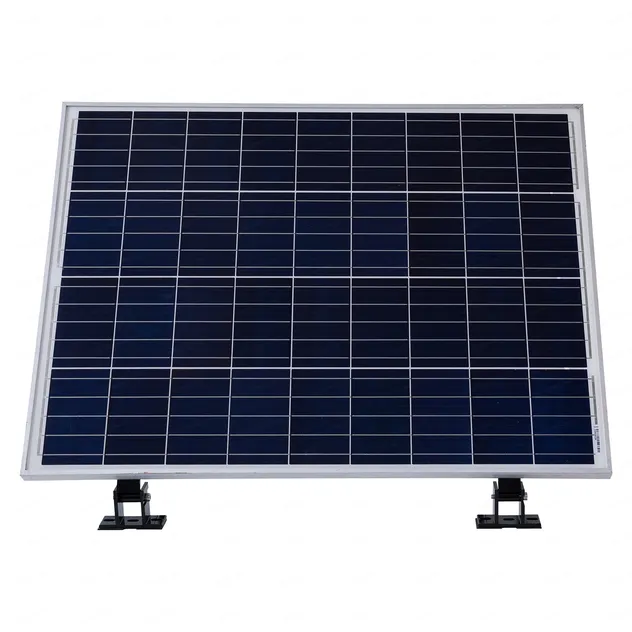

Precisely designed tilt adjustments and mounting angles allow photovoltaic modules to be positioned for maximum sunlight exposure, significantly boosting overall solar power generation efficiency.
| TECHNICAL SPECIFICATIONS | |
|---|---|
| Product Name | Solar Adjustable Tilt Legs |
| Material | Aluminum 6005-T5 & SUS304 |
| Surface Treatment | Anodizing 13 um |

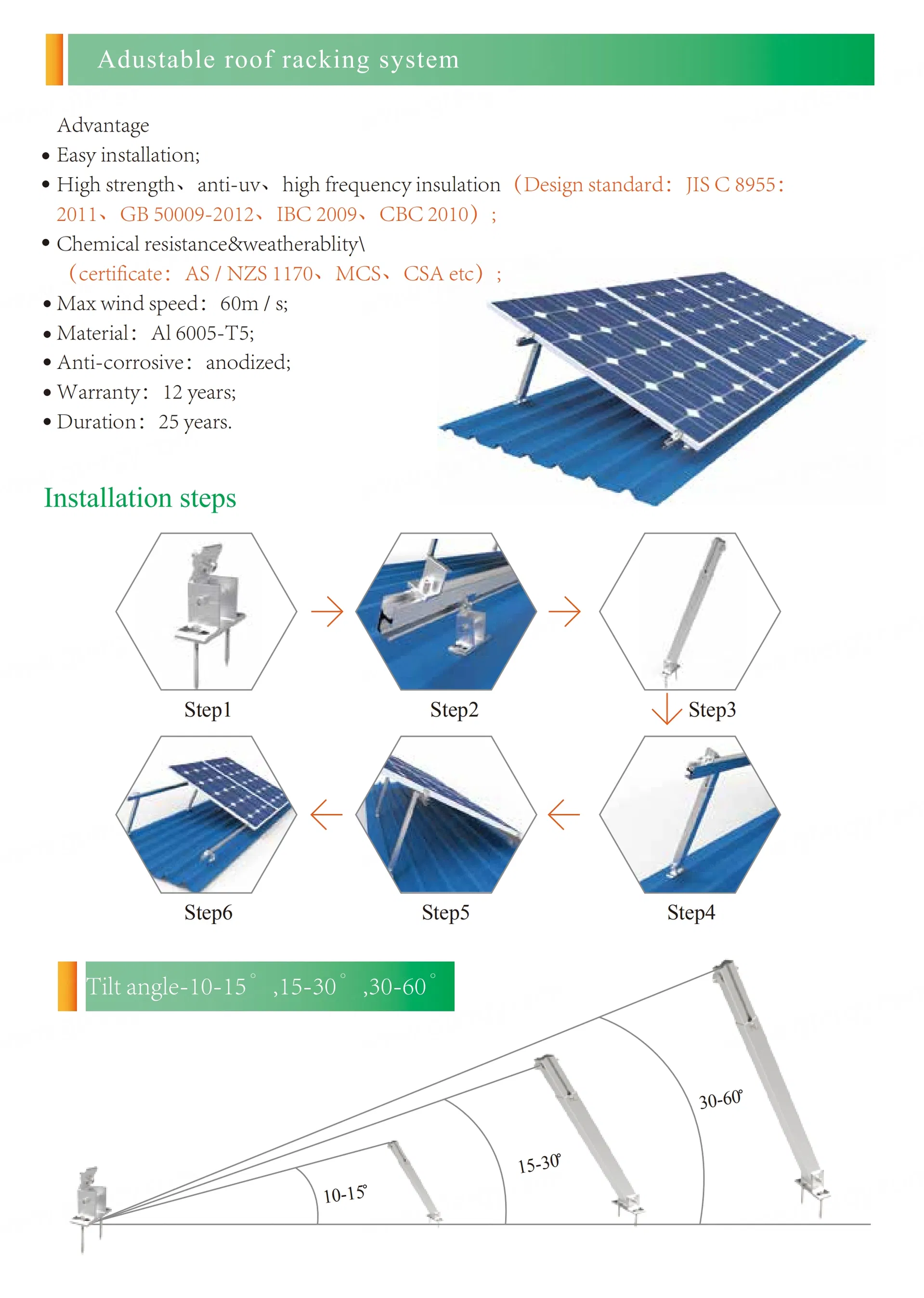

| Tilt Angle | 10°-15°; 15°-30°; 30°-60° or custom |
| Max Wind Speed | Up To 130Mph (60m/s) |
| Design Snow Load | Up To 30Psf (1.4KN/m2) |
| Design Standard | JIS C 8955 2011, GB50009-2012, IBC 2009, CBC 2010 |
| Installation | Tin Rooftop Or Flat Concrete Open Space |
| Warranty | 12 Years |
| Duration | 25 Years |

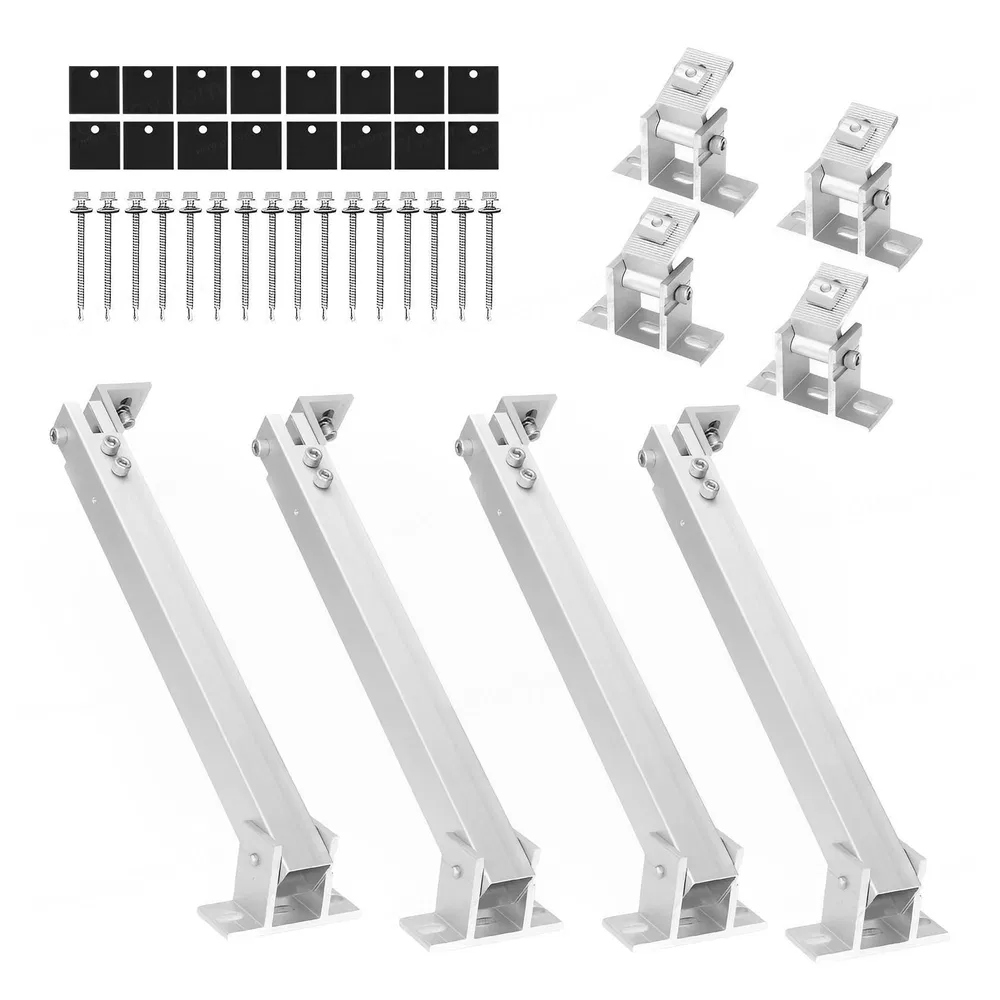

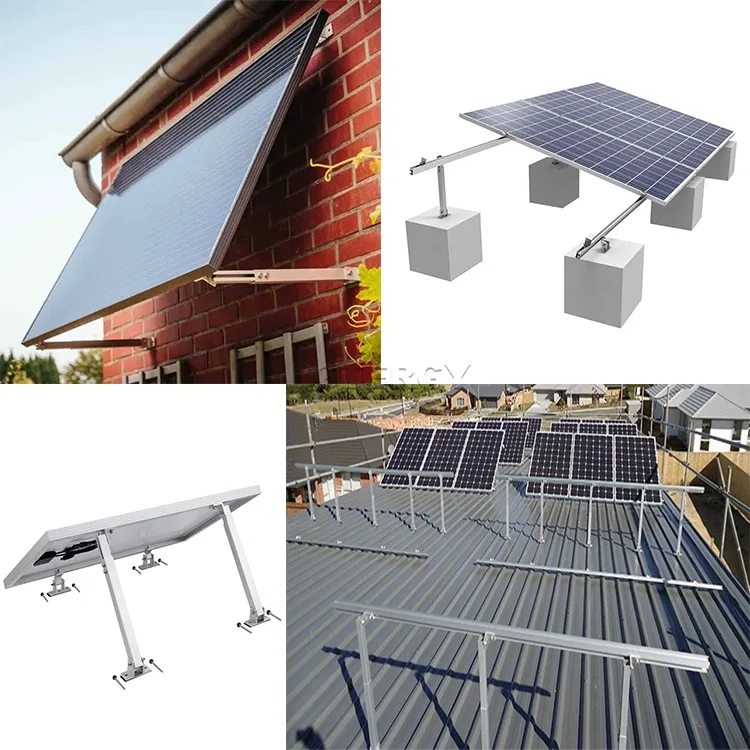

METAL ROOFTOP INSTALLATION

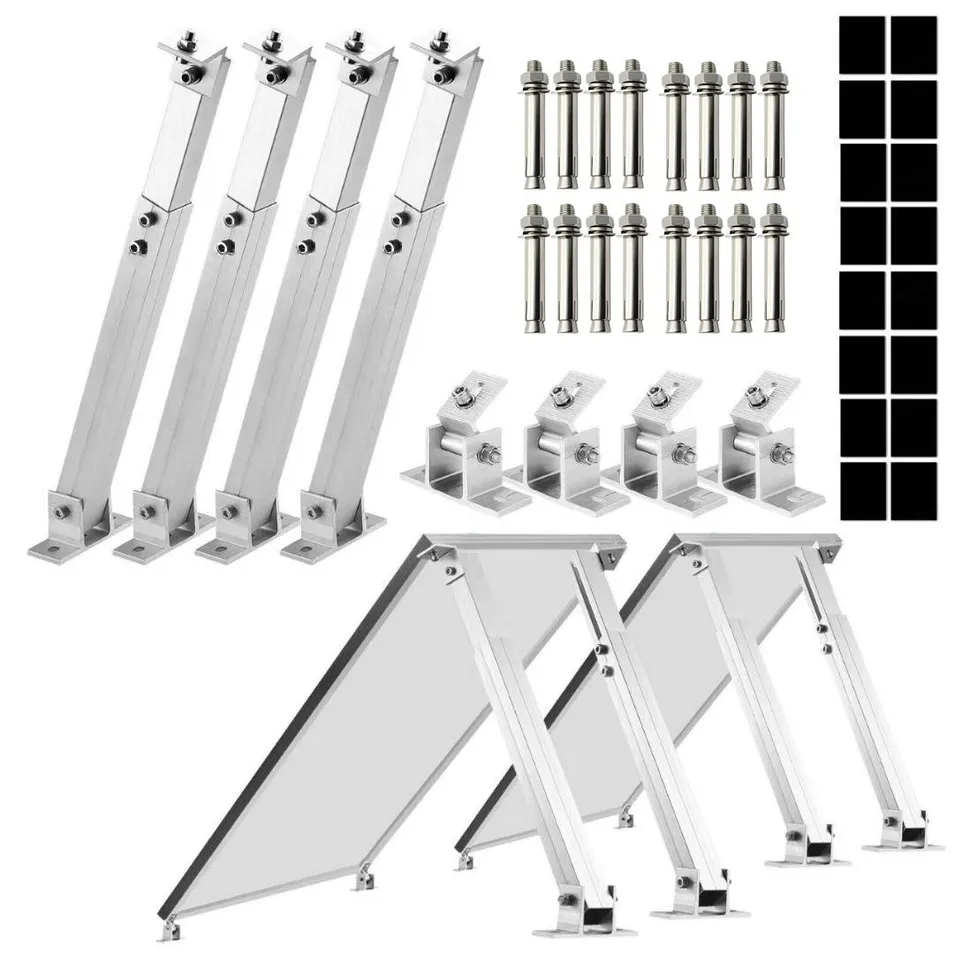

CONCRETE OPEN SPACE APPLICATION

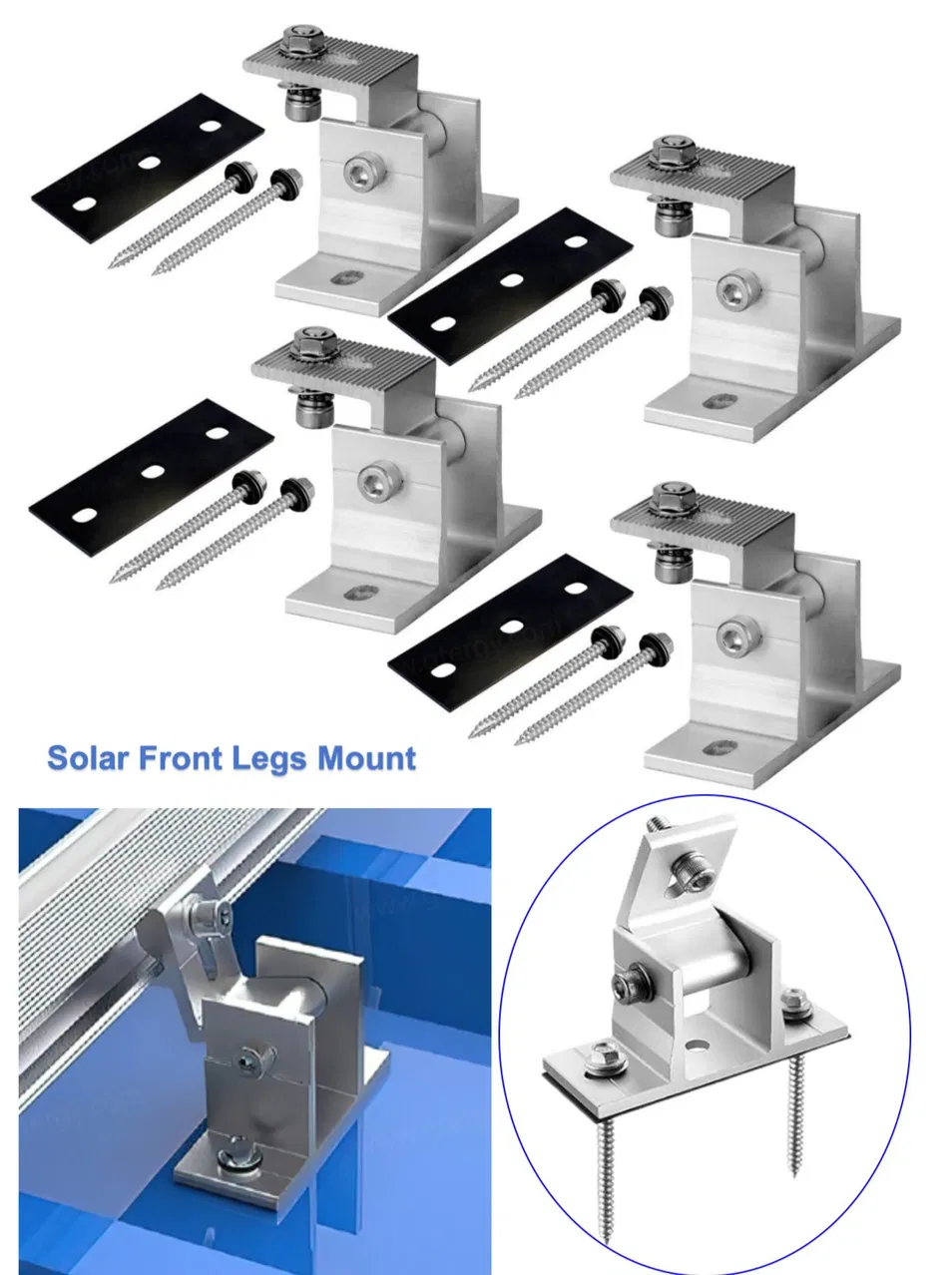

FAST & COST-EFFECTIVE INSTALLATION

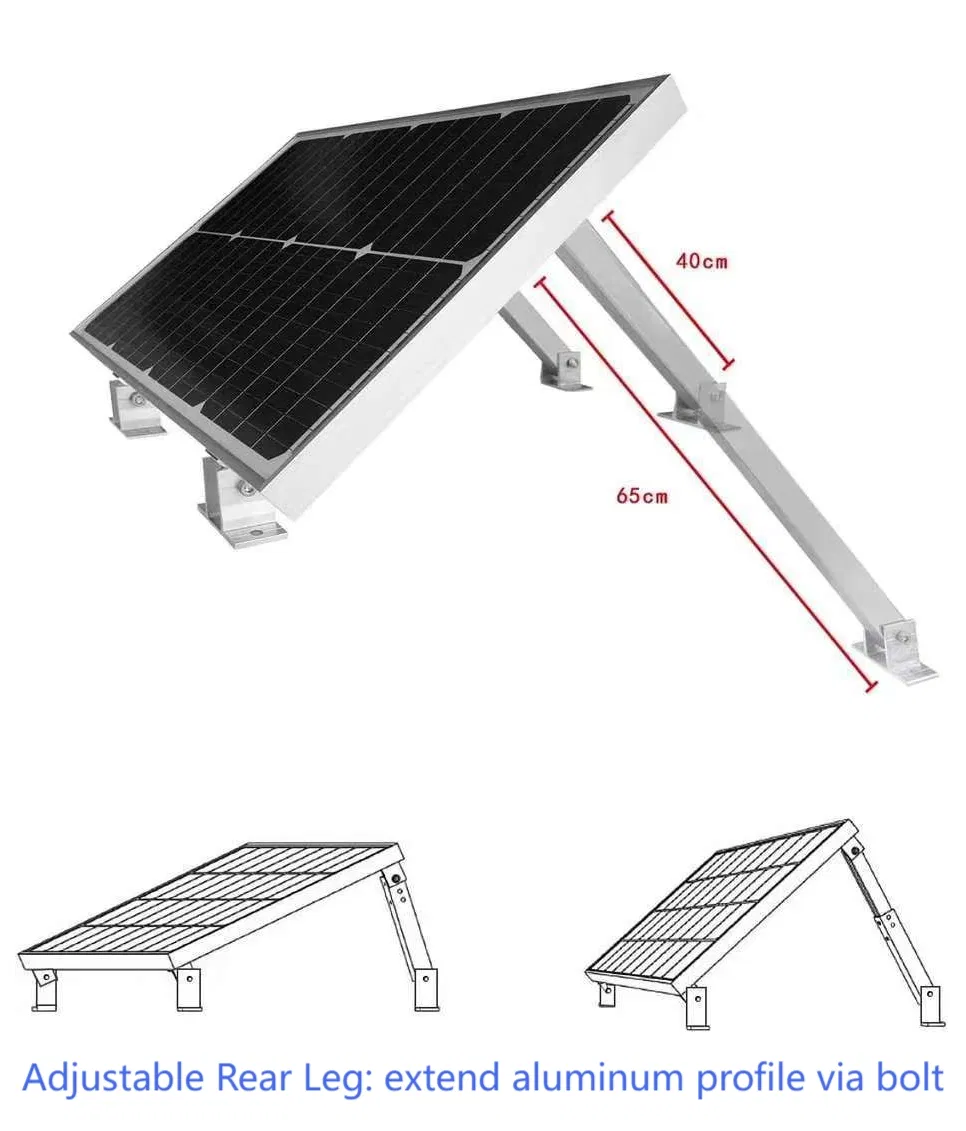

OPTIMIZING PV MODULE INSTALLATION
