OEM Aluminum Ground Single Pole Solar Panel Mounting Structure Solar Bracket

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

Overview

Basic Info

Model NO.

PD-GM-02

Certification

Application

Commercial

Material

Aluminum Alloy

Type

Ground Bracket

Wind Speed

60m/S

Snow Load

1.4kn/M2

Lead Time

7-15 Days

Surface Treatment

Anodized

Standard

AS/NZS1170/Jisc8955:2017

Packaging & Delivery

Package Size

240.00cm * 110.00cm * 110.00cm

Gross Weight

1000.000kg

Product Description

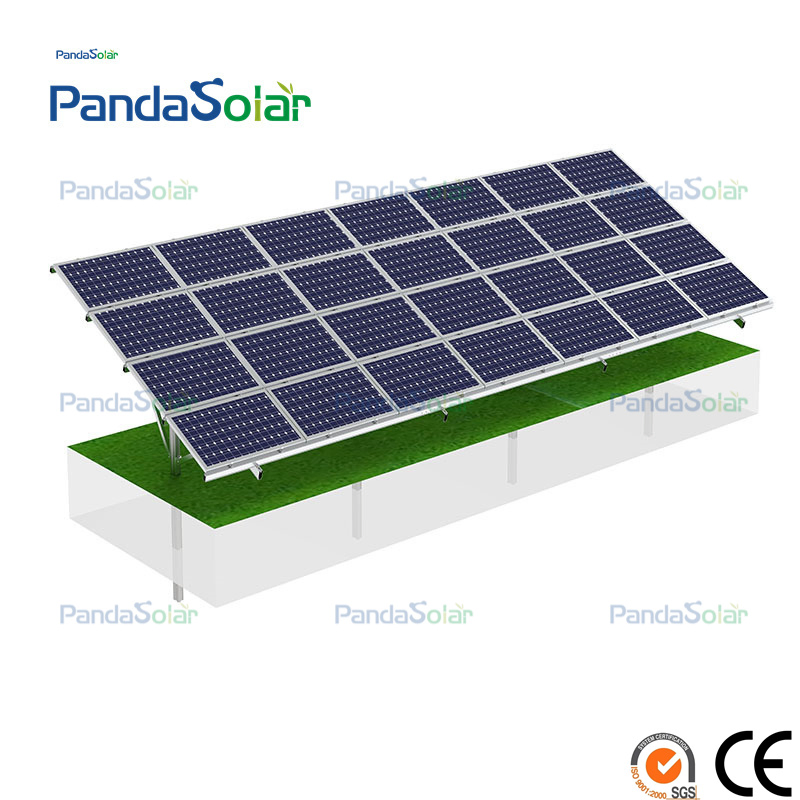

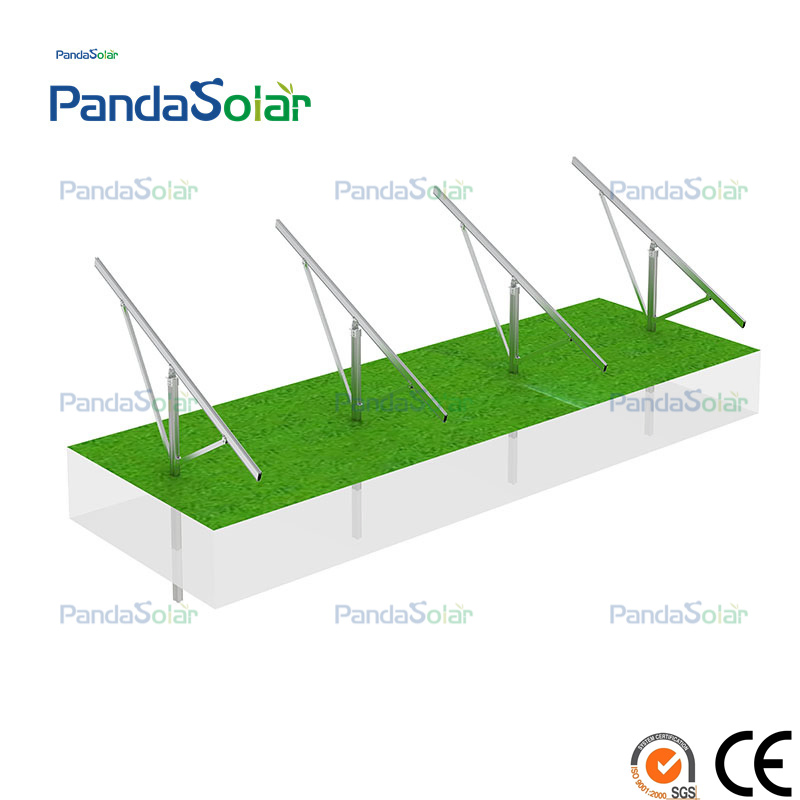

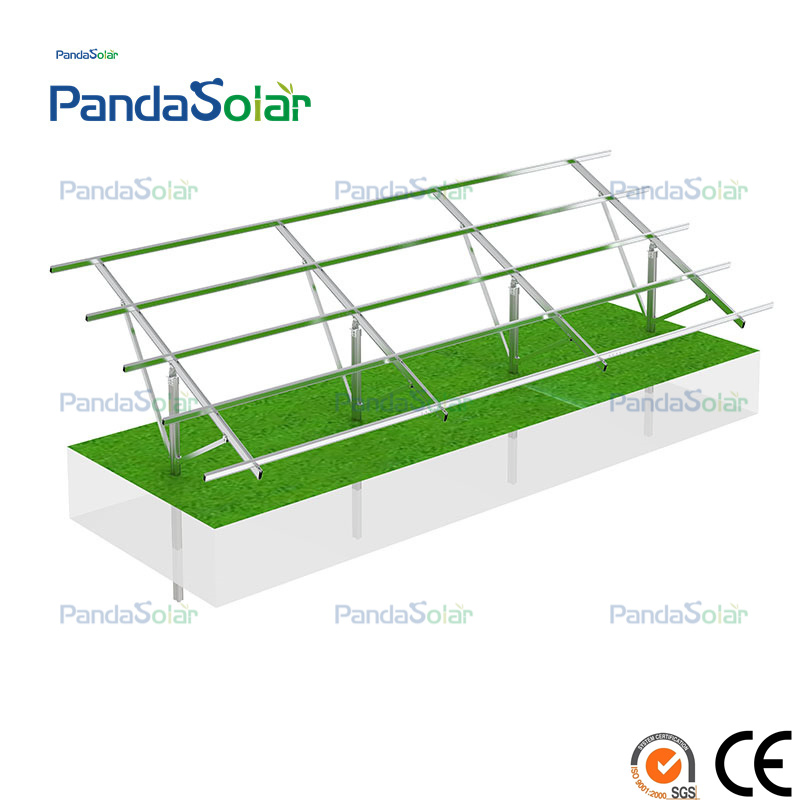

Solar Panel Ground Screw Mounting Bracket System:

PD-GM-02 is a high cost-effective one pole solar ground mounting solution and suitable for installation in most parts of Europe. Highly pre-assembled bracket is benefit for transportation and installation. For solution design, we require:

Solar panel specification and layout
The structure angle
Min ground clearance
Max wind speed and snow load

Structural Features

HDG single pile + Aluminum (AL-6005-T5) solar pre-assemble rack, High strength and high corrosion resistance
Adjustable joint, easy to achieve the same level installation
Aluminum bracket pre-assembled, easy installation

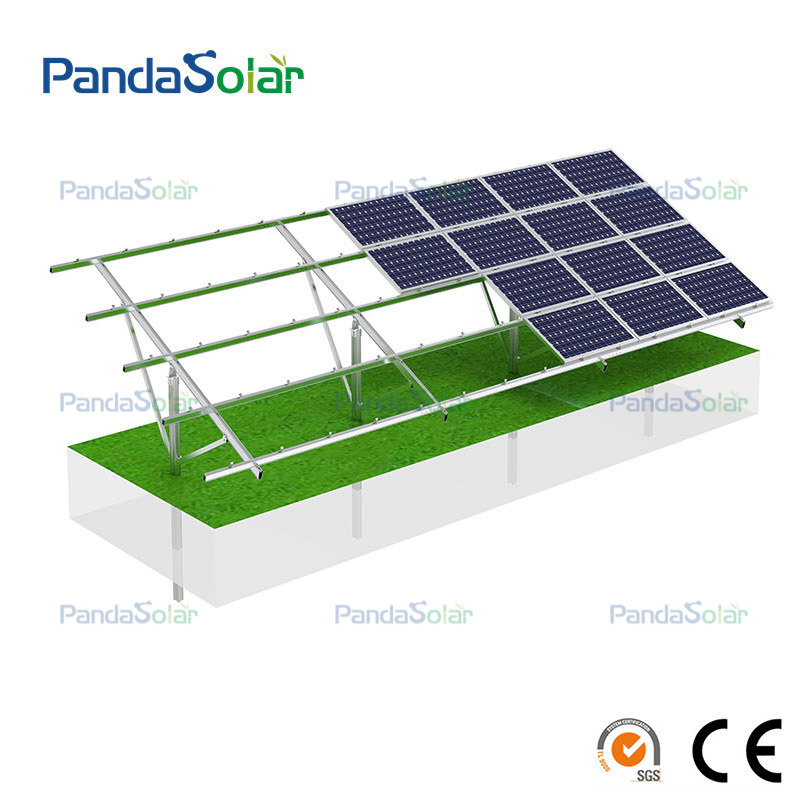

Installation Diagram

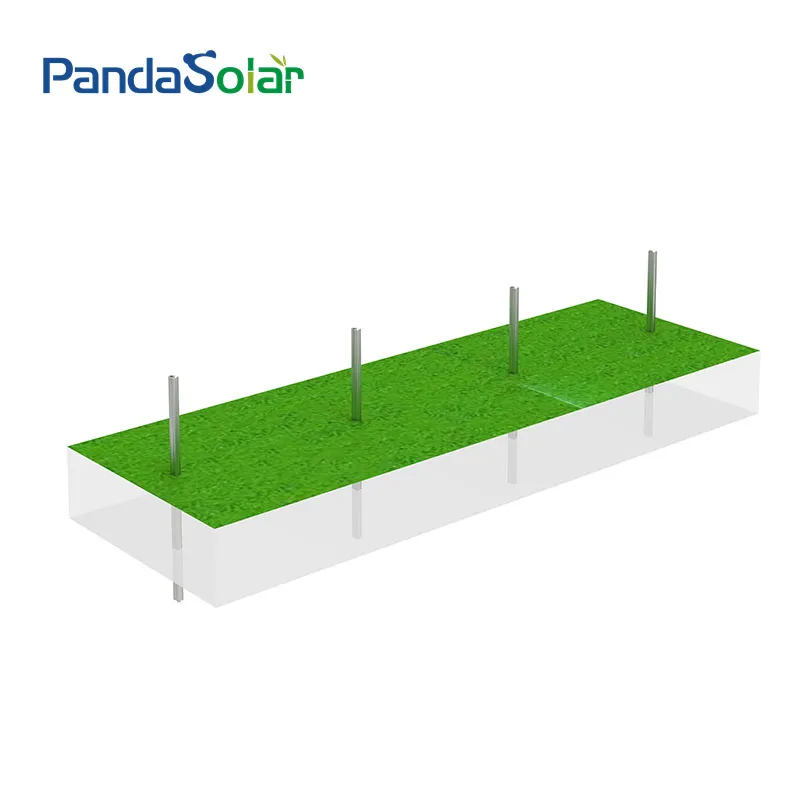

Step 1: Set the Pole
Firstly, start by digging a hole deep enough to accommodate the pole that will support the entire solar panel array. Ensure it is level and straight, then fill with concrete.

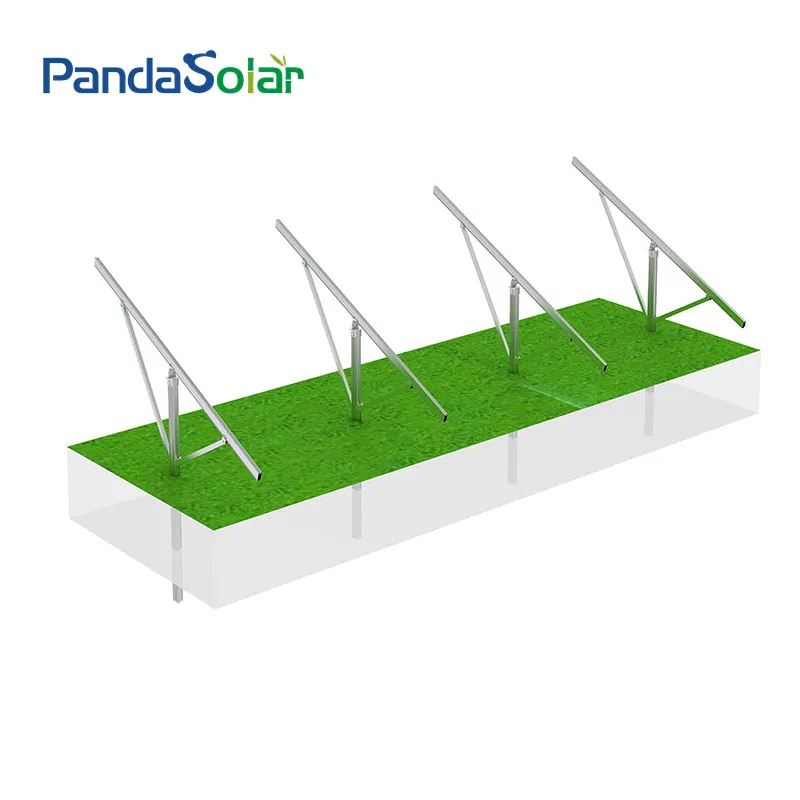

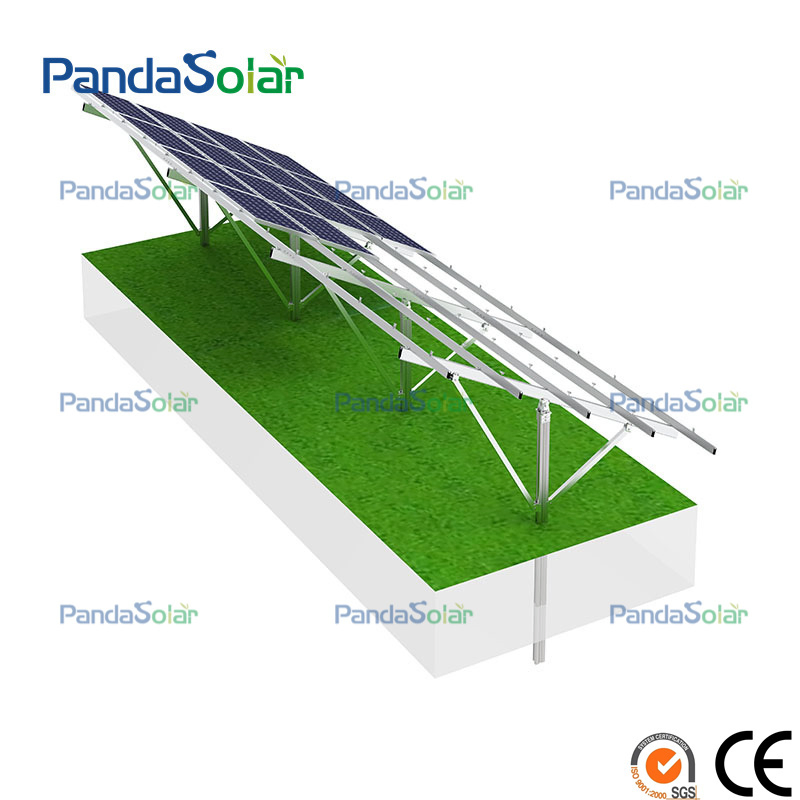

Step 2: Install the Beam and Diagonal Support
After the concrete has dried, connect the diagonal support pole to the top of the pole using bolts and nuts. Attach the beam and secure firmly.

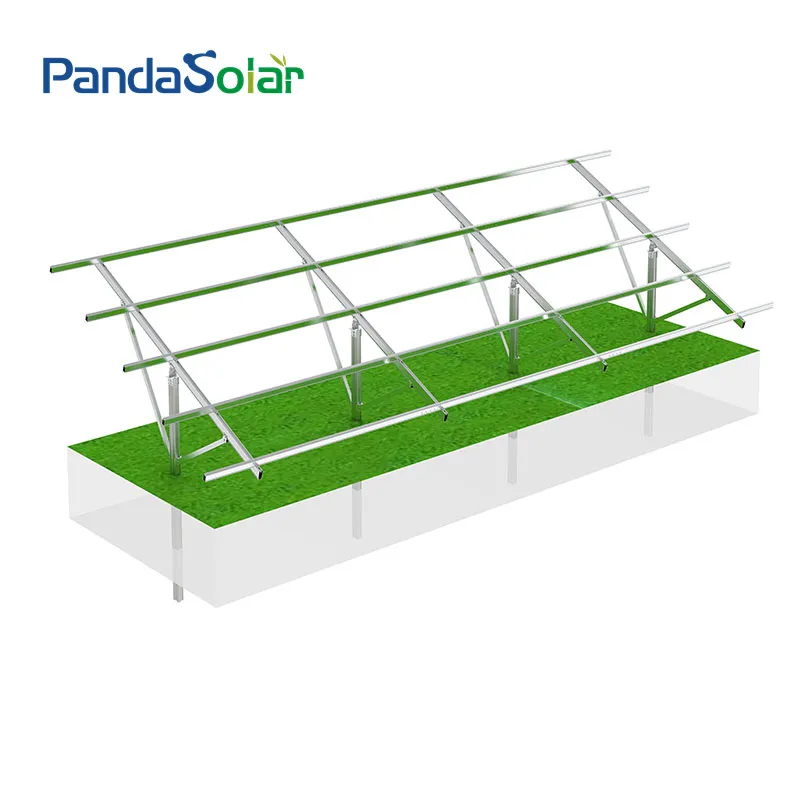

Step 3: Installing Rails
Attach the rails that will support the solar panels to the beam using brackets and bolts. Ensure the rail is level before proceeding.

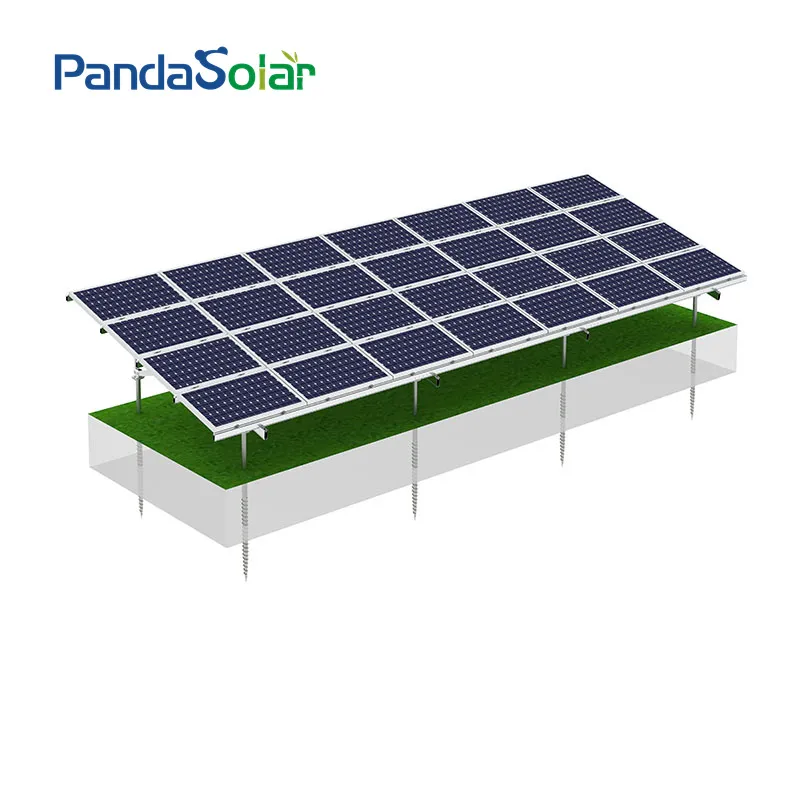

Step 4: Installing Solar Panels
Finally, attach the solar panels to the rail using mounting hardware. Connect them in series or parallel as per system requirements and run the wiring.

Product Parameters

Material	Structure: AL-6005-T5 (Anodized) & HDG Components: SUS304 & AI6005-5
Application	Commercial and Residential installation
Tilt Angle	0-60°
Wind Speed	0-60 m/s
Snow Load	0-150cm
Ground Clearance	0-1m
Design Standard	AS/NZS 1170, DIN 1055, JIS C8955: 2017, IBC 2009
Warranty	12 years

Related Products

Production Facility

Our facility includes professional design and sales teams committed to developing clean energy mounting systems. We specialize in ground mounting, agriculture greenhouses, roof systems, carports, and solar accessories.

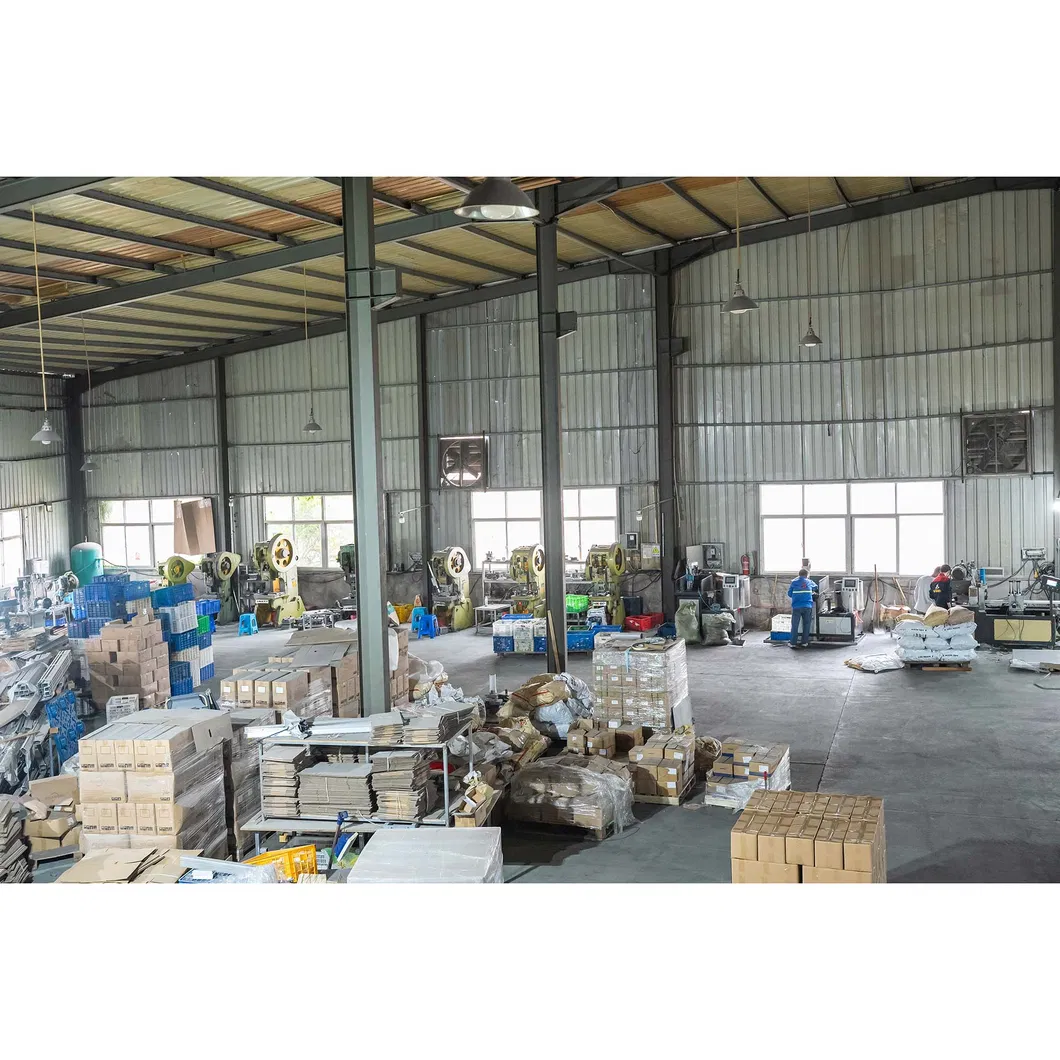

Workshop & Processing

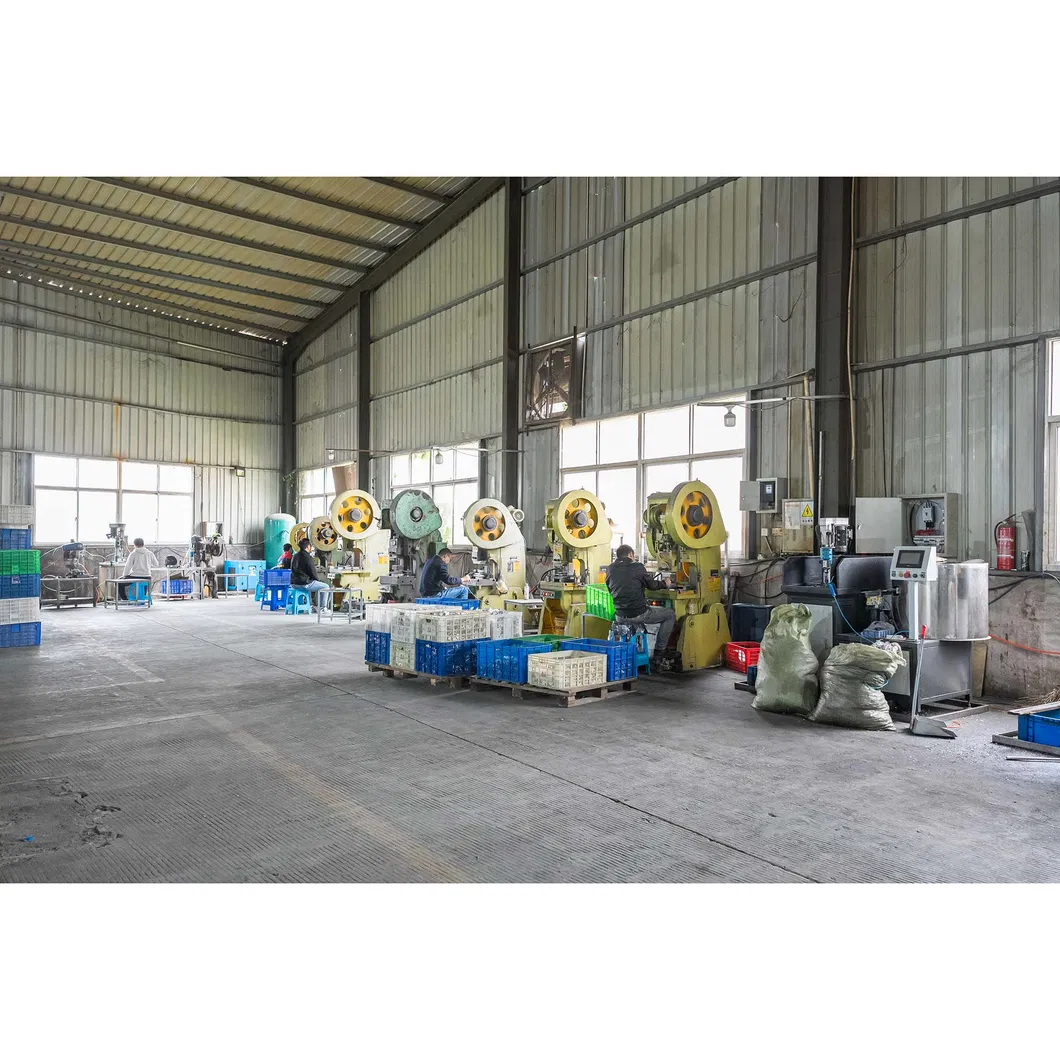

Aluminum Material Workshop: Independent processing for cutting, drilling, stamping, and forging. High precision customization available.

Steel Material Workshop: 6 production lines for steel and Magnesium-Aluminum-Zinc processing. Monthly productivity of 40-50MW.

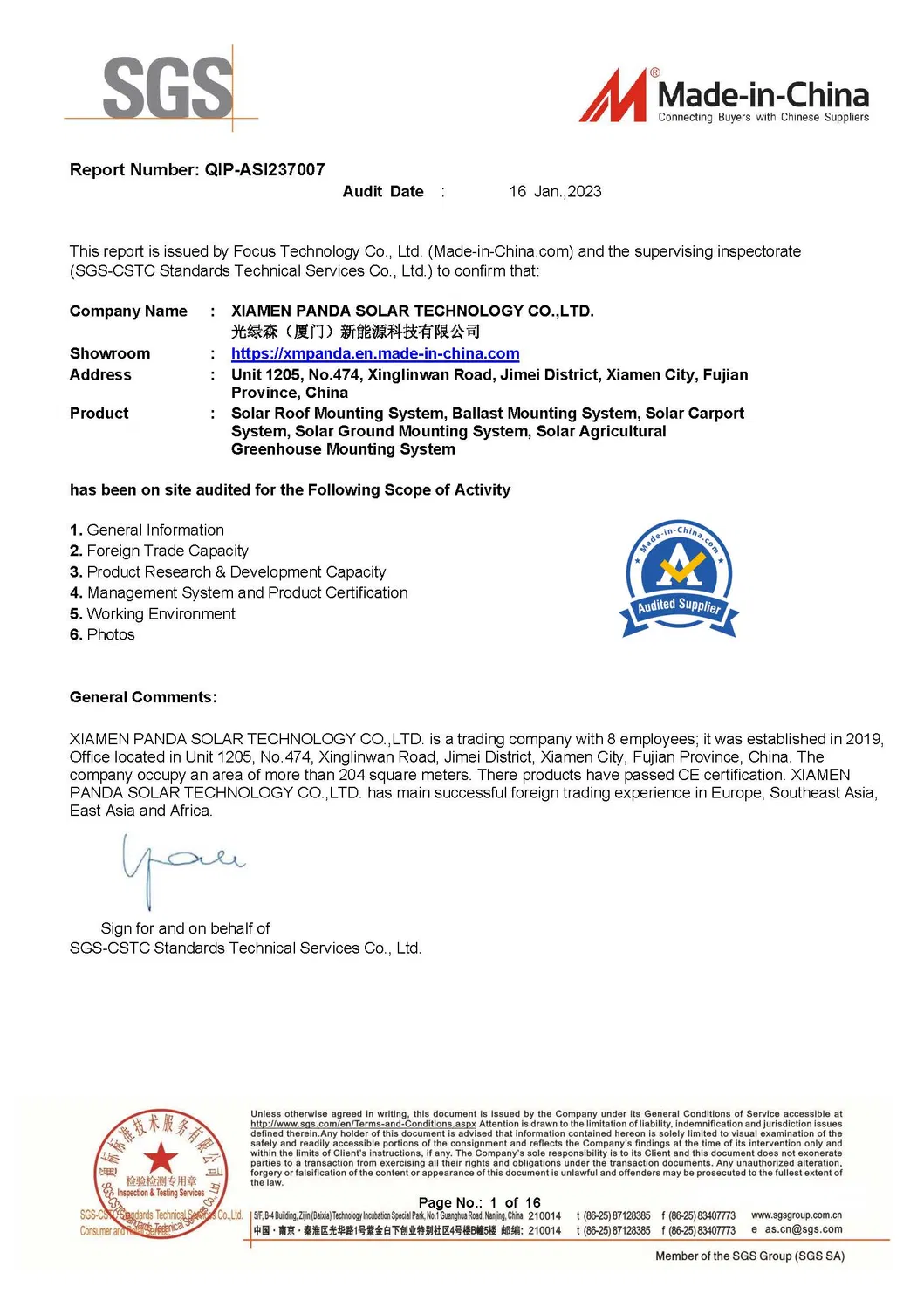

Certifications

Frequently Asked Questions

What is your standard delivery time?

Our typical lead time for orders is between 7 to 15 days, depending on the project scale and customization requirements.

Can you provide free samples for testing?

Yes, we offer free samples for your quality testing and structural verification.

Are you a direct manufacturer?

Yes, we have over 12 years of production experience with dedicated workshops for both aluminum and steel components.

Do you offer OEM services?

Absolutely. We accept OEM services and can customize mounting structures based on your specific technical drawings and requirements.

What is the warranty period for your mounting systems?

We provide a 12-year warranty on our solar mounting structures, ensuring long-term reliability and performance.

Which international standards do your products comply with?

Our products are designed to meet international standards including AS/NZS 1170, DIN 1055, JIS C8955:2017, and IBC 2009.
