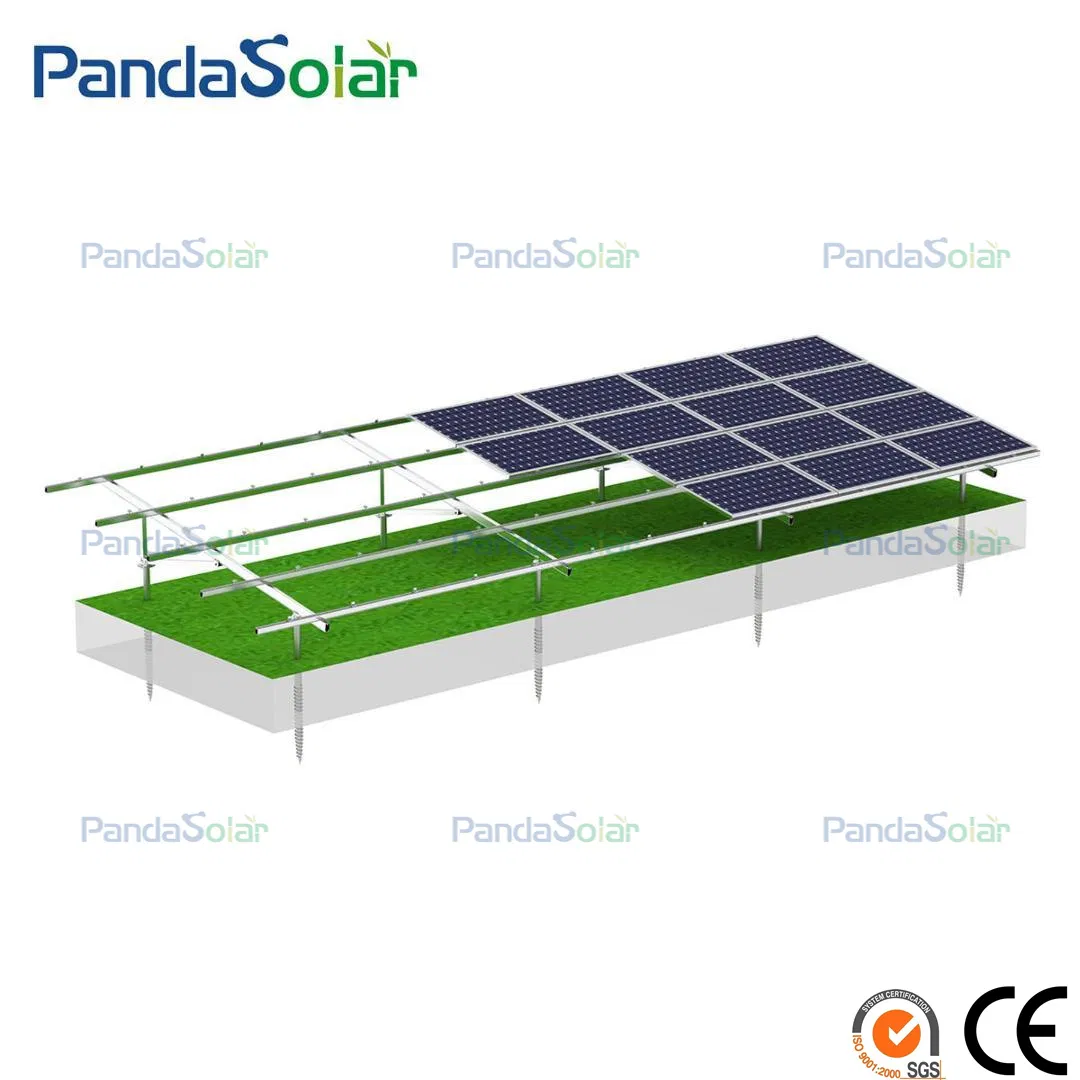

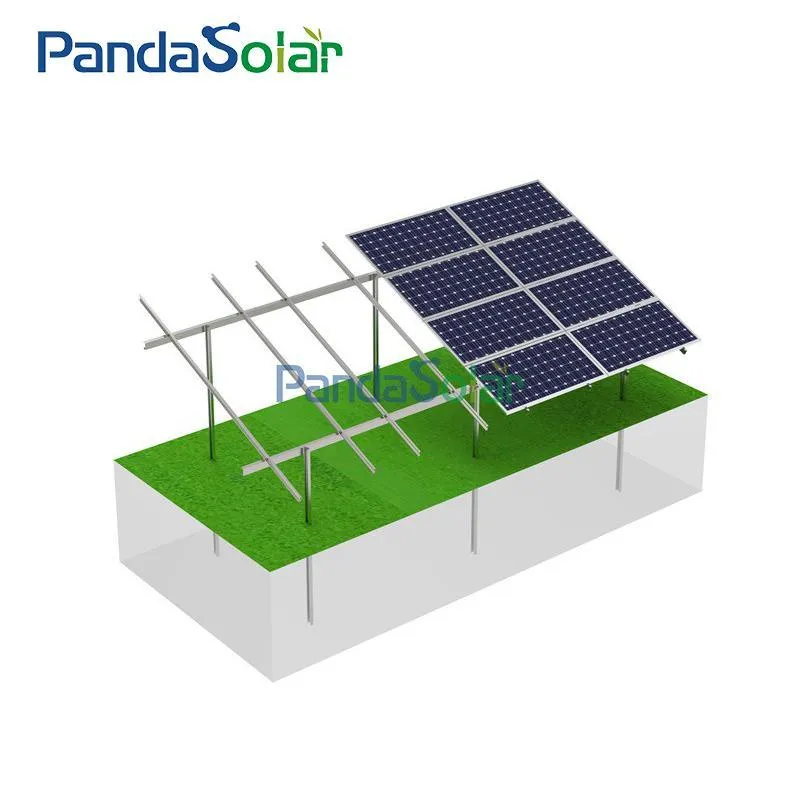

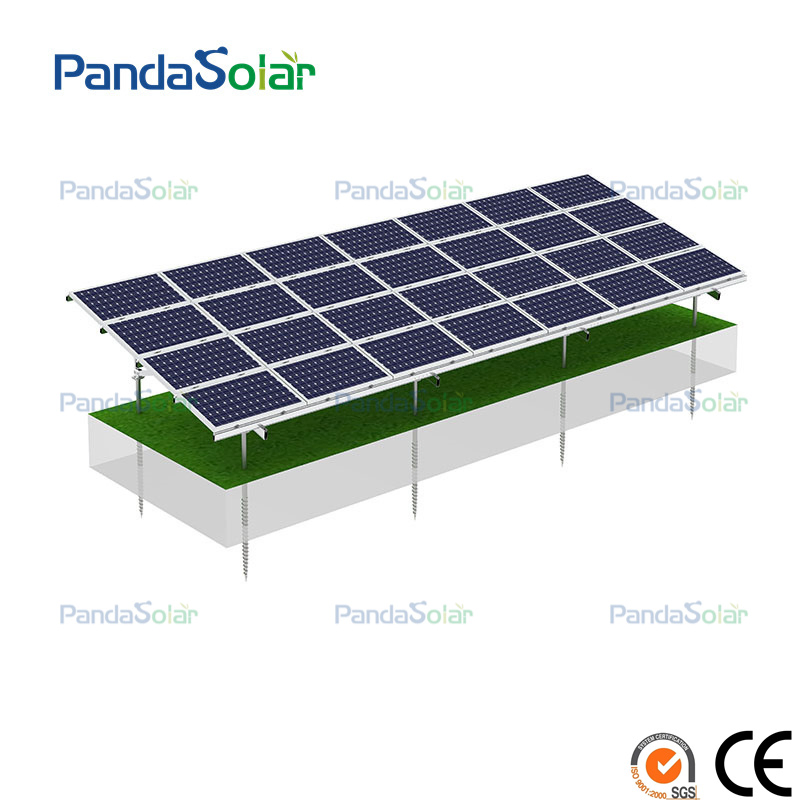

Solar Panel Ground Screw Mounting Bracket System: The solar ground structure system is primarily constructed from high-grade aluminum alloy (Al-6005-T5). It is engineered for large-scale utility installations, grid integration, and residential applications.
Structural Features:

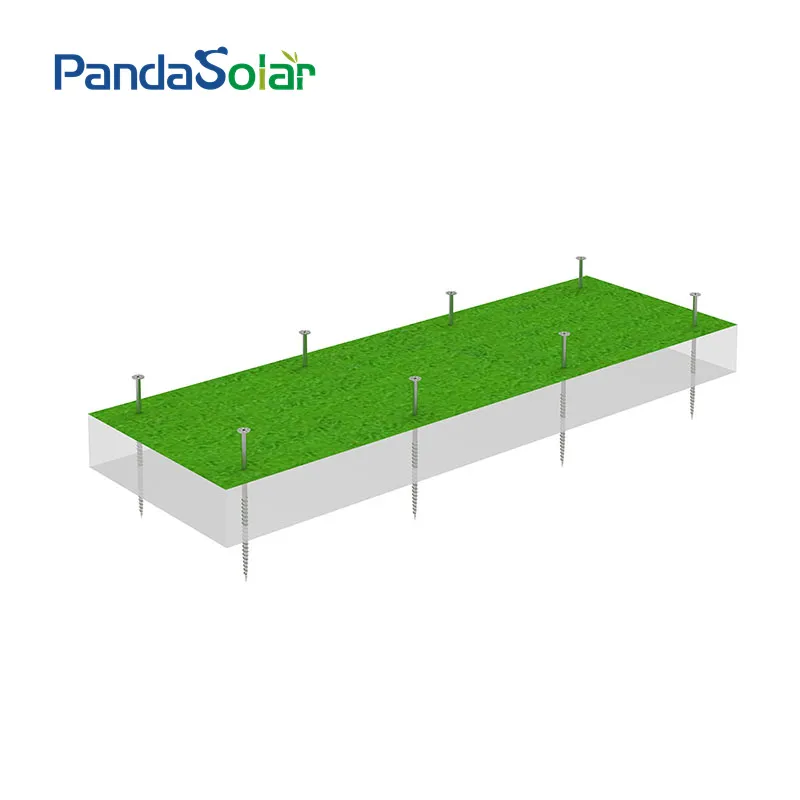

Step 1: Installing Ground Screws
The support structure is anchored using specialized ground screws drilled into the soil. Depth is determined by soil type to ensure the weight of the entire system is securely supported.

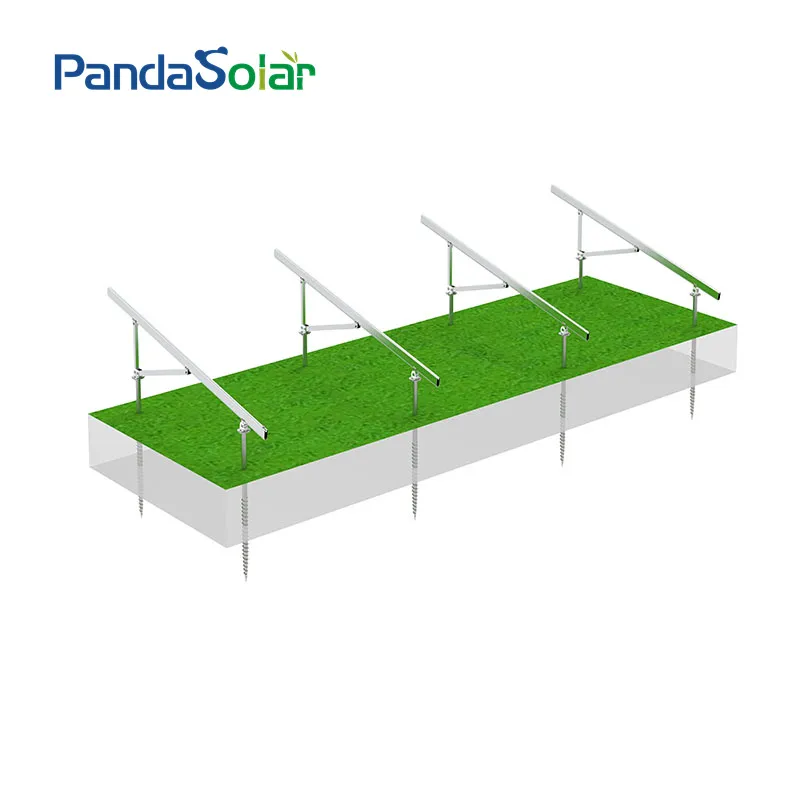

Step 2: Installation of Pre-assembled Brackets
Once screws are set, the pre-fabricated support structure is assembled. This includes vertical posts and crossbars that form the backbone of the solar array.

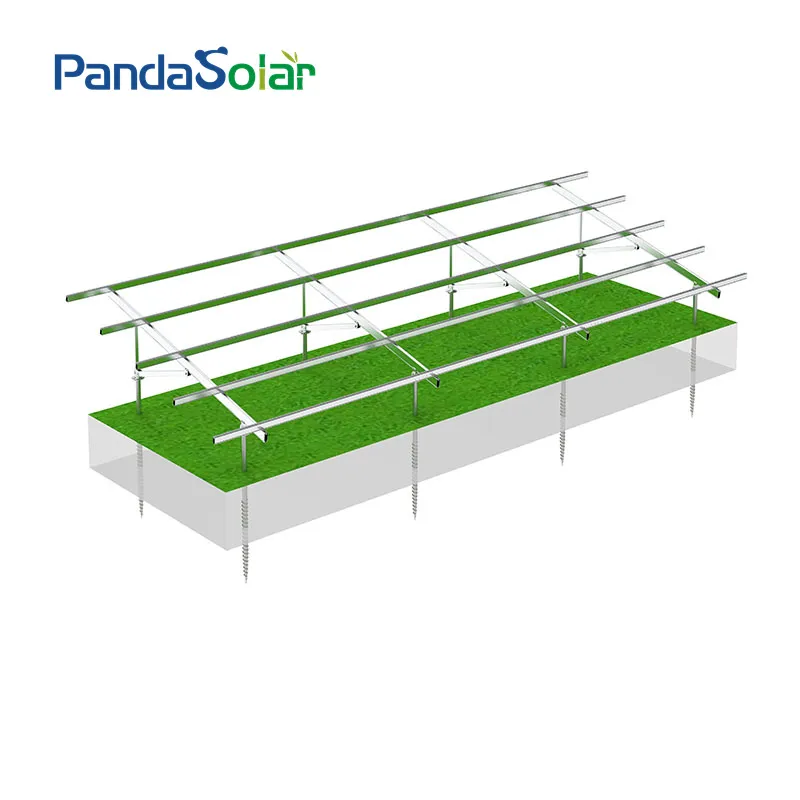

Step 3: Installing Rails
Rails are securely attached to the crossbars. These components are specifically designed to hold the solar panels in perfect alignment.

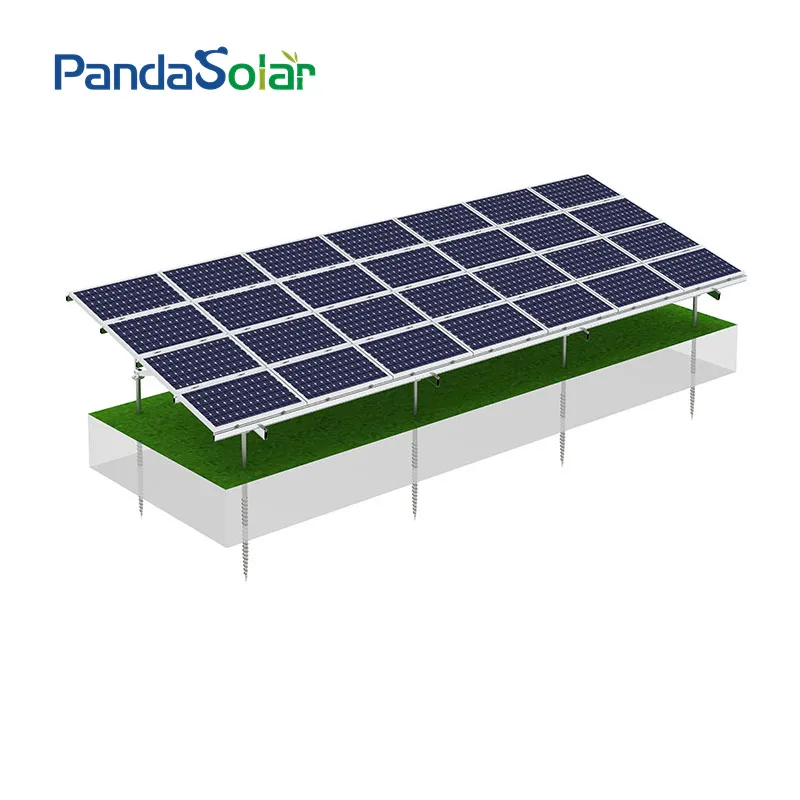

Step 4: Installing Solar Panels
The final stage involves mounting the solar panels onto the rails using specialized solar clamps for a secure, weather-resistant finish.
| Material | Structure: AL-6005-T5 (Anodized); Components: SUS304 & AI6005-5 |
|---|---|
| Application | Commercial and Residential Installation |
| Tilt Angle | 0-60° |
| Wind Speed | 0-60 m/s |
| Snow Load | 0-150cm |
| Ground Clearance | 0-1m |
| Design Standard | AS/NZS 1170, DIN 1055, JIS C8955: 2017, IBC 2009 |
| Warranty | 12 Years |

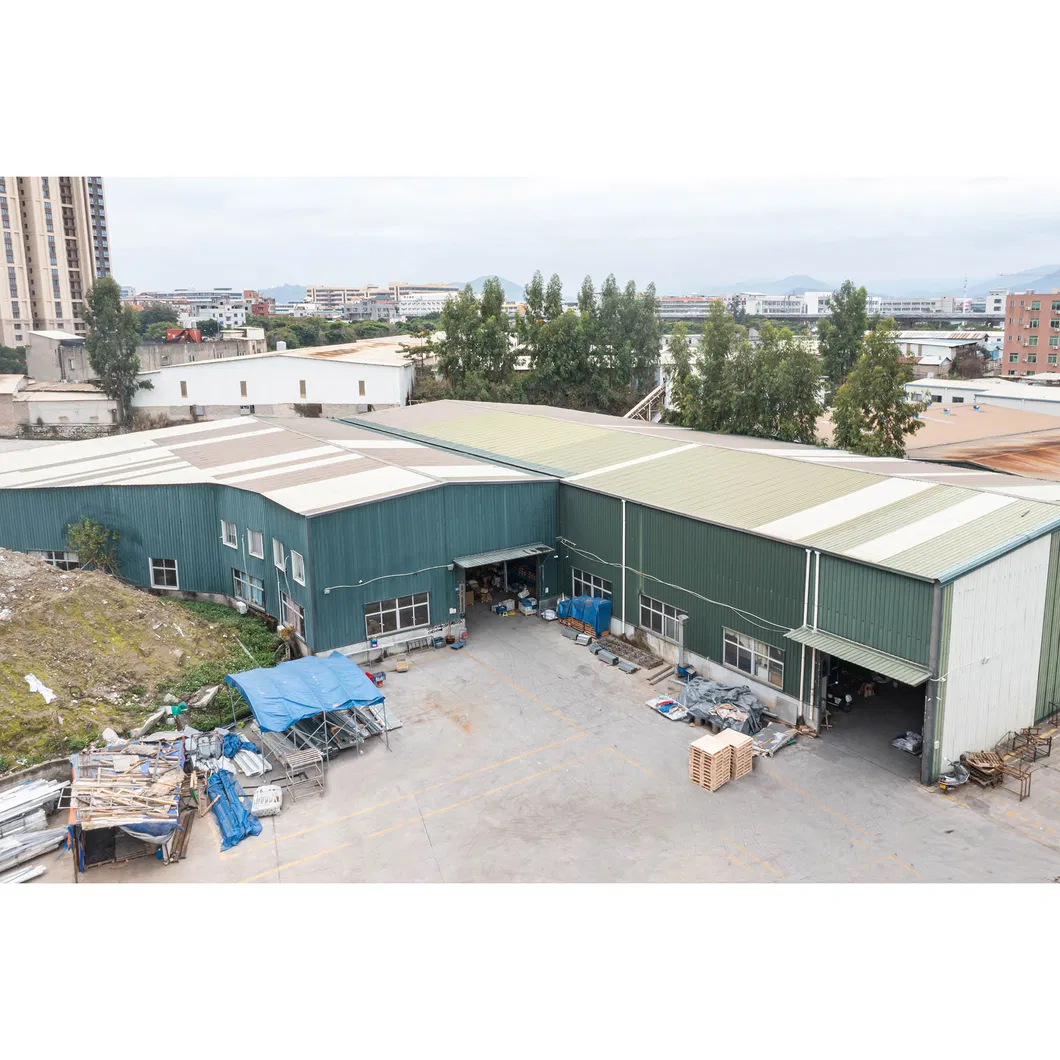

Our facility includes a professional aluminum alloy processing workshop where cutting, drilling, stamping, and forging are completed independently. We also operate professional steel and magnesium-aluminum-zinc processing lines with a productivity capacity of 40-50MW per month.
