PD-GM-02 is a high cost-effective one pole solar ground mounting solution suitable for installation in most parts of Europe. The highly pre-assembled bracket benefits transportation and installation. Unlike standard PV projects, this installation system can be adjusted arbitrarily.

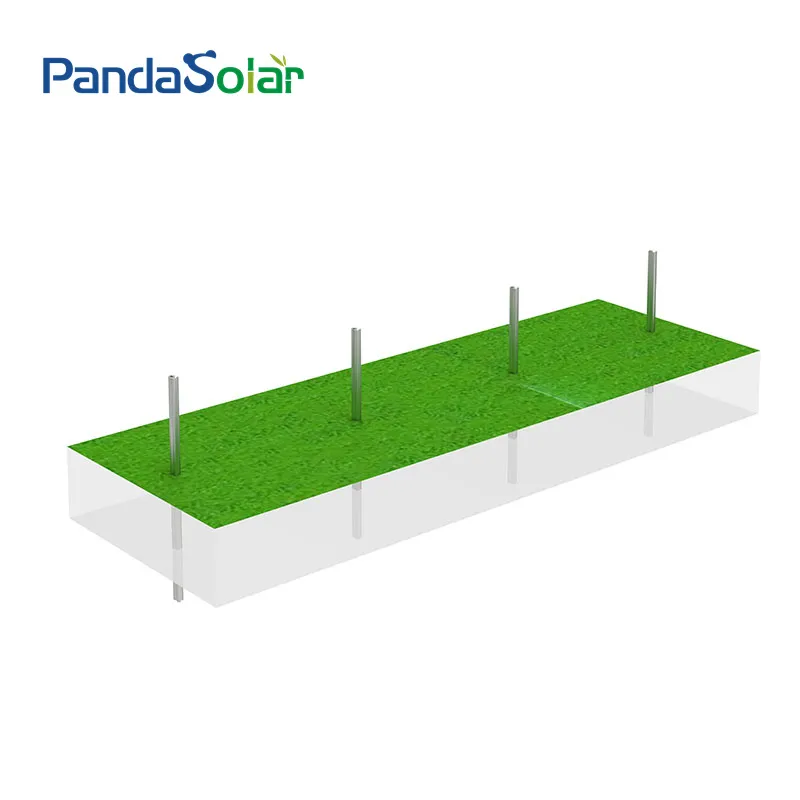

Step 1: Set the Pole
Dig a hole, place the pole, ensure it is level, and secure with concrete.

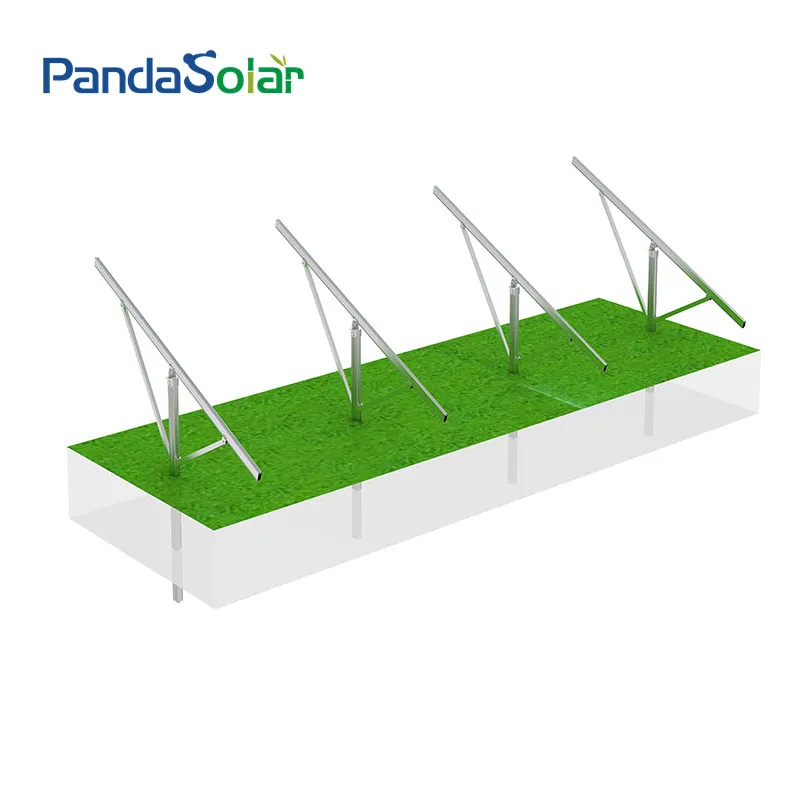

Step 2: Install Beam & Support
Connect the diagonal support pole and beam using bolts and nuts.

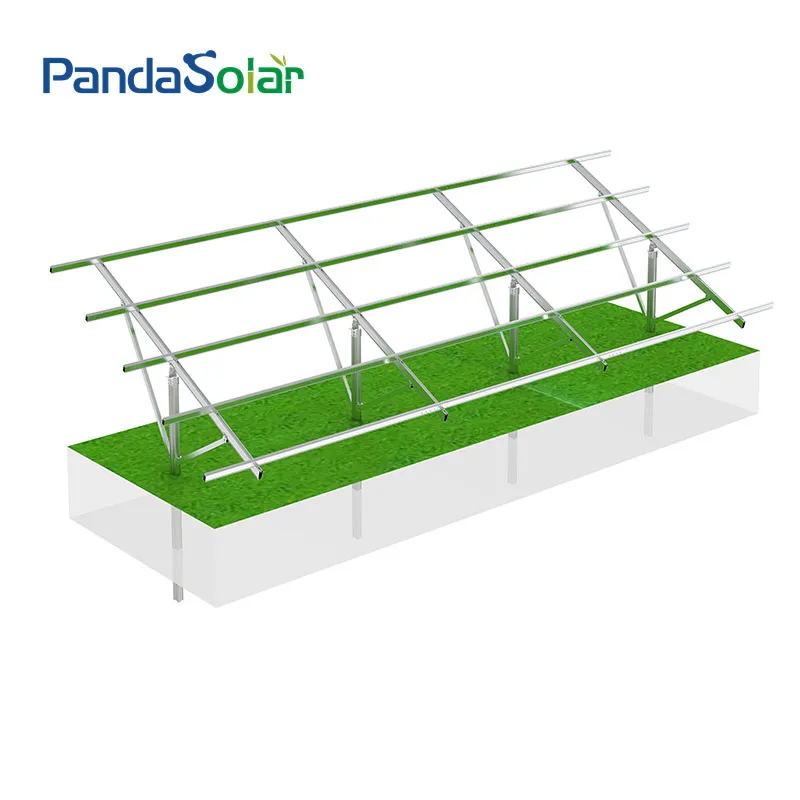

Step 3: Installing Rails
Attach the rails to the beam using brackets and bolts, ensuring they are level.

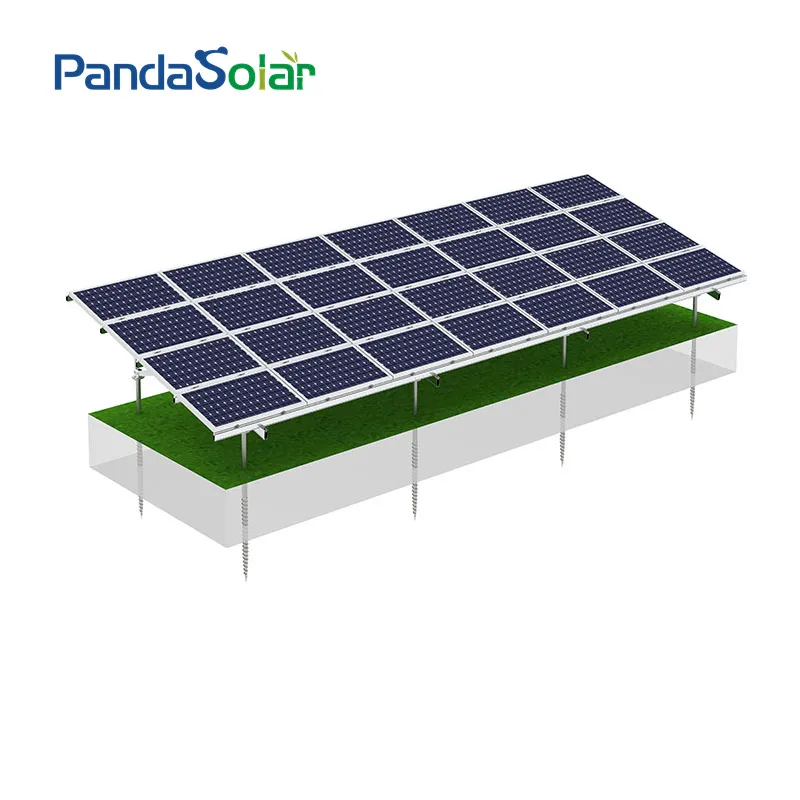

Step 4: Installing Solar Panels
Fasten panels to the rail and complete the wiring connections.
| Parameter | Details |
|---|---|
| Material | Structure: AL-6005-T5 (Anodized) & HDG; Components: SUS304 |
| Application | Commercial and Residential installation |
| Tilt Angle | 0-60° |
| Wind Speed | 0-60 m/s |
| Snow Load | 0-150cm |
| Design Standard | AS/NZS 1170, DIN 1055, JIS C8955: 2017, IBC 2009 |
| Warranty | 12 years |

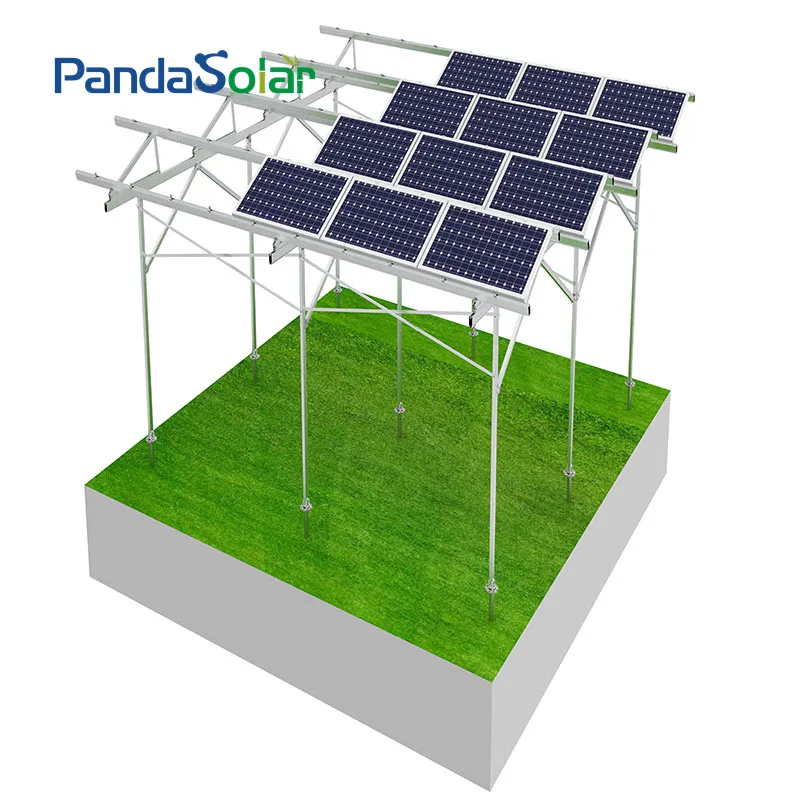

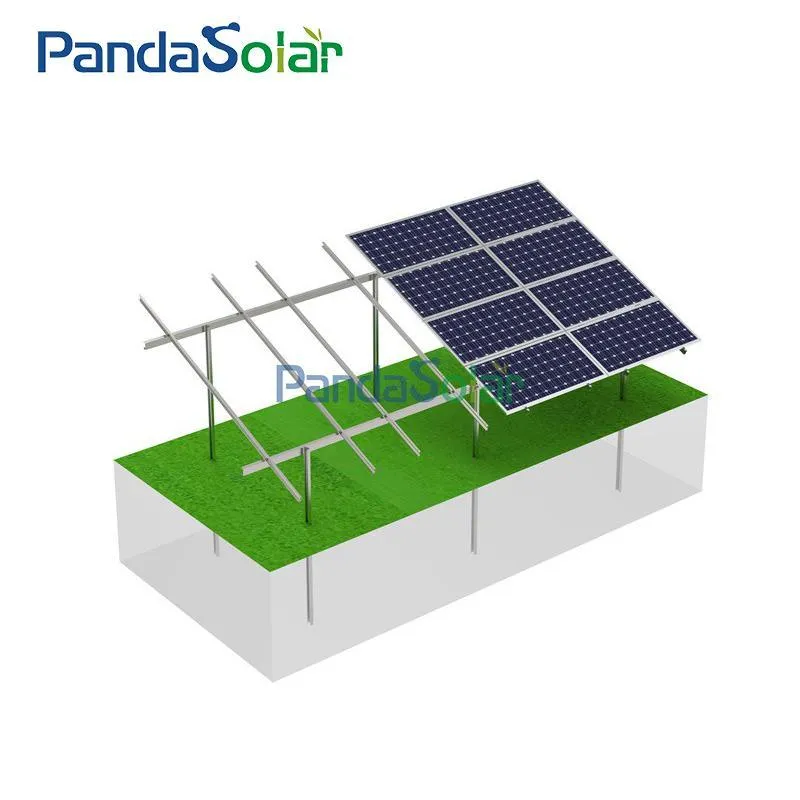

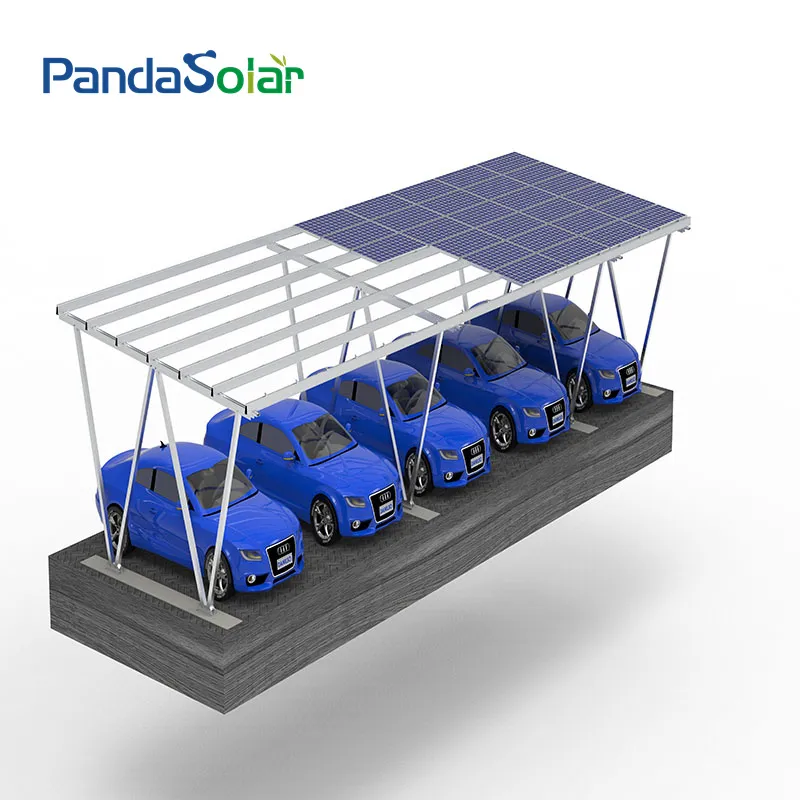

Established in 2019, the professional design and sales teams are committed to developing solar clean energy mounting systems. Our solutions include ground mounting, agricultural greenhouses, tile and metal roof systems, carports, and high-quality mounting accessories.

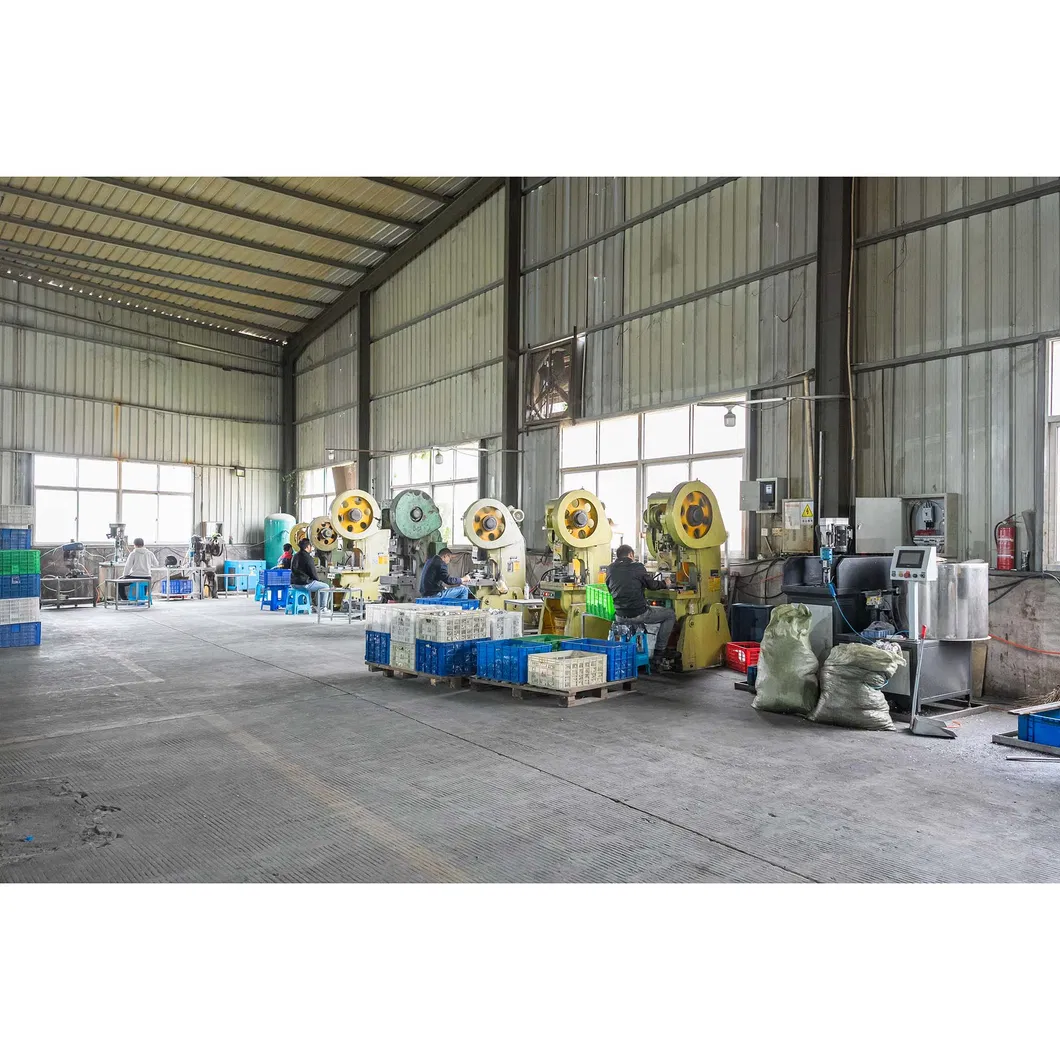

Aluminum Workshop: Independent processing for cutting, drilling, stamping, and forging. High customization and precision are guaranteed.

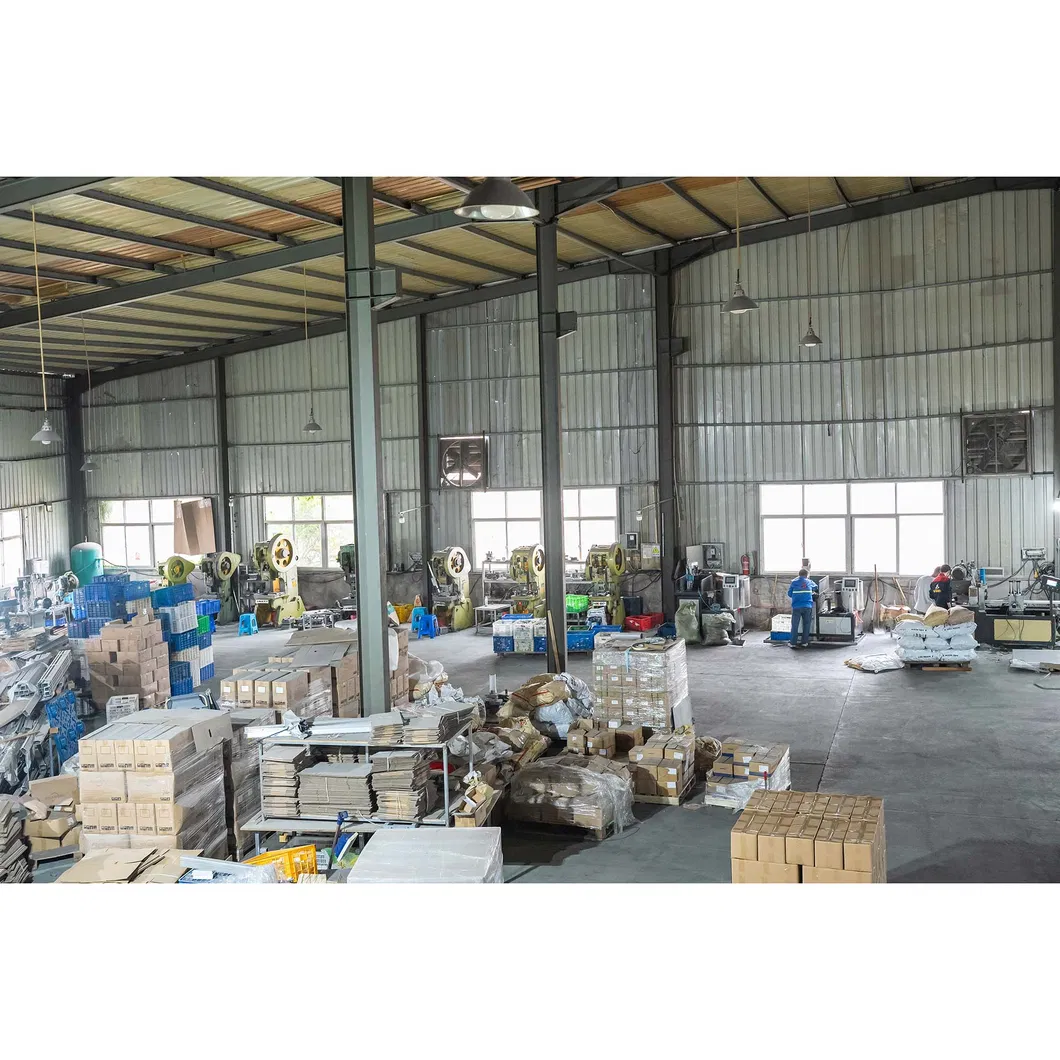

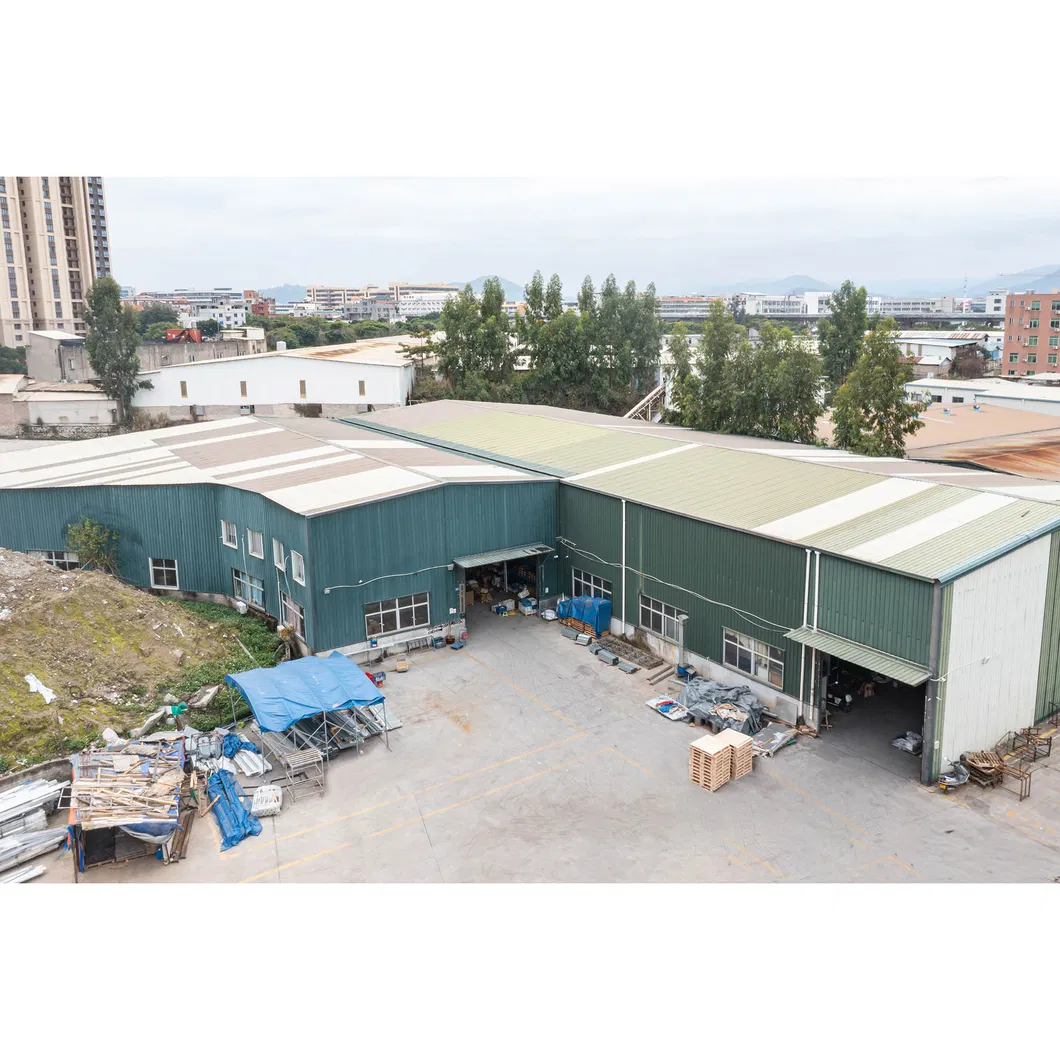

Steel Workshop: Features 6 production lines for steel, Magnesium-Aluminum-Zinc, and S350GD/S450GD materials, with a monthly productivity of 40-50MW.
