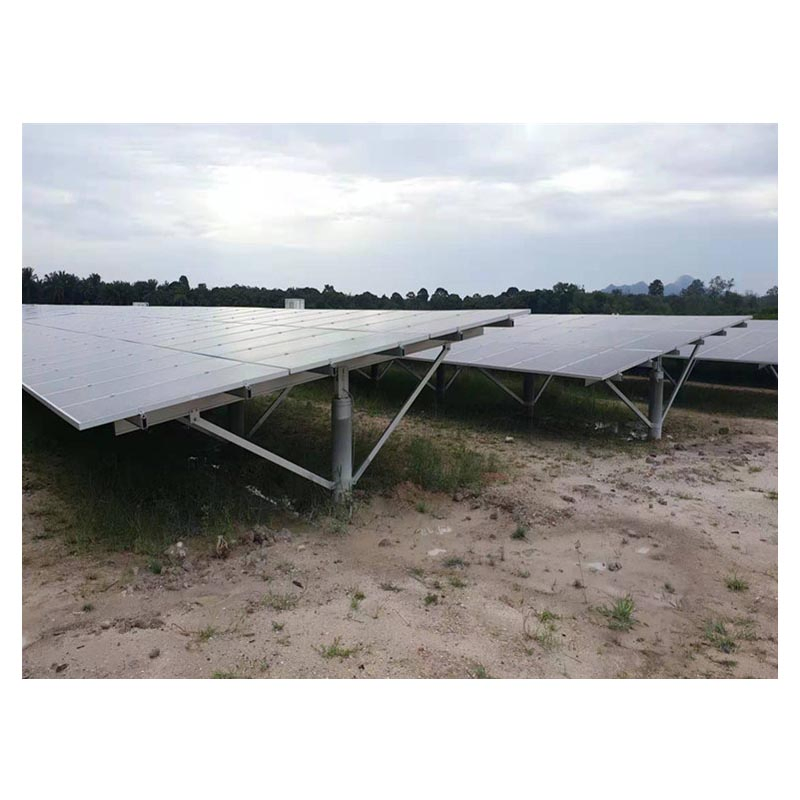

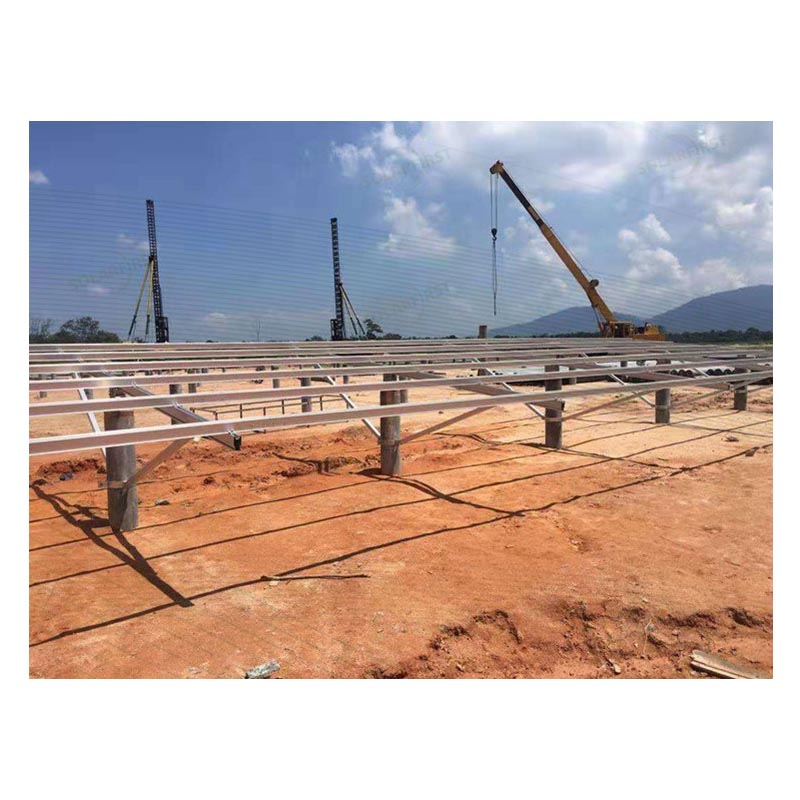

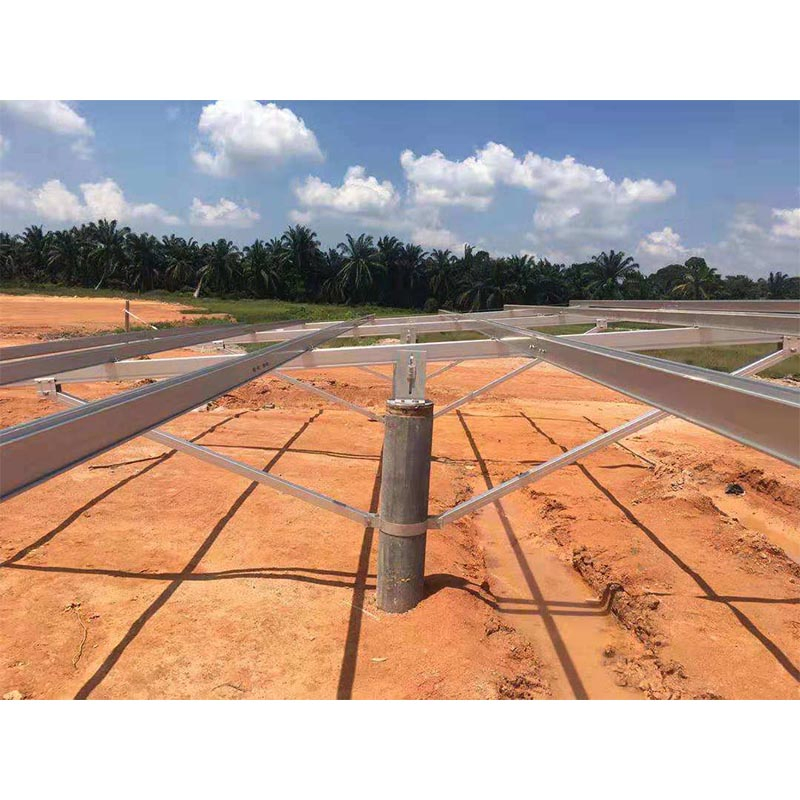

Phc Pile Ground Mount Solar Racking Systems Pole Mounting Bracket

1 / 5

Phc Pile Ground Mount Solar Racking Systems Pole Mounting Bracket

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

ℹ️ Basic Information

Model NO.

SF-M08

Certification

ISO, TUV, CE

Application

Commercial

Material

Concrete / Aluminum

Type

Ground Bracket

Installation Site

Open Field

Tilt Angle

0-45 deg

Surface Treatment

Aluminum Anodized

Production Capacity

300,000,000 Sets Per Month

☀️ Product Description

The Ground Screw Mounting Structure is widely applied for large solar farms, utilizing either fixed ground screw foundations or adjustable screw piles. The unique oblique spiral design significantly ensures stability when withstanding static loads.

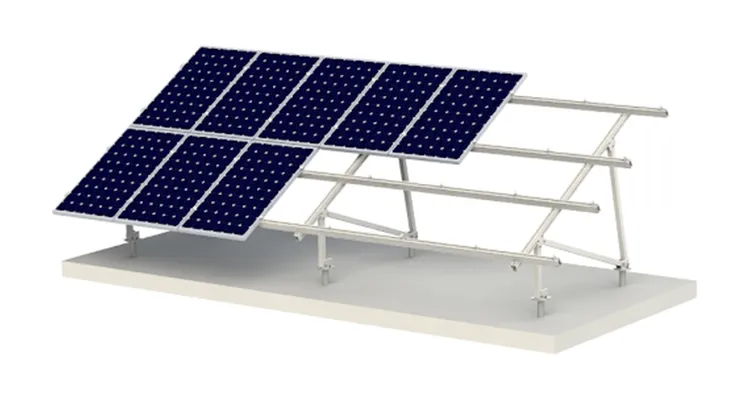

Key Advantages:

Anti-corrosion and anti-rust treatment.
Ensures simple and fast installation.
Significantly reduces labor costs.

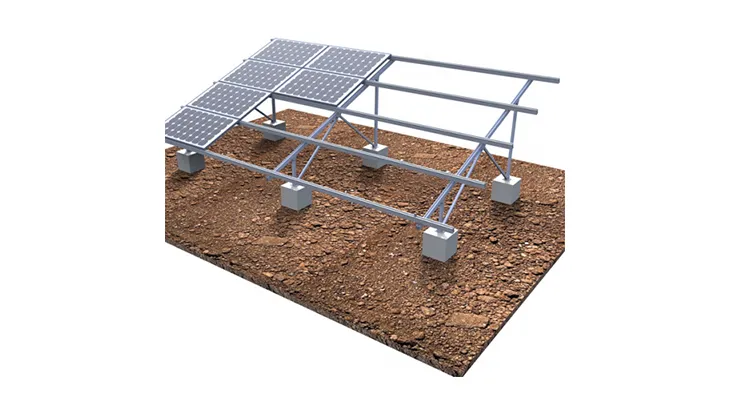

Technical Data Summary:

Site: Open field ground mount
Foundation: Ground screw & Concrete
Main components: AL6005-T5
Accessories: Stainless steel fastening
Duration: More than 25 years

📋 Technical Details

Parameter	Specification
Installation Site	Open field
Wind Load	Up to 60m/s
Snow Load	1.4kn/m2
Tilt Angle	0-45 deg
Standards	AS/NZS1170, JIS C8955:2017, GB50009-2012, DIN 1055, IBC 2006
Material	Anodized AL6005-T5, HDG steel Q235B, SUS304
Warranty	10 Years Warranty and 25 Years Service Life

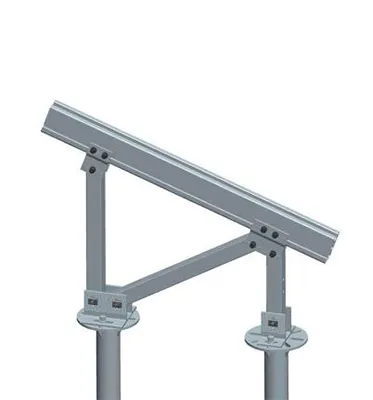

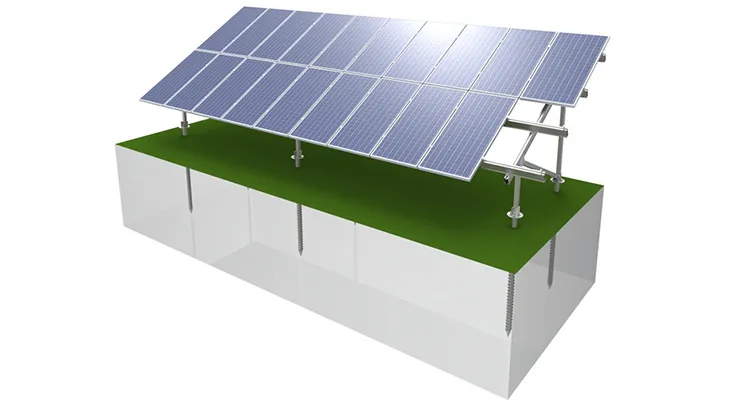

Screw Piles

• High traction and pressure values
• Installation by mini-digger machine with rotating head support

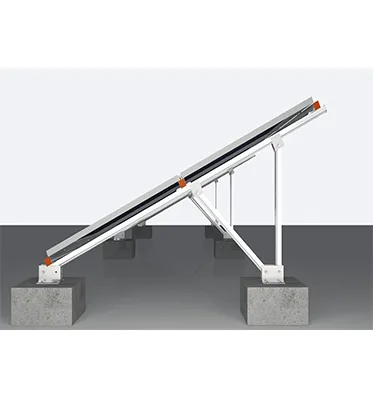

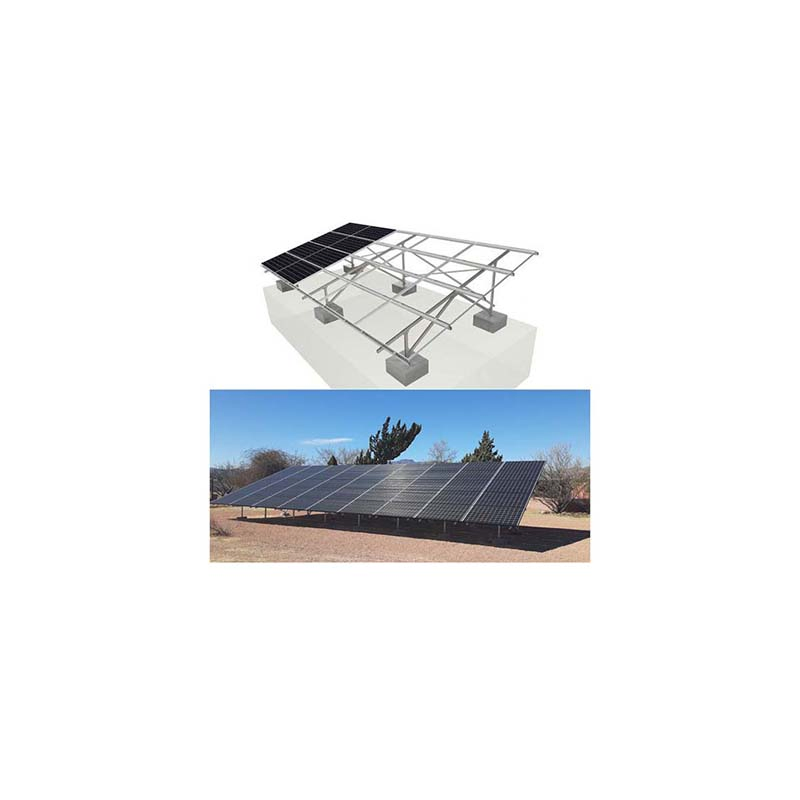

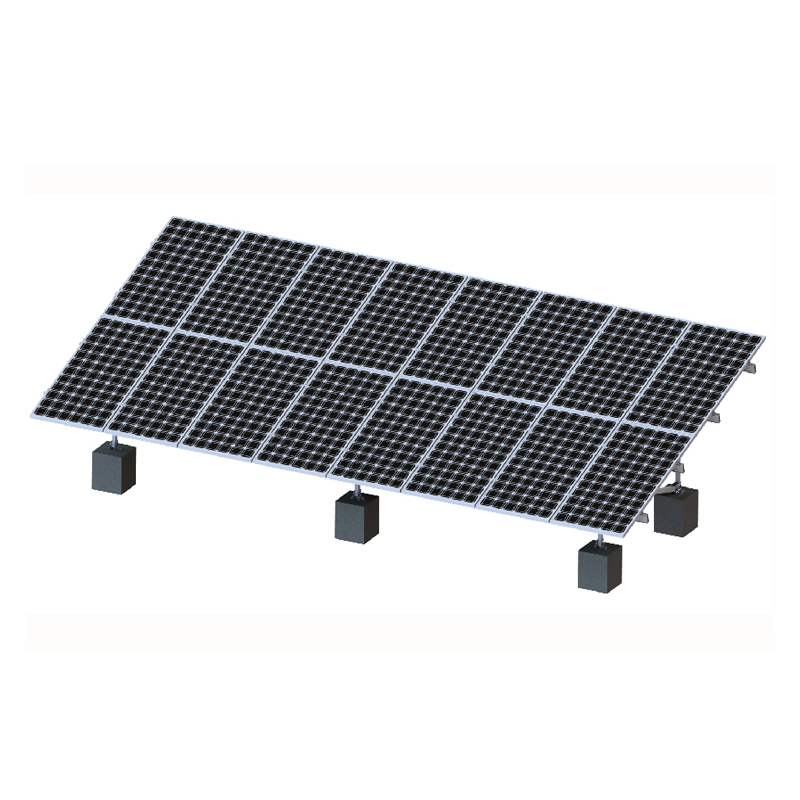

Concrete Base

• Best suited where ground excavation is not permitted
• Size is adjusted based on static requirements and location

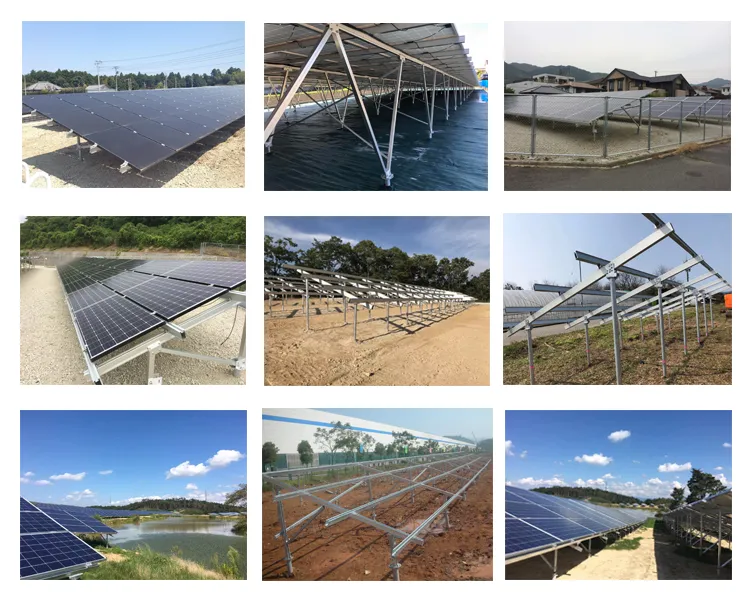

🏗️ Project Case & Logistics

🏅 Exhibition & Certifications

Frequently Asked Questions

What materials are used for the mounting structure?

The primary materials are Anodized AL6005-T5 aluminum, HDG steel Q235B, and SUS304 stainless steel for fasteners, ensuring high durability.

What is the expected service life and warranty?

The structure is designed for a service life of more than 25 years and comes with a 10-year warranty.

What extreme weather conditions can the system withstand?

The system is engineered to handle wind loads up to 60m/s and snow loads up to 1.4kn/m2.

Are different foundation types supported?

Yes, the system is compatible with both ground screw foundations and concrete base foundations depending on the soil requirements.

Can the tilt angle be adjusted?

Yes, the mount tilt angle is flexible and can be configured between 0 to 45 degrees to optimize solar exposure.

What international standards does the product meet?

It complies with several standards including AS/NZS1170, JIS C8955:2017, GB50009-2012, DIN 1055, and IBC 2006.
