PV Solar Panel Energy Power Plant Pitched Roof Aluminum Pole Ground Structure Mounting System for Farm

1 / 5

PV Solar Panel Energy Power Plant Pitched Roof Aluminum Pole Ground Structure Mounting System for Farm

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

Basic Specifications

Model NO.

HINA

Material

Steel

Type

Roof Bracket

Standard

DIN, ASTM/ASME, JIS, En, ISO, as, GB

Finishing

Zinc, HDG, Sandblasting

Certificate

ISO 9001:2015

Installation Site

Flat Roof, Ground

Wind Load

60m/S

Snow Load

1.6kN/M2

Specification

SS304, AL6005-T5

Product Description

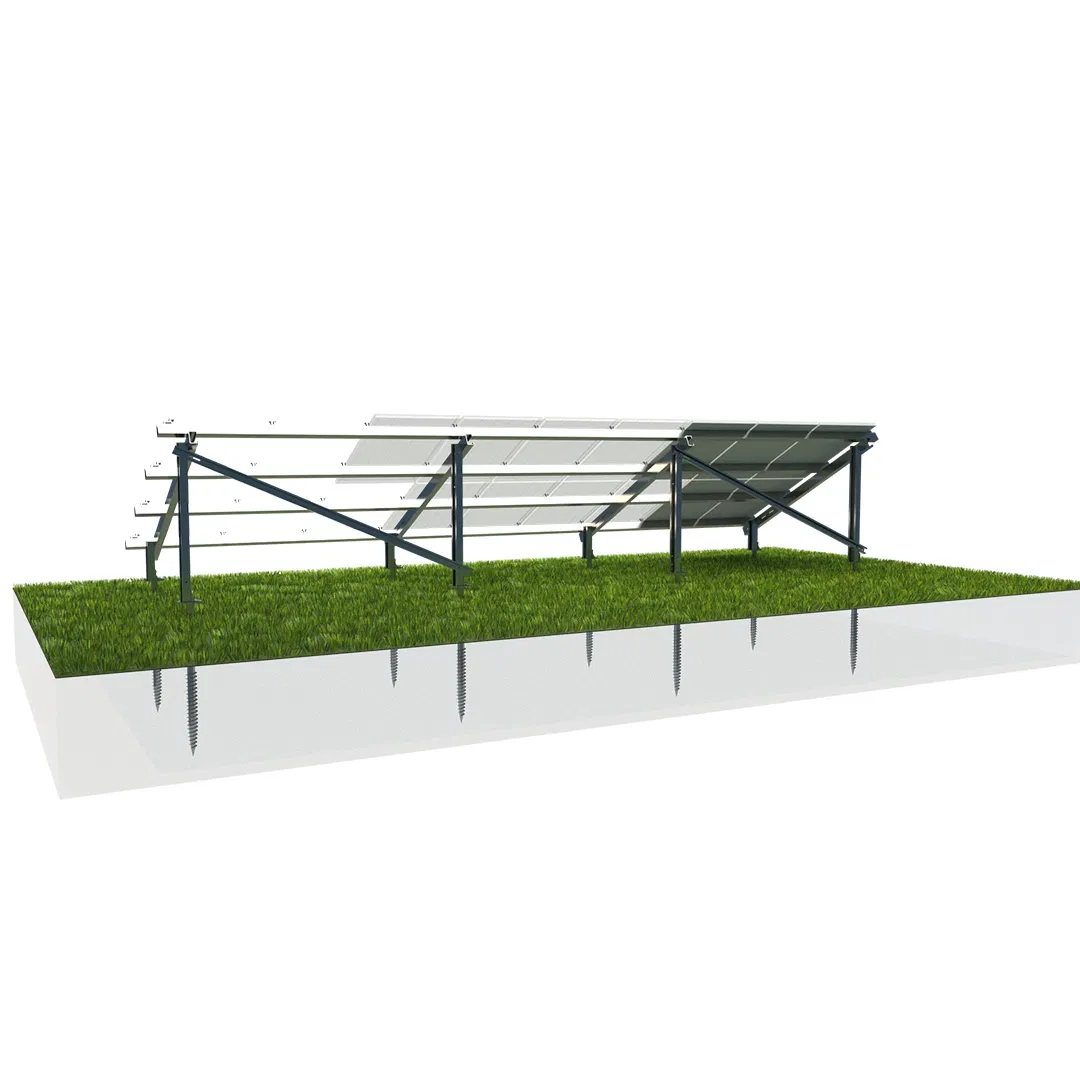

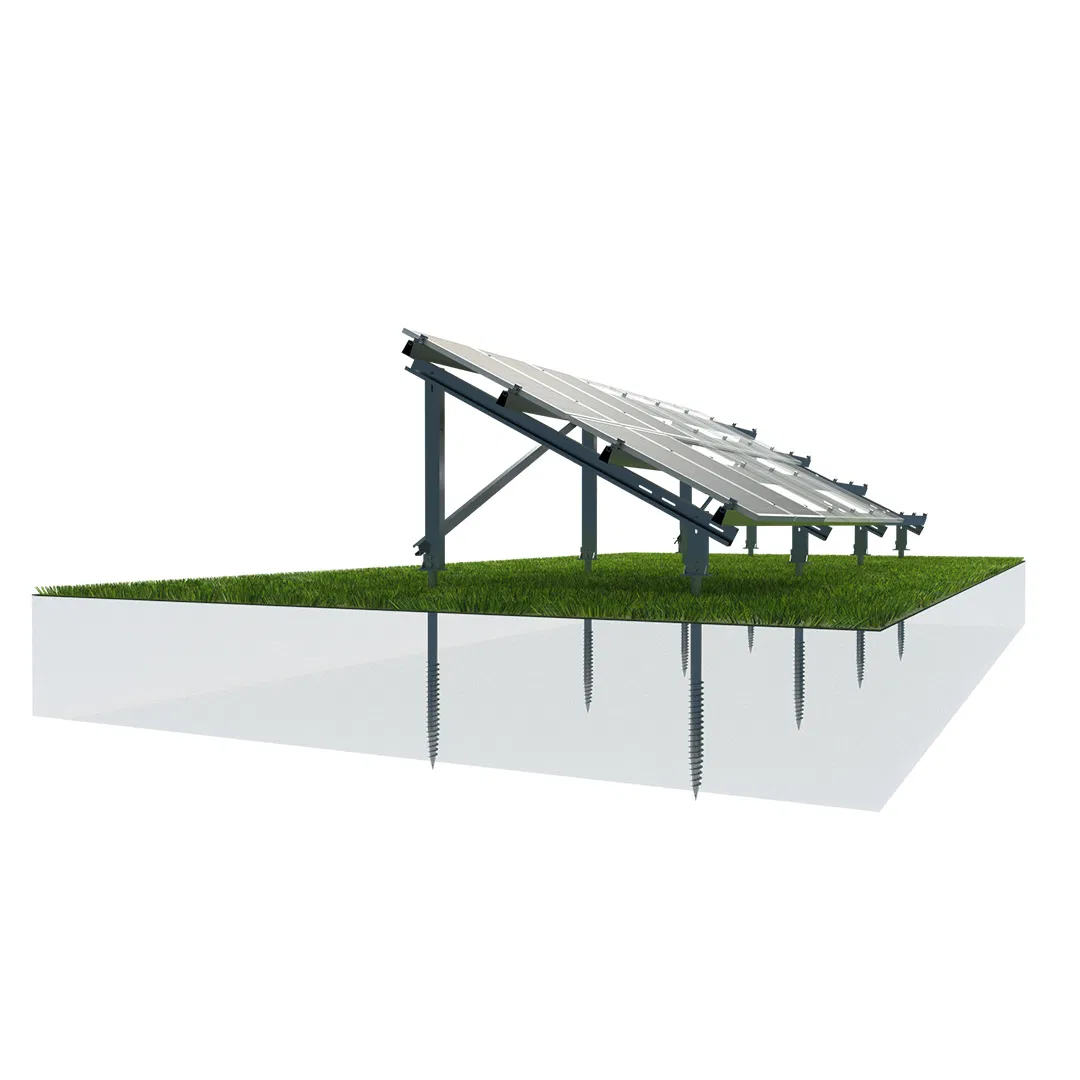

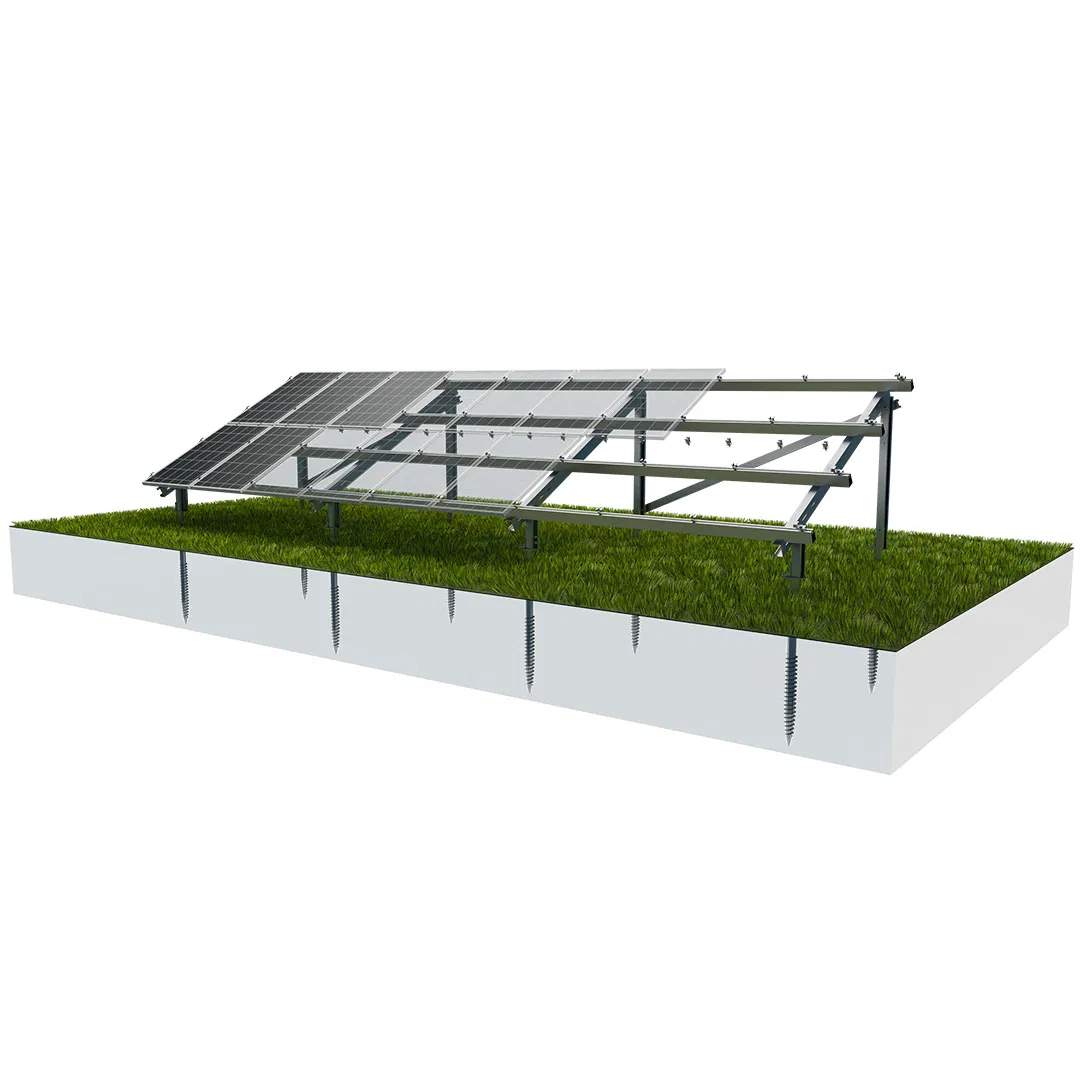

PV Solar Energy Power Plant Structure Mounting System for Farm

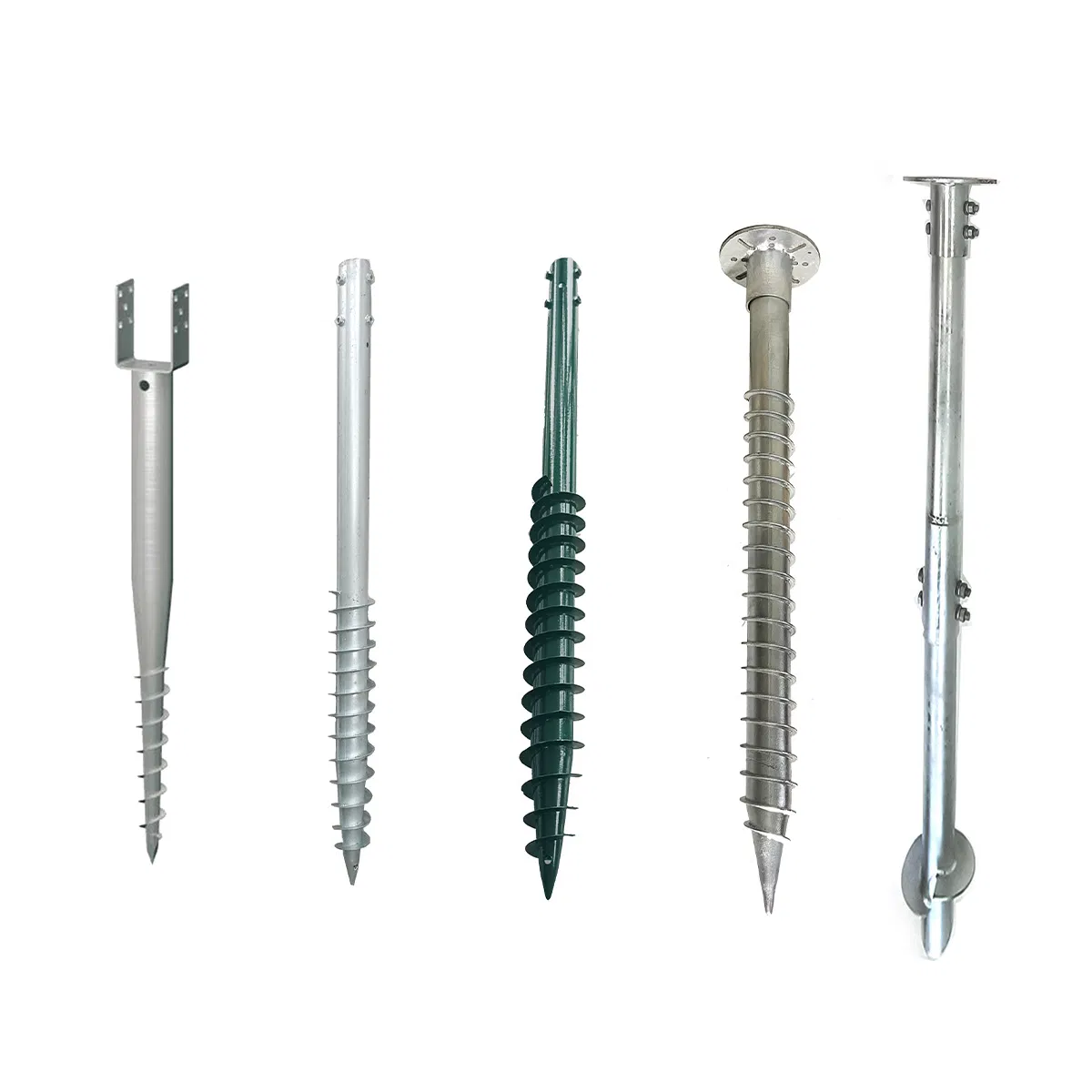

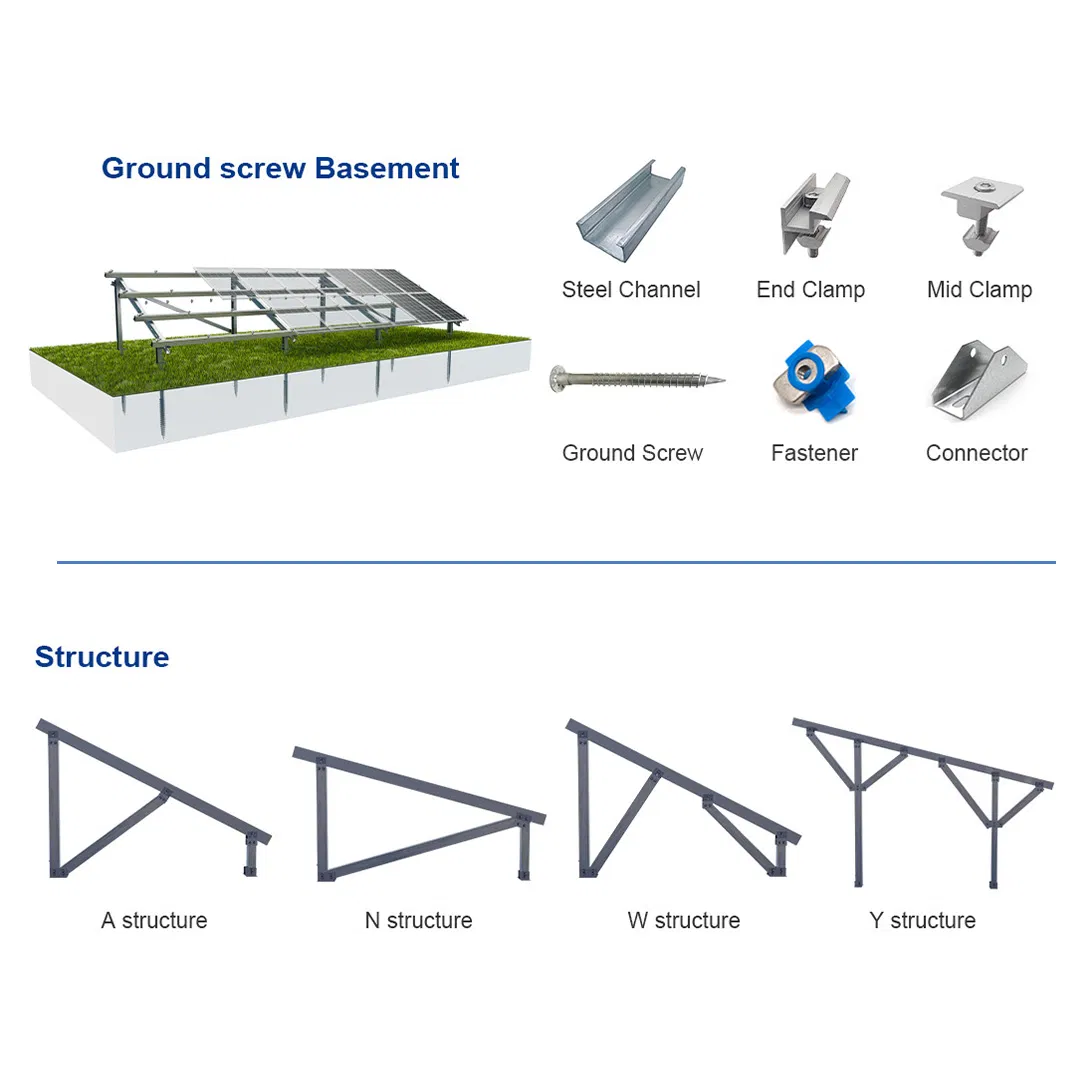

A ground screw (also known as a helical pile or screw pile) is a type of foundation used in solar mounting systems. It is a steel shaft with one or more helical blades (similar to a screw) that is drilled into the ground to provide a stable foundation for solar panels and related structures.

Technical Parameters
System Name	Solar Ground Mounting System	Design Standard	AS/NZS 1170, DIN 1055, JIS C8955:2017
Installation Site	Flat Roof, Ground	International Building Code	IBC 2009
Tilt Angle	5-10°	California Building Code	CBC 2010
Wind Load	60m/s	Hook Material	SUS304
Snow Load	1.6KN/M²	Fastener	SUS304
Applicable Module	Framed	Small Components	AL6005-T5(Anodized)
Panel Layout	Portrait or Landscape	Warranty	10-year warranty

Our Core Advantages

Professional Manufacturer: Components are designed and manufactured according to buyer specifications and performance requirements.
Guaranteed Quality: Rigorous durability testing and technical design to enhance the service life of fasteners.
Cost Effective: Competitive pricing achieved through professional factory-direct supply.
Expert Solutions: Over 10 years of experience providing a wide range of parts selection to solve installation challenges.
Customized Design: Dedicated services tailored to specific samples and technical drawings.

Frequently Asked Questions

Q1: What is the main material used for the mounting system?

The system primarily utilizes high-strength Steel and AL6005-T5 Anodized Aluminum, with SUS304 stainless steel fasteners for superior corrosion resistance.

Q2: Can this system withstand extreme weather conditions?

Yes, the structure is designed to handle wind loads up to 60m/s and snow loads up to 1.6KN/M², making it suitable for various climates.

Q3: What types of solar modules are compatible?

The system is designed for framed solar modules and supports both portrait and landscape layouts.

Q4: Is it suitable for farm installations?

Absolutely. The ground screw foundation system is specifically optimized for open spaces like farms, providing a stable and efficient ground mounting solution.

Q5: What is the standard warranty period?

We provide a 10-year warranty on the mounting system, ensuring long-term reliability and performance.

Q6: Which international standards do your products follow?

Our products are designed according to multiple international standards including AS/NZS 1170, DIN 1055, JIS C8955:2017, and IBC 2009.
