Soltrux Solar
1 / 5
| Model NO. | WTT-2P | Certification | ISO, CE |
| Application | Commercial | Material | Aluminum Alloy |
| Type | Ground Bracket | Install Site | Open Terrain |
| Module Orientation | Landscape, Portrait | Anti-Corrosive | Anodized |
| Max Wind Speed | 60m/S | Max Snow Load | 1.6kN/M² |
| Duration | More Than 20 Years | Production Capacity | 1GW / Year |
Single Axis Solar Tracker with Slew Drive
The solar tracking system is designed to optimize the use of sunlight during the photovoltaic power generation process, significantly improving the efficiency of photoelectric conversion. The Multi-drive double portrait horizontal single-axis tracker adopts an advanced multi-actuator drive mode, ensuring stability and reliability for large-scale solar power stations.

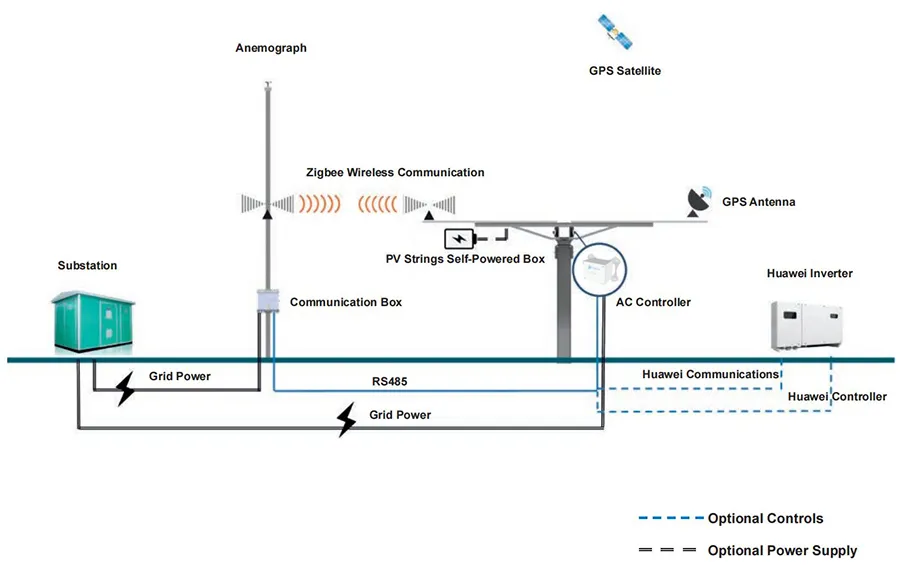

Electrical Principle Diagram
| Structure & Capacity | |
|---|---|
| System Type | One portrait horizontal single-axis tracker |
| Maximum Capacity | 72kWp per row (Estimated with 600W Modules) |
| Tracking Range | ±60° (Customized according to project) |
| Tracking Accuracy | ±1° |
| Structural Materials | HDG Steel, Al-Mg-Zn Coating Steel |
| Electrical & Control | |
| Control System | MCU with Astronomical algorithm + closed-loop control (AI) |
| Drive Method | Slew Drive / 24V DC Motor |
| Signal Transmission | Wire (RS485) or Wireless (Zigbee) |

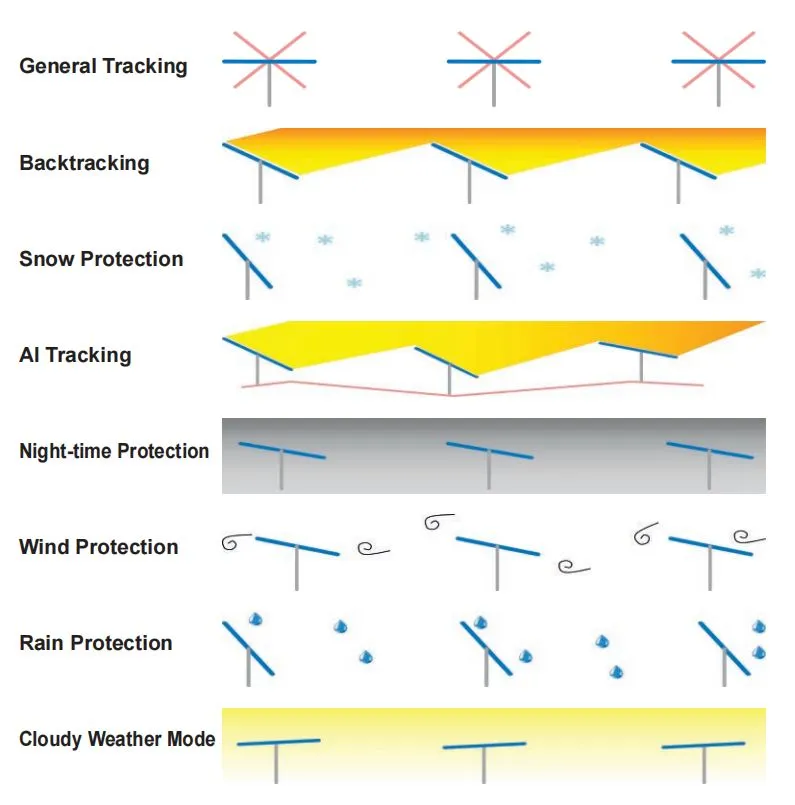

| Backtracking | Yes, supported |

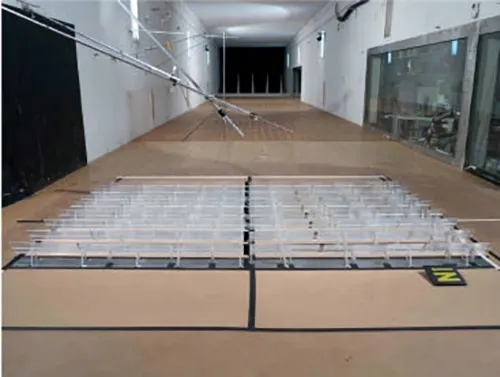

A partnership with CPP ensures the tracking system's stability. By studying resonance, flutter, and torsional divergence, the system is optimized to reduce amplitude on modules and forces on the torque tube by up to 50% compared to traditional single-drive systems.

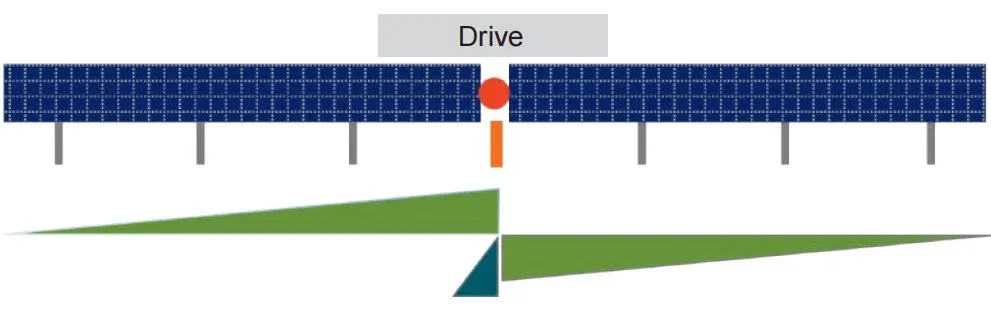

Traditional Single-drive

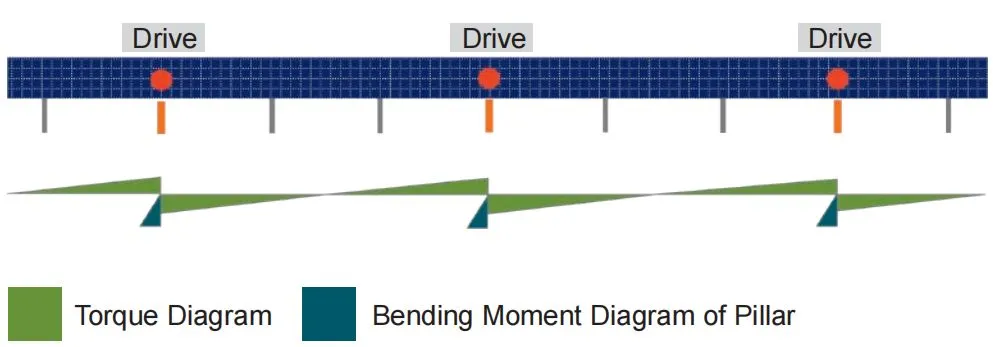

Advanced Multi-drive

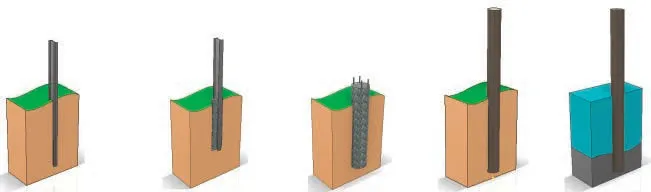

| Foundation Type | Steel Piles | Concrete + Steel | Poured Concrete | PHC Piles |
| Application | Soft Ground | Soft Ground | Gravel Ground | Agriculture / Fishery |
