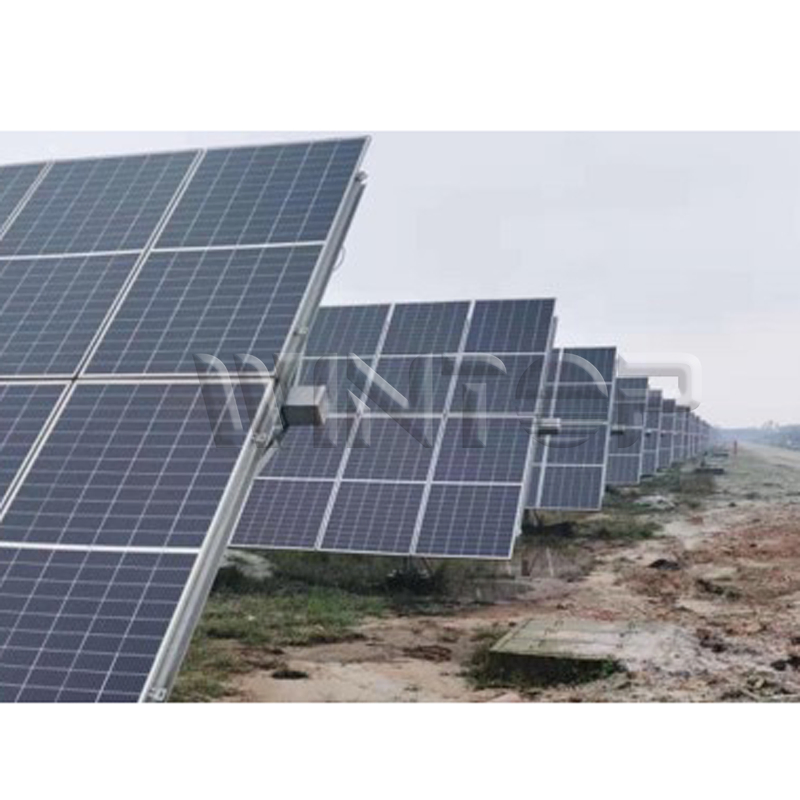

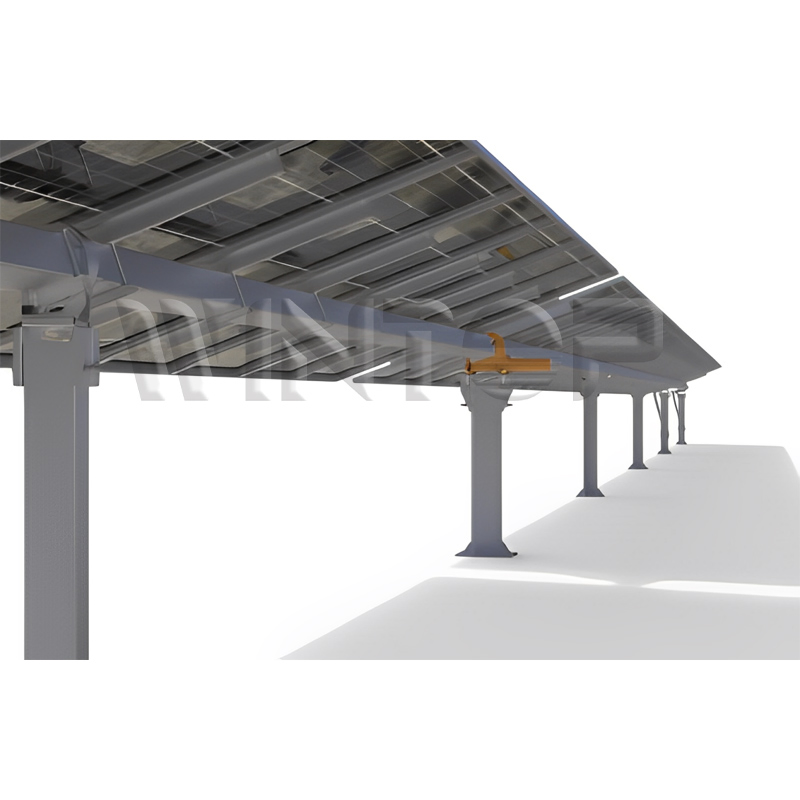

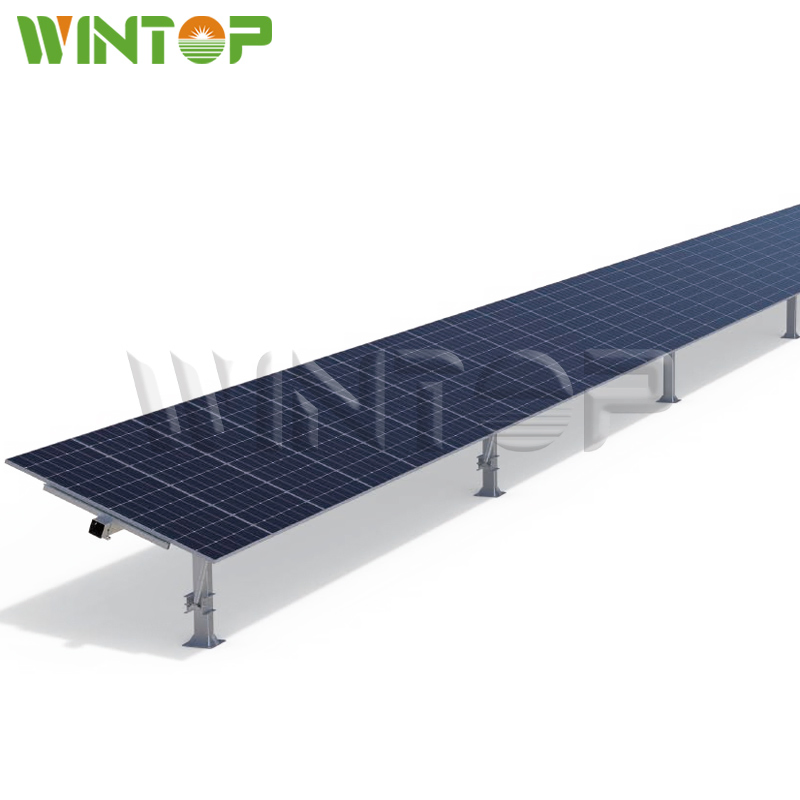

Horizontal Single Axis Tracker for Solar Panel
The single post solar tracking system is fully compatible with 210 silicon wafer modules. It is a double-row small solar tracker supported by only one column. Featuring a built-in inclination sensor and an intelligent wind speed protection function, it offers flexibility in power supply, allowing users to choose between AC power or self-power supply based on project requirements.
| PV-Modules | |
| PV- Modules supported | Fully fit for 210 module |
| Structure | |
| System type | Single post tracking system |
| Maximum capacity per set | 4.8kWp (Estimated with 600W Modules) |
| PV- Module quantity per set | 8 PCS |
| Tracking Range | ±45°( E-W ) |
| Tracking accuracy | ±0.5° |
| Tilt angle | 25°- 40°( S-N ) |
| Structural Materials | HDG Steel, Al- Mg-Zn Coating Steel |
| Electrical & Control | |
| Solar tracking method | Astronomical algorithm + AI closed-loop |
| Control system | MCU |
| Drive method | Slew Drive |
| Motor Type | 24V DC Motor |
| Power supply | AC-powered or self-powered |
| Protection | |
| Wind protection | ≥18m/s |
| Night stow mode | Yes |
| System fault self-diagnosis | Yes |

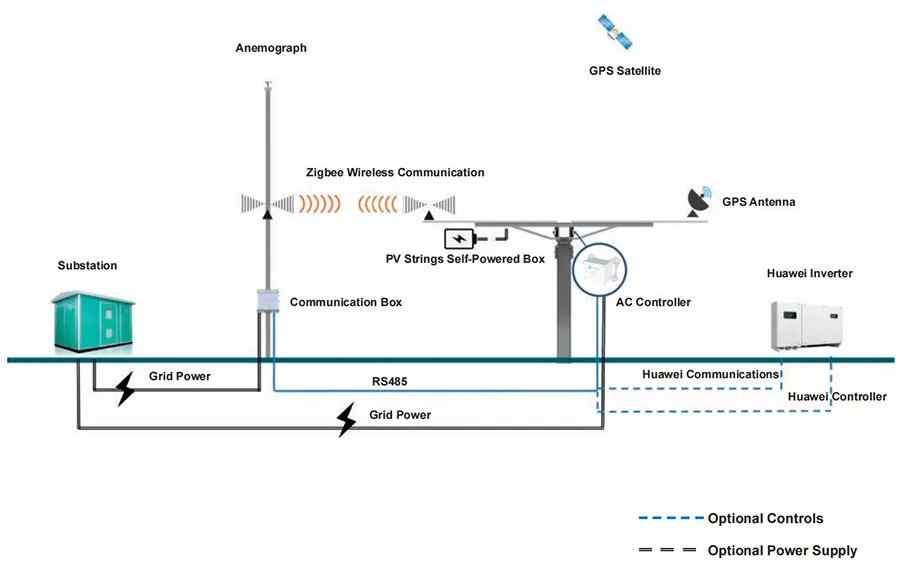

Electrical Principle Diagram
We are a high-tech enterprise that integrates R&D, production and marketing of Solar Mounting Systems for residential, commercial and utility-scale customers. We focus on providing innovative and efficient solar tracking solutions worldwide.
