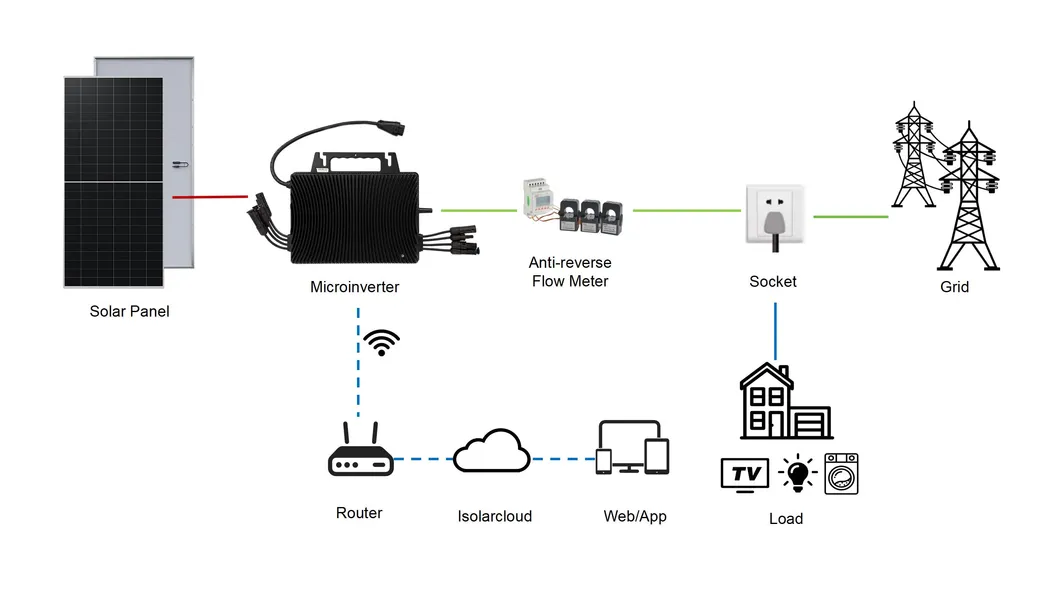

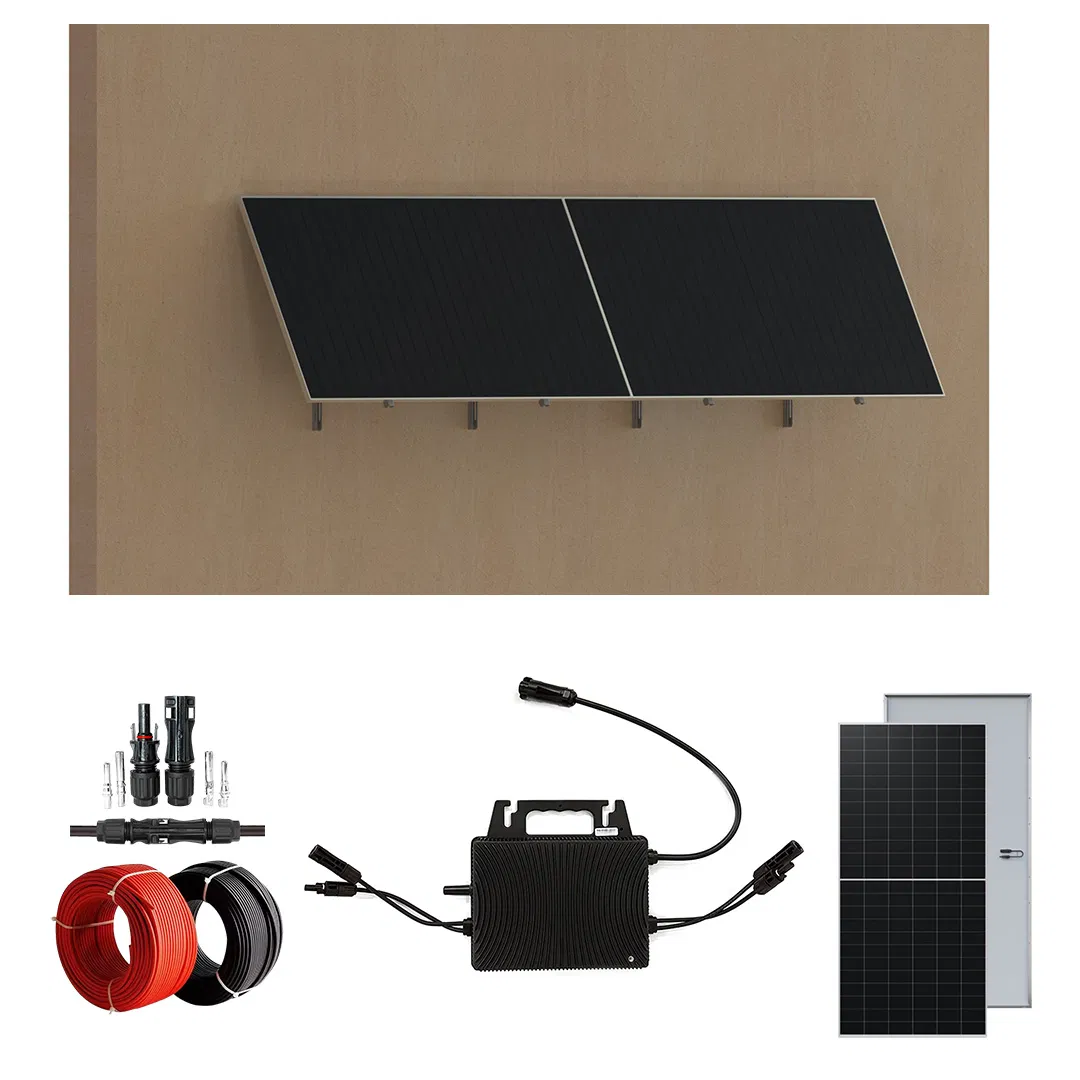

The balcony solar panel system is an integrated plug-and-play home solar power system. It consists of core components such as a balcony bracket, a micro-inverter (or small inverter), and solar panels. Designed for ordinary users, it integrates the core components needed for solar power generation, emphasizing DIY installation and adaptability to various scenarios.

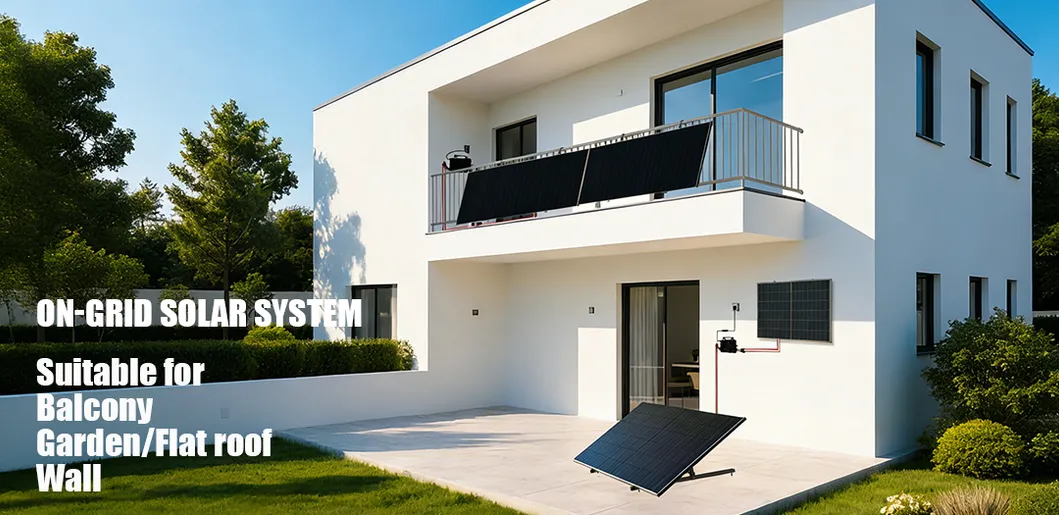

It is highly favored in markets such as Europe and is commonly used for small-scale solar power generation on balconies, gardens, walls, and flat roofs.
Easy to set up without professional help.

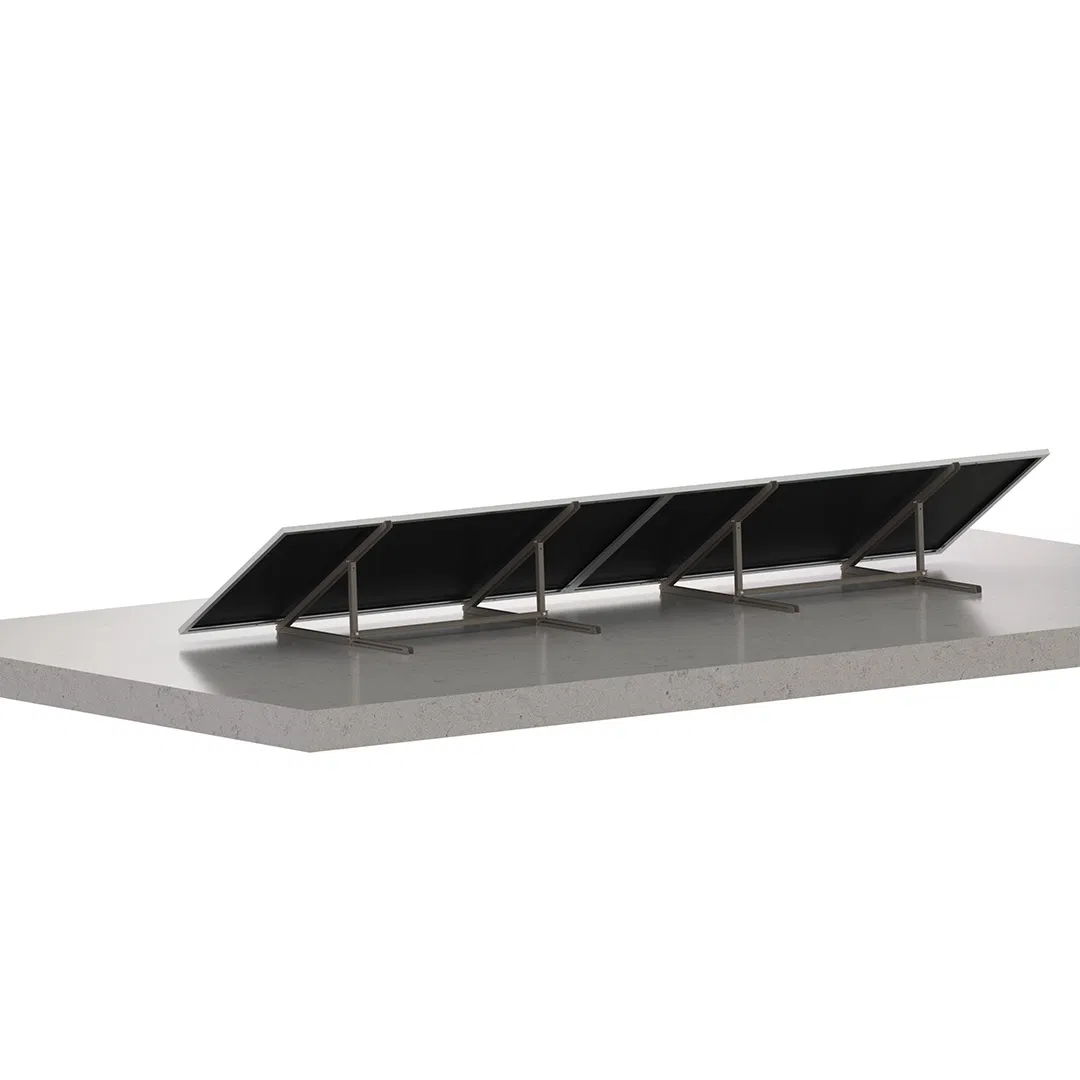

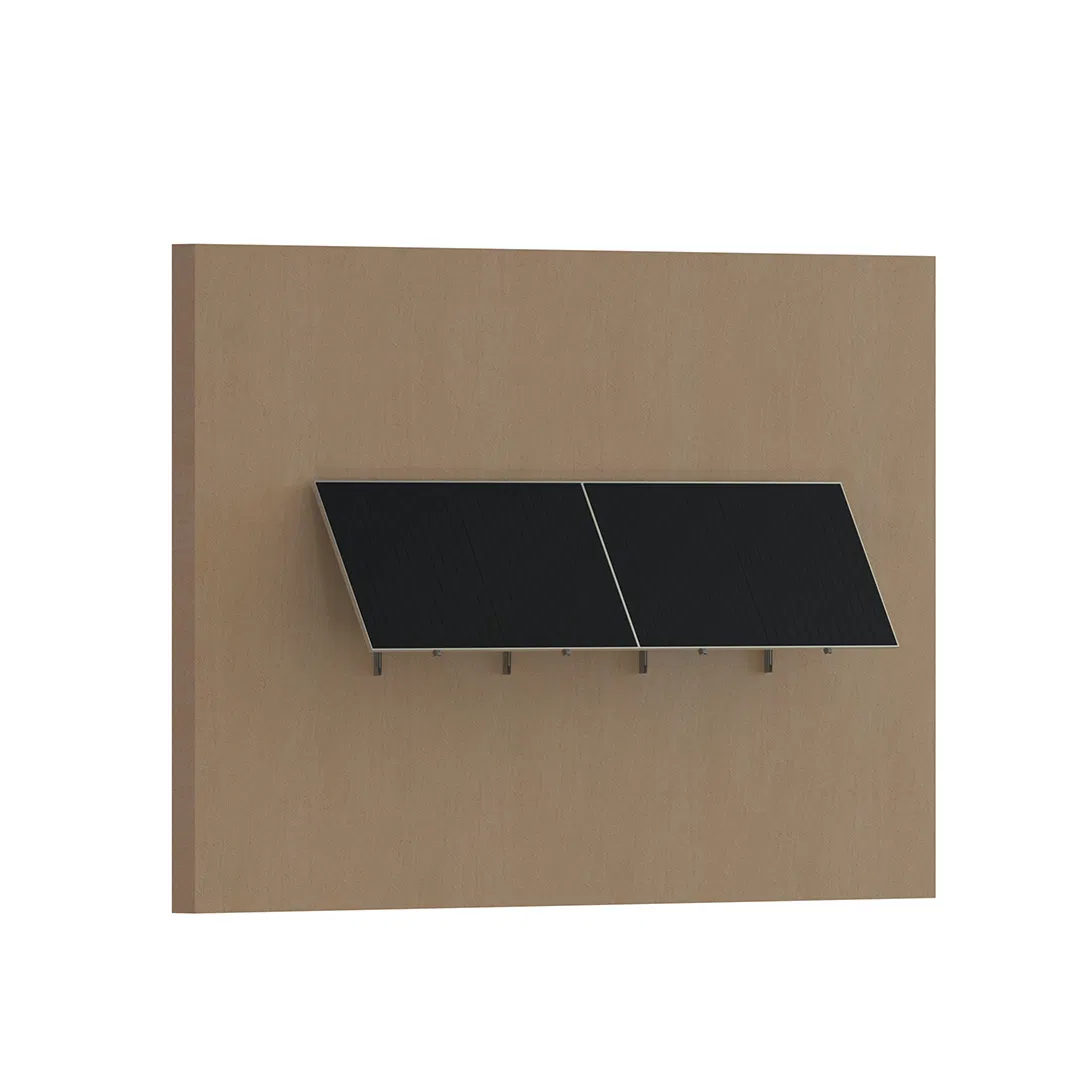

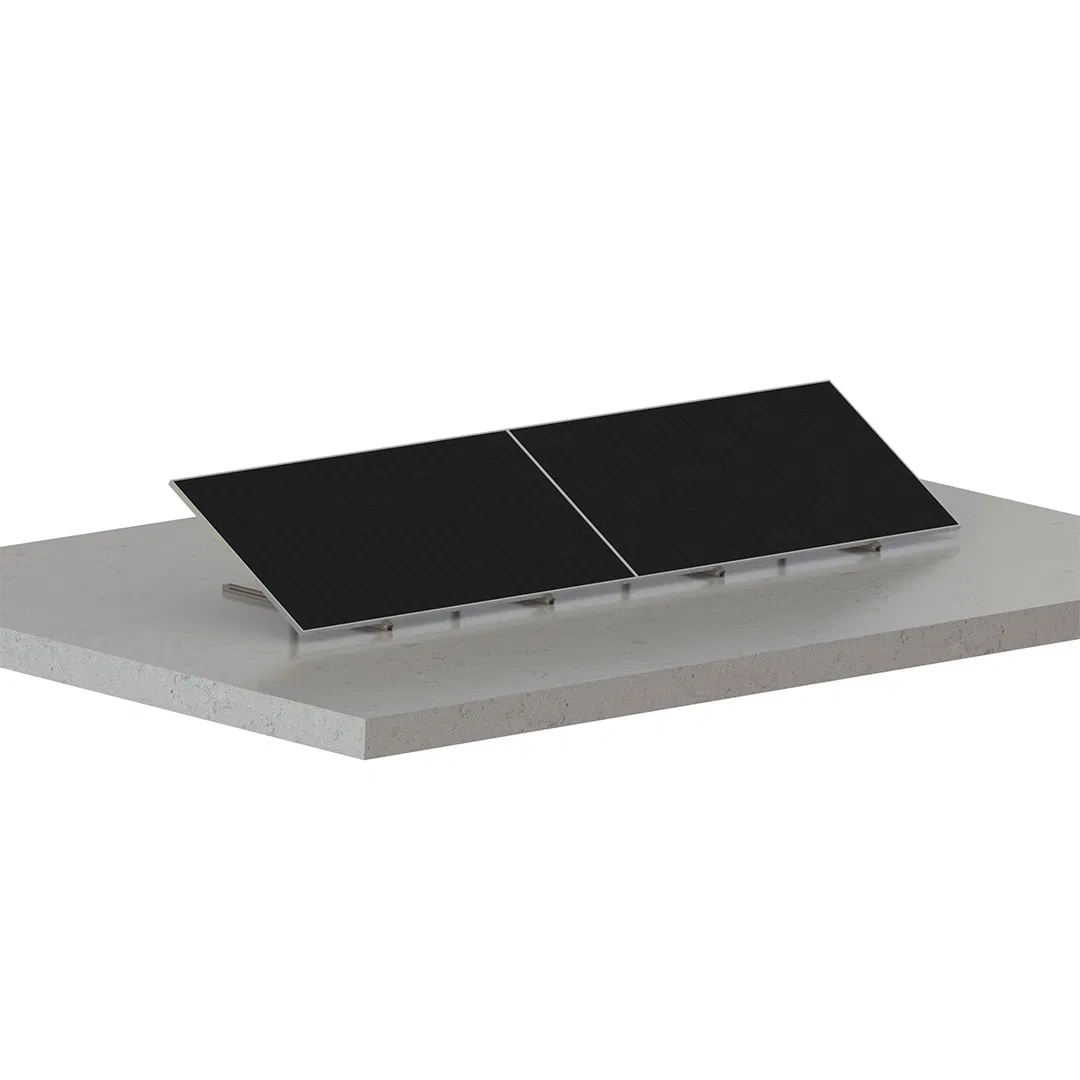

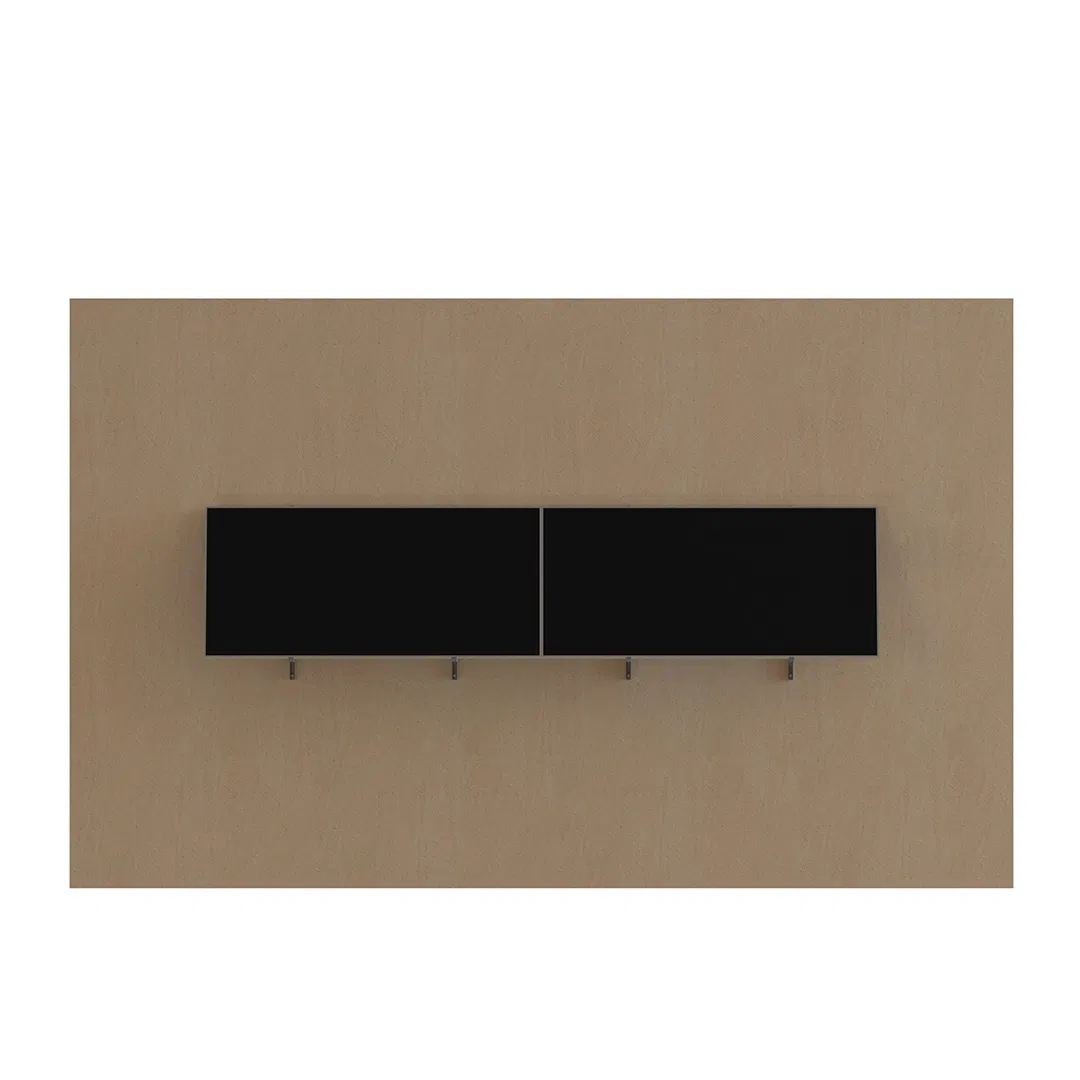

Perfect for Balcony, Wall, and Ground.
Simple connection to the mains electricity.
| ITEM | 1-Panel System | 2-Panel System | 4-Panel System |
|---|---|---|---|
| Installation Type | Balcony / Wall / Flat | ||
| Solar Panel Power | 620W | 450W*2 | 620W*4 |
| Array Mode | Horizontal | ||
| Power of Micro-inverter | 500W | 800W | 2000W |
| Rated Output Voltage | 220V-240V/50Hz | ||
| Material of Bracket | Zinc Aluminum Magnesium Steel + Spray | ||
| Adjustable Angle | 10-30 degrees | ||
| 8-Hour Total Output | 3.47~4.46kWh | 5.04~6.48kWh | 13.89~17.86kWh |
