Ground Mount Roof Mount System Street Light, Security Camera & Flagpole Roof, Wall & Pole, Corrosion Resistant Galvanized Steel Solar Panel Base Bracket

Still deciding? Get samples of $ !
Request Sample

Product Description

Basic Information

Model NO.
MDK-2509859
Structure
Single-side Bracket
Manufacturing Arts
Metal
Adjusted
Unadjustable
Folded
Unfolded
Customized
Customized
Color
OEM Powder Coating
Tolerance
±0.05mm
Surface Treatment
Powder Coating, Plating, Oxide, Anodizing
Machining Method
Laser Cutting, Bending, Welding, Stamping
Standard
GB, En
Port of Shipment
Ningbo/Shanghai
Production Capacity
50000PCS/Year

Product Description

BRACKET Metal Fabrication Service
Product Information
SampleFree sample prototype service (SHIPPING COST NOT INCLUDED)
MaterialCarbon Steel, SPCC, SECC, SGCC, 201/304/316 Stainless Steel, Aluminum, Brass, Copper, etc
SizeAccording to customers' drawings or samples
Surface FinishBrushing, Polishing, Anodizing, Powder Coating, Plating, Silkscreen printing, Sand-blasting, etc
ProcessLaser Cutting, Precision Stamping, Bending, CNC Punching, Threading, Riveting, Drilling, Welding etc
CertificationISO9001:2020/ISO9001/ISO14001/ISO45001/ISO20000 etc.
Drawing Format3D/CAD/DWG/X_T/STEP
Tolerance+/-0.1mm, 100% QC quality inspection before delivery
ApplicationElectrical, Automotive, Construction, Capital Equipment, Energy, Instrumentation, Medical Devices, Telecommunications

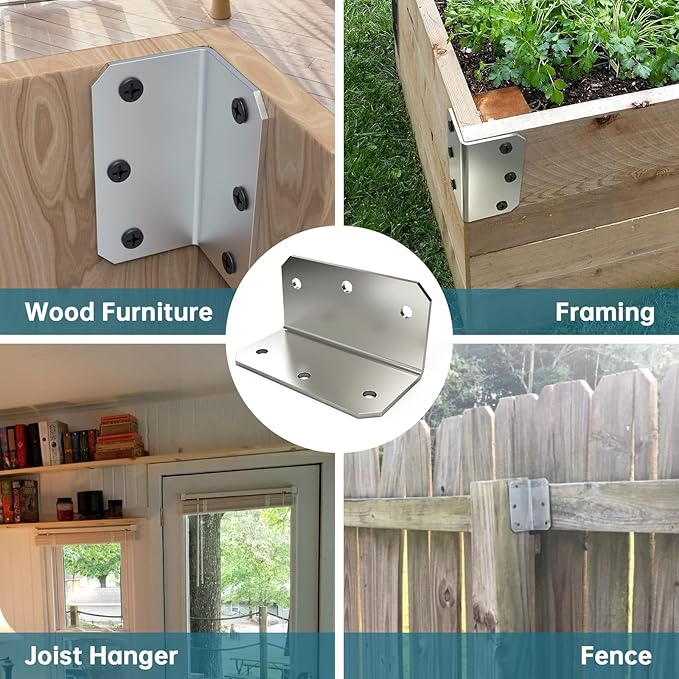

Metal Fabrication Bracket

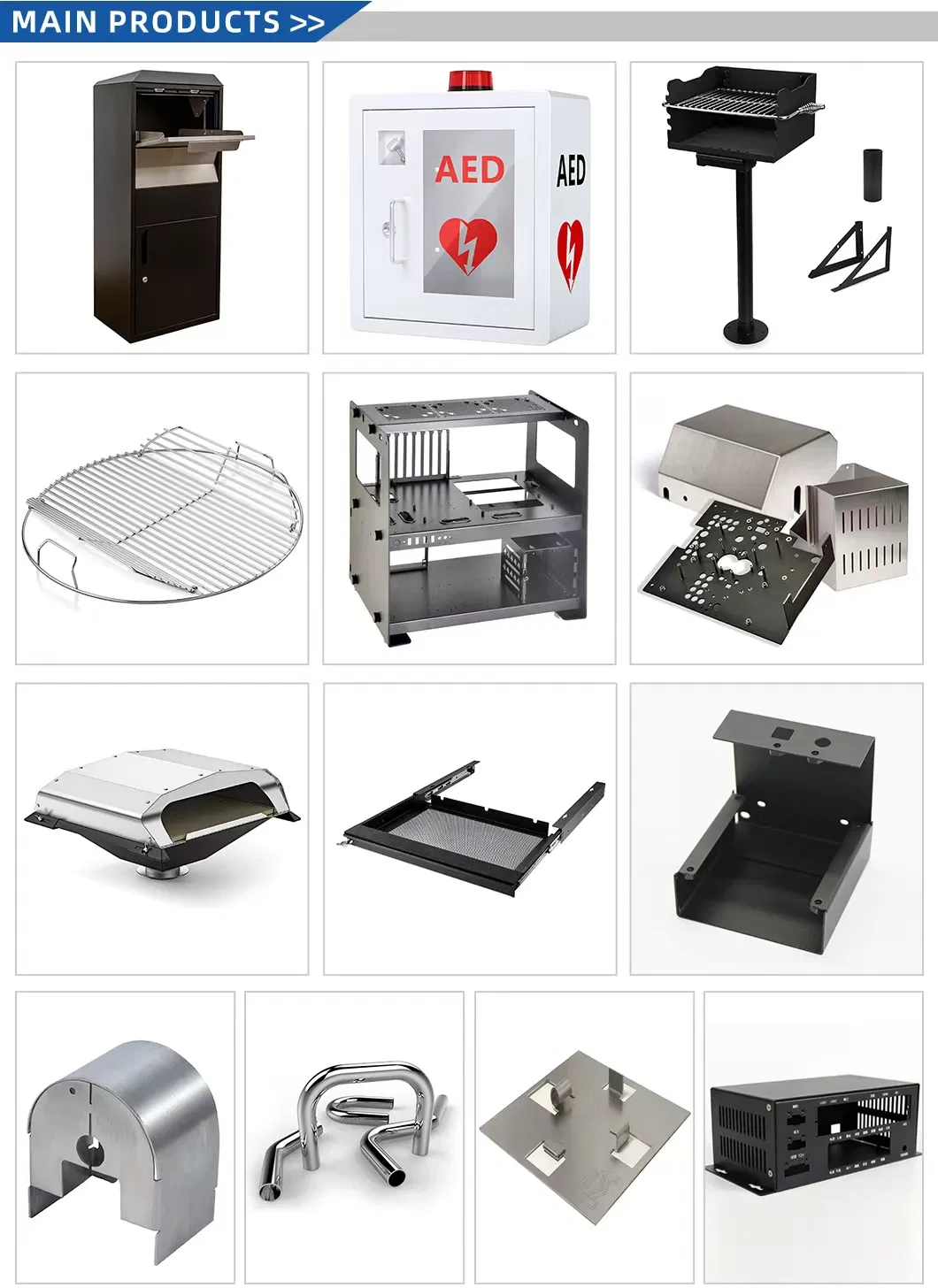

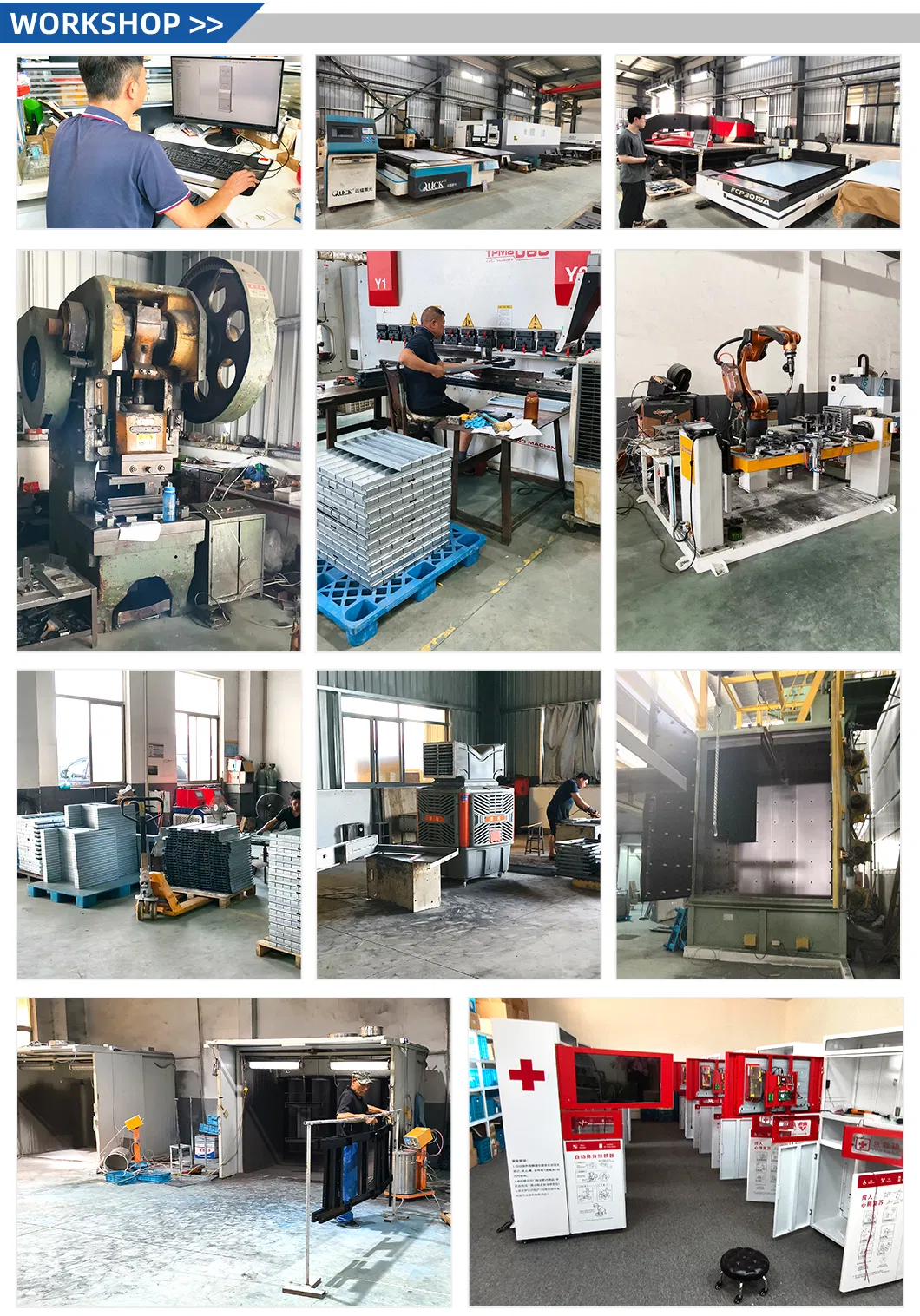

Main Products & Expertise

Main Products

Over our 30-years industry experience, we have specialized in sheet metal fabrication, Stainless Steel metal fabrication, Aluminum metal fabrication, precision CNC parts, and variety of surface-treatments.

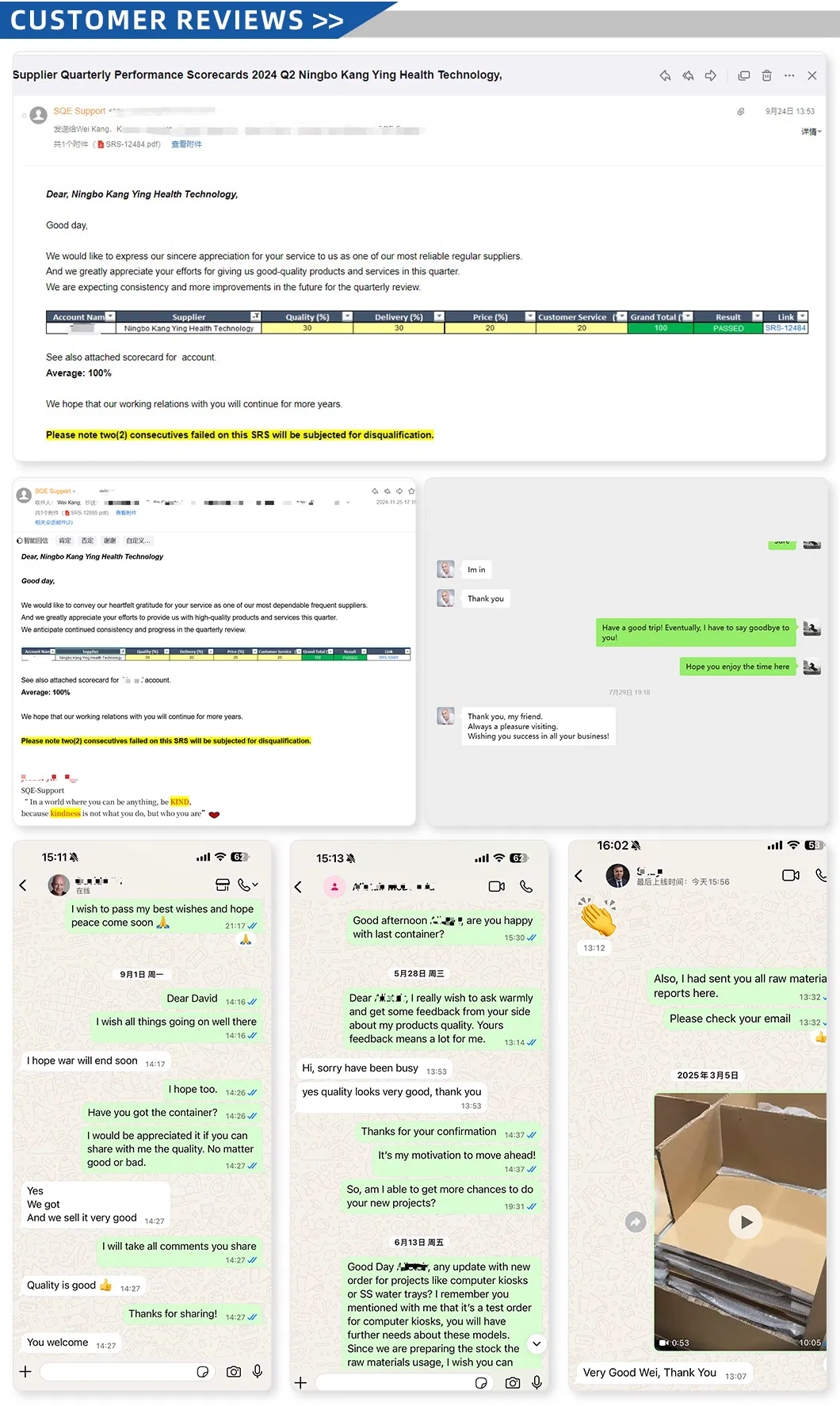

Customer Reviews

Customer Feedback

Equipped with state-of-the-art testing facilities and a robust technical team, we seamlessly navigate the entire process from prototyping to production, transforming your concepts into reality. Choose us for all your custom metal needs and experience End-to-End Metal Fabrication Solutions.

Manufacturing Quality

Certifications

ISO Certifications

Certified with ISO9001:2015, ISO 14001:2015, ISO20000-1:2018, ISO27001:2013, ISO45001-2018.

Exhibition & Our Customers

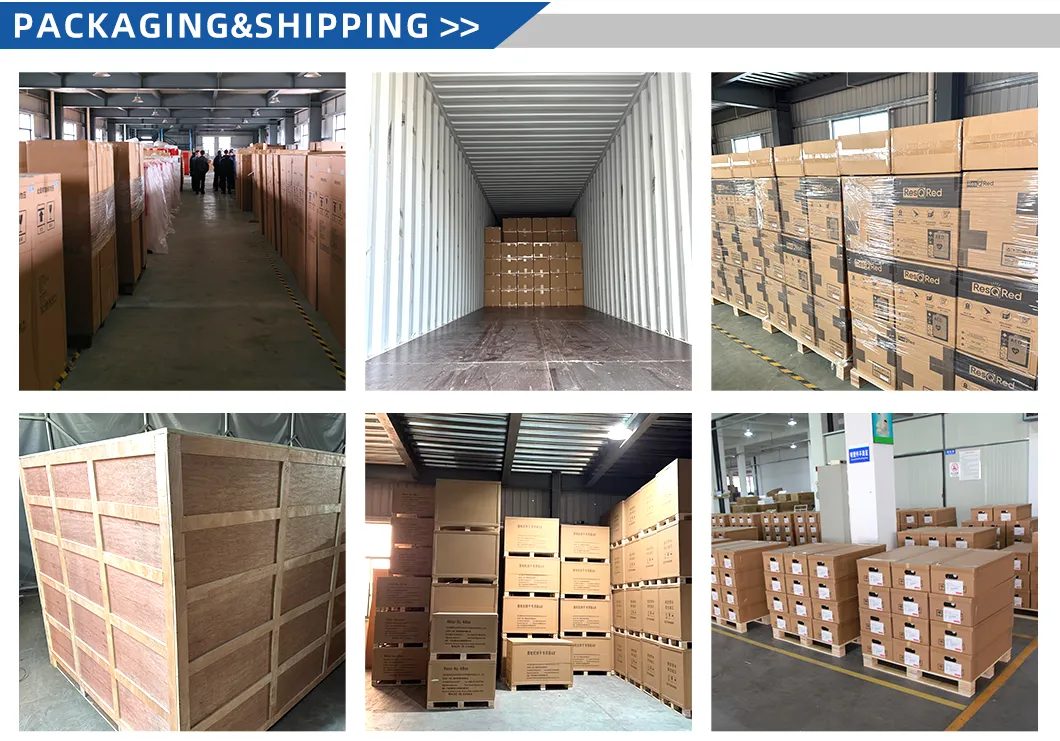

Packaging & Shipping

Packaging Details

Frequently Asked Questions

What are your primary manufacturing processes?
Our core services include CNC Laser Cutting, CNC Punching, CNC Bending/Forming, MIG/TIG/Spot Welding, Hardware Insertion, Grinding, and various Surface Treatments like Powder Coating and Anodizing.
What file formats do you prefer for quoting and production?
We prefer native 3D CAD files (.STEP, .IGES, .SLDPRT, .IPT). 2D drawings (.DXF, .DWG, .PDF) are also acceptable but must include all critical dimensions, tolerances, and material specifications.
What are your standard tolerance capabilities?
Laser/Punch Cutting: ± 0.005" (± 0.127 mm); Bending/Forming: ± 0.5° on angles; Hole Locations: ± 0.005" (± 0.127 mm). Tighter tolerances are achievable upon discussion.
What is the minimum flange length I can design for a bend?
Generally, the minimum flange length should be at least equal to the material thickness plus the inside bend radius. Designing shorter flanges may affect accuracy.
How do I specify hardware and welding?
Please specify all hardware (PEM part numbers, thread sizes) and weld requirements (type, length, location) directly on your 2D drawings using standard AWS symbols.
What are your typical lead times?
Prototypes: 1-2 weeks. Low to Mid-Volume Production: 2-4 weeks. High-Volume Production: 4+ weeks. Expedited services are available for an additional charge.
