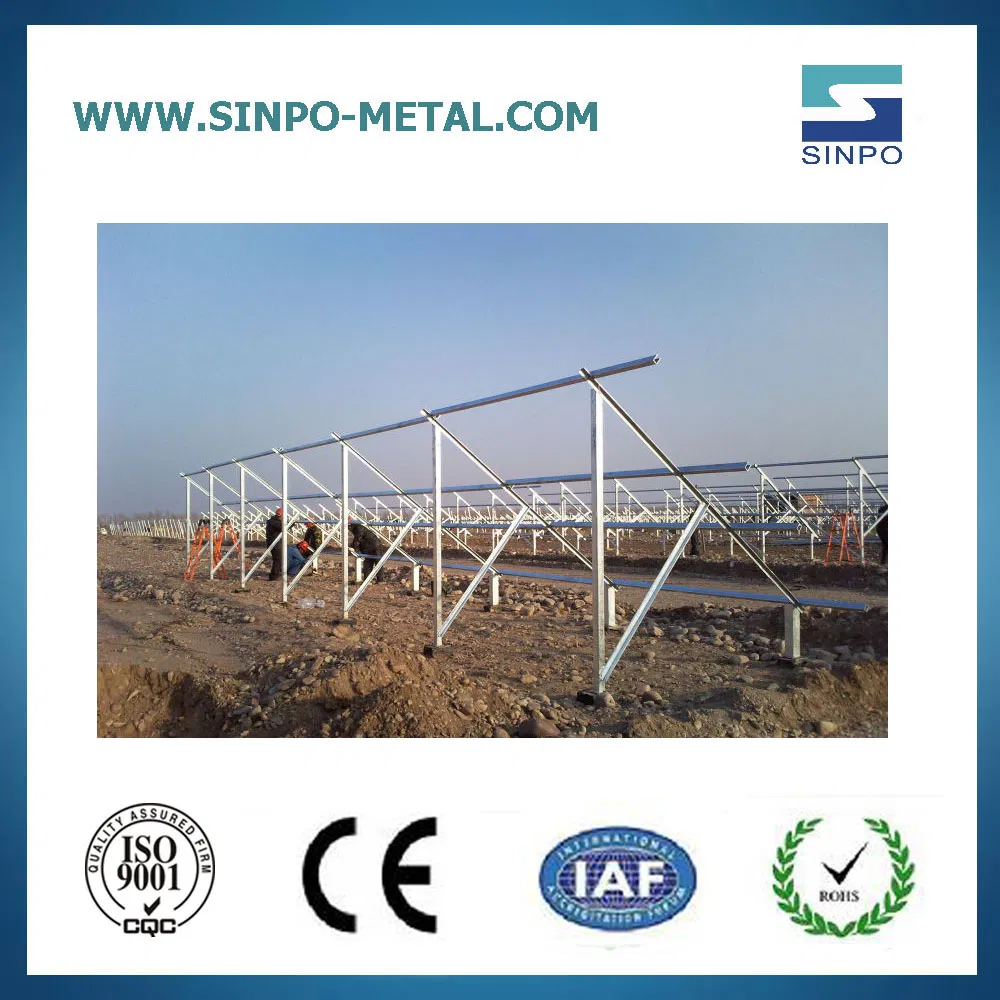

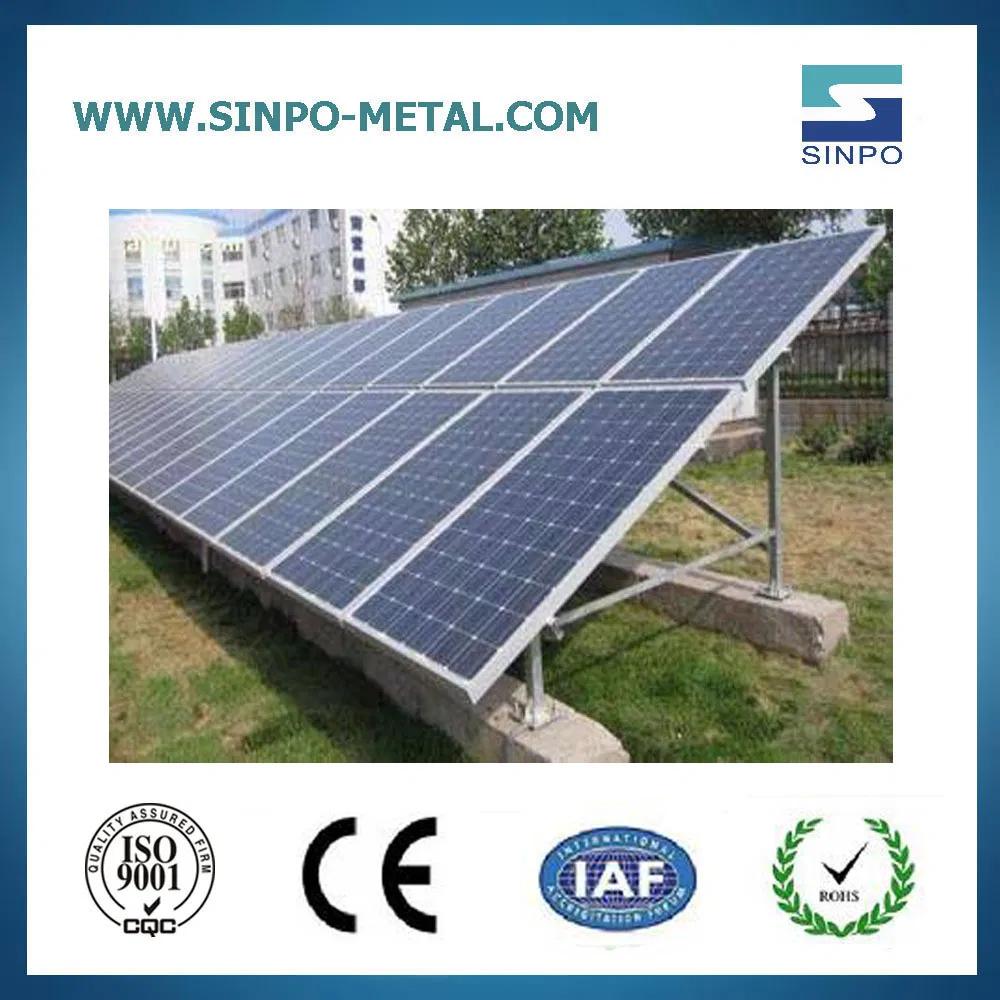

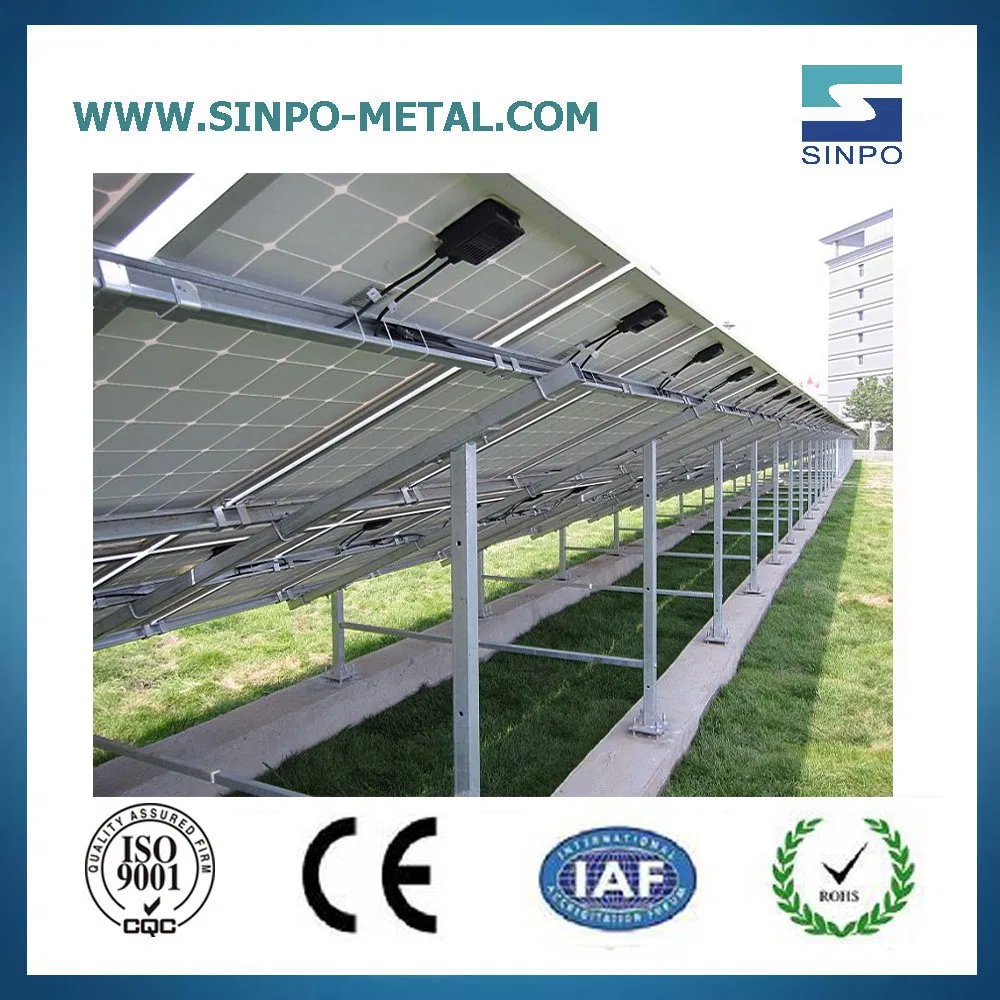

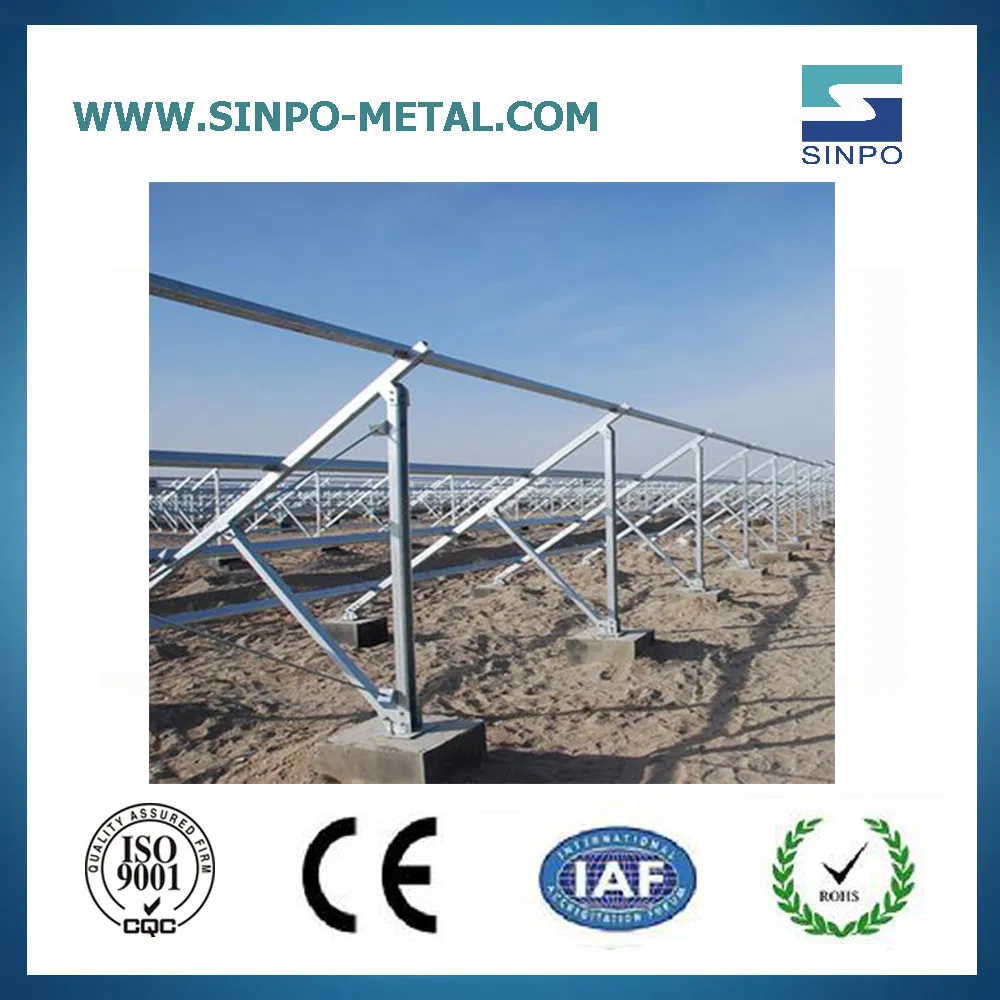

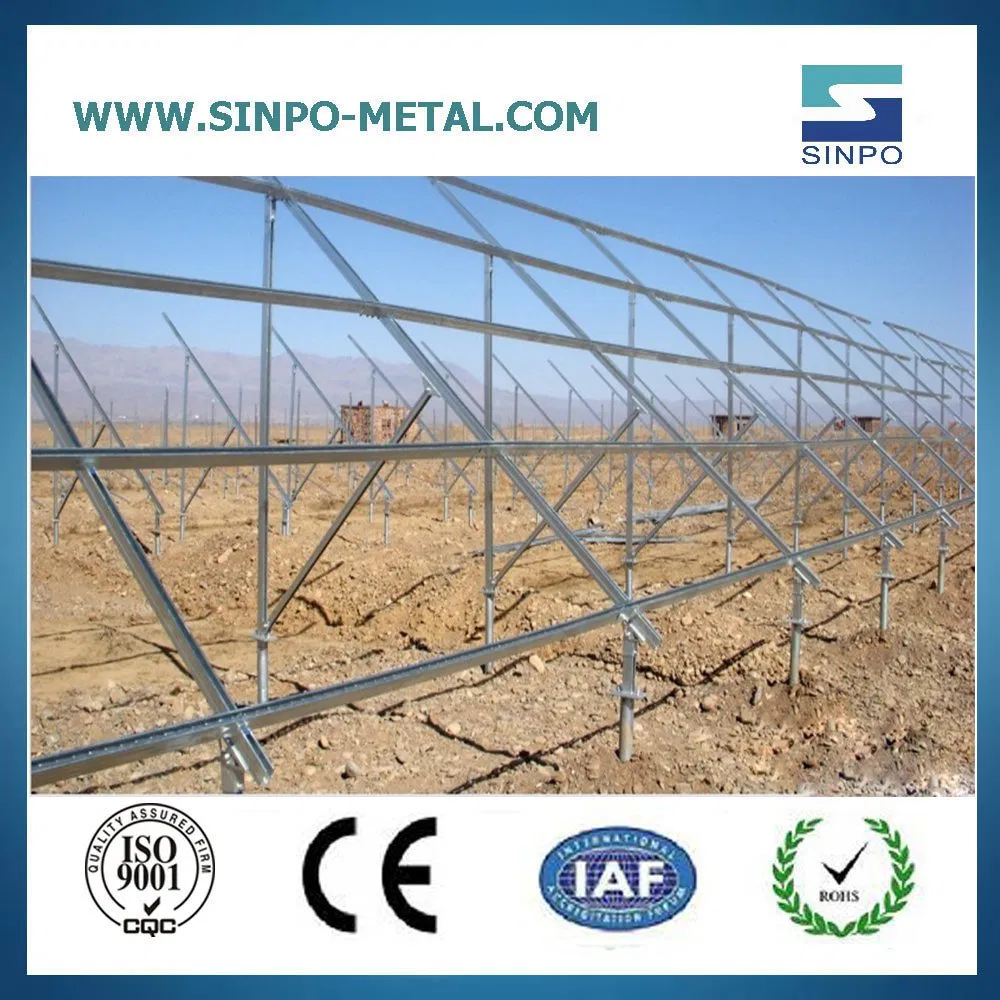

Solar Products Ground Solar Panel Mounting Aluminium Rail

Still deciding? Get samples of $ !
Order Sample

Product Description

Basic Information
Application
Industrial
Material
Aluminum Alloy
Type
Ground Bracket
Package
Shrinking Film, Carton, Wooden Pallet
Production Capacity
50000ton/Year
HS Code
76109000
Key Product Features
  • Enables easy, fast and cost-effective installation.
  • Flexible post spacing withstands different wind & snow loads.
  • High quality material in galvanized steel, Aluminum (6063 T3-T5), and SUS 304.
  • Highly corrosion resistant surface treatment for long-term durability.
  • Full set of fasteners and rail nuts configured to save extra parts purchasing.
  • Mechanical calculation and reliability tested to ensure highest product quality.
  • 12-25 years system and structural guarantee with a service life over 20 years.
Technical Specifications
TypeGround Solar Energy System Mounting Structure
Installation SiteAccording to Roof or Ground Type
MaterialAluminum 6063 T3-T5; Galvanized Steel
Survival Wind Speed< 60m/s
Design Snow LoadUp to 1.4KN/ Square meters
Solar Panel TypeFramed or Frameless
Panel OrientationTransverse or Vertical
Design StandardCE; ISO9001
Quality Warranty12-25 years
DurationMore than 20 years
Material List (Example for 20 Panels)
NO. Name Size (mm) Qty Material
1Ground Screw-10Q235B
2Front Column41*52*2.55Q235B
3Back Column41*52*2.55Q235B
4Rail41*52*2.510Q235B
5Beam41*52*2.55Q235B
8Mid Clamp-8AL6063-T5
9End Clamp-4AL6063-T5
Installation & Mounting Steps

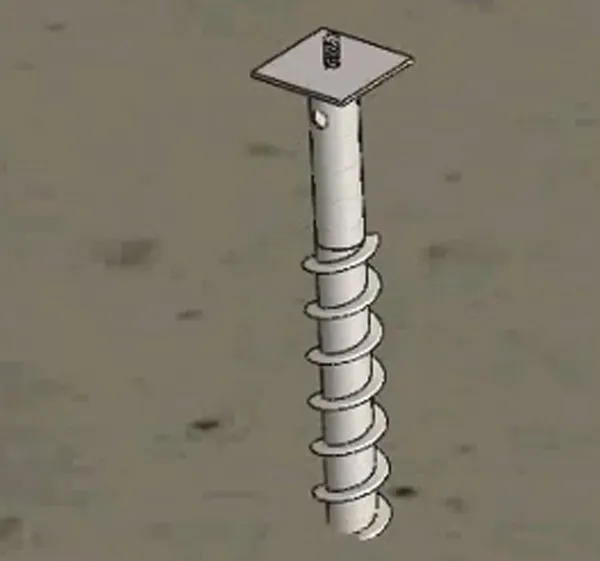

Mounting Step 1

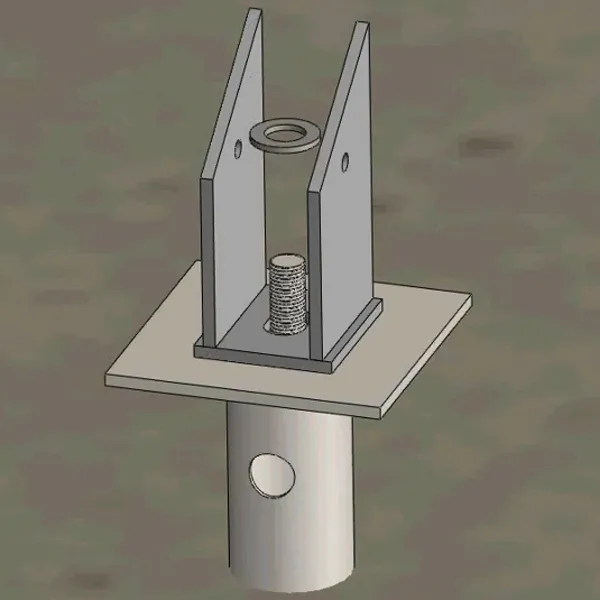

Mounting Step 2

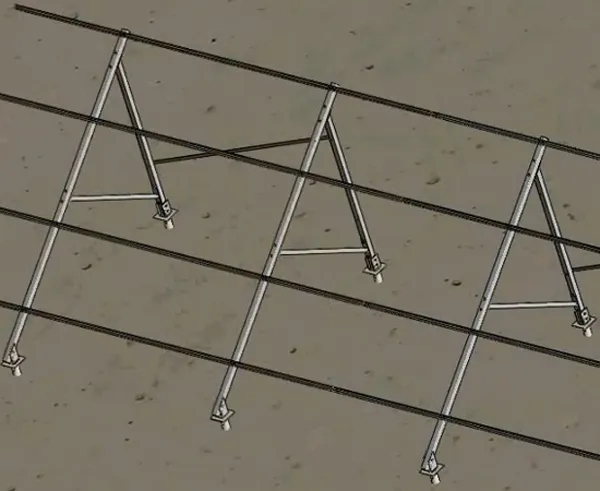

Mounting Step 3
Packaging & Shipping
Packaging Detail Shipping Logistics
Facility & Certifications

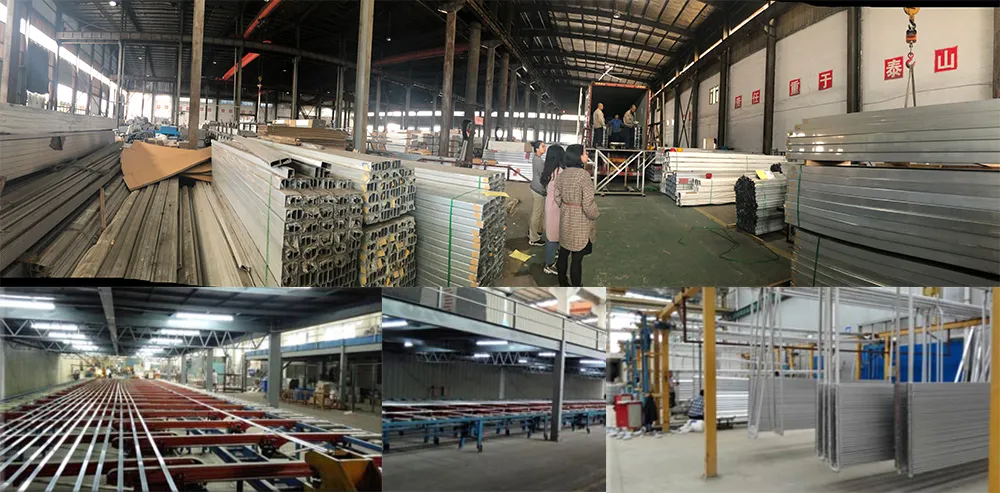

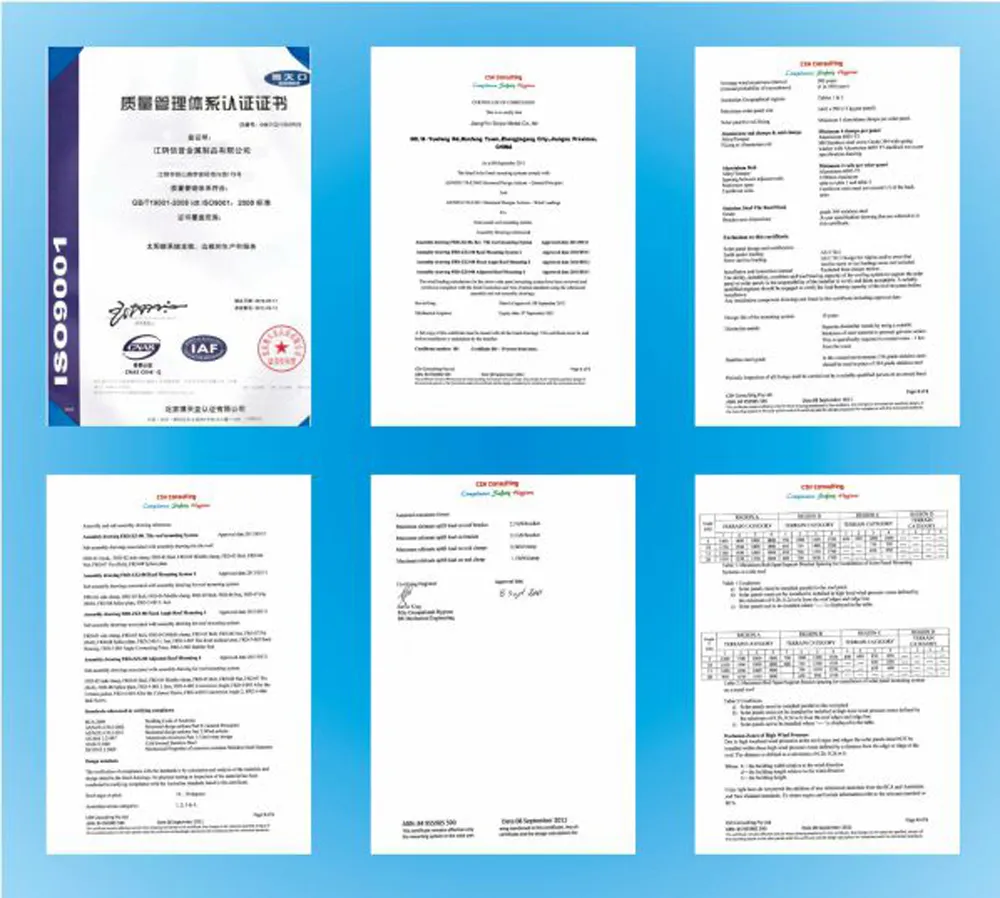

Factory Overview Customer Visit Certifications
Frequently Asked Questions
What is the MOQ for solar mounting products?
The MOQ is 500kg for general aluminum profiles and approximately 5 tons for customized new products.
Can you provide customized solutions based on drawings?
Yes, professional engineers are available to design CAD drawings and establish molds according to specific client requirements.
What certifications and standards do your products meet?
We hold ISO certifications. Our products comply with international standards including DIN, AAMA, AS/NZS, and China GB.
What is the typical lead time for delivery?
Samples and new molds take 2-3 weeks. Mass production generally takes 3-4 weeks after deposit and order confirmation.
What kind of warranty is provided for the structure?
We provide a 12-25 year guarantee on the system and structure, with a designed service life of more than 20 years.
What information is needed for a quote?
Please provide solar panel dimensions, array layout, installation site type (roof or ground), tilt angle, and local wind/snow load requirements.
