Product Description

Basic Specifications

Material:

Aluminum Alloy

Type:

Roof Bracket

Standard:

DIN, ASTM/ASME, JIS, En, ISO, as, GB

Finishing:

Zinc, HDG, Sandblasting

Certificate:

ISO 9001:2015

Wind Load:

60m/S

Snow Load:

1.6kn/M2

Installation Site:

Flat Roof, Ground

Delivery Time:

7-30 days

Specification:

SS304, AL6005-T5

Product Description

ℹ

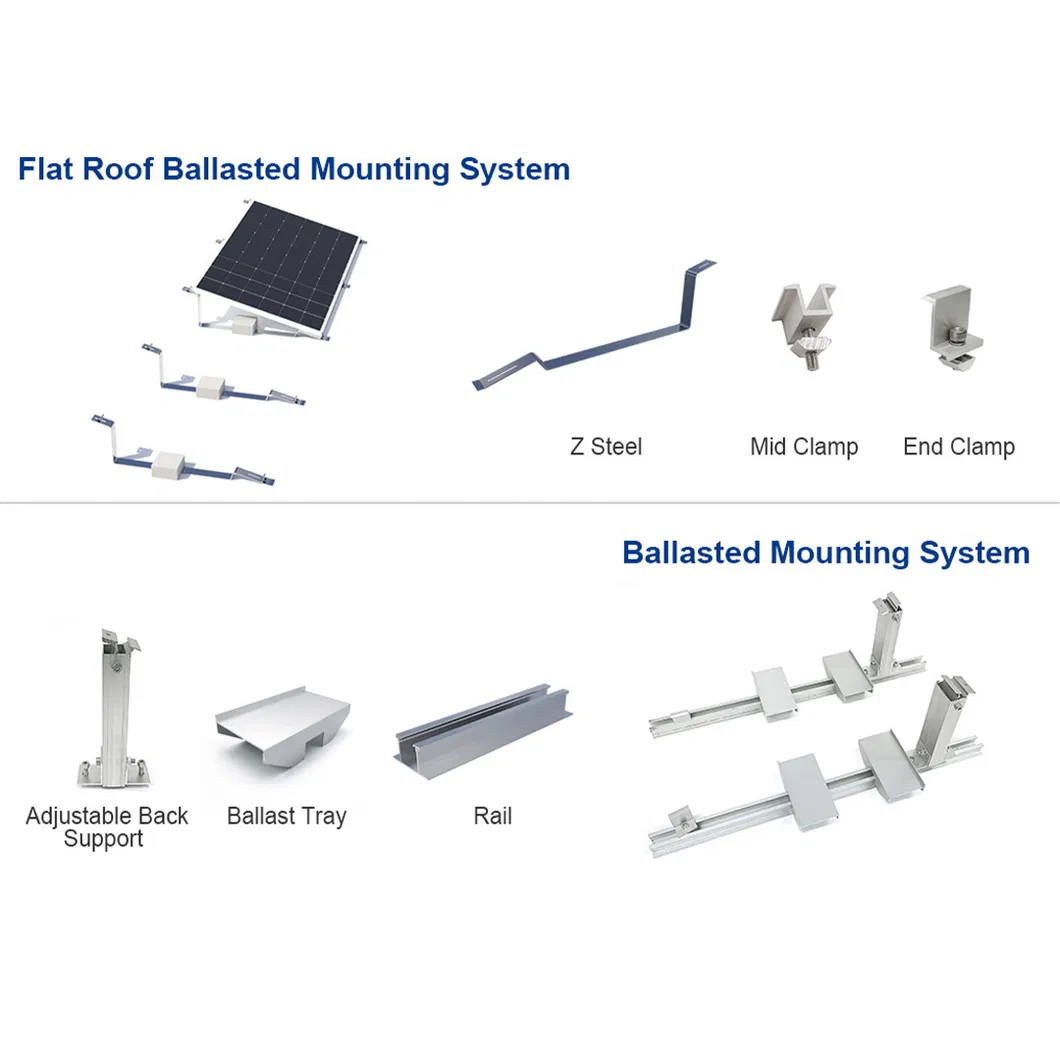

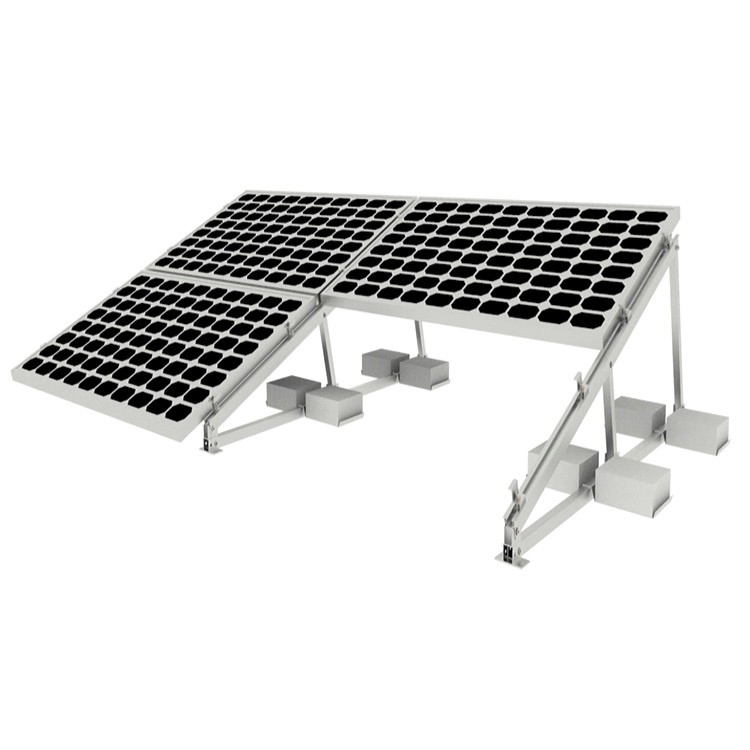

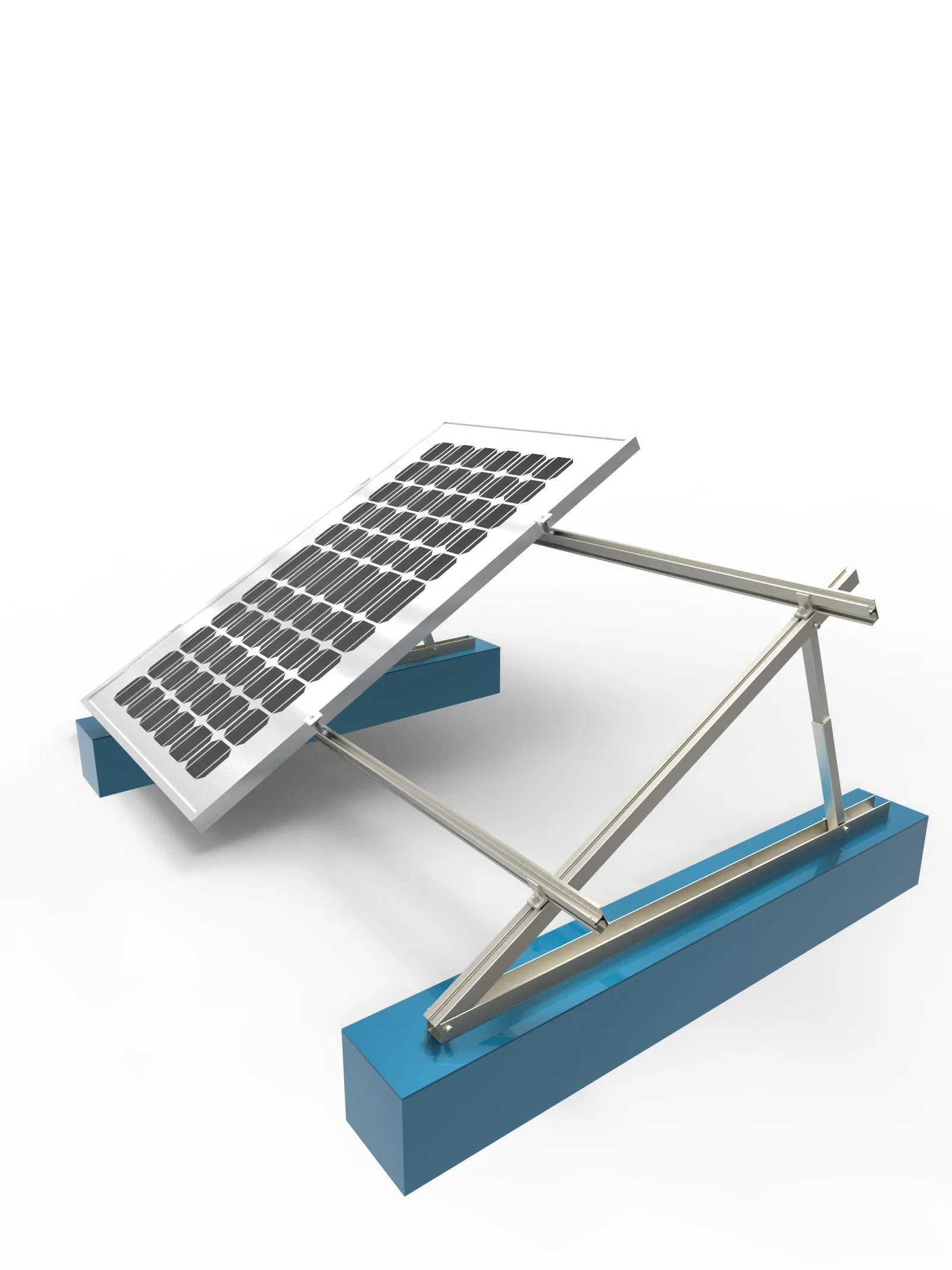

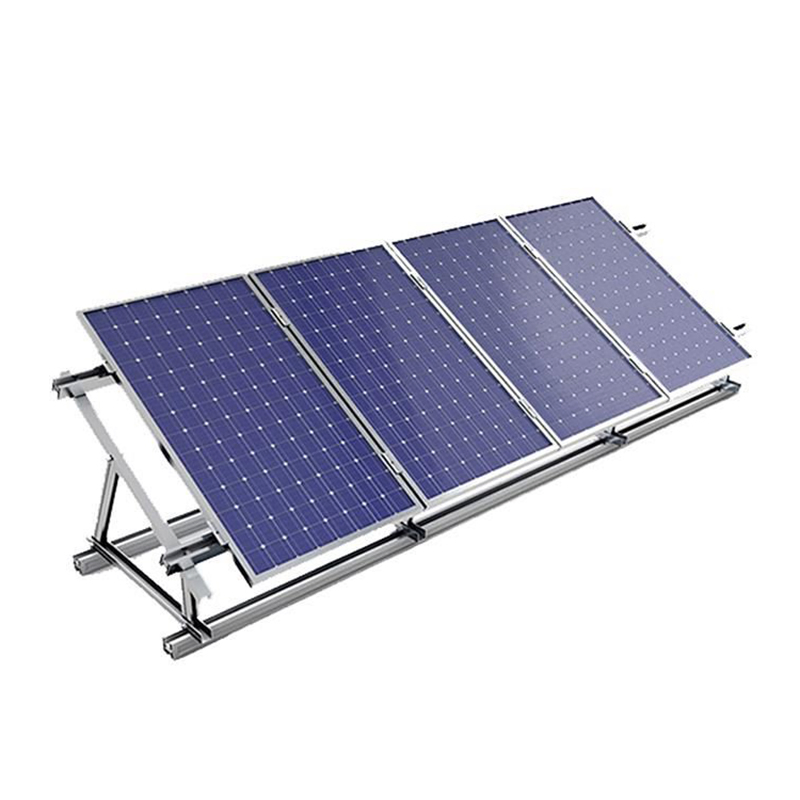

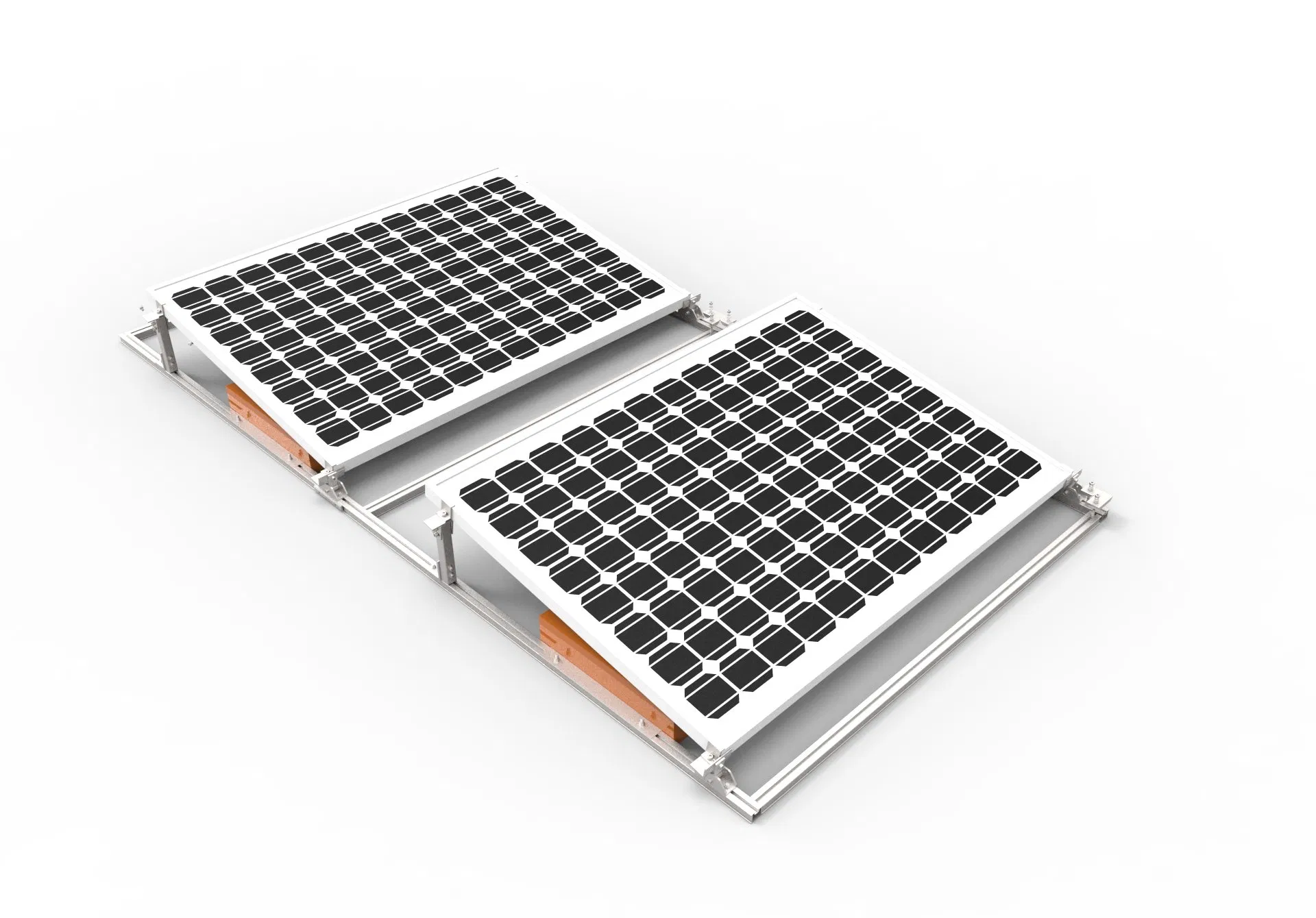

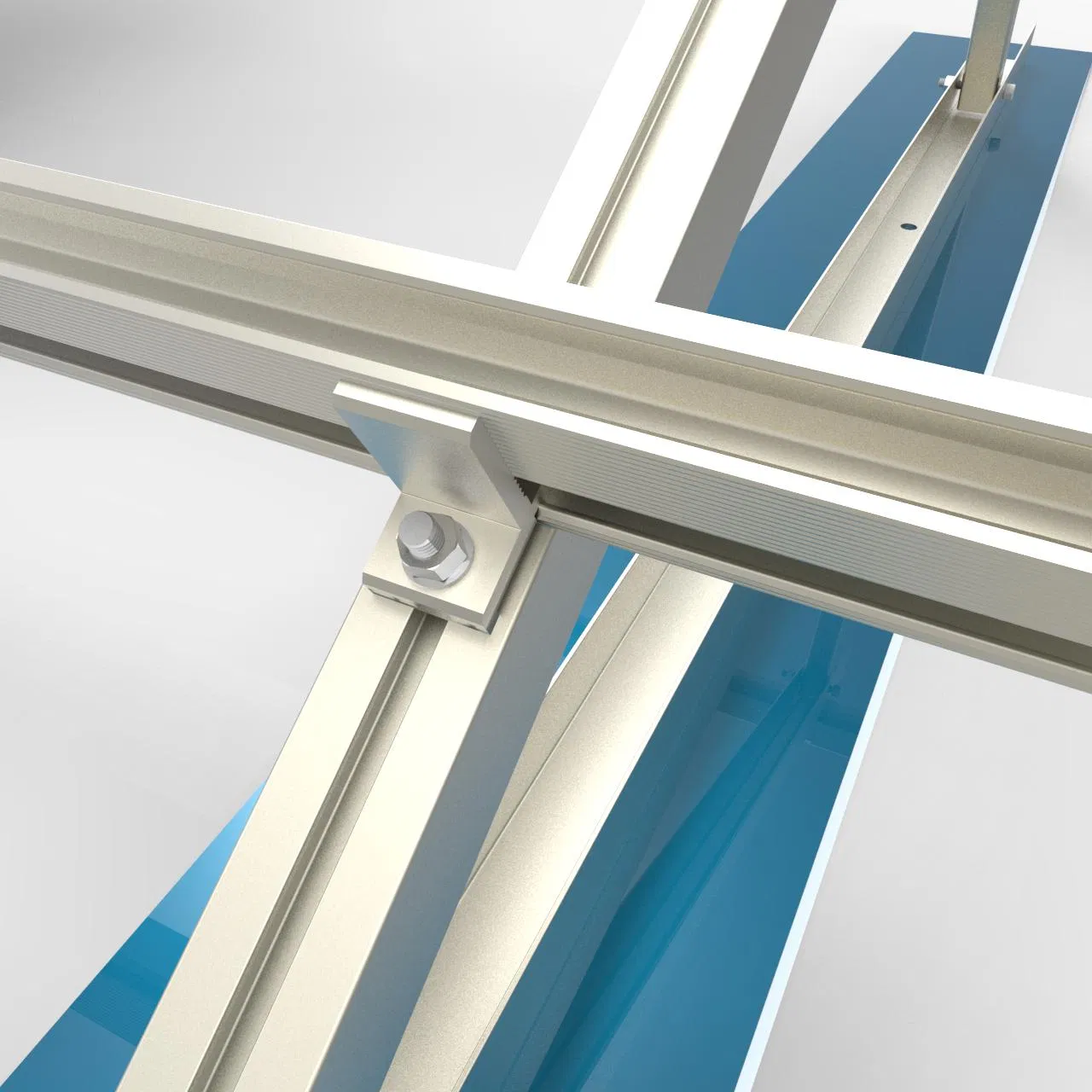

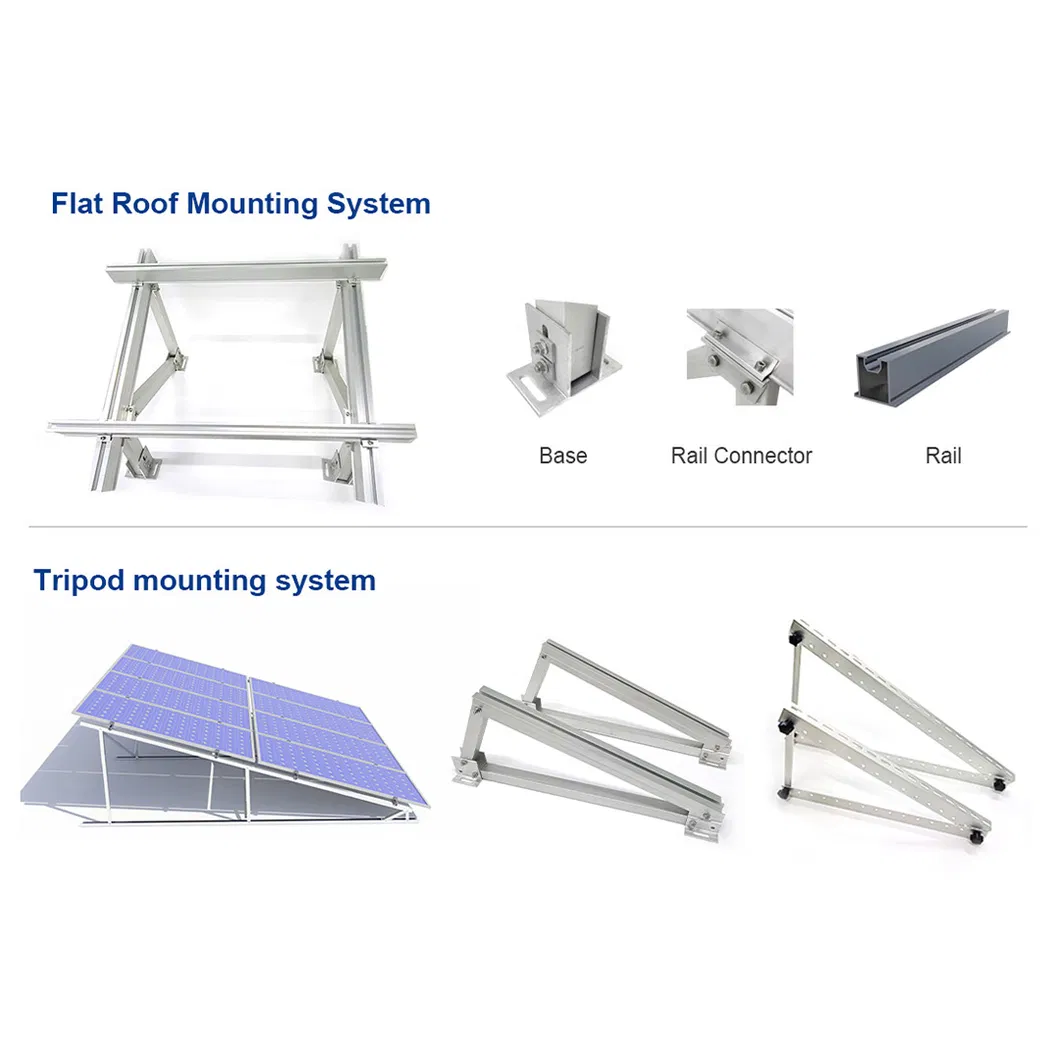

Solar Flat Roof Mounting System: This is a solar photovoltaic bracket system specifically designed for flat roof applications. The system consists of high-quality solar hooks, fasteners, aluminum rails, and galvanized C steel channels, offering a simple structure with superior bearing capacity.

Key Advantages:

Stable Structure: Engineered to withstand large wind and snow loads.
Easy Installation: Convenient components that do not require specialized hoisting equipment.
Versatile Application: Suitable for various flat roof types and ground installations.
Cost-Effective: Reusable design helps in long-term cost savings.

Technical Parameters
System Name	Solar Flat Roof Mounting System	Design Standard	AS/NZS 1170, DIN 1055, JIS C8955:2017
Tilt Angle	5-10°	Building Code	IBC 2009 / CBC 2010
Wind Load	60m/s	Hook Material	SUS304
Snow Load	1.6KN/M²	Fasteners	SUS304 Stainless Steel
Module Type	Framed	Small Components	AL6005-T5 (Anodized)
Panel Layout	Portrait or Landscape	Warranty	10-year warranty

Product Visuals

Our Service Advantages

Professional Manufacturing: Fasteners designed according to buyer specifications.
Guaranteed Quality: Rigorous durability testing and technical design.
10 Years Experience: Expertise in providing perfect fastening solutions.
Customization: Tailored services based on provided samples and drawings.

Frequently Asked Questions

What materials are used for the mounting system?

The system primarily uses high-grade Anodized Aluminum AL6005-T5 and SUS304 Stainless Steel for hooks and fasteners to ensure maximum corrosion resistance.

What is the maximum wind and snow load the system can handle?

The system is designed to withstand a wind load of up to 60m/s and a snow load of up to 1.6KN/M².

Is this system compatible with ground installation?

Yes, while specifically optimized for flat roofs, it is also highly effective for ground-level solar mounting applications.

Can the panels be arranged in both portrait and landscape?

Absolutely. The system supports both portrait and landscape layouts to maximize your solar panel array space.

What is the standard warranty for these mounting systems?

We offer a 10-year warranty on our solar mounting systems, reflecting our commitment to quality and long-term durability.

Does the installation require heavy lifting equipment?

No, one of the main advantages is its simple design which allows for easy installation without the need for hoisting or heavy equipment.
