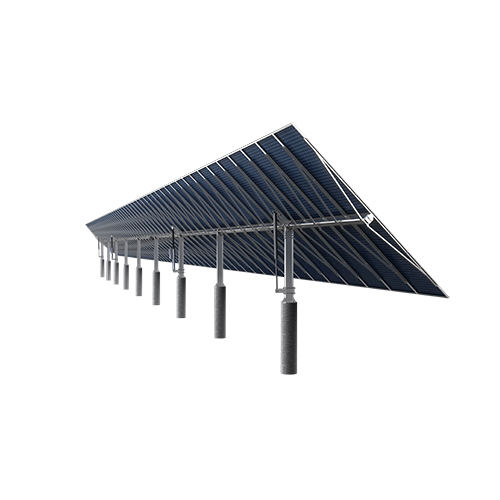

Product Description
| Tracking Form |
Single Row Independent Drive |
Drive Form |
EHA electro-hydraulic push rod |
| Tracking Range |
-60°~+60° |
Slope Adaptation |
N-S:5° |
| Wind Resistance |
≤40m/s |
Wind Protection |
≤18m/s |
| Main Material |
Q235B/Q355B/ZAM |
Layer Thickness |
≥65μm |
⚙️ Excellent Design & Convenient Installation
Venus tracking system adopts lightweight and modular structure design with strong independence of main components and few connectors for more convenient installation and maintenance.
🚀 New Iteration & Advanced Technology

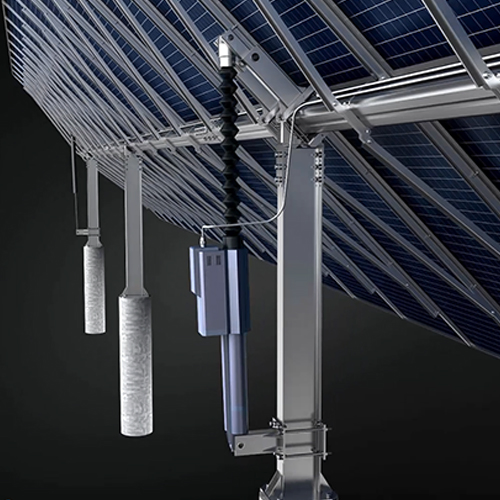

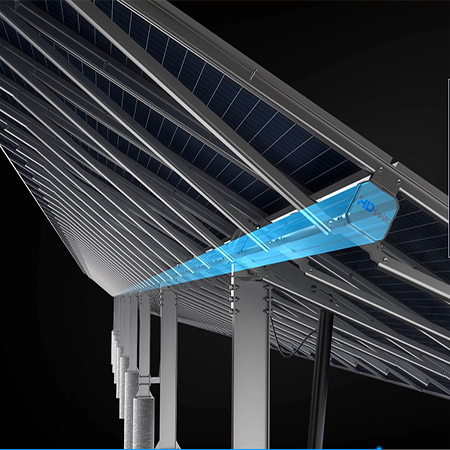

The industry's first EHA electro-hydraulic actuator driving technology can steadily provide more than 28KN.M of continuous power, eliminating insufficient operating torque under strong wind conditions.
🛡️ Ultra Stable & Safer System
Multi-point braking or two-point driving + multi-point braking technology. Combining EHA electro-hydraulic actuator driver and E-braking system effectively reduces spindle torsion angle for stable operation.
💰 High Income & Lower Cost
Maximize driver quantity optimization to reduce costs. Brushless DC motor driving adjusts power intelligently, doubling efficiency and saving more than 50% energy.
Frequently Asked Questions
What is the tracking range of the Venus series solar tracker?
The system offers a wide tracking range of -60° to +60°, allowing for maximum solar exposure throughout the day.
How does the system perform in high wind conditions?
The structure is designed to withstand wind speeds up to 40m/s, with active wind protection triggering at speeds ≤18m/s to ensure system safety.
What materials are used for the tracking brackets?
The main structural components are made from high-quality Q235B, Q355B, or ZAM (Zinc-Aluminum-Magnesium) with a layer thickness of ≥65μm for superior corrosion resistance.
What are the foundation options for installation?

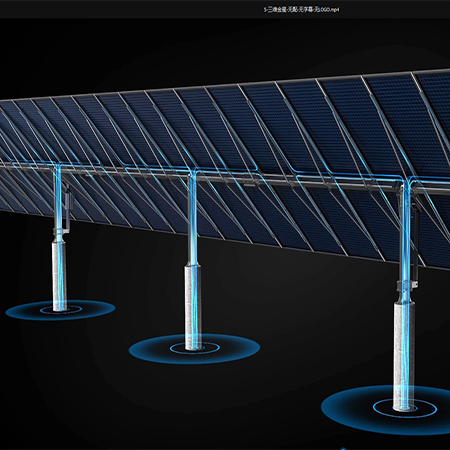

The Venus series supports multiple pile foundation forms, including PHC piles, hammer-into-the-pile, and cast-in-place piles, making it adaptable to various soil conditions.
How does the EHA technology benefit the system?
The EHA electro-hydraulic actuator provides over 28KN.M of continuous power, ensuring stable operation and sufficient torque even under strong wind loads.
Is the system energy efficient?
Yes, the use of brushless DC motors and intelligent power adjustment allows the system to save more than 50% in energy consumption compared to traditional systems.
