Heritage-Compatible Stainless Steel Slate Roof Solar Brackets

📋 Basic Information

Model NO.

Slate Roof Brackets-05

Certification

GB, ISO, CE, RoHS

Application

Home

Material

Stainless Steel

Type

Roof Bracket

Sample

Free

Design

Free

Coating

Anodic Oxidation

Production Capacity

100000 Tons / Year

Package Size

25.00cm * 22.00cm * 27.00cm

☀️ Product Description

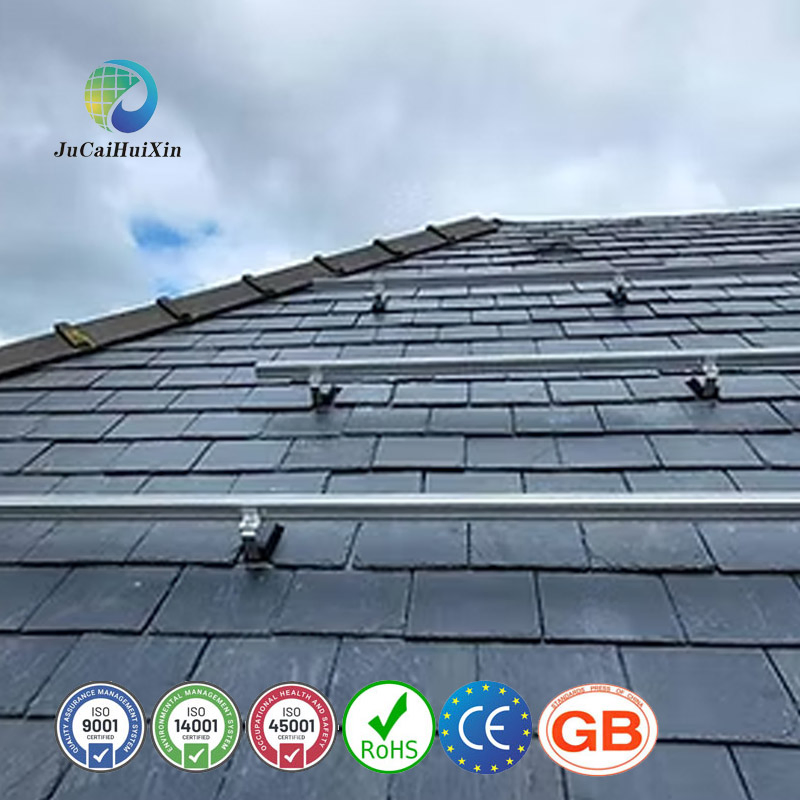

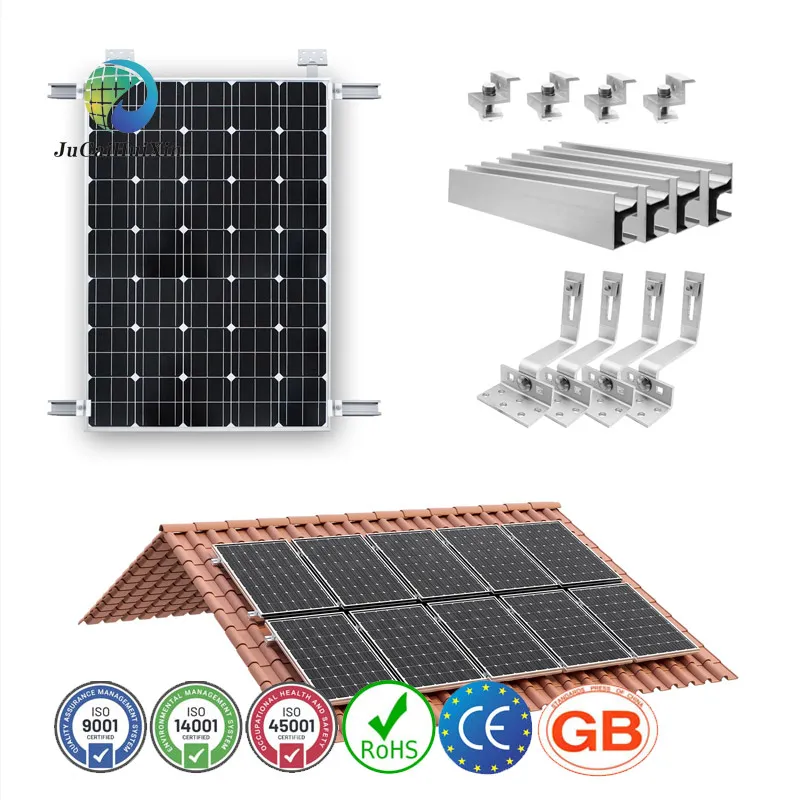

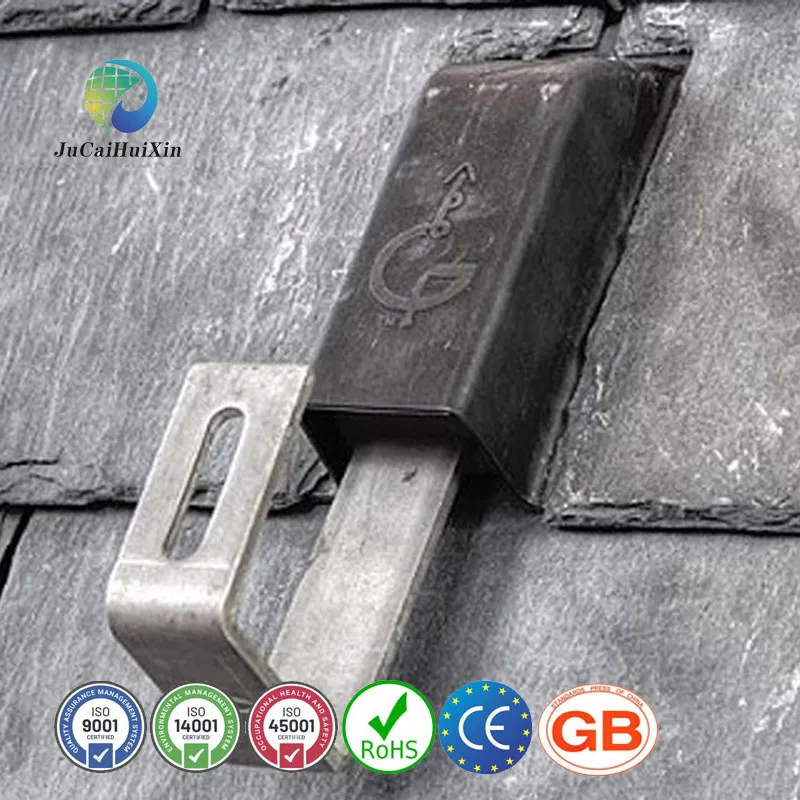

Heritage-Compatible Slate Roof Solar Brackets

Introducing our Heritage-Compatible Stainless Steel Slate Roof Solar Brackets, designed for easy and secure installation of solar panels on tile roofs. These durable brackets are made from high-quality stainless steel, ensuring long-lasting performance and resistance to corrosion. The innovative design allows for a seamless integration with slate roofs, providing a sleek and aesthetic appearance. Our Slate Roof Brackets are compatible with a variety of solar panel sizes, making them versatile for different projects.

⚙️ Technical Parameters

System Name	Solar Slate Roof Mounting System	Certificates	ISO14001/45001/9001, CE, Rohs, GB
Installation Site	Slate Roof	Design Code	IBC 2009 / CBC 2010
Tilt Angle	5-45°	Hook Material	SUS304 Stainless Steel
Wind Load	60m/s	Snow Load	2.0KN/M²
Applicable Module	Framed or Frameless	Fastener	SUS304
Panel Layout	Portrait or Landscape	Warranty	10-year warranty

✅ Product Advantages

Strong Corrosion Resistance

High Bearing Capacity

Factory Direct Delivery

High Quality Standards

🛠️ Installation Steps

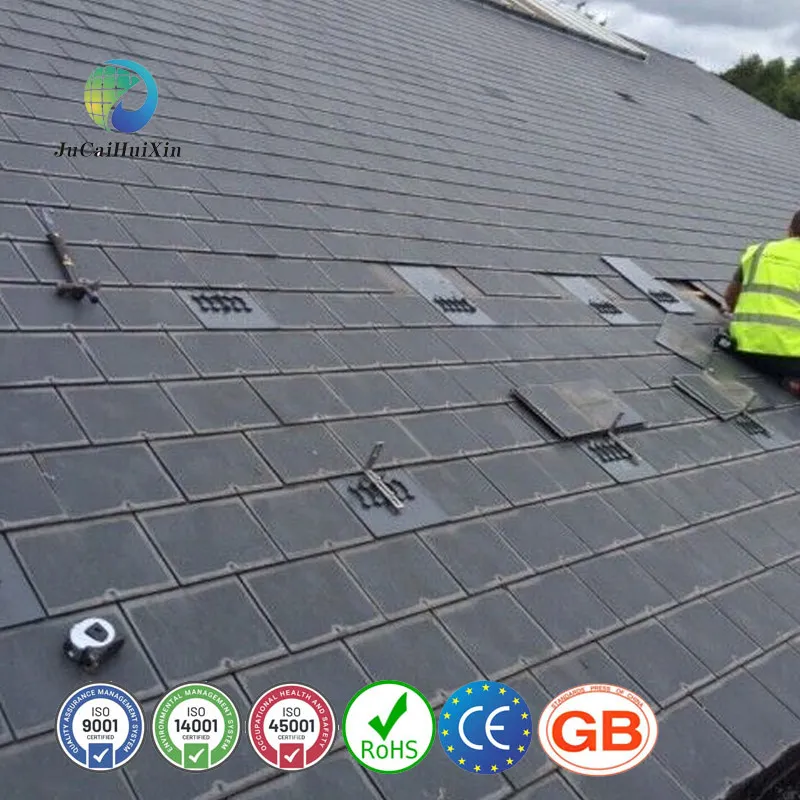

Roof Evaluation

Check the integrity and load-bearing capacity of the tiles (≥ 1.2kN/m²), and mark the installation position.

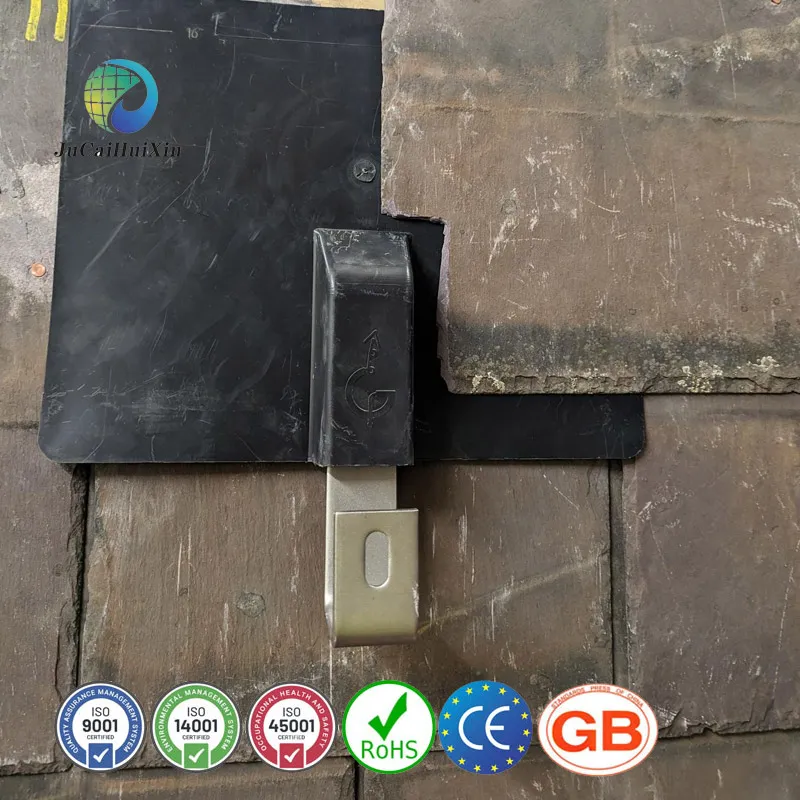

Fixture Fixation

Insert the aluminum alloy fixture into the tile gap and press it to the locking position (with a "click" sound prompt).

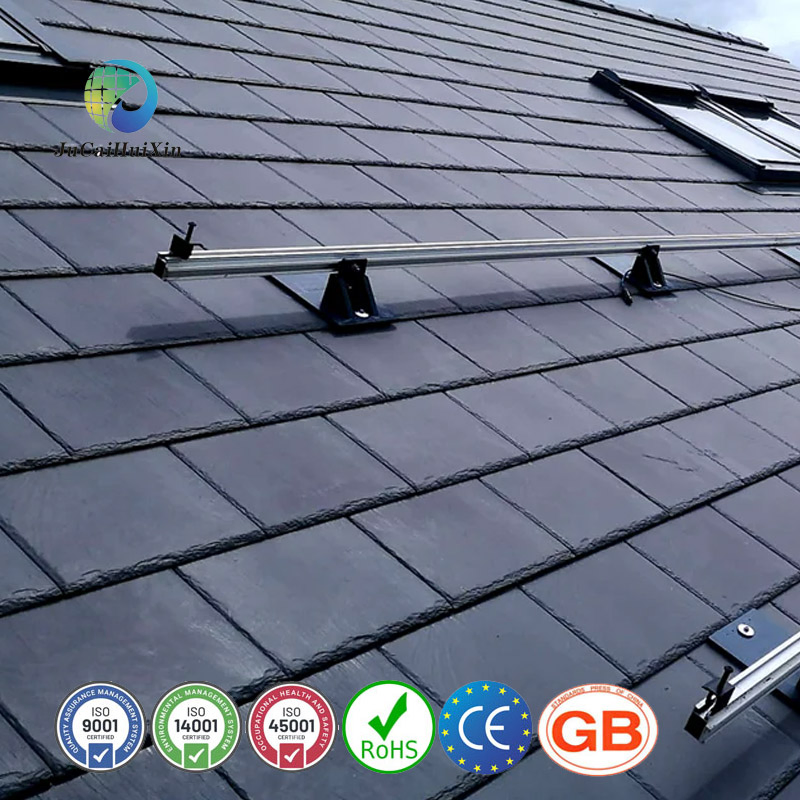

Assembly of Guide Rails

Insert the pre-installed transverse guide rail, adjust the level and lock the positioning bolt (torque 8-10N·m).

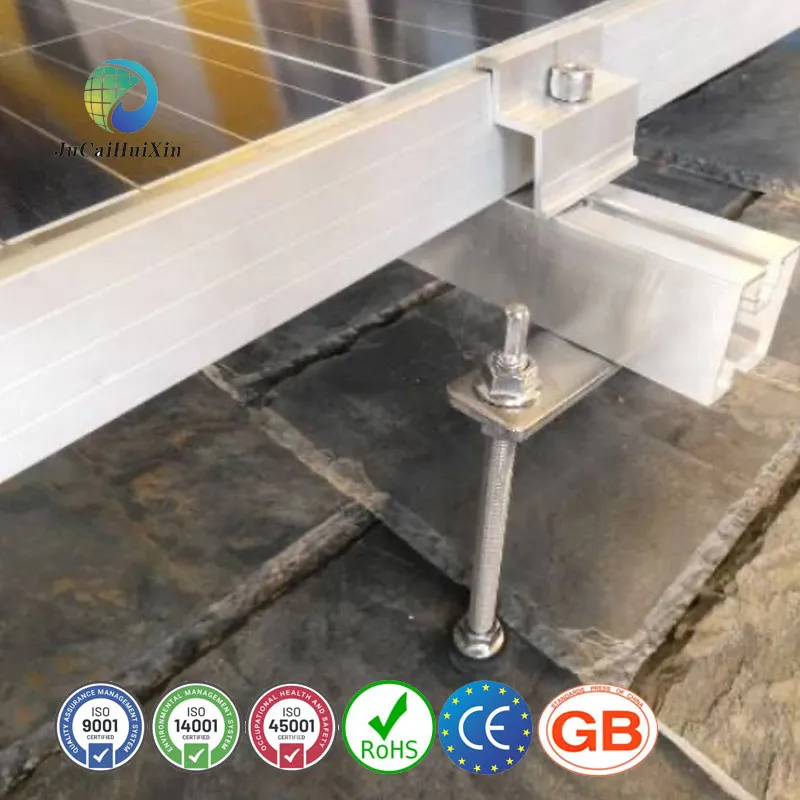

Component Installation

Fix the photovoltaic panel with stainless steel pressure blocks, leaving a 5mm expansion gap.

System Acceptance

Test the wind resistance pull-out force (≥ 50kg) and check the grounding resistance (≤ 4 Ω).

🏭 Production & Quality

❓ Frequently Asked Questions

What is the practical significance of RoHS certification for buyers?

RoHS certification ensures that products do not contain harmful substances such as lead and cadmium, enabling barrier-free entry into major international markets and avoiding trade compliance risks.

Can it be adapted to curved tiles (such as Spanish tube tiles)?

Yes! We provide customized arc-shaped fixtures (MOQ 500 sets), suitable for tiles with a curvature radius ≥ 150mm.

Does installation affect roof warranty?

No drilling or structural damage is required for this system. Most tile manufacturers accept this non-invasive installation method and compatibility documentation can be provided.

What is the Minimum Order Quantity (MOQ) and Delivery Time?

MOQ is 1,000 watts. Regular order delivery time is approximately 15 days, and we support mixed batch customization for different colors and sizes.

What kind of warranty and after-sales service is provided?

We offer a 10-year structural warranty and lifetime technical support. We aim to respond to any installation issues within 72 hours.

Is the system tested for extreme weather?

Yes, the system is designed to withstand wind loads up to 60m/s and snow loads up to 2.0KN/M², making it suitable for diverse climatic conditions.
