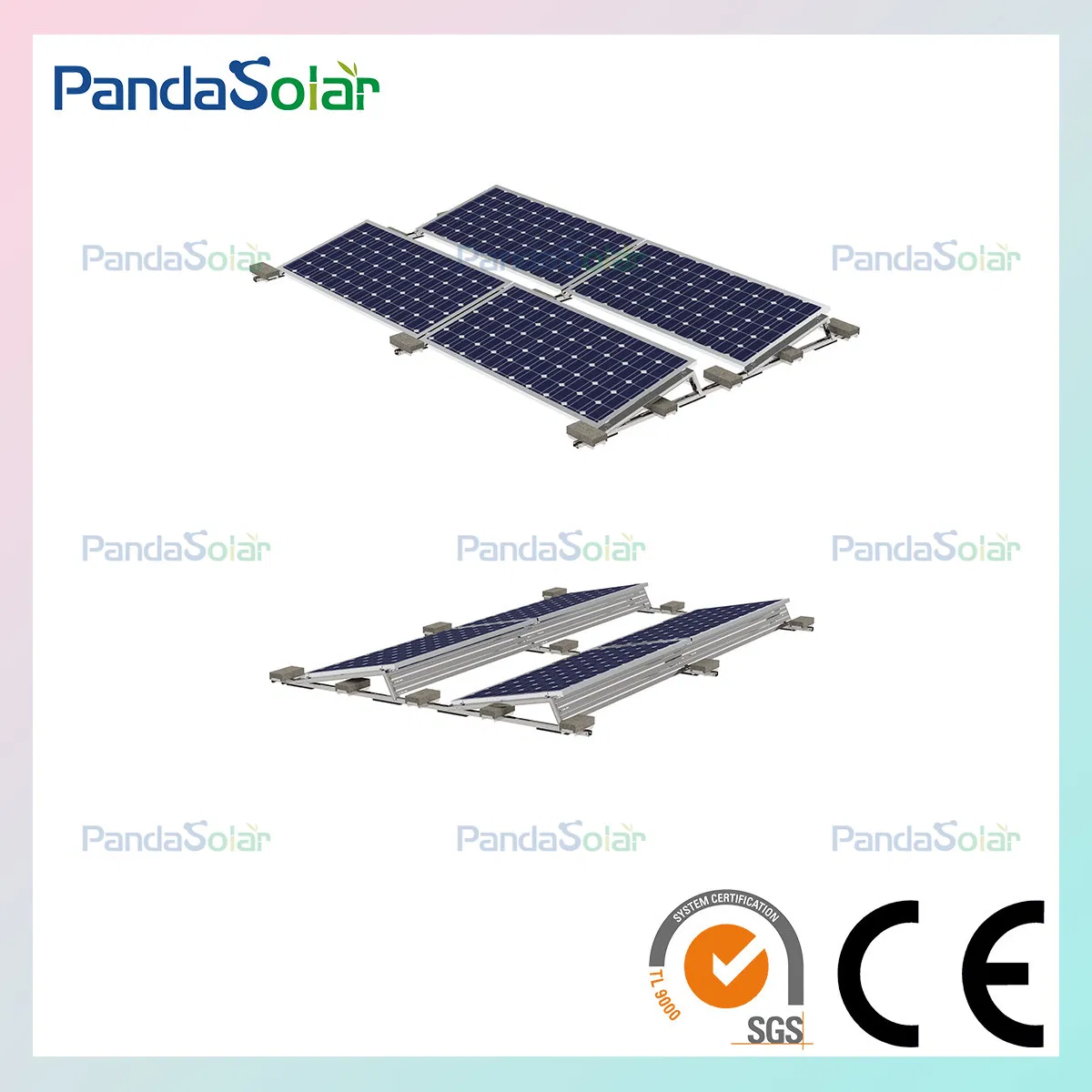

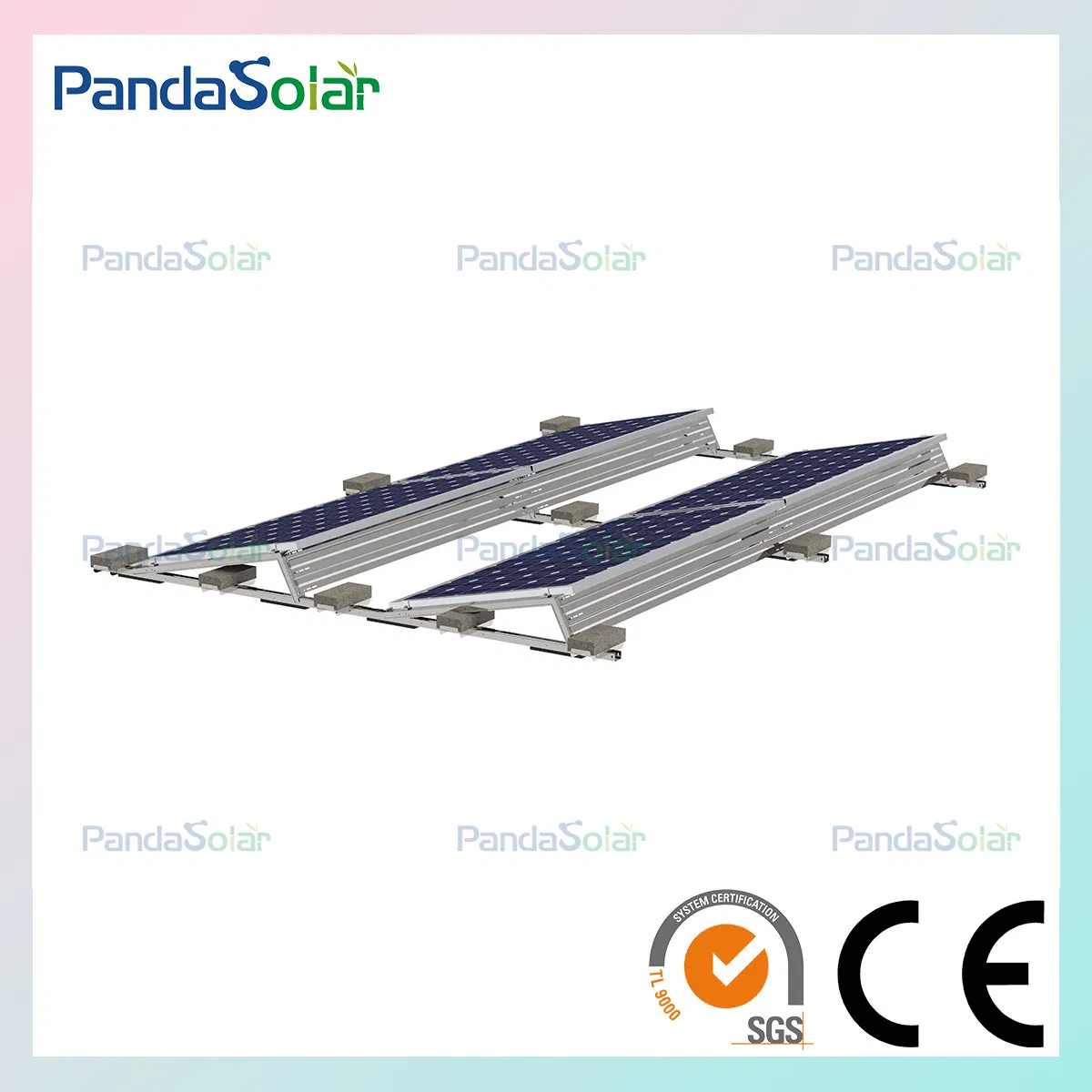

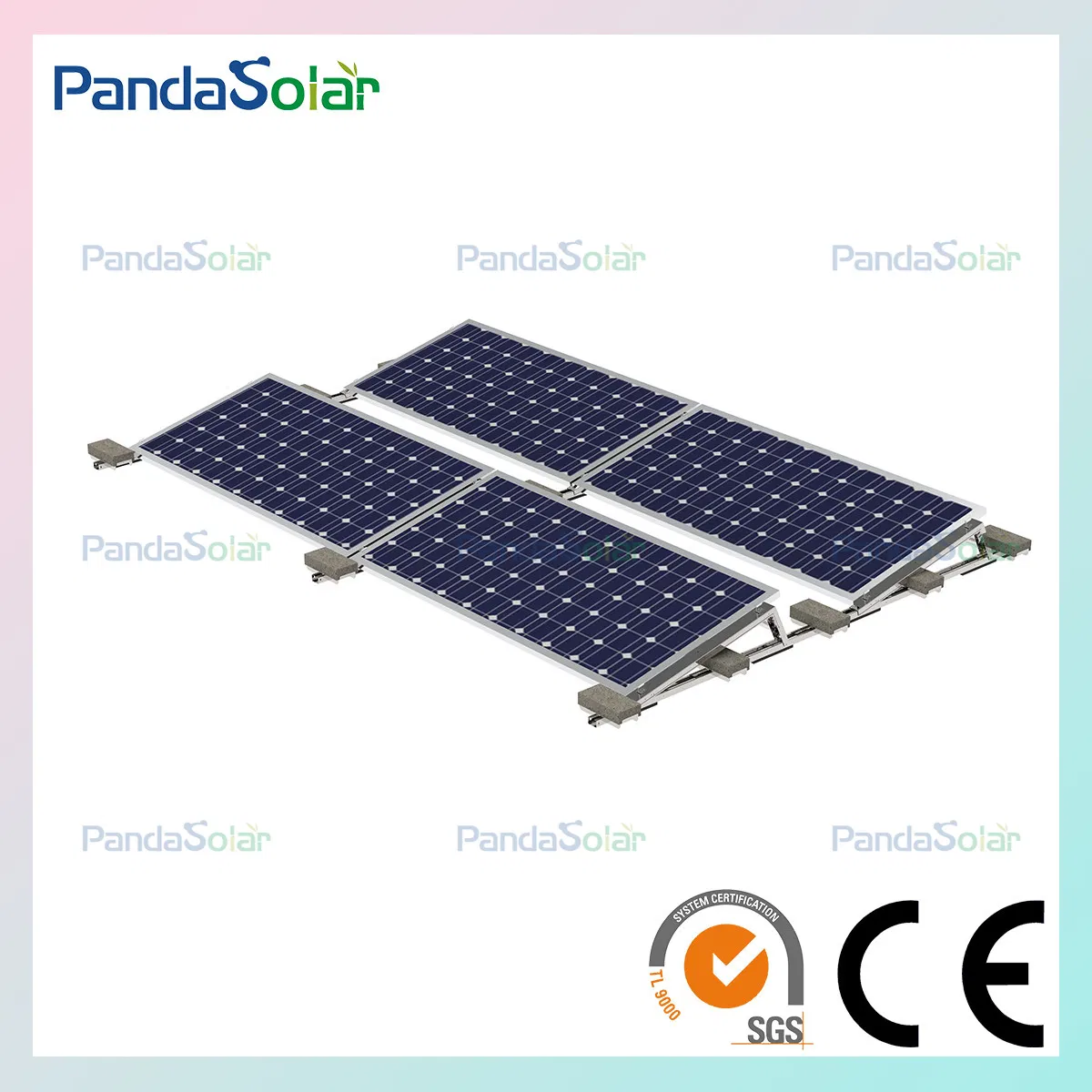

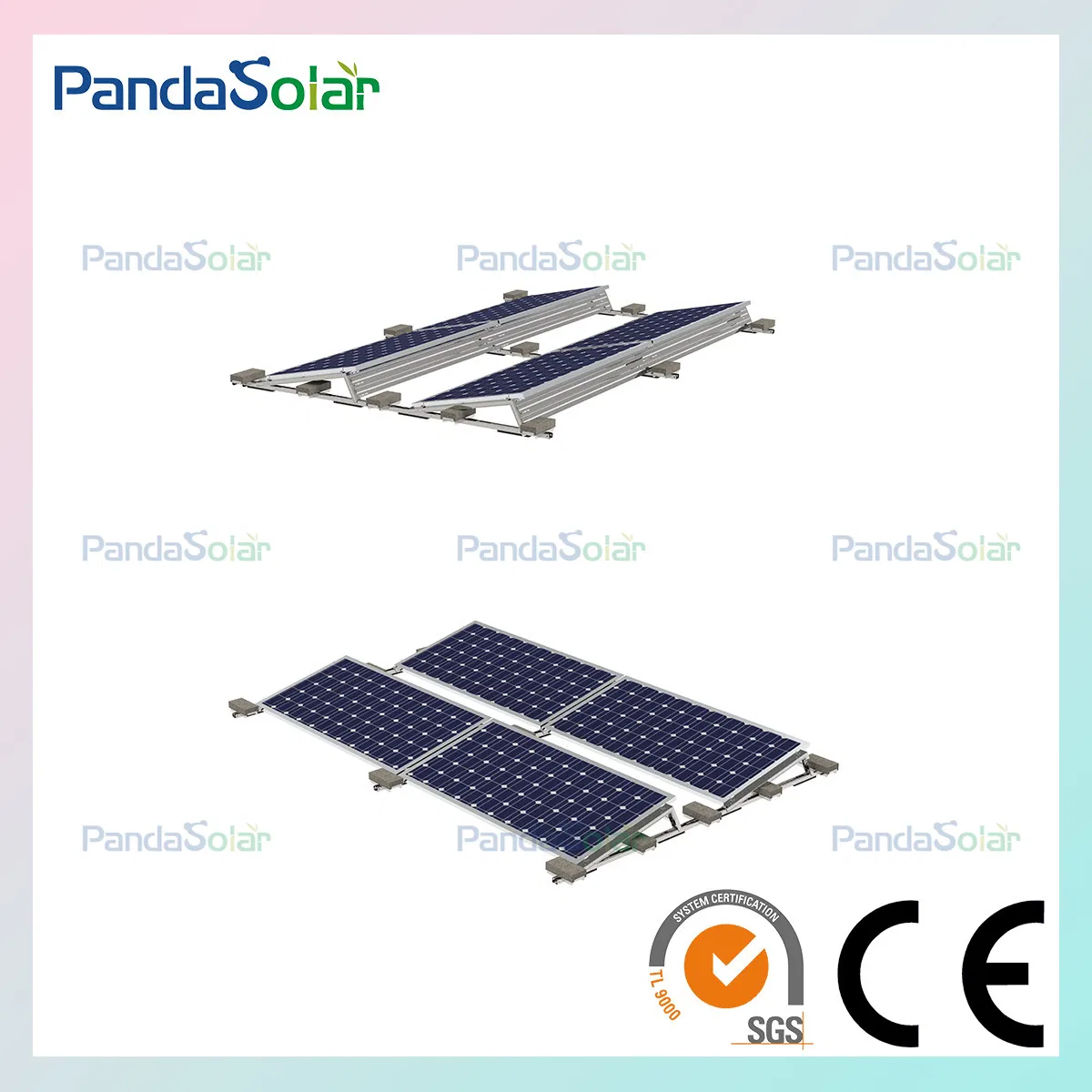

Steel Ballasted Triangle Tilt Roof Solar Bracket:
The Ballasted Triangle System is specifically designed for flat rooftop installations using a cement foundation. The highly pre-assembled triangle rack ensures the installation process is both easy and quick. The installation angle is fully adjustable and supports both portrait and landscape configurations, significantly increasing site flexibility.

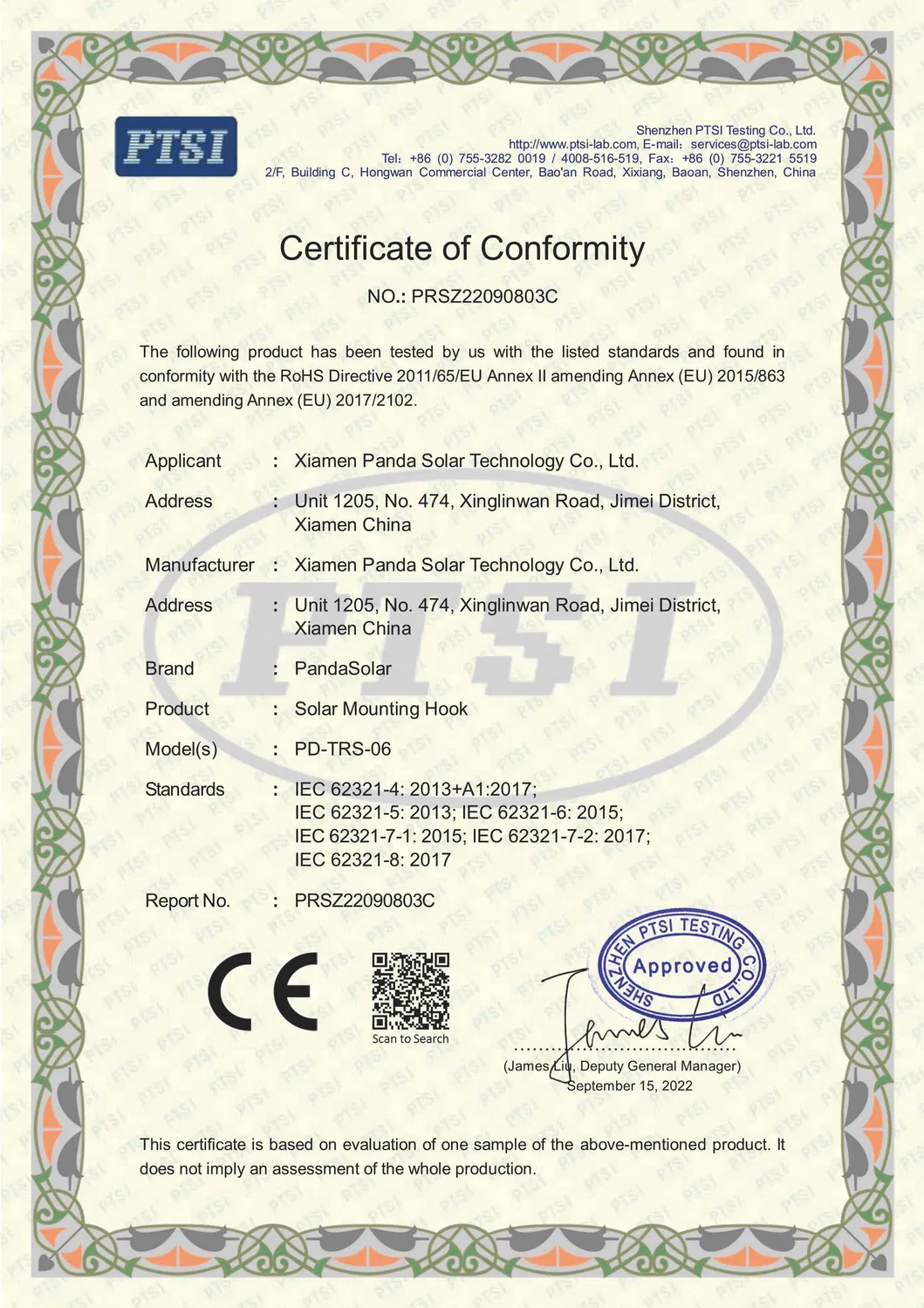

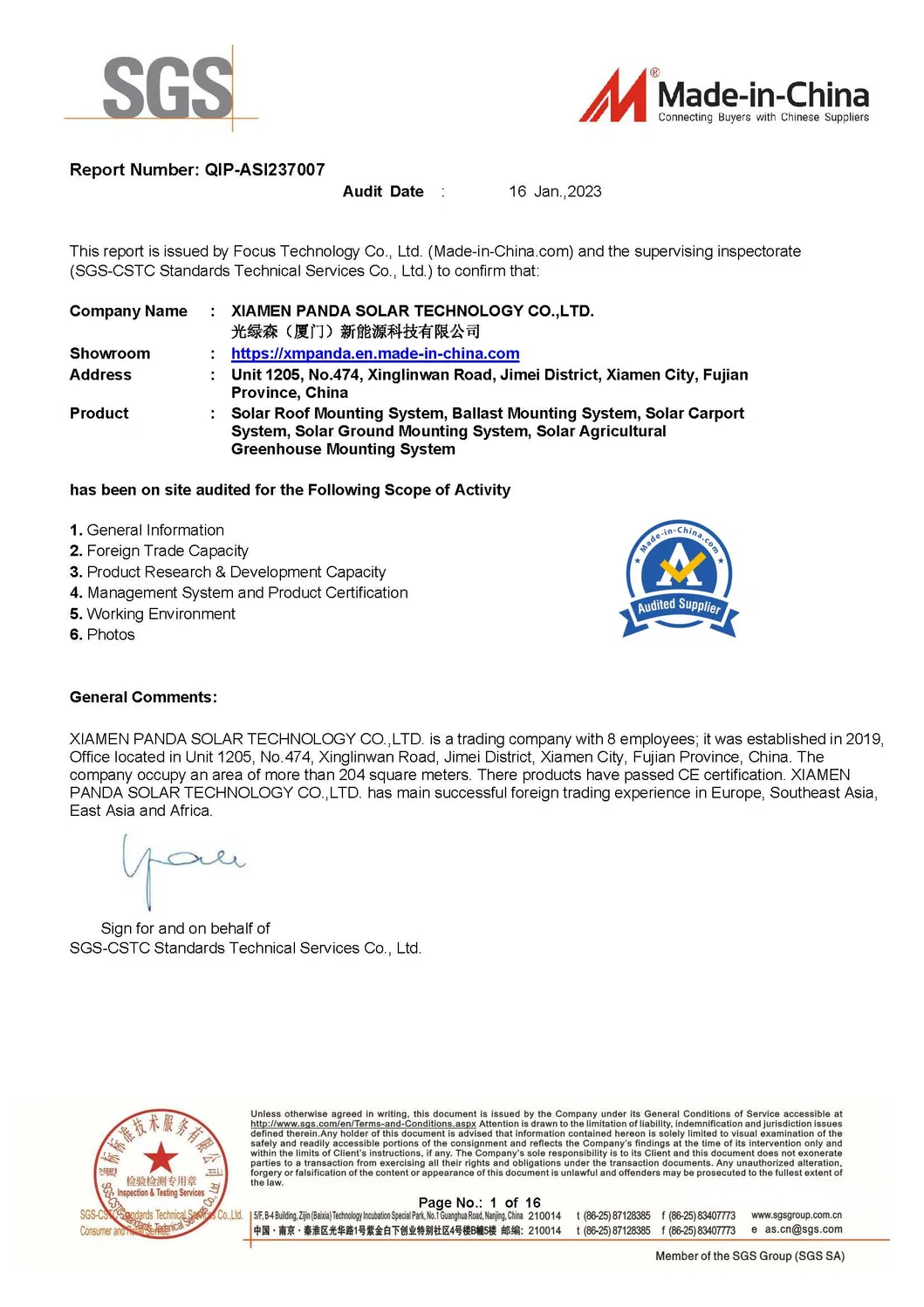

For flat roofs, the system utilizes appropriate cement piers engineered according to local wind speeds and snow loads. High quality is guaranteed through CE & SGS certifications.

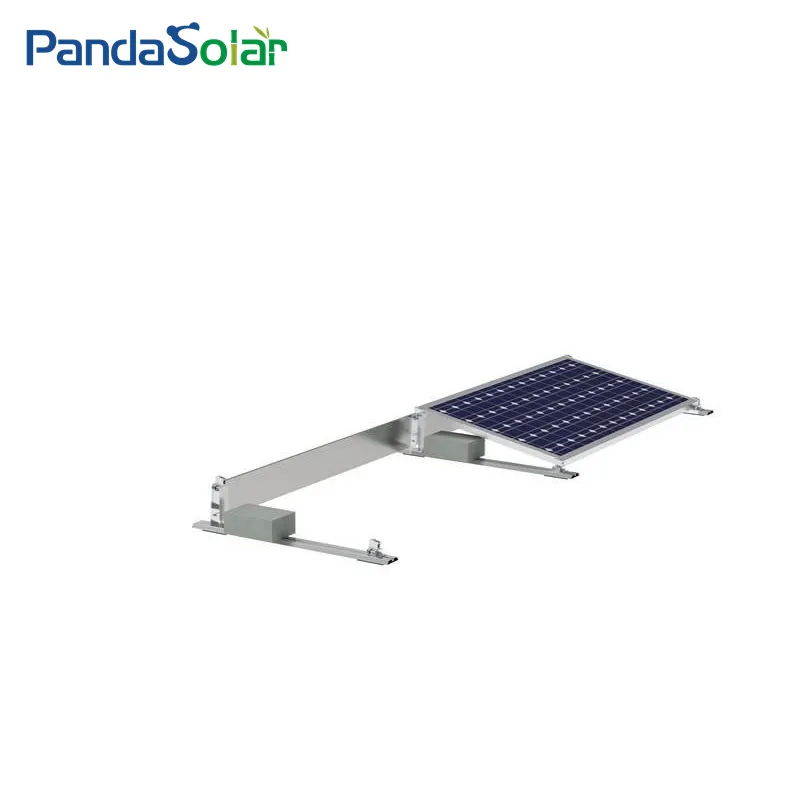

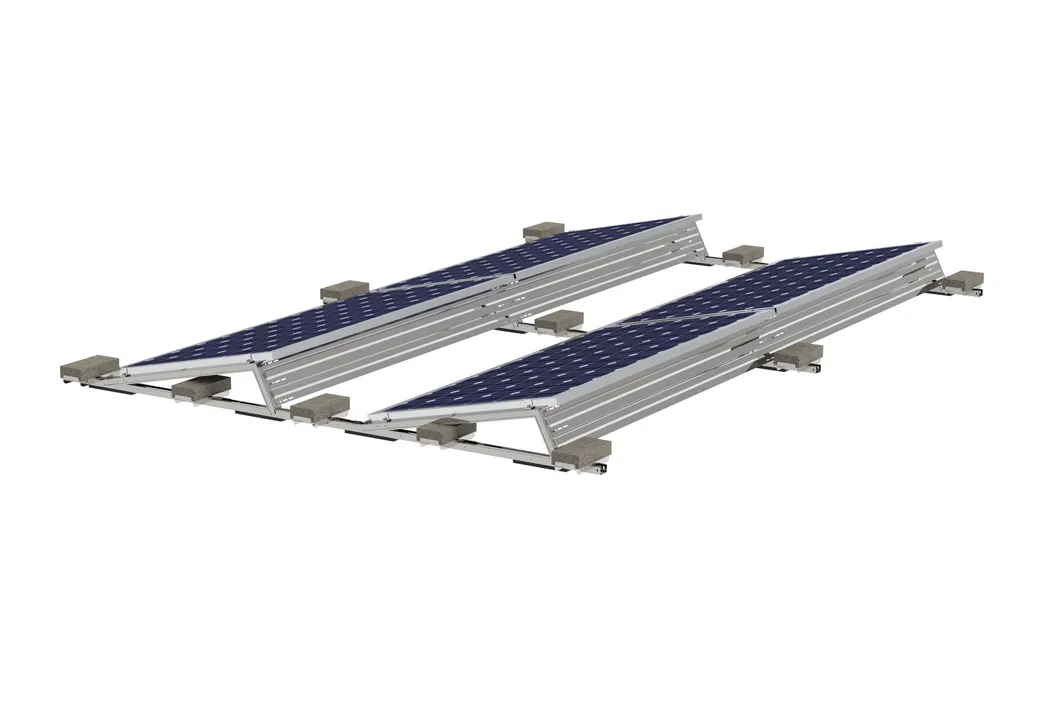

Place the steel triangle bracket on the ground and position pre-fabricated concrete blocks onto the ballast plate.

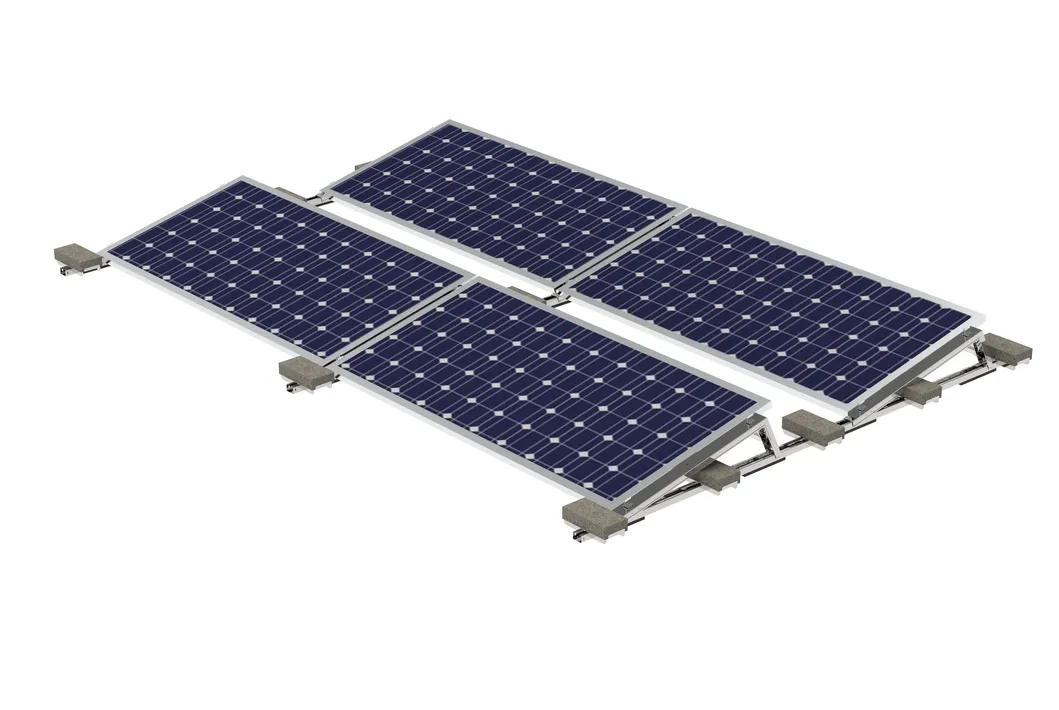

Install solar panels on the bracket and secure them using specialized clamps to complete the setup.
| Material | Structure: Mg-Al-Zn Steel; Components: SUS304 & AI6005-5 (Anodized) |
| Application | Commercial and Residential installation |
| Tilt Angle | 0-60° |
| Wind Speed | 0-60 m/s |
| Snow Load | 0-150cm |
| Design Standard | AS/NZS 1170, DIN 1055, JIS C8955: 2017, IBC 2009 |
| Warranty | 12 years |

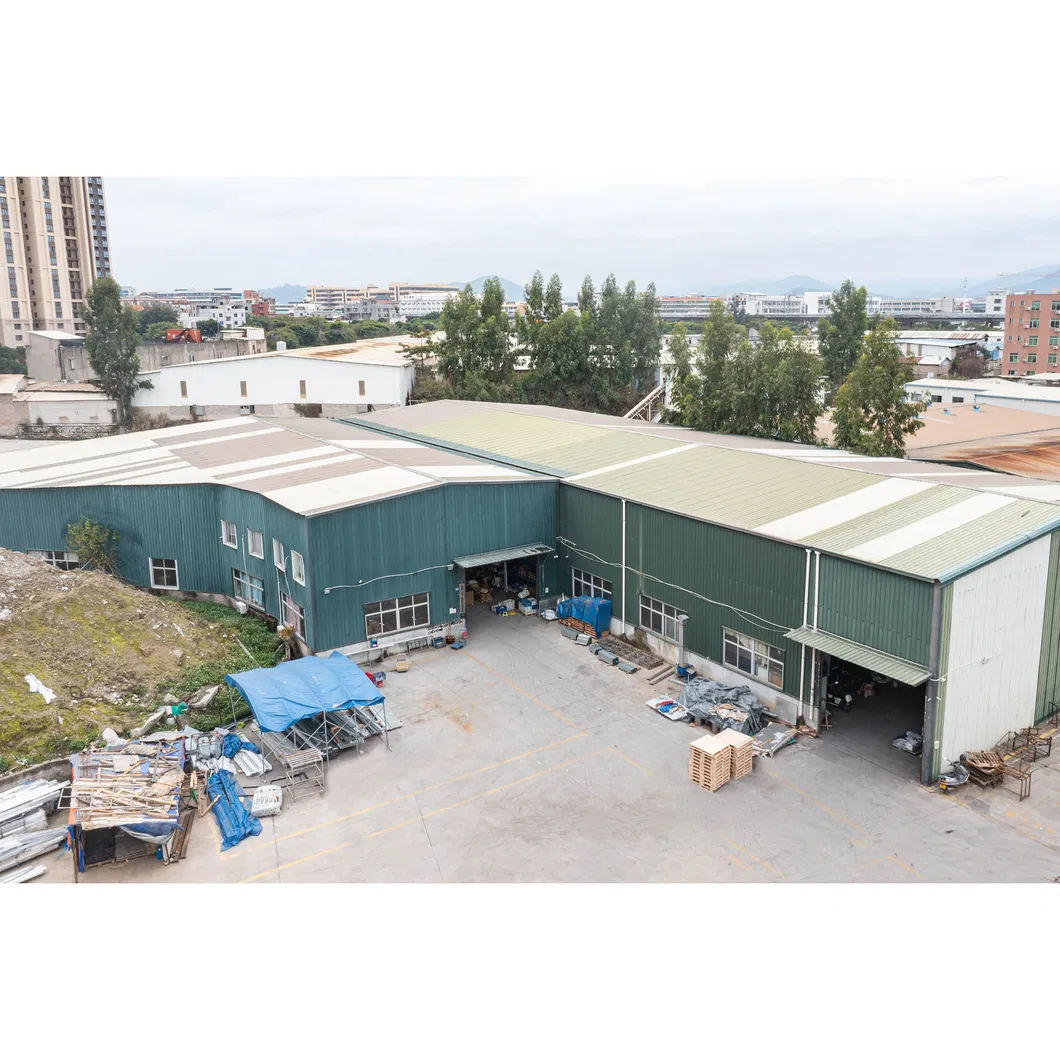

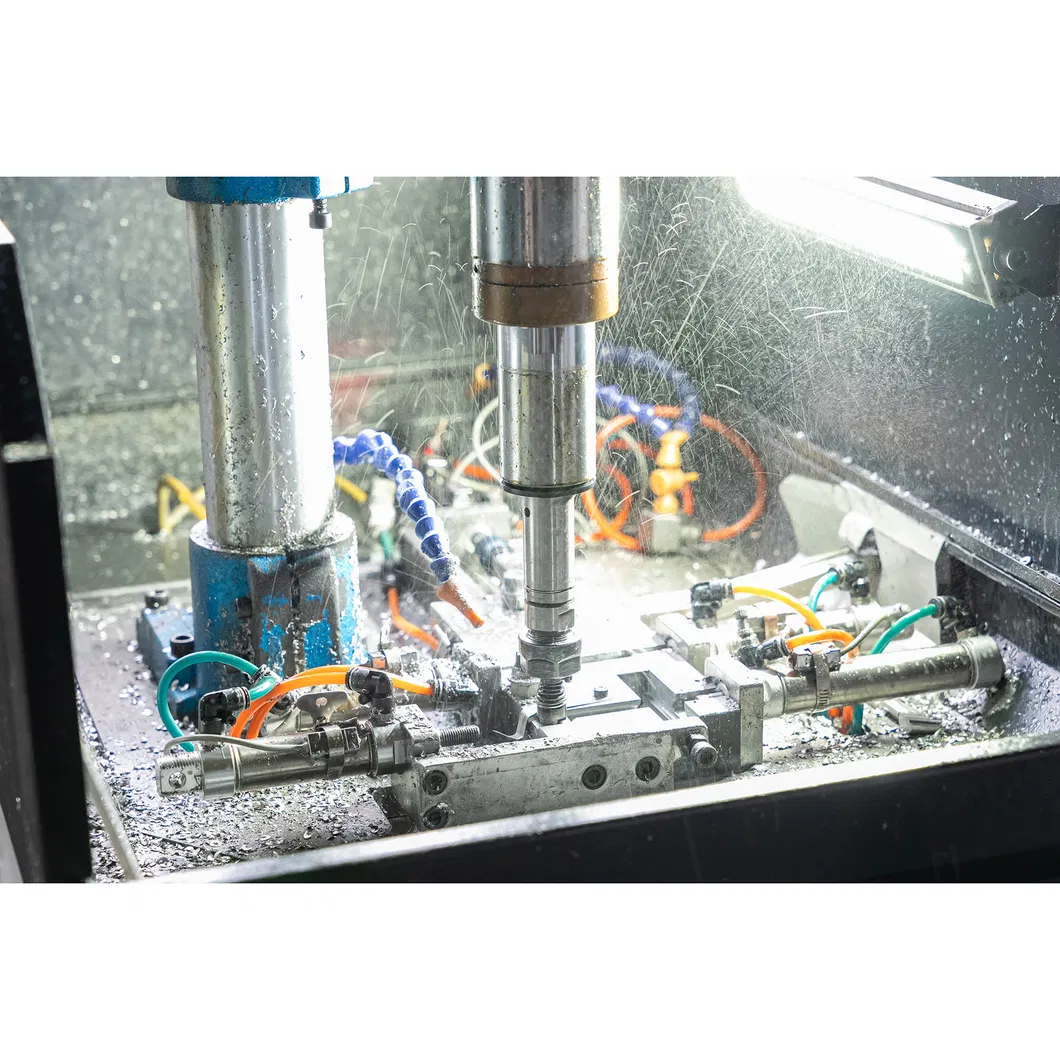

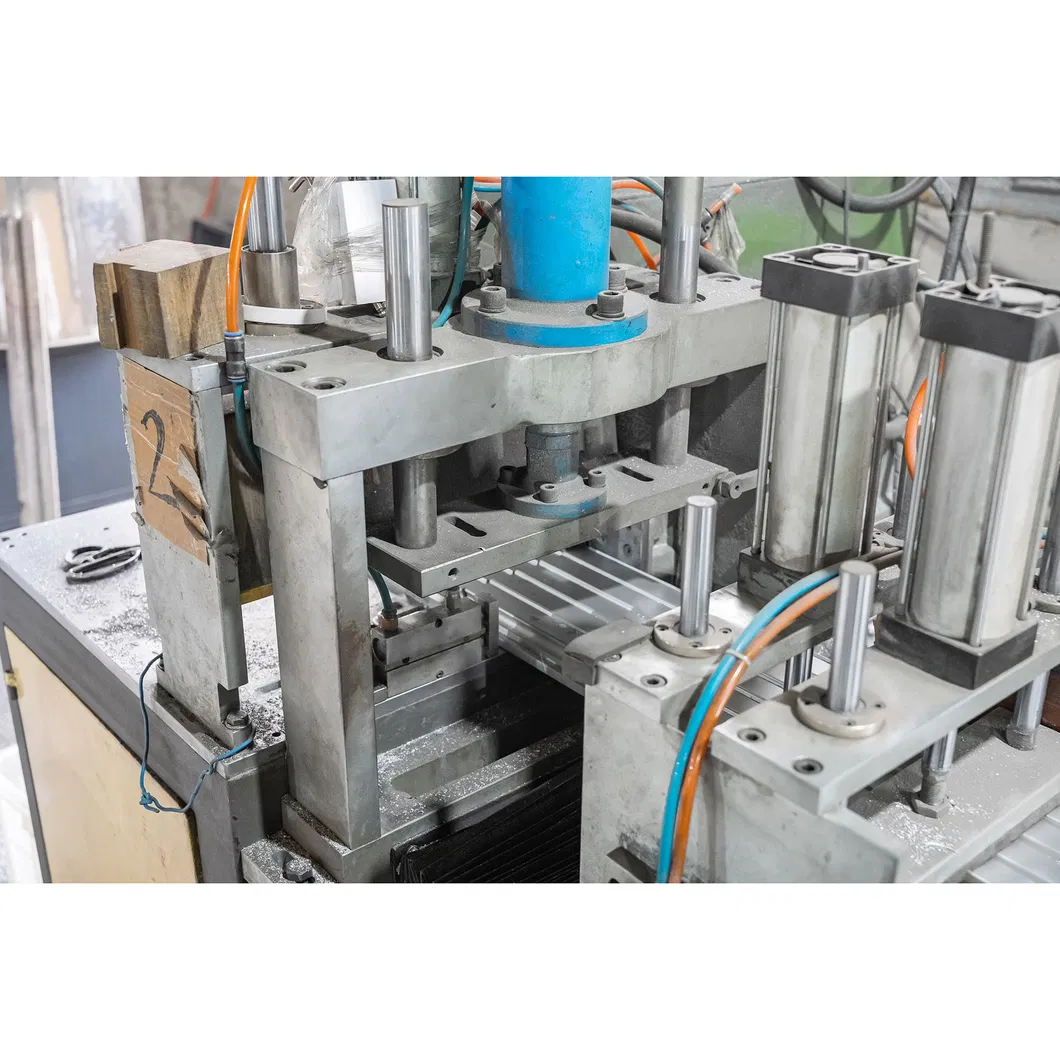

Aluminum Material Workshop: Our facility features dedicated processing for aluminum alloy, including independent cutting, drilling, stamping, and forging. We excel in meeting high customization and precision requirements.

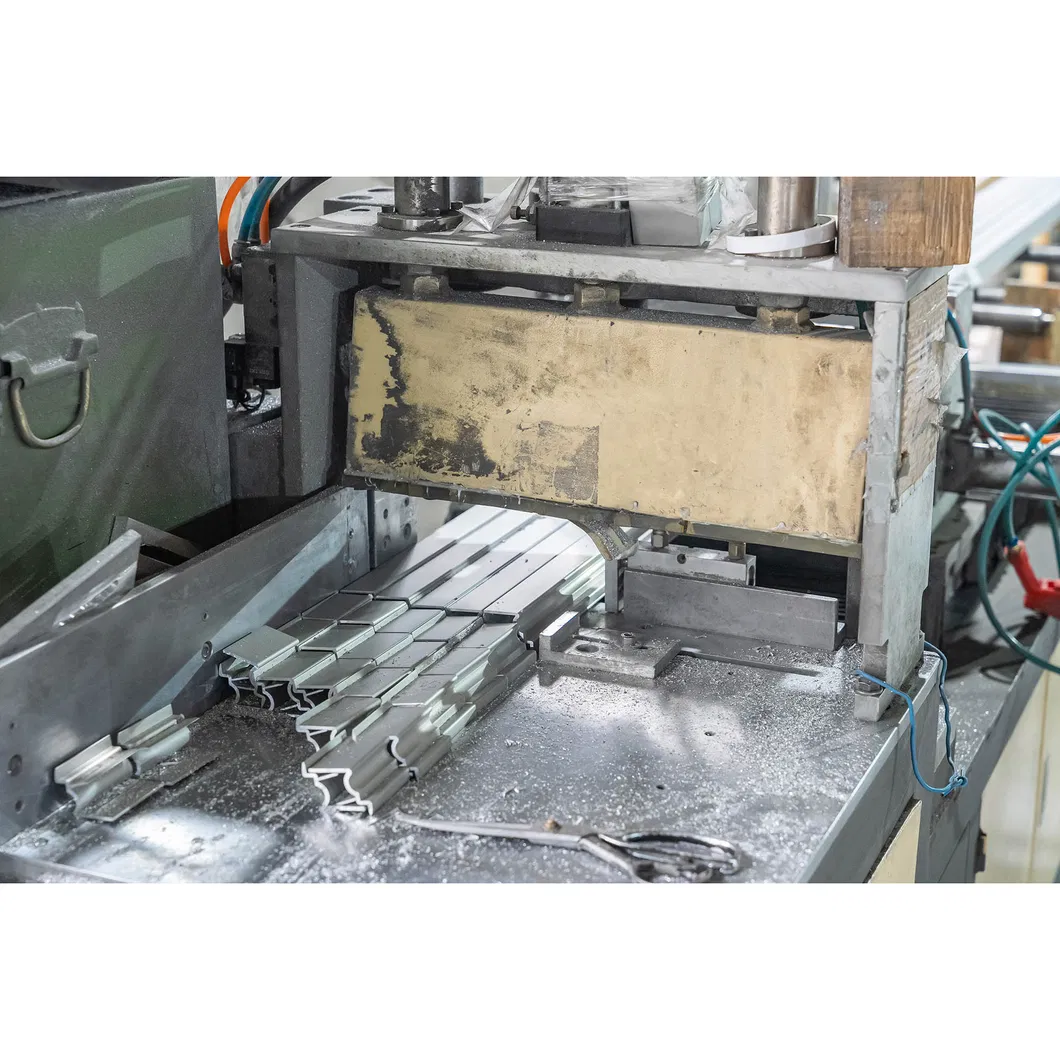

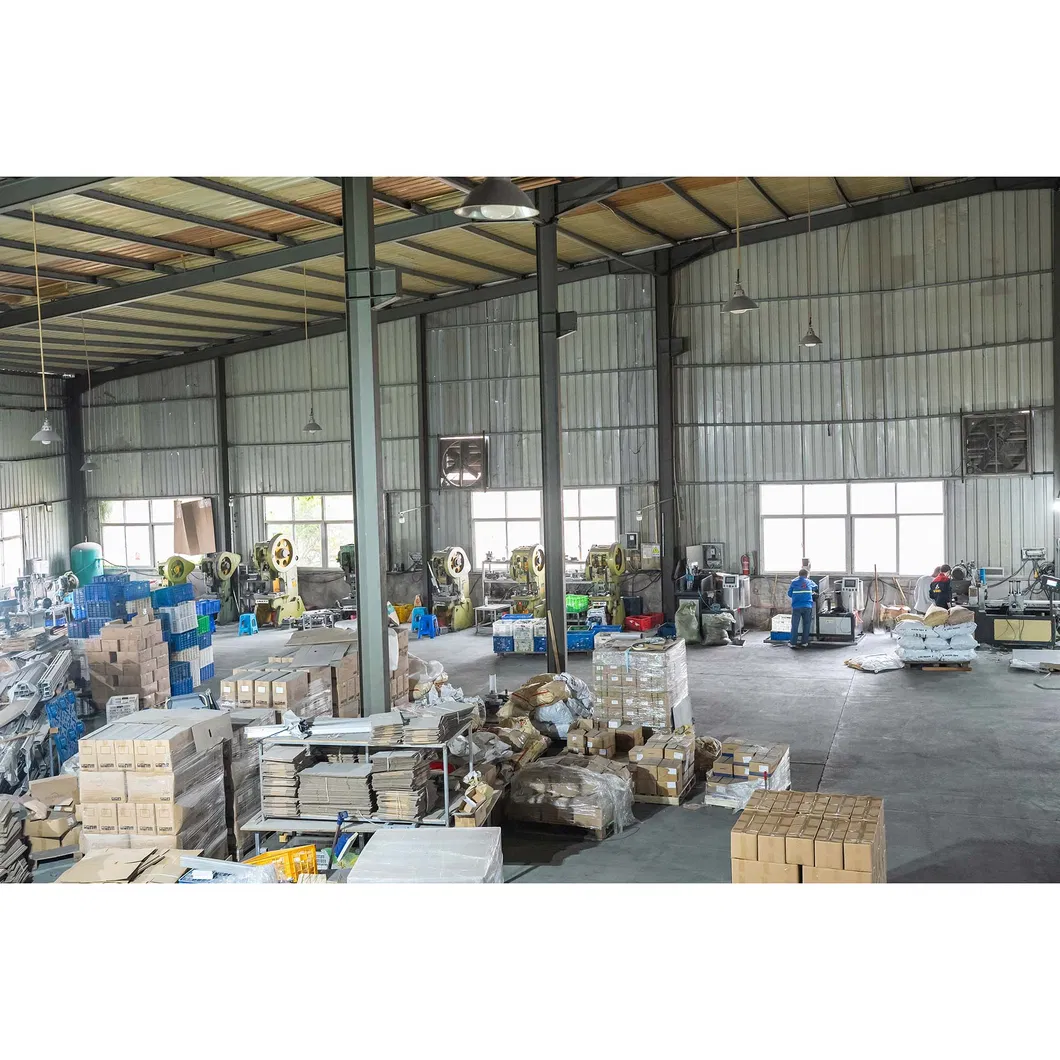

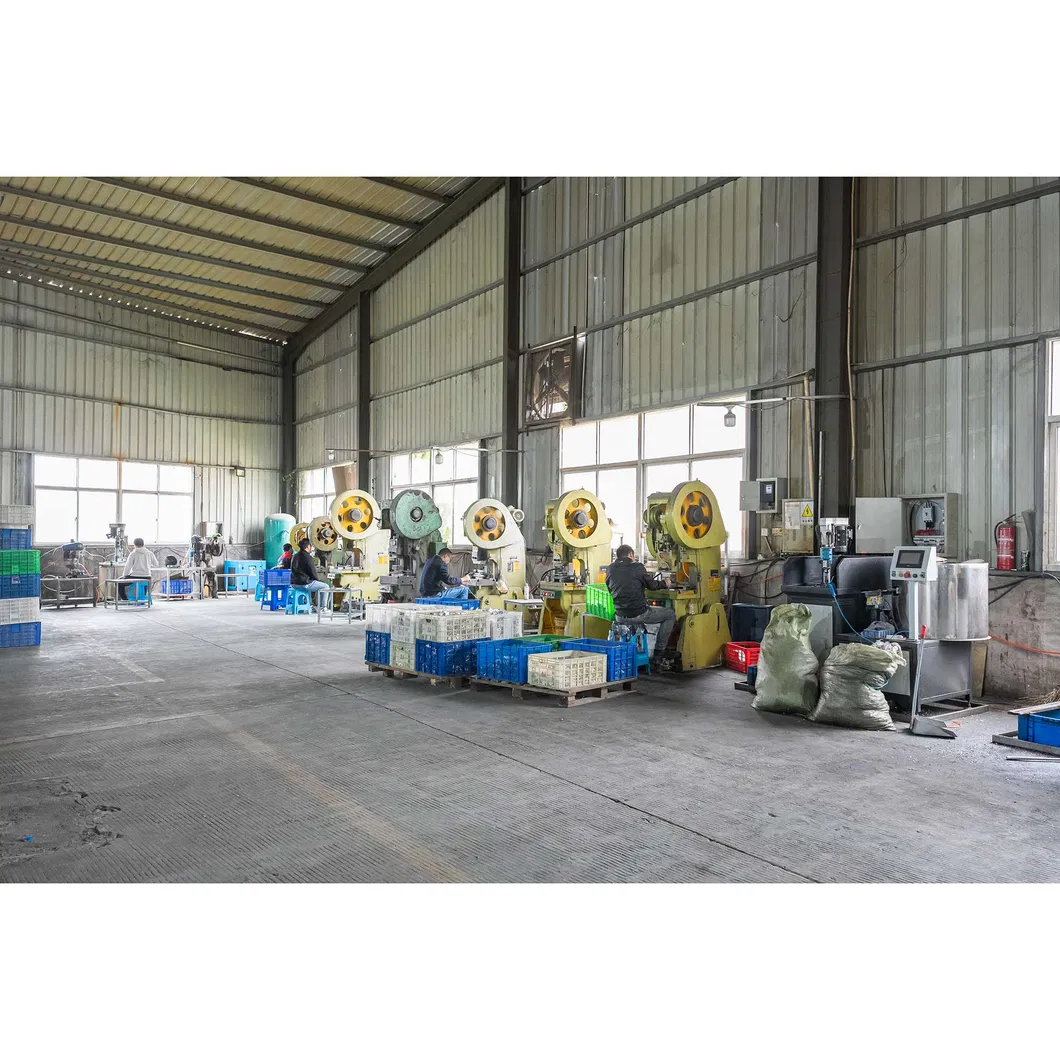

Steel Material Workshop: We operate 6 specialized production lines for Steel, Magnesium Aluminum Zinc (S350GD/S450GD) processing. Our facility can output 40-50MW per month, handling complex cutting and hole processing for large-scale projects.
