Tile Roof Solar Power System Mounting Hook Manufacturer

1 / 5

Tile Roof Solar Power System Mounting Hook Manufacturer

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

ℹ

Basic Information

Model NO.	PD-TRS11	Certification	ISO, CE, SGS
Application	Commercial	Material	Stainless Steel SUS304
Type	Roof Bracket	Color	Silver
Snow Load	up to 1.4 Kn/M2	Wind Speed	up to 60 M/S
Surface Treatment	Shot Sandblasting	Lead Time	7-15 Days

📋

Product Description

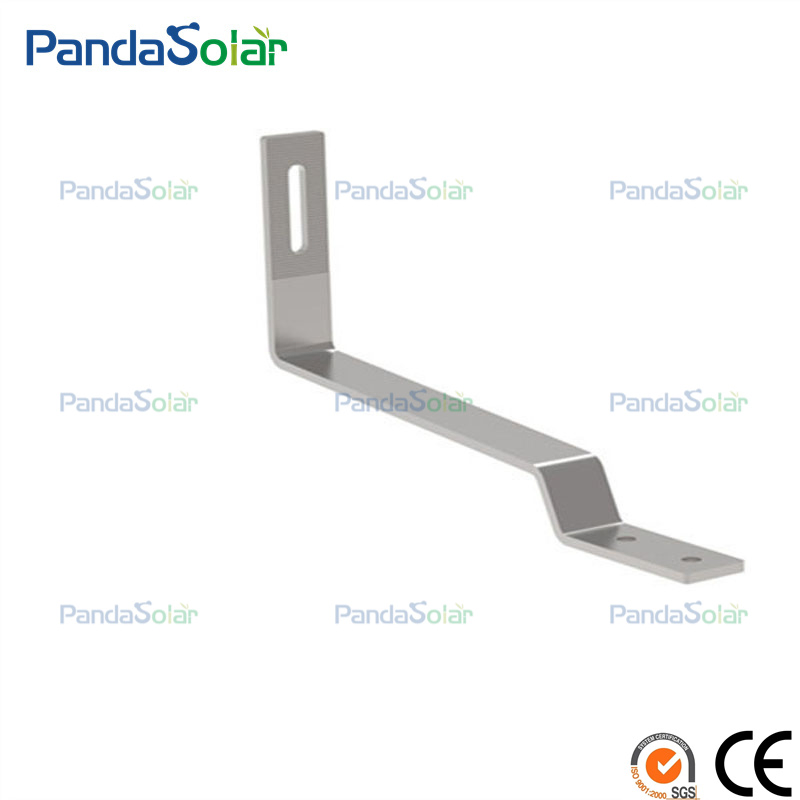

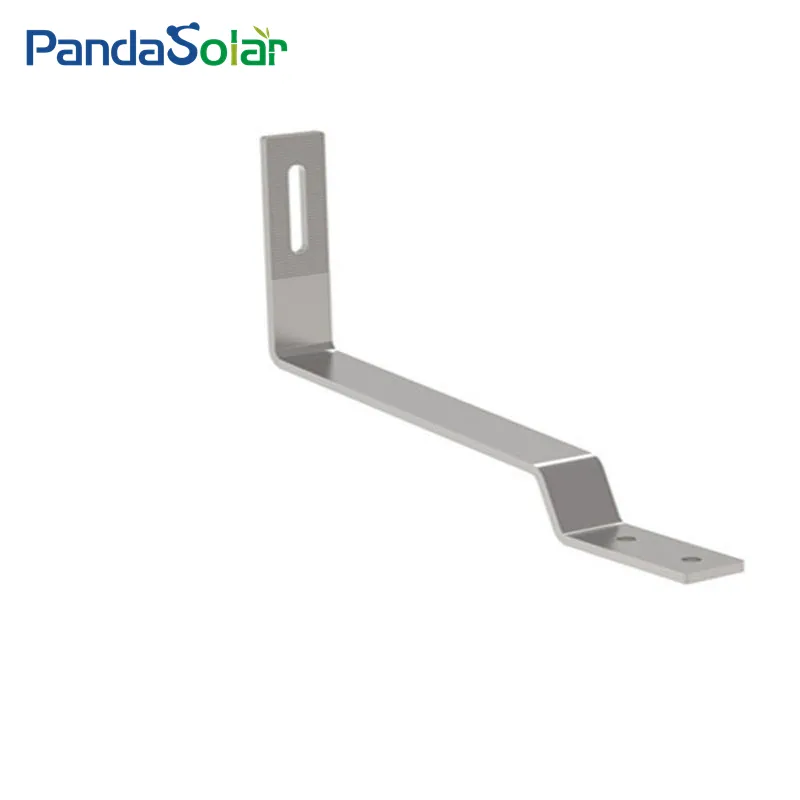

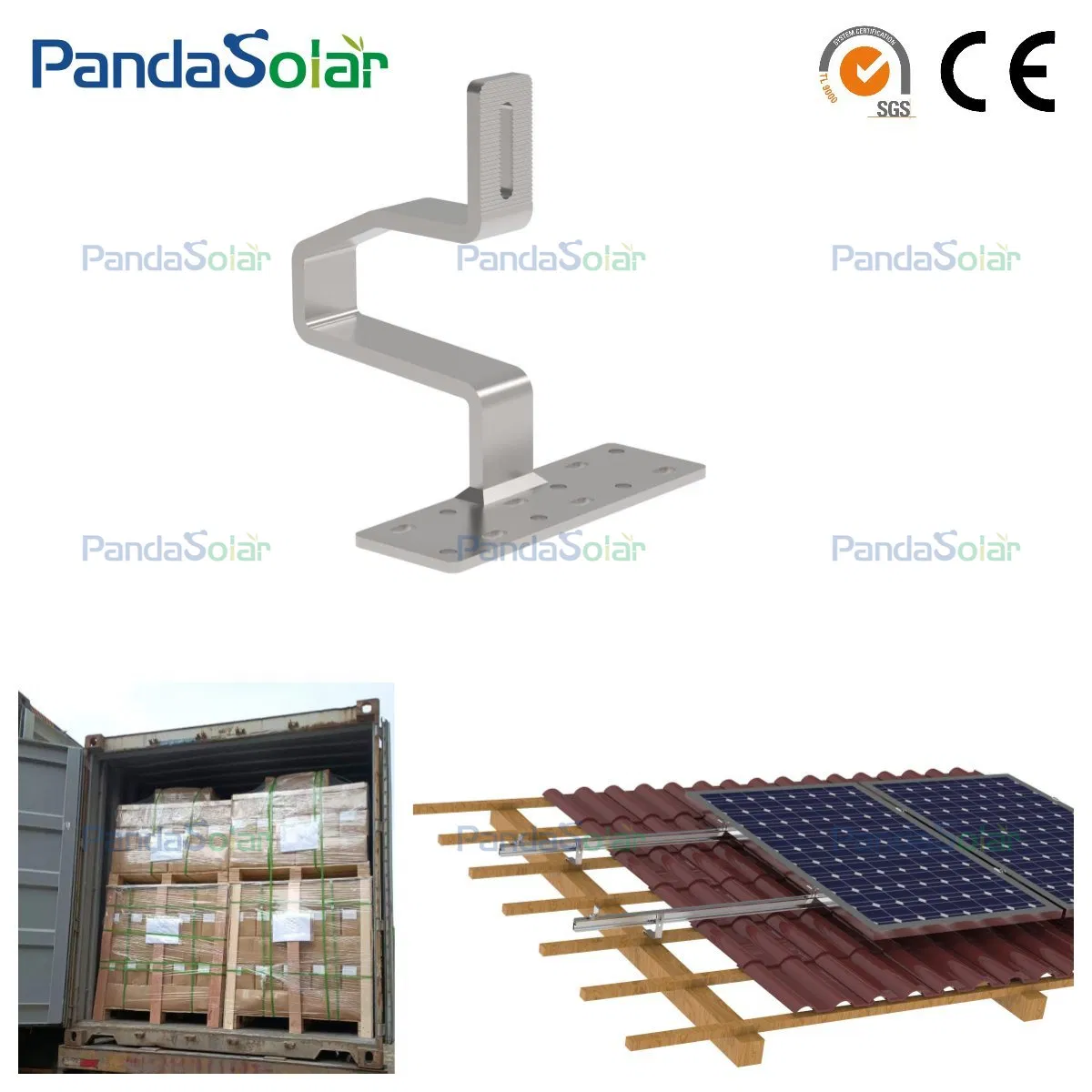

OEM Customizable SUS304 High Strength Stainless Steel Adjustable Solar Tile Roof Hook

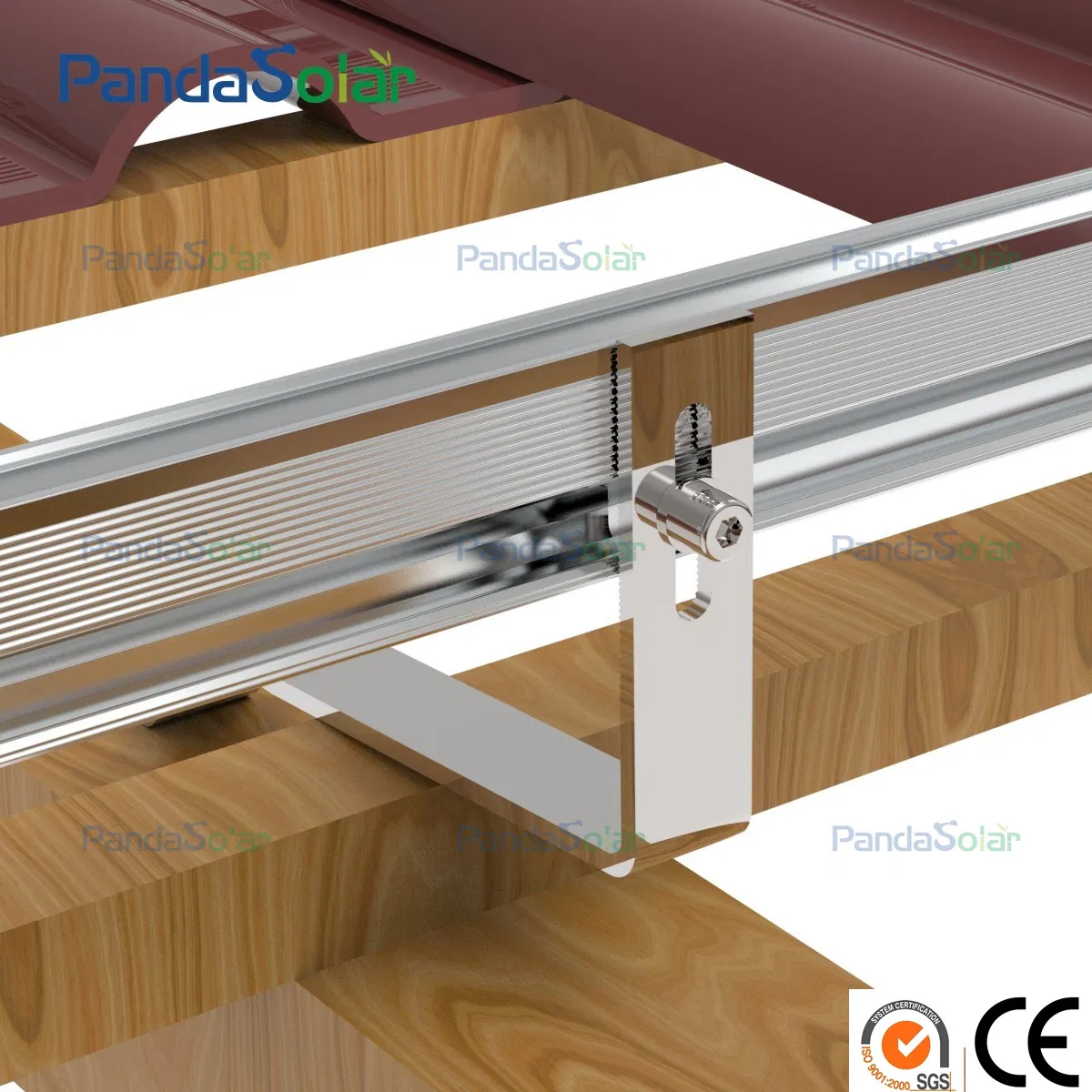

The solar hook is suitable for pitched shingle tile roof solar panel installations. The up and down adjustable structure benefits flexible installation. It can be applied in almost any solar tile roof mounting project. The high-strength design is powerful against the weight of solar modules and great wind and snow loads. Solar hooks are matched with drilling screws for fixing into the roof beam.

Our Advantages

Accept OEM: Fully customizable designs to meet specific project needs.
Great Flexibility: Tailored solutions for different roof designs.
Fast Delivery: Urgent orders can be expedited in production.
Ex-work Price: High quality products at competitive factory pricing.
LOGO Printing: Increase brand influence with customized marking.

📊

Product Parameters

Material	Structure: SUS304; Components: SUS304/SUS410
Surface Treatment	Mill Finish or shot sandblasting
Application	Solar Tile Roof Mounting
Wind Speed	0-45 m/s
Snow Load	0-150cm
Design Standard	AS/NZS 1170, DIN 1055, JIS C8955: 2017, IBC 2009
Warranty	12 years
Service Life	Over 30 years

📐

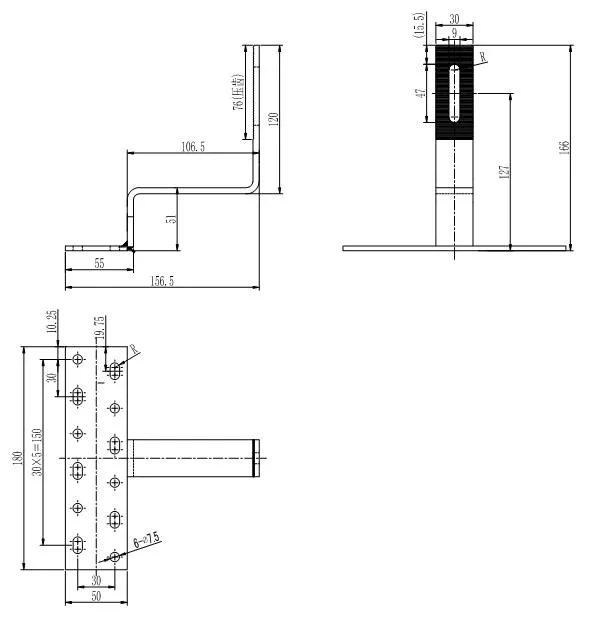

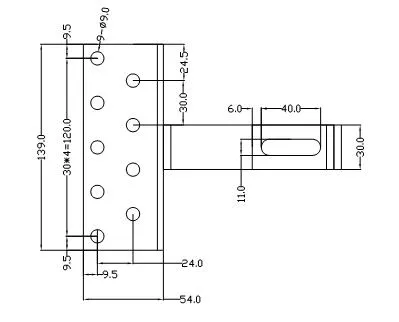

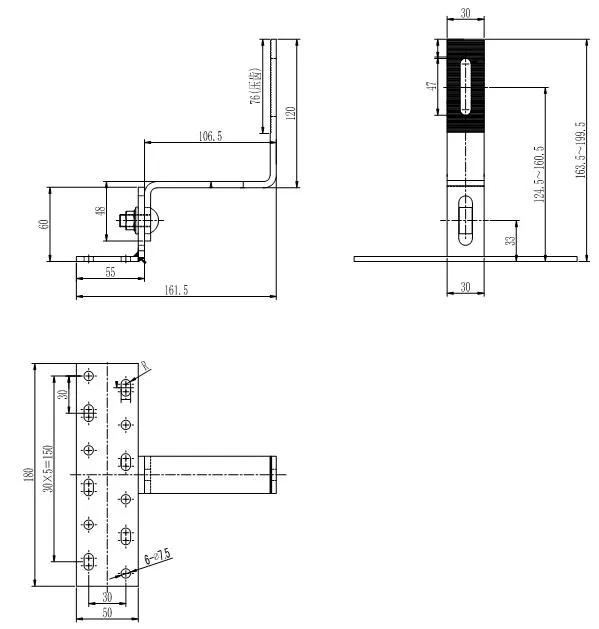

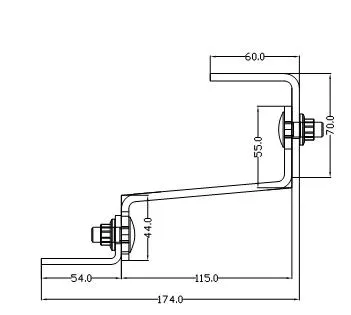

Technical Drawings

🛠

Installation Instructions

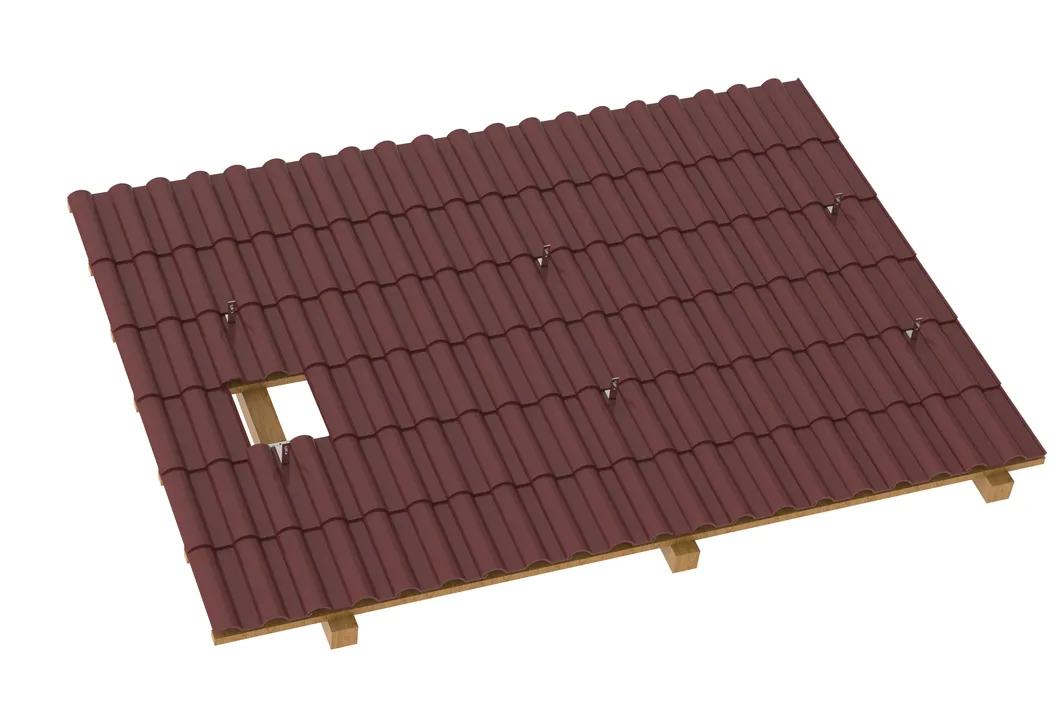

STEP 1

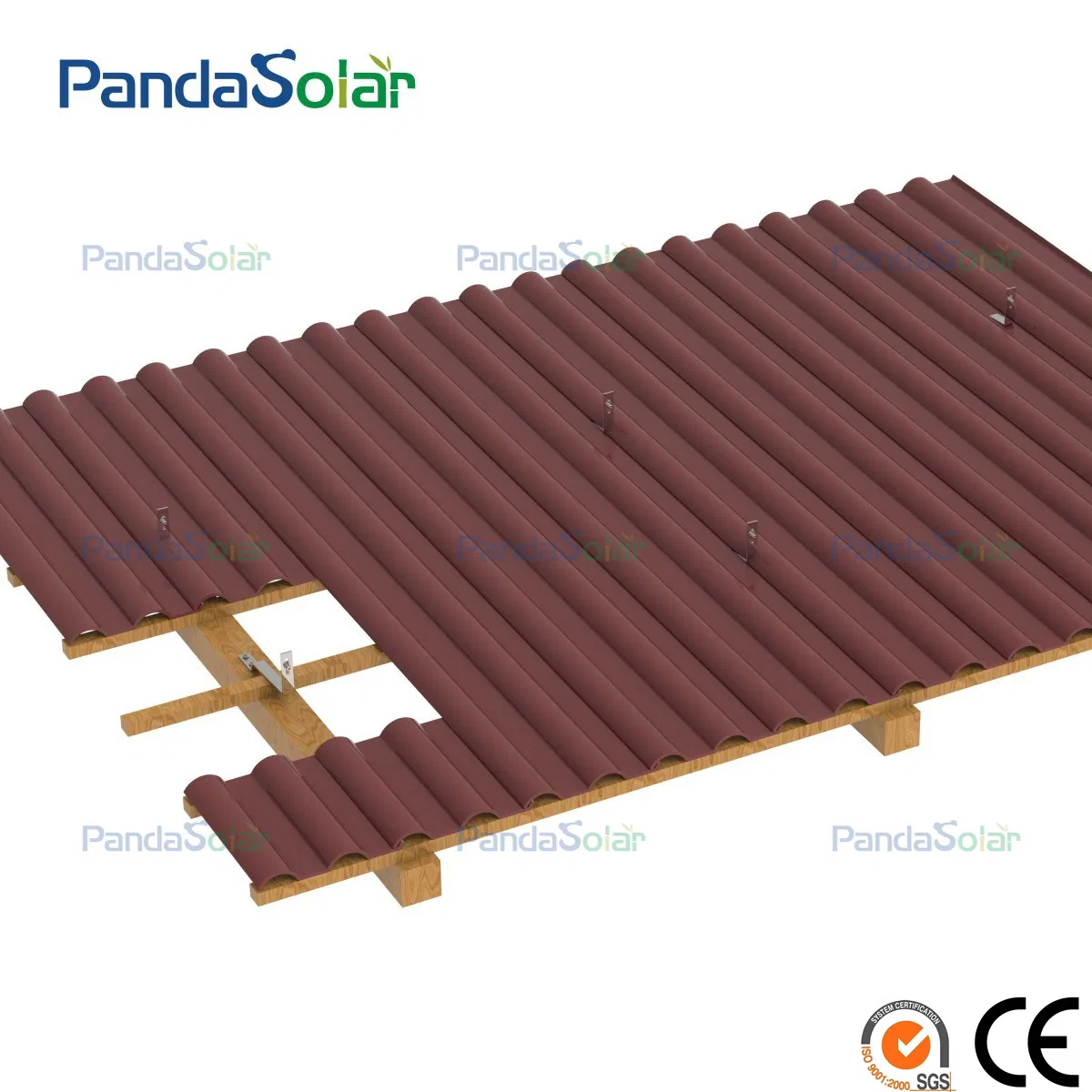

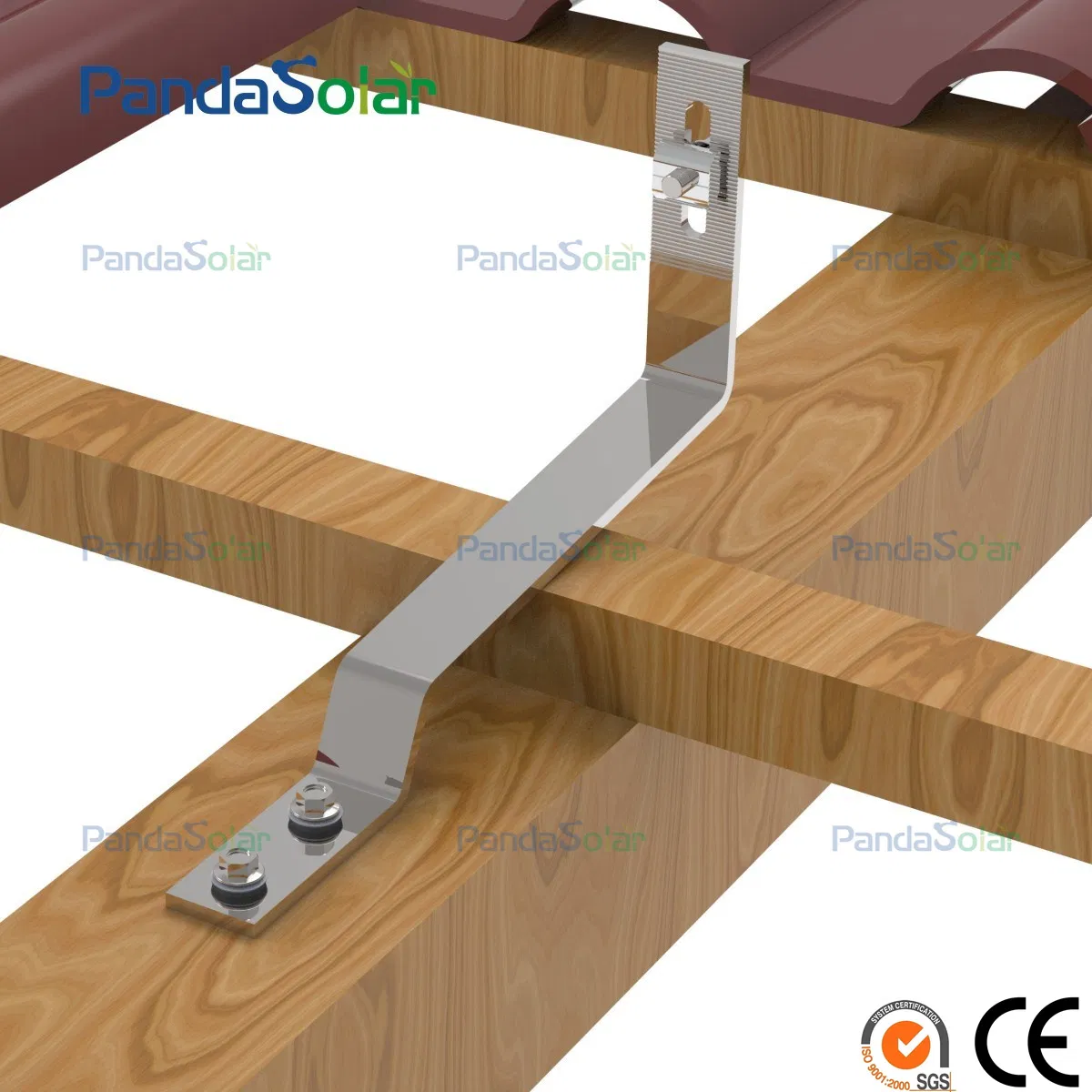

Adjust the hook to the appropriate position, and use self-drilling screws to fix it on the beam.

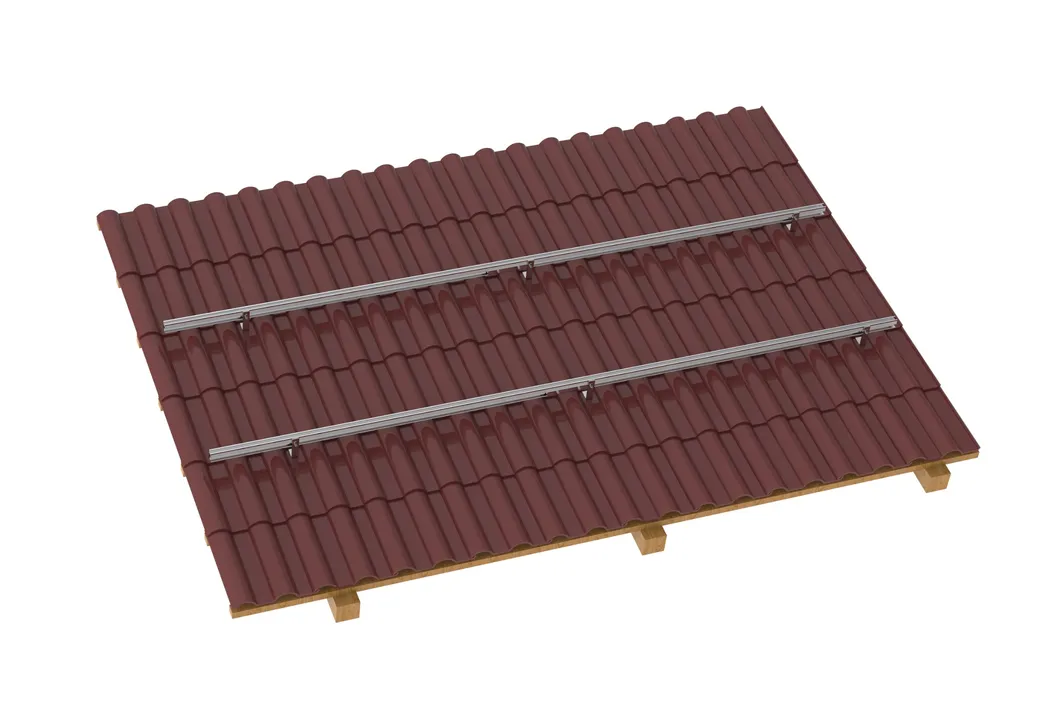

STEP 2
Use bolts and nuts to fasten the rails and hooks.

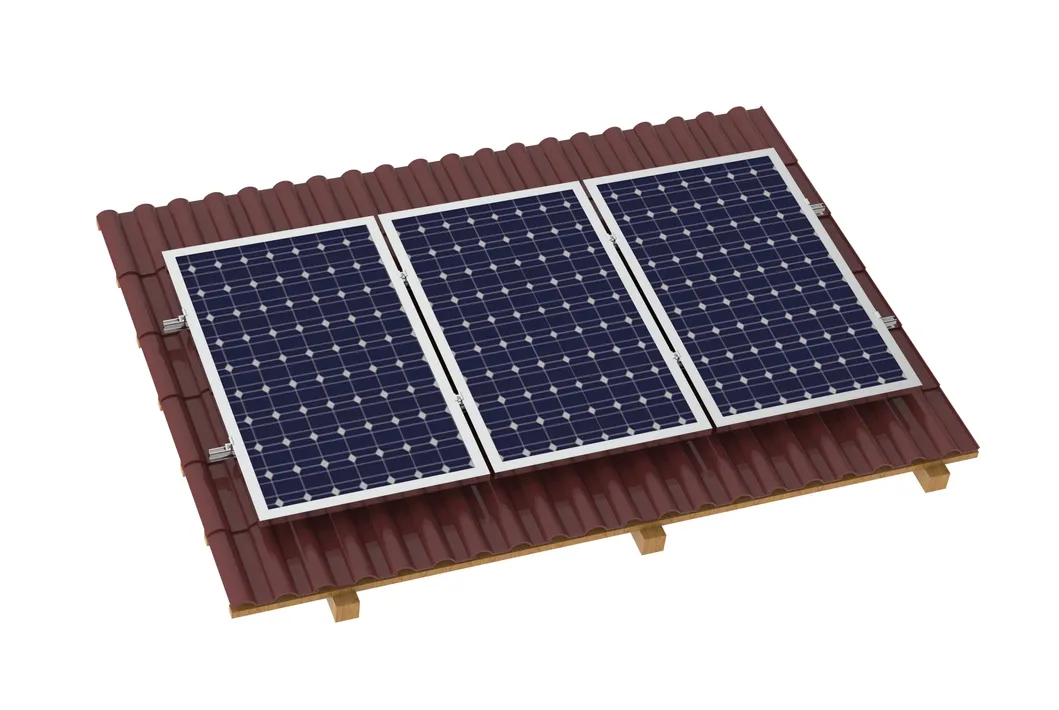

STEP 3
Fix the solar panel on the rail with the mid clamps and end clamps.

📜

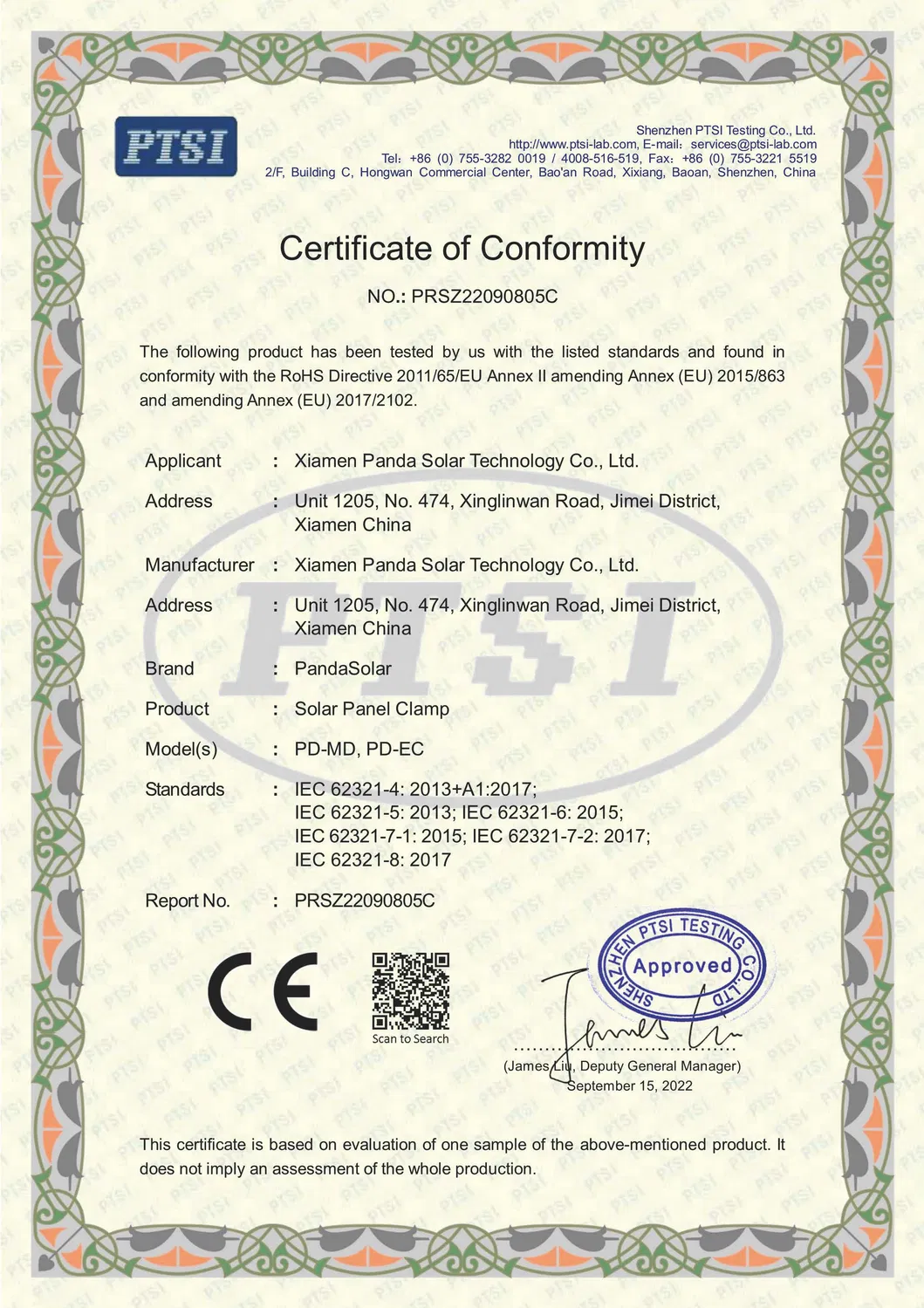

Comprehensive Certifications

🏭

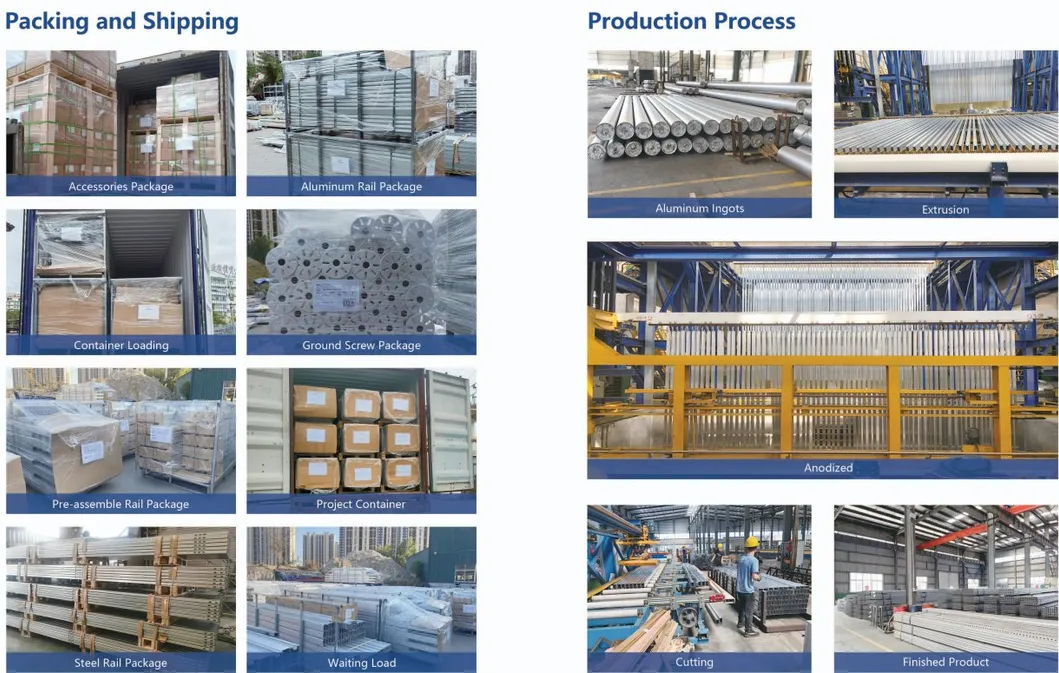

Packing & Factory

Items are packed in cartons, with several cartons secured on pallets. Our packaging meets international shipping standards to ensure adequate protection against damage during transit.

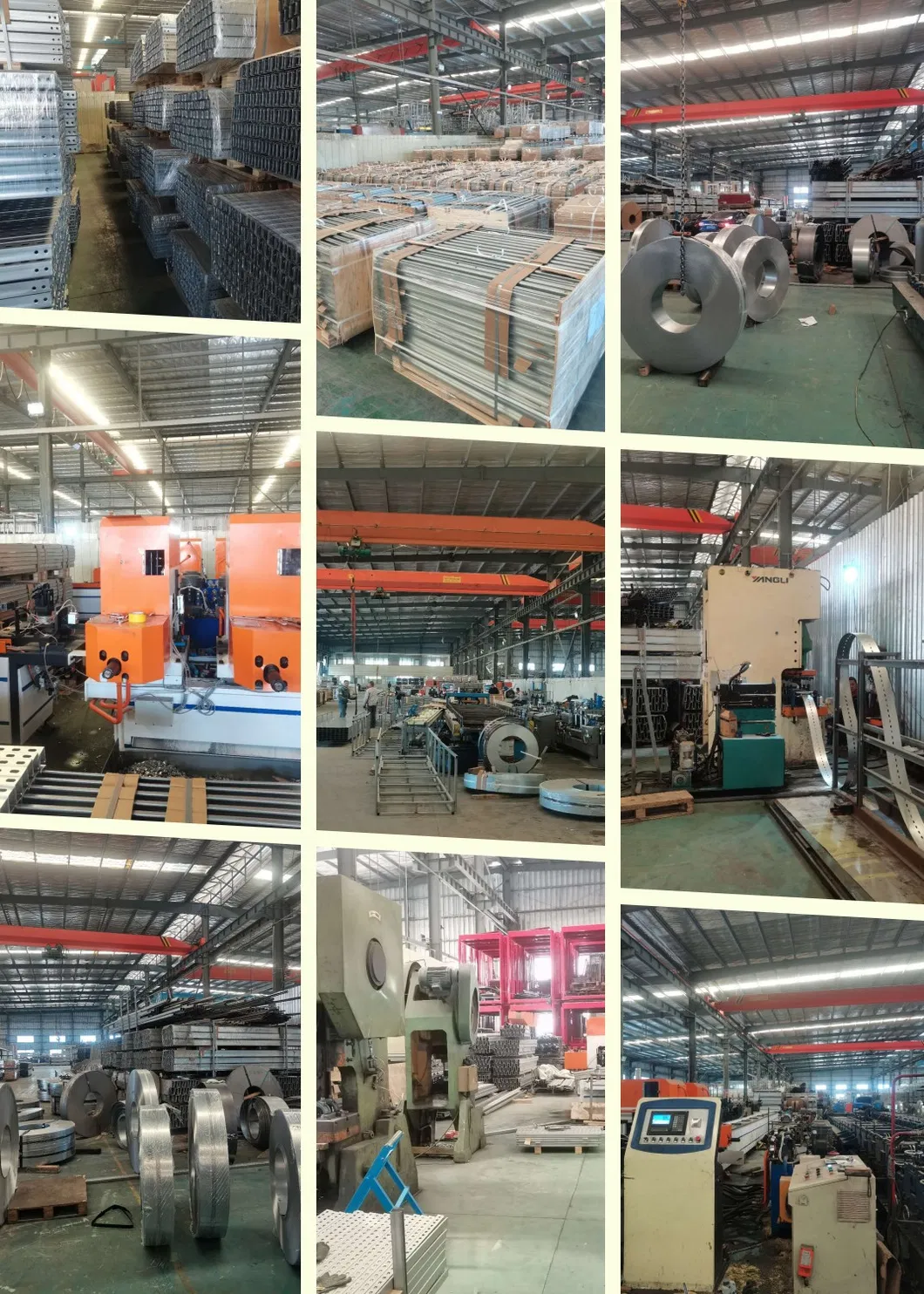

Workshop Capabilities: We operate professional aluminum and steel processing workshops. Our facilities include independent lines for cutting, drilling, stamping, and forging, with a monthly productivity of 40-50MW.
