| Installation site | According to your requirements |
| Material | Galvanized steel, Aluminum 6000 series |
| Fasten material | Aluminum, SUS304, Steel |
| Survival Wind Speed | < 60m/s |
| Design Snow load | Up to 1.4KN/ Square meters |
| Solar panel type | Framed or Frameless |
| Panel Orientation | Transverse or vertical |
| Design Standard | CE; ISO9001; SGS |
| Quality warranty | 12-25 years |
| Duration | More than 20 years |
| NO. | NAME | SIZE (mm) | QTY | MATERIAL |
|---|---|---|---|---|
| 1 | Roof Hook | - | 8 | AL6063-T5 |
| 2 | Drilling Screw | M5.5*60 | 32 | SUS304 |
| 3 | Rail | 2100 | 4 | AL6063-T5 |
| 4 | Rail Joiner | 200 | 2 | AL6063-T5 |
| 5 | Mid Clamp | Standard | 6 | AL6063-T5 |
| 6 | End Clamp | Standard | 4 | AL6063-T5 |

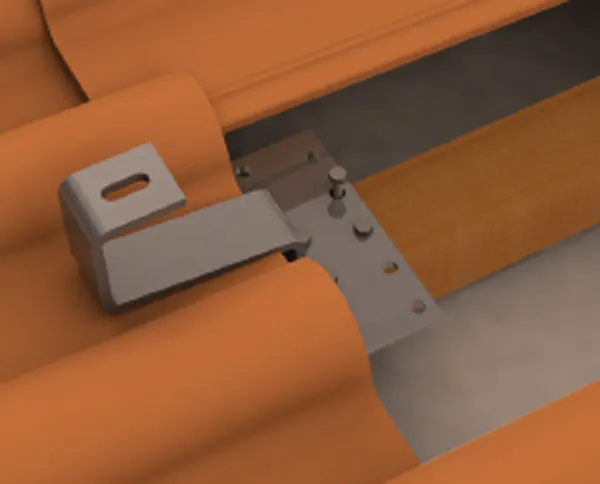

Fix roof hook onto the wooden beam with wood screws. Generally, three wood screws are sufficient for a secure fit.

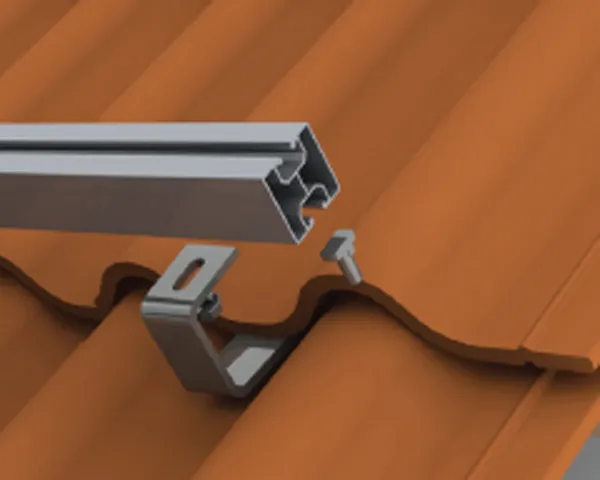

Fix the aluminum rail to the roof hook using the T-head bolt and flange nut provided in the kit.

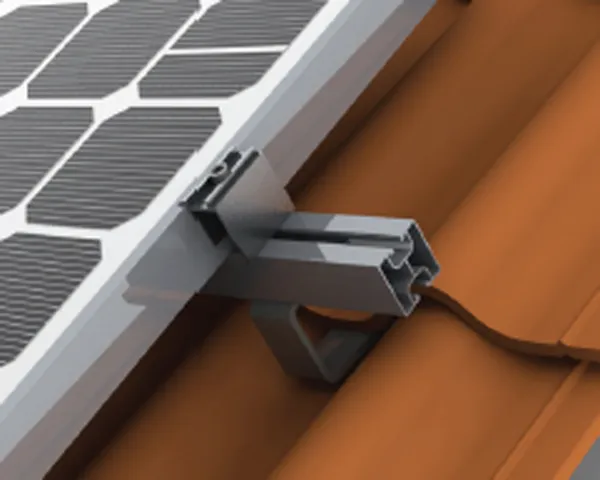

Fasten the hex bolt once the module clamps and PV modules are correctly positioned along the rail.

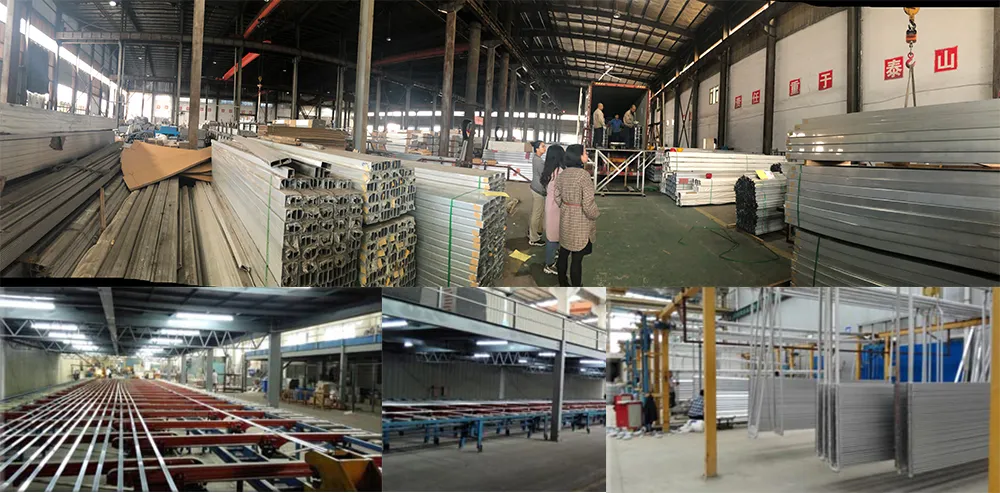

With over 20 years of experience in aluminum product manufacturing, we provide high-quality solar mounting solutions to over 15 countries. Our engineering team designs custom CAD drawings and develops molds tailored to specific client requirements.
To receive a customized system recommendation, please provide:
