Zinc Aluminium Magnesium Coating Solar Metal Roof Brackets Fixed Tilt Solar Racking

1 / 5

Zinc Aluminium Magnesium Coating Solar Metal Roof Brackets Fixed Tilt Solar Racking

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

Basic Information

Model NO.	Zn Al Mg Coated solar metal roof brackets
Certification	GB, ISO, CE, RoHS
Application	Commercial / Industrial Metal Roof
Material	Steel with Zn-Al-Mg Coating
System Type	2~5rows Linked Type/Independent Type
Max. Wind Speed	Operation: 24m/S \| Horizontal: 37m/S
Rust Protection	Zinc Aluminium Magnesium Coating (≥15μm)
Operating Temp	-40°℃ ~ +75℃
IP Protection	IP66
Design Life	30 Years+

Product Description

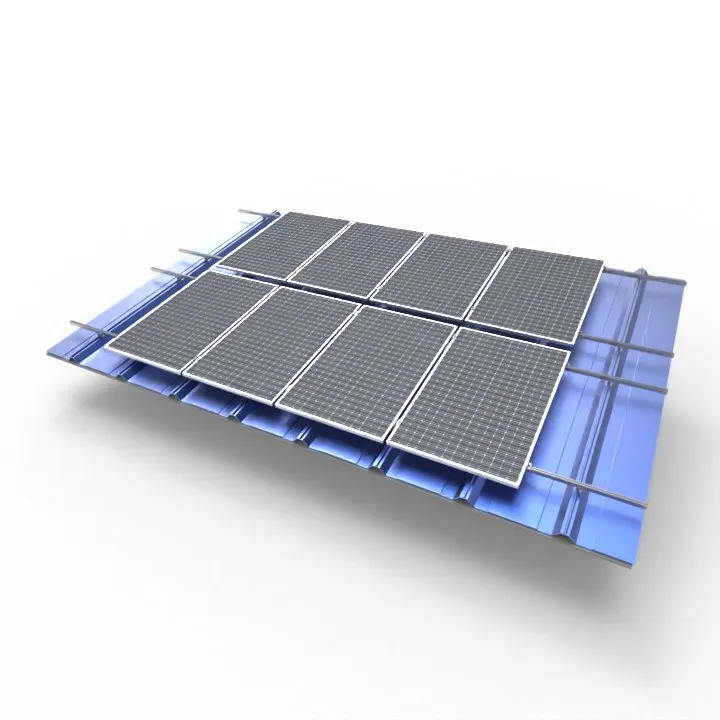

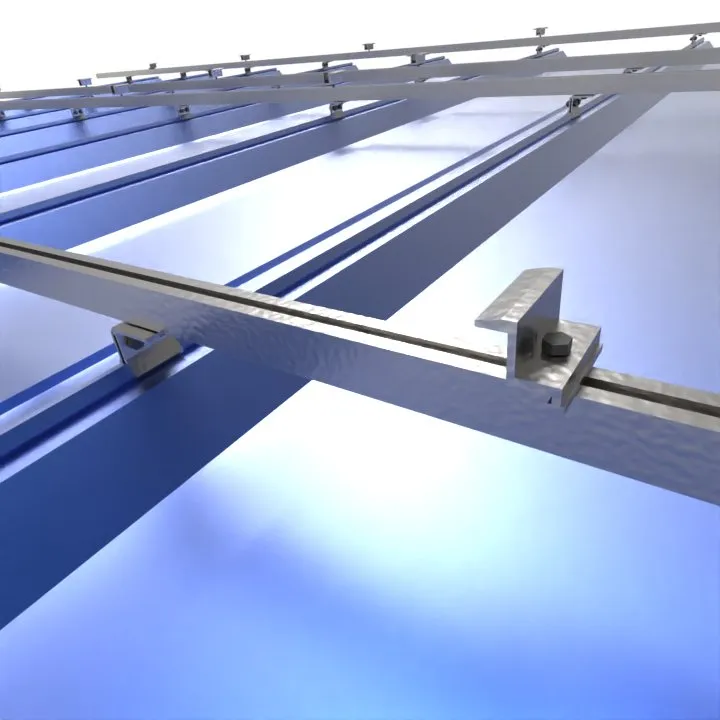

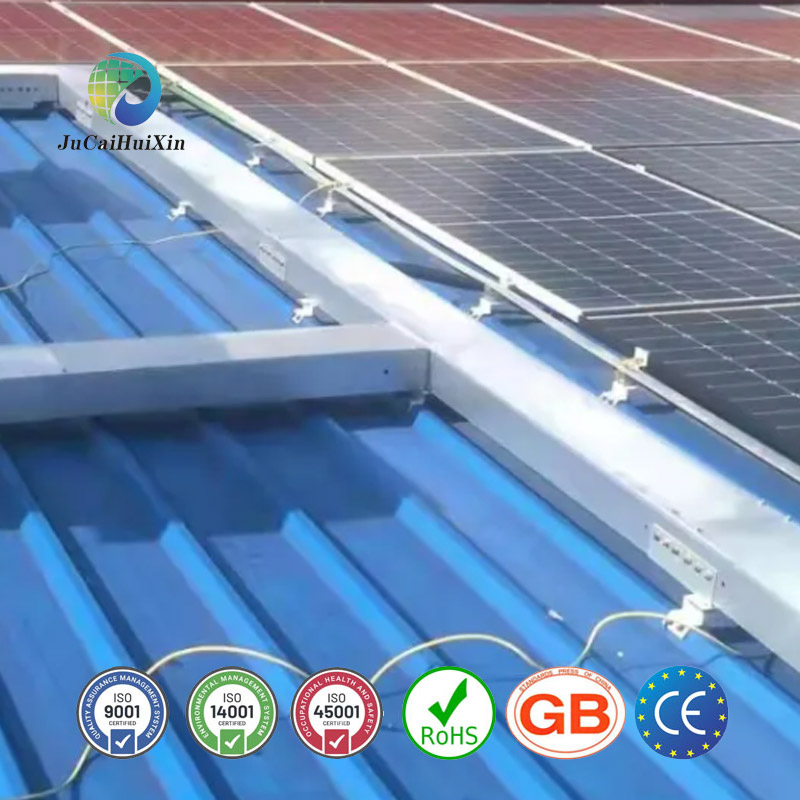

The zinc-aluminum-magnesium coated solar metal roof bracket is specially designed for metal roofs such as upright lock edges, corrugated panels, and trapezoidal panels. It adopts innovative zinc-aluminum-magnesium alloy coating (Zn+5-11%Al+2-3%Mg), forming a dense protective layer through advanced continuous hot-dip coating processes. This coating features unique self-healing properties and resists extreme corrosive environments like acid rain, salt spray, and industrial pollution. Ideal for high humidity, coastal areas, and chemical plants, the system supports 5°~35° tilt adjustment and is compatible with all mainstream solar panel models.

Technique	Cold Rolled/Hot Rolled	Zinc Coating	100G/M2~350G/M2
Thickness	0.3mm ~ 3mm	Hardness	G250, G300, G350, G400, G550
Processing	Welding, Punching, Cutting, Bending	Base Metal	Dx51d+Z, Dx51d+Az, Am, Zm

Key Advantages

1. Super Corrosion Resistance Resistance is 3-5 times that of traditional galvanizing. Passed ISO 9227 salt spray test for ≥2000 hours without red rust.

2. Lightweight & High-Strength Weight reduced by 20%, strength increased by 15%. Static load ≥5500Pa and wind resistance ≥160km/h.

3. Self-Repairing Properties The Zn-Al-Mg coating self-repairs through an oxide film at scratches, preventing the spread of rust during transport or installation.

4. All-Weather Adaptability High temperature resistance (-40°C~120°C) and UV aging resistance. Suitable for desert, coastal, and freeze-thaw climates.

5. Quick Installation Pre-drilled guide rails and universal clamp design increase installation efficiency by 30%.

6. Eco-Friendly Production energy consumption reduced by 30%. Coating is non-toxic and 100% recyclable (RoHS/REACH compliant).

Installation Instructions

Preparation: Use torque spanners and special cutting tools for Zn-Al-Mg coating to avoid surface damage.

Roof Planning: Confirm metal roof type and load-bearing capacity (≥25kg/m²).

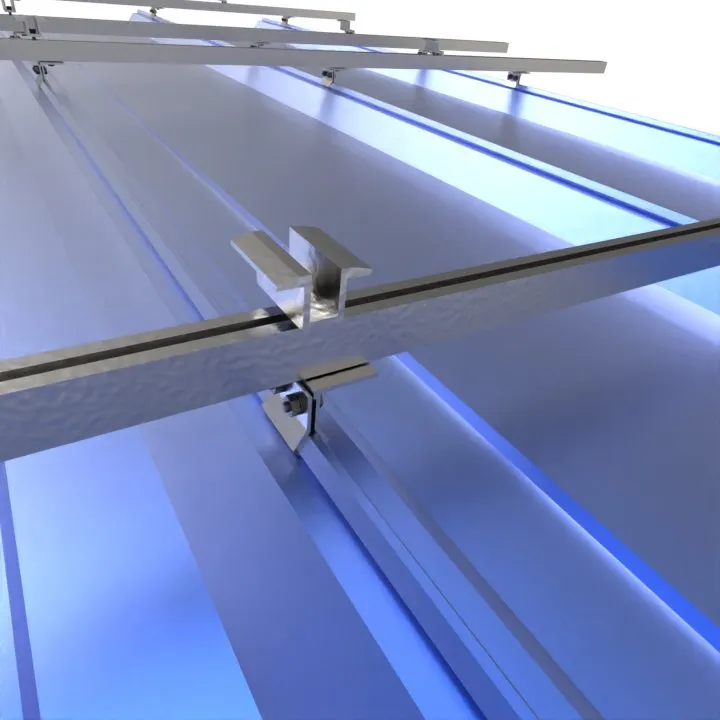

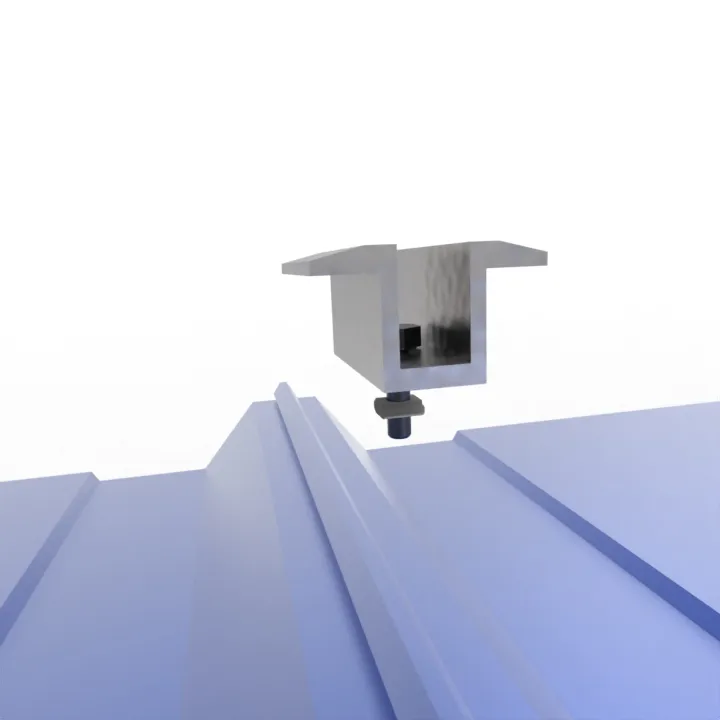

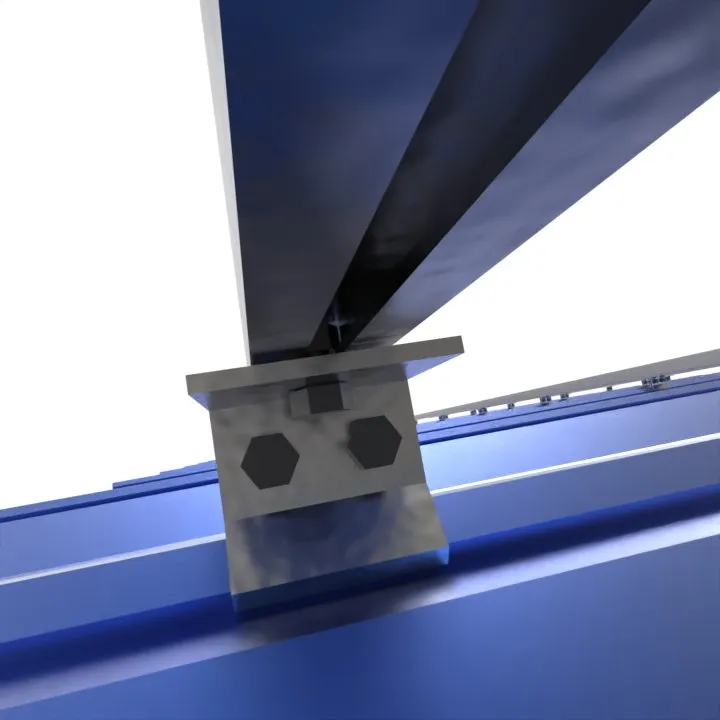

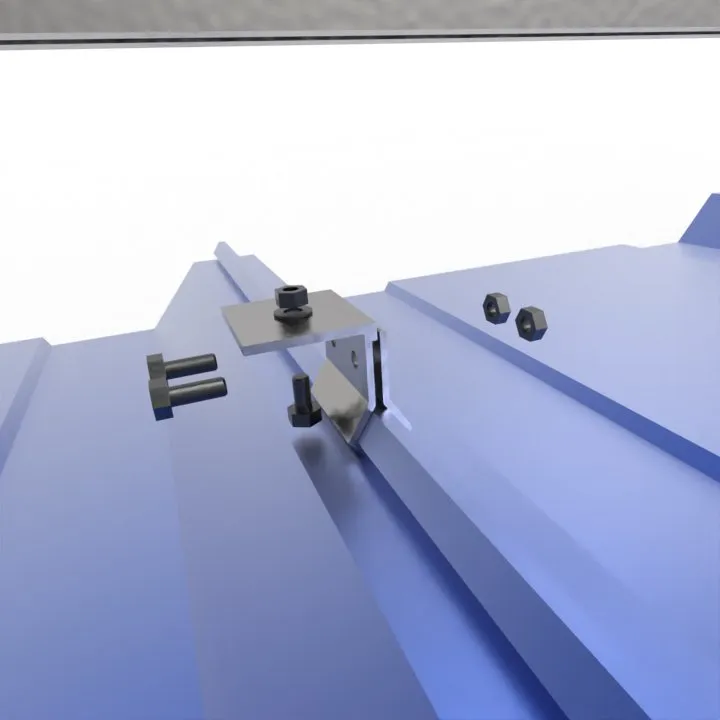

Fixture Positioning: For clamping types, use specific fixtures locked to 18-22Nm torque.

Rail Assembly: Connect coated guide rails using stainless steel bolts.

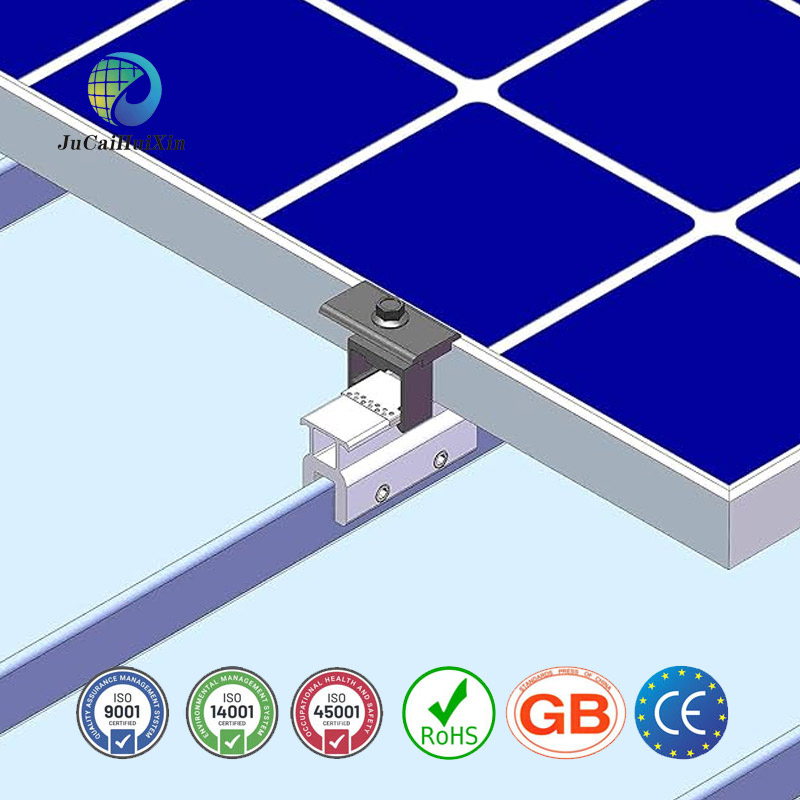

Panel Mounting: Fix panels using stainless steel clamps with insulating gaskets to prevent galvanic corrosion.

Sealing: Apply silicone sealant at penetration points and perform a 24-hour drenching test.

Frequently Asked Questions

Q1: What is the difference between Zn-Al-Mg coating and traditional galvanising? A: Zn-Al-Mg coating forms a denser oxide film, providing significantly better corrosion resistance, scratch resistance, and self-repairing ability, extending service life by more than 2 times compared to traditional G90 galvanising.

Q2: Is it suitable for coastal areas with high salt spray? A: Yes, it is certified to ISO 9227 Class C5 for very high corrosive environments, making it ideal for coastal and chemical industrial zones.

Q3: Will installation damage the coating? A: By using standardized tools and operations, damage is minimized. Any minor scratches are protected by the coating's unique self-repairing function.

Q4: How long is the warranty period? A: The Zn-Al-Mg coated structure is guaranteed for 30 years, and waterproof accessories are guaranteed for 12 years.

Q5: What are the maximum snow and wind loads? A: The system supports a static load of ≥ 5500Pa (approx. 560kg/m²) and wind resistance of ≥ 160km/h.

Q6: Is it compatible with all metal roof types? A: It is compatible with Standing Seam, Trapezoidal, and other mainstream metal roofs. We recommend providing a roof profile to confirm the exact fixture suitability.
